Notice IFM PB5021 - page 12
12 / 27
View the manual : Français FR Deutsch DE English EN
Pick your language and provide your email: we'll send you a specifically translated version.
Product typePressure sensor
BrandIFM
ModelPB5021
Power supply18...30 V DC
Max output current250 mA
Consumption50 mA
ProtectionReverse polarity, short circuit, overload
Protection ratingIP65 / IP67 depending on version
Materials in contact with fluidStainless steel 303, ceramic, FPM (Viton)
Fluid temperature-25...+80 °C
Ambient temperature-25...+80 °C
Switching point accuracy< ±2 % of measuring range
Repeatability< ±0.25 % of measuring range
Temperature drift< ±0.3 % / 10 °C
OutputPNP or NPN (depending on M12 connector)
FunctionAdjustable hysteresis (N.O. or N.C.)
Display10 green LED bar (pressure) + 1 yellow LED (switching status)
Adjustment2 push buttons (SET S/ENTER R, SET R/ENTER S)
MountingProcess connection (see Port Size label)
Electrical connectionM12 connector, 4-pin
LockingLocking by long press (10s) on both buttons
MaintenanceClean with a dry cloth, no solvents
RepairabilityNot repairable, replace the device if defective
Storage temperature-40...+100 °C
Shock resistance50 g (DIN/IEC 68-2-27)
Vibration resistance20 g (10-2000 Hz)

Frequently Asked Questions - PB5021 IFM

How to set the high set point (S)?
Press the SET S button for more than 5 seconds to enter programming mode. Keep it pressed until the desired value is reached (continuous increase or step by step). Confirm by briefly pressing ENTER S.
How to set the low set point (R)?
Press the SET R button for more than 5 seconds. Set the value by holding the button, then confirm with ENTER R. Note that the high set point must always be higher than the low set point.
What to do if all LEDs flash?
Flashing of all LEDs indicates a short circuit at the output. Check the wiring and eliminate the fault.
What is the required supply voltage?
The device requires a DC voltage of 18 to 30 V DC (according to EN50178, SELV/PELV).
How to lock the sensor to prevent unintentional adjustment?
Press both buttons simultaneously (SET S and SET R) for 10 seconds. The LEDs briefly turn off to confirm locking/unlocking.
What is the meaning of the green and yellow LEDs?
The green LEDs indicate the current circuit pressure in 10% increments. The yellow LED lights up when the output switches (N.O. or N.C. state).
Can the sensor be used with pressurized gaseous fluids?
Yes, but pressure is limited to 25 bar maximum for gases. Check material compatibility with the fluid.
How to read the pressure displayed on the LED bar?
The displayed value corresponds to the sum of the value of the steady LED and 1/10 of the value of the flashing LED. For example, for a 100 bar model, if LED 3 is steady and LED 8 is flashing, the pressure is 30 + 8 = 38 bar.
What is the maximum output current?
The output current is limited to 250 mA. The output is protected against short circuits and overloads.
How to clean the sensor?
Use a dry, non-abrasive cloth. Do not use solvents or aggressive chemicals.

User questions about PB5021 IFM

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Pressure sensor in PDF format for free! Find your manual PB5021 - IFM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PB5021 by IFM.

USER MANUAL PB5021 IFM

Electronic pressure sensor

natural_image Simple line drawing of a cylindrical device with two circular ports and a base (no text or symbols)
line | t | P | |-------|-------| | 0 | 0 | | 1 | 1 | | 2 | 1 | | 3 | 1 | | 4 | 1 | | 5 | 1 | | 6 | 1 | | 7 | 1 | | 8 | 1 | | 9 | 1 | | 10 | 1 | | 11 | 1 | | 12 | 1 | | 13 | 1 | | 14 | 1 | | 15 | 1 | | 16 | 1 | | 17 | 1 | | 18 | 1 | | 19 | 1 | | 20 | 1 | | 21 | 1 | | 22 | 1 | | 23 | 1 | | 24 | 1 | | 25 | 1 | | 26 | 1 | | 27 | 1 | | 28 | 1 | | 29 | 1 | | 30 | 1 | | 31 | 1 | | 32 | 1 | | 33 | 1 | | 34 | 1 | | 35 | 1 | | 36 | 1 | | 37 | 1 | | 38 | 1 | | 39 | 1 | | 40 | 1 | | 41 | 1 | | 42 | 1 | | 43 | 1 | | 44 | 1 | | 45 | 1 | | 46 | 1 | | 47 | 1 | | 48 | 1 | | 49 | 1 | | 50 | 1 | | 51 | 1 | | 52 | 1 | | 53 | 1 | | 54 | 1 | | 55 | 1 | | 56 | 1 | | 57 | 1 | | 58 | 1 | | 59 | 1 | | 60 | 1 | | 61 | 1 | | 62 | 1 | | 63 | 1 | | 64 | 1 | | 65 | 1 | | 66 | 1 | | 67 | 1 | | 68 | 1 | | 69 | 1 | | 70 | 1 | | 71 | 1 | | 72 | 1 | | 73 | 1 | | 74 | 1 | | 75 | 1 | | 76 | 1 | | 77 | 1 | | 78 | 1 | | 79 | 1 | | 80 | 1 | | 81 | 1 | | 82 | 1 | | 83 | 1 | | 84 | 1 | | 85 | 1 | | 86 | 1 | | 87 | 1 | | 88 | 1 | | 89 | 1 | | 90 | 1 | | 91 | 1 | | 92 | 1 | | 93 | 1 | | 94 | 1 | | 95 | 1 | | 96 | 1 | | 97 | 1 | | 98 | 1 | | 99 | 1 | | Note: The 'Schließer' and 'Öffner' waveforms are not explicitly provided in the code. The 'Hysterese' label is positioned above the plot area under the curve. There is no additional data series in this image. The values for 'Schließer' and 'Öffner' are estimated based on the given code.

Einstellbereiche:

Bestell-nummerSchaltpunkt (S)Rückschaltpunkt (R)in Schritten von
PB5xx0 20 ... 400 bar 12 ... 392bar 4 bar
PB5xx112,5 ... 250 bar 7,5 ... 245 bar 2,5 bar
PB5xx25 ... 100 bar 3 ... 98 bar 1 bar
PB5xx31,25 ... 25 bar 0,75 ... 24,5 bar 0,25 bar
PB5xx40,5 ... 10 bar 0,3 ... 9,8 bar 0,1 bar
PB5xx60,125 ... 2,5 bar 0,075 ... 2,45 bar0,025 bar
PB5xx70,05 ... 1,0 bar0,03 ... 0,98 bar 0,01 bar

2. Betriebsmodi

1 = BN (braun), 2 = WH (weiß), 3 = BU (blau), 4 = BK (schwarz)

5. Programmieren

Controls and visual indication

1 2 OUT 10 20 30 40 50 60 70 80 90 100 SET S ENTER R SET R ENTER S [bar] ① ② ③ ④

1LEDs greendisplay of the system pressure (lit LEDs, and of the switch-on point (flashing LED,))
2LED yellowswitching status;lights if the output has switched
3SET S / ENTER R buttonindication and adjustment of the switch-on point (S); acknowledgement of the switch-off point (R)*
4SET R / ENTER S buttonindication and adjustment of the switch-off point (R); acknowledgement of the switch-on point (S)*

*Setting: scrolling by holding pressed; incremental by pressing briefly

Contents

Safety instructions . . . . . . . . . . . . . . . . page 12

  1. Function and features ..... page 12
  2. Operating modes . . . . . . . . . . . . . . . . . page 14
  3. Installation . . . . . . . . . . . . . . . . . . . . . . . . page 15
  4. Electrical connection ..... page 15
  5. Programming ..... page 16
  6. Commissioning / Operation ..... page 17
  7. Technical data ..... page 17 Scale drawing ..... page 26

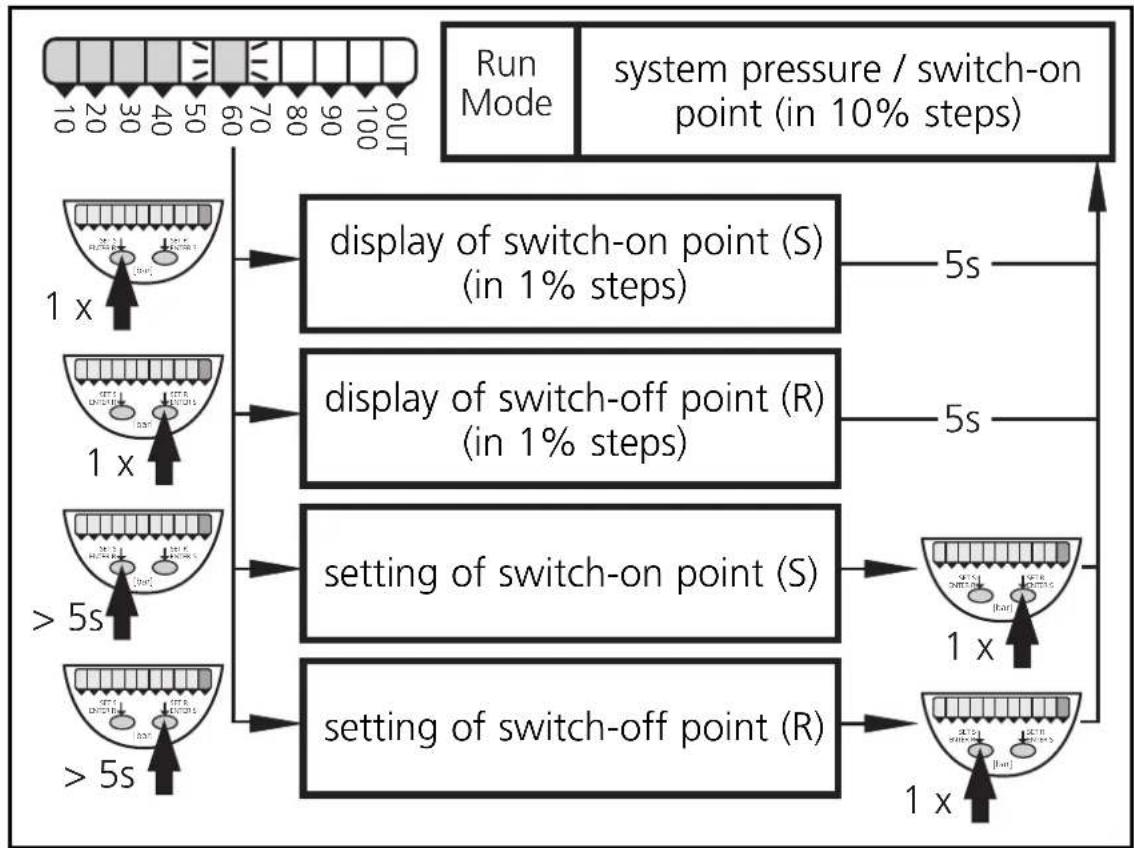

Menu structure
IFM PB5021 - Contents - 1


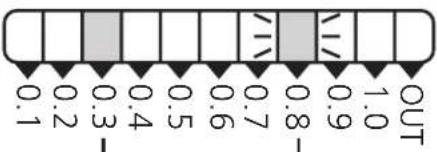

Display of S / R in 1% steps)= value of the lit LED (☐)+ 1/10 of the value of the flashingLED (≡≡)PBxxx30 ... 25 barIFM PB5021 - Contents - 27,5bar + 2bar = 9,5bar

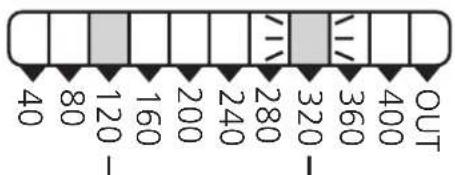

PBxxx00 ... 400 barIFM PB5021 - Contents - 3120bar + 32bar = 152barPBxxx40 ... 10 barIFM PB5021 - Contents - 43bar + 0,8bar = 3,8bar

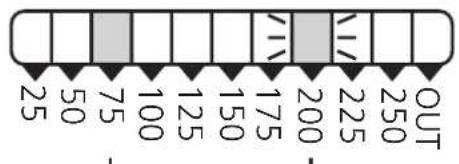

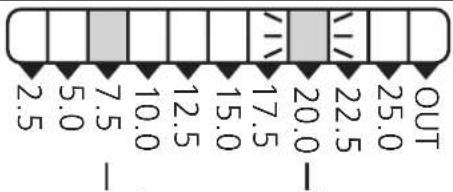

PBxxx10 ... 250 barIFM PB5021 - Contents - 575bar + 20bar = 95barPBxxx60 ... 2,5 bar0.250.750.100.1251.501.751.200.25OUT0,75bar + 0,2bar = 0,95bar

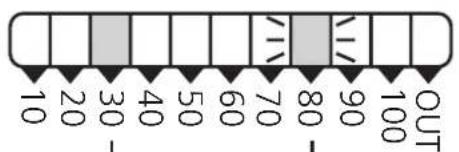

PBxxx20 ... 100 barIFM PB5021 - Contents - 630bar + 8bar = 38barPBxxx70 ... 1 barIFM PB5021 - Contents - 70,3bar + 0,08bar = 0,38bar

Safety instructions

Please read the product description prior to installing the unit. Please check that the product is suitable for your application without any restrictions.

If the operating instructions or the technical data are not adhered to, personal injury and/or damage to property may occur.

Please check in all applications that the product materials (see Technical data) are compatible with the media to be measured.

For gaseous media the application is limited to max. 25 bar.

1. Function and features

The pressure sensor detects whether a preset value has been reached or not and indicates this by a switched signal.

In addition a row of LEDs signals the current system pressure and the switch point (both in 10% steps).

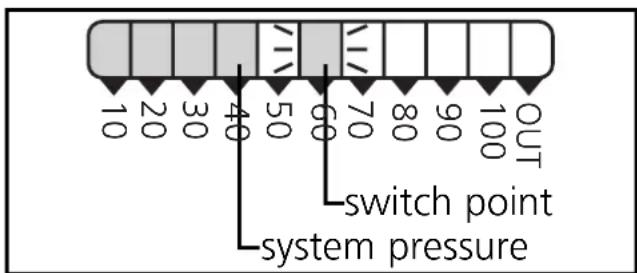

10 20 30 40 50 60 70 80 90 100 OUT switch point system pressure

□ = lit LED

= flashing LED

Applications (type of pressure: relative pressure):

Measuring rangeOrder no.overl. pressureBursting pressure
PB5xx0 0 ...400 bar 600 bar 100bar
PB5xx1 0 ...250 bar 400 bar 850bar
PB5xx2 0 ...100 bar 300 bar 650bar
PB5xx3 0 ...25 bar 100 bar 350bar
PB5xx4 0 ...10 bar 50 bar 150bar
PB5xx6 0 ...2,5 bar 20 bar 50bar
PB5xx7 0 ...1 bar 10bar 30 bar

IFM PB5021 - Function and features - 2

Avoid static and dynamic overpressure exceeding the given overload pressure.

Even if the bursting pressure is exceeded only for a short time the unit can be destroyed (danger of injuries)!

IFM PB5021 - Function and features - 3

Indication of the current system pressure as from 5% of the value of the measuring range. “All LEDs OUT” does not mean that the system is free of pressure!

The unit

  • can be used as N.O. or N.C.
    • and operates with the hysteresis function.

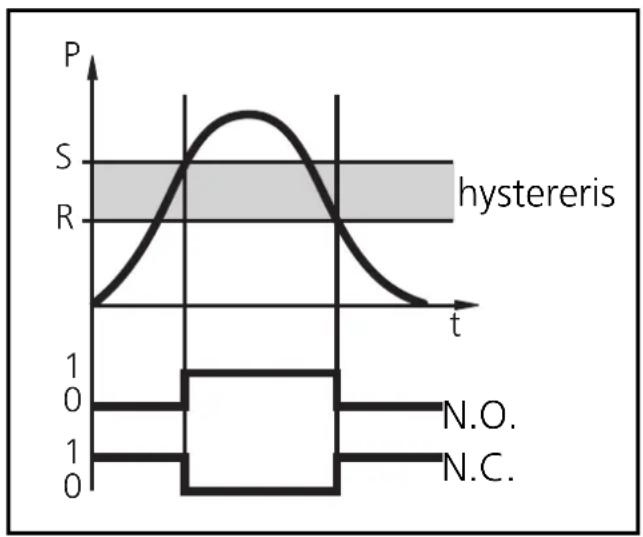

When the system pressure is rising, the output switches when the switch-on point has been reached (S); when the system pressure is falling again, the output switches back when the switch-off point (R) has been reached.

The hysteresis can be set: First the switch-on point is set, then the switch-off point with the requested difference.

IFM PB5021 - The unit - 1

line | t | P | | ---- | ----- | | 0 | 0 | | 1 | 1 | | 2 | 1 | | 3 | 1 | | 4 | 1 | | 5 | 1 | | 6 | 1 | | 7 | 1 | | 8 | 1 | | 9 | 1 | | 10 | 1 | | 11 | 1 | | 12 | 1 | | 13 | 1 | | 14 | 1 | | 15 | 1 | | 16 | 1 | | 17 | 1 | | 18 | 1 | | 19 | 1 | | 20 | 1 | | 21 | 1 | | 22 | 1 | | 23 | 1 | | 24 | 1 | | 25 | 1 | | 26 | 1 | | 27 | 1 | | 28 | 1 | | 29 | 1 | | 30 | 1 | | 31 | 1 | | 32 | 1 | | 33 | 1 | | 34 | 1 | | 35 | 1 | | 36 | 1 | | 37 | 1 | | 38 | 1 | | 39 | 1 | | 40 | 1 | | 41 | 1 | | 42 | 1 | | 43 | 1 | | 44 | 1 | | 45 | 1 | | 46 | 1 | | 47 | 1 | | 48 | 1 | | 49 | 1 | | 50 | 1 | | 51 | 1 | | 52 | 1 | | 53 | 1 | | 54 | 1 | | 55 | 1 | | 56 | 1 | | 57 | 1 | | 58 | 1 | | 59 | 1 | | 60 | 1 | | 61 | 1 | | 62 | 1 | | 63 | 1 | | 64 | 1 | | 65 | 1 | | 66 | 1 | | 67 | 1 | | 68 | 1 | | 69 | 1 | | 70 | 1 | | 71 | 1 | | 72 | 1 | | 73 | 1 | | 74 | 1 | | 75 | 1 | | 76 | 1 | | 77 | 1 | | 78 | 1 | | 79 | 1 | | 80 | 1 | | 81 | 1 | | 82 | 1 | | 83 | 1 | | 84 | 1 | | 85 | 1 | | 86 | 1 | | 87 | 1 | | 88 | 1 | | 89 | 1 | | 90 | 1 | | 91 | 1 | | 92 | 1 | | 93 | 1 | | 94 | 1 | | 95 | 1 | | 96 | 1 | | 97 | 1 | | 98 | 1 | | 99 | 1 | | Note: The data is in a format where 'N.O.' and 'N.C.' are not explicitly provided in the code. The 'hystereris' label indicates the specific time point on the x-axis. There is no additional data series in this view.

Setting range:

Switch-on point (S)Switch-off point (R)in steps ofOrde
PB5xx0 20 ... 400 bar 12 ... 392bar 4 bar
PB5xx112.5 ... 250 bar 7.5 ... 245 bar 2,5 bar
PB5xx25 ... 100 bar 3 ... 98 bar 1 bar
PB5xx31.25 ... 25 bar 0.75 ... 24.5 bar 0.25 bar
PB5xx40.5 ... 10 bar 0.3 ... 9.8 bar 0.1 bar
PB5xx60.125 ... 2.5 bar 0.075 ... 2.45 bar0.025 bar
PB5xx70.05 ... 1.0 bar0.03 ... 0.98 bar 0.01 bar

2. Operating modes

The unit has the following operating modes:

Run mode (normal operating mode), display mode (indication of the switch-on / switch-off point), programming mode (setting of the switch-on / switch-off point).

Run mode:

When the supply voltage has been applied, the unit is in the Run mode. It monitors and switches the transistor output according to the set hysteresis.

The green LEDs indicate the current system pressure, the yellow LED indicates the switching state of the output.

Display mode:

When the button "SET S" (or "SET R") is pressed for a short time, the unit passes to the Display mode. Internally it remains in the operating mode. Irrespective of this the switch-on / switch-off point can be read in 1% steps.

- When the button is pressed for a short time, the corresponding value is displayed for approx. 5s; then the unit returns to the Run mode.

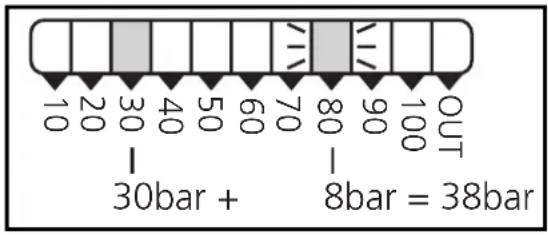

10 20 30 40 50 60 70 80 90 100 OUT 30bar + 8bar = 38bar

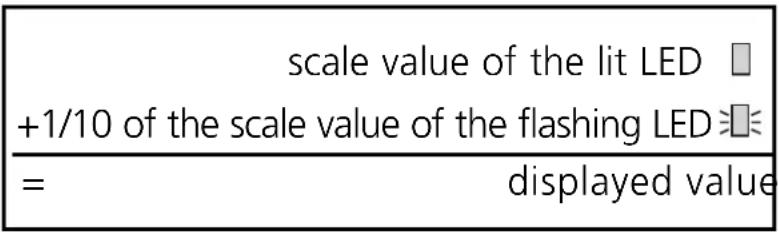

scale value of the lit LED +1/10 of the scale value of the flashing LED ≧= displayed value

Programming mode:

The unit passes to the programming mode when after the selection of a parameter value (Display mode) the "Set" button is pressed until the display of the parameter value is changed. Internally the unit remains in the operating mode. It continues its monitoring function with the existing parameters until the change has been terminated.

You can change the parameter value by pressing the "Set" button and confirm it by pressing the "Mode/Enter" button. The unit returns to the Run mode when no button has been pressed for 5s.

3. Installation

IFM PB5021 - Installation - 1

Before mounting and removing the sensor, make sure that no pressure is applied to the system.

Mount the pressure sensor on a suitable process connection (see type label "Port Size").

4. Electrical connection

IFM PB5021 - Electrical connection - 1

The unit must only be connected by an electrician.

The national and international regulations for the installation of electrical equipment must be observed.

Voltage supply to EN50178, SELV, PELV.

Disconnect power before connecting the unit.

Wiring:

M12 connector DC PNP1 BN L+ 4 BK 3 BU L- L-3 BU L+ 4 BK 1 BN L- L-
M12 connector DC NPN1 BN L+ 4 BK 3 BU L- L-3 BU L+ 4 BK 1 BN L- L-
SS connector DC PNP1 L+ 3 2 L- L-2 L+ 3 1 L-

Core colours of ifm sockets:

1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black).

5. Programming

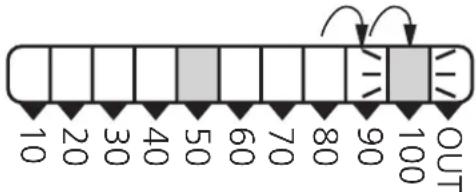

Increase the switch-on point / switch-off point

1IFM PB5021 - Increase the switch-on point / switch-off point - 1Press the SET S-button* and keep it pressed until the requested switch point is displayed.As soon as the LED starts moving the switch point can be increased (incremental by pressing briefly or scrolling by holding pressed).IFM PB5021 - Increase the switch-on point / switch-off point - 2After 5s the flashing LED moves from left to right.IFM PB5021 - Increase the switch-on point / switch-off point - 3fter LED 9 has been reached the cycle starts again at LED 0. The LED which is constantly lit moves on by one position.**
2IFM PB5021 - Increase the switch-on point / switch-off point - 4Press the ENTER S-button* briefly (acknowledgement).The set switch point becomes effective; the unit passes into the operating mode.

* SET R button to set the switch-off point
ENTER R button to acknowledge the setting of the switch-off point
The switch-on point (S) is always higher than the switch-off point (R). The unit does not accept values for R which are higher than S.
**Overflow: If the flashing LED and the lit LED exceed the maximum setting value, the cycle starts again at the minimum setting value.

Decrease the switch-on point / switch-off point

Let the flashing and lit LEDs move to the maximum setting value. Then the cycle starts again at the minimum setting value.

Locking / Unlocking

The unit can be electronically locked to prevent unwanted adjustment of the set parameters: Press both pushbuttons for 10s. Indication goes out briefly (acknowledgement of locking / unlocking). Units are delivered from the factory in the unlocked state.

6. Commissioning / Operation

After mounting, wiring and setting check whether the unit operates correctly. Faults displayed during operation: All LEDs flashing in case of short-circuit.

  1. Technical data
Operating voltage [V] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 ... 30 DCCurrent rating [mA]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . short-circuit protection, reverse polarity protection / overload protection, integrated watchdogVoltage drop[ [V] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 2Current consumption [mA] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Repeatability [% of value of measuring range] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Accuracy of switch point [% of value of measuring range] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Temperature drift [% of value of measuring range / 10 K] . . . . . . . . . . . . . . . . . . . . . . . . . . . . in the temperature range [°C] . . . . . . . . . . . . . . . . . . . . . . -25 ... +80Power-on delay time [s] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.2
Materials (wetted parts) . . . . . stainless steel (303S22); ceramics; FPM (Viton)Housing material... EEPDM/X (Santoprene); FPM (Viton); NBR (Buna N); PA; Pocan; PC (Macrolon); stainless steel (304S15)Protection PB5x00 ... PB5x07 IP 65 / IIIProtection PB5x20 ... PB5x22 IP 67 / IIIProtection PB5x23 ... PB5x27 IP 65* / IIIInsulation resistance [MΩ] > 100 (500 V DC)Shock resistance [g] 50 (DIN / IEC 68-2-27, 11ms)Vibration resistance [g] 20 (DIN / IEC 68-2-6, 10 - 2000 Hz)Switching cycles min. 100 millionAmbient temperature [°C] -25 ... +80Medium temperature [°C] -25 ... +80Storage temperature [°C] -40 ... +100EMCIEC 1000/4/2 ESD: 4 / 8 KVIEC 1000/4/3 HF radiated: 10 V/mIEC 1000/4/4 Burst: 2 KVIEC 1000/4/6 HF conducted: 10 V

*Encreased protection (IP 67) with accessories (Order no. E30038).

Applications (type de pression: pression relative):

N° de commandeEtendue de mesureSurpression admissiblePression d’éclatement
PB5xx0 0 ...400 bar 600 bar 1000 bar
PB5xx1 0 ...250 bar 400 bar 850 bar
PB5xx2 0 ...100 bar 300 bar 650 bar
PB5xx3 0 ...25 bar 100 bar 350 bar
PB5xx4 0 ...10 bar 50 bar 150 bar
PB5xx6 0 ...2,5 bar 20 bar 50 bar
PB5xx7 0 ...1 bar 10 bar 30 bar

IFM PB5021 - Commissioning / Operation - 1

line | t | P | | ---- | ----- | | 0 | 0 | | 1 | 1 | | 2 | 1 | | 3 | 1 | | 4 | 1 | | 5 | 1 | | 6 | 1 | | 7 | 1 | | 8 | 1 | | 9 | 1 | | 10 | 1 | | 11 | 1 | | 12 | 1 | | 13 | 1 | | 14 | 1 | | 15 | 1 | | 16 | 1 | | 17 | 1 | | 18 | 1 | | 19 | 1 | | 20 | 1 | | 21 | 1 | | 22 | 1 | | 23 | 1 | | 24 | 1 | | 25 | 1 | | 26 | 1 | | 27 | 1 | | 28 | 1 | | 29 | 1 | | 30 | 1 | | 31 | 1 | | 32 | 1 | | 33 | 1 | | 34 | 1 | | 35 | 1 | | 36 | 1 | | 37 | 1 | | 38 | 1 | | 39 | 1 | | 40 | 1 | | 41 | 1 | | 42 | 1 | | 43 | 1 | | 44 | 1 | | 45 | 1 | | 46 | 1 | | 47 | 1 | | 48 | 1 | | 49 | 1 | | 50 | 1 | | 51 | 1 | | 52 | 1 | | 53 | 1 | | 54 | 1 | | 55 | 1 | | 56 | 1 | | 57 | 1 | | 58 | 1 | | 59 | 1 | | 60 | 1 | | 61 | 1 | | 62 | 1 | | 63 | 1 | | 64 | 1 | | 65 | 1 | | 66 | 1 | | 67 | 1 | | 68 | 1 | | 69 | 1 | | 70 | 1 | | 71 | 1 | | 72 | 1 | | 73 | 1 | | 74 | 1 | | 75 | 1 | | 76 | 1 | | 77 | 1 | | 78 | 1 | | 79 | 1 | | 80 | 1 | | 81 | 1 | | 82 | 1 | | 83 | 1 | | 84 | 1 | | 85 | 1 | | 86 | 1 | | 87 | 1 | | 88 | 1 | | 89 | 1 | | 90 | 1 | | 91 | 1 | | 92 | 1 | | 93 | 1 | | 94 | 1 | | 95 | 1 | | 96 | 1 | | 97 | 1 | | 98 | 1 | | 99 | 1 | | Note: The data is labeled as 'N.O.' and 'N.F.' for the x-axis values. There is no additional data series in this code. The y-axis label 'P' appears to be the same as 'P'. The chart includes a legend box at the bottom.

Plage de réglage:

N° de commandeConsigne haute (S)Consigne basse (R)en pas de
PB5xx0 20 ... 400 bar 12 ... 392bar 4 bar
PB5xx112,5 ... 250 bar 7,5 ... 245 bar 2,5 bar
PB5xx25 ... 100 bar 3 ... 98 bar 1 bar
PB5xx31,25 ... 25 bar 0,75 ... 24,5 bar 0,25 bar
PB5xx40,5 ... 10 bar 0,3 ... 9,8 bar0,1 bar
PB5xx60,125 ... 2,5 bar0,075 ... 2,45 bar0,025 bar
PB5xx70,05 ... 1,0 bar0,03 ... 0,98 bar 0,01 bar

1 = BN (brun), 2 = WH (blanc), 3 = BU (bleu), 4 = BK (noir).

5. Programmation

1 = Programmiertaste2 = Prozeßanschluß
1 = programming button2 = process connection
1 = bouton poussoir2 = montage process
1 = Programmiertaste2 = Prozeßanschluß
1 = programming button2 = process connection
1 = bouton poussoir2 = montage process
