Product Type	Pressure sensor
Brand	IFM
Model	PB5222
Category	Pressure sensor
Supply Voltage	18...30 V DC
Max Output Current	250 mA
Integrated Protection	Short-circuit, reverse polarity, overload
Switching Accuracy	< ±2% of measuring range
Repeatability	< ±0.25% of measuring range
Ambient Temperature Range	-25...+80 °C
Materials in contact with fluid	Stainless steel 303, ceramic, FPM (Viton)
Protection Rating	IP 65 / IP 67 depending on version
Output	Transistor switching (N.O. or N.C.)
Display	Green LED bar (pressure) + yellow LED (switching status)
Switching Function	Adjustable hysteresis
Mounting	Process connection (see label "Port Size")
Electrical Connection	IFM female connector (wire colors)
Operating Modes	Run, Display, Programming
Safety	Avoid pressure peaks beyond admissible overpressure
Maintenance	Check absence of pressure before any intervention

Frequently Asked Questions - PB5222 IFM

How to adjust the high setpoint (S)?

Press the SET S button for 5 seconds to enter programming mode. Hold it until the desired value is reached (step by step or continuous). Confirm by briefly pressing ENTER S.

How to adjust the low setpoint (R)?

Proceed in the same way as with the high setpoint, but use the SET R button to adjust and ENTER R to confirm.

What do the green LEDs mean?

The green LEDs indicate the current pressure of the circuit in steps of 10% of the measuring range. A lit LED represents the tens, a flashing LED the units.

What if all LEDs flash?

This indicates a short circuit at the output. Check the wiring and eliminate the fault. The device will restart normally.

What is the maximum pressure range?

The range depends on the version. For example, the PB5xx3 model measures from 0 to 25 bar, while the PB5xx0 goes up to 400 bar. Check the product label for the exact value.

How to lock the device to prevent accidental programming?

Press both buttons simultaneously (SET S and SET R) for 10 seconds. The display briefly turns off to confirm locking. Repeat the operation to unlock.

What type of fluid can be measured?

The device is suitable for fluids compatible with the contact materials: Stainless steel 303, ceramic, and FPM (Viton). For gases, the pressure is limited to 25 bar maximum.

What is the required supply voltage?

The power supply must be a DC voltage between 18 and 30 V DC, according to EN50178 (TBTS/TBTP).

How to mount the sensor?

Before mounting, ensure the circuit is not under pressure. Use an appropriate process connection (see the Port Size label). Tighten by hand or with a wrench on the designated part.

What to do in case of short circuit?

The device detects the short circuit and makes all LEDs flash. Cut the power, check the wiring, and correct the fault. The sensor is protected against overloads and polarity reversals.

USER MANUAL PB5222 IFM

1 = BN (braun), 2 = WH (weiβ), 3 = BU (blau), 4 = BK (schwarz)

5. Programmieren

Controls and visual indication

①	LEDs green	display of the system pressure (lit LEDs, ☐ and of the switch-on point (flashing LED, ☑
②	LED yellow	switching status; lights if the output has switched
③	SET S / ENTER R button	indication and adjustment of the switch-on point (S); acknowledgement of the switch-off point (R)*
④	SET R / ENTER S button	indication and adjustment of the switch-off point (R); acknowledgement of the switch-on point (S)*
		*Setting: scrolling by holding pressed; incremental by pressing briefly

Contents

Safety instructions page 12

1. Function and features 12
2. Operating modes . page 14
3. Installation 15
4. Electrical connection page 15
5. Programming 16
6. Commissioning / Operation 17
7. Technical data page 17 Scale drawing page 26

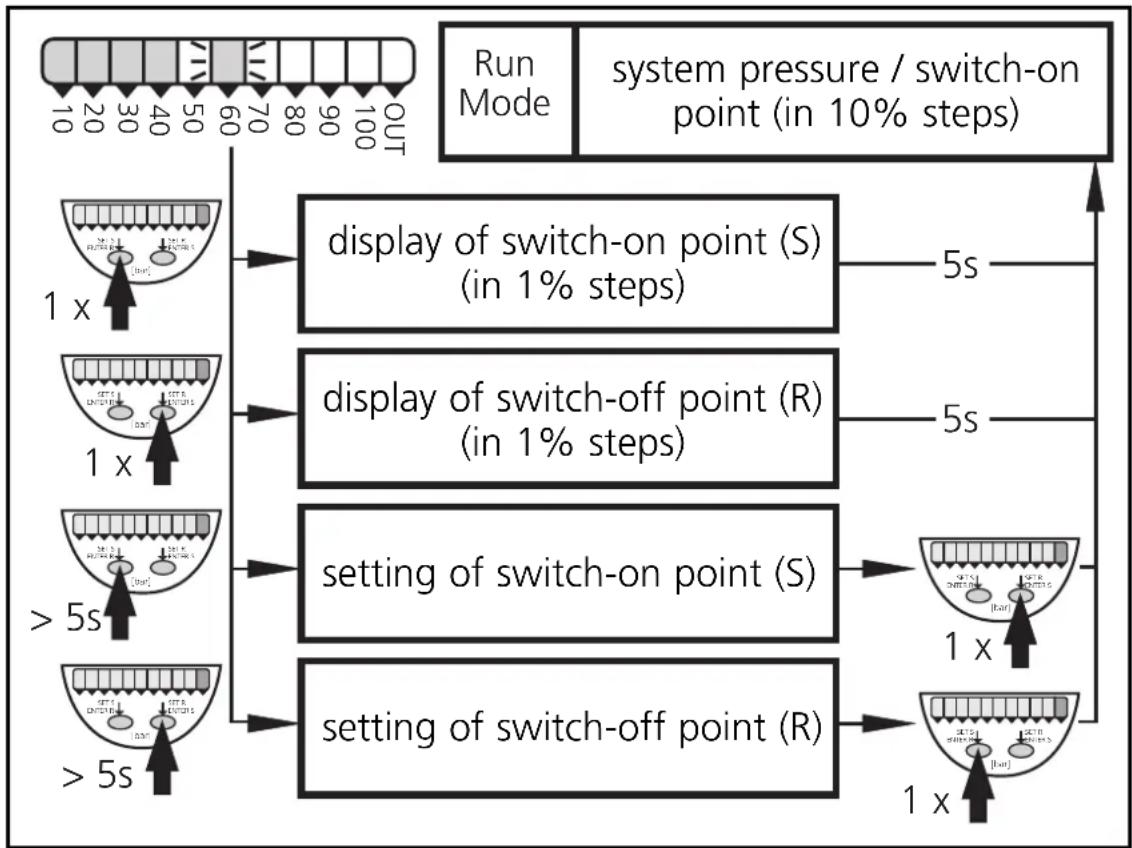

Menu structure

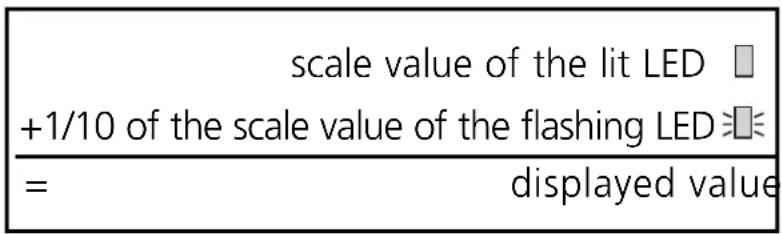

Display of S / R in 1% steps) = value of the lit LED (□) + 1/10 of the value of the flashing LED (※)		PBxxx3 0 ... 25 bar
PBxxx0 0 ... 400 bar	120bar + 32bar = 152bar	PBxxx4 0 ... 10 bar
	75bar + 20bar = 95bar	PBxxx6 0 ... 2.5 bar
PBxxx2 0 ... 100 bar	100bar + 8bar = 38bar	PBxxx7 0 ... 1 bar

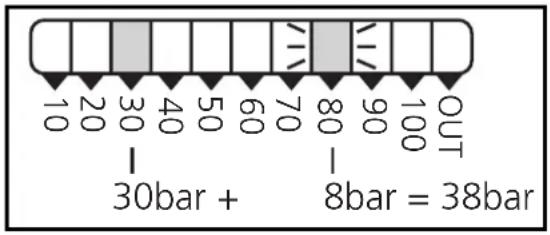

	30bar + 8bar = 38bar	PBxxx8 0 ... 10 bar

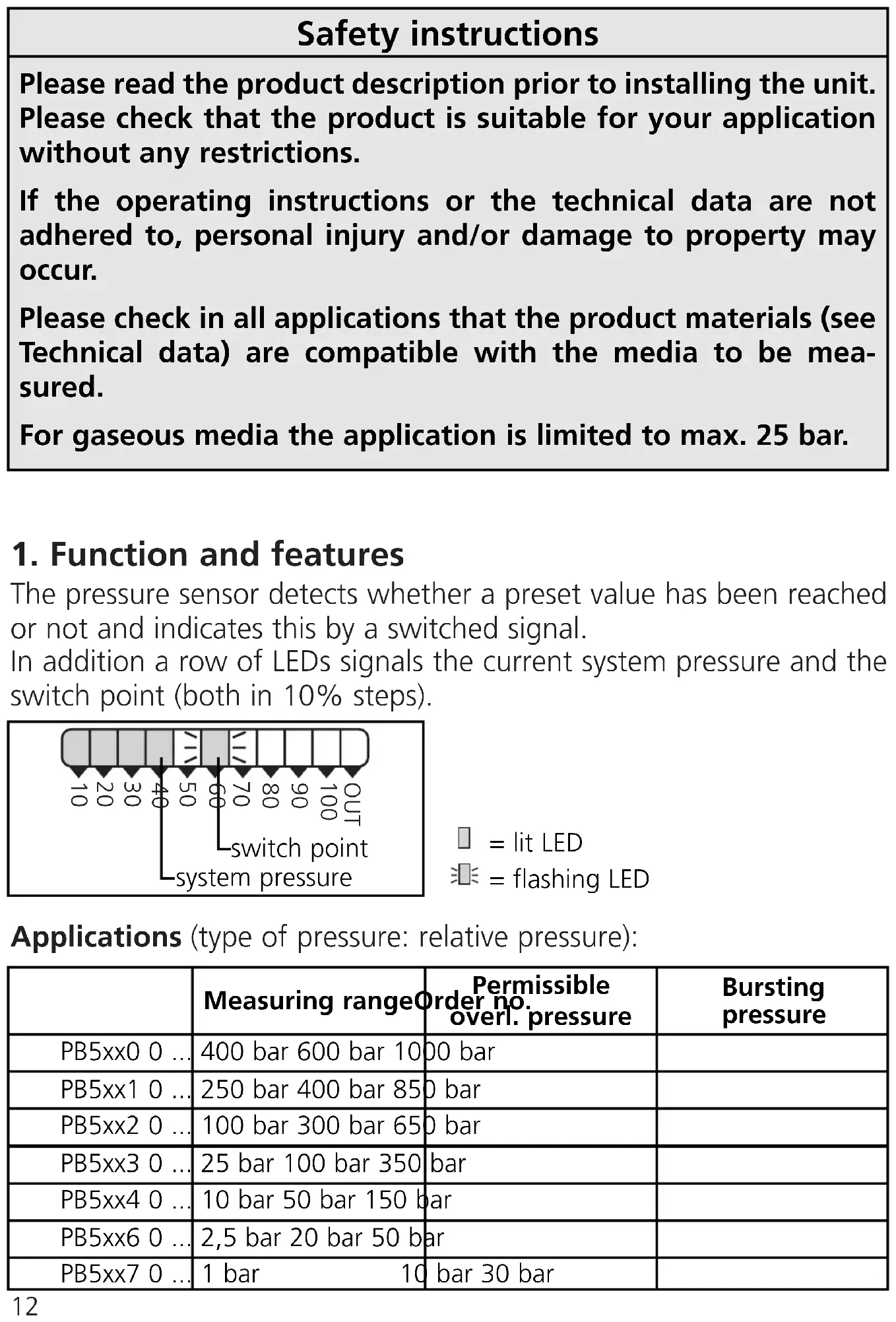

Safety instructions

Please read the product description prior to installing the unit. Please check that the product is suitable for your application without any restrictions.

If the operating instructions or the technical data are not adhered to, personal injury and/or damage to property may occur.

Please check in all applications that the product materials (see Technical data) are compatible with the media to be measured.

For gaseous media the application is limited to max. 25 bar.

1. Function and features

The pressure sensor detects whether a preset value has been reached or not and indicates this by a switched signal.

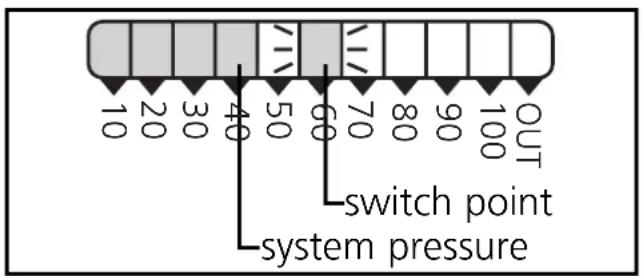

In addition a row of LEDs signals the current system pressure and the switch point (both in 10% steps).

= lit LED

= flashing LED

Applications (type of pressure: relative pressure):

	Measuring range	Order no. overl. pressure	Bursting pressure
PB5xx0 0 ...	400 bar 600 bar 1000 bar
PB5xx1 0 ...	250 bar 400 bar 850 bar
PB5xx2 0 ...	100 bar 300 bar 650 bar
PB5xx3 0 ...	25 bar 100 bar 350 bar
PB5xx4 0 ...	10 bar 50 bar 150 bar
PB5xx6 0 ...	2,5 bar 20 bar 50 bar
PB5xx7 0 ...	1 bar 10 bar 30 bar

Avoid static and dynamic overpressure exceeding the given overload pressure.

Even if the bursting pressure is exceeded only for a short time the unit can be destroyed (danger of injuries)!

Indication of the current system pressure as from 5% of the value of the measuring range. "All LEDs OUT" does not mean that the system is free of pressure!

The unit

can be used as N.O. or N.C.
- and operates with the hysteresis function.

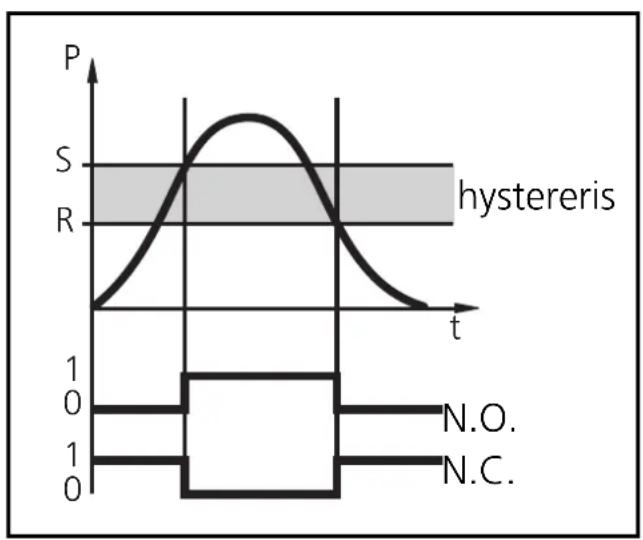

When the system pressure is rising, the output switches when the switch-on point has been reached (S); when the system pressure is falling again, the output switches back when the switch-off point (R) has been reached.

The hysteresis can be set: First the switch-on point is set, then the switch-off point with the requested difference.

Setting range:

	Switch-on point (S)	Switch-off point (R)	in steps ofOrd
PB5xx0 20...400 bar 12...392	bar 4 bar
PB5xx1	12.5...250 bar 7.5...245 bar 2,5 bar
PB5xx2	5...100 bar 3...98 bar 1 bar
PB5xx3	1.25...25 bar 0.75...24.5 bar 0.25 bar
PB5xx4	0.5...10 bar 0.3...9.8 bar 0.1 bar
PB5xx6	0.125...2.5 bar 0.075...2.45 bar	0.025 bar
PB5xx7	0.05...1.0 bar	0.03...0.98 bar	0.01 bar

2. Operating modes

The unit has the following operating modes:

Run mode (normal operating mode), display mode (indication of the switch-on / switch-off point), programming mode (setting of the switch-on / switch-off point).

Run mode:

When the supply voltage has been applied, the unit is in the Run mode. It monitors and switches the transistor output according to the set hysteresis.

The green LEDs indicate the current system pressure, the yellow LED indicates the switching state of the output.

Display mode:

When the button "SET S" (or "SET R") is pressed for a short time, the unit passes to the Display mode. Internally it remains in the operating mode. Irrespective of this the switch-on / switch-off point can be read in 1% steps.

• When the button is pressed for a short time, the corresponding value is displayed for approx. 5s; then the unit returns to the Run mode.

Programming mode:

The unit passes to the programming mode when after the selection of a parameter value (Display mode) the "Set" button is pressed until the display of the parameter value is changed. Internally the unit remains in the operating mode. It continues its monitoring function with the existing parameters until the change has been terminated.

You can change the parameter value by pressing the "Set" button and confirm it by pressing the "Mode/Enter" button. The unit returns to the Run mode when no button has been pressed for 5s.

3. Installation

Before mounting and removing the sensor, make sure that no pressure is applied to the system.

Mount the pressure sensor on a suitable process connection (see type label "Port Size").

4. Electrical connection

The unit must only be connected by an electrician.

The national and international regulations for the installation of electrical equipment must be observed.

Voltage supply to EN50178, SELV, PELV.

Disconnect power before connecting the unit. Wiring:

M12 connector DC PNP	1 BN L+ 4 BK 3 BU L-	3 BU L+ 4 BK 1 BN L-
M12 connector DC NPN	1 BN 4 BK 3 BU L-	3 BU L+ 4 BK 1 BN L-
SS connector DC PNP	1 3 L+ 2 2 L-	2 3 L+ 1 1 L-

Core colours of ifm sockets:

1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black).

5. Programming

Increase the switch-on point / switch-off point

1

Press the SET S-button* and keep it pressed until the requested switch point is displayed. As soon as the LED starts moving the switch point can be increased (incremental by pressing briefly or scrolling by holding pressed).

→

After 5s the flashing LED moves from left to right. → 10 20 30 40 50 60 70 80 90 100 UT 10 20 30 40 50 60 70 80 90 100 UT after LED 9 has been reached the cycle starts again at LED 0. The LED which is constantly lit moves on by one position.**

2

Press the ENTER S-button* briefly (acknowledgement).

→

The set switch point becomes effective; the unit passes into the operating mode.

• SET R button to set the switch-off point

ENTER R button to acknowledge the setting of the switch-off point

The switch-on point (S) is always higher than the switch-off point (R). The unit does not accept values for R which are higher than S.

**Overflow: If the flashing LED and the lit LED exceed the maximum setting value, the cycle starts again at the minimum setting value.

Decrease the switch-on point / switch-off point

Let the flashing and lit LEDs move to the maximum setting value. Then the cycle starts again at the minimum setting value.

Locking / Unlocking

The unit can be electronically locked to prevent unwanted adjustment of the set parameters: Press both pushbuttons for 10s. Indication goes out briefly (acknowledgement of locking / unlocking). Units are delivered from the factory in the unlocked state.

6. Commissioning / Operation

After mounting, wiring and setting check whether the unit operates correctly. Faults displayed during operation: All LEDs flashing in case of short-circuit.

7. Technical data

Operating voltage [V]	18 ... 30 DC
Current rating [mA].	250 short-circuit protection, reverse polarity protection / overload protection, integrated watchdog Voltage drop [V] < 2 Current consumption [mA] 50
Repeatability [% of value of measuring range]	< ± 0.25 Accuracy of switch point [% of value of measuring range] < ± 2.0 Temperature drift [% of value of measuring range / 10 K] < ± 0.3 in the temperature range [°C] -25 ... +80 Power-on delay time [s] 0.2
Materials (wetted parts)	stainless steel (303S22); ceramics; FPM (Viton) Housing material... EEPDM/X (Santoprene); FPM (Viton); NBR (Buna N); PA; Pocan; PC (Macrolon); stainless steel (304S15) Protection PB5x00 ... PB5x07 IP 65 / III Protection PB5x20 ... PB5x22 IP 67 / III Protection PB5x23 ... PB5x27 IP 65* / III Insulation resistance [MΩ] > 100 (500 V DC) Shock resistance [g] 50 (DIN / IEC 68-2-27, 11ms) Vibration resistance [g] 20 (DIN / IEC 68-2-6, 10 - 2000 Hz) Switching cycles min. 100 million Ambient temperature [°C] -25 ... +80 Medium temperature [°C] -25 ... +80 Storage temperature [°C] -40 ... +100 EMC IEC 1000/4/2 ESD: 4 / 8 KV IEC 1000/4/3 HF radiated: 10 V/m IEC 1000/4/4 Burst: 2 KV IEC 1000/4/6 HF conducted: 10 V

*Encreased protection (IP 67) with accessories (Order no. E30038).

Applications (type de pression: pression relative):

N° de commande	Etendue de mesure	Surpression admissible	Pression d'éclatement
PB5xx0 0 ...	400 bar 600 bar 1000 bar
PB5xx1 0 ...	250 bar 400 bar 850 bar
PB5xx2 0 ...	100 bar 300 bar 650 bar
PB5xx3 0 ...	25 bar 100 bar 350 bar
PB5xx4 0 ...	10 bar 50 bar 150 bar
PB5xx6 0 ...	2,5 bar 20 bar 50 bar
PB5xx7 0 ...	1 bar 10 bar 30 bar

embase M12 DC PNP	1 BN L+ 4 BK 3 BU L-	3 BU L+ 4 BK 1 BN L-
embase M12 DC NPN	1 BN L+ 4 BK 3 BU L-	3 BU L+ 4 BK 1 BN L-
embase SS DC PNP	1 L+ 3 2 L-	2 L+ 3 1 L-

1 = BN (brun), 2 = WH (blanc), 3 = BU (bleu), 4 = BK (noir).

5. Programmation
