USER MANUAL MG40J5133AT SAMSUNG

Black-and-white photo of a slice of bread on a plate, with blurred background showing a hand holding a knife (no text or symbols visible)

Scanned document with Arabic text and a grid of rectangular blocks, likely representing a form or template.

Scanned image of a document with fragmented Chinese text and a patterned border, likely from a form or template.

Simple diagram of concentric ovals with small circles at the center (no text or symbols)

Simple oval-shaped line drawing with three labeled points (A, B, C) at the ends (no text or symbols beyond labels)

القص الدوارف الشواء

Line drawing of a metal-framed container or holder structure (no text or symbols)

Pure diagram of concentric circular pipes or coils with no text, numbers, or symbols

Pure black vertical rectangle with white abstract symbol and a small crosshair at bottom right (no text or symbols)

Diagram of a circular mechanical component with a central hub and two downward arrows indicating rotation or force direction (no text or symbols)

التنظيف

STOP/CANCEL +30s START

تشغيل/إيقاف الصوت

Clock Eco Sound STOP/CANCEL +30s START

Line drawing of a microwave oven with doors open and one lid placed inside (no text or symbols)

Popcorn Healthy Cooking Power Defrost Grill 1 4 7 Clock +30s 10 Potato Meat/Poultry Auto Reheat Combi 2 5 8 Eco +30s Snack Auto Grill Cook Keep Warm Deodorisation Kitchen Timer Sound STOP/CANCEL 11

□□□□□□□□□□□□□□□□□□□

Two line drawings of a food item on a stand, one with a flat plate and the other with a rectangular plate (no text or symbols)

زيادة مدة الطهي

STOP/CANCEL +30s START

مستوى الطاقة

Simple line drawing of a plate with chopsticks (no text or symbols)

Simple line drawing of a plate with chopsticks (no text or symbols)

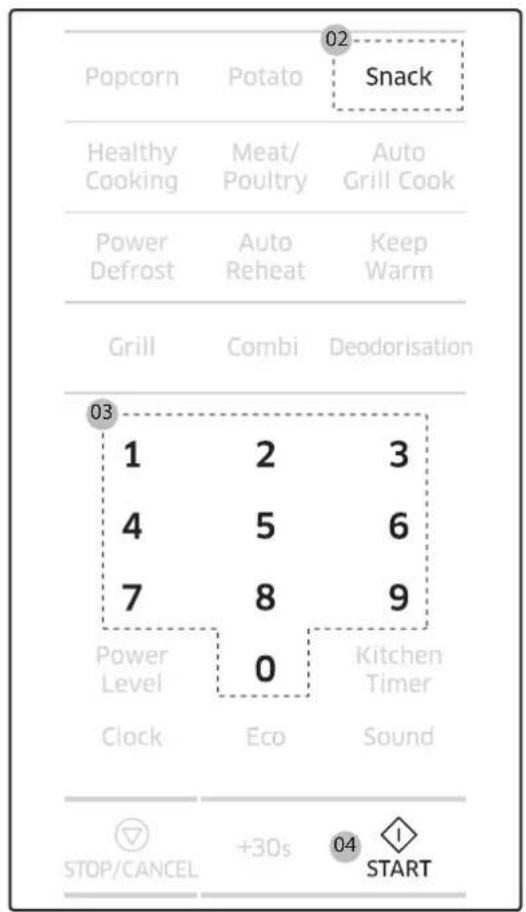

Popcorn Potato Snack Healthy Cooking Meat/Poultry Auto Grill Cook Power Defrost Auto Reheat Keep Warm Grill Combi Deodorisation 1 2 3 4 5 6 7 8 9 Power Level 0 Kitchen Timer Clock Eco Sound STOP/CANCEL +30s START

دليل الطهي التلقائي

Simple oval shape with two labeled points A and B on its edges (no text or symbols beyond labels)

Simple diagram of concentric ovals with small circles at center, no text or symbols present

Pure diagram of concentric circular layers with no text, numbers, or symbols

Simple line drawing of a rectangular metal frame with slatted top and side supports (no text or symbols)

Grille (MG32J5133A*) Grille (MG40J5133AT)

Technical line drawing of a circular mechanical component with mounting holes and a central hub, showing internal flow arrows (no text or symbols)

STOP/CANCEL +30s START

Line drawing of a microwave oven with doors, vent, and central dish (no text or symbols)

Illustration of a chicken on a plate with directional arrows indicating movement or flow (no text or symbols)

Line drawing of a plate with fried sticks (no text or symbols)

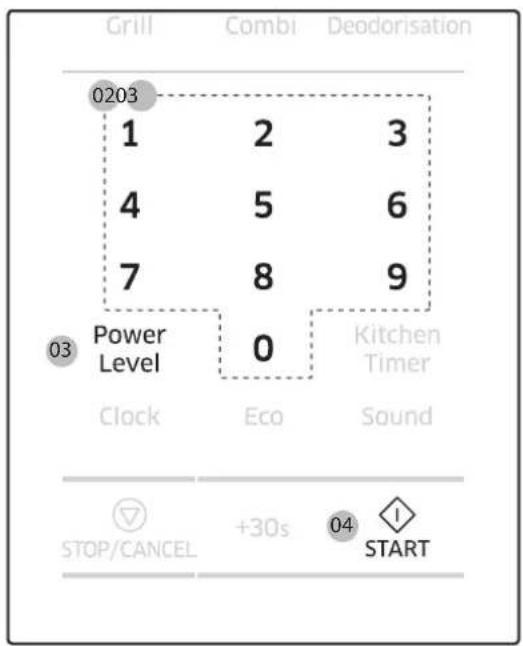

Grill Combi Deodorisation 0203 1 2 3 4 5 6 7 8 9 Power Level 0 Kitchen Timer Clock Eco Sound STOP/CANCEL +30s 04 START

Two identical line drawings of a food item on a stand, one with a flat plate and the other with a rectangular plate (no text or symbols)

02 Grill Combi Deodorisation 03 1 2 3 4 5 6 7 8 9 Power Level Clock 0 Kitchen Timer Eco Sound STOP/CANCEL +30s 04 START

Two wireframe diagrams of a plate setup with a rectangular frame and a flat plate, both without any text or symbols.

Grill 02 Combi Deodorisation 03 1 2 3 4 5 6 7 8 9 Power Level 0 Kitchen Timer Clock Eco Sound STOP/CANCEL +30s 04 START

STOP/CANCEL 01 +30s 02 I START

Simple line drawing of a plate with three sticks (no text or symbols)

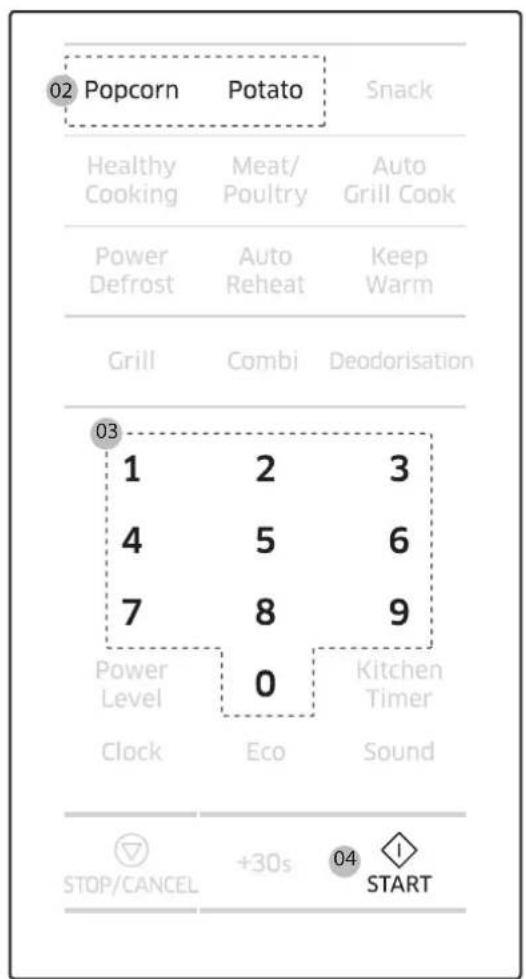

02 Popcorn Potato Snack Healthy Cooking Meat/Poultry Auto Grill Cook Power Defrost Auto Reheat Keep Warm Grill Combi Deodorisation 03 1 2 3 4 5 6 7 8 9 Power Level 0 Kitchen Timer Clock Eco Sound STOP/CANCEL +30s 04 START

Line drawing of a plate with chopsticks (no text or symbols)

Popcorn Potato Snack Healthy Cooking Meat/ Poultry Auto Grill Cook Power Defrost Auto Reheat Keep Warm Grill Combi Deodorisation 03 1 2 3 4 5 6 7 8 9 Power Level 0 Kitchen Timer Clock Eco Sound STOP/CANCEL +30s 04 START

Simple line drawing of a plate with two carrots and a melon (no text or symbols)

02 Healthy Cooking Meat/ Poultry Auto Grill Cook Power Defrost Auto Reheat Keep Warm Grill Combi Deodorisation 03 1 2 3 4 5 6 7 8 9 Power Level 0 Kitchen Timer Clock Eco Sound STOP/CANCEL +30s 04 START

Using this user manual 4

The following symbols are used in this User Manual: 4

Safety instructions 5

Important safety instructions 5

Installation 13

What's included 13

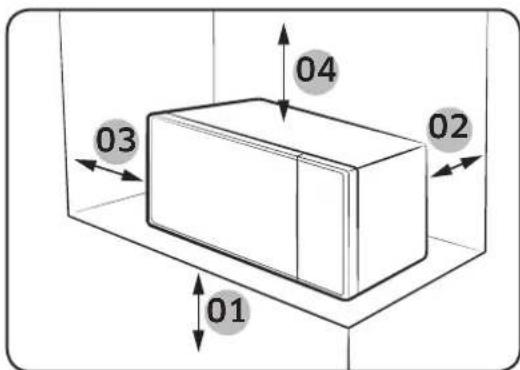

Installation site 15

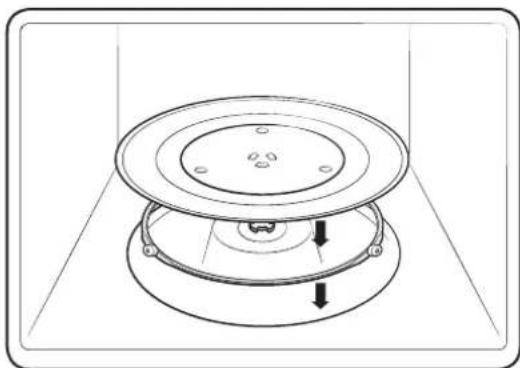

Turntable 15

Maintenance 16

Cleaning 16

Replacement (repair) 17

Care against an extended period of disuse 17

Before you start 18

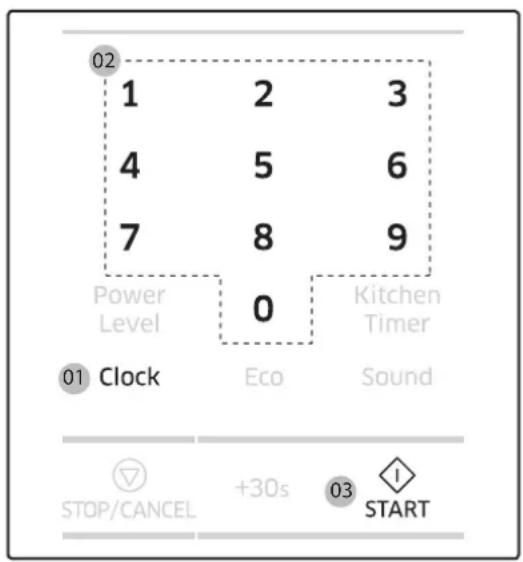

Current time 18

Power saving 19

Child Lock 19

Sound On/Off 19

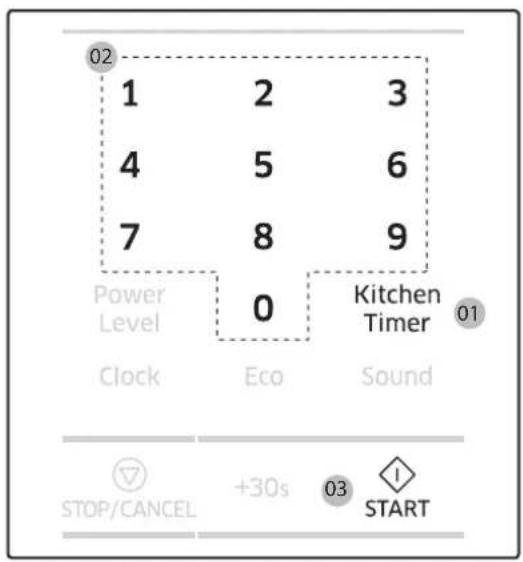

Kitchen timer 20

Choosing the heating element position 20

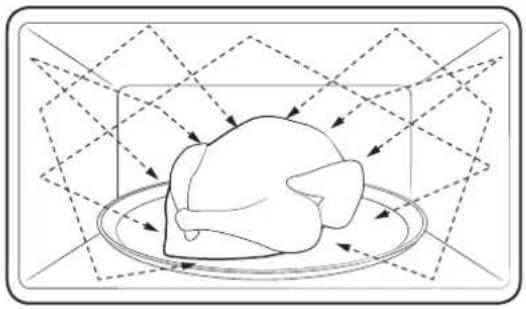

About microwave energy 21

Cookware for microwave 22

Operations 24

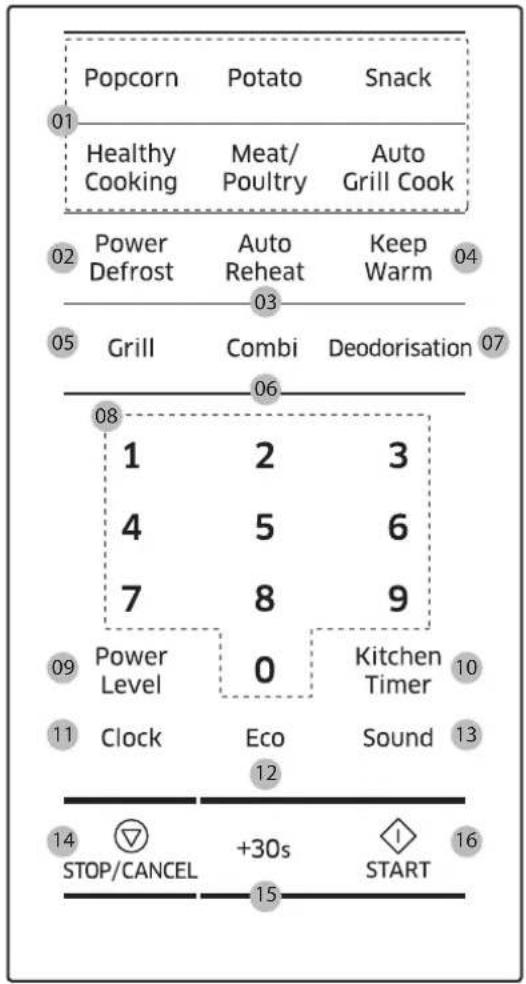

Feature panel 24

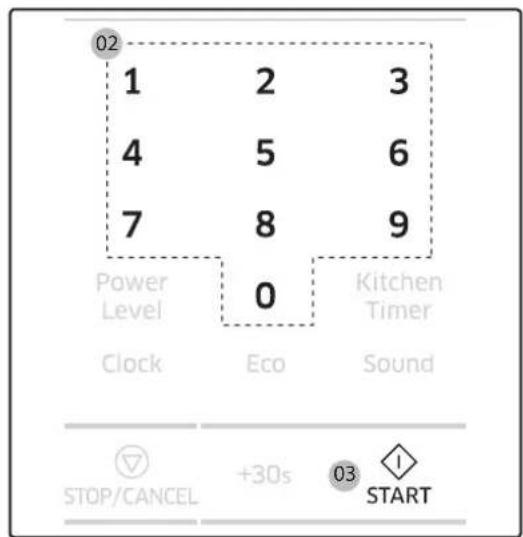

Simple steps to start 25

Manual mode 26

Common settings 29

Auto cook 31

Convenience 42

Deodorisation 47

2 English

Cooking Smart 48

Microwave cooking guide 48

Grill 52

Microwave + Grill 52

Reheating guide 53

Defrosting guide 55

Quick & Easy 57

Troubleshooting 58

Checkpoints 58

Information code 63

Technical specifications 64

Using this user manual

You have just purchased a SAMSUNG microwave oven. Your Owner's Instructions contains valuable information on cooking with your microwave oven:

• Safety precautions
• Suitable accessories and cookware
• Useful cooking tips
• Cooking tips

The following symbols are used in this User Manual:

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or property damage.

NOTE

Useful tips, recommendations, or information that helps users manipulate the product.

Safety instructions

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

MAKE SURE THAT THESE SAFETY PRECAUTIONS ARE OBEYED AT ALL TIMES.

BEFORE USING THE OVEN, CONFIRM THAT THE FOLLOWING INSTRUCTIONS ARE FOLLOWED.

Microwave function only

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

This appliance is intended to be used in household only and it is not intended to be used such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential environments;
• bed and breakfast type environments.

WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

English 5

Safety instructions

WARNING: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

Only use utensils that are suitable for use in microwave ovens.

When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

The microwave oven is intended for heating food and beverages.

Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

If smoke is emitted (observed), switch off or unplug the appliance and keep the door closed in order to stifle any flames.

WARNING: Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

WARNING: The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

The oven should be cleaned regularly and any food deposits removed.

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The appliance should not be cleaned with a water jet.

This oven should be positioned proper direction and height permitting easy access to cavity and control area.

Before using the your oven first time, oven should be operated with the water during 10 minute and then used.

If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center.

The microwave oven has to be positioned so that plug is accessible.

The microwave oven is intended to be used on the counter top (freestanding) use only, the microwave oven shall not be placed in a cabinet.

Safety instructions

Oven function only - Optional

WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

WARNING: Accessible parts may become hot during use. Young children should be kept away.

A steam cleaner is not to be used.

WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements.

Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

The temperature of accessible surfaces may be high when the appliance is operating.

The door or the outer surface may get hot when the appliance is operating.

Keep the appliance and its cord out of reach of children less than 8 years.

Appliances are not intended to be operated by means of an external timer or separate remote-control system.

General safety

WARNING

Only qualified staff should be allowed to modify or repair the appliance.

Do not heat liquids and other food in sealed containers for microwave function.

For your safety, do not use high-pressure water cleaners or steam jet cleaners.

Do not install this appliance; near heater, inflammable material; in a humid, oily or dusty location, in a location exposed to direct sunlight and water or where gas may leak; on un level ground.

This appliance must be properly grounded in accordance with local and national codes.

Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.

Do not pull or excessively bend or place heavy objecton the power cord.

In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug.

Do not touch the power plug with wet hands.

Do not turn the appliance off by unplugging the power plug while an operation is in progress.

Do not insert fingers or foreign substances, If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service centre.

Do not apply excessive pressure or impact to the appliance.

Safety instructions

Do not place the oven over a fragile object such as a sink or glass object.

Do not use benzene, thinner, alcohol, steam cleaner or high pressure cleaner to clean the appliance.

Ensure that the power voltage, frequency and current are the same as those of the product specifications.

Plug the power plug into the wall socket firmly. Do not use a multiple plug adapter, an extension cord or an electric transformer.

Do not hook the power cord on a metal object, insert the power cord between the objects or behind the oven.

Do not use a damaged power plug, damaged power cord or loose wall socket. When the power plug or power cord is damaged, contact your nearest service centre.

Do not pour or directly spray water onto the oven.

Do not place objects on the oven, inside or on the door of the oven.

Do not spray volatile material such as insecticide onto the surface of the oven.

Do not store flammable materials in the oven. Take special care when heating dishes or drinks that contain alcohol as alcohol vapours may contact a hot part of the oven.

Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their fingers in the door.

WARNING: Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container; To prevent this situation ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off so that the temperature can equalize. Stir during heating, if necessary, and ALWAYS stir after heating.

In the event of scalding, follow these FIRST AID instructions:

• Immerse the scalded area in cold water for at least 10 minutes.
• Cover with a clean, dry dressing.
• Do not apply any creams, oils or lotions.

Do not put the tray or rack in water shortly after cooking because it may cause breakage or damage of the tray or rack.

Do not operate the microwave oven for deep fat frying because the oil temperature cannot be controlled. This could result in a sudden boil over of the hot liquid.

CAUTION

Only use utensils that are suitable for use in microwave ovens; DO NOT use any metallic containers, Dinnerware with gold or silver trimmings, Skewers, forks, etc.

Remove wire twist ties from paper or plastic bags.

Reason: Electric arcing or sparking may occur and may damage the oven.

Do not use your microwave oven to dry papers or clothes.

Use shorter times for smaller amounts of food to prevent overheating and burning food.

Do not immerse the power cable or power plug in water and keep the power cable away from heat.

Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended; Also do not heat airtight or vacuum-sealed bottles, jars, containers, nuts inshells, tomatoes etc.

Do not cover the ventilation slots with cloth or paper. They may catch fire as hot air escapes from the oven. The oven may also overheat and switch itself off automatically, and will remain off until it cools sufficiently.

Always use oven mitts when removing a dish from the oven to avoid unintentional burns.

Stir liquids halfway during heating or after heating ends and allow the liquid stand at least 20 seconds after heating to prevent eruptive boiling.

Stand at arms length from the oven when opening the door to avoid getting scalded by escaping hot air or steam.

Do not operate the microwave oven when it is empty. The microwave oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all times to absorb microwave energy in case the microwave oven is started accidentally.

Install the oven in compliance with the clearances stated in this manual. (See installing your microwave oven.)

Take care when connecting other electrical appliances to sockets near the oven.

Precautions to avoid possible exposure to excessive microwave energy. (Microwave function only)

Failure to observe the following safety precautions may result in harmful exposure to microwave energy.

A. Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock holes.

English 11

Safety instructions

A. Do NOT place any object between the oven door and front face or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth. B. Do NOT operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer. It is particularly important that the oven door closes properly and that there is no damage to the:

C. The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer.

Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit and/or damage to or loss of the accessory was caused by the customer. Items this stipulation covers include:

A. A dented, scratched, or broken door, handle, out-panel, or control panel.
D. A broken or missing tray, guide roller, coupler, or wire rack.

- Use this appliance only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.

- Because these following operating instructions cover various models, the characteristics of your microwave oven may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service centre or find help and information online at www.samsung.com.

- This microwave oven is supposed for heating food. It is intended for domestic home-use only. Do not heat any type of textiles or cushions filled with grains, which could cause burns and fire. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the appliance.

- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possible result in a hazardous situation.

12 English

Installation

What's included

Make sure all parts and accessories are included in the product package. If you have a problem with the oven or accessories, contact a local Samsung customer centre or the retailer.

Oven at a glance

0102030405 060708

01 Door

02 Vent

03 Heating element

04 Oven light

05 Display

06 Coupler

07 Open (door) 08 Feature panel

Installation

Accessories

The oven comes with different accessories that help you prepare different types of food.

Simple line drawing of an oval shape with two marked points A and B (no text or symbols)

Roller ring Turntable

Simple diagram of concentric ovals with small circles at center, no text or symbols present

Circular mechanical component with concentric rings and two protruding rods (no text or symbols)

Line drawing of a simple metal frame structure with no text or symbols

Grill rack (MG32J5133A*) Grill rack (MG40J5133AT)

Roller ring Put in	the centre of the base. It supports the turntable.
Turntable Put on	the roller ring with the centre fitting the coupler. It serves as a cooking base.
Grill rack This metal rack is used with Grill or combined cooking modes. Put it on the turntable.

NOTE

- Do not operate the oven without the turntable on the roller ring.

Installation site

01 02 03 04

01 85 cm from the floor
02 10 cm from the rear wall
03 10 cm from the side
04 20 cm from above

• Select a flat, level surface approx. 85 cm above the floor. The surface must support the weight of the oven.
• Secure room for ventilation, at least 10 cm from the rear wall and both sides, and 20 cm from above.
• Do not install the oven in hot or damp surroundings, such as next to other microwave ovens or radiators.
• Conform to the power supply specifications of this oven. Use only approved extension cables if you need to use.
• Wipe the interior and the door seal with a damp cloth before using your oven for the first time.

Turntable

Diagram of a circular mechanical component with a central hub and two arrows indicating direction (no text or symbols)

Remove all packing materials inside the oven. Install the roller ring and turntable. Check that the turntable rotates freely.

Maintenance

Cleaning

Clean the oven regularly to prevent impurities from building up on or inside the oven. Also pay special attention to the door, door sealing, and turntable and roller ring (applicable models only).

If the door won't open or close smoothly, first check if the door seals have built up impurities. Use a soft cloth in soapy water to clean both the inner and outer sides of the oven. Rinse and dry well.

To remove stubborn impurities with bad smells from inside the oven

1. With an empty oven, put a cup of diluted lemon juice on the centre of the turntable.

2. Heat the oven for 10 minutes at max power.

3. When the cycle is complete, wait until the oven cools down. Then, open the door and clean the cooking chamber.

To clean inside swing-heater models

A

To clean the upper area of the cooking chamber, lower the top heating element by 45^ (A) as shown. This will help clean the upper area. When done, reposition the top heating element.

CAUTION

• Keep the door and door sealing clean and ensure the door opens and closes smoothly. Otherwise, the oven's lifecycle may be shortened.
  • Take caution not to spill water into the oven vents.

• Do not use any abrasive or chemical substances for cleaning.
  • After each use of the oven, use a mild detergent to clean the cooking chamber after waiting for the oven to cool down.

Replacement (repair)

WARNING

This oven has no user-removable parts inside. Do not try to replace or repair the oven yourself.

• If you encounter a problem with hinges, sealing, and/or the door, contact a qualified technician or a local Samsung service centre for technical assistance.
• If you want to replace the light bulb, contact a local Samsung service centre. Do not replace it yourself.

- If you encounter a problem with the outer housing of the oven, first unplug the power cord from the power source, and then contact a local Samsung service centre.

Care against an extended period of disuse

- If you don't use the oven for an extended period of time, unplug the power cord and move the oven to a dry, dust-free location. Dust and moisture that builds up inside the oven may affect the performance of the oven.

Before you start

There is some basic information that you should know before going directly to a cooking recipe. Before or during any cooking mode, you can set/change the clock or the kitchen timer to your needs.

Current time

It is important to set the correct clock time to ensure correct automatic operations.

The time can be displayed in either the 24-hour (default) or 12-hour notation. You must set the clock.

02 1 2 3 4 5 6 7 8 9 Power Level 0 Kitchen Timer 01 Clock Eco Sound STOP/CANCEL +30s 03 START

To display the time in the 12-hour / 24-hour notation.

1. Press the Clock button and the 0 button at the same time for 1 second.
2. Time setting that you want to change (12Hr or 24Hr) will be displayed.
3. If you want to change the notation again, press the number buttons. For example, press 1 for 12Hr or press 2 for 24 Hr notation.
4. Press the START button to confirm your setting,

To set the current time,

1. Press Clock.
2. Use the number buttons to enter the current time. For example, press 5, 0, and 0 in sequence for 5:00 o'clock.
3. Press START to confirm your settings. Then, the colon (:) indicator blinks several times.

Power saving

To reduce power consumption when not using the oven, use the power saving function of the oven.

Clock Eco Sound

Auto power saving

• After 25 minutes of user inactivity, the oven automatically enters power saving mode. Any previous function will be cancelled, and the current time will be displayed.

• To activate power saving, press Eco to turn off the display.

• To deactivate power saving, open the door or press Eco again. The display turns back on with the current time.

• After 5 minutes of the door being open, the oven lamp will turn off.

Child Lock

STOP/CANCEL +30s START

To prevent accidents, Child Lock disables all controls except for the Eco button.

Hold down STOP/CANCEL for 3 seconds to activate, or hold down for 3 seconds again to deactivate the lock on the feature panel.

Sound On/Off

Clock Eco Sound 01 STOP/CANCEL +30s START 02

You can mute or unmute the beep or melody of the oven.

- To mute the sound, press Sound to show "OFF" on the display. Then, press START.

- To unmute the sound, press Sound again to show "ON" on the display. Then, press START.

Before you start

Kitchen timer

02 1 2 3 4 5 6 7 8 9 Power Level Clock Eco Sound Kitchen Timer 01 STOP/CANCEL +30s 03 START

1. Press Kitchen Timer.
2. Use the number buttons to set the time for your cooking.
3. Press START.

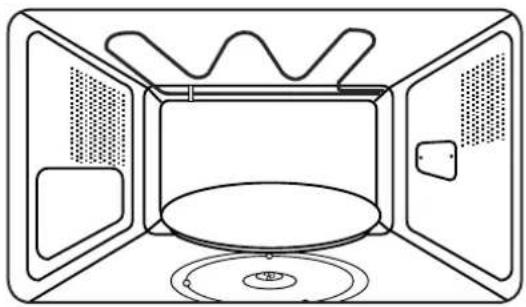

Choosing the heating element position

The heating element is used when grilling. There is only one position listed. We need to tell consumers when it should be placed in the vertical position.

Horizontal position for grilling or combined microwave + grill cooking.

CAUTION

Only change the position of the heating element when it is cold and do not apply excessive force when placing it in the vertical position.

Line drawing of a microwave oven with doors, vent, and central dish (no text or symbols)

To set the heating element to the...	Then...
Horizontal position (grill or combined microwave + grill).	• Pull the heating element towards you.• Push it upwards until it is parallel with the roof of the oven.

About microwave energy

Microwaves are high-frequency electromagnetic waves. The oven uses the prebuilt magnetron to generate microwaves which are used to cook or reheat food without deforming or discolouring the food.

Illustration of a chicken on a plate with directional arrows indicating movement or flow (no text or symbols)

1. The microwaves generated by the magnetron are distributed uniformly through the whirling distribution system. This is why the food is cooked evenly.

2. The microwaves are absorbed down to the food up to a depth of approx. 2.5 cm. Then, the microwaves are dissipated inside the food as cooking continues.

3. The cooking time is affected by the following conditions of the food.

• Quantity and density
- Moisture content
- Initial temperature (especially, when frozen)

NOTE

The cooked food keeps heat in its core after cooking is complete. This is why you must respect the standing time specified in this manual, which ensures cooking evenly down to the core.

Before you start

Cookware for microwave

Cookware used for Microwave Mode must allow microwaves to pass through and penetrate food. Metals such as stainless steel, aluminum and copper reflect microwaves. Therefore, do not use cookware made of metallic materials. Cookware marked microwave - safe is always safe for use. For additional information on appropriate cookware refer to the following guide and place a glass of water or some food on the turntable.

Requirements:

• Flat bottom and straight sides
• Tight-fitting lid
  • Well-balanced pan with handles that weigh less than the main pan

Material		Microwave-safe	Description
Aluminium foil			Use for a small serving size to protect against overcooking. Arcing can occur if the foil is near the oven wall or if using an excessive amount of foil.
Crusty plate			Do not use for preheating for more than 8 minutes.
Bone china or earthenware			Porcelain, pottery, glazed earthenware and bone china are usually microwave-safe, unless decorated with a metal trim.
Disposable polyester cardboard dishes			Some frozen foods are packaged in these dishes.
Fast-food packaging	Polystyrene cups or containers		Overheating may cause these to melt.
	Paper bags or newspaper	×	These may catch fire.
	Recycled paper or metal trims	×	These may cause arcing
Glassware	Oven-to-table ware	○	Microwave-safe unless decorated with metal trims.
	Fine glassware	○	Delicate glassware may break or crack by rapid heating.
	Glass jars	○	Appropriate for warming only. Remove the lid before cooking.
Metal	Dishes	×	These may cause arcing or fire.
	Freezer bag with twist-ties	×
Paper	Plates, cups, napkins, and kitchen paper	○	Use to cook for a short time. These absorb excess moisture.
	Recycled paper Causes arcing.
Plastic	Containers	○	Use thermoplastic containers only. Some plastics may warp or discolour at high temperatures.
	Cling film	○	Use to maintain moisture after cooking.
	Freezer bags Use boilable or ovenproof bags only.
Wax or grease-proof paper		○	Use to maintain moisture and prevent spattering.

○: Microwave safe : Use caution △: Microwave unsafe

English 23

Operations

Feature panel

The front panel comes in a wide range of materials and colours. For improved quality, the actual appearance of the oven is subject to change without notice.

01 Auto Cook

02 Power Defrost

03 Auto Reheat

04 Keep Warm

05 Grill

06 Combi

07 Deodorisation

08 Number pad

09 Power Level

10 Kitchen Timer

11 Clock

12 Eco

13 Sound

14 Stop/Cancel

15 +30S

16 Start

Simple steps to start

To cook food

02 1 2 3 4 5 6 7 8 9 Power Level Clock Eco Kitchen Timer Sound STOP/CANCEL +30s 03 START

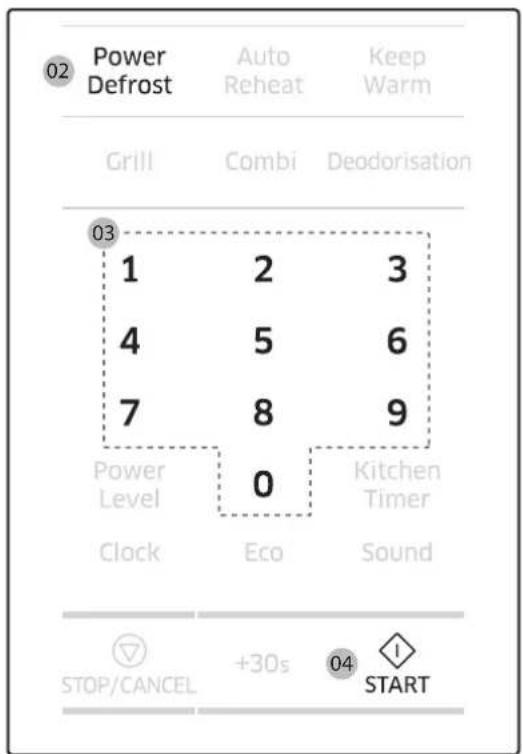

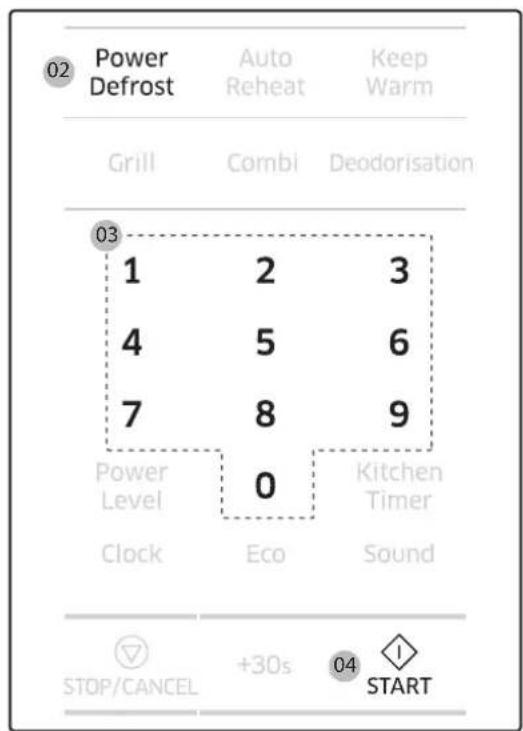

To defrost frozen food

02 Power Defrost Auto Reheat Keep Warm Grill Combi Deodorisation 03 1 2 3 4 5 6 7 8 9 Power Level 0 Kitchen Timer Clock Eco Sound STOP/CANCEL +30s 04 START

1. Put the food in a microwave-safe container and then in the centre of the turntable.
2. Use the number buttons to set the cooking time.
3. Press START.

NOTE

When cooking is complete, the oven beeps 4 times. Use oven gloves to take out the food.

1. Put the frozen food in a microwave-safe container and then in the centre of the turntable.
2. Press Power Defrost.
3. Use the number buttons to set the serving size.
4. Press START.

NOTE

For more information, see the Power Defrost section.

Operations

Manual mode

Microwave

This is the basic function of this microwave oven. The power level is set to High by default.

Line drawing of a plate with fried sticks (no text or symbols)

Grill Combi Deodorisation 0203 1 2 3 4 5 6 7 8 9 Power Level 0 Kitchen Timer Clock Eco Sound STOP/CANCEL +30s 04 START

1. Put food in a microwave-safe container and then on the turntable.
2. Use the number buttons to set the cooking time (max: 99 min 99 sec). For example, press 1 and 0 for the minutes, and 0 and 0 for the seconds (10:00).
3. To change the default power level, press Power Level and select a different level. See the Power level section for details.
4. Press START.
5. When cooking is complete with a beep 4 times, use oven gloves to take out the food.

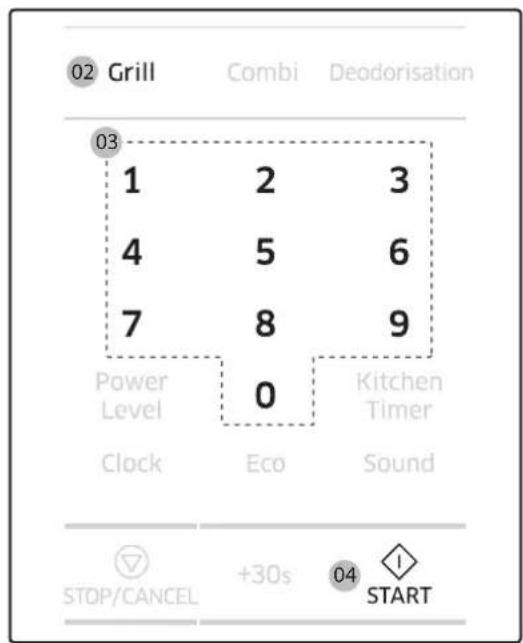

Grill

This allows you to grill food using the radiant heat generated by the heating element. Use this for foods that have just been cooked.

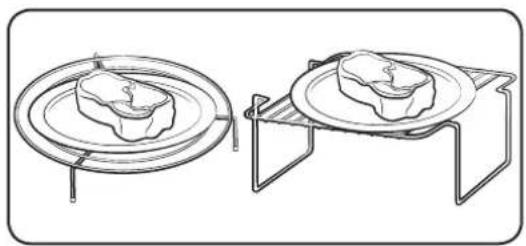

CAUTION

Use only the provided metal rack for grilling.

Two line drawings of a plate setup with a rectangular frame and a rectangular tray, both containing a piece of meat (no text or symbols)

02 Grill Combi Deodorisation 03 1 2 3 4 5 6 7 8 9 Power Level Kitchen Timer Clock Eco Sound STOP/CANCEL +30s 04 START

1. Put food in a microwave-safe container and then on the provided metal rack.

2. Press Grill.

3. Use the number buttons to set the grilling time (max: 60 min). For example, press 1 and 0 for the minutes, and 0 and 0 for the seconds (10:00).
4. Press START. The heating element cycles on and off to complete grilling.
5. When grilling is complete with a beep 4 times, use oven gloves to take out the food.

NOTE

To change the cooking time during operation, press STOP/CANCEL, and follow steps 2-4 above.

Operations

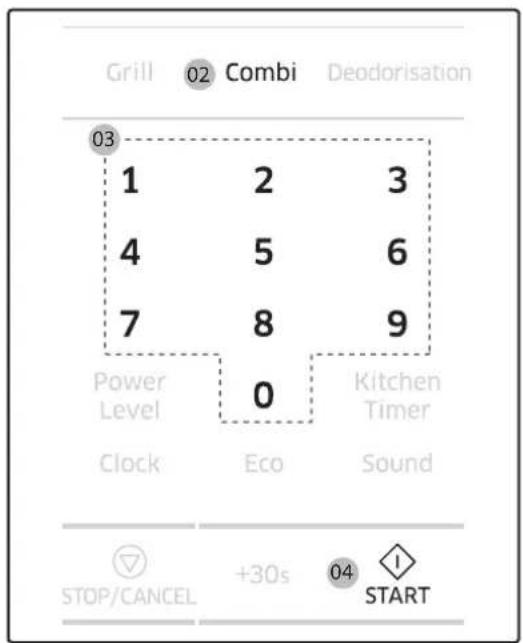

Microwave + Grill

You can combine microwave cooking with grilling to cook and grill food simultaneously in a reduced time.

CAUTION

Use only the provided metal rack for grilling.

Two line drawings of a plate setup with a rectangular frame and a rectangular tray, both containing a piece of bread (no text or symbols)

Grill 02 Combi Deodorisation 03 1 2 3 4 5 6 7 8 9 Power Level 0 Kitchen Timer Clock Eco Sound STOP/CANCEL +30s 04 START

1. Put food in a microwave-safe container and then on the provided metal rack.
2. Press Combi. The grilling temperature is set automatically, which you cannot change.
3. Use the number buttons to set the cooking time (max: 60 min). For example, press 2 and 5 for the minutes, and 3 and 0 for the seconds (25:30).
4. Press START. The oven starts microwave cooking, and then continues to grill.
5. When cooking is complete with a beep 4 times, use oven gloves to take out the food.

NOTE

To change the cooking time during operation, press STOP/CANCEL, and follow steps 2-4 above.

Common settings

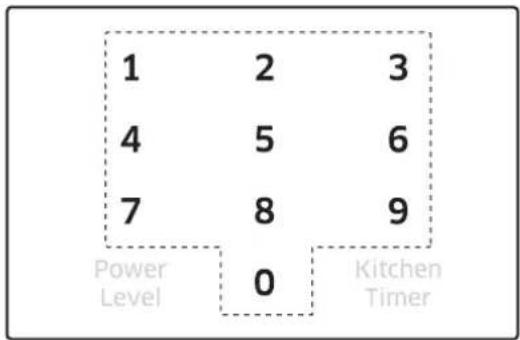

Cooking time

Follow these steps to set or change the cooking time. By default, the power level is set to High.

Use the number buttons to set the cooking time (max: 99 min 99 sec). The time area consists of the minute and second elements. To set a cooking time of 25 minutes, for example, press 2 and 5 for the minutes, then 0 and 0 for the seconds.

NOTE

• To change the cooking time during operation, press STOP/CANCEL, and repeat the steps above.
- To stop cooking, simply open the door, or press STOP/CANCEL. To resume operation, close the door and press Start.
- To cancel cooking, press STOP/CANCEL twice.

Time increment

You might want to add extra time to the current cooking time while cooking is in process. Time can be added by 30 seconds.

STOP/CANCEL 01 +30s 02 I START

1. Before or during cooking, press +30S as many times as needed. For example, to add 2 minutes to the current cooking time, press the button 4 times.
2. Press START. The oven continues to operate for the changed time.

NOTE

This button is not enabled with Auto mode.

Operations

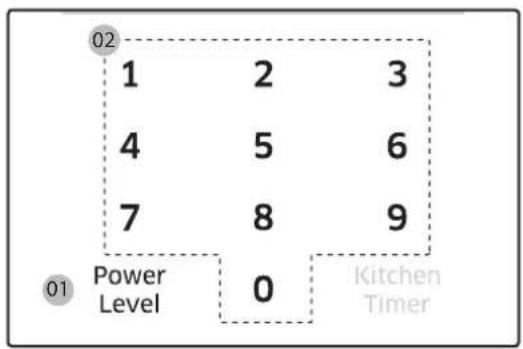

Power level

You can change the heating intensity according to the cooking recipe or to your preference.

02 1 2 3 4 5 6 7 8 9 01 Power Level 0 Kitchen Timer

1. Press Power Level.

1. Use the number buttons to select a specific power level. Available levels range from No power (0) to High (10). See the table below.

0	PL:0	No power
1	PL:10	Warm
2	PL:20	Defrost
3	PL:30	Low
4	PL:40	Medium low
5	PL:50	Medium
6	PL:60	Simmer
7	PL:70	Medium high
8	PL:80	Reheat
9	PL:90	Sauté
10	PL:Hi	High

NOTE

To check the current power level while cooking is in process, press Power Level.

Auto cook

1. Popcorn & 2. Potato

For inexperienced cooks, the oven offers a total of 8 Auto Cook programmes in 2 different categories. Take advantage of this feature to save you time or shorten your learning curve. The cooking time and temperature will be adjusted according to the selected recipe.

Simple line drawing of a plate with three sticks (no text or symbols)

02 Popcorn Potato Snack Healthy Cooking Meat/Poultry Auto Grill Cook Power Defrost Auto Reheat Keep Warm Grill Combi Deodorisation 03 1 2 3 4 5 6 7 8 9 Power Level 0 Kitchen Timer Clock Eco Sound STOP/CANCEL +30s 04 START

1. Put food in a microwave-safe container and then in the centre of the turntable.
2. Select a category by pressing either Popcorn or Potato.
3. Use the selected button again or the number buttons to select a specific programme.
4. Press START.
5. When cooking is complete with a beep 4 times, use oven gloves to take out the food.

Operations

Auto cook guide

The following table presents auto programmes for cooking, roasting, and baking. The table contains food quantities, weight ranges, and appropriate recommendations. Cooking modes and times have been pre-programmed for your convenience.

1. Popcorn

Code	Food Serving Size Instructions
1	Popcorn 3 (85 g) Use only one microwave	ve popcorn bag at a time. Be careful when removing the heated bag from the oven and opening it.
2	Popcorn 3.5 (100 g)

2. Potato

Code	Food Serving Size Instructions
1 Potato 1 pcs Pierce each potato several times with a fork.
2 Potato 2 pcs		Place on the turntable in a spoke-like fashion. After cooking, let the potatoes stand for 3-5 minutes.
3 Potato 3 pcs
4 Potato 4 pcs
5 Potato 5 pcs
6 Potato 6 pcs

3.Snack

For inexperienced cooks, the oven offers a total of 14 Auto Cook programmes in Snack button. Take advantage of this feature to save you time or shorten your learning curve. The cooking time and temperature will be adjusted according to the selected recipe.

Line drawing of a plate with three sticks (no text or symbols)

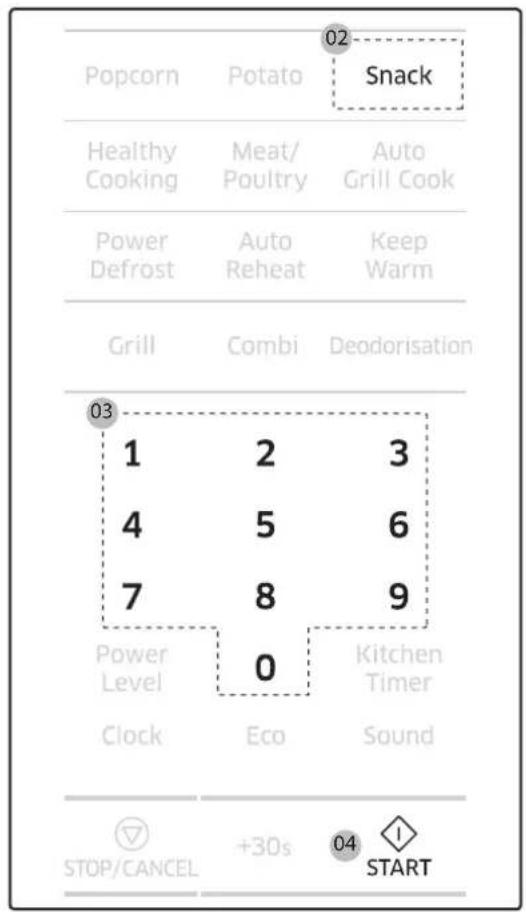

Popcorn Potato Snack Healthy Cooking Meat/ Poultry Auto Grill Cook Power Defrost Auto Reheat Keep Warm Grill Combi Deodorisation 02 03 1 2 3 4 5 6 7 8 9 Power Level 0 Kitchen Timer Clock Eco Sound STOP/CANCEL +30s 04 START

1. Put food in a microwave-safe container and then in the centre of the turntable.
2. Select a category by pressing the Snack button.
3. Use the selected button again or the number buttons to select a specific programme.
4. Press START.
5. When cooking is complete with a beep 4 times, use oven gloves to take out the food.

Operations

Auto cook guide

The following table presents auto programmes for cooking, roasting, and baking. The table contains food quantities, weight ranges, and appropriate recommendations. Cooking modes and times have been pre-programmed for your convenience.

1. Snack

Code	Food Serving Size	(g) Instructions
1 Frozen Chicken wings		170-200 Place	wings around plate, spoke-fashion. Cover with wax paper.
2 Frozen Chicken wings		230-260
3 Frozen Chicken nuggets		110-140 Put a	paper on top of plate and arrange nuggets in spoke fashion on paper towel. Do not cover. Let stand 1 min.
4 Frozen Chicken nuggets		170-200
5 Frozen French Fries		110-140 Place	two paper towels on a microwave-safe plate and arrange the French fries on the towels without letting them overlap. Blot the fries with additional paper towels after removing from the oven. Stand for 1-2 minutes.
6 Frozen French Fries		170-200
7 Frozen Cheese sticks		5-6 pc Place	the cheese sticks on a plate in a spoke-like fashion. Do not cover Stand for 1-2 minutes.
8 Frozen Cheese sticks		7-10 pc
9 Nacho Place the nachos on a plate without letting them overlap. Sprinkle cheese evenly over them.Contents: 2 cups tortilla chips 13 cup grated cheese
10 Quiche(Chilled)			This program is suitable for refrigerated quiche. Remove a package and put on the dish. Place on turntable in oven. After cooking, stand for 1-2 minutes.
11 Porridge 1 serving		Place dry porridge	oats and water or milk in a microwave safe bowl. Add 150 ml water or milk for 35 g and 300 ml water or milk for 70 g. Cook uncovered. After oven beeps, stir the oats well and press start to continue. After cooking, stir well and top with brown sugar or honey.
12 Porridge 2 servings
13 Potato wedges		300-350 Wash	normal sized potatoes and cut them into wedges. Brush with olive oil and spices. Place them with the cut side on the microwave safe plate. Stand for 1-2 minutes.
14 Potato wedges		400-450

Operations

4. Healthy Cooking & 5. Meat/Poultry

For healthier alternatives, the oven offers a total of 16 Healthy Cook programmes in 2 different categories. Take advantage of this feature to save you time or shorten your learning curve. The cooking time and temperature will be adjusted according to the selected recipe.

Simple line drawing of a plate with a carrot and a melon (no text or symbols)

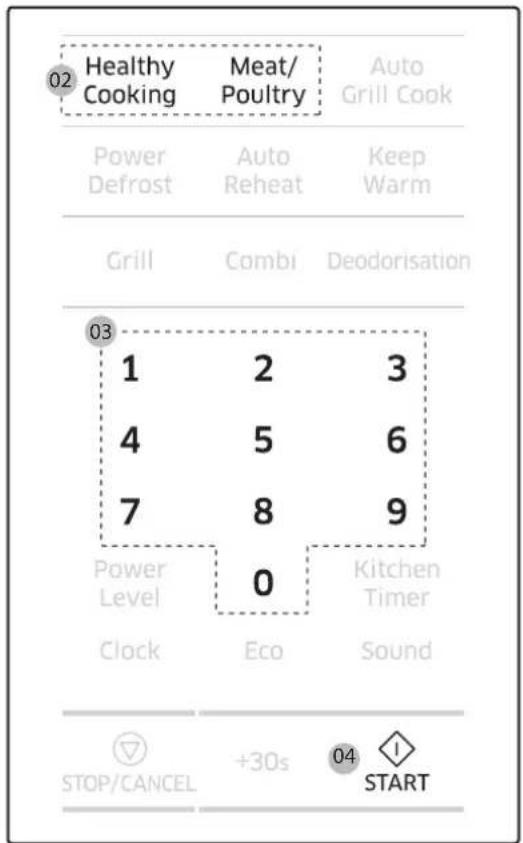

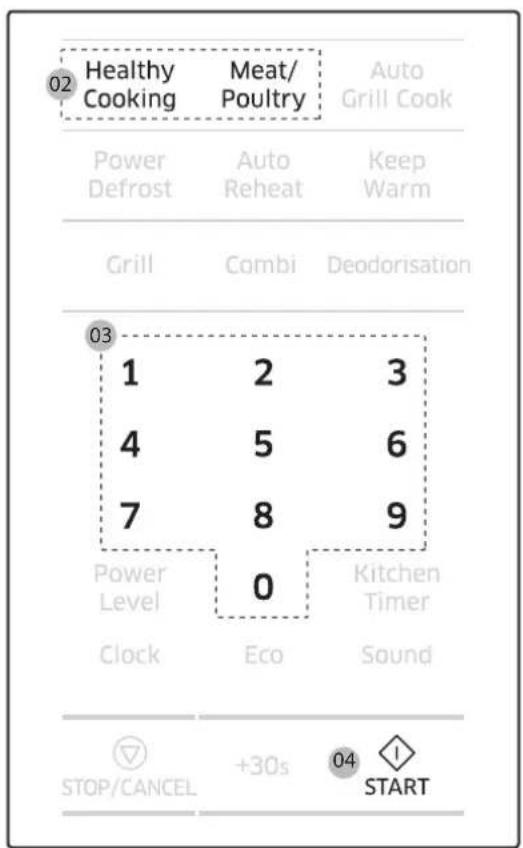

02 Healthy Cooking Meat/ Poultry Auto Grill Cook Power Defrost Auto Reheat Keep Warm Grill Combi Deodorisation 03 1 2 3 4 5 6 7 8 9 Power Level 0 Kitchen Timer Clock Eco Sound STOP/CANCEL +30s 04 START

1. Put food in a microwave-safe container and then in the centre of the turntable.
2. Select a category by pressing either Healthy Cooking or Meat/Poultry.
3. Use the selected button again or the number buttons to select a specific programme.
4. Press START.
5. When cooking is complete with a beep 4 times, use oven gloves to take out the food.

Auto Cook guide

The following table presents auto programmes for cooking, roasting, and baking. The table contains food quantities, weight ranges, and appropriate recommendations. Cooking modes and times have been pre-programmed for your convenience.

4. Healthy Cooking

Code	Food Serving Size	(g) Instructions
1 Broccoli Florets		250 Rinse and clean fresh broccoli and prepare florets. Put them evenly into a glass bowl with lid. Add 30 ml (2 tbsp) water. Put bowl in the centre of turntable. Cook covered. Stir after cooking. Stand for 1-2 minutes.
2	Carrots	250	Rinse and clean carrots and prepare even slices. Put them evenly into a glass bowl with lid. Add 30 ml (2 tbsp) water. Put bowl in the centre of turntable. Cook covered. Stir after cooking. Stand for 1-2 minutes.
3	Green Beans	250	Rinse and clean green beans. Put them evenly into a glass bowl with lid. Add 30 ml (2 tbsp) water. Put bowl in the centre of turntable. Cook covered. Stir after cooking Stand for 1-2 minutes.
4 Peeled Potatoes		250 Wash and peel the potatoes and cut into a similar size. Put them into a glass bowl with lid. Add 45-60 ml (3-4 tbsp) water. Put bowl in the centre of turntable. Cook covered. Stand for 2-3 minutes.
5	Brown Rice	250	Use a large glass ovenware dish with lid. Add double quantity of cold water (500 ml). Cook covered. Stir before standing time and add salt and herbs. Stand for 5-10 minutes.
6 Wholemeal Macaroni		250 Use a large glass ovenware dish with lid. Add 1 L hot boiling water, a pinch of salt and stir well. Cook uncovered. Stir before standing time and drain thoroughly afterwards. Stand for 1-3 minutes.

English 37

Operations

Code	Food Serving Size	(g) Instructions
7 Fresh Fish Fillets		300 Rinse fish and put on a ceramic plate, add 1 tbsp lemon juice. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 1-2 minutes.
8 Fresh Salmon Fillets		300 Rinse fish and put on a ceramic plate, add 1 tbsp lemon juice. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 1-2 minutes.
9	Fresh Prawns	250	Rinse prawns on a ceramic plate, add 1 tbsp lemon juice. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 1-2 minutes.

1. Meat/Poultry

Code	Food Serving Size	(g) Instructions
1 ChickenBreasts		300 Rinse pieces and put on a ceramic plate. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 2 minutes.
2 TurkeyBreasts		300 Rinse pieces and put on a ceramic plate. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 2 minutes.
3 Meatballs 1 Sr Ingredients For Meat Balls.450 g ground beef, 1⁄4 cup chopped onion, 1 egg beaten, 1 teaspoon salt, 1⁄4 teaspoon pepper and 2 tablespoons water. Combine all ingredients and mix well.Shape into 20 meat balls(each ∅25 mm). Place meat balls in utensil. Cover with microwave cling wrap turning back one corner of the wrap by about 50 mm to vent. Cook. After cooking, stand meat balls for 5 minutes. Serve.
4 Ham Omelet 1 Sr Ingredients for omelette.3 med. sized eggs, 1 tomato, 30 g chopped ham, 2 tablespoons milk, herbs & Spices.Beat eggs, add ham, 2 tablespoons milk, herbs and spices. Cut tomato in cubes add to mix plus 50 g grated cheese. After oven beeps, stir well and press start to continue. After cooking stand for 2min. Serve.
5	Bacon	1 serving	Put bacon on a microwave-safe plate and put plate in centre of turntable.
6 Bacon	2 servings
7 Bacon	3 servings

Operations

6. Auto grill cook

The Auto Grill Cook features has 8 pre-programmed cooking times. You do not need to set either the cooking times or the power level.

Open the door. Place the food in the centre of the turntable. Close the door.

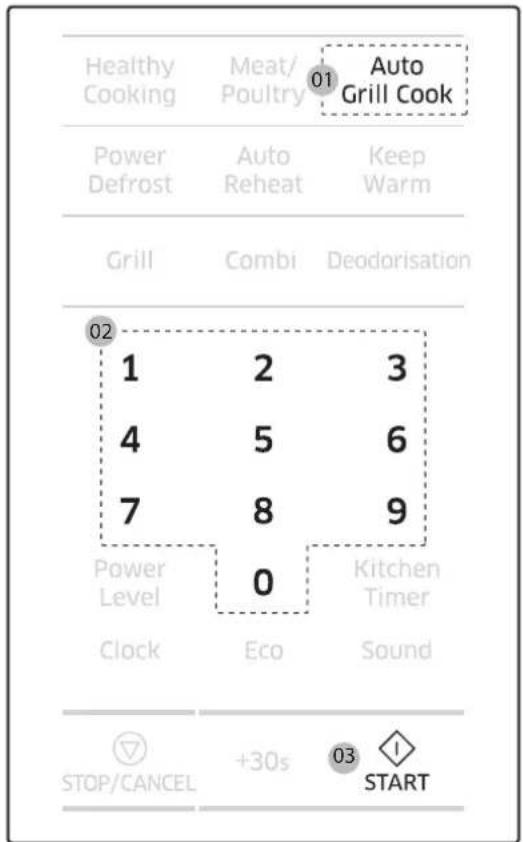

Healthy Cooking Meat/ Poultry 01 Auto Grill Cook Power Defrost Auto Reheat Keep Warm Grill Combi Deodorisation 02 1 2 3 4 5 6 7 8 9 Power Level 0 Kitchen Timer Clock Eco Sound STOP/CANCEL +30s 03 START

1. Select a category by pressing the Auto grill cook button.
2. Use the selected button again or the number buttons to select a specific programme.
3. Press START.
4. When cooking is complete with a beep 4 times, use oven gloves to take out the food.

Auto Cook guide

The following table presents the Auto Grill Cook programmes, quantities and appropriate instructions.

1. Auto grill cook

Code	Food Serving Size	(g) Instructions
1	Roast Chicken	1200	Brush chicken with oil and spices. Put chicken in the pyrex dish and breast side down first. Turnover, as soon as the beep sounds. When turnover, breast side up. Stand for 5 minutes after grilling.
2	Chicken Pieces	500	Brush chicken pieces with oil and spices. Put them in a circle with the bones to the middle. Put one chicken piece not into the centre of the rack. Stand for 2-3 minutes.
3	Frozen Pasta	400	Put frozen pasta into a small flat rectangular glass pyrex dish. Put the dish directly on the turntable. After cooking stand for 2-3 minutes.
4	Frozen Pizza	300	Put the frozen pizza on the High rack. Put it on the turntable. After cooking stand for 1-2 minutes.
5 Vegetable Gratin		500 Put frozen gratin into a small glass pyrex dish. Put the dish on the rack. After cooking stand for 2-3 minutes.
6	Grilled Tomatoes	400 Rinse and clean tomatoes, cut them into halves and put in an ovenware dish. Add grated cheese on top. Put dish on rack. Stand for 1-2 minutes.
7	Roast Fish	400	Brush skin of whole fish (trout or gilthead) with oil and add herbs and spices. Put fish side by side, head to tail on the high rack. Turnover, as soon as the beep sounds. Stand for 3 minutes.
8	Grilled Salmon Steaks	300	Put fish steaks evenly on the high rack. Turnover, as soon as the beep sounds. Stand for 2 minutes.

English 41

Operations

Convenience

Auto Reheat

Use Auto Reheat to warm up food leftovers or precooked food. The operating time and power level will be set according to the selected programme.

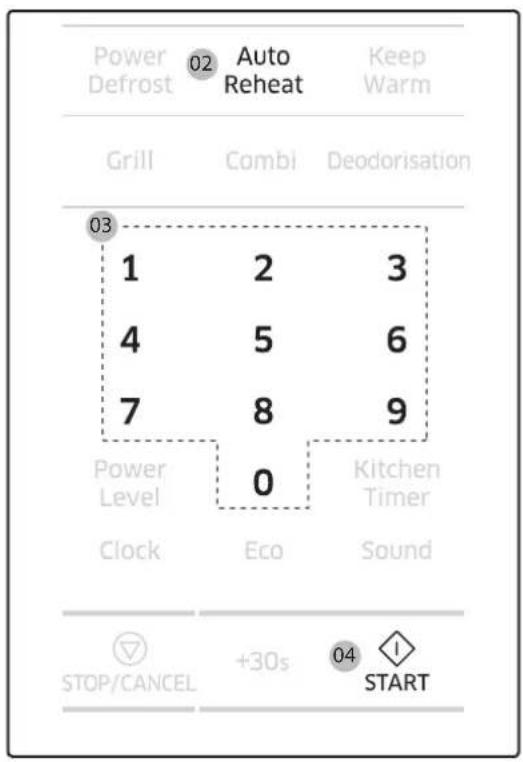

Power Defrost 02 Auto Reheat Keep Warm Grill Combi Deodorisation 03 1 2 3 4 5 6 7 8 9 Power Level 0 Kitchen Timer Clock Eco Sound STOP/CANCEL +30s 04 START

1. Put food in the centre of the turntable and close the door.
2. Press Auto Reheat.
3. Use the Auto Reheat button again or the number buttons to select a specific programme.
4. Press START.
5. When the cycle is complete with a beep 4 times, use oven gloves to take out the food.

Auto Reheat guide

The following table presents auto programmes for reheating food. The table contains food quantities, weight ranges, and appropriate recommendations.

Code	Food Serving Size (g) Instructions
1	Casserole / Stew 1 serving	200-230	Place refrigerated casserole in glass bowl.Cover the plate with a lid or vented plastic wrap. After cooking, stir the food once before serving. Stand for 1-2 minutes.
2	Casserole/Stew 2 servings	400-450
3	Casserole / Stew 3 servings	600-690
4	Casserole / Stew 4 servings	800-920
5	Pasta / Soup 1 serving	200-230	Pour into a deep ceramic soup plate or bowl and cover during heating and standing. Stir carefully before and after standing time.Stand for 2-3 minutes.
6	Pasta / Soup 2 servings	400-450
7	Pasta / Soup 3 servings	600-690
8	Pasta / Soup 4 servings	800-920
9	Pizza Reheat 1 Slice P	Place pizza slices on	a microwave-safe platewith the wide ends of the slices towards the outside edge of the plate. Do not let the slices overlap. Do not cover.
10	Pizza Reheat	2 Slices
11	Pizza Reheat	3 Slices
12	Pizza Reheat	4 Slices

Operations

Auto Power Defrost

This is useful to defrost frozen meat, poultry, fish, or Bread/Cake. The operating time and power level will be adjusted according to the selected programme.

02 Power Defrost Auto Reheat Keep Warm Grill Combi Deodorisation 03 1 2 3 4 5 6 7 8 9 Power Level 0 Kitchen Timer Clock Eco Sound STOP/CANCEL +30s 04 START

1. Put food in the centre of the turntable and close the door.
2. Press Power Defrost to select category.
3. Use the number buttons to select a weight.
4. Press START.
5. When the cycle is complete with a beep 4 times, use oven gloves to take out the food.

NOTE

• The oven beeps in the middle of the cycle to remind you to turn the food over. Turn the food over, and press Start again to continue. When the cycle is complete, the oven beeps 4 times.
• You can defrost food manually. To do this, use a cooking mode with just 20% of the default power level of the cooking mode. For more information, see the Power level section.

Auto Power Defrost guide

The following table presents auto programmes for defrosting food. The table contains food quantities, weight ranges, and appropriate recommendations.

Code	Food Serving Size	(kg)	Instructions
1	Meat	0.1-1.5	Shield the edges with aluminium foil. Turn the meat over, when the oven beeps. This programme is suitable for beef,lamb, pork, steaks, chops, minced meat. Stand for 10-30 minutes.
2	Poultry	0.1-1.5	This program is suitable for whole chicken as well as for chicken pieces. Before defrosting, if a lot of ice crystals are present on poultry surface, it should be rinsed under cold water until all the ice crystals are removed. The poultry should then be left to stand for 5 to 10 min. at room temperature. Shield the leg and wing tips with aluminum foil. Place chicken pieces skin-side down, and whole chicken breast-side down on the middle of a flat microwave-safe plate. Turn the poultry over when the oven beeps
3	Fish	0.1-1.5	Shield the tail of a whole fish with aluminium foil. Turn the fish over, when the oven beeps. This programme is suitable for whole fishes as well as for fish fillets. Stand for 10-30 minutes.
4	Bread/Cake	0.1-1.0	Put bread on a piece of kitchen paper and turn over, as soon as the oven beeps. Place cake on a ceramic plate and if possible, turn over, as soon as the oven beeps. (Oven keeps operating and is stopped, when you open the door.) This programme is suitable for all kinds of bread, sliced or whole, as well as for bread rolls and baguettes. Arrange bread rolls in a circle. This programme is suitable for all kinds of yeast cake, biscuit, cheese cake and puff pastry. It is not suitable for short/crust pastry, fruit and cream cakes as well as for cake with chocolate topping. Stand for 5-30 minutes.

Operations

Keep warm

If you want to keep cooked foods warm until serving, use this function. The operating time and power level will be adjusted according to the selected programme.

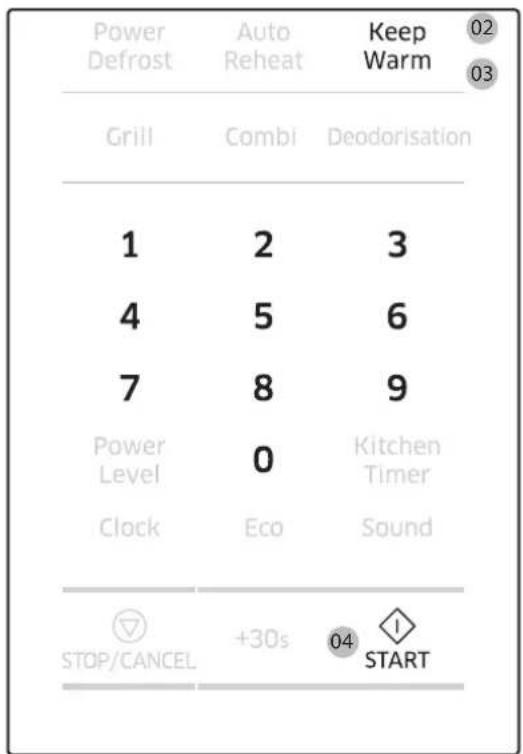

Power Defrost Grill Auto Reheat Keep Warm 02 03 Deodorisation 1 2 3 4 5 6 7 8 9 Power Level 0 Kitchen Timer Clock Eco Sound STOP/CANCEL +30s 04 START

1. Put food in the centre of the turntable and close the door.
2. Press Keep warm.
3. Use the Keep warm button again to choose either Hot(1) or Mild(2).
4. Press START.
5. When the cycle is complete with a beep 4 times, use oven gloves to take out the food.

CAUTION

• Do not use this function to reheat cold foods. Use this only for keeping food warm that has just been cooked.
• Do not keep food for more than 1 hour. The food surface may be dried.
• Do not put food covered with lids or plastic wrap in the oven.

1	Hot	lasagne, soups, gratin, pizza, bacon, fish dishes, dry cakes
2	Mild	pies, breads, egg dishes, steak (for rare or medium rare)

Deodorisation

Grill	Combi	Deodorisation 01
1	2	3
4	5	6
7	8	9
Power Level	0	Kitchen Timer
Clock	Eco	Sound
STOP/CANCEL	+30s	02 START

Deodorisation helps remove bad smells from inside the oven after cooking. The default time is 5 minutes.

• To activate, press Deodorisation and then START on the feature panel.
• To change the time, press +30S to increase by 30 seconds (max: 15 min).

Cooking Smart

We provide these cooking guides to help you make the most out of this oven. Experience our cooking know-how to add convenience and richness to your life.

Microwave cooking guide

- Cover the food throughout the entire cooking. The vaporised moisture from the food circles through inside and helps cook evenly.

• When cooking is complete, let stand for the specified time. This allows the food to even out inside.
• Use only microwave-safe cookware.

Frozen vegetables

- Use a suitable glass Pyrex container with a lid.

- Stir twice during cooking and once after cooking, and then add seasoning to your preference.

Food Serving Size (g) Power Time (min.)
Spinach 150 60%	5-6
	Add 15 ml (1 tbsp) cold water. Stand for 2-3 minutes.
Broccoli 300 60%	8-9
	Add 30 ml (2 tbsp) cold water. Stand for 2-3 minutes.
Peas 300 60%	7-8
	Add 15 ml (1 tbsp) cold water. Stand for 2-3 minutes.
Green Beans 300 60%	7 12 -8 12
	Add 30 ml (2 tbsp) cold water. Stand for 2-3 minutes.
Mixed Vegetables(Carrots/Peas/Corn)	300 60% 7-8
	Add 15 ml (1 tbsp) cold water. Stand for 2-3 minutes.
Mixed Vegetables(Chinese style)	300 60% 7 12 -8 12
	Add 15 ml (1 tbsp) cold water. Stand for 2-3 minutes.

Fresh vegetables

• Use a suitable glass Pyrex container with a lid.

• Cut ingredients into as small pieces as possible to reduce the cooking time.

• Add 30-45 ml of cold water to every 250 g unless otherwise specified.

• Stir once during cooking and once after cooking, and then add seasoning to your preference.

Food Serving Size (g) Power Time (min.)
Broccoli 250	500	100 % 4-5	7-8
	Prepare even sized florets. Arrange the stems to the centre. Stand for 3 minutes.
Brussels Sprouts 250	100 % 6-6 12
	Add 60-75 ml (4-5 tbsp) water. Stand for 3 minutes.
Carrots 250 100	% 4 12 -5
	Cut carrots into even sized slices. Stand for 3 minutes.
Cauliflower 250	500	100 % 5-5 12	7 12 -8 12
	Prepare even sized florets. Cut big florets into halves. Arrange stems to the centre. Stand for 3 minutes.
Courgettes 250 100	% 4-4 12
	Cut courgettes into slices. Add 30 ml (2 tbsp) water or a knob of butter. Cook until just tender. Stand for 3 minutes.
Egg plants 250 100	% 3 12 -4
	Cut egg plants into small slices and sprinkle with 1 tbsp lemon juice. Stand for 3 minutes.
Leeks	250 100 % 4	4 12
	Cut leeks into thick slices. Stand for 3 minutes.
Mushrooms	125250	100 % 1 12 -2	2 12 -3
	Prepare small whole or sliced mushrooms. Do not add any water. Sprinkle with lemon juice. Spice with salt and pepper. Drain before serving. Stand for 3 minutes.

Cooking Smart

Food Serving Size (g) Power Time (min.)
Onions 250 100	% 5-5 12
	Cut onions into slices or halves. Add only 15 ml (1 tbsp) water. Stand for 3 minutes.
Pepper 250 100	% 4 12 -5
	Cut pepper into small slices. Stand for 3 minutes.
Potatoes 250	500	100 % 4-5	7-8
	Weigh the peeled potatoes and cut them into similar sized halves or quarters. Stand for 3 minutes.
Turnip Cabbage 250	100 % 5 12 -6
	Cut turnip cabbage into small cubes. Stand for 3 minutes.
Boiled Yam(For MG32J5133A*)	350 100 % 14-14 12
	Peel and cut yam 3 cm thick and put on pyrex bowl. Add room temperature 250 ml water in bowl. Cook covered with wrap and pierce at several times. After cooking, drain water and serve. Stand for 1-2 minutes.
Boiled Yam(For MG40J5133AT)	350 100 % 12 12 -13
	Peel and cut yam 3 cm thick and put on pyrex bowl. Add room temperature 250 ml water in bowl. Cook covered with wrap and pierce at several times. After cooking, drain water and serve. Stand for 1-2 minutes.

Rice and pasta

Rice

- Use a large-sized glass Pyrex container with a lid. Note that rice doubles in volume during cooking.

Pasta

• Use a large-sized glass Pyrex container. Cook uncovered.
• Add boiling water and a little salt, and stir well. Stir several times during and after cooking.
• Cover with a lid while letting stand, and then drain well.

Food Serving Size (g) Power Time (min.)
White Rice (Parboiled)	250375	100 % 15-16	1712-1812
	Add 500 ml cold water.(250 g), Add 750 ml cold water.(375 g) Stand for 5 minutes.
Brown Rice (Parboiled)	250375	100 % 20-21	22-23
	Add 500 ml cold water.(250 g), Add 750 ml cold water.(375 g) Stand for 5 minutes.
Mixed Rice (Rice + Wild Rice)	250 100 % 16-17
	Add 500 ml cold water. Stand for 5 minutes.
Mixed Corn (Rice + Grain)	250 100 % 17-18
	Add 400 ml cold water. Stand for 5 minutes.
Pasta 250 100	% 10-11
	Add 1000 ml hot water. Stand for 5 minutes.
Instant Noodle (For MG32J5133A*)	1 Small pack (80 g) 100 % 7-7 12
	Use a glass pyrex bowl. Put the noodle and add room temperature 350 ml water in bowl. Cook covered with wrap and pierce at several times. After cooking, drain water and mix instant noodle spices.
Instant Noodle (For MG40J5133AT)	1 Small pack (80 g)1 Big pack (120 g)	100 % 7 12 -8	1010712
	Use a glass pyrex bowl. Put the noodle and add room temperature 350 ml water in bowl. Cook covered with wrap and pierce at several times. After cooking, drain water and mix instant noodle spices.

English 51

Cooking Smart

Grill

• Preheat the oven for 3-5 minutes. This helps brown food.

• Use only the provided metal rack or other flameproof metal racks.

• Foods available for grilling include chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions, sandwiches, and any kinds of toast with toppings.

• Use the High rack with Grilling mode unless otherwise specified (applicable models only)

Microwave + Grill

This Combi mode combines the radiant heat from the heating element with Microwave cooking. This will run only while the door is closed and the turntable is rotating.

- Use only flameproof cookware that is microwave-safe. Do not use metal or plastic cookware.

• Foods available with this Combi mode are basically any kinds of cooked food that you want to reheat and brown, for example, baked pasta.
• Use the High rack with Grilling mode unless otherwise specified (applicable models only).

Reheating guide

General

This reheating guide is based on the condition that the room temperature is between 18 °C and 20 °C for liquid, and between 5 °C and 7 °C for chilled food. Follow the operating time, power level, and standing time specified in this table.

Food Serving	Size (g) Power Time (min.)
Drinks(Coffee, Tea and Water)	150 ml (1 cup)300 ml (2 cups)450 ml (3 cups)600 ml (4 cups)	90 % 1-1 12	2-2 12 3-3 12 3 12 -4
	Pour into cups and reheat uncovered: 1 cup in the centre, 2 cups opposite of each other, 3 cups in a circle. Keep in microwave oven during standing time and stir well. Stand for 1-2 minutes.
Soup (Chilled) 250 g	350 g450 g550 g	90 % 2 12 -3	3-3 12 3 12 -44 12 -5
	Pour into a deep ceramic plate or deep ceramic bowl. Cover with plastic lid. Stir well after reheating. Stir again before serving. Stand for 2-3 minutes.
Stew (Chilled) 350 g	60 % 4 12 -5 12
	Put stew in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving. Stand for 2-3 minutes.
Pasta with Sauce(Chilled)	350 60 % 3 12 -4 12
	Put pasta (e.g. spaghetti or egg noodles) on a flat ceramic plate. Cover with microwave cling film. Stir before serving. Stand for 3 minutes.
Filled Pasta withSauce (Chilled)	350 60 % 4-5
	Put filled pasta (e.g. ravioli, tortellini) in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving. Stand for 3 minutes.

Cooking Smart

Food Serving Size (g) Power Time (min.)
Plated Meal(Chilled)	350450	60 % 41⁄2-5	51⁄2-61⁄2
	Plate a meal of 2-3 chilled components on a ceramic dish. Cover with microwave cling-film. Stand for 3 minutes.
Cheese FondueReady-to- Serve(Chilled)	400 60 % 6-7
	Put the ready-to-serve cheese fondue in a suitable sized glass pyrex bowl with lid. Stir occasionally during and after reheating. Stir well before serving. Stand for 1-2 minutes.

Special care for baby food

To prevent accidents such as burns, special care must be taken for baby food before serving. Make sure to strictly follow this reheating guide for baby food.

Baby food

• Use a deep ceramic plate and cover it with a plastic lid.
• Recommended serving temperature is 30-40 °C.

Baby milk

• Use a sterilised glass bottle and reheat it uncovered.
• Remove the teat before reheating. Otherwise, the milk in the bottle boils over.

Food Serving	Size Power Time (sec.)
Baby Food (Vegetables + Meat)	190 g 60 % 30
	Empty into ceramic deep plate. Cook covered. Stir after cooking time.Before serving, stir well and check the temperature carefully. Stand for 2-3 minutes.
Baby Porridge (Grain + Milk + Fruit)	190 g 60 % 20
	Empty into ceramic deep plate. Cook covered. Stir after cooking time.Before serving, stir well and check the temperature carefully. Stand for 2-3 minutes.
Baby Milk 100	ml200 ml	30 %	30-4060-70
	Stir or shake well and pour into a sterilised glass bottle. Place into the centre of turn-table. Cook uncovered. Shake well and stand for at least 3 minutes. Before serving, shake well and check the temperature carefully.

Defrosting guide

This defrosting guide is based on the condition that frozen food is between -18 °C and -20 °C in internal temperatures. The standing time varies depending on the food type (meat or vegetables) and serving size (thinner or thicker pieces of food).

- Put frozen food in a microwave-safe container uncovered.

- Turn it over halfway through defrosting time and drain well when complete.

Food Serving Size		Power Time (min.)
Meat Minced Meat 250 g		500 g	20 % 6-7	8-13
Place the meat on turntable. Shield thinner edges with aluminium foil. Turn over after half of defrosting time! Stand for 15-30 minutes.
Poultry Chicken Pieces 500 g (2 pcs) 20 % 14-15
				32-34
Fish	Fish Fillets	200 g	20 %	6-7
	Whole Fish 400 g		11-13
	Put frozen fish in the middle of a flat ceramic plate. Arrange the thinner parts under the thicker parts. Shield narrow ends of fillets and tail of whole fish with aluminium foil. Turn over after half of defrosting time! Stand for 10-25 minutes.
Fruits	Berries	300 g	20 %	6-7
	Spread fruit on a flat, round glass dish (with a large diameter). Stand for 5-10 minutes.

Cooking Smart

Food Serving Size		Power Time (min.)
Bread Bread	Read Rolls(Each ca. 50 g)	2 pcs4 pcs	20 % 1-1 12	2 12 -3
	Toast/Sandwich	250 g 4-4 12
	German Bread(Wheat + Rye Flour)	500 g 7 - 9
	Arrange rolls in a circle or bread horizontally on kitchen paper in the middle of turntable. Turn over after half of defrosting time! Stand for 5-20 minutes.

Quick & Easy

Melting crystallized honey

Put 20 g crystallized honey into a small deep glass dish.

Heat for 20-30 seconds using 30 %, until honey is melted.

Melting gelatine

Lay dry gelatine sheets (10 g) for 5 minutes into cold water.

Put drained gelatine into a small glass pyrex bowl.

Heat for 1 minute using 30 %.

Stir after melting.

Cooking glaze/icing (for cake and gateaux)

Mix instant glaze (approximately 14 g) with 40 g sugar and 250 ml cold water.

Cook uncovered in a glass pyrex bowl for 3½ to 4½ minutes using 90 %, until glaze/icing is transparent. Stir twice during cooking.

Cooking jam

Put 600 g fruits (for example mixed berries) in a suitable sized glass pyrex bowl with lid. Add 300 g preserving sugar and stir well.

Cook covered for 10-12 minutes using 90 %. Stir several times during cooking. Empty directly into small jam glasses with twist-off lids. Stand on lid for 5 minutes.

Cooking pudding/ custard

Mix pudding powder with sugar and milk (500 ml) by following the manufacturers instructions and stir well. Use a suitable sized glass pyrex bowl with lid. Cook covered for 6½ to 7½ minutes using 90 %. Stir several times well during cooking.

Browning almond slices

Spread 30 g sliced almonds evenly on a medium sized ceramic plate.

Stir several times during browning for 3½ to 4½ minutes using 60 %.

Let it stand for 2-3 minutes in the oven. Use oven gloves while taking out!

Troubleshooting

You may encounter a problem using the oven. In that case, first check the table below and try the suggestions. If a problem persists, or if any information code keeps appearing on the display, contact a local Samsung service centre.

Checkpoints

If you encounter a problem with the oven, first check the table below and try the suggestions.

Problem Cause	Action
General
The buttons cannot be pressed properly.	Foreign matter may be caught between the buttons.	Remove the foreign matter and try again.
	For touch models: Moisture is on the exterior.	Wipe the moisture from the exterior.
	Child lock is activated. Deactivate	Child lock.
The time is not displayed.	Power is not supplied. Make sure	power is supplied.
	The Eco (power-saving) function is set.	Turn off the Eco function.
The oven does not work.	Power is not supplied. Make sure	power is supplied.
	The door is open. Close the door and try again.
	The door open safety mechanisms are covered in foreign matter.	Remove the foreign matter and try again.
The oven stops while in operation.	The user has opened the door to turn food over.	After turning over the food, press the Start button again to start operation.
Problem Cause Action
The power turns off during operation.	The oven has been cooking for an extended period of time.	After cooking for an extended period of time, let the oven cool.
	The cooling fan is not working.	Listen for the sound of the cooling fan.
	Trying to operate the oven without food inside.	Put food in the oven.
	There is not sufficient ventilation space for the oven.	There are intake/exhaust outlets on the front and rear of the oven for ventilation.Keep the gaps specified in the product installation guide.
	Several power plugs are being used in the same socket.	Designate only one socket to be used for the oven.
There is no power to the oven.	Power is not supplied. Make sure	power is supplied.
There is a popping sound during operation, and the oven doesn't work.	Cooking sealed food or using a container with a lid may causes popping sounds.	Do not use sealed containers as they may burst during cooking due to expansion of the contents.
The oven exterior is too hot during operation.	There is not sufficient ventilation space for the oven.	There are intake/exhaust outlets on the front and rear of the oven for ventilation. Keep the gaps specified in the product installation guide.
	Objects are on top of the oven.	Remove all objects on the top of the oven.
The door cannot be opened properly.	Food residue is stuck between the door and oven interior.	Clean the oven and then open the door.

Troubleshooting

Problem Cause Action
The oven does not heat.	The oven may not work, too much food is being cooked, or improper cookware is being used.	Put one cup of water in a microwave-safe container and run the microwave for 1-2 minutes to check whether the water is heated.Reduce the amount of food and start the function again.Use a cooking container with a flat bottom.
Heating is weak or slow.	The oven may not work, too much food is being cooked, or improper cookware is being used.	Put one cup of water in a microwave-safe container and run the microwave for 1-2 minutes to check whether the water is heated.Reduce the amount of food and start the function again.Use a cooking container with a flat bottom.
The warm function does not work.	The oven may not work, too much food is being cooked, or improper cookware is being used.	Put one cup of water in a microwave-safe container and run the microwave for 1-2 minutes to check whether the water is heated.Reduce the amount of food and start the function again.Use a cooking container with a flat bottom.
The thaw function does not work.	The oven may not work, too much food is being cooked, or improper cookware is being used.	Put one cup of water in a microwave-safe container and run the microwave for 1-2 minutes to check whether the water is heated.Reduce the amount of food and start the function again.Use a cooking container with a flat bottom.
Problem Cause Action
The interior light is dim or does not turn on.	The door has been left open for a long time.	The interior light may automatically turn off when the Eco function operates. Close and reopen the door or press the “Cancel” button.
	The interior light is covered by foreign matter.	Clean the inside of the oven and check again.
A beeping sound occurs during cooking.	If the Auto Cook function is being used, this beeping sound means it's time to turn over the food during thawing.	After turning over the food, press the Start button again to restart operation.
The oven is not level.	The oven is installed on an uneven surface.	Make sure the oven is installed on flat, stable surface.
There are sparks during cooking.	Metal containers are used during the oven/thawing functions.	Do not use metal containers.
When power is connected, the oven immediately starts to work.	The door is not properly closed.	Close the door and check again.
There is electricity coming from the oven.	The power or power socket is not properly grounded.	Make sure the power and power socket are properly grounded.
There is water dripping.	There may be water or steam in some cases depending on the food.This is not an oven malfunction.	Let the oven cool and then wipe with a dry dish towel.
Steam leaks from the door.	There may be water or steam in some cases depending on the food.This is not an oven malfunction.	Let the oven cool and then wipe with a dry dish towel.
There is water left in the oven.	There may be water or steam in some cases depending on the food.This is not an oven malfunction.	Let the oven cool and then wipe with a dry dish towel.

Troubleshooting

Problem Cause Action
The brightness inside the oven varies.	Brightness changes depending on power output changes according to function.	Power output changes during cooking are not malfunctions. This is not an oven malfunction.
Cooking is finished, but the cooling fan is still running.	To ventilate the oven, the cooling fan continues to run for about 5 minutes after cooking is complete.	This is not an oven malfunction.
Pressing the +30sec button operates the oven.	This happens when the oven was not operating.	The microwave oven is designed to operate by pressing the +30 sec button when it was not operating.
Turntable
While turning, the turntable comes out of place or stops turning.	There is no roller ring, or the roller ring is not properly in place.	Install the roller ring and then try again.
The turn table drags while turning.	The roller ring is not properly in place, there is too much food, or the container is too large and touches the inside of the microwave.	Adjust the amount of food and do not use containers that are too large.
The turn table rattles while turning and is noisy.	Food residue is stuck to the bottom of the oven.	Remove any food residue stuck to the bottom of the oven.
Grill
Smoke comes out during operation.	During initial operation, smoke may come from the heating elements when you first use the oven.	This is not a malfunction, and if you run the oven 2-3 times, it should stop.
	Food is on the heating elements.	Let the oven cool and then remove the food from the heating elements.
	Food is too close to the grill. Put	the food a suitable distance away while cooking.
	Food is not properly prepared and/or arranged.	Make sure food is properly prepared and arranged.

NOTE

If the above guidelines do not enable you to solve the problem, then contact your local SAMSUNG customer service centre.

Please have the following information read;

• The model and serial numbers, normally printed on the rear of the oven
• Your warranty details
  • A clear description of the problem
  Then contact your local dealer or SAMSUNG aftersales service.

Information code

Code Description Action
C-d0	Control buttons are pressed over 10 seconds.	Clean the keys and check if there is water on the surface around key. If it occurs again, turn off the microwave oven over 30 seconds and try setting again. If it appears again, call your local SAMSUNG Customer Care Centre.

NOTE

If the suggested solution does not solve the problem, contact your local SAMSUNG Customer Care Centre.

English 63

Technical specifications Technical specifications

SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.

Model MG32J5133A* MG40J5133AT
Power Source 230 V - 50 Hz
Power Consumption	Microwave 1400 W 1500 W
	Grill 1500 W 1300 W
	Combined mode 2900 W 2800 W
Output Power		100 W / 900 W(IEC - 705)	100 W / 900 W(IEC - 705)
Operating Frequency 2450 MHz
Magnetron OM75P (31)
Cooling Method Cooling fan motor
Dimensions(W x H x D)	Main unit 517 x 297 x 402 mm 555 x 313 x 459 mm
	Cooking chamber	357 x 255 x 357 mm	375 x 262 x 392 mm
Volume		1.1 cu.ft	1.4 cu.ft
Weight	Net	16 kg	17.8 kg

Memo

Memo

Memo

SAMSUNG

Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance.

QUESTIONS OR COMMENTS

COUNTRY CALL OR VISIT US ONLINE AT
U.A.E 800-	SAMSUNG (800 - 726 7864)	www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)
OMAN 800-	SAMSUNG (800 - 726 7864)
KUWAIT 183-	CALL (183-2255)
BAHRAIN 800-	GSAM (8000-4726)
QATAR 800-	CALL (800-2255)
EGYPT	08000-726786416580	www.samsung.com/eg/support
ALGERIA 021	36 11 00 www.samsung.com/n_africa/support
PAKISTAN 080	Samsung (72678) www.samsung.com/pk/support
TUNISIA 80-	1000-12 www.samsung.com/n_africa/support
JORDAN	0800-2227306 5777444	www.samsung.com/Levant/support (English)
SYRIA 1825	2273
IRAN	021-8255	www.samsung.com/iran/support
MOROCCO	080 100 22 55	www.samsung.com/n_africa/support
SAUDI ARABIA	8002474357	www.samsung.com/sa/supportwww.samsung.com/sa_en/support (English)
TURKEY 444	77 11	www.samsung.com/tr/support
NIGERIA 0800-	726-7864	www.samsung.com/africa_en/support
Ghana	0800-100770302-200077
Cote D'lvoire	8000 0077	www.samsung.com/africa_fr/support
SENEGAL 800-	00-0077
CAMEROON	7095-0077
KENYA	0800 545 545	www.samsung.com/support
UGANDA	0800 300 300
TANZANIA	0800 755 755 / 0685 889 900
RWANDA	9999
BURUNDI	200
DRC	499999
SUDAN	1969
SOUTH AFRICA	0860 SAMSUNG (726 7864)
BOTSWANA	8007260000
NAMIBIA	08 197 267 864
ZAMBIA 021	1 350370
MAURITIUS	23052574020
REUNION	262508869
MOZAMBIQUE	847267864 / 827267864

DE68-04325E-00
