USER MANUAL GLINK 2 UPPAbaby

Warnings - General Safety Information 3
Cleaning + General Maintenance 4
Limited Warranty 5
Product Overview 12
Attaching/Removing Front Wheels 14
Opening Strainers 14
Applying Brake 16
Reclining Seat 17
Attaching/Removing Carpentry 18
Attaching Cup Holder 19
Adjusting Shoulder Harness Height 20
Buckle Operation 20
Adjusting Harness 21

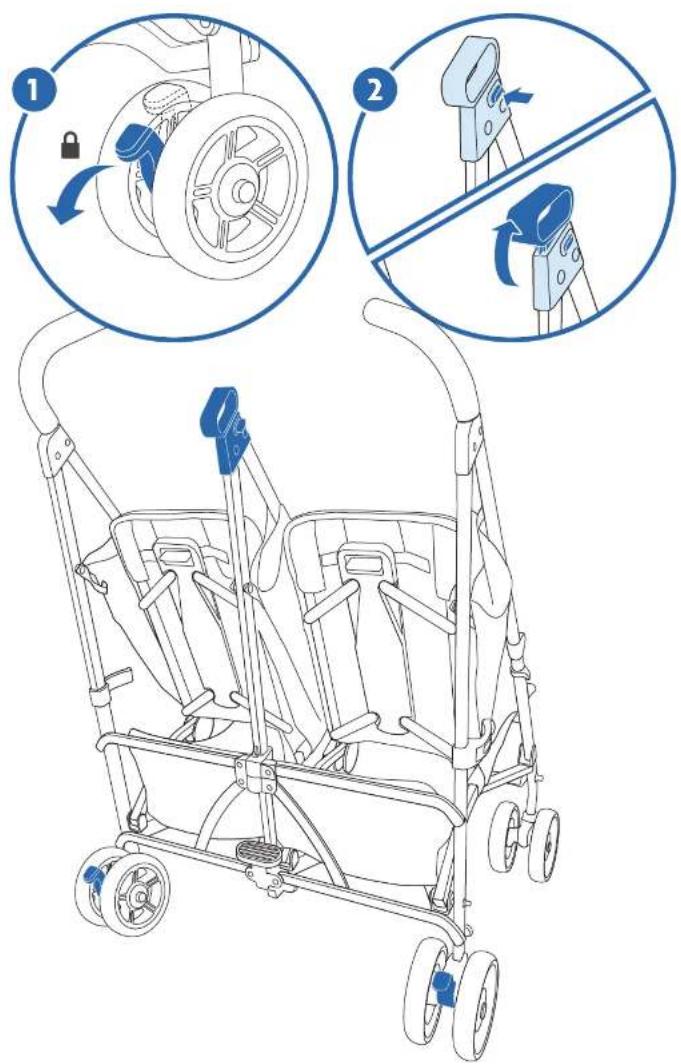

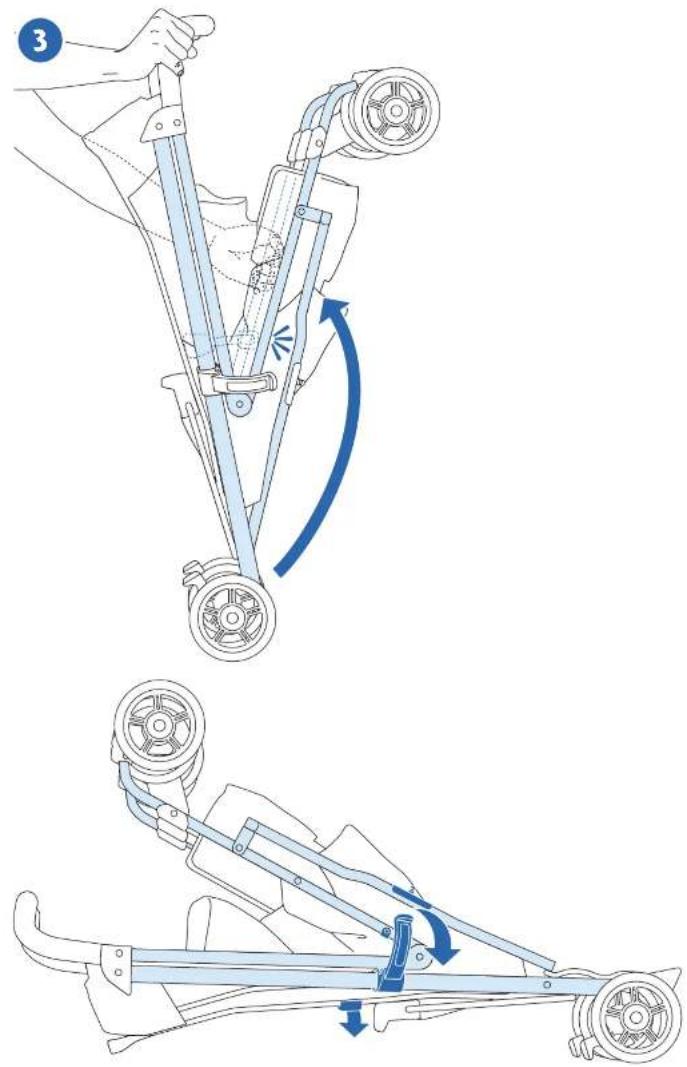

Folding Stroller 22
Removing Seat Fabric 24
Removing Canopy Fabric 26

NEVER LEAVE CHILD UNATTENDED.
- FAILURE TO FOLLOW THESE WARNINGS AND INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH:
- To avoid serious injury from sliding or falling out, always use complete 5-point harness.
- Child may slip into leg openings and strangle. NEVER use in a reclined position unless child is secured in 5-point harness system.
- Unit may become unstable if manufacturer's recommended load is exceeded, or if parcel bag or accessory other than that recommended by the manufacturer is used or hung from the unit.
- Children and adults should be clear of moving parts while making stroller adjustments. Damage to fingers or extremities may occur when opening or closing the frame.

Keep these instructions for future reference.

• This stroller seats two passengers. Each seat is suitable from 3 months up to 55 lbs (25 kg) and 45 in (114 cm).
  Maximum weight for the storage basket is 10 lbs (4.5kg)
  Maximum weight for the canopy storage pocket is 2 lb (.9 kg).
  Maximum cup holder weight is 1.5 lbs (7kg) . Excessive weight may cause a hazardous, unstable condition to exist. DO NOT place hot liquids in holder.
  Total weight load recommended for this stroller is 127 lbs (57.6kg)
• Listen for audible click to ensure stroller is locked open before use.
  Always make sure stroller is fully open and locked before use.
• The brake must be locked while taking the child in or out of the stroller, and when parked.
• NEVER leave child in the stroller while ascending or descending stairs, or using an escalator.
• DO NOT make any alterations or modifications to the stroller with products not supplied by the manufacturer as this may cause instability or structural damage not covered under warranty.

This product is designed and manufactured to comply with ASTM F833-15 Standard Consumer Safety Performance Specification for Carriages/Strollers and is JPMMA certified. This product is designed and manufactured to comply with Canadian Standard SOR 2016-167 Carriages and Strollers Regulations.

CLEANING:

Clean chassis with a damp cloth and a mild detergent; dry thoroughly. DO NOT use abrasives

• If the chassis parts have been exposed to salt water we recommend that they be rinsed with fresh (too) water as soon as possible to avoid corrosion. Always dry frame if wet.
  All fabrics are removable.
  To extend the life of your product's fabric, keep it clean and do not leave it in direct sunlight for long periods of time.
  DO NOT fold or store the product if it is damp or wet, nor store in a damp environment.

MAINTENANCE AND REPAIR:

This product requires user inspection and maintenance regularly. Check all connecting hardware (rivets, screws, etc.) for tightness and security. Inspect all brakes, tires, seat harnesses and locks for correct operation. Seek prompt repairs or replacements as needed and never continue using the product if it is structurally not safe.
Only UPPAbaby replacement parts should be used. It may be unsafe to use parts supplied by another manufacturer
- Contact Customer Service with any repair questions.

Spot clean or hand wash in cold water with mild detergent. No writing or twist DO NOT use bleach or fabric softeners.

Dry flat in shade, away from heat before reuse or storage.

DO NOT iron, steam or dry clean.

UPPAbaby offers an EXTENDED WARRANTY of one year for a total of three years on all strollers and select accessories (Bassinet, RumbleSeat, From Birth Kit and PiggyBack).

Register your product at: appababy.com/register

To receive the additional one year warranty, customers must register their product online at upsbaby.com within three months of purchase and provide a valid receipt from an authorized retailer. It's our way of saying thank you!

Your UPPABaby product is warranted to be free from any manufacturing defects for a period of 2 years from the date of purchase under normal use and in compliance with the operating instructions.

This warranty is not transferable and extends only to the original retail purchaser and is only valid when supplied with proof of purchase. PLEASE RETAIN PROOF OF PURCHASE FOR THIS LIMITED WARRANTY.

The warranty is valid only in the original country of purchase. This warranty is subject to the conditions set forth by country in which the items were purchased. Conditions may vary. UPPAbaby will not ship replacement or repair parts out of the country of purchase.

UPPAbaby will provide replacement parts or conduct repairs as determined fitting by the company. UPPAbaby reserves the right to exchange items with a replacement part. Some parts may be replaced with newer model parts as the product is improved over time.

Please note that a repair issue will NOT be covered by this warranty if:

• The issue is caused by misuse or poor maintenance. Please refer to this instruction booklet for guidance on product use and maintenance.
• Damage is caused by improper installation of LPPAbaby parts and/or accessories. Please refer to this instruction booklet for guidance on product assembly and use.
• Damage is corrosion, mold or rust caused by lack of maintenance or service.
• Damage is due to general wear and tear, which is the result of everyday use or negligence.
• Damage is caused by sun intensity, sweat, detergents, damp storage or frequent washings.
  Repairs or modifications are carried out by a third party.
  Product is purchased from an unauthorized retailer. Approved retailers are listed on our website at appababy.com
  Product is second-hand.
  Product is damaged as a result of an accident, airline or freight damage.

UPPaby reserves the right to determine if warranty terms and conditions have been met. Please contact your local distributor if you have any questions regarding warranty.

ES

EN ATTACHING/REMOVING CANOP

COLOCAR/RETIRAR LA CAPOTA

XATION/RETRAIT DE LAUVENT

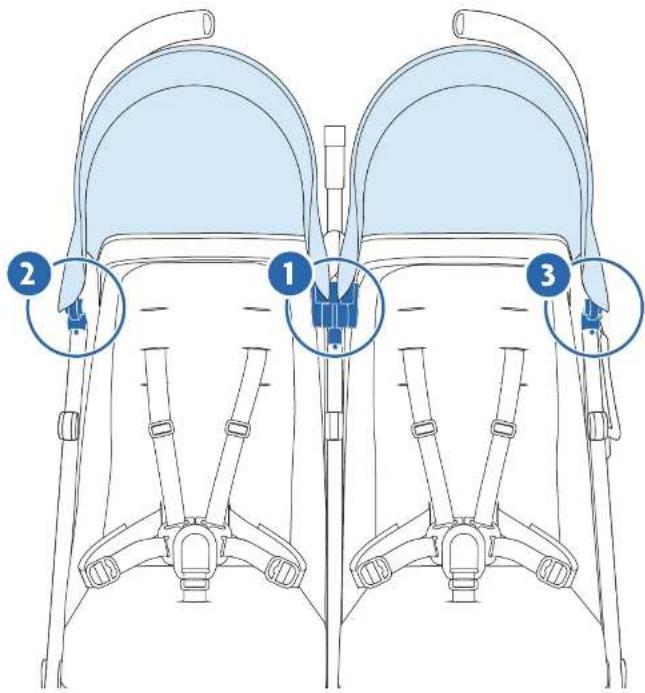

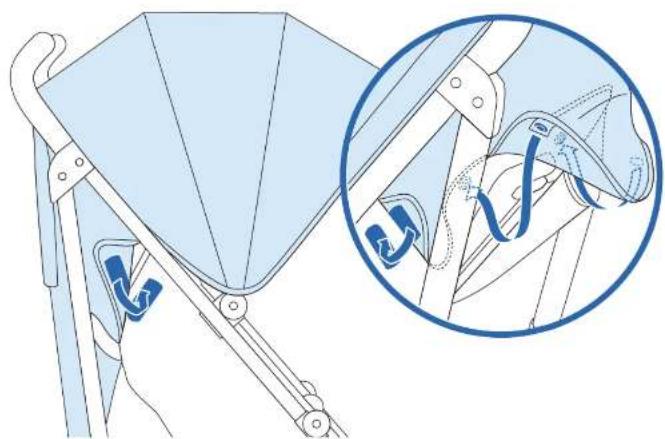

ATTACHING/REMOVING CANOPY

COOCAR/RETIRARLA CAPOTA

FIXATION/RETRAIT DE LAUVINT

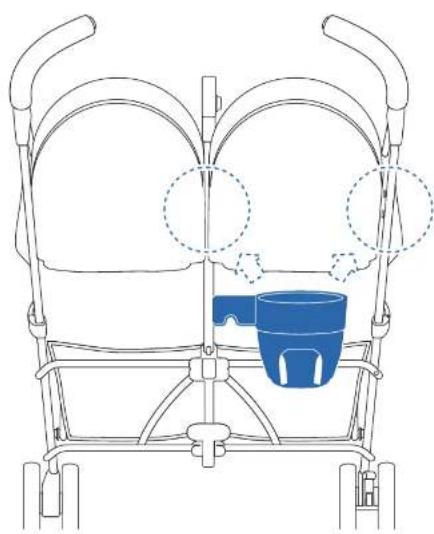

ATTACHING COUP HOLLER

COLOCACONDELPORTA-VASOS

FIXATION DU PORTE-GOBELET

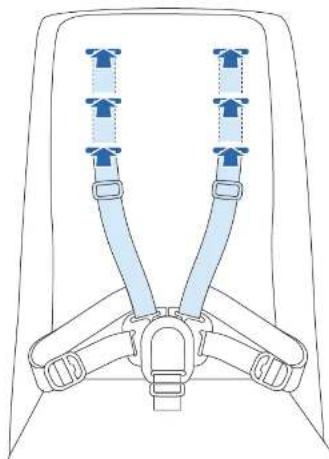

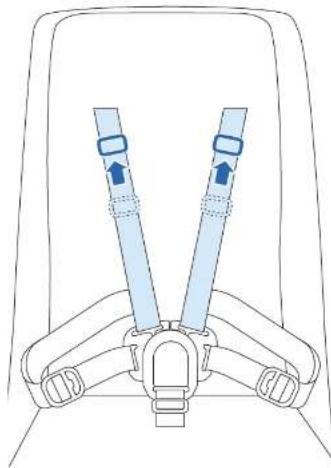

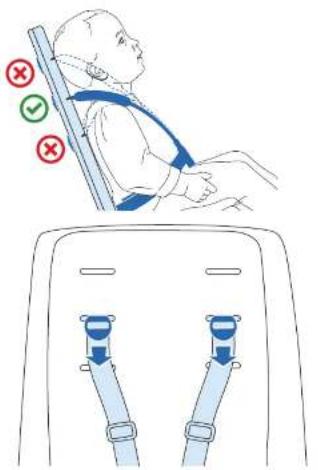

EN ADJUSTING SHOULDER HARNESS HEIGHT ES AUSTAR LA ALTURA DEL ARNES DE HOMBROS

FR AUSTEMENT DE LA HAUTEUR DU ARNAIS D'EPALIE

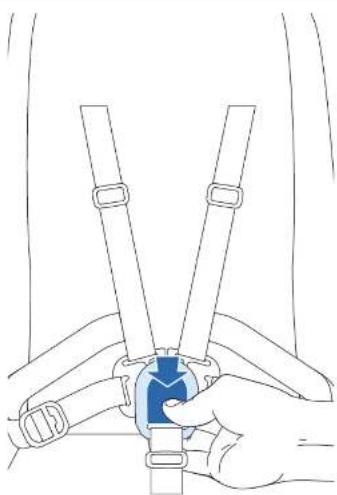

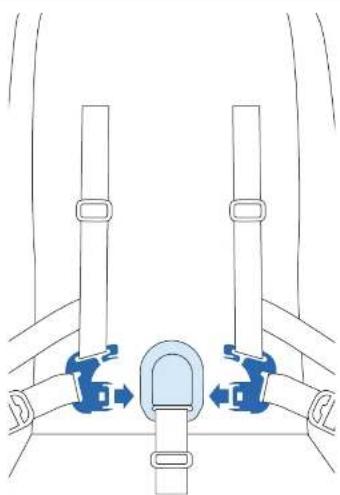

EN BICKF OPERATION ES FUNKIONAMENTO DE LA HEMILA FR UTISATION DE A BOULIC

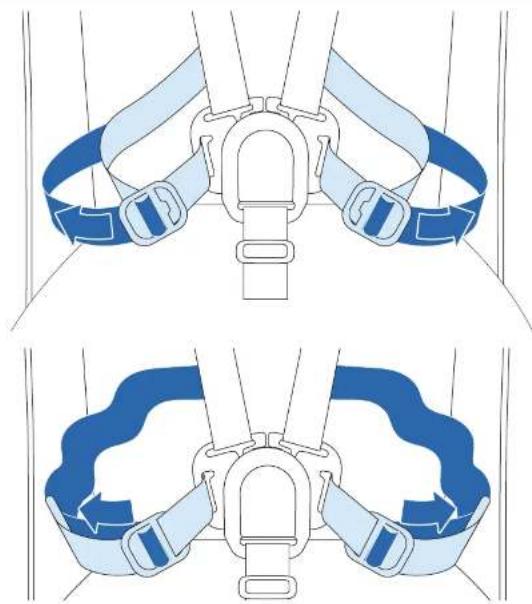

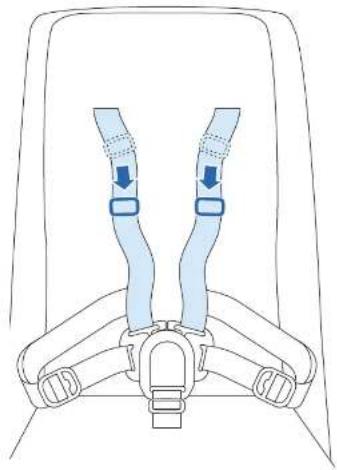

EN ADJUSTING HARNESS ES AJUSTARI ARNES FR AJUSTMENT DU HARMAS

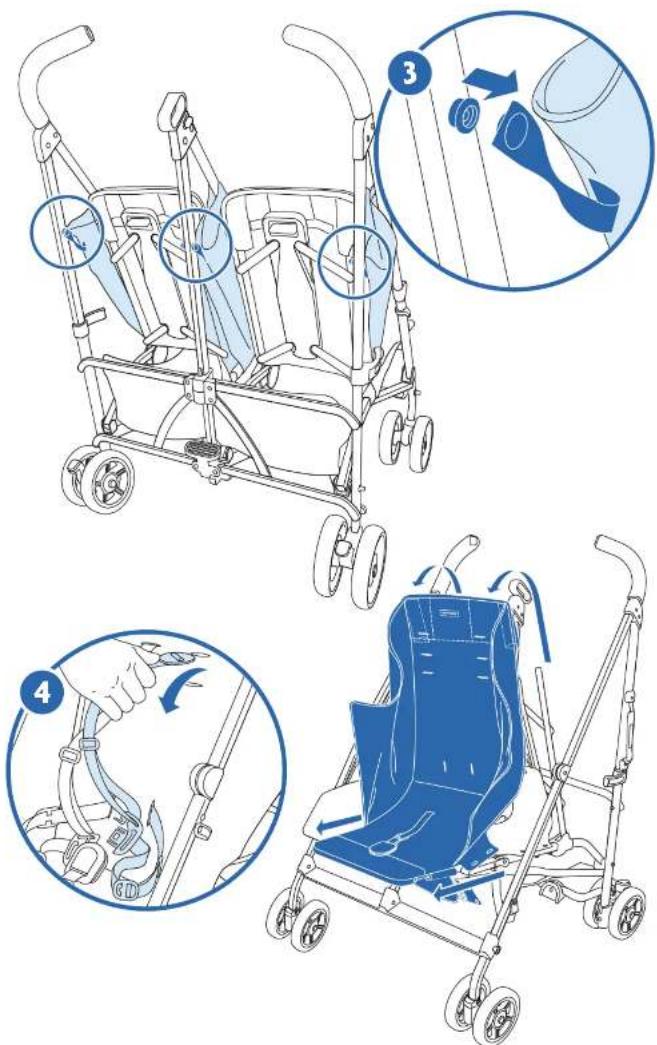

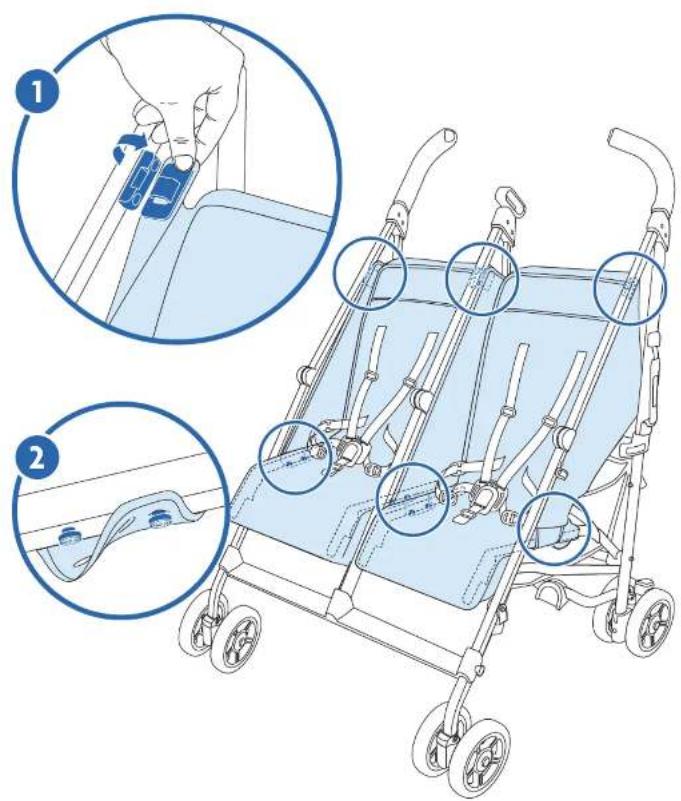

RENCOVING STATE FABRIC

RETRARLA COLOIONTA

RETRAI DU TISSU DU SIEGE

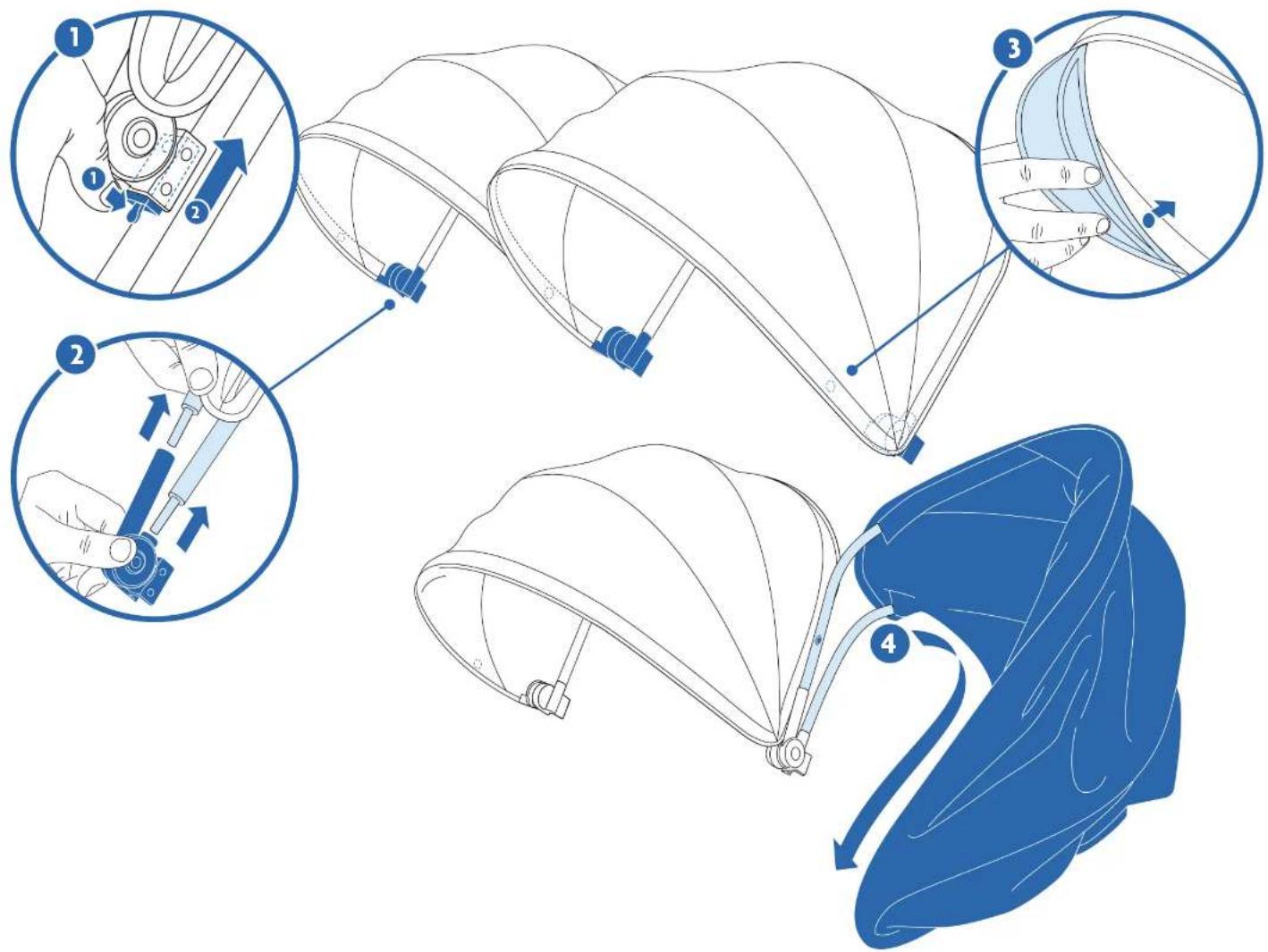

REMOVING CANOPY FABRIC

ETIRAR LA TELA DE LA CAPOTA

RETRAIT DU TISSU DE L'ALVENT
