Product Type	Electric fireplace with heating
Brand	Danby
Model	DBSF05021UD51
Power Supply	120 V AC, 60 Hz
Heating Power	1500 W (estimated)
Heat Modes	High and low
Timer	0 to 12 hours, in 1-hour increments
Adjustable Temperature	Yes, via up/down buttons
Display	Digital with mode indicators
Flame Colors	Multicolor, adjustable via remote or panel
Remote Control	Yes, with CR2025 battery included
Installation	Wall-mounted or freestanding with feet
Fireplace Material	Artificial logs or clear crystals, interchangeable
Surface	Solid, flat, and heat-resistant
Maintenance	Soft damp cloth, mild detergent if necessary
Safety	Overheat protection, tip-over switch, child lock not specified
Warranty	18 months parts (first purchaser)
Environment	Indoor use only, clearances of 50 cm sides, 100 cm above

Frequently Asked Questions - DBSF05021UD51 DANBY

How to install the fireplace on the wall?

Remove the feet, attach the wall bracket to the wall using the provided screws and anchors. Ensure the wall can support the weight (studs spaced max 60 cm apart). Hang the fireplace on the bracket, then secure it with two 4x12 mm screws on the sides.

How to use the remote control?

Remove the insulating film from the battery compartment. Point the remote at the control panel. Use the buttons to turn on/off, adjust mode, flame color, and timer.

How to change the flame color?

Press the flame color button on the panel or remote. Each press changes the color. You can also turn the flame on or off.

The heater does not work, what to do?

Check that the fireplace is plugged into a 120V outlet and the power switch is on. Ensure the set temperature is higher than the room temperature. If the problem persists, unplug for 15 minutes to reset the overheat protection.

How to clean the fireplace?

Unplug the appliance and let it cool. Clean the exterior with a soft damp cloth. Use mild detergent if necessary. Never immerse the appliance in water and do not use abrasive products.

Is the fireplace safe for children?

The fireplace heats and can cause burns. Do not leave children unattended. The fireplace has overheat protection and a tip-over switch. Keep flammable materials away.

What to do if the fireplace turns off by itself?

This may be due to overheating. Unplug the appliance, wait 15-20 minutes for it to cool, then plug it back in. If the problem persists, check that the air inlets/outlets are not blocked.

How to replace the remote control battery?

Push the battery compartment latch upward and remove the tray. Replace the battery with a CR2025, observing polarity. Reinsert the tray until it clicks.

Can I use the fireplace without the feet?

Yes, if you install it on the wall. For freestanding use, you must assemble the provided feet using the 4x16 mm screws. Place the fireplace on a flat, solid surface.

What does the warranty cover?

The 18-month warranty covers defective parts (excluding plastic, which is covered for 30 days). The buyer must transport the appliance to an authorized service center. The warranty does not cover damage due to improper installation or use.

USER MANUAL DBSF05021UD51 DANBY

ELECTRIC FIREPLACE WITH HEATER

Owner's Manual. 1 - 14

FOYER ELECTRIQUE AVEC CHAUFFAGE

DANBYPRODUCTSINC.,FINDLAY,OHIO,USA45840

www.Danby.com

2022.08.18

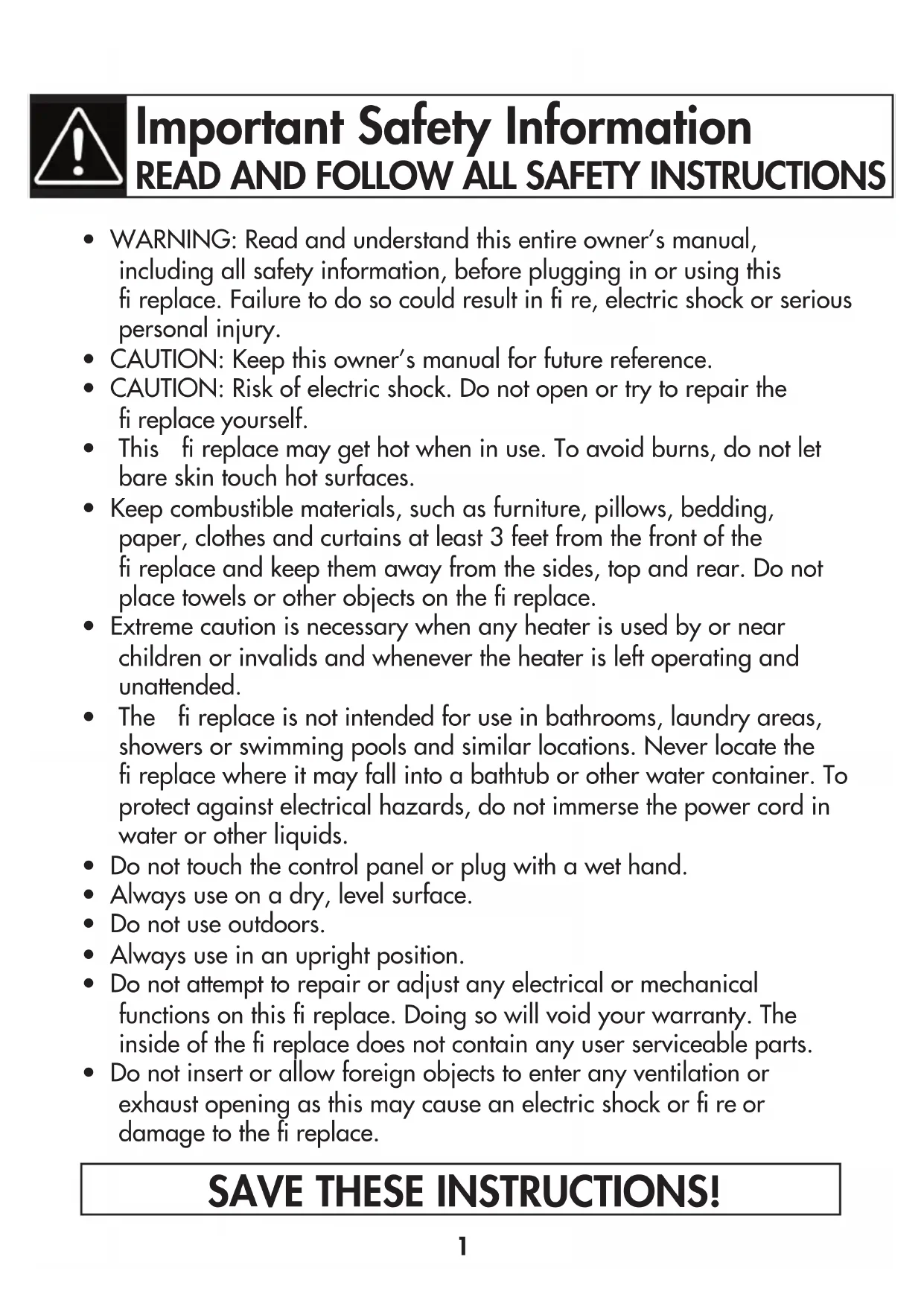

• WARNING: Read and understand this entire owner's manual, including all safety information, before plugging in or using this fi replace. Failure to do so could result in fire, electric shock or serious personal injury.
• CAUTION: Keep this owner's manual for future reference.
• CAUTION: Risk of electric shock. Do not open or try to repair the fi replace yourself.
• This 'fi' replace may get hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
• Keep combustible materials, such as furniture, pillows, bedding, paper, clothes and curtains at least 3 feet from the front of the fi replace and keep them away from the sides, top and rear. Do not place towels or other objects on the fi replace.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
• The fi replace is not intended for use in bathrooms, laundry areas, showers or swimming pools and similar locations. Never locate the fi replace where it may fall into a bathtub or other water container. To protect against electrical hazards, do not immerse the power cord in water or other liquids.
• Do not touch the control panel or plug with a wet hand.
  Always use on a dry, level surface.
• Do not use outdoors.
  Always use in an upright position.
• Do not attempt to repair or adjust any electrical or mechanical functions on this fi replace. Doing so will void your warranty. The inside of the fi replace does not contain any user serviceable parts.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire or damage to the fi replace.

SAVE THESE INSTRUCTIONS!

• WARNING: To reduce the risk of fire or electric shock, do not use this fi replace with any solid-state speed control devices.
• Do not operate any fi replace with a damaged power cord or after the fi replace malfunctions, has been dropped or damaged in any manner. Return the fi replace to an authorized service facility for examination, electrical or mechanical adjustment or repair.
• Do not run the power cord under carpeting. Do not cover the power cord with throw rugs, runners or similar coverings. Arrange the power cord away from traffic area where it will not be tripped over.
• To prevent possible fire, do not block the air intakes or exhaust in any manner. Do not use the fi replace on soft surfaces like a bed or thick carpeting where the air intakes may become blocked.
• This fi replace has hot and arcing or sparking parts inside. Do not use the fi replace in areas where gasoline, paint, explosive and/or flammable liquids are used or stored. Keep the fi replace away from heated surfaces and open fl ames.
• To avoid fire or shock hazard, plug the fi replace directly into a 120 V AC electrical outlet. Never use an extension cord or power strip.
• To disconnect the fi replace, turn the controls to off and then remove the plug from the outlet. Pull fi firmly on the plug, do not unplug by pulling on the cord.
• Always unplug the fi replace before moving or cleaning it. Unplug the fi replace when it is not in use.
• Use only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons. The use of attachments is not recommended.

SAVE THESE INSTRUCTIONS!

OPERATING INSTRUCTIONS

OVERHEAT SAFETY FEATURE

This fi replace is equipped with an overheat safety feature. When the fi replace's internal components reach a certain temperature that could cause overheating and possible fi re, the fi replace will automatically shut off. Operation can only resume when the user resets the fi replace.

To reset the fi replace, ensure the power is turned off, unplug the unit and wait 15 to 20 minutes for the internal components to cool down.

Follow the instructions for use to return the fi replace to normal functioning.

WARNING: It is normal for the power cord to feel warm to the touch; however, a loose fit between the outlet and the plug may cause overheating of the plug. If this occurs, try inserting the plug into a different outlet. Contact a qualified electrician to inspect the original outlet for damage.

INCLUDED ACCESSORIES

Electric fi replace with heater
Remote control
- Clear crystals
- Wall hanging bracket
- Wall hanging bracket hardware:

• 4 × 45 ~mm screws x4
• Four screw expansion brackets
• 4 × 12 ~mm screws x2

Two feet
- 4 × 16 ~mm screws x8 (to assemble feet)

OPERATING INSTRUCTIONS

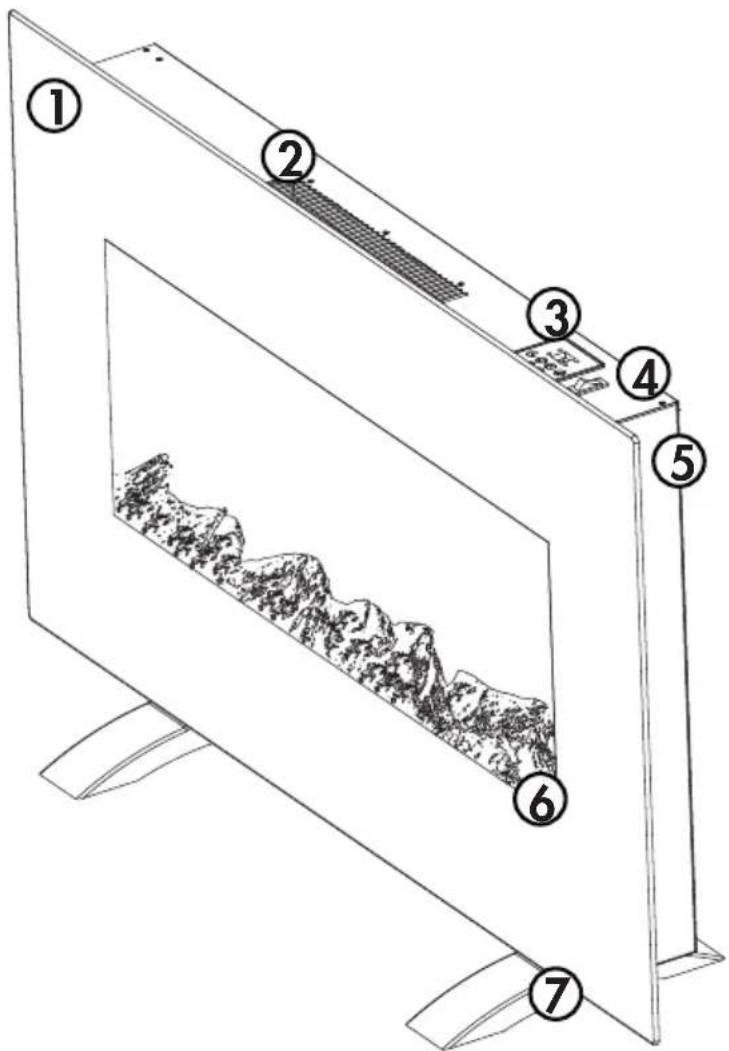

FEATURES

1. Glass
2. Air outlet
3. Control panel
4. Power switch
5. Wall hanging bracket
6. Ember bed
7. Free standing feet

IMPORTANT WARNING

Do not leave this appliance unattended in a space where people or animals who cannot react to a malfunction are located. A malfunction can cause extreme overheating or death in an enclosed, unattended space.

OPERATING INSTRUCTIONS

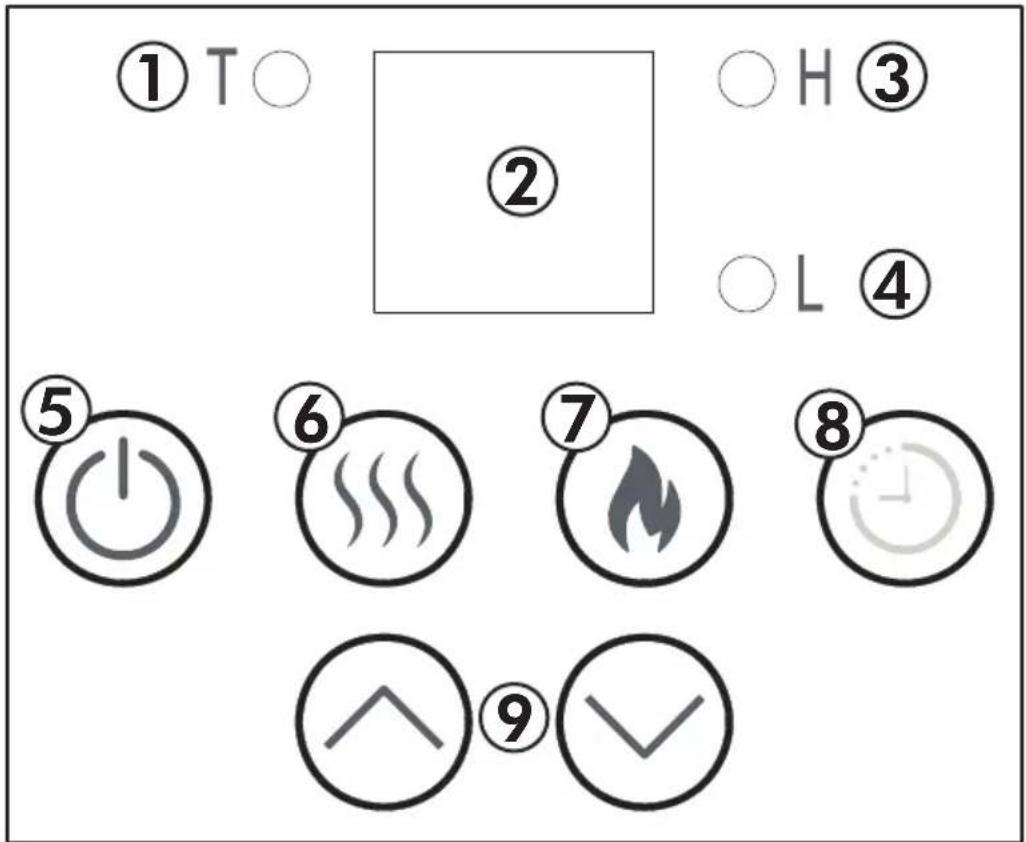

CONTROL PANEL

1. Timer indicator light: Illuminates when the timer is active.
2. Display panel: Shows the set temperature.
3. High heat mode indicator: Illuminates when high heat mode is active.
4. Low heat mode indicator: Illuminates when low heat mode is active.
5. Power button: Used to turn the fi replace on or off.
6. Mode button: Used to set the desired mode; low heat or high heat. Press and hold for 3 seconds to change between ^ F and ^ C .
7. Flame colour button: Used to turn the fl ame on or off. Used to change the colour of the fl ame.
8. Timer button: Used to set the timer feature. Press the timer button repeatedly to set the number of hours that the fi replace should run before turning off. The timer can be set between 0 and 12 hours and can be adjusted in 1 hour increments. The timer indicator light will remain illuminated while the timer is active. The fi replace will automatically turn off when the timer reaches zero.
9. Up and down buttons: Used to increase or decrease the set temperature.

OPERATING INSTRUCTIONS

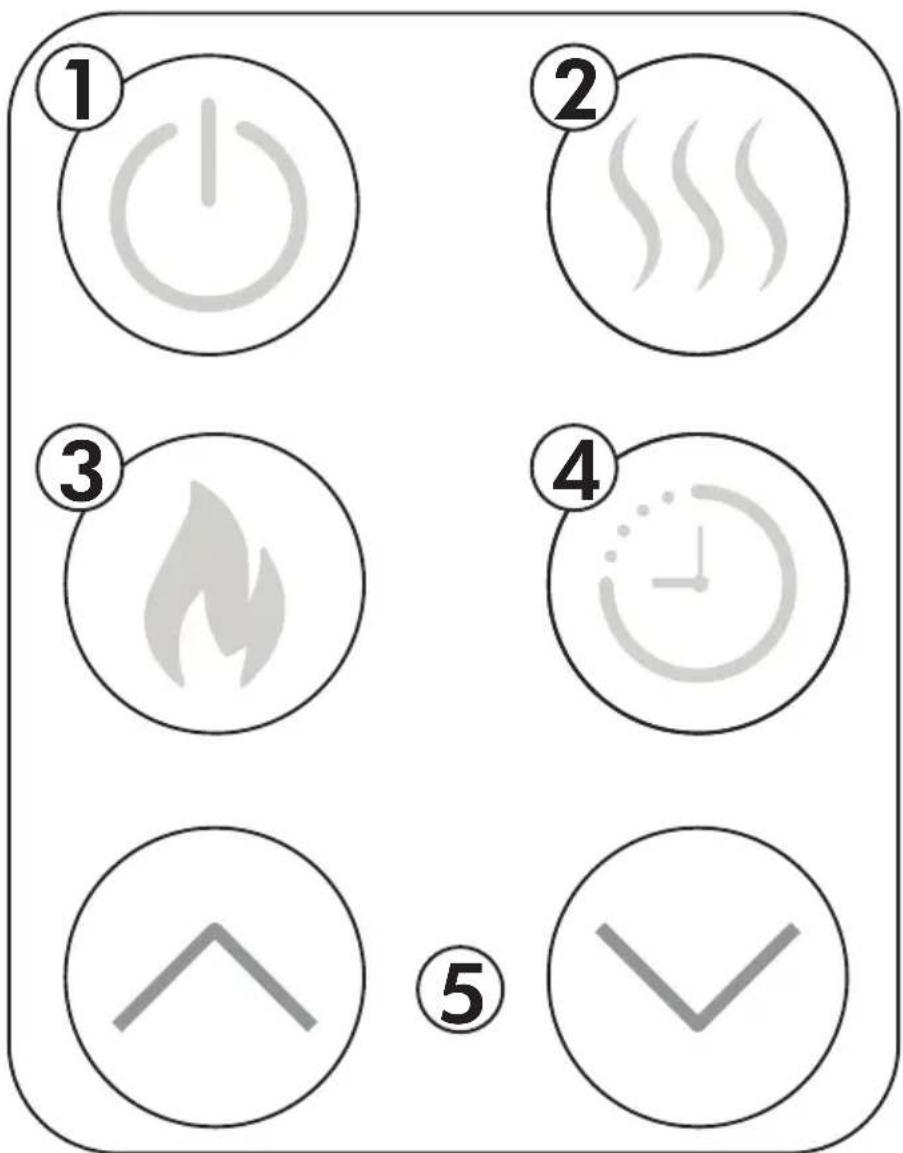

REMOTE CONTROL

1. Power button: Used to turn the fi replace on or off.
2. Mode button: Used to set the desired mode; low heat or high heat.
3. Flame colour button: Used to turn the fl ame on or off. Used to change the colour of the fl ame.
4. Timer button: Used to set the timer feature.
5. Up and down buttons: Used to increase or decrease the set temperature.

OPERATING INSTRUCTIONS

REMOTE CONTROL BATTERY

This remote control uses one CR2025 battery.

To remove the battery, push the latch on the battery compartment upwards and then pull the battery tray out.

To replace the battery, place the new battery in the battery tray and push it gently into the remote control until it clicks into place.

WARNING: Never dispose of batteries in fire. Failure to observe this precaution may result in an explosion. Dispose of batteries at your local hazardous material processing center.

If the fi replace will not be used for a long time, remove the batteries to prevent corrosion. Store the remote control in a safe place.

Remove the insulating fi lm from the battery compartment before using the remote control.

WARNING:

• Keep batteries out of children's reach. Discard them carefully.
• Do not allow children to play with batteries.
• Never put button batteries in or near your mouth for any reason, they are slippery and easy to swallow accidentally.

OPERATING INSTRUCTIONS

INSTRUCTIONS FOR USE

1. Remove the insulating film from the remote control battery compartment.
2. Ensure the power is turned off.
3. Decide which installation method to use and install the fi replace as directed.
4. Plug the fi replace directly into a 120V AC electrical outlet.
5. Turn the fi replace on by pressing the power button.
6. Press the mode button to set low or high heat mode.
7. Press the up and down buttons to set the desired temperature. The fi replace will remain on until the set temperature is reached and it will then cycle on and off to maintain the set temperature.
8. Turn the fi replace off by pressing the power button. When the power is turned off the heating element will stop working immediately but the fan will continue to run for 30 seconds or until the fi replace has cooled.

Important

When the heat feature is used for the first time, a slight odor may be present. This is normal and should not occur again unless the fi replace is not used for an extended period of time.

It is normal for the fi replace to cycle on and off as it maintains the set temperature.

For the fi replace to function properly, the set temperature must be higher than the ambient temperature in the room. If the fi replace does not seem to be heating, increase the set temperature to engage the heating element.

INSTALLATION INSTRUCTIONS

PREPARATION

WARNING: This product includes glass. Always use extreme caution when handling glass. Failure to do so could result in personal injury or property damage.

Remove all parts and hardware from the carton and place them on a clean, soft, dry surface.

WARNING: Make sure all parts are dry and the power cord and plug are not damaged. See the Important Instructions section.

The fi replace can be wall-mounted or placed on a solid, level surface when the free standing feet are assembled. The fi replace must be plugged into a 120V 60Hz electrical outlet.

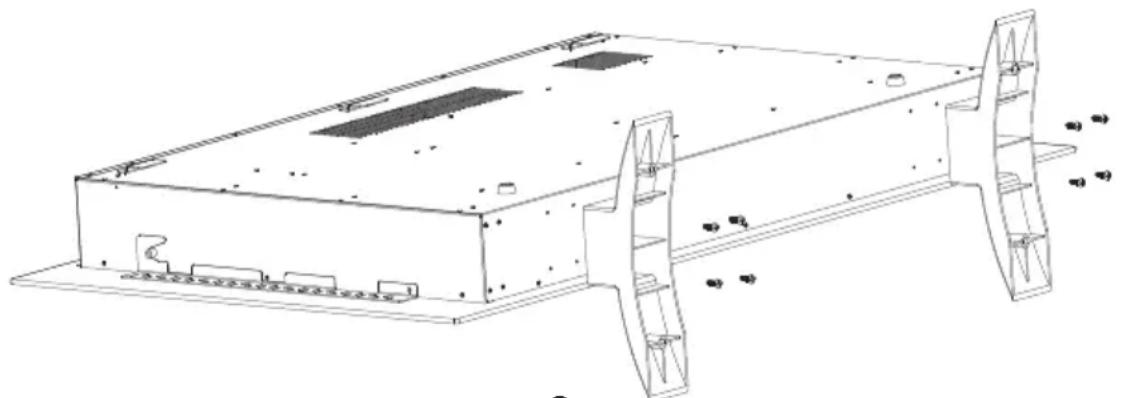

FREE STANDING FOOT ASSEMBLY

Carefully lay the fi replace on a floor or table. Place the fi replace on a blanket or soft surface to avoid scratching it or causing damage to your furniture or flooring.

Attach the free standing feet using eight 4 × 16 mm screws as shown. Place upright on a solid, level surface and plug into a 120V 60Hz electrical outlet.

Note: If you attach the solid feet for freestanding installation, you do not need to install the wall bracket onto the back of the fi replace.

INSTALLATION INSTRUCTIONS

WALL MOUNTED INSTALLATION

Find a safe location to install the fi replace. To prevent fi re there must be a minimum clearance of 50 cm (20 inches) on the sides and bottom and 100 cm (40 inches) on the top of the unit.

Choose a location near an outlet so an extension cord is not required. Do not position the fi replace directly below a power outlet.

WARNING: Prior to wall mounting, check the wall to ensure that there are no wires, pipes or similar in the area where holes will be drilled.

WARNING: Ensure the fi replace is unplugged prior to installation, moving and assembling.

WARNING: This fi replace cannot be recessed into a hollow wall cavity. Mountings must be secured to a solid wall surface such as plaster board or drywall that is supported by studs spaced no more than 24 inches (60 cm) apart.

Note: Ensure the feet are not installed before attempting a wall installation.

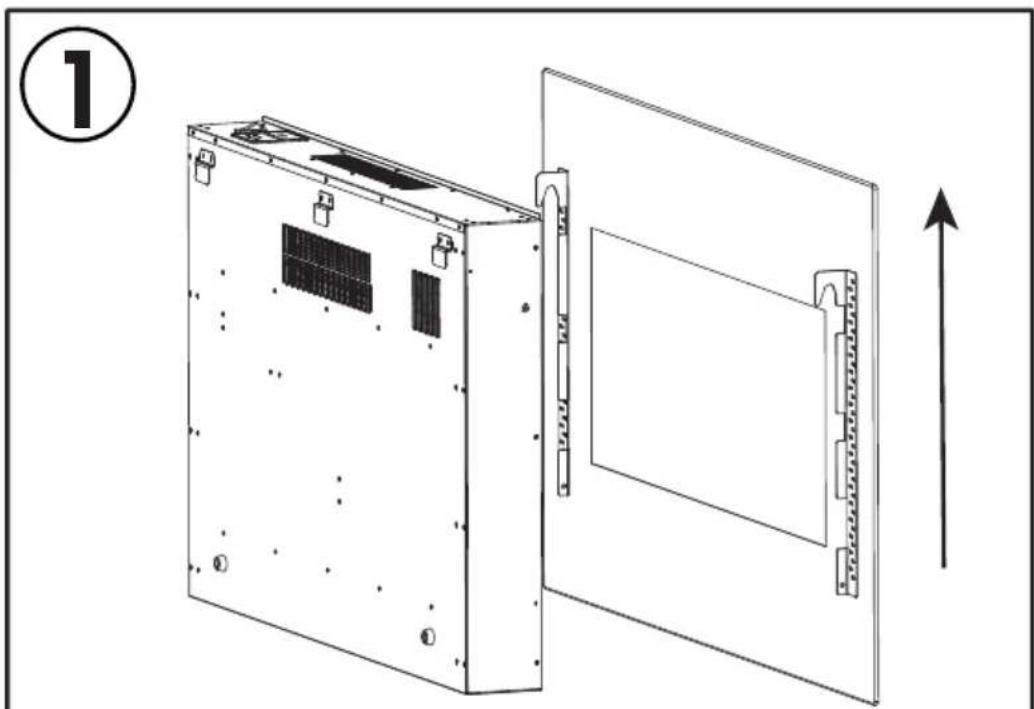

1. The glass should be removed before installation. Remove the two screws on the left and right side of the glass and then lift the glass panel upward to remove it.

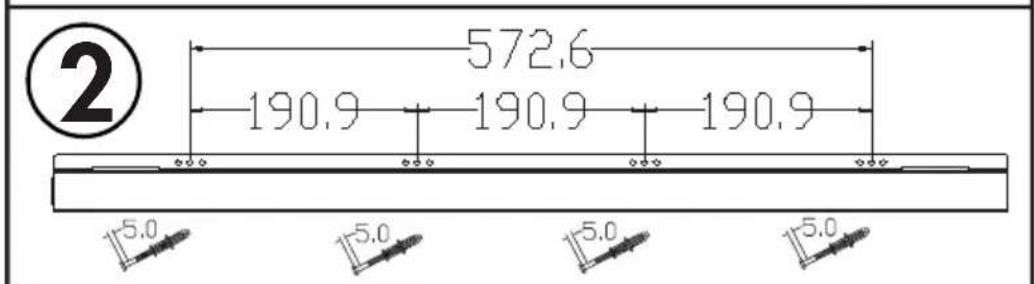

2. Attach the wall hanging bracket to the wall using four 4 × 45 mm screws and four screw expansion brackets. The screw holes should be 190.9 mm (7.5 inches) apart. Ensure that at least one screw enters a wall stud.

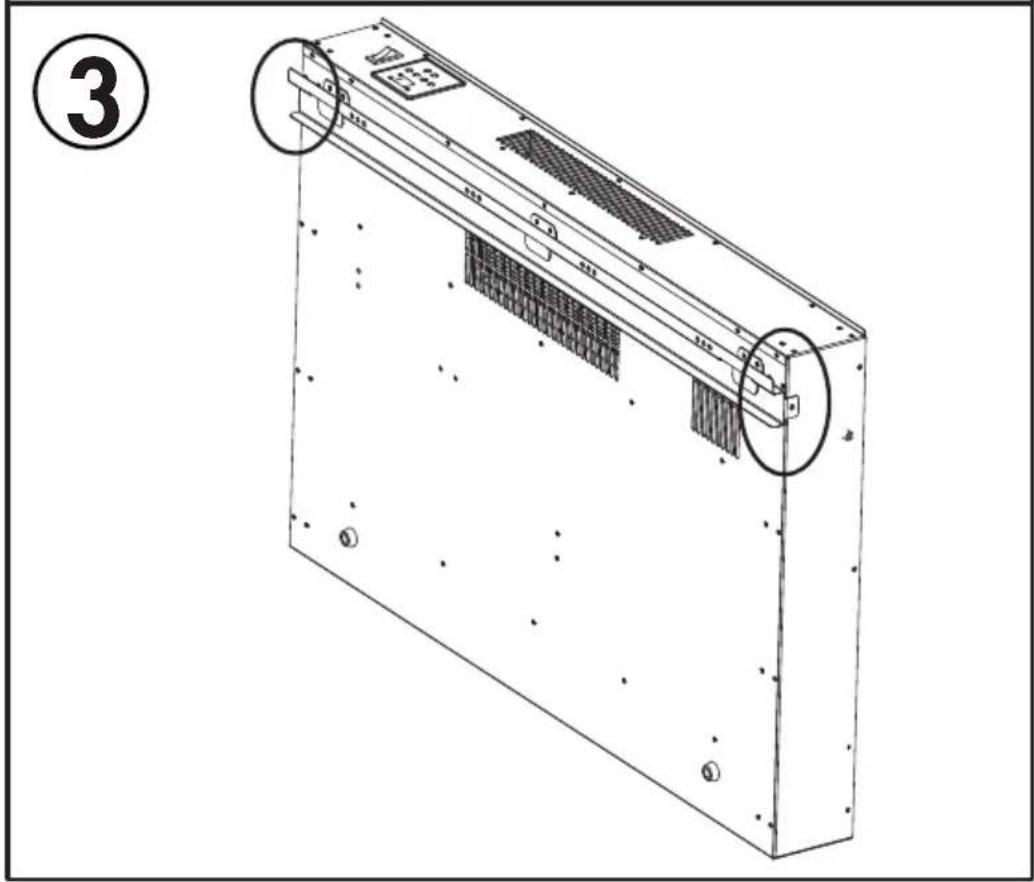

3. Lift the fi replace into position using two people. Ensure that the tabs on the back of the fi replace securely engage with the slots provided. Use two 4 × 12 mm screws to attach the fi replace to the wall hanging bracket. There is one screw on each side of the panel.
4. Replace the glass on the front of the fi replace, ensuring the locating tabs engage securely in their corresponding slots and that the screws are tightened.
5. Plug the fi replace into a 120V outlet.

INSTALLATION INSTRUCTIONS

INSTALLATION INSTRUCTIONS

EMBER BED INSTALLATION

WARNING: The next step involves glass. Always use extreme caution when handling glass. Failure to do so could result in personal injury or property damage.

This fi replace will come with the faux log bed pre-installed. To change to the provided clear crystals, follow the steps below.

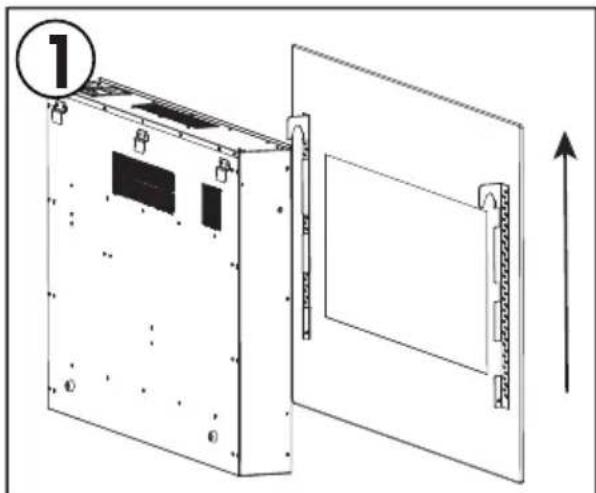

1. The glass should be removed before installation. Remove the two screws on the left and right side of the glass and then lift the glass panel upward to remove it.

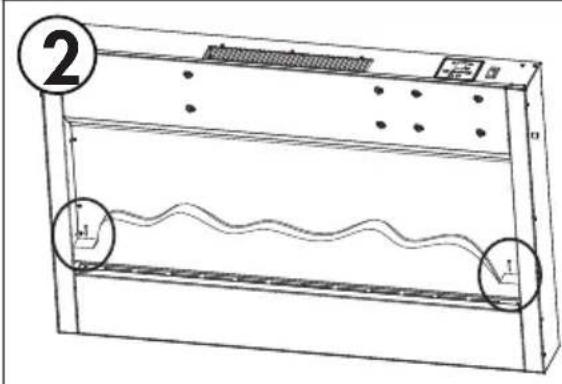

2. Remove the two screws from each side of the faux log bed.

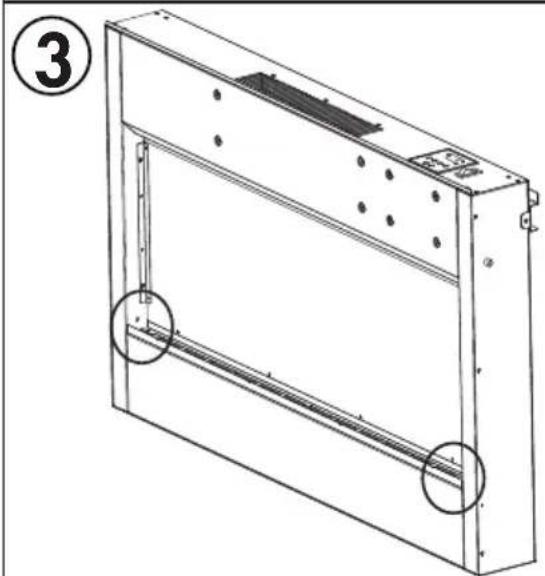

3. Remove the faux log bed and replace the screws.

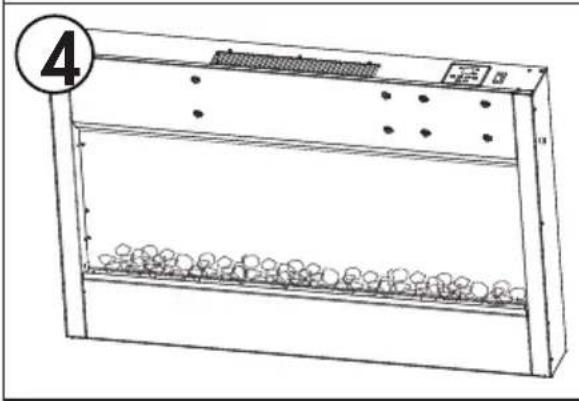

4. Spread the clear crystals onto the amber bed.
5. Replace the glass on the front of the fi replace, ensuring the locating tabs engage securely in their corresponding slots and that the screws are tightened.

CLEANING

1. Ensure the power is turned off and the fi replace is unplugged.
2. Allow the fi replace to completely cool before attempting any cleaning.
3. The outer shell may be cleaned with a soft, damp cloth. A mild detergent can be used if necessary. After cleaning, dry the fi replace with a soft cloth. Do not let liquid enter the fi replace.
4. Wait until the fi replace is completely dry before using.

WARNING: Do not immerse the fi replace in water or allow water to enter the fi replace.

WARNING: Do not use alcohol, gasoline, abrasive powders, furniture polish or rough brushes to clean the fi replace. This may cause damage or deterioration to the surface of the fi replace.

STORAGE

Store the fi replace in a cool, dry location when not in use. To prevent dust and dirt build-up, use the original packaging to repack the fi replace.

TROUBLESHOOTING

If the fi replace will not operate, check the following:

1. Check that the power cord is plugged into a 120 V AC electrical outlet. Do not use extension cords.
2. Check that the power indicator light on the control panel is illuminated to show that the fi replace is getting power from the outlet.
3. Check if the battery in the remote control needs to be replaced.
4. Unplug the fi replace, wait 15 minutes for the internal components to reset and then plug it back in.

LIMITED "CARRY IN" WARRANTY

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.

This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

TERMS OF WARRANTY

Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.

First 18 months: During the first eighteen (18) months, any functional parts of this product found to be defective, will be repaired or replaced, at warranter's option, at no charge to the original purchaser.

To obtain service: Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.

It is the responsibility of the purchaser to transport the appliance to the nearest authorized service depot. Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

EXCLUSIONS

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (i.e.. extremely high or low room temperature).
5) Use for commercial or industrial purposes (i.e.. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).

Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.
