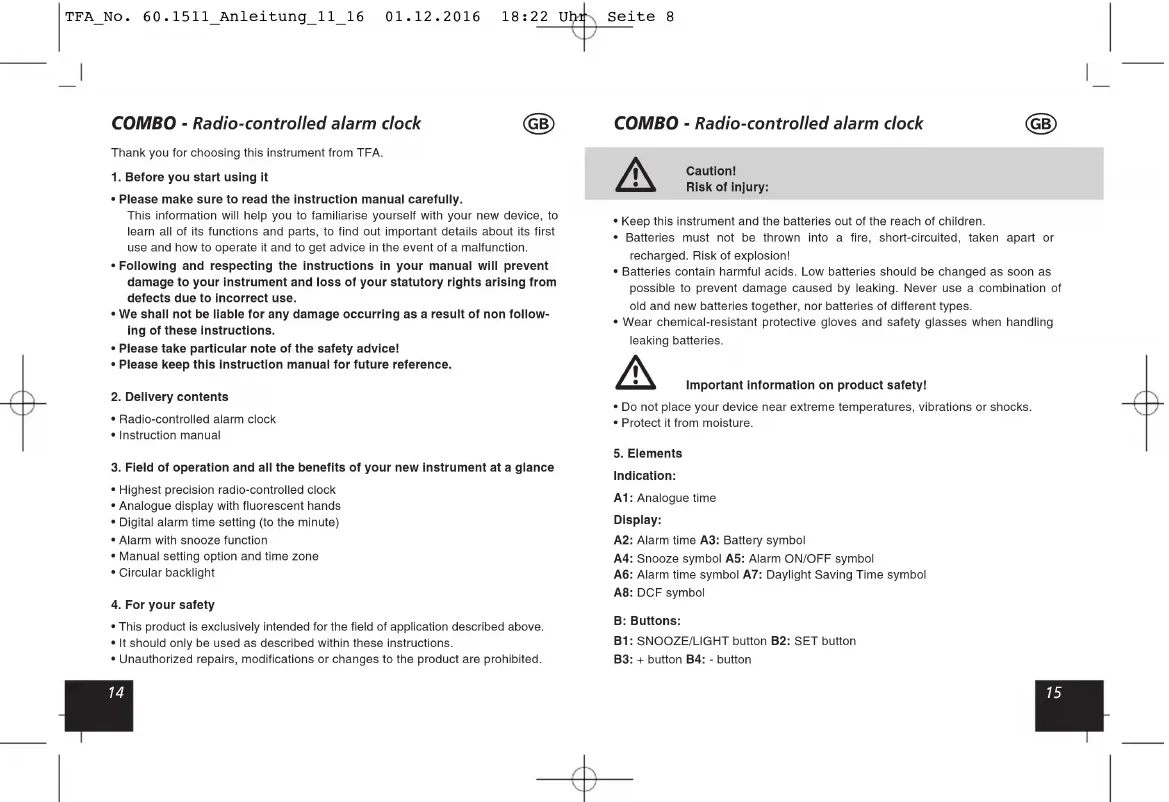

USER MANUAL 60.1511.02 TFA

Thank you for choosing this instrument from TFA.

1. Before you start using it

• Please make sure to read the instruction manual carefully. This information will help you to familiarise yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.

• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.

• We shall not be liable for any damage occurring as a result of non follow- ing of these instructions.

• Please take particular note of the safety advice!

• Please keep this instruction manual for future reference.

2. Delivery contents

• Radio-controlled alarm clock

3. Field of operation and all the benefits of your new instrument at a glance

• Highest precision radio-controlled clock

• Analogue display with fluorescent hands

• Digital alarm time setting (to the minute)

• Alarm with snooze function

• Manual setting option and time zone

• This product is exclusively intended for the field of application described above.

• It should only be used as described within these instructions.

• Unauthorized repairs, modifications or changes to the product are prohibited. COMBO - Radio-controlled alarm clock

• Keep this instrument and the batteries out of the reach of children.

• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!

• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.

• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

• Do not place your device near extreme temperatures, vibrations or shocks.

• Protect it from moisture.

B5: Alarm switch ON/OFF with color mark B6: RESET button C: Housing: C 1: Battery compartment

• Open the battery compartment and insert three new batteries 1,5 V AA, polarity as illustrated. Close the battery compartment again.

• The device is ready for use.

• The device will alert you with a beep.

• The alarm time (default 6:00) and the alarm time symbol appear in the display.

• The hands move to 12.00 o'clock.

• The clock will now scan the DCF frequency signal. The DCF symbol is flashing on the display.

• When the time code is received successfully after 3-12 minutes, the digital time appears briefly on the display and the analogue clock updates to the radio-con- trolled time.The DCF symbol appears steadily on the display.

• The DCF reception always takes place at 1:00, 3:00 and 5:00 o'clock in the morning. If the reception is not successfully received until 5:00 o'clock, the next receive operation is again at 1:00 o'clock in the morning.

• You can start the initialization manually.

• Press and hold + button for three seconds.

• The DCF symbol will be flashing.

• To deactivate the DCF reception, press and hold again the + button for three seconds.

• The DCF symbol disappears. COMBO - Radio-controlled alarm clock

• There are three different reception symbols: flashing - reception is active stays - reception is very good no symbol - reception is deactivated

• If the clock cannot detect the DCF-signal (for example due to disturbances, transmitting distance, etc.), the time can be set manually. The DCF symbol disappears and the clock will then work as a normal quartz clock. (see: Manu- al settings). Note for radio-controlled time DCF The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt Braunschweig. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio-controlled clock receives this signal and converts it to show the precise time. Changeover from summer time or winter time is automatic. In Daylight Saving Time is shown on the display. The quality of the reception depends mainly on the geographic loca- tion. Normally there should be no reception problems within a 1,500 km radius around Frankfurt. Please take note of the following:

• The recommended distance to any interfering sources like computer monitors or TV sets is at least 1.5 - 2 meters.

• Inside ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a win- dow to improve the reception.

• During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second. TFA_No. 60.1511_Anleitung_11_16 01.12.2016 18:22 Uhr Seite 91918 COMBO - Radio-controlled alarm clock

• During the DCF reception is a button operation not possible.

• Press and hold the + or the - button for a few seconds in the setting mode for a fast running.

• The device will automatically quit the setting mode if no button is pressed for a long period of time.

• Press and hold the SET button for a few seconds to enter the setting mode.

7.1.1 Time zone correction

• The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the German time.

• 0 (default) appears on the display.

• Press the - or + button to adjust the time zone correction (-9/+9, e.g.: +1=one hour later).

7.1.2 Manual setting of the clock

(if the radio-controlled clock cannot receive the DCF reception signal)

• Press the SET button to make the settings in the following sequence: Year, month, day, hour and minutes. Press the + or - button to adjust it.

• Confirm the setting with the SET button.

• The analogue clock shows automatically the manually set time.

• By a successful reception of the DCF signal, the manually set time will be overwritten.

7.2 Setting of the alarm time

• Press the + or - button to adjust hours. COMBO - Radio-controlled alarm clock

• Confirm the setting with the SET button.

• The minute digit will be flashing. Press the - or + button to adjust the minutes.

• Confirm the setting with the SET button.

• The display shows the adjusted alarm time.

• Slide the ALARM switch ON/OFF upwards (ON) to activate the alarm function.

• At the same time, the color mark for the alarm changes.

• The alarm symbol appears on the display.

• The alarm time is activated.

• When the adjusted alarm time is reached, the alarm will ring.

• The alarm symbol will be flashing.

• The backlight will also be flashing and turns off after a few seconds.

• Press the SET button and the alarm will stop.

• If the alarm is not stopped manually, the increasing alarm will automatically turn off after certain minutes.

• The alarm symbol rests on the display and the alarm time will be reactivated at the same time.

• When the alarm rings, press the SNOOZE/LIGHT button and the snooze func- tion will be activated.

• Once the snooze function is activated, will be flashing on the display.

• The alarm will be interrupted for 5 minutes.

• Slide the ALARM switch ON/OFF downwards (OFF) to deactivate the alarm function.

• At the same time, the color mark for the alarm changes again.

• The alarm symbol disappears.

• The backlight turns on for 5 seconds.

8. Care and maintenance

• Remove the batteries if you do not use the device for a long period of time.

• Keep the device in a dry place.

8.1 Battery replacement

• Change the batteries when the battery symbol appears on the display.

• Open the battery compartment and insert three new batteries 1,5 V AA, polarity as illustrated.

• Close the battery compartment again.

Problems Solution No indication / ➜ Ensure that the batteries polarities are no hand movement correct ➜ Change the batteries No DCF reception ➜ Press the + button for three seconds and start the reception manually ➜ Choose another place for your device ➜ Wait for attempted reception during the night ➜ Check if there is any source of inter- ference ➜ Restart the device according to the manual ➜ Set the clock manually Incorrect indication ➜ Change the batteries ➜ Use a pin to press the RESET button If your device fails to work despite these measures contact the supplier from whom you purchased it. COMBO - Radio-controlled alarm clock

10.Waste disposal This product has been manufactured using high-grade materials and components which can be recycled and reused. Never dispose of empty batteries and rechargeable batteries in household waste. As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment. The symbols for the heavy metals contained are: Cd=cadmium, Hg = mercury, Pb=lead This instrument is labelled in accordance with the EU Waste Elec- trical and Electronic Equipment Directive (WEEE). Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated col- lection point for the disposal of electrical and electronic equip- ment, in order to ensure environmentally-compatible disposal.

No part of this manual may be reproduced without written consent of TFA Dost- mann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about your product can be found by entering your product number on our homepage. EU declaration of conformity Hereby, TFA Dostmann declares that the radio equipment type 60.1511 is in com- pliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following inter- net address: www.tfa-dostmann.de E-Mail: [e-mail] TFA Dostmann GmbH & Co.KG Zum Ottersberg 12, D-97877 Wertheim, Germany 11/16 COMBO - Réveil radio-piloté
