Product type	Ultrasonic humidifier
Brand	Grundig
Model	HD1341
Supply voltage	100-240 V ~
Frequency	50 Hz
Power	25 W
Tank capacity	2.7 L
Recommended area	20 to 35 m²
Portability	Portable
Mist output adjustment	Yes, via rotary knob
Low water indicator light	Yes (red)
Automatic shut-off	Yes, when tank is empty
Essential oil fragrance box	Yes, integrated in the base
Recommended water type	Distilled water
Maximum water temperature	37 °C
Operating ambient temperature	15 °C to 37 °C
Maximum ambient humidity	80 % RH
Recommended cleaning	Weekly
Tank cleaning	Water-vinegar solution (1/4 cup vinegar for 1/2 tank)
Ultrasonic disc cleaning	Half vinegar, half water solution
Power cord length	Approximately 1.5 m (estimated)
Dimensions (estimated)	20 x 20 x 30 cm
Weight (estimated)	1.5 kg
Tank material	Plastic
Color	White (main)

Frequently Asked Questions - HD1341 GRUNDIG

How to fill the water tank?

Remove the mist nozzle, then the tank. Unscrew the cap at the bottom of the tank, fill with distilled water, screw the cap back on ensuring the silicone ring is in place, replace the tank and nozzle.

Why is there little mist?

This may be due to a dirty nebulizer. Clean it with a half vinegar, half water solution. If water has been left in the appliance for a long time, replace it with clean water.

Can I use tap water?

It is recommended to use only distilled water. Tap water may contain minerals that clog the appliance and reduce performance.

How to clean the humidifier?

Unplug the appliance. Wipe the base with a damp cloth. Clean the tank with a mixture of water and vinegar (1/4 cup vinegar for a half-full tank), shake, rinse. Clean the ultrasonic disc with a half vinegar, half water solution and a soft brush.

Why is there a strange smell?

Clean the tank with a vinegar/water mixture. Leave the tank open without its cap for some time to air out.

The appliance does not turn on, what to do?

Check that the appliance is properly plugged in. Ensure the button at the back is in the on position. If the light is red, the tank is empty, fill it with water.

Can I add essential oils to the water?

No, do not add essential oils directly to the water. Use the fragrance box at the bottom of the appliance: place a few drops on the sponge provided.

How often should I clean the humidifier?

It is recommended to clean the appliance at least once a week to avoid limescale deposits and extend its lifespan.

How to store the humidifier when not in use?

Clean and dry the appliance thoroughly. Do not wrap the cord around the appliance. Store it in its original packaging, at room temperature, out of reach of children.

What if moisture accumulates around the appliance?

This is not a defect, but may indicate that the ambient humidity is too high. Reduce the mist output setting or turn off the appliance.

USER MANUAL HD1341 GRUNDIG

Blue and white digital water purifier with a central vertical tube, no visible text or symbols on the device body.

MODEL: HD-1341

ITEM: 871125214675

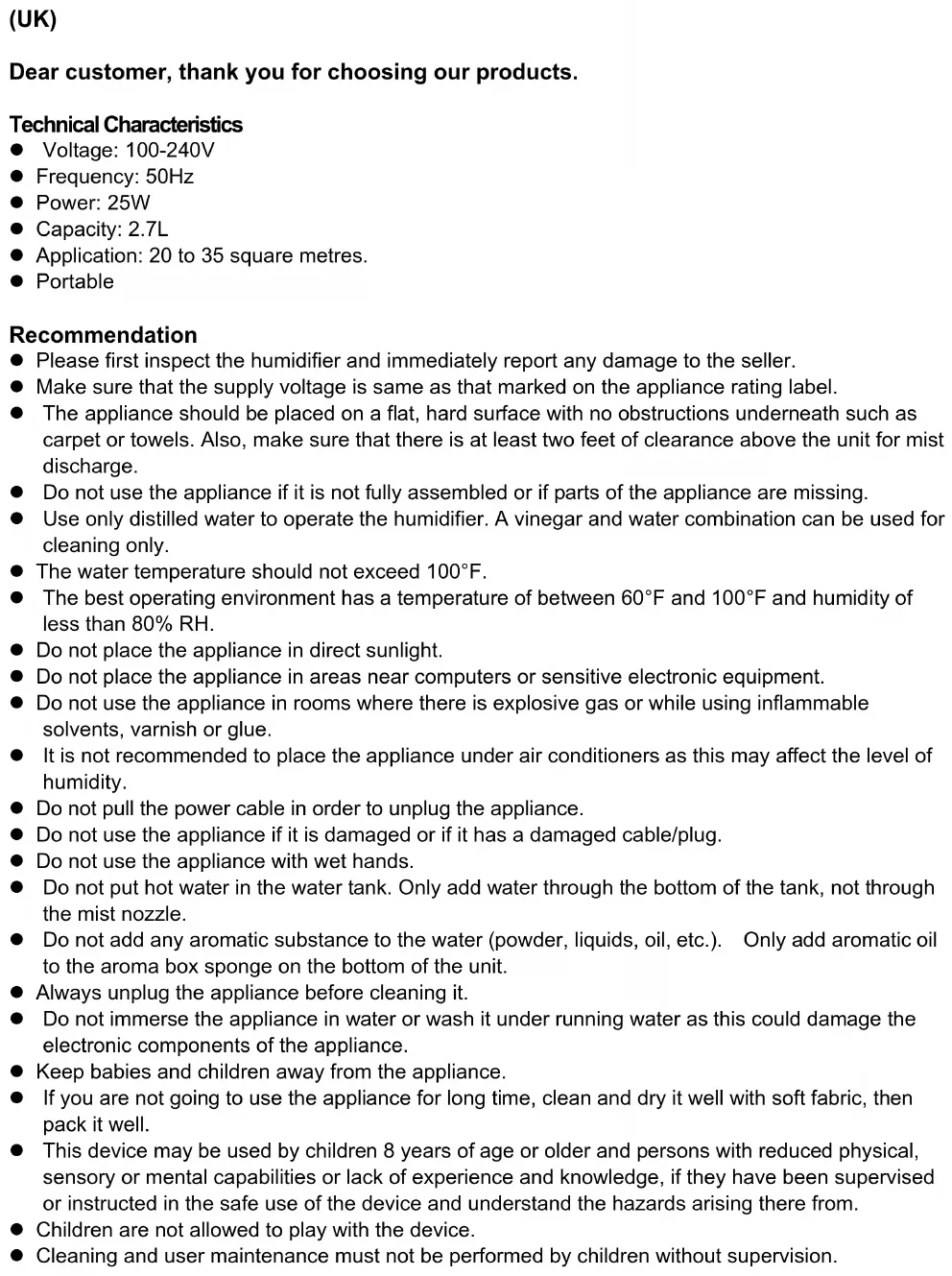

Dear customer, thank you for choosing our products.

Technical Characteristics

● Voltage: 100-240V
● Frequency: 50Hz
● Power: 25W
- Capacity: 2.7L
● Application: 20 to 35 square metres.
- Portable

Recommendation

• Please first inspect the humidifier and immediately report any damage to the seller.
  ● Make sure that the supply voltage is same as that marked on the appliance rating label.
• The appliance should be placed on a flat, hard surface with no obstructions underneath such as carpet or towels. Also, make sure that there is at least two feet of clearance above the unit for mist discharge.
• Do not use the appliance if it is not fully assembled or if parts of the appliance are missing.
• Use only distilled water to operate the humidifier. A vinegar and water combination can be used for cleaning only.
  ● The water temperature should not exceed 100^ F.
• The best operating environment has a temperature of between 60°F and 100°F and humidity of less than 80% RH.
• Do not place the appliance in direct sunlight.
• Do not place the appliance in areas near computers or sensitive electronic equipment.
• Do not use the appliance in rooms where there is explosive gas or while using inflammable solvents, varnish or glue.
• It is not recommended to place the appliance under air conditioners as this may affect the level of humidity.
• Do not pull the power cable in order to unplug the appliance.
• Do not use the appliance if it is damaged or if it has a damaged cable/plug.
• Do not use the appliance with wet hands.
• Do not put hot water in the water tank. Only add water through the bottom of the tank, not through the mist nozzle.
• Do not add any aromatic substance to the water (powder, liquids, oil, etc.). Only add aromatic oil to the aroma box sponge on the bottom of the unit.
  ● Always unplug the appliance before cleaning it.
• Do not immerse the appliance in water or wash it under running water as this could damage the electronic components of the appliance.
• Keep babies and children away from the appliance.
• If you are not going to use the appliance for long time, clean and dry it well with soft fabric, then pack it well.
• This device may be used by children 8 years of age or older and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been supervised or instructed in the safe use of the device and understand the hazards arising there from.
  ● Children are not allowed to play with the device.
• Cleaning and user maintenance must not be performed by children without supervision.

Before First Use

• Remove the appliance from the packaging.
• Do not leave the packaging (plastic bags, polystyrene, etc.) within reach of babies or children.
• After transportation at low temperatures, the appliance should be left in the room for 2 hours to acclimatise before it is used.
• Do not put anything in the water tank other than clean water.

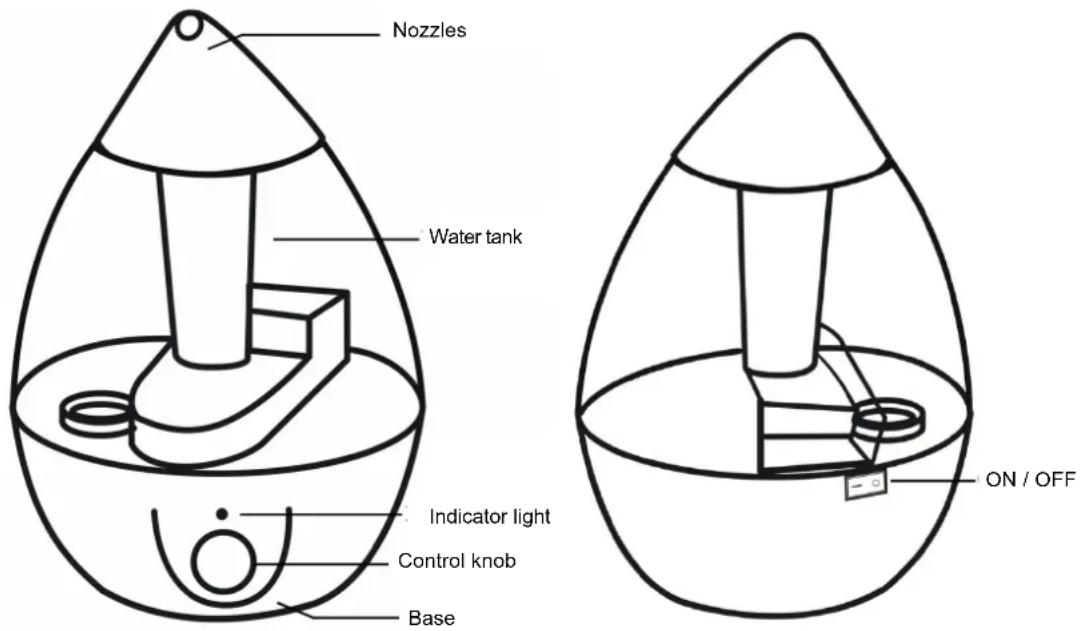

Description

Nozzles Water tank Indicator light Control knob Base ON / OFF

Operating

You can change the mist output setting using the control knob. The button on the back of the appliance turns the mist and light ON/OFF.

Place the appliance on a level and firm surface.

• Do not operate the appliance without water.
• To fill the tank, remove the mist nozzle to access the easy-carry handle.
• Remove the water tank from the base and unscrew the lid from the fill hole on the bottom of the water tank.
• Fill the water tank with distilled water and be sure to properly reinstall the lid. Make sure the tank lid has the silicon ring on it to ensure that there is no leakage.

- Replace the mist nozzle.

- Plug in the appliance and switch on using the button on the back. You can change the mist output setting by turning the front control knob.

- If there is not enough water in the water tank, the indicator light will glow red and the appliance will stop working. Unplug the appliance and refill the water tank.

Note: If moisture collects around the appliance, this is not a defect. It may be an indication that the room humidity is too high. Reduce the mist output tsetting or switch off the appliance.

• It is normal to hear a dripping sound when the mist output setting is high.
• If the unit won't be used for an extended period of time, unplug it from the power-supply socket.

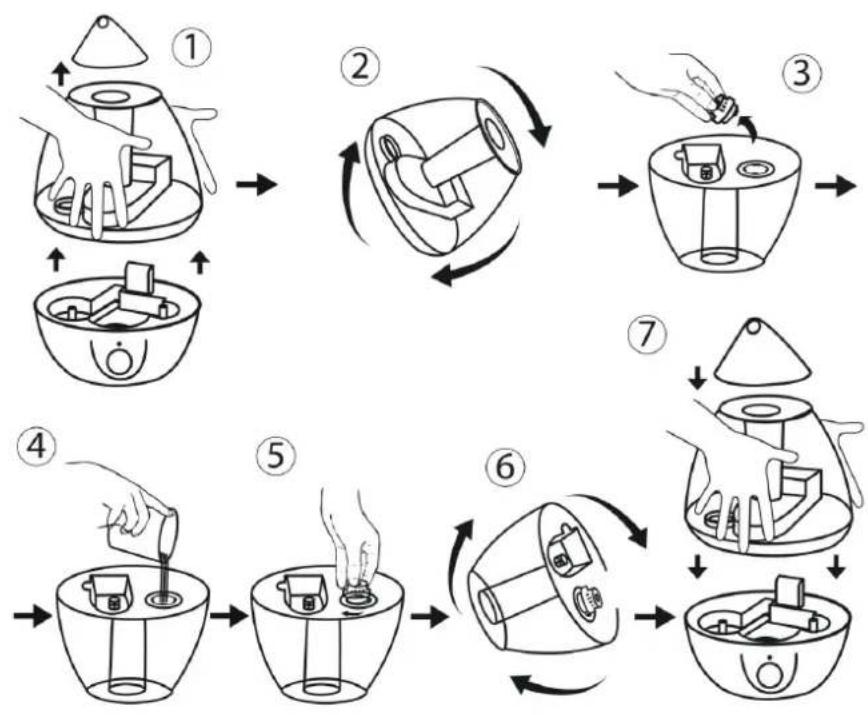

Cleaning

To extend the lifespan of the appliance, it is recommended to clean it at least once a week.

• Switch off and unplug the appliance.
• Wipe the base with a soft damp cloth and wipe it dry. To avoid scratches, do not use abrasive cleansers or hard brushes. Do not immerse the base in water or put it under running water.
• Fill the water tank about half full and add 14 cup of vinegar. Close the water tank, then shake it well, holding it with both hands. You can use a soft brush to clean the tank. Remove the water and rinse the tank thoroughly.

Note: The water tank should be cleaned once a week.

- Use a solution that is 12 vinegar and 12 water to clean the ultrasonic disc. Pour the solution onto the disc and leave for at least half an hour. Use the soft brush to gently clean the disc. Pour out the solution and rinse with clean water several times.

Note: Be careful not to get water on the electrical components of the base or on the cable. Do not immerse the base or cable in water.

Fault-handling methods

Problem	Solution
Humidifier doesn’t work at all	Make sure it is properly plugged into the power-supply socket.Switch on using the button on the back of the appliance.
There is a strange odour	Clean the water tank with a vinegar/water mix.Leave the water tank open without its cover for a while.
Not much mist	Clean the atomiser.If the water has been in the unit for a long time, replace it with clear water.

Storage

Clean the humidifier in accordance with the CLEANING procedure and dry it thoroughly.

Do not wrap the cable around the appliance.

Keep the appliance in its original packaging, at room temperature, away from babies and children.

Note: The manufacturer reserves the right to make, without prior notice, changes to the appliance that do not impair its technical characteristics, and are the result of improvements in its design or production technology.

Disposal

Dispose of the appliance in an environmentally friendly manner. It should not be disposed of with normal household waste.

Please dispose of it at a recycling point for used electrical and electronic devices.

You can obtain more information from your local authorities.
