BrandJENN-AIR
ModelJXU9130WP
Product TypeRange Hood
Width76.2 cm (30 in)
Depth53.3 cm (21 in)
Height15.2 cm (6 in)
Net WeightApproximately 18 kg
Power Supply120 V AC, 60 Hz, 15 A
Number of Fan Speeds4 (Low, Medium, Medium-High, High)
Lighting TypeHalogen, GU10 base, 50 W max
FiltersMetal grease filters (2 for 30 in model)
Filter CleaningDishwasher or hand wash with detergent
Venting MethodDischarge through roof or wall (rectangular duct 8.3 x 25.4 cm)
Duct MaterialRigid metal recommended
Night Light FunctionYes (Night position)

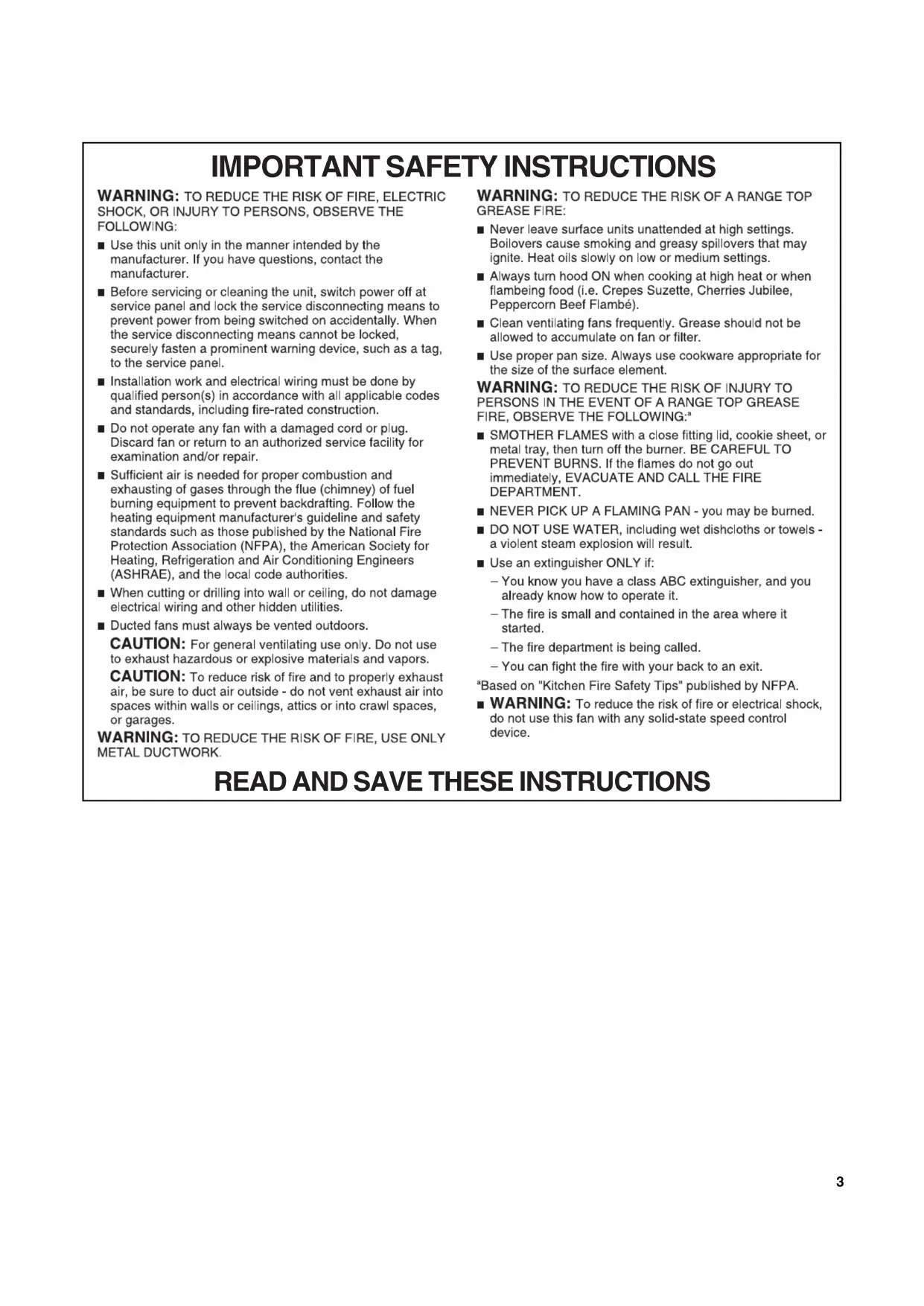

SafetyDisconnect power before servicing; use metal ducts; professional installation recommended
Warranty2 years limited (parts and labor)
Optional AccessoriesBacksplash with/without shelves, full-width chimney cover

Frequently Asked Questions - JXU9130WP JENN-AIR

How to clean the grease filters?
Metal filters can be cleaned in the dishwasher or by hand with hot water and detergent. Let them dry before reinstalling.
How to replace the halogen bulb?
Turn off power. Wait for bulb to cool. Rotate glass cover counterclockwise, remove bulb and replace with a 120 V, 50 W max, GU10 base halogen bulb. Do not touch bulb with bare fingers.
What is the required power supply voltage?
The appliance requires a 120 V AC, 60 Hz, 15 A power supply on a fused or circuit breaker protected circuit.
What is the recommended mounting height?
Minimum height is 76.2 cm (30 in) and suggested maximum height is 91.4 cm (36 in) between the cooktop and the bottom of the hood.
Can I use a flexible duct?
Flexible duct use is not recommended as it can create turbulence and reduce performance. Use rigid metal duct preferably.
How to switch between roof and wall venting?
The hood is factory set for roof or wall discharge. To change orientation, remove the corresponding knockout on the top or back of the hood and install the appropriate duct connector.
What to do in case of a grease fire?
Smother flames with a lid, cookie sheet, or metal tray. Turn off burner. Do not use water and do not pick up the flaming pan. If fire persists, evacuate and call fire department.
How to install the hood under a cabinet?
Follow installation instructions: drill 1/8-inch pilot holes, install mounting screws leaving a 6.4 mm gap, then slide hood into place. Ensure vent duct is installed beforehand.
Where is the rating plate located?
The rating plate is located behind the left filter, on the back wall of the hood.
What are the customer service numbers?
In Canada, call 1-800-JENNAIR (1-800-536-6247) or visit www.jennair.ca for assistance, installation, or service.
