Product Type Built-in Ceramic Glass Cooktop
Brand JENN-AIR
Model JEC3430BS
Width 30 inches (76.2 cm)
Depth Approximately 21 inches (53.3 cm)
Number of Cooking Zones 4 ceramic glass cooking zones
Element Types Radiant elements with dual/triple functions on some zones

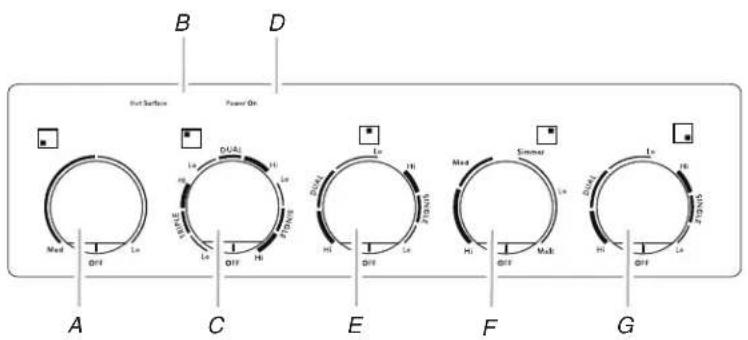

Controls Rotary knobs with Hi/Lo positions and simmer/melt settings
Power Supply 240 V, 60 Hz, 40 A (recommended)

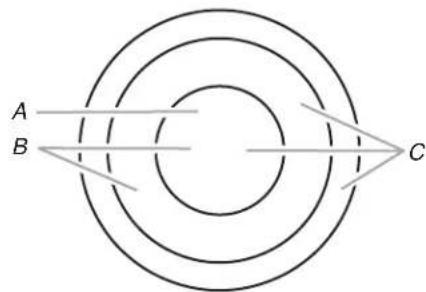

Maximum Power Up to 4500 W on triple element (left front)
Cooking Functions Simmer, Melt, Keep Warm on some zones
Indicator Lights Hot surface indicator (H), power indicator
Safety Intermittent element operation to prevent overheating, auto shut-off if inactive
Surface Material Ceramic glass
Care and Cleaning Use cooktop cleaner (Affresh) and scraper for residue
Warranty 1 year parts and labor, 2nd to 5th year on some components
Service Information Canada: 1-800-807-6777

Frequently Asked Questions - JEC3430BS JENN-AIR

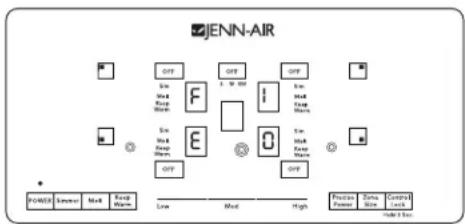

What to do if code F1E0 appears on the cooktop?
Code F1E0 indicates a key is held down. Clean the control panel, turn off the appliance and turn it back on after one minute. If the code persists, contact customer service.
Why are my foods not cooking evenly?
Use flat-bottomed cookware that matches the size of the cooking zone. Ensure the cooktop is level. Refer to the heat setting guide.
Can I use aluminum or copper cookware?
Yes, but they may leave permanent marks on the ceramic glass. Preferably use flat-bottomed stainless steel or enamel cookware.
How to clean sugar spills on the cooktop?
Clean immediately with a cooktop scraper while the surface is still warm, then use a special ceramic glass cleaner.
The heating elements turn on and off intermittently, is this normal?
Yes, it is normal. The elements cycle on and off to maintain temperature and prevent overheating.
How to lock the controls to prevent accidental activation?
On this model with rotary knobs, there is no control lock. Supervise the appliance during use.
What is the warranty period?
Limited warranty of 1 year parts and labor, and from the 2nd to 5th year on certain components such as heating elements and ceramic glass.
Can I use the cooktop for canning?
Yes, use a flat-bottomed canner centered on the largest zone. Do not exceed 1.3 cm overhang. Alternate zones to avoid overheating.
What to do if the cooktop does not turn on?
Check the circuit breaker or fuse. Ensure the cooktop is properly plugged in. If the problem persists, contact an electrician.
How to avoid scratches on the ceramic glass?
Do not slide cookware on the surface. Use smooth-bottomed cookware. Clean regularly with a non-abrasive product.
