Synergy Series

Owner's Manual

IMPORTANT SAFETY INSTRUCTIONS!

READ these instructions.1.

KEEP these instructions.2.

HEED all warnings.3.

FOLLOW all instructions.4.

DO NOT use this apparatus near water.5.

CLEAN ONLY with dry cloth.6.

1. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other appara-8 tus (including amplifiers) that produce heat.

ONLY USE attachments/accessories specified by the manufacturer.9.

USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, 1

or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

DO NOT expose this apparatus to dripping or splashing and ensure that no objects filled with 11. liquids, such as vases, are placed on the apparatus.

The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.

WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture.

WARNING: No naked flame sources – such as candles – should be placed on the product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.

ROOM PLACEMENT

Before You Start — Some Klipsch speakers have feet and other accessories that may need to be installed prior to use. Please refer to Diagrams 1, 2 and 3 for installation.

Left and Right Main Channel Speakers — For optimum performance, Klipsch suggests placing your speakers six to 15 feet (2 to 4.5m) apart and at least 24 inches (60.8cm) from the back and side walls. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5 times the distance separating the speakers. Refer to Figures 1 and 3 for connection and placement.

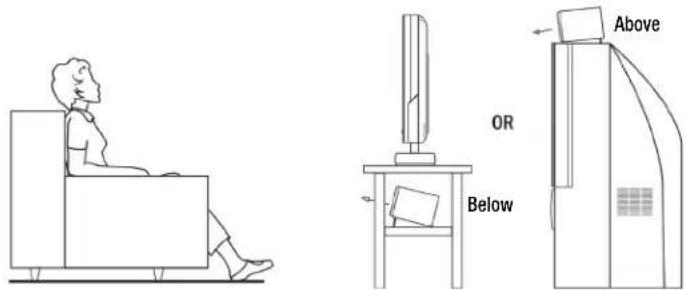

Center Channel Speakers — Center channel speakers are designed to place dialogue and primary sounds so that they appear to come from the video screen. The speakers should therefore be placed as close to the screen as possible, preferably directly on top of or below the screen. Refer to Figures 1, 2 and 3 for connection and placement.

Rear Surround Channel Speakers — Klipsch WDST™ surround speakers should be placed approximately 2 feet above the listening position. Typically this will be about 5-7 feet above the floor. The surrounds should be placed on the walls directly adjacent to the listening position. Another option would be on the wall behind the listening position. The final surround speaker placement depends on your room's characteristics. They are designed to recreate the sense of space and ambience that many of today's surround sound technologies provide. Refer to Diagram 4 and Figures 1 and 3 for connection and placement.

CONNECTING

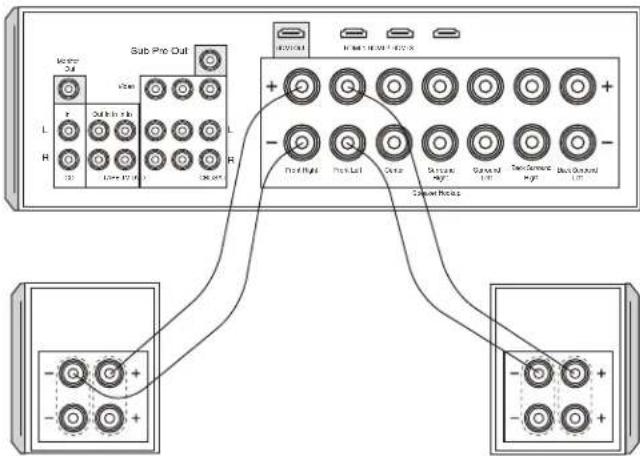

Conventional Connection — Using 16-gauge or larger speaker wire, connect the RED “positive” (+) terminal of the LEFT speaker to the RED “positive” (+) terminal of your amplifier’s LEFT channel. Connect the BLACK “negative” (−) terminal of the LEFT speaker to the BLACK “negative” (−) terminal of your amplifier’s LEFT channel. Repeat this procedure for connecting all remaining speakers to the appropriate amplifier channels. Refer to Figure 3. Make sure that no bare wires from any of the connections touch any other terminals as this could cause a short and damage your equipment.

Some Synergy speakers come with dual binding posts that are connected by a metal strip. Do not remove this strip or your speakers will not function correctly. Keep this strip in place and connect your speaker wire to the top set of the binding posts. It is possible to "Bi-wire" a speaker that has two sets of binding posts. Please see your receiver's manual for further instructions.

Amplifier Requirements — Klipsch speakers are highly efficient and will operate easily on a wide variety of amplifiers. All Klipsch speakers are 8-ohm compatible and can be driven to very high levels with low distortion. Due to the high output levels Klipsch speakers are capable of reproducing, exercise caution with the volume control. Excessive volume over long periods can permanently damage your hearing. Overdriving your amplifier could also damage your speakers. Check with your dealer to make sure your particular amplifier is best suited to your application. We want you listening for a lifetime.

CARE AND CLEANING

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.

WARRANTY - U.S. AND CANADA

Klipsch warrants to the original retail purchaser that this product is to be free from defective materials and workmanship for a period of five (5) years from the date of purchase, if it is properly used and maintained. If this product proves defective in either material or workmanship, Klipsch, at its option, will (a) repair the product, or (b) replace the product, at no charge for parts or labor. If the product model is no longer available and cannot be repaired effectively or replaced with an identical model, Klipsch at its sole option may replace the unit with a current model of equal or greater value. In some cases, modification to the mounting surface may be required where a new model is substituted. Klipsch assumes no responsibility or liability for such modification. To obtain a repair or replacement under the terms of this warranty, please return to dealer first, if possible, and they will direct you accordingly for repairs or replacement. You will be required to submit a copy of the original receipt.

Limitations:

This limited warranty does not cover failure of the product resulting from improper installation, misuse, abuse, accident, neglect, mishandling, or wear from ordinary use or environmental deterioration.

• This limited warranty does not cover cosmetic damage, including paint damage, or consequential damage to other components or premises which may result for any reason from the failure of the product.
• This limited warranty is null and void for products not used in accordance with Klipsch's instructions.
• This limited warranty is null and void for products with altered or missing serial numbers and for products not purchased from an authorized dealer.
• This limited warranty terminates if you sell or otherwise transfer this product to another party.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, JURISDICTION TO JURISDICTION OR COUNTRY TO COUNTRY. KLIPSCH'S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPLACEMENT OR REPAIR AS SET FORTH IN THIS WARRANTY STATEMENT. FOR CANADIAN CUSTOMERS, KLIPSCH DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, FOR THE PRODUCT. FOR U.S. CUSTOMERS, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN TIME TO THE TERM OF THIS WARRANTY. SOME STATES, JURISDICTIONS OR COUNTRIES DO NOT ALLOW THE EXCLUSION OF CERTAIN IMPLIED WARRANTIES OR CONDITIONS, OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITIONS LASTS, SO THIS LIMITATION MAY NOT APPLY TO YOU. KLIPSCH DOES NOT ACCEPT LIABILITY FOR SPECIAL, INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING WITHOUT LIMITATION, ANY LIABILITY FOR THIRD PARTY CLAIMS AGAINST YOU FOR DAMAGES OR FOR PRODUCTS NOT BEING AVAILABLE FOR USE. THE MAXIMUM LIABILITY FOR WHICH KLIPSCH MAY BE RESPONSIBLE WILL BE NO MORE THAN THE AMOUNT YOU PAID FOR THE PRODUCT THAT IS THE SUBJECT OF THE CLAIM. SOME STATES, JURISDICTIONS OR COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

Warranty OUTSIDe the U.S. and CanaDa

The Warranty on this product if it is sold to a consumer outside of the United States and Canada shall comply with applicable law. To obtain any applicable warranty service, please contact the dealer from which you purchased this product, or the distributor that supplied this product.

eU COMpllanCe InfOrMatlOn:

Eligible to bear the CE mark, Conforms to European Union EMC Directive 2004/108/EC.

Weee nOtlCe

Note: This mark applies only to countries within the European Union (EU) and Norway.

This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). This label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.

prODUCt reGIStratlOn

Register your product online at www.klipsch.com/register

• Klipsch will keep you up-to-date on new products and promotions.
• Your personal information will never be resold.
• This registration information is not used for warranty purposes.
  Please retain your receipt for warranty claims.

Diagram 1 Bookshelf Speakers

Line drawing of a mechanical device with a circular vent and labeled 'Rubber Feet' (no other text or symbols)

Diagram 3 Center Channel

Adjustable post

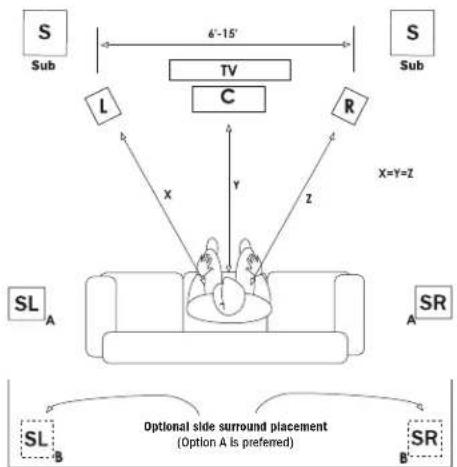

figure 1 Speaker Placement in Listening Area
        direction TB
        S["S"] -->|6'-15'→| Sub
        R["R"] -->|X=Y=Z| SL_A
        SR_C -->|X=Y=Z| SL_A
        SL_A -->|Option A is preferred| SL_B
        SL_B -->|Option A is preferred| SL_B
        SR_C -->|Option A is preferred| SR_B
    end

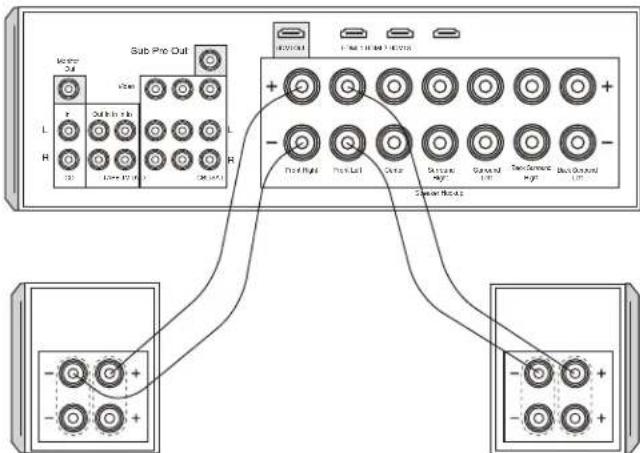

figure 3 Standard Connections

Sub Pro Out Power 2A L H 1000Ω 100Ω 100Ω 100Ω 100Ω 100Ω 100Ω 100Ω 100Ω 100Ω 100Ω 100Ω 100Ω 100Ω 100Ω 100Ω 100Ω 100Ω 100Ω 100Ω 100Ω Cathode Mode Power High Power Low Gate Schematic Ground Ground Low Transistor Ground Low Base Ground Low

Diagram 2 Surround Speakers

Technical line drawing of a device casing with internal components and mounting holes (no text or symbols)

Diagram 4 Wall Mounting Surround Speakers
See Room Placement section of manual

Mounting Template

CAUTION! Do not use keyhole for ceiling mounting!

OR

10 or #12

2.5" - 3" panhead wood screws
Mount in wall stud or use anchors - leave 1/4" exposed

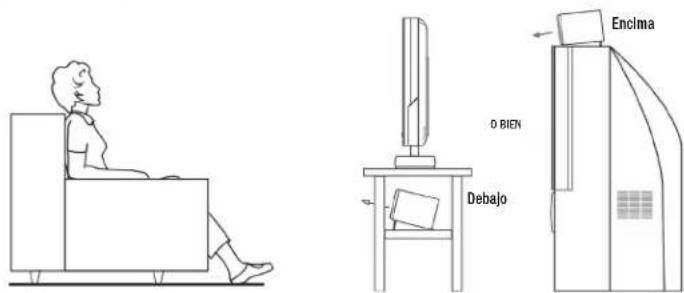

figure 2 Center Channel

Above OR Below

FRENCH - CONSIGNES DE SECURITE IMPORTANTES

LIRE ces instructions.1.

CONSERVER ces instructions.2.

RISQUE D'ÉLECTROCUTION NE PAS OUVRIR

figure 3 Raccordements standard

Sub Pro Out Maser Out L H 2 10000000 R 10000000 R 10000000 R 10000000 R 10000000 R 10000000 R 10000000 R 10000000 R 10000000 R 10000000 R

Technical line drawing of a device casing with internal components and mounting holes (no text or symbols)

Simple line drawing of screw and wooden components inside a circle (no text or symbols)

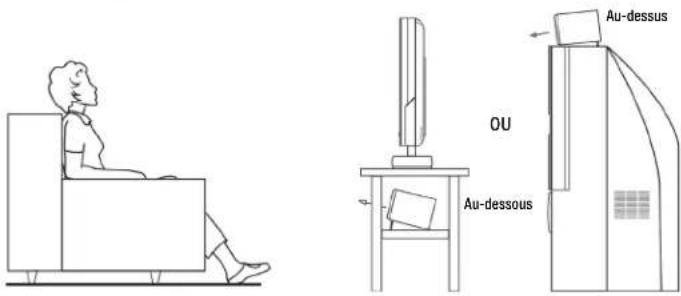

figure 2 Canal Central

Terminal ajustable

Technical line drawing of a device casing with internal components and mounting holes (no text or symbols)

figure 2 Canal Central

Line drawing of a person sitting on a chair, viewed from the side (no text or symbols)

或者 下 上

Line drawing of a 3D box with a circular vent and a small inset, labeled 'Gummifüßchen' (no other text or symbols)

Sub Pro Out Power 2A L H 1000Ω + - Print Right Print Left Cave Settle Ground Ground Transcurrence Ground Buses Cathode Cathode Cathode Cathode Cathode Cathode Cathode

Technical line drawing of a device casing with internal components and mounting holes (no text or symbols)

Technical line drawing of a device casing with internal components and mounting holes (no text or symbols)

Diagram showing three types of screws and a textured surface, no text or symbols present

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

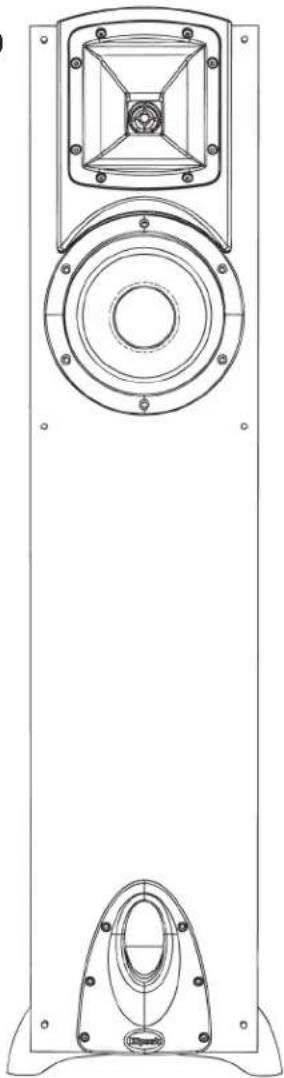

f-10

Technical line drawing of a vertical speaker tower with mounting flanges and central hub (no text or symbols)

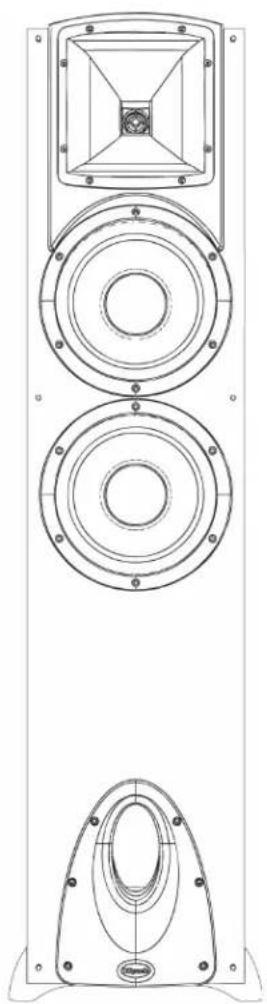

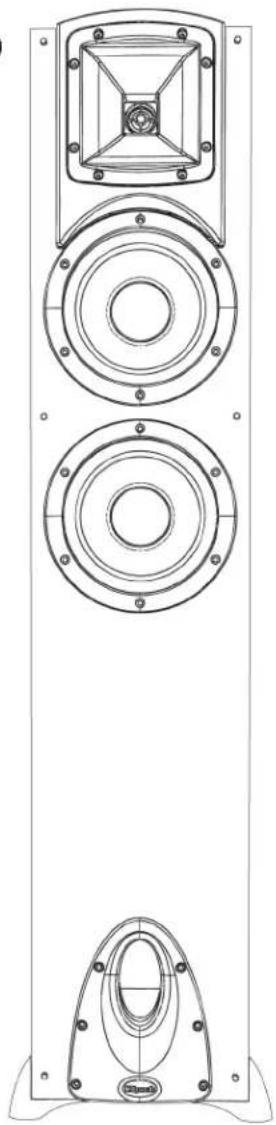

f-20

Technical line drawing of a multi-tiered speaker tower with circular components and mounting feet (no text or symbols)

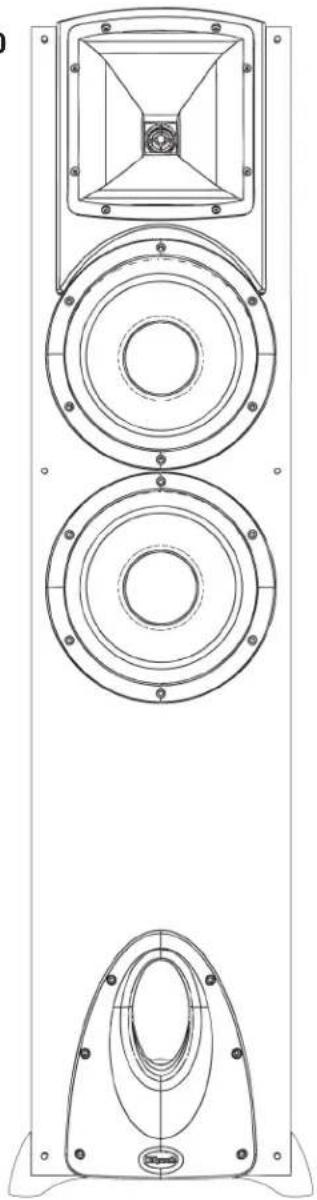

f-30

Technical line drawing of a multi-tiered speaker tower with circular components and mounting feet (no text or symbols)

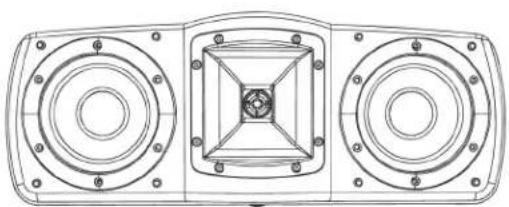

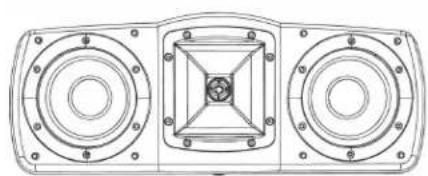

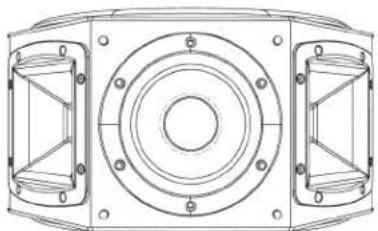

C-20

Technical line drawing of a dual-chamber electronic device with mounting flanges and central hub (no text or symbols)

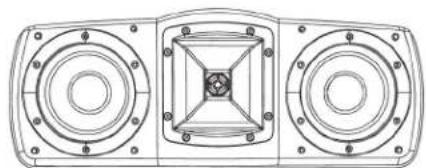

C-10

Technical line drawing of a mechanical component with three circular flanges and central hub (no text or symbols)

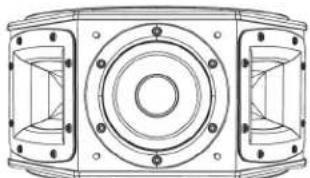

S-20
