Product type	Indoor commercial air conditioner (indoor unit)
Brand	Panasonic
Model	S160MF2E5A
Refrigerant	R410A (GWP = 1975)
Temperature range (cooling)	Indoor: 14°C ~ 25°C (WBH); Outdoor: 10°C ~ 46°C (DBS)
Temperature range (heating)	Indoor: 16°C ~ 30°C (DBS); Outdoor: -20°C ~ 18°C (WBH)
Operating modes	Cooling, heating, drying (DRY), ventilation
Number of connectable indoor units	Up to 8 units
Compatible remote controls	Wireless (CZ-RWSU2, CZ-RWST3, CZ-RWSC3), Timer (CZ-RTC2), Wired high-end (CZ-RTC3)

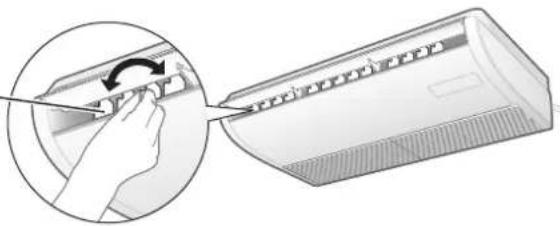

Air flow direction	Vertical (motorized) and horizontal (manual)
Automatic defrosting	Yes, with temporary stop of indoor fan
Compressor protection	Delayed restart of 3 minutes
Power supply	Single-phase, 220-240 V ~ 50 Hz (estimated)
Indoor unit dimensions (approx.)	300 mm (H) x 800 mm (W) x 800 mm (D)
Indoor unit weight (approx.)	35 kg
Cleaning and maintenance	Regular air filter cleaning; do not use water on the indoor unit; call a professional for internal cleaning
Safety	Automatic shut-off in case of failure; overcurrent protection; mandatory grounding
Repairability	Do not repair yourself; contact an authorized dealer or after-sales service

Frequently Asked Questions - S160MF2E5A PANASONIC

What to do if the air conditioner does not turn on?

Check that the unit is powered on and the circuit breaker is not tripped. Make sure the remote control is in ON/OFF mode. If the problem persists, contact a professional.

Why do I hear a water flowing noise?

This noise is normal and comes from the flow of refrigerant or condensation water in the drain pipe.

Does the air conditioner heat poorly in cold weather?

Heating performance decreases when the outdoor temperature is very low. Use an auxiliary heater if necessary.

What does the 'STANDBY' (⚙) display mean?

The unit is in defrost mode or standby. The indoor fan stops temporarily. Heating resumes automatically after a few minutes.

How to adjust the air flow direction?

Use the remote control for vertical movement (swing or fixed position). For horizontal flow, manually move the louvers.

Should the air filter be cleaned regularly?

Yes, a dirty filter reduces performance. Clean it with a vacuum or lukewarm water, then dry it before reinstalling.

Can I use an extension cord?

No, using extension cords or unspecified cables poses a risk of overheating and fire. Use a dedicated outlet.

What to do in case of water leakage from the indoor unit?

Immediately stop the unit and turn off the power. Contact your dealer for repair.

The air conditioner emits an unpleasant odor, why?

This may be due to dust or mold accumulation inside. Clean the filter, and if the odor persists, call a professional for deep cleaning.

Can I install the air conditioner myself?

No, installation must be performed by a qualified technician according to the provided instructions. Incorrect installation can lead to safety hazards.

USER MANUAL S160MF2E5A PANASONIC

Operating Instructions Air Conditioner

Low Silhouette Ducted (F2 type)

Ceiling (T2 type)

4-Way Cassette (U1 type)

Model No.

INDOOR UNIT

4-Way Cassette (U1 type)

S-22MU1E5A	S-73MU1E5A
S-28MU1E5A	S-90MU1E5A
S-36MU1E5A	S-106MU1E5A
S-45MU1E5A	S-140MU1E5A
S-56MU1E5A	S-160MU1E5A
S-60MU1E5A

Ceiling (T2 type)

S-36MT2E5A	S-73MT2E5A
S-45MT2E5A	S-106MT2E5A
S-56MT2E5A	S-140MT2E5A

Low Silhouette Ducted (F2 type)

S-15MF2E5A	S-60MF2E5A
S-22MF2E5A	S-73MF2E5A
S-28MF2E5A	S-90MF2E5A
S-36MF2E5A	S-106MF2E5A
S-45MF2E5A	S-140MF2E5A
S-56MF2E5A	S-160MF2E5A

- Connectable outdoor unit lineup This booklet is the operating instructions for indoor unit. Regarding the outdoor unit, see the operating instructions supplied with the outdoor unit.

OUTDOOR UNIT

mini VRF (LE1 type)

U-4LE1E5	U-4LE1E8
U-5LE1E5	U-5LE1E8
U-6LE1E5	U-6LE1E8

2WAY VRF(ME1 type)

U-8ME1E81	U-16ME1E81
U-10ME1E81	U-18ME1E81
U-12ME1E81	U-20ME1E81
U-14ME1H81

3WAY VRF(MF2 type)

U-8MF2E8	U-14MF2E8
U-10MF2E8	U-16MF2E8
U-12MF2E8

ENGLISH

Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

FRANÇAIS

10 \~ 17

Thank you for purchasing this Panasonic product. This product is a commercial air conditioner indoor unit. Installation Instructions attached.

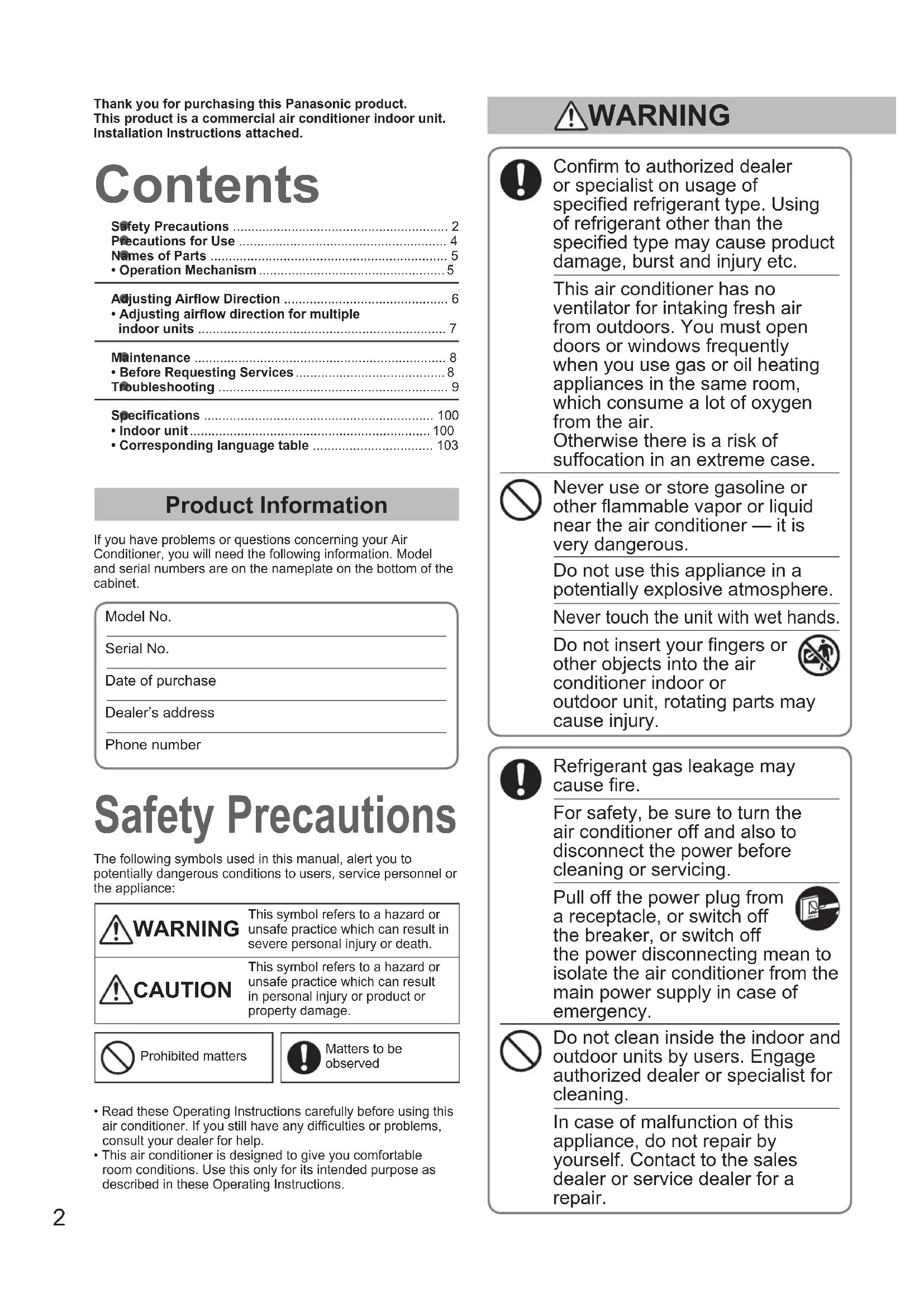

Contents

Safety Precautions 2

Precautions for Use 4

Names of Parts 5

• Operation Mechanism .... 5

Adjusting Airflow Direction 6

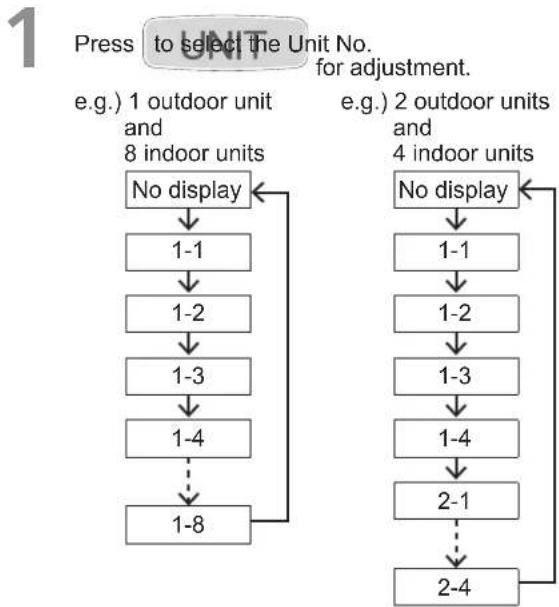

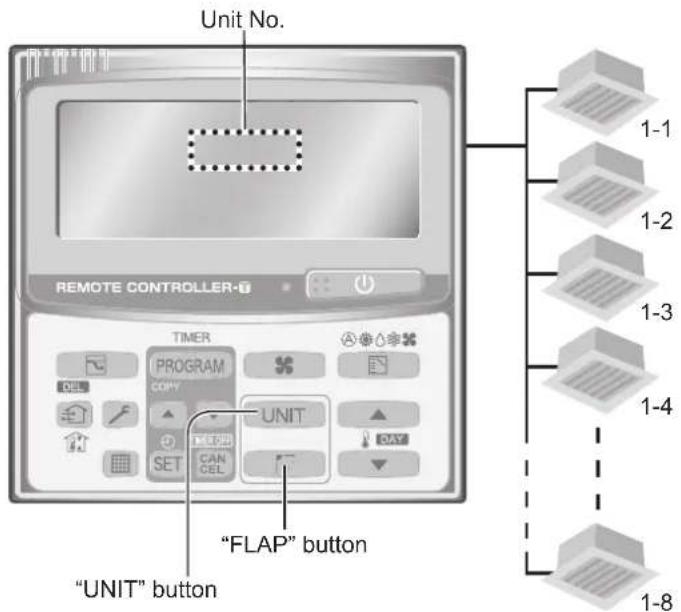

- Adjusting airflow direction for multiple indoor units 7

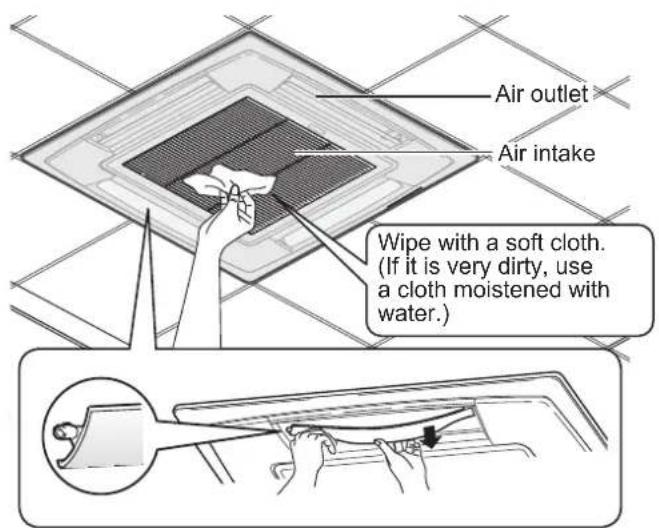

Maintenance 8

• Before Requesting Services 8

Troubleshooting 9

Specifications 100

- Indoor unit 100

• Corresponding language table 103

Product Information

If you have problems or questions concerning your Air Conditioner, you will need the following information. Model and serial numbers are on the nameplate on the bottom of the cabinet.

Model No.

Serial No.

Date of purchase

Dealer's address

Phone number

Safety Precautions

The following symbols used in this manual, alert you to potentially dangerous conditions to users, service personnel or the appliance:

WARNING

This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death.

CAUTION

This symbol refers to a hazard or unsafe practice which can result in personal injury or product or property damage.

Prohibited matters

Matters to be observed

• Read these Operating Instructions carefully before using this air conditioner. If you still have any difficulties or problems, consult your dealer for help.
• This air conditioner is designed to give you comfortable room conditions. Use this only for its intended purpose as described in these Operating Instructions.

WARNING

Confirm to authorized dealer or specialist on usage of specified refrigerant type. Using of refrigerant other than the specified type may cause product damage, burst and injury etc.

This air conditioner has no ventilator for intaking fresh air from outdoors. You must open doors or windows frequently when you use gas or oil heating appliances in the same room, which consume a lot of oxygen from the air. Otherwise there is a risk of suffocation in an extreme case.

Never use or store gasoline or other flammable vapor or liquid near the air conditioner — it is very dangerous.

Do not use this appliance in a potentially explosive atmosphere.

Never touch the unit with wet hands.

Do not insert your fingers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury.

Refrigerant gas leakage may cause fire.

For safety, be sure to turn the air conditioner off and also to disconnect the power before cleaning or servicing.

Pull off the power plug from a receptacle, or switch off the breaker, or switch off the power disconnecting mean to isolate the air conditioner from the main power supply in case of emergency.

Do not clean inside the indoor and outdoor units by users. Engage authorized dealer or specialist for cleaning.

In case of malfunction of this appliance, do not repair by yourself. Contact to the sales dealer or service dealer for a repair.

Provide a power outlet to be used exclusively for each unit, and a power supply disconnect, circuit breaker and earth leakage breaker for overcurrent protection should be provided in the exclusive line.

Provide a power outlet exclusively for each unit, and full disconnection means having a contact separation in all poles must be incorporated in the fixed wiring in accordance with the wiring rules.

To prevent possible hazards from insulation failure, the unit must be grounded.

Do not use modified cord, joint cord, extension cord or unspecified cord to prevent overheating and fire.

Stop using the product when any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fire/electric shock) Examples of abnormality/failure:

• The ELCB trips frequently.
- The product sometimes does not start when turned on.
- The power is sometimes disconnected when the cord is moved.
- Burnt odor or abnormal noise is detected during operation.
• The body is deformed or abnormally hot.
• Water leaks from the indoor unit.
• Power cord or plug becomes abnormally hot.
• Fan speed cannot be controlled.
• The unit stops running immediately even if it is switched on for operation.
- The fan does not stop even if the operation is stopped.
Contact immediately your local dealer for maintenance/repair.

This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial use by lay persons.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Keep the fire alarm and the air outlet at least 1.5m away from the unit.

Do not cool or heat the room too much if babies or invalids are present.

Do not turn the air conditioner on and off from the power mains switch. Use the ON/OFF operation button.

Do not stick anything into the air outlet of the outdoor unit. This is dangerous because the fan is rotating at high speed.

Do not touch the air inlet or the sharp aluminum fins of the outdoor unit. You may get injured.

Do not sit or step on the unit. You may fall down accidentally.

Do not stick any object into the FAN CASE. You may be injured and the unit may be damaged.

NOTICE

• The compressor may occasionally stop during thunderstorms. This is not a mechanical failure. The unit automatically recovers after a few minutes.
• The English text is the original instructions. Other languages are translation of the original instructions.

Important Information Regarding The Refrigerant Used

This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. Do not vent gases into the atmosphere. Refrigerant type: R410A

GWP ^(1) value: 1975

(1) GWP = global warming potential

Periodical inspections for refrigerant leaks may be required depending on European or local legislation. Please contact your local dealer for more information.

Precautions for Use

Installation

This air conditioner must be installed properly by qualified installation technicians in accordance with the Installation Instructions provided with the unit.

Before installation, check that the voltage of the electric supply in your home or office is the same as the voltage shown on the nameplate.

WARNING

Avoid the following locations for installation.

Locations where smoke or combustible gas exists.

Also locations of extremely high temperature such as a greenhouse.

Locations where excessively high heat-generating objects are placed.

Attention:

Avoid installing the outdoor unit where salty sea water can splash directly onto it or in sulphurous air near a spa.

(To protect the air conditioner from heavy corrosion)

Wiring

Allowiring must conform to the local electrical codes.

(Consult your dealer or a qualified electrician for details.)

Each unit must be properly grounded with a ground (or

earth) wire or through the supply wiring.

Wiring must be done by a qualified electrician.

Operation Preparation

Turn the power mains on 5 hours before the start of operation.

(For warm-up)

Leave the power mains ON for continuous use.

NOTE

Pull off the power plug from a receptacle, or switch off the breaker, or switch off the power disconnecting mean to isolate the air conditioner from the main power supply when not in use for a long time.

Operation Condition

Use this air conditioner under the following temperature range.

Outdoor Unit		Indoor temperature range	Outdoor temperature range
mini (LE1 type)
	Cooling 14°C	~25°C (*WBT)	-10°C 46°C (*DBT)
	Heating 16°C	~30°C (*DBT)	-20°C 48°C (*WBT)
2WAY (ME1 type)
	Cooling 14°C	~25°C (*WBT)	-10°C 46°C (*DBT)
	Heating 16°C	~30°C (*DBT)	-25°C 45°C (*WBT)
3WAY (MF2 type)
	Cooling 14°C	~25°C (*WBT)	-10°C 46°C (*DBT)
	Heating 15°C	~30°C (*DBT)	-20°C 48°C (*WBT)
	Cooling & Heating	— -10°C	~24°C (*DBT)

mini (LE1 type)

*DBT: Dry bulb temperature

*WBT: Wet bulb temperature

Information for Users on Collection and Disposal of Old Equipment and Used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Pb

Names of Parts

INDOOR UNIT

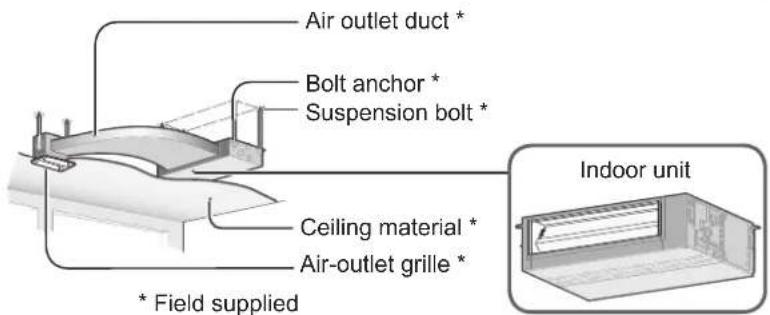

F2 type (Low Silhouette Ducted)

ENGLISH

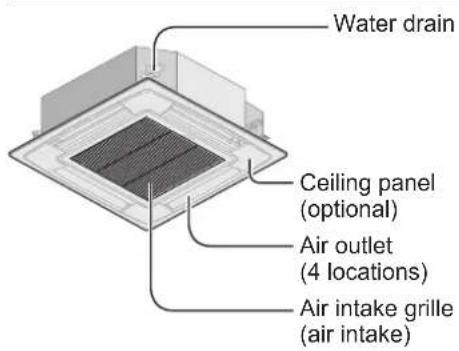

U1 type (4-Way Cassette)

T2 type (Ceiling)

Optional

Wireless Remote Controller

Model No.

CZ-RWSU2 (U1 type)

CZ-RWST3 (T2 type)

CZ-RWSC3

(For all indoor units)

Timer Remote Controller

Model No.

CZ-RTC2

For all indoor units

High-spec Wired Remote Controller

Model No.

CZ-RTC3

For all indoor units

Read the operating instructions included with the Remote Controller.

Operation Mechanism

■ Heating performance

Since this air conditioner utilizes outside air for heating, its heating performance deteriorates as outside temperature decreases.

(Due to heat pump system)

→In that case, use another heating appliance.

■ Defrosting

This appliance may start defrosting operation to melt frost formed in the outdoor unit.

①Defrosting starts: The indoor unit fan stops (or the speed becomes extremely slow).

→"○" (STANDBY) appears.

② Heating operation resumes after several minutes: The indoor unit fan remains stopped (or it will run at a very slow speed) until the indoor heat exchanger coil warms up sufficiently.

→ "○" (STANDBY) is shown.

③Defrosting is complete: The indoor unit fan starts operation.

→ "○" (STANDBY) disappears.

■ "DRY" operation

Once the room temperature reaches the level that was set, the outdoor unit repeats the cycle of turning on and off automatically.

When the outdoor unit is turned off, the indoor unit fan will stop, too.

(To prevent the humidity in the room from rising again) When the room temperature is more likely to reach the level that was set, the fan speed is set to "breeze" (light wind) automatically.

“DRY” operation is not possible if the outdoor temperature is 15^ C or less.

■ Should the power failure occurs while the unit is running

When the unit automatically resumes operation after temporary power failure, it uses the same settings before the power was cut off.

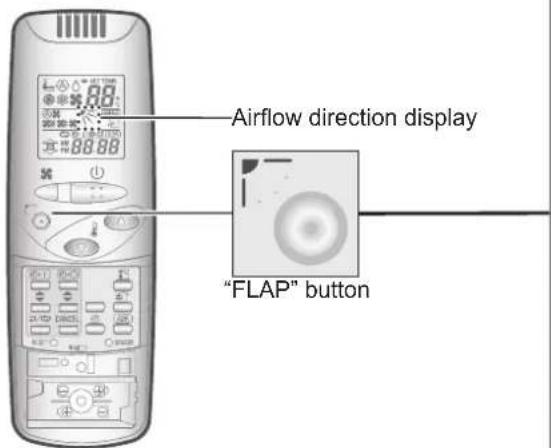

Adjusting Airflow Direction

This section is described in the instruction manual supplied with the timer remote controller (CZ-RTC2).

Regarding the High-spec Wired Remote Controller (CZ-RTC3), refer to the Operating Instructions supplied with the model CZ-RTC3.

Adjusting the upward and downward motion of airflow direction (U1 and T2 types only)

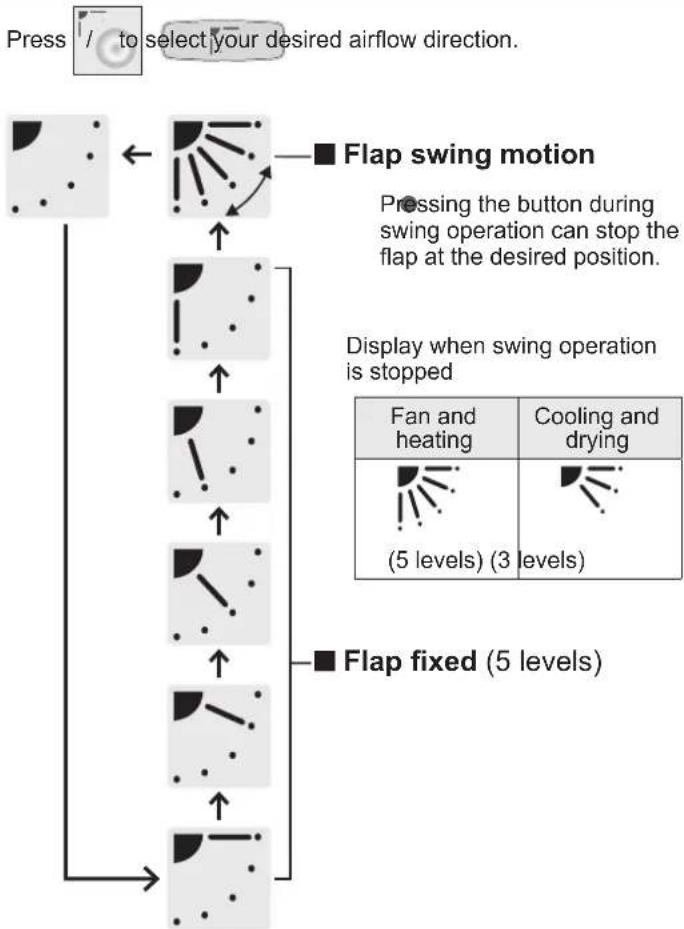

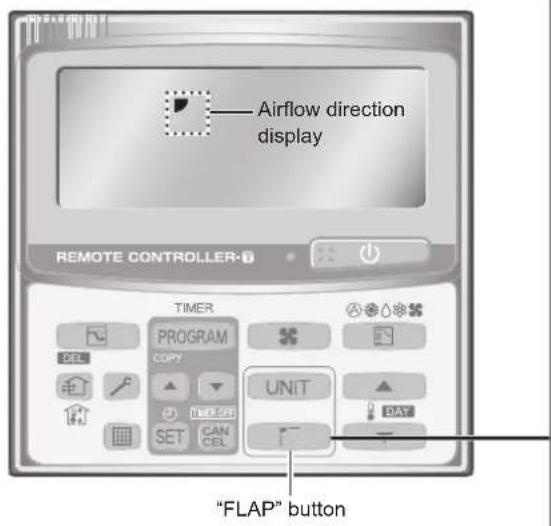

■ Using the timer remote controller

■ Using the wireless remote controller

Recommended vertical airflow direction

Set the flap to the downward position for heating operation. (With the upward setting, warm air cannot reach the floor.)
Set the flap to the upward position for cooling operation. (With the downward setting, condensation may drip on to the floor.)

U1, T2 type

HEAT COOL / DRY FAN
Recommended	Recommended	I o this position

■Adjusting the horizontal airflow direction

(Manual: T2 type only)

Move the horizontal airflow vanes by hand for adjustment.

Illustration of a hand inserting a component into a rack, showing the process (no text or symbols present)

Adjusting airflow direction for multiple indoor units (Timer remote controller only)

When operating multiple indoor units using 1 remote controller, airflow direction can be adjusted for indoor each unit individually or all units at the same time.

Maximum of 8 indoor units can be connected.

■ When setting the airflow direction of each indoor unit individually

    J["e.g.) 2 outdoor units and 4 indoor units"] --> K["No display"]
    K --> L["1-1"]
    L --> M["1-2"]
    M --> N["1-3"]
    N --> O["1-4"]
    O --> P["2-1"]
    P --> Q["2-4"]
    Q --> R["End"]

2 Press to select your desired airflow direction.

■ When setting the airflow direction of all indoor units at the same time

1 Press to select 2 Press to select your desired No display.

Attention:

Never use your hands to move the flap (vertical airflow flap) controlled using the remote controller.

Note

When the air conditioner is turned off, the flap automatically moves toward the direction of closing.
The flap (vertical airflow flap) moves to the upward position during standby operation for heating.
The swing operation starts after the standby operation has finished, but "Swing" is indicated on the remote controller even during the standby operation.

Tips for Energy Saving

Avoid

Do not block the air intake and outlet of the unit. (If either is obstructed, the unit will not function well, causing malfunction.)
During cooling operation, use sunshades, blinds or curtains to prevent direct sunlight from entering the room.

Do

Always keep the air filter clean. (A clogged filter will impair the performance of the unit.) → "Maintenance" (P.8)
To prevent conditioned air from escaping, keep windows, doors and any other openings closed.

Maintenance

Indoor unit (e.g. U1 type)

Wash the flap for the air outlet with water.

(U1 type only)

• Be sure to stop the operation beforehand.
  • After washing with water, allow it to dry, and then attach it with the arrow facing outward.

WARNING

For safety, be sure to turn the air conditioner off and disconnect the power before cleaning.

(Otherwise, electric shock or injury may result because the fan is rotating at high speed.)

(This may damage the internal components and cause an electric shock hazard.)

CAUTION

Never use solvents or harsh chemicals. Also, do not wipe plastic parts using very hot water.
(This may cause deformation or change in colour.)
Some metal edges and fins are sharp. Be careful when you clean those parts.
(Injury may result.)
Use a firm stool or ladder when cleaning an indoor unit installed in high locations.

The internal coil and other components of the outdoor unit must be cleaned periodically.

- Consult your dealer or service center.

Before Requesting Services

Symptom Cause Action
The air conditioner does not operate although the power is turned on.	Power failure or after power failure Press the power ON/OFF button on the remote controller.
	The operation (power) button is turned off.	· If the breaker is turned off, turn the power on.· If the breaker has been tripped, consult your dealer without turning it on.
	Fuse blow out. Contact your dealer.
Poor cooling or heating performance	The air intake or air outlet of indoor and outdoor units is clogged with dust.	Remove the dust.
	The wind speed switch is set to “Low”. Change to “High” or “Strong”.
	Improper temperature settings	See “Tips for Energy Saving”. (P.7)
	The room is exposed to direct sunlight in cooling mode.
	Doors or windows are open.
	The air filter is clogged. See “Maintenance”.	(P.8)
	Too many heat sources in the room in cooling mode.	Use minimum heat sources and in a short time.
	Too many people in the room in cooling mode.	Lower the temperature setting or change to “High” or “Strong”.

If your air conditioner does not work properly even after checking each item of "Before Requesting Services" and "Troubleshooting"

Stop the operation immediately and turn the power off. Then contact your dealer and report the serial number and symptom. You also report if the inspection mark ⚠️ and the letters E, F, H, L, P in combination with numbers appear on the LCD of the remote controller.
Never repair the air conditioner by yourself since it is very dangerous for you to do so.

Troubleshooting

Check before consulting or requesting services.

Indoor unitOutdoor unit

Symptom Cause / Action
Noise	Sound like streaming water is heard during operation or after operation.	• Sound of refrigerant liquid flowing inside unit• Sound of drainage water through drain pipe
	Cracking noise is heard during operation or when operation stops.	Sound due to temperature changes of parts
Discharged air smells during operation.		• Indoor odor components, cigarette odor and cosmetic odor accumulated in the air conditioner and its air is discharged.• The unit inside is dirty.(Contact your dealer.)
Dewdrops accumulate near the air outlet during cooling operation.		• Internal moisture is cooled by cool wind and accumulates as dewdrops.
Fog occurs during cooling operation.		• If the air conditioner has been installed at places such as restaurants where large amounts of oil mist exist, cleaning is necessary because the unit inside (heat exchanger) is dirty.(Contact your dealer.)
Fog occurs during heating operation.		• Defrost operation is in process.
The fan is rotating for a while even though operation stops.		• Fan rotation makes operation smooth.• The fan may rotate to dry the heat exchanger depending on the setting.
Airflow direction	Airflow direction changes while operating.Airflow direction cannot be set.Airflow direction cannot be changed.	• When air discharge temperature is low during heating operation, or during defrost operation, horizontal wind flow is made automatically.• The flap position may be set individually.(U1 type)
	The flap moves several times after the direction is changed.	• The flap moves to the standard position once, and then turns to the set airflow direction.
Dust is discharged.		• Dust accumulated inside the indoor unit is discharged.
At the initial high-speed operation, the fan sometimes rotates faster than the setting speed.(3 to 30 minutes)		• This is for operation check in order to confirm whether the fan motor rotation is within the range of use.
No operation(When the power is turned on immediately /When operation is stopped and resumed immediately)		• Operation is not activated for the first approx. 3 minutes because the compressor protection circuit is activated.
Noise occurs during heating operation.		• Defrost operation is in process.
Steam comes out during heating operation.		• This is for smooth operation.

ENGLISH

Illustration of a hand using a tool to adjust or install a wall-mounted air conditioner (no text or symbols present)

(Type U1 uniquement)

Illustration of a hand using a tool to adjust or install a rectangular object, showing a curved arrow and grid pattern (no text or symbols)

Illustration of a hand inserting a component into a rack, showing the process (no text or symbols present)

Illustration of a hand inserting a component into a rack, showing the process (no text or symbols present)

Illustration of a hand inserting a component into a rack, showing the process (no text or symbols present)

Illustration of a hand inserting a component into a rack, showing the process (no text or symbols present)

Illustration of a hand inserting a component into a rack, showing the process (no text or symbols present)

Illustration of a hand using a tool to adjust or install a wall-mounted air conditioner (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a wall-mounted air conditioner (no text or symbols visible)

*DBT: Dry bulb temperature

*WBT: Wet bulb temperature

Illustration of a hand using a tool to adjust or install a component, showing a circular inset view (no text or symbols)

4-Way Cassette (U1 type)

Model Name S-22MU1E5A			S-28MU1E5A S-36MU1E5A S-45MU1E5A S-56MU1E5A S-60MU1E5A
Power source 220/230/240 V ~ 50/60 Hz
Cooling capacity		kW	2.2	2.8	3	6	4.5	5.6	6.0
		BTU/h	7,500	9,600		12,300		15,400		19,100	20,500
Heating capacity		kW	2.5	3.2	4	2	5.0	6.3	7.1
		BTU/h	8,500	10,90		0	14,300	17,100		21,500	24,200
Sound pressure level	High dB(A)		30	30	30	31	33	36
	Medium dB(A)		29	29	29	29	30	32
	Low dB(A)		28	28	28	28	28	29
Sound power level	High dB(A)		47	47	47	48	50	53
	Medium dB(A)		46	46	46	46	47	49
	Low dB(A)		45	45	45	45	45	46
Unit dimensions (H×W×D)*		mm	290×950×950		290×950×950		290×950×950		290×950×950		290×950×950
Net weight*		kg	27	27	27	27	27	28

Model Name S-73MU1E5A			S-90MU1E5A S-106MU1E5A S-140MU1E5A S-160MU1E5A
Power source 220/230/240 V ~ 50/60 Hz
Cooling capacity		kW	7.3 9.0	10.6	14.0	16.0
		BTU/h	24,900 30,700	36,200 47,800	54,600
Heating capacity		kW	8.0	10.0	11.4	16.0	18.0
		BTU/h	27,300 34,100	38,900 54,600	61,400
Sound pressure level	High dB(A)		37 38 44	45 46
	Medium dB(A)		32 35 38	39 40
	Low dB(A)		29 32 34	35 38
Sound power level	High dB(A)		54 55 61	62 63
	Medium dB(A)		49 52 55	55 56
	Low dB(A)		46 49 51	51 53
Unit dimensions (H×W×D)*		mm	290×950×950 290×950×950 353×950×950 353×950×950
Net weight*		kg	28 28 31	31 31

* Values include the dimension and weight of an optional ceiling panel.

Ceiling (T2 type)

Model Name S-36MT2E5			A S-45MT2E5A S-56MT2E5A S-73MT2E5A S-106MT2E5A S-140MT2E5A
Power source 220/230/240 V ~ 50/60 Hz
Cooling capacity		kW	3.6 4.5 5.6 7.3 10.6 14.0
		BTU/h	12,300 15,400 19,100 24,900			36,200 47,800
Heating capacity		kW	4.2 5.0 6.3 8.0 11.4 16.0
		BTU/h	14,300 17,100 21,500 27,300			38,900 54,600
Sound pressure level	High dB(A)		36 37 37 39 42 44
	Medium dB(A)		32 33 33 35 37 40
	Low dB(A)		30 30 30 33 36 37
Sound power level	High dB(A)		54 55 55 57 60 62
	Medium dB(A)		50 51 51 53 55 58
	Low dB(A)		48 48 48 51 54 55
Unit dimensions (H×W×D)		mm	235×960×690	235×960×690		235×960×690	235×1,275×690	235×1,590×690	235×1,590×690
Net weight		kg	27	27		27	33	40	40

Specifications

Indoor unit

Low Silhouette Ducted (F2 type)

Model Name S-15MF2E5A			S-22MF2E5A S	-28MF2E5A S-36	MF2E5A S-45MF	F2E5A S-56MF2E5A
Power source 220/230/240 V ~ 50/60 Hz
Cooling capacity		kW	1.5 2.2 2	8 3.6 4.5 5.6
		BTU/h	5,100 7,500	9,600 12,300 15,400 19,100
Heating capacity		kW	1.7 2.5 3.2	4.2 5.0 6.3
		BTU/h	5,800 8,500	10,900 14,300	17,100 21,500
Sound pressure level	High dB(A)		33 33 33	33 34 34
	Medium dB(A)		29 29 29	29 32 32
	Low dB(A)		22 22 22	22 25 25
Sound power level	High dB(A)		55 55 55	55 56 56
	Medium dB(A)		51 51 51	51 54 54
	Low dB(A)		44 44 44	44 47 47
Unit dimensions (H×W×D)		mm	290×800×700 2	90×800×700 290	×800×700 290×8	00×700 290×800	×700 290×800×700
Net weight		kg	29 29 29	29 29 29

Model Name S-60MF2E5A			S-73MF2E5A S	-90MF2E5A S-10	6MF2E5A S-140	MF2E5A S-160M	F2E5A
Power source 220/230/24			40 V ~ 50/60 Hz
Cooling capacity		kW	6.0 7.3 9	0 10.6	14.0	16.0
		BTU/h	20,500	24,900 30,7	00 36,200 47,800	54,600
Heating capacity		kW	7.1	8.0	10.0	11.4	16.0	18.0
		BTU/h	24,200	27,300 34,1	00 38,900 54,600	61,400
Sound pressure level	High dB(A)		35	35 37 38	39 40
	Medium dB(A)		32	32 34 34	35 36
	Low dB(A)		26	26 28 31	32 33
Sound power level	High dB(A)		57	57 59 60	61 62
	Medium dB(A)		54	54 56 56	57 58
	Low dB(A)		48	48 50 53	54 55
Unit dimensions (H×W×D)		mm	290×1,000×700	290×1,000×700	290×1,000×700	290×1,400×700	290×1,400×700	290×1,400×700
Net weight		kg	34 34 34	46 46 46

Corresponding language table

English Français Español	Deutsch
4-Way Cassette (U1 type) Cassette 4 voies (Type U1) Cassette de 4 vías (tipo U1) 4-Weg Kassette (Typ U1)
Ceiling (T2 type) Plafond (Type T2) Techo (tipo T2) Deckenmontage (Typ T2)
Low Silhouette Ducted (F2 type)	Conduit discret (Type F2) Conducto de perfil bajo (tipo F2)	Kanalgerät, flache Bauform (Typ F2)
Mini (LE1 type) Mini (Type LE1)	Mini (tipo LE1) Mini (Typ LE1)
2WAY(ME1 type)	2WAY (Type ME1)	2WAY (tipo ME1)	2WAY (Typ ME1)
3WAY(MF2 type)	3WAY (Type MF2)	3WAY (tipo MF2)	3WAY (Typ MF2)

English Italiano	Nederlands	Português
4-Way Cassette (U1 type)	A cassetta a 4 vie (tipo U1)	4-weg cassette (type U1)	Cassete de 4 vias (Tipo U1)
Ceiling (T2 type)	A soffitto (tipo T2)	Plafond (type T2)	Tecto (Tipo T2)
Low Silhouette Ducted (F2 type)	Con condotto a profilo basso (tipo F2)	Met laagprofiel kanalen (type F2)	Com conduta de silhueta baixa (Tipo F2)
Mini (LE1 type) Mini (tipo LE1)	Mini (type LE1)	Mini (Tipo LE1)
2WAY(ME1 type)	2WAY (tipo ME1)	2WAY (type ME1)	2WAY (Tipo ME1)
3WAY(MF2 type)	3WAY (tipo MF2)	3WAY (type MF2)	3WAY (Tipo MF2)

English Ελληνικη	Български	Русский
4-Way Cassette (U1 type)	Касétaς 4-броро (Túπος U1)	4-пътен касетен (тип U1)	Кассетный с 4 направлениями потока (тип U1)
Ceiling (T2 type)	Орофής (Túπος T2)	Таванен (тип T2)	Потолочный (тип T2)
Low Silhouette Ducted (F2 type)	Аγωγος χαμηλης σιλουετας (Túπος F2)	Компактен с канал (тип F2)	С низкой высотой воздуховода (тип F2)
Mini (LE1 type)	Mini (Túπος LE1)	Mini (тип LE1)	Mini (тип LE1)
2WAY(ME1 type)	2WAY (Túπος ME1)	2WAY (тип ME1)	2WAY (тип ME1)
3WAY(MF2 type)	3WAY (Túπος MF2)	3WAY (тип MF2)	3WAY (тип MF2)

English Українська	B.indonesia
4-Way Cassette (U1 type)	4-канальний касетний (тип U1)	Kaset 4 Arah (Tipe U1)
Ceiling (T2 type)	Стельовий (тип T2)	Langit-Langit (Tipe T2)
Low Silhouette Ducted (F2 type)	Із каналом низького профілю (тип F2)	Pipa Siluet Rendah (Tipe F2)
Mini (LE1 type) Mini (тип LE1)	Mini (Tipe LE1)
2WAY(ME1 type)	2WAY (ME1)	2WAY (Tipe ME1)
3WAY(MF2 type)	3WAY (MF2)	3WAY (Tipe MF2)

Specifications

Corresponding language table

English Français Español	Deutsch
Model Name Nom du modèle	Nombre del modelo Modellbezeichnung
Power Source Source d'alimentation	Fuente de alimentación Spannungsquelle
Cooling Capacity Capacité de refroidissement	Capacidad de refrigeración Kühlleistung
Heating Capacity Capacité de chauffage	Capacidad de calefacción Heizleistung
Sound Pressure Level(High/Medium/Low)	Niveau de pression sonore(Haut/Moyen/Bas)	Nivel de presión acústica(alto/medio/bajo)	Schalldruckpegel(hoch/mittel/niedrig)
Sound Power Level(High/Medium/Low)	Niveau de puissance sonore(Haut/Moyen/Bas)	Nivel de potencia acústica(alto/medio/bajo)	Schallleistungspegel(hoch/mittel/niedrig)
Unit Dimensions(HxWxD; mm)	Dimensions d'unité(HxLxP ; mm)	Dimensiones de la unidad(Alto x Largo x Ancho; mm)	Geräteabmessungen(H x B x T [mm])
(HxWxD: ceiling dimension)	(HxLxP : dimensions plafond)	(Alto x Largo xAncho: dimensión del techo)	(H x B x T: Deckenmaß)
Net Weight (kg)	Poids net (kg)	Peso neto (kg)	Nettogewicht (kg)

Declaration of Conformity with the requirements of the e-waste (Management and Handling) Rules, 2011 (adopted by Notification S.O.1035(E) of Ministry of Environment and Forests)

The Product is in conformity with the requirements of Rule 13 of the e-waste Rules.

The content of hazardous substance with the exemption of the applications listed in SCHEDULE II of the e-waste Rules:

1. Lead (Pb) – not over 0.1% by weight;
2. Cadmium (Cd) – not over 0.01% by weight;
3. Mercury (Hg) – not over 0.1% by weight;
4. Hexavalent chromium (Cr ^2+ ) – not over 0.1% by weight;
5. Polybrominated biphenyls (PBBs) – not over 0.1% by weight;
6. Polybrominated diphenyl ethers (PBDEs) – not over 0.1% by weight.

For the purpose of recycling to facilitate effective utilization of resources, please return this product to a nearby authorized collection center, registered dismantler or recycler, or Panasonic service center when disposing of this product.

Please see the Panasonic website for further information on collection centers, etc.

http://www.panasonic.com/in/corporate/sustainability/panasonic-india-i-recycleprogram.html

MEMO

Panasonic Corporation

Website: http://panasonic.net/

© Panasonic Corporation 2014

Printed in China

Authorised representative in EU

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany
