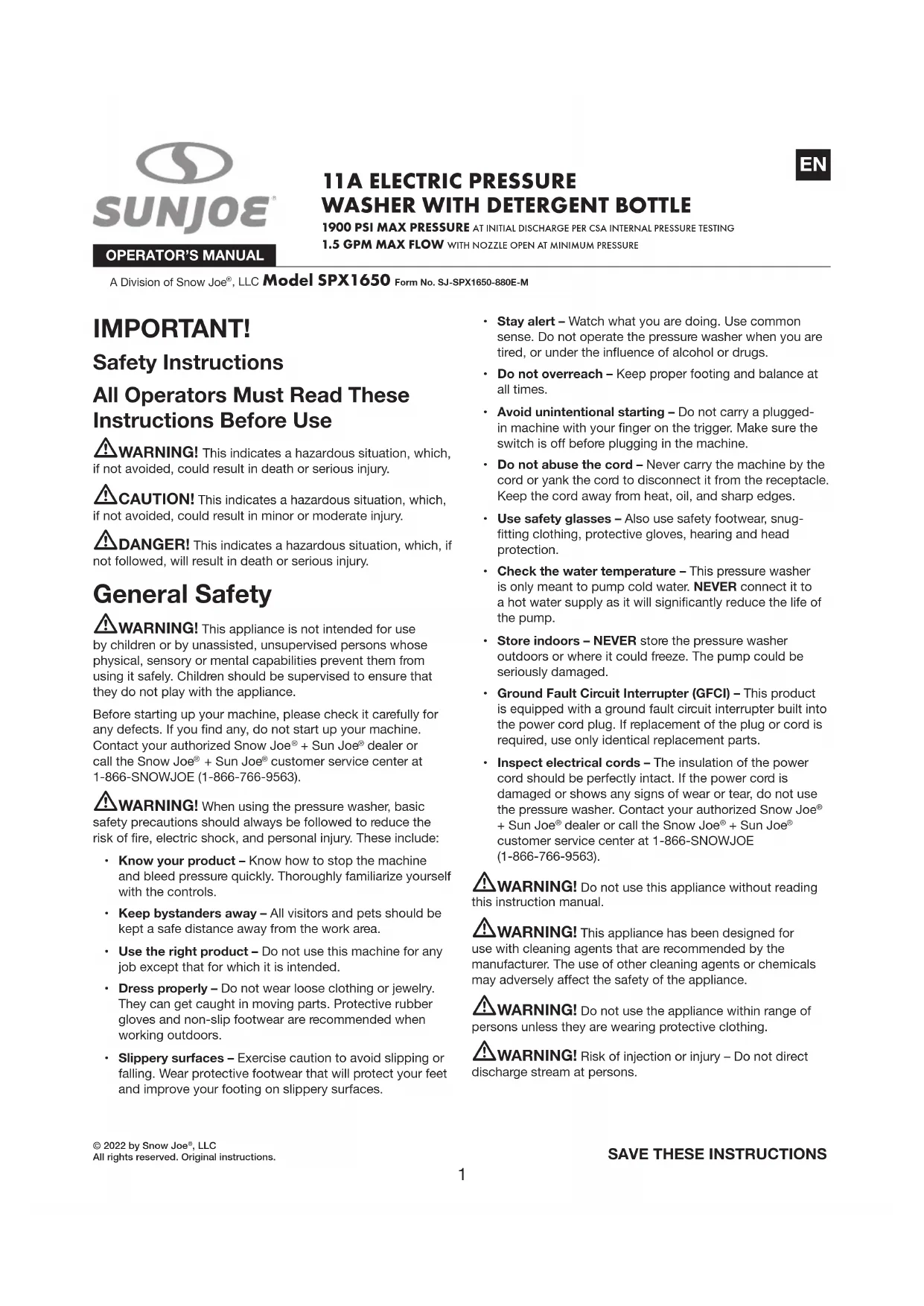

USER MANUAL SPX1650 Sun Joe

© 2022 by Snow Joe , LLCAll rights reserved. Original instructions.

SAVE THESE INSTRUCTIONS

A Division of Snow Joe

WASHER WITH DETERGENT BOTTLE

IMPORTANT! Safety Instructions All Operators Must Read These Instructions Before Use mWARNING! This indicates a hazardous situation, which, if not avoided, could result in death or serious injury. mCAUTION! This indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury. mDANGER! This indicates a hazardous situation, which, if not followed, will result in death or serious injury. General Safety mWARNING! This appliance is not intended for use by children or by unassisted, unsupervised persons whose physical, sensory or mental capabilities prevent them from using it safely. Children should be supervised to ensure that they do not play with the appliance. Before starting up your machine, please check it carefully for any defects. If you nd any, do not start up your machine. Contact your authorized Snow Joe

dealer or call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). mWARNING! When using the pressure washer, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury. These include:

• Know your product – Know how to stop the machine and bleed pressure quickly. Thoroughly familiarize yourself with the controls.

• Keep bystanders away – All visitors and pets should be kept a safe distance away from the work area.

• Use the right product – Do not use this machine for any job except that for which it is intended.

• Dress properly – Do not wear loose clothing or jewelry. They can get caught in moving parts. Protective rubber gloves and non-slip footwear are recommended when working outdoors.

• Slippery surfaces – Exercise caution to avoid slipping or falling. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces.

• Stay alert – Watch what you are doing. Use common sense. Do not operate the pressure washer when you are tired, or under the influence of alcohol or drugs.

• Do not overreach – Keep proper footing and balance at all times.

• Avoid unintentional starting – Do not carry a plugged- in machine with your finger on the trigger. Make sure the switch is off before plugging in the machine.

• Do not abuse the cord – Never carry the machine by the cord or yank the cord to disconnect it from the receptacle. Keep the cord away from heat, oil, and sharp edges.

• Use safety glasses – Also use safety footwear, snug- fitting clothing, protective gloves, hearing and head protection.

• Check the water temperature – This pressure washer is only meant to pump cold water. NEVER connect it to a hot water supply as it will significantly reduce the life of the pump.

• Store indoors – NEVER store the pressure washer outdoors or where it could freeze. The pump could be seriously damaged.

• Ground Fault Circuit Interrupter (GFCI) – This product is equipped with a ground fault circuit interrupter built into the power cord plug. If replacement of the plug or cord is required, use only identical replacement parts.

• Inspect electrical cords – The insulation of the power cord should be perfectly intact. If the power cord is damaged or shows any signs of wear or tear, do not use the pressure washer. Contact your authorized Snow Joe

dealer or call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). mWARNING! Do not use this appliance without reading this instruction manual. mWARNING! This appliance has been designed for use with cleaning agents that are recommended by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the safety of the appliance. mWARNING! Do not use the appliance within range of persons unless they are wearing protective clothing. mWARNING! Risk of injection or injury – Do not direct discharge stream at persons.2 mWARNING! High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, pets, live electrical equipment, or the appliance itself.

• Do not direct the jet at yourself or others in order to clean clothes or footwear.

• Disconnect the tool – Disconnect from the electrical power supply before performing any maintenance task.

• Keep children away – This high-pressure electric power washer must not be used by children or untrained personnel.

• To ensure safety, use only original replacement parts from the manufacturer or those approved by the manufacturer. mWARNING! Water that has flowed through backflow preventers is considered to be non-potable. mWARNING! During cleaning, maintenance or when replacing parts, the machine must be disconnected from its power source by removing the plug from the socket outlet. mWARNING! High-pressure hoses, fittings, and couplings are important for the safe operation of the appliance. Use only hoses, fittings, and couplings recommended by the manufacturer.

• Check for damaged parts – Do not use the appliance if the supply cord or other important parts of the appliance are damaged (e.g. safety devices, high-pressure hoses, trigger gun).

• This high-pressure electric power washer must not be used at temperatures below 32ºF (0°C). mWARNING! Power cords on drums should always be completely unwound to prevent the cord from overheating.

• Power cord connections should be kept dry and off the ground.

• If the power cord is damaged, do not use the appliance. Contact your authorized Snow Joe

dealer or call the Snow Joe

• Keep the machine on a stable, flat surface during operation, handling, transportation, and storage. Sudden overturn of the machine can cause bodily injury.

• In the event of an accident or breakdown, switch off the machine immediately. (If contact with detergent occurs, rinse with an abundance of clean water.) Electrical Safety ATTENTION: If there are problems with the electrical mains, short voltage drops may appear when starting the equipment. This can, in turn, inuence other equipment (e.g. cause a lamp to blink). If the MAINS-IMPEDANCE Zmax < 0.335 OHM, such disturbances are not expected. (If you require assistance, contact your local supply authority for further information.) mWARNING! Electrical Shock Hazard – Before starting up your machine, please check it carefully for any defects. If you find any, do not start up your machine and contact your distributor. The following should be observed when connecting the high-pressure electric power washer to the electric supply:

• The electric supply to this appliance should include either a residual current device that will interrupt the supply if the leakage current to the earth exceeds 30 mA for 30 ms or a device that will interrupt the earth circuit (GFCI). IMPORTANT: Only use water without any impurities. If there is a risk of running sand into the inlet water (i.e. from your own well), an additional lter should be installed. Safety Devices The spray gun features a safety lock. When the lock is activated, the spray gun cannot be operated.

• Thermal sensor – A thermal sensor protects the motor against overloading. If the thermal sensor is activated and the power is cut off, wait for a while until the motor is cool and restart the unit.

• Double insulation – In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should be performed only by qualified service personnel at an authorized Snow Joe

dealer. Replacement parts for a double-insulated appliance must be identical to the parts they replace. A double-insulated appliance is marked with the words “Double Insulation” or “Double Insulated.” The symbol (square within a square) may also be marked on the appliance.

• Ground fault circuit interrupter (GFCI) protection – This pressure washer is provided with a ground-fault circuit- interrupter (GFCI) built into the plug of the power-supply cord. This device provides additional protection from the risk of electric shock. Should replacement of the plug or cord become necessary, use only identical replacement parts that include GFCI protection.

• It is not recommended to use an extension cord with this pressure washer. The unit comes standard with a 35 ft GFCI power cord. Using an extension cord may cause a drop in line voltage resulting in loss of power and overheating.

• To reduce the risk of electric shock, this appliance has a polarized plug (i.e. one blade is wider than the other). The appliance plug will only fit into a polarized outlet one way. If the appliance plug does not fit fully into the outlet, reverse the plug. If the plug still does not fit, make sure that you are using the correct polarized wall outlet. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not modify the appliance plug, power cord receptacle, or power cord plug in any way.3

• Do not abuse the cord. Never pull the pressure washer by the cord or yank the cord to disconnect it from the receptacle. Keep the cord away from heat, oil, and sharp edges. mWARNING! To reduce the risk of electrocution:

• Inspect cord before using.

• Do not use if cord is damaged.

• Keep all connections dry and off the ground.

• Do not touch plug with wet hands.

• Keep cord away from heat and sharp edges.

• Do not spray electrical apparatus and wiring. Risk of explosion

• Do not spray flammable liquids.

• Do not use acids, bases, solvents, or any flammable material in this product. These substances can cause physical injuries to the operator and irreversible damage to the machine. Additional safety instructions

• High-pressure: keep clear of nozzle.

• Injection hazard: equipment can cause serious injury if the spray penetrates the skin.

• Do not point the gun at anyone or at any part of the body.

• In case of skin penetration, seek medical aid immediately.

• Before servicing, cleaning, or removing any parts, shut off the power and relieve pressure.

• This machine is not suitable for connection to the potable water mains. Product Description Purpose

• This electric high pressure washer is intended for residential use only. It is designed for medium-to-heavy duty cleaning jobs on boats, motorcycles, RV’s, ATV’s, trailers, decks, barbecues, siding, patio furniture, and more. Areas of application

• Never use the machine in potentially explosive areas under any circumstances!

• The operating temperature must be between 32ºF (0ºC) and 104ºF (40ºC).

• The machine consists of an assembly with a pump, which is encased in a shock-absorbing housing. To provide the operator with an optimal working position, the machine is equipped with a spray wand and a non-slip handle grip, whose shape and configuration comply with applicable regulations.

• Do not cover or modify the spray wand or the spray nozzle in any way.

• The high-pressure electric power washer is designed to be used with cold water; higher temperatures can damage the pump.

• Do not use water that is dirty, gritty, or contains any chemical products, as such impurities could impair operation and shorten the life of the machine.4 Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions

MANUAL – Read, understand, and follow all instructions in the user manual before attempting to assemble and operate. SAFETY ALERT – Indicates a precaution, a warning, or a danger.

WEAR EYE AND HEARING

• PROTECTION – For protection against injury, wear ear defenders and safety goggles. WARNING! Do not expose the unit to rain or wet conditions. Keep dry. Wear protective gloves and non-slip footwear when using the machine and handling debris. CAUTION! Remove plug from the outlet before conducting inspection, cleaning, or maintenance. Remove plug from the outlet immediately if the cord is damaged or cut. WARNING! Electrical shock hazard. To reduce the risk of injury, user must keep all bystanders at least 49 ft (15 m) away. Store indoors. Never store the pressure washer outdoors. If the pump freezes, permanent damage may occur. Machine not suitable for connection to the potable water mains. Double Insulation – When servicing, use only identical replacement parts.5 Know Your Electric Pressure Washer Read the owner’s manual and safety instructions carefully before operating the Electric Pressure Washer. Compare the illustration below to the unit in order to become familiar with the location of the various controls and adjustments. Save this manual for future reference. Technical Data Rated Voltage p. 120
• V AC | 60 Hz Motor p. 11
• A Quick-Connect Tips p. 0
• ° | 25° | 40° Foam Cannon Capacity p. 11
• .8 oz. (350 ml) High-pressure Hose Length p. 20
• ft. (6 m) Max Water Inlet Temperature p. 104
• ºF (40ºC) Max Water Inlet Pressure p. 100
• PSI Max Pressure at initial discharge p. 1900
• PSI per CSA internal pressure testing Rated Pressure under typical load p. 1300
• PSI Max Flow with nozzle open p. 1
• .5 GPM (5.7 L/min) at minimum pressure Rated Flow under typical load p. 1
• .2 GPM (4.5 L/min) Power Cord Length p. 35
• ft. (10.7 m) Net Weight .6 lbs (8 kg) p. 17

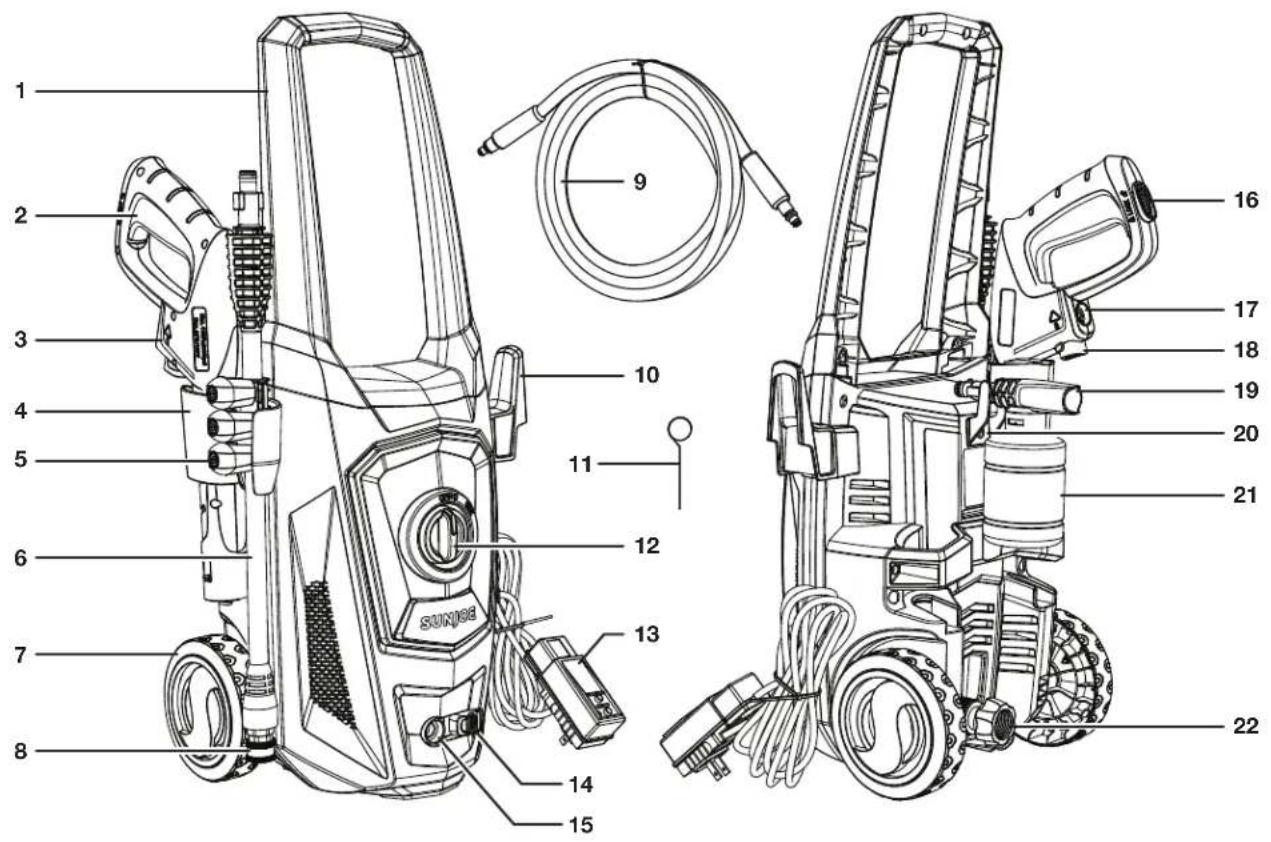

8. Quick-release collar

9. High-pressure hose

13. Power cord with GFCI

high-pressure hose connection

• Electric pressure washer

• ST4.8x20 thread forming screws (x2)

• Garden hose adapter (female coupler)

• Quick-Connect nozzles (0º, 25º & 40º)

• Needle clean-out tool (included with manual packet)

• Manual with registration card

1. Carefully remove the electric pressure washer and check

to see that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or

damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). NOTE: Do not discard the shipping carton and packaging material until you are ready to use the pressure washer. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations or save the packaging for long-term product storage. IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suocation risk! mWARNING! Do not connect to power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury. Assembly Tools required: Phillips head screwdriver

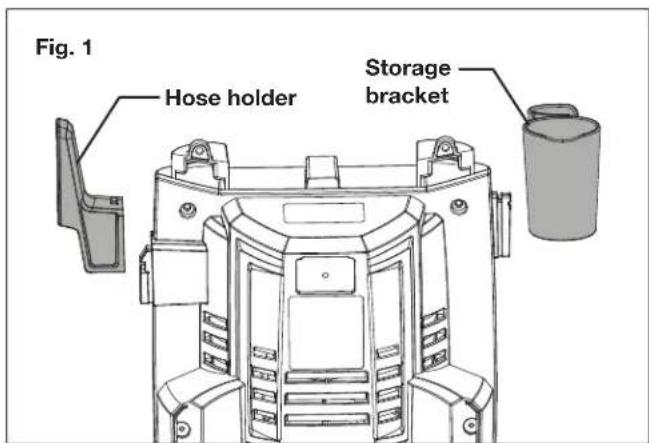

1. Slide the storage bracket and hose holder down into

position on either side of the pressure washer (Fig. 1).

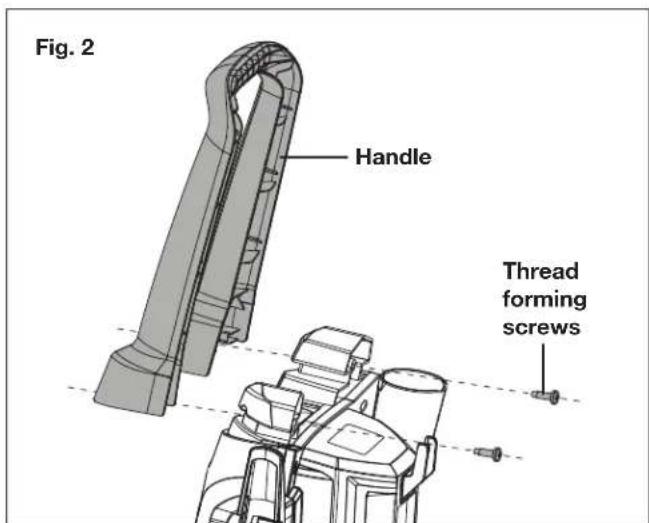

2. Attach the handle onto the front of the pressure washer

using the two thread forming screws (Fig. 2).

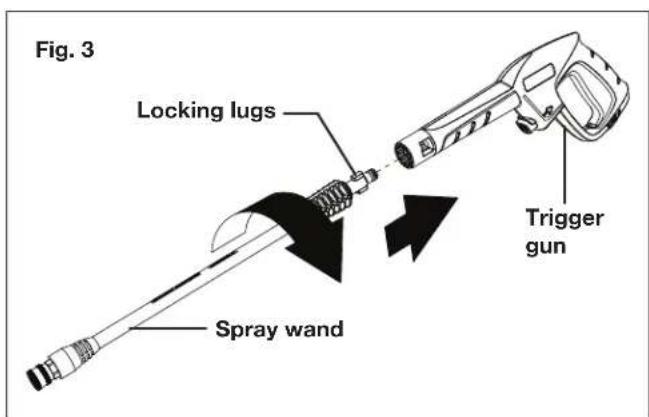

3. To connect the spray wand to the trigger gun, insert the

locking lugs on the spray wand into the end of the trigger gun. Twist counter-clockwise to lock them together (Fig. 3). Fig. 1 Hose holder Storage bracket Fig. 2 Handle Thread forming screws Fig. 3 Spray wand Trigger gun Locking lugs7

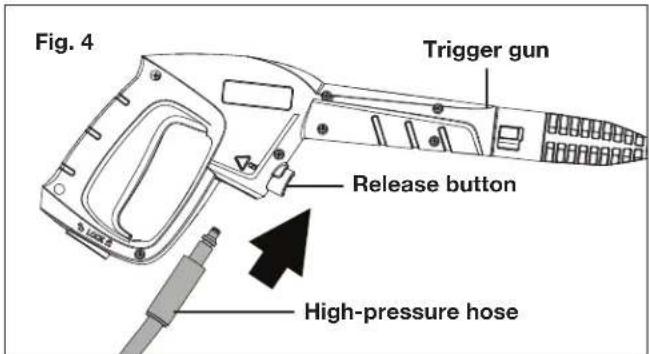

4. Connect the high-pressure hose to the trigger gun. Push

until the hose snaps into place (Fig. 4). To release the high-pressure hose from the trigger gun, press the release button and pull the hose out.

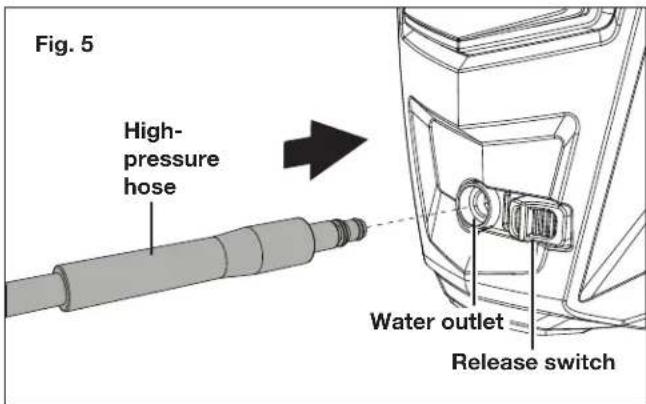

5. Connect the other end of high-pressure hose to the water

outlet of the pressure washer. Push until the hose snaps into place (Fig. 5). To release the high-pressure hose from the pressure washer, push the release switch and pull the hose out. mWARNING! Keep hose away from sharp objects. Bursting hoses may cause injury. Examine hoses regularly and replace if damaged. Do not attempt to mend a damaged hose.

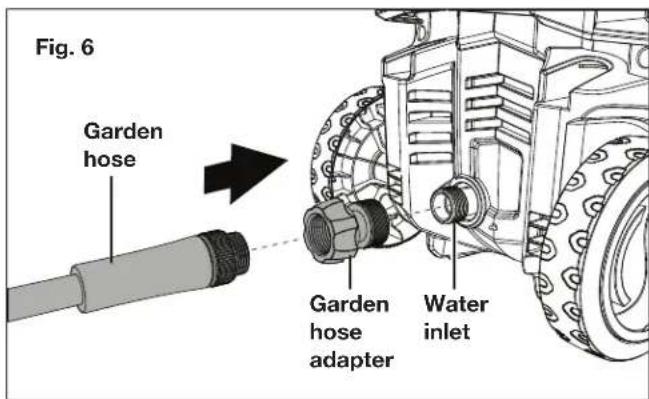

6. Connect the garden hose adapter (female coupler) to the

water inlet of the pressure washer , then thread your garden hose (male end) into the garden hose adapter (Fig. 6). The garden hose must have an internal diameter of at least 13 mm (1/2 in.) and must be reinforced. The water supply flow rate must be at least equal to the pressure washer’s delivery capacity. Fig. 4 Trigger gun High-pressure hose Release button Fig. 5 High- pressure hose Water outlet. Release switch

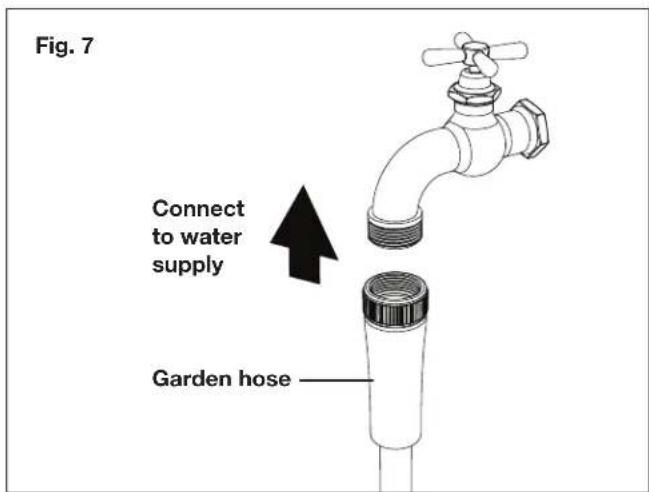

7. Attach garden hose to water supply (Fig. 7).

Fig. 7 Garden hose Connect to water supply mWARNING! Do not connect to potable water system. mWARNING! If connection is made to a potable water system, the system shall be protected against backflow. mWARNING! The intake water temperature must not exceed 104ºF/40ºC. The water supply must not exceed 100 PSI. mCAUTION! The washer must only be used with clean water; use of unfiltered water containing corrosive chemicals will damage the washer. Operation Using the Pressure Washer mIMPORTANT! This pressure washer is equipped with a micro-switch sensitive to water flow. This Total Stop System (TSS) senses water flow in the pump. When the trigger is released, water stops flowing through the pump. The TSS then automatically turns the motor off to protect the pump from overheating, thus saving energy and prolonging pump life. Fig. 6 Garden hose Water inlet Garden hose adapter8

1. Position the washer as CLOSE as possible to the water

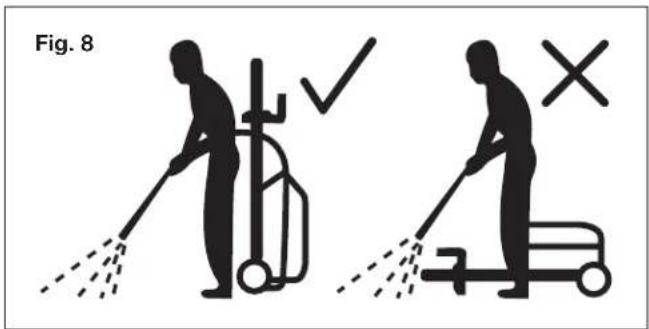

2. The washer must be used on a secure and stable surface

in a standing, upright position (Fig. 8). Fig. 8

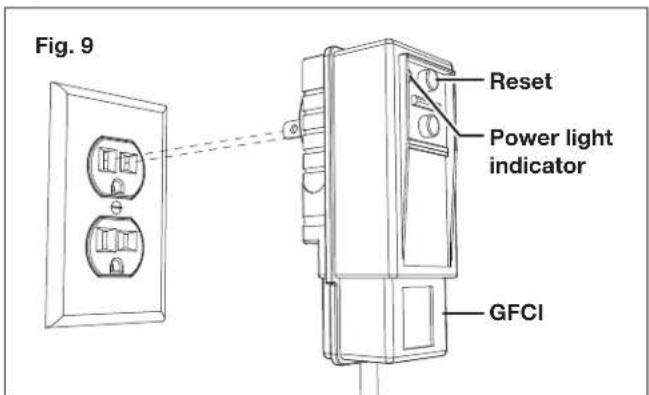

3. Make sure the unit is switched off before plugging the unit

into the power outlet.

4. Check that the electrical supply voltage and frequency

(Volt/Hz) correspond to those specified on the rating plate. If the power supply is correct, you may now plug the pressure washer into the power outlet (Fig. 9). NOTE: The GFCI may need to be reset when first plugged into the electric outlet. Press the “Reset” button until the power light indicator on the GFCI illuminates when plugged in.

5. Turn the water supply tap on completely.

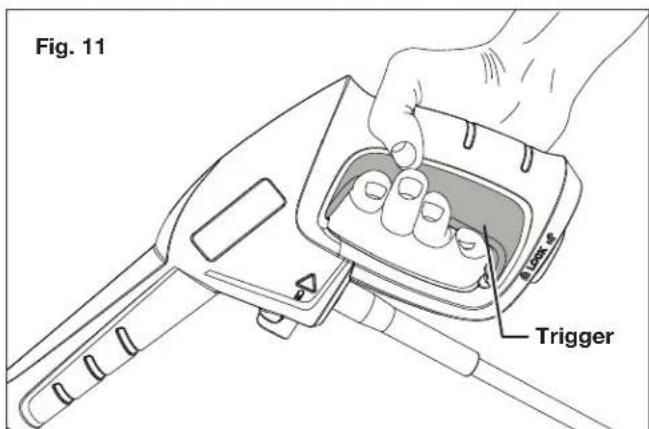

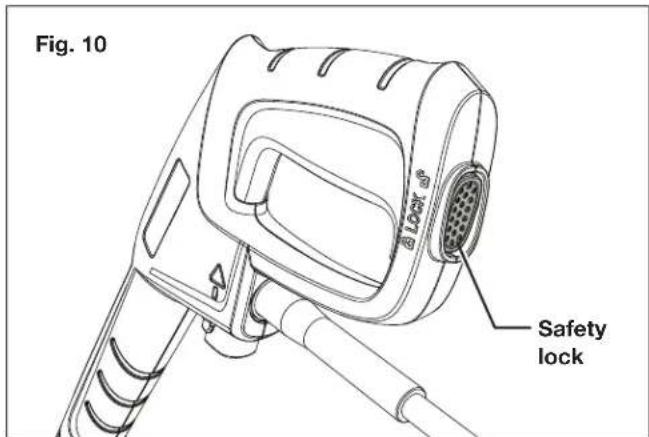

6. Push to release the safety lock, then press the trigger for

a few seconds until the water flow is steady. This step will allow air to escape and discharge residual pressure in the hose (Figs. 10 – 11). GFCI Power light indicator Reset Fig. 9

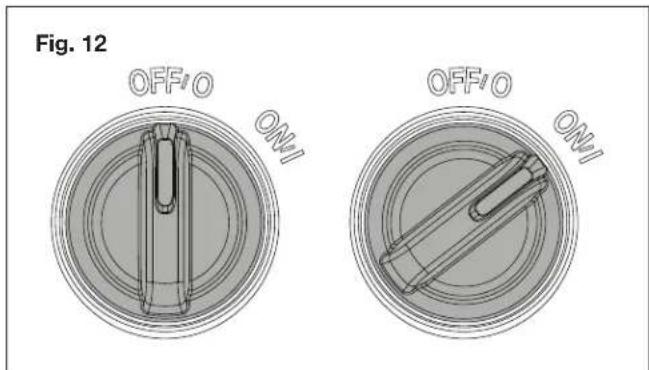

7. Turn the ON/OFF switch to the ON (I) position to start the

pressure washer (Fig. 12).

8. When re-starting the motor, always keep the trigger

pressed. NOTE: The motor only runs when the trigger is operated and shuts off when the trigger is released. Safety lock Fig. 10 Trigger Fig. 11 Fig. 129 Using Nozzles Before beginning any cleaning task, determine the best nozzle for the job. Each of the nozzles has a dierent spray pattern. The nozzle patterns are 40˚ (for gentle cleaning), 25˚ (for all- purpose cleaning) and 0˚ (for spot cleaning or hard-to-reach areas). mCAUTION! NEVER change nozzles without engaging the safety lock on the trigger gun. mWARNING! High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, pets, live electrical equipment, or the appliance itself. This electric pressure washer is equipped with three Quick- Connect nozzles that easily snap onto the Quick-Connect collar of the spray wand. To connect a nozzle to the spray wand:

1. Turn off the pressure washer and shut off the water supply.

Pull the trigger to release the water pressure.

2. Engage the safety lock on the trigger gun.

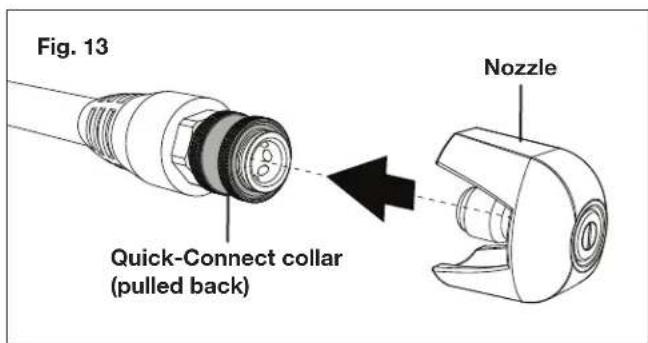

3. Pull back the brass Quick-Connect collar and insert the

desired nozzle into the collar. Release the collar to lock the nozzle into place (Fig. 13). To disconnect a nozzle from the spray wand:

1. Turn off the pressure washer and shut off the water supply.

Pull the trigger to release water pressure.

2. Engage the safety lock on the trigger handle.

3. Pull back the brass Quick-Connect collar and remove the

nozzle. mWARNING! Do not make changes to the nozzle while the trigger is engaged. Doing so could result in damage to the pressure washer or injury to the user. Fig. 13 Nozzle Quick-Connect collar (pulled back) Working with Detergents When cleaning with the pressure washer, some cleaning tasks can be solved with water alone, but for most tasks cleaning with detergent allows for more eective dirt removal. mWARNING! Use only detergents specifically designed for use with pressure washers, such as Sun Joe

(SPX-APC1G). DO NOT USE household detergents, acids, alkaline solutions, bleaches, solvents, flammable material, or industrial grade solutions. These could damage the pressure washer. Many detergents may require mixing prior to use. Prepare the cleaning solution as instructed on the solution bottle.

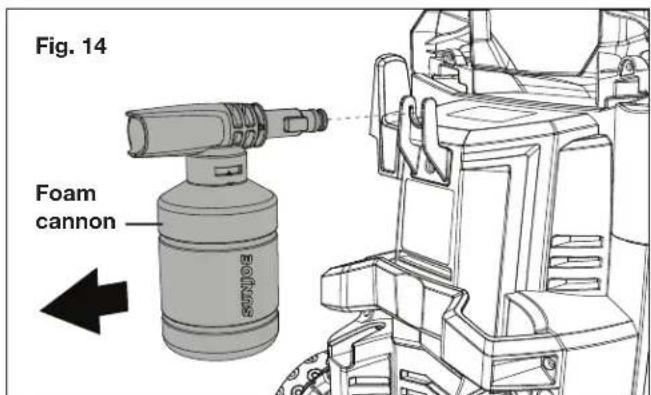

1. Pull the foam cannon out from the rear bracket (Fig. 14).

2. Twist counter-clockwise to remove the spray nozzle.

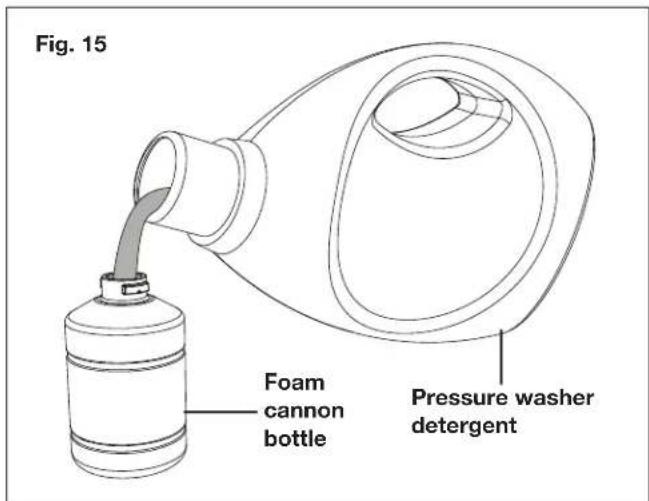

Fill the foam cannon bottle or mix as recommended according to the detergent instructions, before replacing the spray nozzle back onto the bottle (Fig. 15). Foam cannon Fig. 14 Foam cannon bottle Fig. 15 Pressure washer detergent10

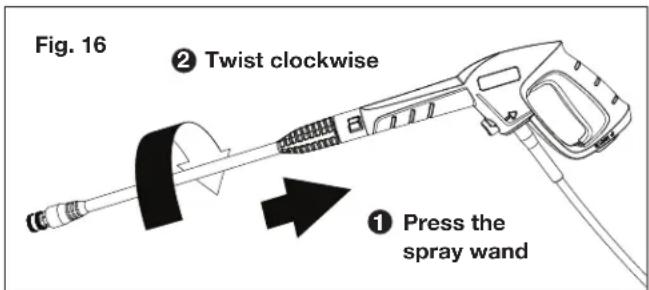

3. Disconnect the spray wand from the trigger gun by

pressing it in firmly into the trigger gun and twisting clockwise until the two locking lugs of the spray wand are free to slide out of the trigger gun (Fig. 16).

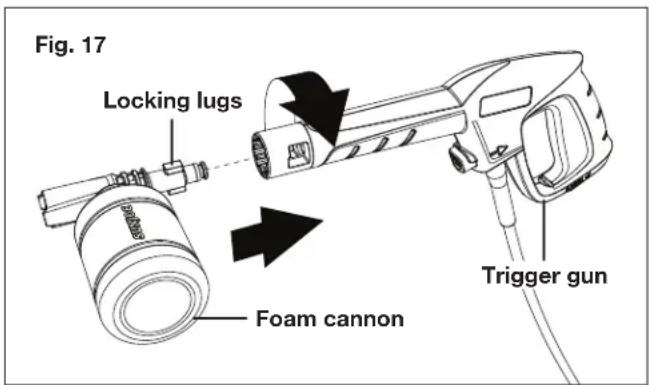

4. To connect the foam cannon to the trigger gun, press the

locking lugs of the foam cannon into the slot of the trigger gun, then twist counter-clockwise until the 2 parts are completely locked (Fig. 17).

5. Turn on the pressure washer. Pull the trigger to operate

the unit. The liquid detergent will automatically mix with water and be discharged through the nozzle. mCAUTION! Always test the detergent in an inconspicuous area before use.

6. Apply detergent from the bottom to the top of the dry

surface to be cleaned. NOTE: Wetting the surface first is not recommended as it dilutes the detergent and reduces its cleaning ability.

7. Allow the detergent to remain on the surface for a short

time before rinsing. Do not allow the detergent to dry on the surface. mCAUTION! Damage may occur to painted surfaces if the detergent is allowed to dry on the surface. Wash and rinse a small section at a time. Avoid working on hot surfaces or in direct sunlight.

8. After using the pressure washer, first drain and rinse the

foam cannon bottle. Run the pressure washer until all of the soap is drained from the foam cannon. Fig. 16 Press the spray wand Twist clockwise

Fig. 17 Trigger gun Foam cannon Locking lugs mCAUTION! Failure to follow these cleaning instructions will cause the injection system to become clogged and inoperable. mIMPORTANT! NEVER USE:

• Bleach, chlorine products, and other corrosive chemicals

• Liquids containing solvents (e.g. paint thinners, gasoline, oils, acetone)

• Trisodium phosphate products

• Acid-based products These chemicals will harm the unit and will damage the cleaning surface. Shutting down

1. Turn the switch to the OFF (0) position and unplug the

power cord from the outlet.

2. Turn off the water source.

3. Hold the trigger to release water pressure.

4. Disconnect the garden hose from the water inlet on

5. Disconnect the high-pressure hose connection on the

6. Release the trigger and engage the safety lock.

mWARNING! Turn off the water supply and squeeze the trigger to depressurize the unit. Failure to do so could result in personal injury due to discharge of high-pressure water. Taking a break If you are taking a break of ve minutes or more between cleaning tasks:

1. Engage the safety lock on the trigger gun.

2. Turn the switch to the OFF (0) position.

3. Unplug the power cord from the outlet.

CAUTION! Always store your pressure washer in a location where the temperature will not fall below 32ºF (0ºC). The pump in this machine is susceptible to permanent damage if it freezes. FREEZE DAMAGE IS NOT COVERED BY THE WARRANTY.

• Store the pressure washer indoors in a dry, covered area where it is not subject to adverse weather conditions.

• It is important to store this product in a frost-free area.

• Always empty water from the hoses, the pump, and the foam cannon bottle (if used) before storing.11 mCAUTION! The use of a pump protector is recommended to prevent cold weather damage during storage over the winter months. Winterizing + Long-term Storage If you must store your pressure washer in a location where the temperature falls below 32ºF (0ºC), you can minimize the chance of damage to your machine by utilizing the following procedure:

• Disconnect all water connections.

• Turn on the pressure washer for a few seconds until the remaining water in the pump exits. Turn off immediately.

• Do not allow the high-pressure hose to become kinked.

• Do not store near a furnace or other sources of heat that may dry out the pump seals.

• Operate the pressure washer with non-corrosive/non-toxic anti-freeze, a pump saver, or a pump protector before storing for the winter. mWARNING! Before reusing, completely flush the unit out with clear water. Anti-freeze products can damage paintwork, so you must ensure there is no anti-freeze left in the system before using it again. Maintenance mCAUTION! Before working on the pressure washer, disconnect the plug from the power supply socket. Clean the Adapter Filter and the Nozzle

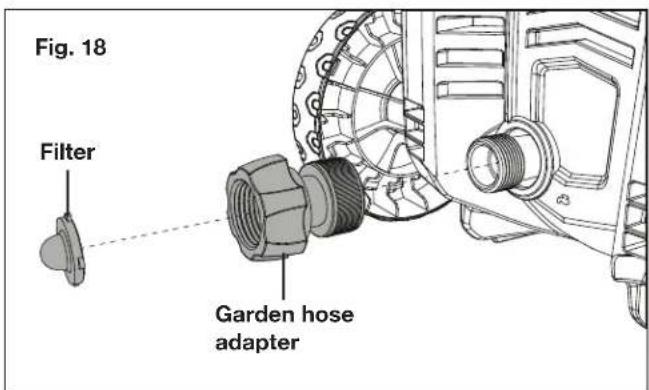

1. To ensure good performance, check and clean the adapter

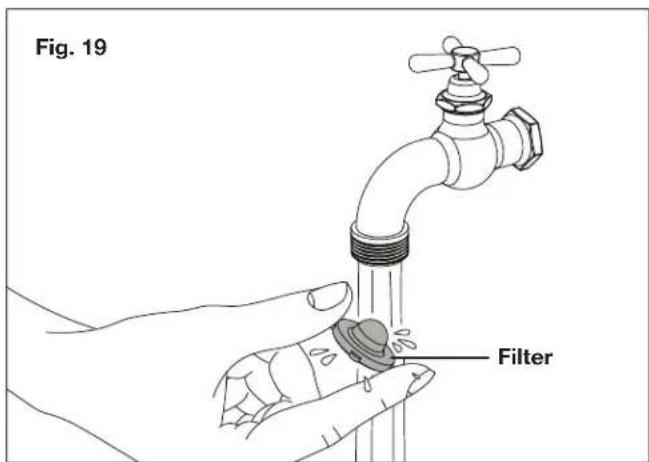

filter (Fig. 18). Remove the filter and rinse with warm water to prevent any foreign matter from clogging the pump (Fig. 19). Filter Fig. 18 Garden hose adapter

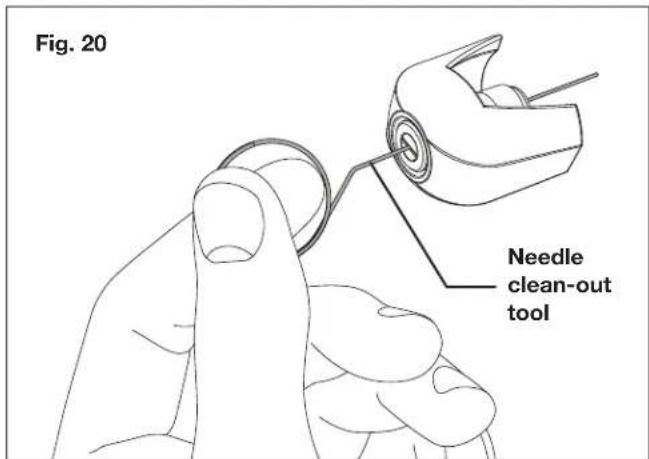

2. Clean the nozzle with the provided needle clean-out tool

(Fig. 20). Remove the nozzle from the spray wand; clear out any dirt from the nozzle hole and rinse. Disposal Recycling the Pressure Washer

• Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities.

• Contact your local government agency for information regarding the collection systems available.

• If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. Filter Fig. 19 Fig. 20 Needle clean-out tool12 Service + Support If your Sun Joe

SPX1650 electric pressure washer requires service or maintenance, please call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). Model + Serial Numbers When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit. Copy these numbers into the space provided below. Record the following numbers from the housing or registration card of your new product: Model #: Serial #: S P X

• Disconnect the unit from the electrical power supply before carrying out maintenance on the machine or when checking that its parts are in proper working order.

• To avoid unnecessary hassles, consult the following table before contacting customer service with any mechanical issues. Problems Possible Cause Possible Solution Machine refuses to start

• Power failure/machine not plugged into a working receptacle.

• Tripped circuit breaker.

• Check to make sure machine is plugged into a working outlet.

• Check the power cord and reset the GFCI. Try a different outlet.

• Switch off any other machines that are using the same circuit. Fluctuating pressure

• Valves dirty, worn out, or stuck.

• Pump seals worn out.

• Check the hoses and connections are airtight.

• Clean or replace valves/seals.

• Please call the Snow Joe

• Thermal sensor activated.

• Nozzle partially blocked.

• Check that the mains voltage corresponds to specification on the model tag.

• Let the washer cool down for 5 minutes, then restart.

• Inadequate supply of water.

• Nozzle partially blocked.

• Water filter blocked.

• Allow machine to run by holding the trigger until regular working pressure resumes.

• Check that the water supply corresponds to the specifications required.

• WARNING! Avoid using long, thin hoses (minimum 1/2 in. diameter).

• Clean the water inlet filter.

• Straighten out the hose to remove any kinks/blockages. Machine often starts and stops by itself

• Pump/spray gun is leaking.

• Trigger mechanism is broken.

• Please call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance. Machine starts, but no water comes out

• Water inlet filter blocked.

• Wait for pump/hoses or accessories to thaw.

• Connect inlet water.

• Clean the water inlet filter.

• Clean the nozzle.14 Optional Accessories mWARNING! ALWAYS use only authorized Snow Joe

replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this electric pressure washer. Contact Snow Joe

if you are unsure whether it is safe to use a particular replacement part or accessory with your pressure washer. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. Accessories Item Model Sun Joe

House + Deck All-Purpose Pressure Washer Rated Concentrated Cleaner Sun Joe

Premium Snow Foam Pressure Washer Rated Car Wash Soap + Cleaner Sun Joe

CUSTOMER PROMISE OUR WARRANTY: Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe’s authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there’s an issue with a specic part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that! This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State. PRODUCT REGISTRATION: Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs. WHO CAN SEEK LIMITED WARRANTY COVERAGE: This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product. WHAT IS NOT COVERED? This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not aect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563). ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe

product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.
