Product Type	Electric Pressure Washer
Model	SPX2700-MAX-RM
Brand	Sun Joe
Pressure Rating	2700 PSI (Max)
Flow Rate	2.3 GPM (Max)
Motor Power	14.5 Amp, 120V AC, 60Hz
Dimensions (L x W x H)	20.5 x 18.5 x 13.5 in (52 x 47 x 34 cm)
Weight	35 lbs (15.9 kg)
Hose Length	35 ft (10.7 m) reinforced high-pressure hose
Power Cord Length	35 ft (10.7 m) with GFCI
Nozzles Included	5 quick-connect: 0°, 15°, 25°, 40°, and soap nozzle
Other Accessories	Two 20-inch extension wands, onboard detergent tank, foam cannon (sold separately)
Safety Features	Total Stop System (TSS), trigger safety lock, GFCI protection
Maintenance	Clean water inlet filter after each use; inspect hoses for wear; store in a frost-free area
Spare Parts Availability	Nozzles, hose, wand, gun, soap tank, and seals available from Sun Joe
Warranty	2-year limited (residential use)

Frequently Asked Questions - SPX2700-MAX-RM Sun Joe

How do I start the Sun Joe SPX2700-MAX-RM pressure washer?

Ensure the water supply is connected and turned on, press the safety lock button on the trigger gun, then press the on/off switch on the unit. Squeeze the trigger to release trapped air before operation.

What should I do if the pressure washer has low pressure?

Check the water inlet filter for debris, ensure the hose is not kinked, and verify the nozzle is not clogged. Clean or replace the nozzle as needed.

Can I use bleach or other chemicals with this pressure washer?

Only use approved pressure washer detergents or the included soap nozzle. Do not use bleach or flammable liquids as they may damage the unit.

How do I connect the high-pressure hose?

Attach one end of the hose to the outlet on the pressure washer and the other end to the trigger gun. Ensure they click into place securely.

Why is the pressure washer not turning on?

Verify the power cord is plugged into a working outlet and the GFCI has not tripped. Also check that the on/off switch is in the 'ON' position.

How do I store the pressure washer long-term?

Drain all water from the unit and hoses, store in a dry, frost-free location. Disconnect the hose and cord, and wind them neatly.

How often should I clean the water inlet filter?

Clean the water inlet filter after every use to prevent clogs. Remove it from the water inlet and rinse under running water.

What nozzle should I use for different tasks?

Use 0° for high-impact spot cleaning, 15° for heavy-duty, 25° for general, 40° for light cleaning, and the soap nozzle for applying detergent.

Is it normal for the pressure washer to pulse?

Pulsing can occur if there is air in the system or if the water supply is insufficient. Turn off the unit, squeeze the trigger to release air, and ensure a steady water flow.

Where can I purchase spare parts for the SPX2700-MAX-RM?

Spare parts such as nozzles, hose, and trigger gun are available on Sun Joe's official website or from authorized retailers. Use the model number for exact matches.

USER MANUAL SPX2700-MAX-RM Sun Joe

A Division of Snow Joe, LLC

Model SPX2700-MAX-RM

Form No. SJ-SPX2700-MAX-RM-880E-M-V1

THANKS FOR YOUR PURCHASE OF A REMANUFACTURED PRODUCT.

To make sure you get the most out of your product, be sure to register online at

sunjoe.com

to enjoy full product support.

PASTE UPC LABEL HERE

A Division of Snow Joe, LLC

Model SPX2700-MAX-RM

Form No. SJ-SPX2700-MAX-RM-880E-M-V1

IMPORTANT! Safety Instructions

All Operators Must Read These Instructions Before Use

⚠ WARNING! This indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
⚠️CAUTION! This indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.
⚠️DANGER! This indicates a hazardous situation, which, if not followed, will result in death or serious injury.

General Safety

WARNING! This appliance is not intended for use by children or by unassisted, unsupervised persons whose physical, sensory or mental capabilities prevent them from using it safely. Children should be supervised to ensure that they do not play with the appliance.

Before starting up your machine, please check it carefully for any defects. If you find any, do not start up your machine. Contact your authorized Snow Joe ^® + Sun Joe ^® dealer or call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

⚠ WARNING! When using the pressure washer, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury. These include:

• Know your product – Know how to stop the machine and bleed pressure quickly. Thoroughly familiarize yourself with the controls.
• Keep bystanders away – All visitors and pets should be kept a safe distance away from the work area.
• Use the right product – Do not use this machine for any job except that for which it is intended.
• Dress properly – Do not wear loose clothing or jewelry. They can get caught in moving parts. Protective rubber gloves and non-slip footwear are recommended when working outdoors.

• CAUTION! – Exercise caution to avoid slipping or falling. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces.

• Stay alert – Watch what you are doing. Use common sense. Do not operate the pressure washer when you are tired, or under the influence of alcohol or drugs.

• Do not overreach – Keep proper footing and balance at all times.
• Avoid unintentional starting – Do not carry a plugged-in machine with your finger on the trigger. Make sure the switch is off before plugging in the machine.
• Do not abuse the cord – Never carry the machine by the cord or yank the cord to disconnect it from the receptacle. Keep the cord away from heat, oil, and sharp edges.
• Use safety glasses – Also use safety footwear, snug-fitting clothing, protective gloves, hearing and head protection.
• Check the water temperature – This pressure washer is not meant to pump hot water. NEVER connect it to a hot water supply as it will significantly reduce the life of the pump.
• Store indoors – NEVER store the pressure washer outdoors or where it could freeze. The pump could be seriously damaged.
• Ground Fault Circuit Interrupter (GFCI) – This product is provided with a ground fault circuit interrupter built into the power cord plug. If replacement of the plug or cord is needed, use only identical replacement parts.
• Inspect electrical cords – The insulation of the power cord should be perfectly intact. If the power cord is damaged or shows any signs of wear or tear, do not use the pressure washer. Contact your authorized Snow Joe® + Sun Joe® dealer or call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).

⚠ WARNING! Do not use this appliance without reading this instruction manual.

⚠ WARNING! This appliance has been designed for use with cleaning agents that are recommended by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the safety of the appliance.

⚠ WARNING! Do not use the appliance within range of persons unless they are wearing protective clothing.

⚠ WARNING! High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, pets, live electrical equipment, or the appliance itself.

- Do not direct the jet at yourself or others in order to clean clothes or footwear.

• Risk of explosion – Do not spray flammable liquids.
• Disconnect the tool – Disconnect from the electrical power supply before performing any maintenance task.
• Keep children away – This high-pressure electric power washer must not be used by children or untrained personnel.
• To ensure appliance safety, use only original replacement parts from the manufacturer or those approved by the manufacturer.

⚠ WARNING! Water that has flowed through backflow preventers is considered to be non-potable.

⚠ WARNING! During cleaning, maintenance or when replacing parts, the machine must be disconnected from its power source by removing the plug from the socket outlet.

WARNING! High-pressure hoses, fittings, and couplings are important for the safe operation of the appliance. Use only hoses, fittings, and couplings recommended by the manufacturer.

• Check for damaged parts – Do not use the appliance if the supply cord or other important parts of the appliance are damaged (e.g. safety devices, high-pressure hose, trigger gun).
• This high-pressure electric power washer must not be used at temperatures below 32^ (0^) .

⚠ WARNING! Power cords on drums should always be completely unwound to prevent the cord from overheating.

• Power cord connections should be kept dry and off the ground.
• If the power cord is damaged, do not use the appliance. Contact your authorized Snow Joe ^ + Sun Joe ^ dealer or call the Snow Joe ^ + Sun Joe ^ customer service center at 1-866-SNOWJOE (1-866-766-9563).
• Keep the machine on a stable, flat surface during operation, handling, transportation, and storage. Sudden overturn of the machine can cause bodily injury.
• In the event of an accident or breakdown, switch off the machine immediately. (If contact with detergent occurs, rinse with an abundance of clean water.)

Electrical Safety

ATTENTION: If there are problems with the electrical mains, short voltage drops may appear when starting the equipment. This can, in turn, influence other equipment (e.g. cause a lamp to blink). If the MAINS-IMPEDANCE Zmax < 0.335 OHM, such disturbances are not expected (if you require assistance, contact your local supply authority for further information).

WARNING! Electrical Shock Hazard – Before starting up your machine, please check it carefully for any defects. If you find any, do not start up your machine and contact your distributor.

The following should be observed when connecting the high-pressure electric power washer to the electric supply:

• The electric supply connection should be performed by a qualified person.
• The electric supply to this appliance should include either a residual current device that will interrupt the supply if the leakage current to the earth exceeds 30 mA for 30 ms or a device that will interrupt the earth circuit (GFCI).

IMPORTANT: Only use water without any impurities. If there is a risk of running sand into the inlet water (i.e. from your own well), an additional filter should be installed.

Safety Devices

The spray gun features a locking device. When the lock is activated, the spray gun cannot be operated.

1. Thermal sensor – A thermal sensor protects the motor against overloading. If the thermal sensor is activated and the power is cut off, wait for a while until the motor is cool and restart the unit.

2. Double insulation – In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should be performed only by qualified service personnel at an authorized Snow Joe ^® + Sun Joe ^® dealer. Replacement parts for a double-insulated appliance must be identical to the parts they replace. A double-insulated appliance is marked with the words “Double Insulation” or “Double Insulated.” The symbol □(square within a square) may also be marked on the appliance.

3. Ground fault circuit interrupter (GFCI) protection – This pressure washer is provided with a ground-fault circuit-interrupter (GFCI) built into the plug of the power-supply cord. This device provides additional protection from the risk of electric shock. Should replacement of the plug or cord become necessary, use only identical replacement parts that include GFCI protection.

4. It is not recommended to use an extension cord with this pressure washer. The unit comes standard with a 35 ft GFCI power cord. Using an extension cord may cause a drop in line voltage resulting in loss of power and overheating.

5. To reduce the risk of electric shock, this appliance has a polarized plug (i.e. one blade is wider than the other). The appliance plug will fit into a polarized outlet only one way.

If the appliance plug does not fit fully into the outlet, reverse the plug. If the plug still does not fit, make sure that you are using the correct polarized wall outlet. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not modify the appliance plug, power cord receptacle, or power cord plug in any way.

⚠ WARNING! To reduce the risk of electrocution, keep all connections dry and off the ground. Do not touch plug with wet hand.

1. Do not abuse the cord. Never pull the pressure washer by the cord or yank the cord to disconnect it from the receptacle. Keep the cord away from heat, oil, and sharp edges.

Risk of electrocution

• Inspect cord before using.
• Do not use if cord is damaged.
• Keep all connections dry and off the ground.
• Do not touch plug with wet hands.
• Keep cord away from heat and sharp edges.
• Do not spray electrical apparatus and wiring.

Risk of explosion

• Do not spray flammable liquids.
• Do not use acids, bases, solvents, or any flammable material in this product. These substances can cause physical injuries to the operator and irreversible damage to the machine.

Additional safety instructions

• High-pressure: keep clear of nozzle.
- Injection hazard: equipment can cause serious injury if the spray penetrates the skin.
- Do not point the gun at anyone or at any part of the body.
- In case of skin penetration, seek medical aid immediately.
- Before servicing, cleaning, or removing any parts, shut off the power and relieve pressure.
- This machine is not suitable for connection to the potable water mains.

Product Description

Purpose

- This electric high pressure washer is intended for residential use only. It is designed for medium-to-heavy duty cleaning jobs on boats, motorcycles, RV's, ATV's, trailers, decks, barbecues, siding, patio furniture, and more.

Areas of application

• Never use the machine in potentially explosive areas under any circumstances!
• The operating temperature must be between 32^ (0^) and 104^ (40^) .
• The machine consists of an assembly with a pump, which is encased in a shock-absorbing housing. To provide the operator with an optimal working position, the machine is equipped with a spray wand and a non-slip handle grip, whose shape and configuration comply with applicable regulations.
• Do not cover or modify the spray wand or the spray nozzle in any way.
• The high-pressure electric power washer is designed to be used with cold or lukewarm water; higher temperatures can damage the pump.
• Do not use water that is dirty, gritty, or contains any chemical products, as such impurities could impair operation and shorten the life of the machine.

Safety Symbols

The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

Symbols SymbolsDescriptions Descriptions
	READ THE OPERATOR'S MANUAL(S) - Read, understand, and follow all instructions in the user manual(s) before attempting to assemble and operate.		WARNING! Electrical shock hazard.
	SAFETY ALERT - Indicates a precaution, a warning, or a danger.		WARNING! Do not expose the unit to rain or wet conditions.Keep dry.
	WEAR EYE AND HEARING PROTECTION - For protection against injury, wear ear defenders and safety goggles.		To reduce the risk of injury,user must keep all bystanders at least 49 ft (15 m) away.
	Wear safety gloves during use to protect hands.		Wear non-slip footwear that will protect your feet and improve your footing on slippery surfaces.
	Store indoors. Never store the pressure washer outdoors.If the pump freezes, permanent damage may result.		Machine not suitable for connection to the potable water mains.
	Always keep the power cable away from heat sources, oils, or sharp edges. Immediately remove plug from the mains if the cable is damaged, frayed, or entangled.		WARNING! Turn the machine OFF and disconnect it from the power supply before inspecting, cleaning, changing accessories, or conducting any other maintenance task.
	Double Insulation - When servicing, use only identical replacement parts.

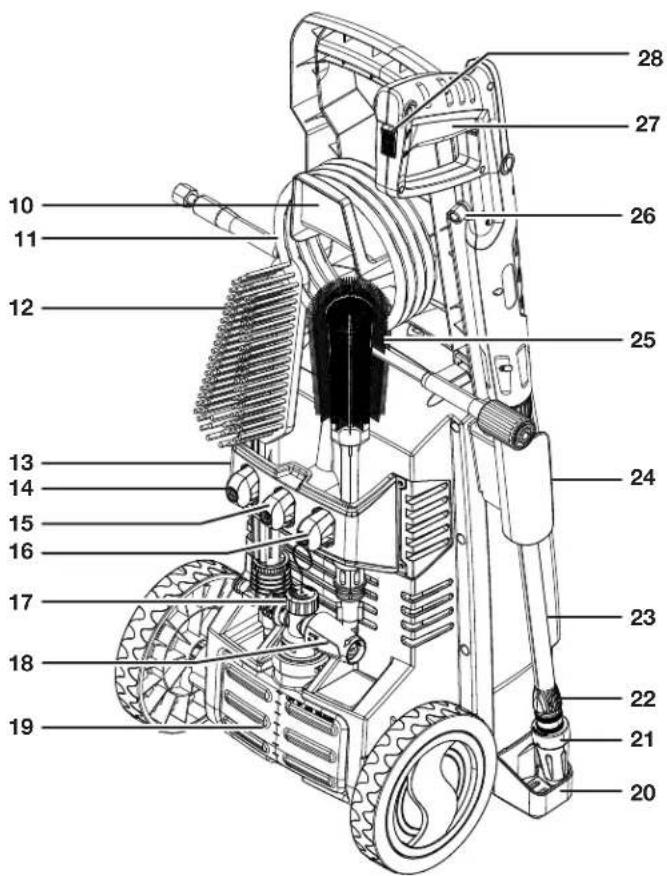

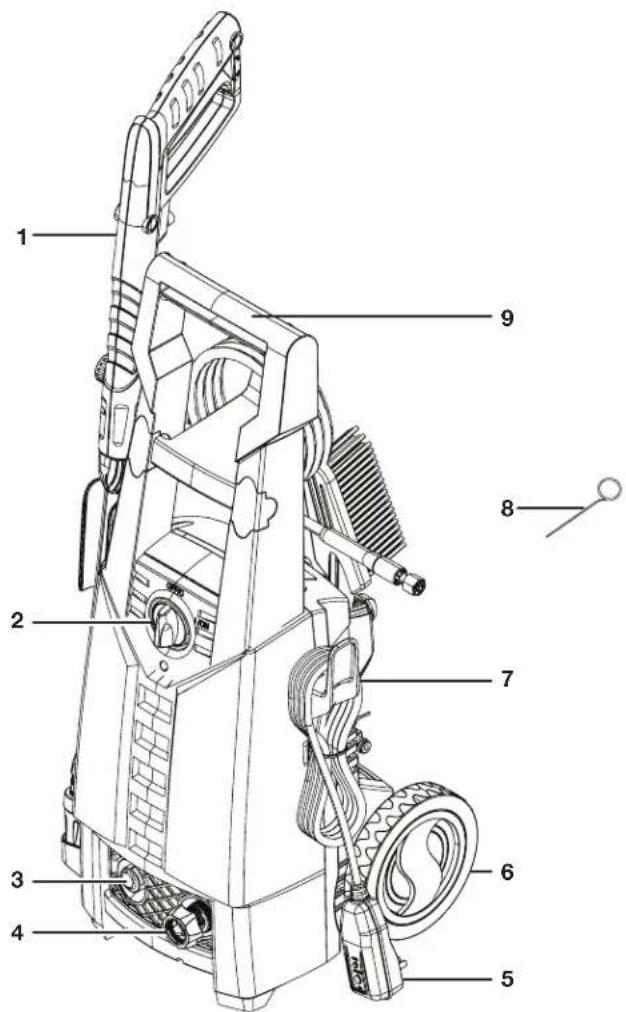

Know Your Electric Pressure Washer

Read the owner's manual and safety rules carefully before operating the pressure washer. Compare the illustration below to the unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

Technical diagram of a water heater with numbered parts for identification

Technical diagram of a lawn mower with numbered parts for identification

1. Trigger gun
2. On/Off switch
3. Water outlet/high-pressure hose connection
4. Garden hose adapter/ connection
5. Power cord with GFCI
6. Wheels (2)
7. Cord holder
8. Needle clean-out tool

9. Top handle

10. High-pressure hose holder

11. High-pressure hose
12. Utility bristle brush (SPX-UB1)
13. On-board nozzle storage
14. 0° Quick-Connect nozzle (red)
15. 15° Quick-Connect nozzle (yellow)
16. 40° Quick-Connect nozzle (gray)
17. Foam adjusting cap
18. Detergent nozzle

19. Foam cannon bottle

20. Spray wand protector

21. Heavy-duty turbo nozzle
22. Brass quick-connect collar
23. Spray wand
24. Trigger gun holder
25. Wheel + rim brush
26. High-pressure hose connection
27. Trigger
28. Safety lock

Technical Data

Rated Voltage 120V AC \~ 60 Hz

Motor....13-amp

Max Water Inlet Temperature 104°F/40°C

Max Water Inlet Pressure 0.7 MPa

Max Pressure at initial discharge 2,100 PSI per CSA internal pressure testing

Rated Pressure under typical load 1,800 PSI

Max Flow with nozzle open ....1.65 GPM (6.25 L/min) at minimum pressure

Rated Flow under typical load .....1.1 GPM (4.2 L/min)

Foam Cannon Capacity 34 fl oz (1 L)

High Pressure Hose Length 20 ft (6 m)

Power Cord Length 35 ft (10.7 m)

Net Weight 17 lbs (7.7 kg)

Unpacking

Carton Contents

• Electric pressure washer
- Top handle
• High-pressure hose holder
- Spray wand protector
- Trigger gun holder
- Cord holder
• 4.8 x 16 screws (7)
- Spray wand
- Trigger gun
• Three (3) Quick-Connect nozzles (0°, 15°, 40°)
• Heavy-duty turbo nozzle
- Utility bristle brush
- Wheel + rim brush
- Needle clean-out tool (included with manual packet)
• High-pressure hose
• Garden hose adapter (female coupler)
- Manual with registration card

1. Carefully remove the pressure washer and check to see that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new electric pressure washer. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations.

IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suffocation risk!

⚠ WARNING! Do not connect to power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.

Assembly

Tools required: Phillips head screwdriver

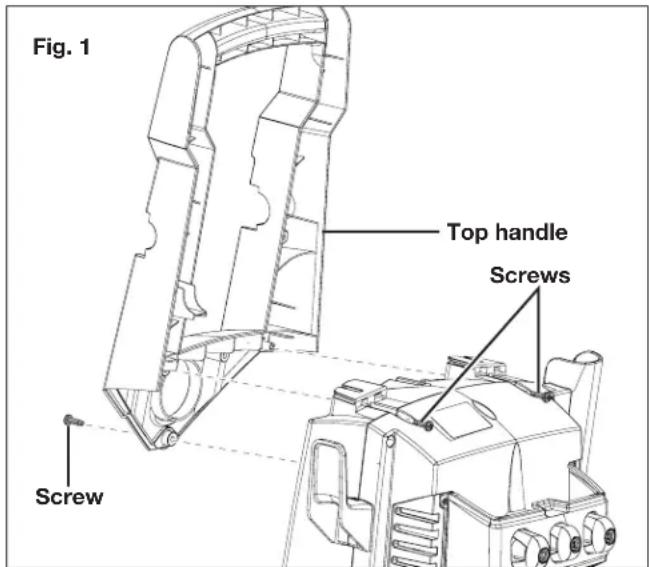

1. Slide the top handle in position on the top of the pressure washer, and attach using the three screws as shown (Fig. 1).

Fig. 1 Top handle Screws Screw

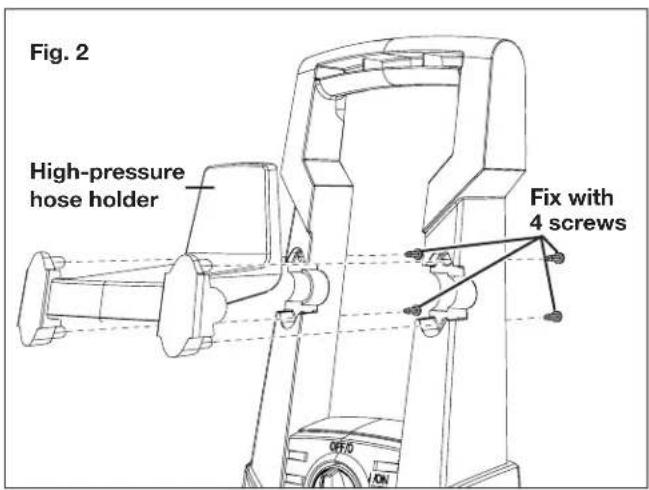

1. Attach the high-pressure hose holder and secure using the four additional screws provided, as shown (Fig. 2).

Fig. 2 High-pressure hose holder Fix with 4 screws

1. Slide the cord holder into position (Fig. 3).

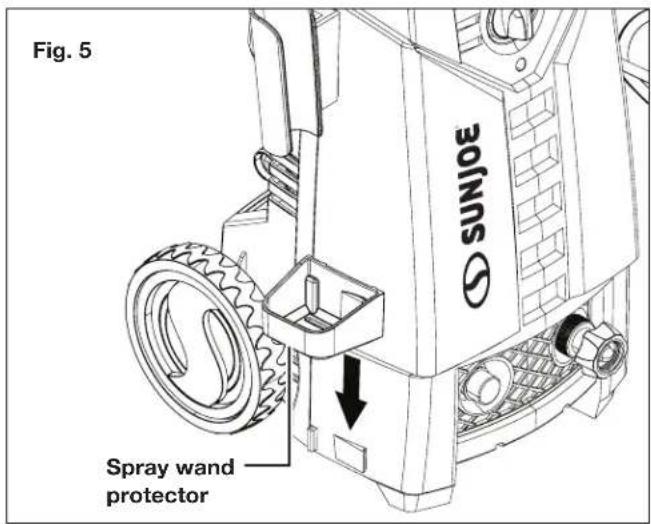

2. Slide the spray wand protector into position (Fig. 5).


Fig. 5 SUNJOE Spray wand protector

1. To connect the spray wand with the trigger gun, press the wings of the spray wand into the slot of the trigger gun, then twist counterclockwise until the 2 parts are completely locked together (Fig. 6).

Fig. 3 Cord holder SUNJOE

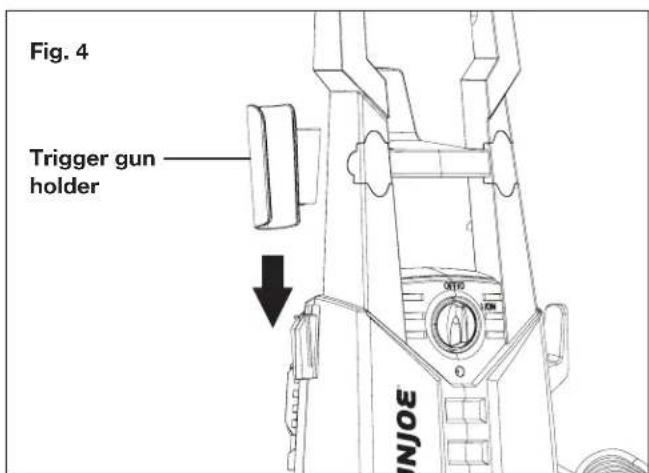

1. Slide the trigger gun holder into position (Fig. 4).

Fig. 6 Spray wand Trigger gun Spray wand wings

1. Connect the high-pressure hose to the trigger gun. Twist to secure the connection (Fig. 7).

Fig. 4 Trigger gun holder 0116 A O INJOE

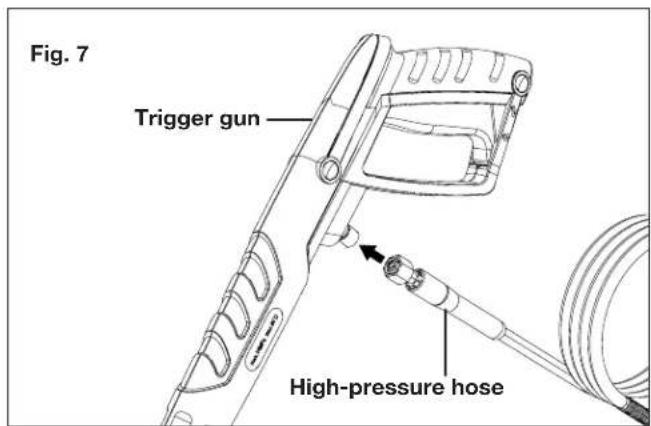

Fig. 7 Trigger gun High-pressure hose

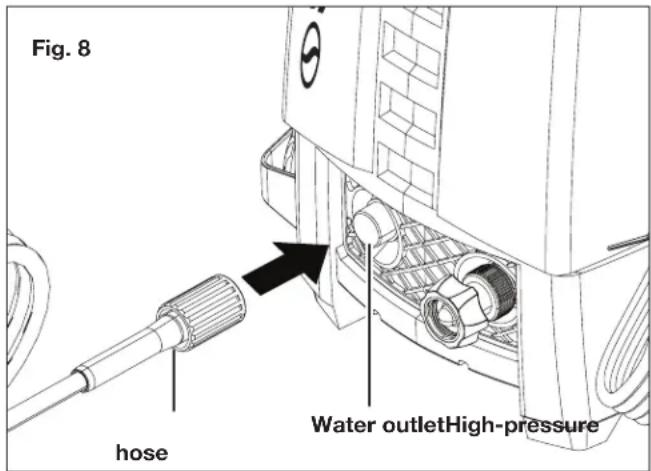

1. Connect the other end of high-pressure hose to the water outlet on the washer and tighten securely (Fig. 8).

Fig. 8 hose Water outletHigh-pressure

WARNING! Keep hose away from sharp objects. Bursting hoses may cause injury. Examine hoses regularly and replace if damaged. Do not attempt to mend a damaged hose.

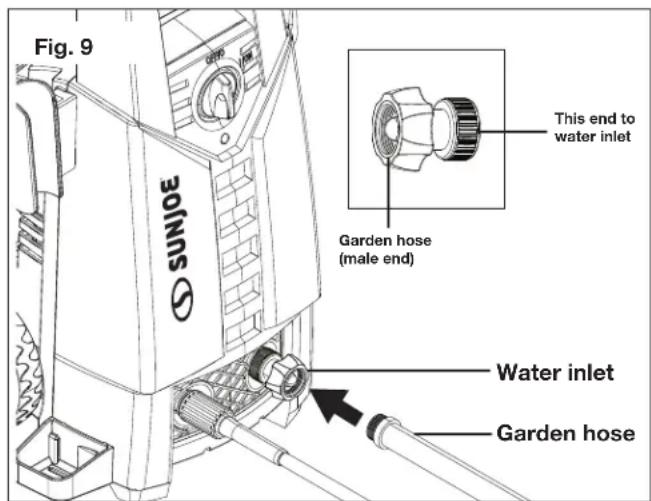

1. Connect the garden hose adapter (female coupler) to the water inlet of the pressure washer, then thread your garden hose (male end) into the garden hose adapter (Fig. 9). The garden hose must have an internal diameter of at least 1/2 in. (13 mm) and must be reinforced. The water supply must be at least equal to the washer delivery capacity.

NOTE: The machine is not suitable for connection to the potable water main.

Fig. 9 SUNJOE This end to water inlet Garden hose (male end) Water inlet Garden hose

1. Attach garden hose to water supply (Fig. 10).

Fig. 10 Connect to water supply Garden hose

WARNING! Do not connect to potable water system.
⚠ WARNING! If connection is made to a potable water system, the system shall be protected against backflow.
⚠ WARNING! The intake water temperature must not exceed 104°F/40°C. The water supply must not exceed 0.7 MPa.
⚠️CAUTION! The washer must only be used with clean water; use of unfiltered water containing corrosive chemicals will damage the washer.
⚠️CAUTION! To prevent damage to the appliance, do not allow it to operate dry. Before starting the appliance, make sure that it has proper and stable supply of water.

Operation

Using the Pressure Washer

⚠️IMPORTANT! This pressure washer is equipped with a micro-switch sensitive to water flow. This Total Stop System (TSS) senses water flow in the pump. When the trigger is released, water stops flowing through the pump. The TSS then automatically turns the motor off to protect the pump from overheating, thus saving energy and prolonging pump life.

1. Position the washer as CLOSE as possible to the water supply.

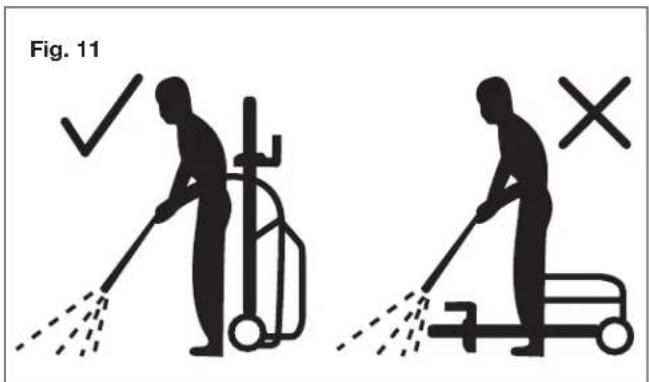

2. The washer must be used on a secure and stable surface in a standing, upright position (Fig. 11).

Fig. 11

1. Make sure the unit is switched off before plugging the unit into the power outlet.
2. Check that the electrical supply voltage and frequency (Volt/Hz) correspond to those specified on the rating plate. If the power supply is correct, you may now plug the pressure washer into the power outlet (Fig. 12).

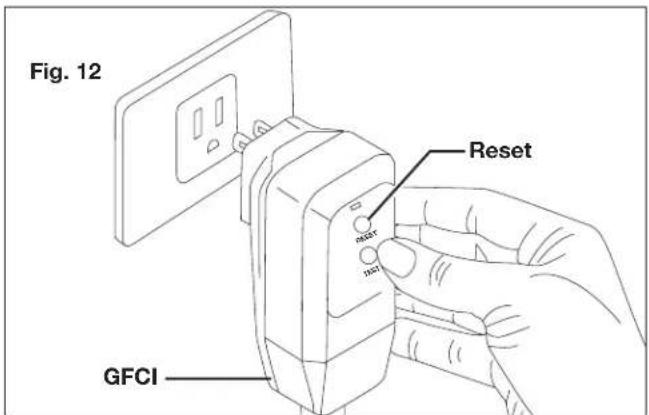

Fig. 12 Reset GFCI

NOTE: The GFCI may need to be reset when first plugged into the electric outlet. Press the "Reset" button until the power light indicator on the GFCI illuminates when plugged in.

1. Turn the water supply tap on completely.
2. Release the safety lock, then press the trigger for a few seconds until the water flow is steady. Operating the pressure washer in this manner will allow air to escape and discharge residual pressure in the hose (Figs. 13 - 14).

Fig. 13 Safety lock

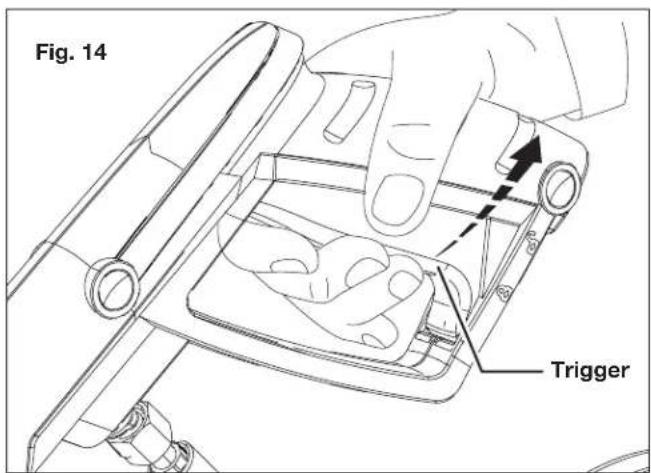

Fig. 14 Trigger

1. Turn the ON/OFF switch to the ON (I) position to start the pressure washer (Fig. 15).

Fig. 15 OFF/O I/ON (0) ON/OFF switch

1. When re-starting the motor, always keep the trigger pressed.

NOTE: The motor only runs when the trigger is operated and shuts off when the trigger is released.

Using Nozzles

Before beginning any cleaning task, determine the best nozzle for the job. Each of the nozzles has a different spray pattern. The nozzle patterns are 40^ (for gentle cleaning), 15^ (for tough jobs), 0^ (for spot cleaning or hard-to-reach areas), and the turbo nozzle. The turbo nozzle is a zero-degree rotary nozzle that spins the spray in a circle so it has a wider cleaning swath.

CAUTION! NEVER change nozzles without locking the safety lock on the trigger handle.

WARNING! High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, pets, live electrical equipment, or the appliance itself.

This electric pressure washer is equipped with four (4) Quick-Connect nozzles that easily snap onto the Quick-Connect collar of the spray wand (Fig. 16).

Diagram of a connector assembly with four ports and a long shaft, labeled Fig. 16 (no text or symbols on the diagram itself)

To connect a nozzle to the spray wand:

1. Turn off the pressure washer and shut off the water supply. Pull the trigger to release water pressure.
2. Engage the safety lock on the trigger handle.
3. Pull back the brass Quick-Connect collar and insert the desired nozzle into the collar. Release the collar and the nozzle will click into place (Fig. 17).

Fig. 17 Spray wand quick- connect collar Nozzle Pull back

To disconnect a nozzle from the spray wand once the cleaning job is complete:

1. Turn off the pressure washer and shut off the water supply. Pull the trigger to release water pressure.
2. Engage the safety lock on the trigger handle.
3. Remove the nozzle by disconnecting it while pulling back the brass Quick-Connect collar.

⚠ WARNING! Do not make changes to the nozzle while the trigger is engaged. Doing so could result in damage to the pressure washer or injury to the user.

Working with Detergents

When cleaning with the pressure washer, some cleaning tasks can be solved with water alone, but for most tasks cleaning with detergent allows for more effective dirt removal.

⚠ WARNING! Use only detergents specifically designed for use with pressure washers, such as Sun Joe® HOUSE + DECK WASH (SPX-HDC1G), Sun Joe® SNOW FOAM AUTO WASH (SPX-FCS1G), or Sun Joe® HEAVY DUTY CLEANER (SPX-APC1G). DO NOT USE household detergents, acids, alkaline solutions, bleaches, solvents, flammable material, or industrial grade solutions. These could damage the pressure washer. Many detergents may require mixing prior to use. Prepare the cleaning solution as instructed on the solution bottle.

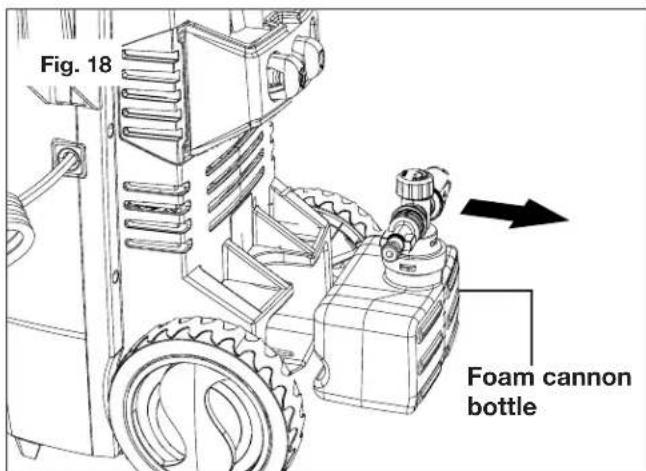

1. Gently pull the foam cannon bottle out of its storage position (Fig. 18).

Fig. 18 Foam cannon bottle

1. Remove the cap. Fill the bottle or mix as recommended by detergent instructions (Fig. 19), and secure the cap back into place. Replace it back on the unit.

Fig. 19 Detergent for pressure washer — Foam cannon bottle

1. Disconnect the spray wand from the trigger gun by pressing it in firmly and twisting clockwise until the 2 wings of the spray wand can be removed from the slot (Fig. 20).

Fig. 20 ② Twist the spray wand as shown ① Press the spray wand inside

1. To connect the foam cannon with the trigger gun, press the wings of the foam cannon into the slot of the trigger gun, then twist counterclockwise until the 2 parts are completely locked (Fig. 21).

Fig. 21 Foam cannon wings Trigger gunFoam

1. Turn on the pressure washer. Pull the trigger to operate the unit. The liquid detergent will automatically mix with water and be discharged through the nozzle.
   NOTE: The spray angle can be adjusted from 0^ to 45^ by rotating the foam cannon nozzle. The foam volume can be adjusted by rotating the adjustable cap, as indicated below (Fig. 22).

Fig. 22 Decrease soap volume Increase soap volume Pencil jet Fan spray Adjustable cap Adjustable nozzle

WARNING! Do not adjust the foam cannon while the trigger is squeezed. Failure to do so could result in damage.
CAUTION! Always test the detergent in an inconspicuous area before use.
6. Apply detergent from the bottom to the top of the dry surface to be cleaned.
NOTE: Wetting the surface first is not recommended as it dilutes the detergent and reduces its cleaning ability.
7. Allow the detergent to remain on the surface for a short time before rinsing. Do not allow the detergent to dry on the surface.
⚠️CAUTION! Damage may occur to painted surfaces if the detergent is allowed to dry on the surface. Wash and rinse a small section at a time. Avoid working on hot surfaces or in direct sunlight.
8. When finished using the pressure washer, you must first drain and rinse the foam cannon bottle. Run the pressure washer until all of the soap is drained from the foam cannon bottle.
⚠️CAUTION! Failure to follow these cleaning instructions will cause the injection system to become clogged and inoperable.
cannon IMPORTANT! NEVER USE:
- Bleach, chlorine products, and other corrosive chemicals
- Liquids containing solvents (e.g. paint thinners, gasoline, oils)
• Tri-sodium phosphate products
• Ammonia products
- Acid-based products
These chemicals will harm the unit and will damage the cleaning surface.

Using the Feather Bristle Pressure Washer Utility Brush

Sun Joe ^® feather bristle pressure washer utility brush safely cleans painted, topcoat, and delicate surfaces. Compatible with all Sun Joe ^® SPX series pressure washers.

1. If not already done, detach your spray wand from your trigger gun (Fig. 20).

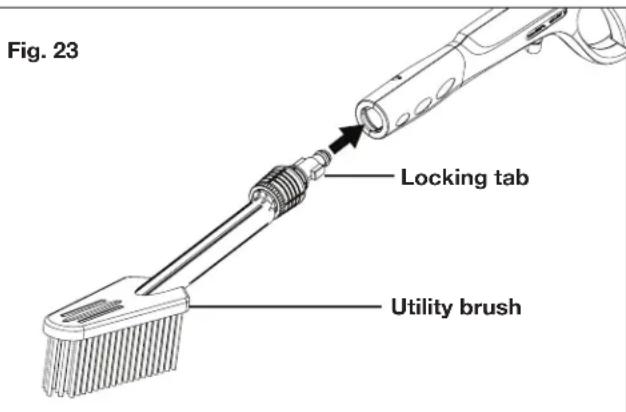

2. Take the utility brush and align the two tabs with the inside of the trigger gun (Fig. 23).

Fig. 23 Locking tab Utility brush

1. Once aligned, push the utility brush into the trigger gun, twist counterclockwise to lock into place.

Using the Wheel + Rim Brush

Sun Joe ^® Wheel + rim brush safely cleans wheels and rims. Compatible with all Sun Joe ^® SPX series pressure washers.

1. Disconnect the spray wand from the trigger gun by pressing it in firmly and twisting clockwise until the 2 locking tabs of the lance can be removed from the slot (Fig. 20).
2. Take the wheel + rim brush and align the two tabs with the inside of the trigger gun (Fig. 24).
3. Once aligned, push the Wheel + rim brush into the trigger gun, twist counterclockwise to lock into place.

Fig. 24 ① Press the shaft inside ② Twist the shaft as shown

Shutting down

1. Turn the switch to the OFF (0) position and unplug the power cord from the outlet.
2. Turn off the water source.
3. Hold the trigger to release water pressure.
4. Disconnect the garden hose from the water inlet on the unit.
5. Disconnect the high-pressure hose connection on the trigger gun handle.
6. Release the trigger and engage the gun safety lock.

⚠ WARNING! Turn off the water supply and squeeze the trigger to depressurize the unit. Failure to do so could result in personal injury due to discharge of high-pressure water.

Taking a break

If you are taking a break of five minutes or more between cleaning tasks:

1. Engage the gun safety lock on the back.
2. Turn the switch to the OFF (0) position.
3. Unplug the power cord from the outlet.

Storage

⚠️CAUTION! Always store your pressure washer in a location where the temperature will not fall below 32^ F ( 0^ C). The pump in this machine is susceptible to permanent damage if it freezes. FREEZE DAMAGE IS NOT COVERED BY THE WARRANTY.

• Store the pressure washer indoors in a dry, covered area where it is not subject to adverse weather conditions.
• It is important to store this product in a frost-free area.
  • Always empty water from the hoses, the pump, and the foam cannon bottle (if using) before storing.

⚠️CAUTION! The use of a pump protector is recommended to prevent cold weather damage during storage over the winter months.

Winterizing + long-term storage

If you must store your pressure washer in a location where the temperature falls below 32^ F ( 0^ C), you can minimize the chance of damage to your machine by utilizing the following procedure:

• Disconnect all water connections.
• Turn on the pressure washer for a few seconds until the remaining water in the pump exits. Turn off immediately.

• Do not allow the high-pressure hose to become kinked.

• Store the machine and accessories in a room that does not reach freezing temperatures.

• Do not store near a furnace or other sources of heat that may dry out the pump seals.
• Operate the pressure washer with non-corrosive/non-toxic anti-freeze, a pump saver, or a pump protector before storing for the winter.

⚠ WARNING! Before reusing, completely flush the unit out with clear water. Anti-freeze products can damage paintwork, so you must ensure there is no anti-freeze left in the system before using it again.

Maintenance

⚠️CAUTION! Before working on the pressure washer, disconnect the plug from the power supply socket.

Clean the Adapter Filter and the Nozzle

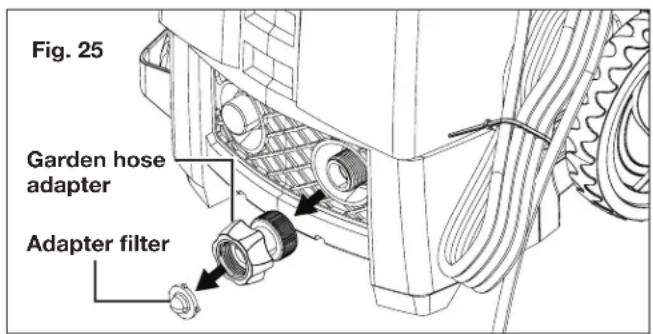

1. To ensure good performance, check and clean the adapter filter (Fig. 25). Remove the filter and rinse with warm water to prevent any foreign matter from clogging the pump (Fig. 26).

Fig. 25 Garden hose adapter Adapter filter

Fig. 26 Filter

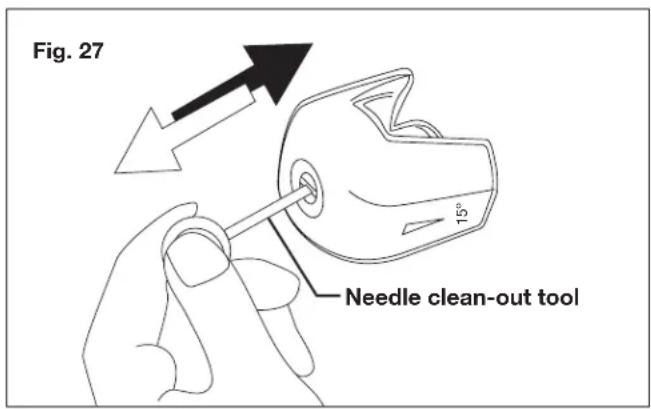

1. Clean the nozzle with the needle clean-out tool provided (Fig. 27). Remove the nozzle from the spray wand; remove any dirt from the nozzle hole and rinse.

Fig. 27 Needle clean-out tool

Disposal

Recycling the Pressure Washer

• Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities.
• Contact your local government agency for information regarding the collection systems available.
• If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

Service + Support

If your Sun Joe ^® SPX2700-MAX-RM electric pressure washer requires service or maintenance, please call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

Model + Serial Numbers

When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit. Copy these numbers into the space provided below.

Record the following numbers from the housing or handle of your new product: Model #: S | P | X | 2 | 7 | 0 | 0 | - | M | A | X | - | R | M | Serial #:

Troubleshooting

• Disconnect the unit from the electrical power supply before carrying out maintenance on the machine or when checking that its parts are in proper working order.
  • To avoid unnecessary hassles, consult the following table before contacting customer service with any mechanical issues.

Problems	Possible Cause	Possible Solution
Machine refuses to start	Power failure/machine not plugged into a working receptacle.Defective socket.Fuse has blown.	Check to make sure machine is plugged into a working outlet.Check the power cord and reset the GFCI.Try a different outlet.Replace fuse. Switch off any other machines that are using the same circuit.
Fluctuating pressure	Pump sucking air.Valves dirty, worn out, or stuck.Pump seals worn out.	Check the hoses and connections are airtight.Clean or replace valves/seals.Please call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance.
Machine stops	Fuse has blown.Incorrect mains voltage.Thermal sensor activated.Nozzle partially blocked.	Replace fuse. Switch off other machines using the same circuit.Check that the mains voltage corresponds to specification on the model tag.Let the washer cool down for 5 minutes, then restart.Clean the nozzle.
Fuse blows	Fuse too small.	Install a fuse with a higher amp rating than the amp consumption of the machine.
Machine pulsating	Air in inlet hose.Inadequate supply of mains water.Nozzle partially blocked.Water filter blocked.Hose kinked.	Allow machine to run by holding the trigger until regular working pressure resumes.Check that the water supply corresponds to the specifications required.WARNING! Avoid using long, thin hoses (minimum 1/2 in. diameter).Clean the nozzle.Clean the water inlet filter.Straighten out the hose to remove any kinks/blockages.
Machine often starts and stops by itself	Pump/spray gun is leaking.Trigger mechanism is broken.	Please call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance.
Machine starts, but no water comes out	Pump/hoses or accessories frozen.No water supply.Water inlet filter blocked.Nozzle blocked.	Wait for pump/hoses or accessories to thaw.Connect inlet water.Clean the water inlet filter.Clean the nozzle.

Optional Accessories

⚠ WARNING! ALWAYS use only authorized Snow Joe® + Sun Joe® replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this electric pressure washer. Contact Snow Joe® + Sun Joe® if you are unsure whether it is safe to use a particular replacement part or accessory with your pressure washer. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

		ModelAccessor
1	Sun Joe® House + Deck All-Purpose Pressure Washer Rated Concentrated CleanerSun Joe® Premium Snow Foam Pressure Washer Rated Car Wash Soap + CleanerSun Joe® All-Purpose Heavy Duty Pressure Washer Rated Cleaner + Degreaser	SPX-HDC1GSPX-FCS1GSPX-APC1G
2	25-Foot Medium-duty Extension Hose for SPX Pressure Washer Series	SPX-25H
3	Solid Brass Universal Quick-Connect Coupler (Garden Hose to Pressure Washer Adapter)	SPX-UQC

Sun Joe's complete line of premium pressure washer accessories and attachments make it easy to get your dirty work done, and also help you get the most out of your model! SHOP ONLINE now at sunjoe.com

NOTE: Accessories are subject to change without any obligation on the part of Snow Joe ^® + Sun Joe ^® to provide notice of such changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

SNOW JOE® + SUN JOE® REFURBISHED GOODS WARRANTY

GENERAL CONDITIONS:

Snow Joe ^® + Sun Joe ^® operating under Snow Joe ^® , LLC warrants this refurbished product to the original purchaser for 90 days against defects in material or workmanship when used for normal residential purposes. If a replacement part or product is needed, it will be sent free of charge to the original purchaser except as noted below.

The duration of this warranty applies only if the product is put to personal use around the household. It is the owner's responsibility to correctly perform all maintenance and minor adjustments explained in the owner's manual.

HOW TO OBTAIN YOUR REPLACEMENT PART OR PRODUCT:

To obtain a replacement part or product, please visit snowjoe.com/help or email us at [e-mail] for instructions. Please be sure to register your unit beforehand to speed up this process. Certain products may require a serial number, typically found on the decal affixed to the housing or guard of your product. All products require a valid proof of purchase.

EXCLUSIONS:

• Wearing parts like belts, augers, chains and tines are not covered under this warranty. Wearing parts can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).
• Batteries are covered in full for 90-days from the date of purchase.

Snow Joe ^® + Sun Joe ^® may from time to time change the design of its products. Nothing contained in this warranty shall be construed as obligating Snow Joe ^® + Sun Joe ^® to incorporate such design changes into previously manufactured products, nor shall such changes be construed as an admission that previous designs were defective.

This warranty is intended to cover product defects only. Snow Joe ^® , LLC is not liable for indirect, incidental or consequential damages in connection with the use or misuse of the Snow Joe ^® + Sun Joe ^® products covered by this warranty. This warranty does not cover any cost or expense incurred by the purchaser in providing substitute equipment or service during reasonable periods of malfunction or non-use of this product while waiting for a replacement part or unit under this warranty. Some states do not allow exclusions of incidental or consequential damages so the above exclusions may not apply in all states. This warranty may give you specific legal rights in your state.

HOW TO REACH US:

We're here to help Monday through Friday from 9AM to 7PM EST and Saturday and Sunday 9AM to 4PM. You can reach us at 1-866-SNOWJOE (1 866-766-9563), online at snowjoe.com, via email at [e-mail] or tweet us @snowjoe.

EXPORTS:

Customers who have purchased Snow Joe ^® + Sun Joe ^® products exported from the United States and Canada should contact their Snow Joe ^® + Sun Joe ^® distributor (dealer) to obtain information applicable to your country, province or state. If for any reason, you are not satisfied with the distributor's service, or if you have difficulty obtaining warranty information, contact your Snow Joe ^® + Sun Joe ^® seller. If in the event your efforts are unsatisfactory, please reach out to us directly.
