USER MANUAL SWT 8 A1 8 SILVERCREST

GWP (global warming potential) 3

1.1.Information about this user manual 32
1.2. Explanation of symbols 32

2. Application/proper use 34

3. Safety instructions 35

4. Appliance overview 41

4.1. Appliance (Fig. A) 41
4.2. Control panel (Fig.B) 41

5. Package contents 41

6. Technical specifications 42

6.1. Product data sheet 42

7. Declaration of conformity 44

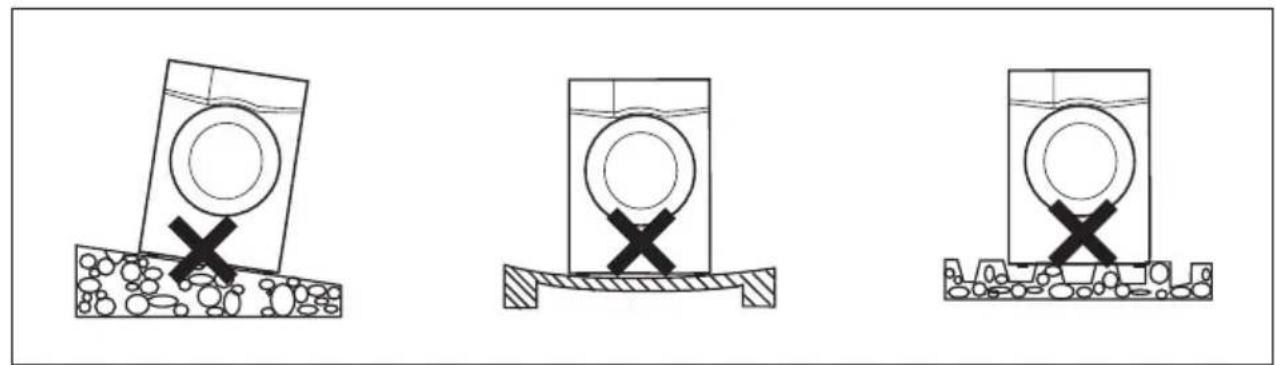

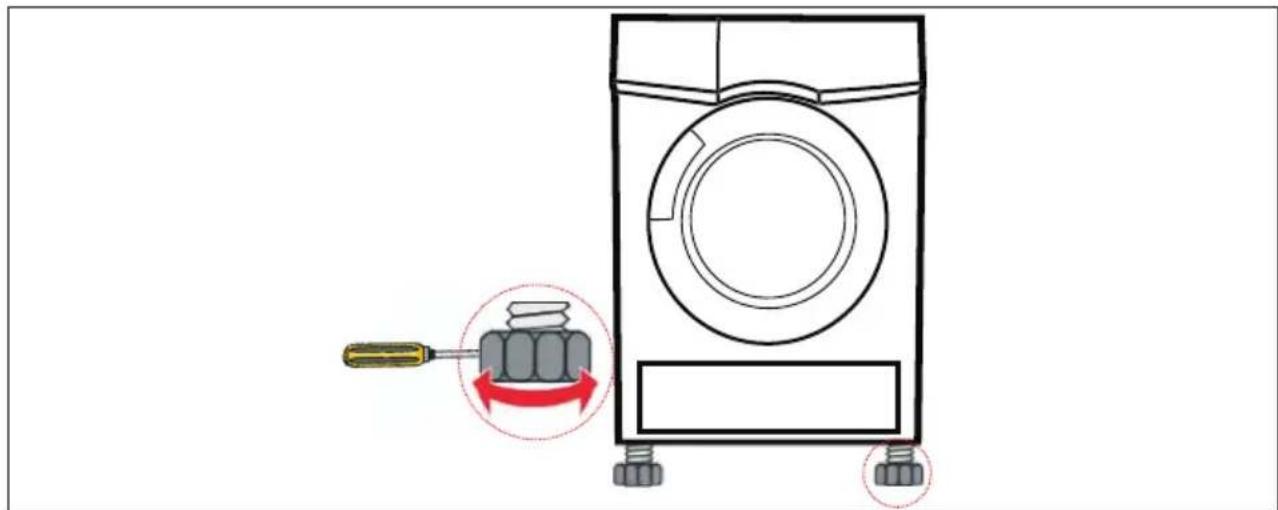

8. Setting up the tumble dryer 45

8.1. Washer-dryer combination 46
8.2. Installation under a worktop 47
8.3. Connecting the tumble dryer to the power supply 47

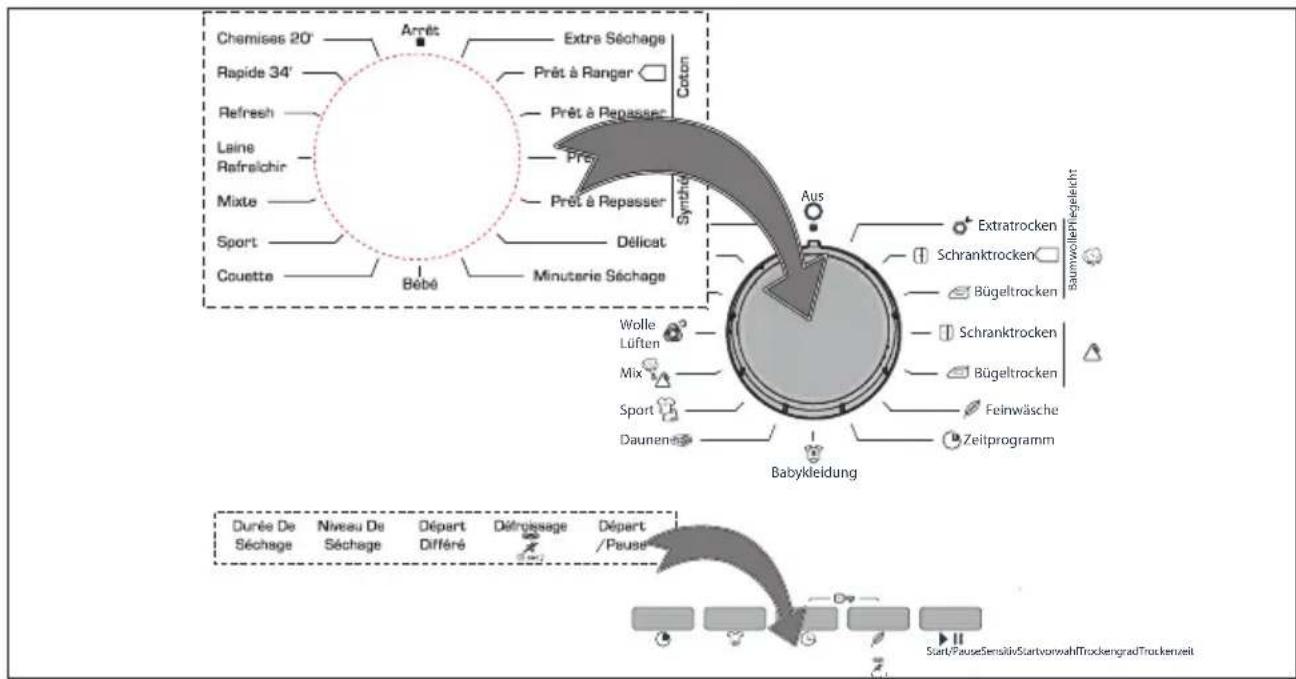

8.4. Attaching the stickers 47

9. Operating the appliance 48

9.1. Drum lighting 48
9.2. Selecting a programme 48
9.3. Starting and interrupting a programme 49
9.4. Setting a delay start 49
9.5. End of programme 49
9.6. Switching acoustic signals on/off 50
9.7. Switching the button lock on/off 50

10. Display indicators 51

11. Programme selector 52

12. Disposal 54

13. Service 54

13.1. Supplier/Producer/Importer 55

14. Privacy statement 55

SILVERCREST

1. Introduction

1.1. Information about this user manual

Congratulations on purchasing your new appliance. You have chosen a high-quality product. The user manual is an integral part of this product. It contains important safety information and instructions for use and disposal. Before using the product, please familiarise yourself with all operating and

safety instructions. Only use the product as described and for the specified applications. Keep this user manual in a safe place. If you give this product to someone else, ensure that you also hand over all the documents.

1.2. Explanation of symbols

DANGER!

Warning: risk of fatal injury!

Follow the instructions to avoid situations that will lead to fatal or serious injuries.

DANGER!

Warning: risk of electric shock!

Follow the instructions to avoid situations that will lead to fatal or serious injuries.

WARNING!

Warning: risk of possible fatal injury and/or serious irreversible injuries!

Follow the instructions to avoid situations that may lead to fatal or serious injuries.

WARNING!

Warning: risk of minor or moderate injuries due to hot surfaces!

Follow the instructions to avoid situations that may lead to moderate or minor injuries.

WARNING!

Warning: danger due to combustible and/or highly flammable substances!

Follow the instructions to avoid situations that may lead to moderate or minor injuries.

WARNING!

Warning: risk of explosive materials!

Follow the instructions to avoid situations that may lead to moderate or minor injuries.

NOTICE!

Follow the instructions to avoid damaging the appliance!

Follow the instructions to avoid situations that may damage the appliance.

Notes regarding assembly or operation

Follow the instructions in the user manual!

AC (alternating current)

Instruction to be carried out to prevent hazards

Instruction to be carried out

List

Products that feature this symbol meet the requirements of the EU directives (see section entitled "Declaration of conformity").

Tested safety: Products that feature this symbol meet the requirements of the German Product Safety Act.

Packaging material label regarding waste separation: Label includes abbreviations (a) and numbers (b) with the following meaning: 1-7: plastics/20-22: paper and cardboard/80-98: composite materials.

Dispos of packaging in compliance with environmental regulations (see section "Disposal").

Dispose of the appliance in compliance with environmental regulations (see section "Disposal").

SILVERCREST

The "Triman" symbol tells the consumer that the product can be recycled, is covered by an extended system of manufacturer's responsibility and must be sorted by material type, in France.

Protective earthing symbol (for protection class I)

Electrical appliances in protection class I are electrical appliances that have at least basic insulation throughout and have either a plug with earth contact or a fixed power cable with protective earth. Electrical appliances in protection class I can have parts with double or reinforced insulation, or parts which are operated with safety extra-low voltage.

2. Application/proper use

This appliance must only be used for drying laundry.

• Only dry laundry that is explicitly suitable for tumble drying and is labelled accordingly.

This appliance is designed for use in private households and similar household applications, such as

• in kitchens for staff in retail outlets, offices and other commercial areas
  -on agricultural estates
• by customers in hotels, motels and other accommodation facilities
  -in bed & breakfast accommodation

The appliance is not intended for commercial or industrial use.

The appliance must not be operated in non-stationary locations (e.g. on ferries, ships, trains, etc.).

Please note that we shall not be liable in cases of improper use:

• Do not modify the appliance without our consent and do not use any auxiliary equipment that we have not approved or supplied.
  Only use replacement parts or accessories that we have supplied or approved.

• Comply with all the information in this user manual, especially the safety instructions. Any other use is considered improper and can cause personal injury or property damage.

3. Safety instructions

IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE!

WARNING! Risk of injury!

Risk of injury due to improper use.

This appliance can be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those without experience and/or knowledge, if they are supervised or have been instructed in the safe use of the appliance and have understood the dangers that result from it.
Children under 8 years of age must be kept away from the appliance and mains cable.
Children under 3 years of age must be kept away from the appliance unless they are constantly supervised.
Never allow children to play with the tumble dryer.
- Cleaning and user maintenance must not be carried out by children unless they are supervised.
- Close the door after every drying cycle to prevent children from climbing in or placing objects inside.

SILVERCREST

Supervise children and small animals in the vicinity of the tumble dryer at all times.

There is a risk of choking and suffocation due to swallowing or inhaling small parts or plastic wrap.

• Keep the plastic packaging out of the reach of children.

DANGER!

Risk of electric shock!

There is a risk of electric shock due to live parts.

Only connect the appliance to a properly installed, earthed and fused socket. The mains voltage must match the technical specifications for the appliance.
The power socket must be easily accessible so that you can unplug the appliance from the mains quickly if necessary.
Check the appliance and the mains cable for damage before using the appliance for the first time, and after each use.

• Do not use the appliance if you notice that it, or its mains cable, is damaged.

• Contact the Service Centre without delay if the appliance has been damaged during transport.

• Do not, under any circumstances, make any unauthorised modifications to the appliance or try to open a component and/or repair it yourself.

To avoid risks, the mains cable should only be repaired by an authorised repair workshop. Alternatively, contact our Service Centre.

Never open the housing or slide objects into the ventilation slots.

Unplug the appliance from the socket if: - you are cleaning the appliance,

• the appliance is damp or wet
• the appliance is unattended
• you are no longer using the appliance.

Always hold the plug to pull it out, and never pull the cable.

SILVERCREST

Do not touch the mains cable with wet hands.
Never expose the appliance to water drops or water spray.
- Do not install the appliance in damp environments.
- Do not use the appliance outdoors. Do not expose the appliance to the effects of weather (rain, frost, direct sunlight, etc.).

WARNING!

Risk of explosion!

Flammable gases and liquids can cause explosions if stored in or near the appliance.

• Do not store explosive substances such as petrol, oils or alcohol near the appliance.
  In the event of gas leakage, do not connect the appliance, switch on the appliance or disconnect the plug.
• Do not use any flammable liquids to clean the appliance or any part of the appliance.
  Remove objects from the pockets of clothing (matches, lighters, etc.) before drying.

WARNING!

Risk of fire!

There is a risk of fire due to overheating or ignition of unsuitable materials or unwashed laundry.

• Do not use extension cables, multiple sockets, etc.

• Do not install near heat sources such as hobs, radiators, underfloor heating etc. or near naked flames.

Do not place burning candles or cigarettes on the appliance.
Air circulation under the appliance must be ensured. Therefore, do not stand the appliance on deep pile carpets or block the air supply with skirting boards or other objects.
- Do not install a lockable door, a sliding door or a door which is hinged in the opposite direction to the dryer door to ensure that the dryer door can be fully opened.

SILVERCREST

WARNING! Do not close the ventilation openings on the appliance housing or built-in components.

WARNING! Do not interrupt drying programmes without a cooling phase. There is risk of the laundry self-igniting. If the drying programme needs to be interrupted, remove the laundry immediately and spread it out so that it can cool down.

WARNING! Do not operate this appliance with an external timer or a separate remote control system, such as a remote control mains socket.

Do not tumble dry

• items which have not been washed,
• items which are still soiled with grease, oil or other deposits (e.g. from cooking oil, oil, grease or cream), these must be washed in hot water with extra detergent before drying in the appliance,
• items which have been splashed with hair lacquer, hair spray, nail varnish remover or similar substances,
• items that have been soiled with flammable cleaning agents or residues such as acetone, alcohol, petrol, paraffin, stain removers, turpentine, waxes, wax removers or other chemicals (e.g. cleaning cloths), these must be washed in hot water with extra detergent before drying in the appliance,
• items which have been cleaned using chemicals,
• items made of rubber or rubber-like materials (e.g. latex foam rubber, shower caps, waterproof textiles, rubberised articles and items of clothing (e.g. with shoulder pads, pillows with foam rubber filling),

• items which contain fillings that could fall out.

• When using fabric softeners, follow the manufacturer's instructions and check whether the fabrics are suitable for tumble drying.

Never use the tumble dryer without the lint filter inserted.
Clean the lint filter before or after every drying cycle.

SILVERCREST

Make sure that no fibres, dust or other dirt accumulate at the exhaust air outlet or near the appliance.

WARNING!

Risk of injury!

The appliance contains the refrigerant propane. If the refrigerant escapes, there is a risk of injuries.

WARNING! Do not damage the refrigerant circuit.
If the refrigeration system has nevertheless become damaged, ventilate the room. Avoid naked flames and ignition sources. Have the appliance repaired by a qualified technician before using it again.
- Set up the appliance in a dry and ventilated room. The room should be at least 4m^2 to ensure that sufficient air volume is available if the refrigeration system becomes damaged.

There is a risk of fire or poisoning if disposed of incorrectly. Dis- pose of the appliance properly.

WARNING!

Risk of injury!

The appliance is heavy. There is a risk of injury from the strain of lifting the appliance.

• Seek the assistance of at least one other person in order to move the appliance.

WARNING!

Risk of injury!

Injuries may result from using the appliance carelessly.

Ensure the mains cable does not become a tripping hazard - do not use an extension cable.
Do not reach into the appliance while the drum is turning.
- Do not lean on the appliance door when it is open. The appliance can tip over.

SILVERCREST

NOTICE! Possible damage to the appliance!

Using the appliance in a way that was not intended may damage it.

Do not kink or crush the mains cable.

• Appliances connected to the mains during a thunderstorm may be damaged by power surges. You should therefore always unplug the plug during thunderstorms.

Remove all items from clothing (e.g. coins, metal parts, needles) before drying. Do not put bras with metal underwires in the tumble dryer, as the appliance can be damaged by loosened underwires.

• Do not overload the appliance. The maximum load is 8kg (dry weight).

• Do not install the tumble dryer in a room where there is a risk of frost. At temperatures around freezing point, the tumble dryer may not be able to operate properly.

There is a risk of damage if the condensation water freezes in the pump, the hoses and/or the condensation tank.

4. Appliance overview

4.1. Appliance (Fig. A)

1) Appliance housing
2) Control panel
3) Appliance door
4) Ventilation grill
5) Release for condenser housing
6) Height adjustable feet
7) Condenser flap
8) Type plate
9) Lint filter
10) Condensation water tank

4.2. Control panel (Fig. B)

11) START/PAUSE programme button
12) DELICATE button/switch acoustic signal on/off/Button lock in combination with (13)
13) DELAY START button/button lock in combination with (12)
14) DRYING LEVEL button
15) TIME DRYING button
16) Display
17)Programme selector

5. Package contents

WARNING!

Risk of choking and suffocation!

There is a risk of choking and suffocation due to swallowing or inhaling small parts or plastic wrap.

• Keep the packaging materials out of the reach of children.

Please check your purchase to ensure that all items are included. If anything is missing, please contact us within 14 days of purchase.

The following items are supplied with your product:

• Heat pump tumble dryer
• Stickers for the control panel in national languages
• User manual with warranty information

SILVERCREST

6. Technical specifications

Power supply 220 - 240V 50Hz

Power consumption 1000 W

Protection class I

Ambient temperature (operation) +5^ to +35^

Dimensions (W× H× D)60× 85× 61cm

Weight Approx. 48.8kg

Refrigerant* R290 (propane)

Refrigerant quantity 0.110 kg

GWP (global warming potential) 3

Ozone depletion potential 0

6.1. Product data sheet

Conformity with Commission Delegated Regulation (EU) No. 392/2012
Supplier's name or trademark:	SilverCrest®
Supplier's address:	MLAP GmbH Meitnerstr. 9 70563 Stuttgart GERMANY
Model identifier	SWT 8 A1
Rated capacity (kg)	8
Type of tumble dryer	Heat pump
Energy efficiency class (1)	A++
Annual energy consumption (kWh) (2)	235
Automatic or non-automatic	Automatic
Energy consumption of the standard cotton programme at full load (kWh)	1.88
Energy consumption of the standard cotton programme at half load (kWh)	1.1
Energy consumption of "Off" mode for the standard cotton programme at full load PO (W)	0.5
Energy consumption of "Left on" mode for the standard cotton programme at full load PL (W)	1
Duration of "Left on" mode (min) n/a
Standard cotton programme (3)
Programme time of the standard cotton programme at full load, Tdry (min)	174
Programme time of the standard cotton programme at half load, Tdry1/2 (min)	103
Weighted programme time of the standard cotton programme at full and half load (Tt)	133
Condensation efficiency class (4) B
Average condensation efficiency of the standard cotton programme at full
load Cdry 81%
Average condensation efficiency of the standard cotton programme at half
load Cdry1/2 81%
Weighted condensation efficiency of the standard cotton programme at full
load and half load Ct 81%
Sound power level for the standard cotton programme at full load (5)	65
Built-in No

(1) Scale from A + + + (most efficient) to D (least efficient)
(2) Energy consumption based on 160 drying cycles of the standard cotton programme at full and half load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.
(3) "Cotton cupboard dry programme" used at full and half load is the standard drying programme to which

SILVERCREST

the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton.

(4) Scale from G (least efficient) to A (most efficient)
(5) Weighted average value - LWA expressed in dB(A) re 1 pW

Energy consumption values
Pro-gramme	Load (kg)	Spin speed in washing machine	Ap-proximate amount of remaining humidity	Energy consumption Full load (kWh)	Energy consumption Partial load (kWh)
Cotton cupboard dry	8 1000 60%	1.88 1.1
Cotton iron dry	8 1000 60%	1.55
Synthetics cupboard dry	4 800 40%	0.93
Power consumption in the "Off" mode PO (W) 0.5
Power consumption in the "On" mode PL (W) 1

• Energy labelling standard programme (EN 61121:2013)
  All values in the table were determined in accordance with the EN 61121:2013 standard. Consumption values may vary from the values in the table depending on the fabric type, spin speed, environment conditions and voltage values.

7. Declaration of conformity

CE MLAP GmbH hereby declares that the product IAN 375809_2104 conforms to the following European requirements. You can request the complete declaration of conformity via the service hotline or the contact form.

EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
Ecodesign Directive 2009/125/EC
RoHS Directive 2011/65/EU.

8. Setting up the tumble dryer

• Remove the packaging material and all protective film as well as the transport locks (plastic and foam parts) completely before using the appliance for the first time.
  Install the tumble dryer in a dry, ventilated and dust-free room.

The surfaces of the appliance can heat up to 60^ during operation.

Place the dryer on a stable and level surface that is not sensitive to heat. Keep the ventilation grill (4) on the dryer free of obstruction to ensure air circulation.
- Maintain a distance of approx. 1 cm to other furniture.
Do not allow the rear panel of the appliance to come into contact with household installations such as water connections or power sockets.
Position the appliance with the rear panel facing a wall.
Do not move the tumble dryer after installation and connection.

Turn the feet in or out to level the appliance and compensate for uneven floors. Check the appliance is level using a spirit level.

SILVERCREST

Never remove the adjustable feet.

The appliance should not move up and down when pressure is applied to the top of the appliance. If it does, adjust the appliance until it is stable.

Do not operate the appliance immediately after transport. The oil for the integrated heat pump must settle for approx. 2 hours.

8.1. Washer-dryer combination

WARNING!

Risk of injury!

The appliance may fall and injure people.

• Never stack a washing machine on top of the dryer, instead stack the dryer on top of the washing machine.
• Never stack the dryer on top of a washing machine without a stacking kit (available from retailers, follow the manufacturer's instructions). The stacking kit must be installed by an authorised service technician.
  Only stack the dryer on front-loading washing machines with a width of 60~cm .
  If the dryer is stacked on top of a washing machine, the total weight of the two products with load can reach almost 150kg . Stack the appliances on a stable floor that has sufficient load-bearing capacity.
  Note the dimensions. "6. Technical specifications" on page 42.

8.2. Installation under a worktop

NOTICE!

Possible material damage!

Insufficient air circulation can lead to heat accumulation.

To ensure adequate ventilation, a minimum clearance of 3cm to the top, to the sides and 7.5cm to the back must be observed.

• Installation/removal when installed under a worktop must be carried out by a qualified service technician.

8.3. Connecting the tumble dryer to the power supply

• Only connect the appliance to a properly installed, earthed and sufficiently fused socket that is easily accessible. The mains voltage must match the technical specifications for the appliance.

Operating your dryer at low voltage levels will shorten the service life of the appliance and affect performance.

8.4. Attaching the stickers

Upon delivery, the printing on the programme selector is in German. Stickers are supplied in your national language. Place one sticker over the programme selector and the second sticker under the operating buttons.

SILVERCREST

9. Operating the appliance

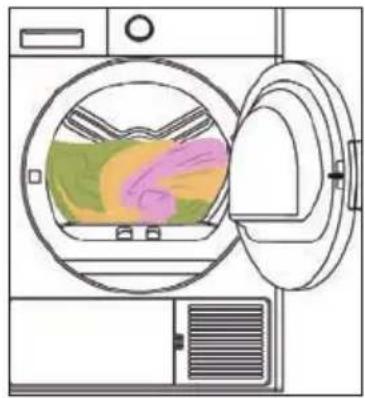

WARNING! Risk of fire!

There is a risk of fire due to overheating or ignition of unsuitable materials or unwashed laundry.

• Do not interrupt drying programmes without a cooling phase. There is risk of the laundry self-igniting. If the drying programme needs to be interrupted, remove the laundry immediately and spread it out so that it can cool down.

• Sort the laundry beforehand (see chapter 13. Notes on drying laundry in the operating instructions).

For heavy terry fabrics, load the appliance with a maximum of 6kg

Pull the handle to open the door.
- Load the laundry in an evenly distributed manner.
Close the door.

• Turn the programme selector (17) from the OFF position to the desired programme position to switch on the appliance.
  The duration for the selected programme lights up in the display. The symbol flashes in the display.

9.1. Drum lighting

The drum is equipped with LED lighting. The lighting is switched on automatically when the door is opened. The lighting goes out automatically after a certain time.

9.2. Selecting a programme

Select a suitable drying programme by turning the programme selector (17) (see table in section "11. Programme selector" on page 52).

Changing programmes during operation is only possible if the appliance is switched off and on again.

Additional functions are not selectable in all programmes.

To perform additional functions, press the

• TIME DRYING button (15) to set a drying time and refresh time.
• DRYING LEVEL button (14) to set the drying level 0, 1, 2 or 3. L0, L1, L2 or L3 is displayed.
• DELAY START button (13) to set a start delay (see "9.4. Setting a delay start" on page 49). The symbol lights up.
• DELICATE button (12) to dry laundry gently. The symbol lights up.

Additional functions are not available in all programmes. For example, it is not possible to select the drying level in programmes for drying delicate laundry so as not to damage the laundry.

Then press the START/PAUSE button (11) to start the programme with the additional function.

9.3. Starting and interrupting a programme

After selecting a programme suitable for the laundry, press the START/PAUSE button (11) to start the programme. The symbol lights up permanently in the display.
To interrupt the programme, press the START/PAUSE button (11) or open the door
To continue the programme, press the START/PAUSE button (11) again.

9.4. Setting a delay start

This function is used to start the drying cycle with a time delay. A delay start from 1 to 24 hours for the drying start can be selected. Proceed as follows:

Select the programme suitable for the laundry and, if necessary, a programme option.
Press the DELAY START button (13) several times until the desired start delay is set. Press and hold the DELAY START button (13) to speed up the setting of the start delay.

The symbol lights up.

Press START/PAUSE (11) to start the drying cycle after the set time. The clock symbol flashes in the display.
- Set the programme selector (17) to position to switch off the delay function and the appliance.

9.5. End of programme

All programmes end with a cooling phase. The end of the programme is indicated by the operating lights and lighting.

Set the programme selector (17) to position to switch off the appliance.

SILVERCREST

Remove the laundry.

If the laundry is not removed immediately after the end of the programme and the appliance is not switched off, the appliance performs an anti-crease cycle after some time.

After every programme run, clean the drum lint filter (9) and empty the condensation water tank (10) (see chapter 14. Maintaining and cleaning the dryer" in the operating instructions).

9.6. Switching acoustic signals on/off

Acoustic signals are emitted when the programme ends.

Press and hold the DELICATE/ button (12) for approximately 3 seconds to switch on the acoustic signals. An acoustic signal will sound.
Press and hold the DELICATE/ button (12) again for approximately 3 seconds to switch off the acoustic signals. Two acoustic signals will sound.

The signals can be switched on or off at any time.

9.7. Switching the button lock on/off

Press and hold the DELICATE/ button (12) and DELAY START button (13) simultaneously for approximately 3 seconds to switch on the child lock. The button combination is marked with the symbol.

The button lock is activated, CL lights up for 2 seconds on the display and a warning tone sounds.

The button lock remains active during the entire operating cycle and also at the end of the selected dryer programme.

To deactivate the button lock, turn the programme selector (17) to the position. Select the Cotton extra dry programme, the button lock is still active.
Press and hold the DELICATE/ button (12) and DELAY START button (13) simultaneously for approximately 3 seconds to unlock the buttons.

The button lock is deactivated, CL lights up for 2 seconds on the display and a warning tone sounds.

If the button lock is active, an acoustic warning sounds when the programme selector is turned and CL appears on the display for 2 seconds.

Even if you set the programme selector to another programme, the previous programme will continue to run. To select a new programme, you must deactivate the button lock as previously described.

10. Display indicators

Function	Display indicator/ acoustic signals
Button: TIME DRYING (15)	e.g. 120
Button: DELAY START (13)	L
Button: DRYING LEVEL (14)	L0, L1, L2 or L3
Button: DELICATE (12)	∅
Press and hold the DELICATE/ button (12) for 3 seconds: Switch acoustic signals on/off	2 beeps: sound off, 1 beep: sound on
Condensation water tank full
Clean lint filter
Clean condenser
Button lock: Press and hold the DELICATE/ / button (12) and DELAY START button (13) simultaneously for approximately 3 seconds.	Warning tone sounds and CL lights up for 2 seconds

SILVERCREST

11. Programme selector

• Set the appropriate programme depending on the type of laundry by turning the programme selector (17):

Programme	Load (kg dry laundry)	Spin speed in washing machine	Duration (minutes)	Suitable clothing
Cotton extra dry	8 1000	179 Hard-wearing laundry	dry items such as multi-layered, thick laundry (e.g. terry bathrobes, towels, bed linen, work clothes)
Cotton cup-board dry*	8 1000	174 e.g. shirts, T-shirts, cotton trousers	cotton trousers	Laundry that is not to be ironed (e.g. towels, baby clothes, cotton socks, underwear, T-shirts, work clothes)
Cotton iron dry 8	1000 148	Laundry that is still damp and needs to be ironed (e.g. bed/table linen, T-shirts, work clothes)	table linen, synthetic/ cotton blended fabrics
Easy care cup-board dry	4 800 74	e.g. synthetic	table linen, synthetic/ cotton blended fabrics
Easy care iron dry	4 800 64	Synthetic knit wear, shirts
Delicates	2 600 55	Suitable for delicate fabrics. Drying is done gently at a low temperature.
Time pro-gramme	8 kg	-- Drying cycle after time at relative-ly low temperatures so that individu-ral loading is possible. For example, 30 minutes is suitable for synthetic fabrics, 60 and 90 minutes for cot-ton fabrics.
Baby clothes 3	1000 78 Baby clothes that should be ironed
Duvet 2.5 800	40 Bed sets are dried gently at a low speed and a longer drying time.
Sport 4 800 103	Suitable for non-iron synthetic fabrics such as shorts and T-shirts
Mix 4 1000 112	This programme dries cotton synthetic mixed garments that do not discolour to make them ready to wear.
Wool refresh 8 kg	- 5 For freshening and loosening wool fibres (do not use for drying wool fibres). After freshening, immediately remove the clothes and let them air dry.
Refresh	- - 10-	For freshening and loosening wool fibres (do not use for drying wool fibres). After freshening, immediately remove the clothes and let them air dry.
Refresh	- - 10-	120	Time-controlled drying for 10 to 120 minutes without blowing hot air; freshens up clothes and removes unpleasant odours.
Quick 34'	1	1200	34	1 kg of cotton laundry spun at high speed in the washing machine is dried in 34 minutes.
Shirts 20'	0.5	1200	20	2 to 3 shirts are ready to iron after 20 minutes.

• The "Cotton cupboard dry" programme is the standard drying programme that can be run with a full or half load and for which the information is given on the label and product receipt. This programme is the most energy efficient programme to dry normal wet cotton clothes. Energy labelling standard programme (EN 61121:2013) All values in the table were determined in accordance with the EN 61121:2013 standard. Consumption values may vary from the values in the table depending on the fabric type, spin speed, environment conditions and voltage values.

SILVERCREST

12. Disposal

PACKAGING

Your appliance has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environmentally friendly manner.

APPLIANCE

All old appliances marked with the symbol shown must not be disposed of in normal household waste.

In accordance with Directive 2012/19/EU, the appliance must be disposed of correctly at the end of its service life.

This involves separating the materials in the appliance for the purpose of recycling and minimising the environmental impact.

Take old appliances to an electrical scrap collection point or a recycling centre.

Contact your local waste disposal company or your local authority for more information on this subject.

• When disposing of the appliance, note that it contains propane (highly flammable) as a refrigerant. The appliance must therefore be disposed of correctly.

13. Service

You can download this user manual and many other manuals, product videos and installation software from www.lidl-service.com.

Scan this QR code to be directed straight to the Lidl Service website (www.lidl-service.com) where you can open your user manual by entering the article number IAN 375809_2104.

GB	Service United Kingdom Hotline ① [phone] ◎ Mon - Fri: 09:00 - 17:00 Please use the contact form at www.mlap.info/contact
	IAN 375809_2104

13.1. Supplier/Producer/Importer

Please note that you cannot use the address below for returns. Please contact the Service Centre mentioned above.

MLAPGmbH

Meitnerstr. 9

70563 Stuttgart

Germany

Importer for GB market by:

Lidl Great Britain Ltd · Lidl House

14 Kingston Road · Surbiton · KT5 9NU

GREAT BRITAIN

14. Privacy statement

Dear Customer,

We wish to inform you that we, MLAP GmbH, Meitnerstr. 9, 70563 Stuttgart, Germany, process your personal data as a data controller.

For matters regarding data protection, we are supported by our company data protection officer who can be contacted at MLAP GmbH, Datenschutz, Meitnerstr. 9, 70563 Stuttgart, Germany, [e-mail]. We process your data for the purpose of warranty processing and associated processes (e.g. repairs) and rely on the sales contract concluded with us when processing your data.

Your data will be provided to repair service providers contracted by us for the purpose of warranty processing and associated processes (e.g. repairs). We generally store your personal data for a period of three years in order to fulfil your legal warranty rights.

You have the right to be informed of the personal data concerned as well as the right to rectification, erasure, restriction of processing, the right to object to processing and the right to data portability.

In the case of the right to be informed and the right to erasure, restrictions apply according to paragraphs 34 and 35 of the BDSG (Federal Data Protection Act) (Art. 23 of the GDPR). In addition, there is a right of appeal to a competent data protection supervisory authority (Article 77 of the GDPR in conjunction with paragraph 19 of the BDSG). For MLAP, this is the state official for data protection and freedom of information Baden-Württemberg, PO box 10 29 32, 70025 Stuttgart, Germany. www.baden-wuerttemberg.datenschutz.de.

The processing of your data is necessary for warranty processing: it is not possible to process the warranty without the provision of the required data.

SILVERCREST

Sommaire

1. Introduction 58

GWP (global warming potential) 3

WAARSCHUWING! Brandgevaar!

GWP (global warming potential) 3
