Product Type	USB Power Delivery (PD) Charger
Brand	ANSMANN
Model	247PD
Approximate Dimensions	75 x 45 x 30 mm
Approximate Weight	120 g
Input Power	AC 100-240 V, 50/60 Hz, 1 A max
USB-A Output	5 V / 2.4 A
USB-C Output (PD)	5 V / 3 A, 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 19 V / 2.25 A, 20 V / 2.25 A
Maximum Power	45 W (via PD)
Number of Ports	2 (1x USB-A, 1x USB-C)
Supported Protocol	Power Delivery (PD) 3.0
Main Features	PD compatible fast charging, automatic voltage detection, overcharge protection
Compatibility	Smartphones, tablets, laptops and other PD compatible devices up to 45 W
Operating Temperature	0 °C to 30 °C
Care and Cleaning	Unplug before cleaning; use a soft dry cloth
Safety	Do not open, protect from moisture and rain, keep out of reach of children
Warranty	3 years
Spare Parts and Repairability	Not user repairable; contact customer service in case of failure
General Information	Compact travel charger (100-240 V), automatic shut-off at end of charge

Frequently Asked Questions - 247PD ANSMANN

Which devices can I charge with the ANSMANN 247PD?

You can charge all devices compatible with the Power Delivery (PD) protocol such as smartphones, tablets, laptops, consoles, etc., up to a maximum power of 45 W. Check that your device accepts one of the output voltages (5V, 9V, 12V, 15V, 19V or 20V).

Is it possible to charge two devices at the same time?

Yes, the charger has two ports (USB-A and USB-C). However, total power is limited to 45 W. During simultaneous charging, power distribution is automatic and may reduce charging speed on each port.

How do I know if my device is compatible with Power Delivery?

Check your device's documentation or look for 'PD', 'Power Delivery' or 'USB-C PD' on the original charger. The cable used must also be PD compatible.

Does the charger heat up during use?

Yes, it is normal for the charger to warm up slightly when charging at full power. This is not dangerous as long as the ambient temperature does not exceed 30 °C. In case of excessive heat, unplug it and contact customer service.

Can I use this charger abroad?

Yes, the charger accepts an input voltage of 100 to 240 V, making it usable worldwide. You may need a specific plug adapter for the country.

What should I do if my device does not charge?

First check that the cable and device are PD compatible. Try another certified cable. Make sure the power outlet is working. If the problem persists, the charger may be faulty; contact customer service.

How to clean the charger?

Before any cleaning, unplug the charger from the mains. Use a soft dry cloth to wipe the surface. Never use liquids or abrasive products.

Is there a risk for children?

Like any electrical device, keep the charger out of reach of children. Do not let children play with the charger or cables. Supervise children near the device.

Does the charger shut off automatically?

Yes, the USB-PD charger has automatic shut-off once charging is complete, which protects your device's battery from overcharging.

What is the warranty period?

ANSMANN offers a 3-year warranty on this charger. The warranty does not cover damage caused by improper use not in accordance with the instructions in the manual.

USER MANUAL 247PD ANSMANN

Many thanks for choosing an ANSMANN USB-PD charger. The operating instructions will help you to get the best from the functions of your new USB-PD charger. We hope you enjoy your new product.

Your ANSMANN Team

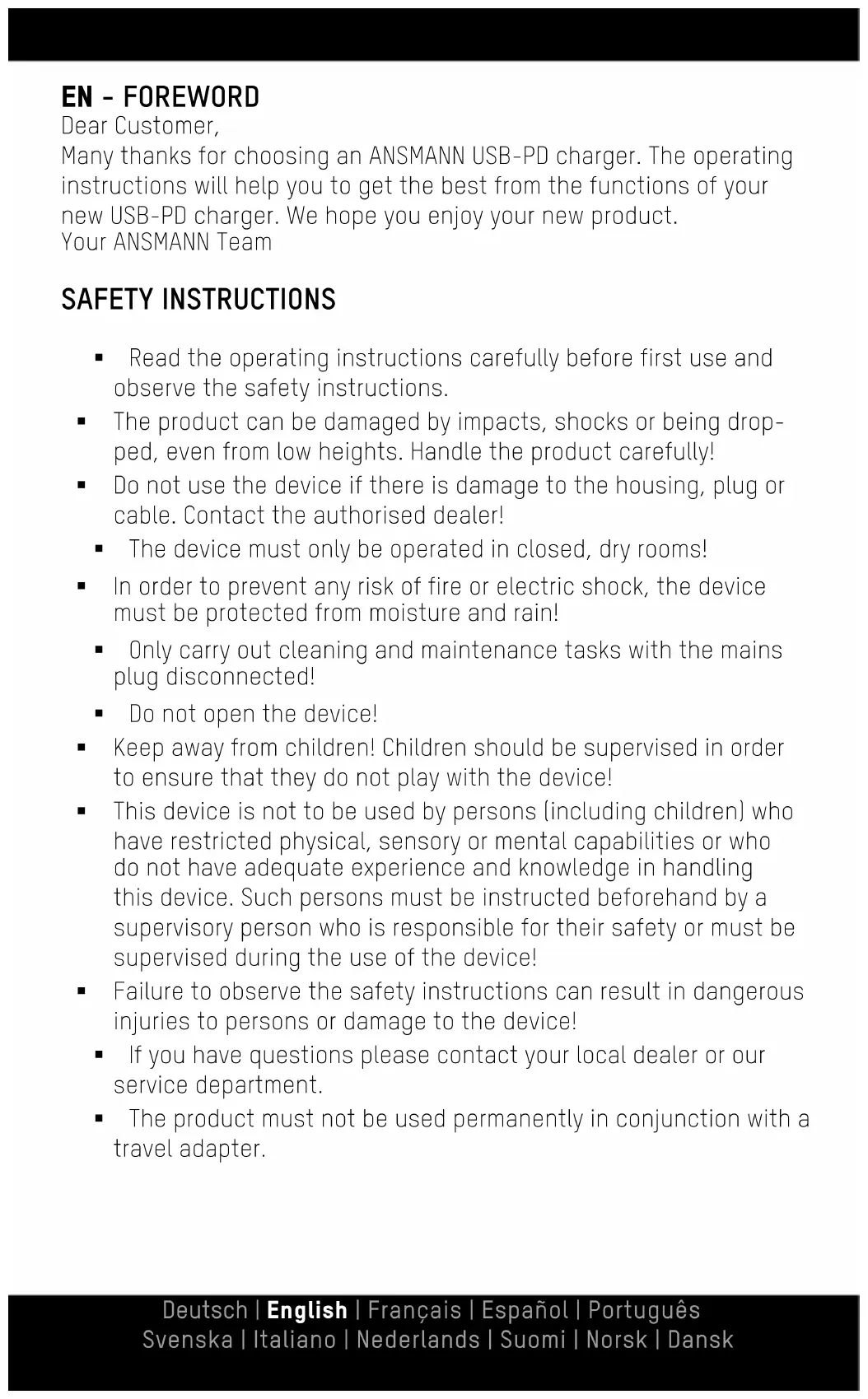

SAFETY INSTRUCTIONS

• Read the operating instructions carefully before first use and observe the safety instructions.
• The product can be damaged by impacts, shocks or being dropped, even from low heights. Handle the product carefully!
• Do not use the device if there is damage to the housing, plug or cable. Contact the authorised dealer!
• The device must only be operated in closed, dry rooms!
• In order to prevent any risk of fire or electric shock, the device must be protected from moisture and rain!
• Only carry out cleaning and maintenance tasks with the mains plug disconnected!
• Do not open the device!
• Keep away from children! Children should be supervised in order to ensure that they do not play with the device!
• This device is not to be used by persons (including children) who have restricted physical, sensory or mental capabilities or who do not have adequate experience and knowledge in handling this device. Such persons must be instructed beforehand by a supervisory person who is responsible for their safety or must be supervised during the use of the device!
• Failure to observe the safety instructions can result in dangerous injuries to persons or damage to the device!
  If you have questions please contact your local dealer or our service department.
• The product must not be used permanently in conjunction with a travel adapter.

USE

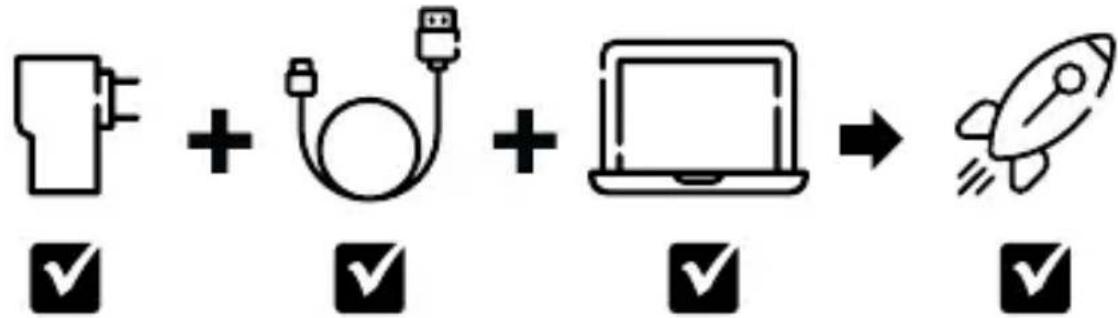

PD capable PD capableUSB Type C PD capable
Quick charging High power

CHARGING DEVICES

In order to charge a device, such as a smartphone for example, please use a suitable USB-PD cable or the original charge cable for your device. The USB-PD charger has a Type-C and USB-A output. Please use a suitable Type-C cable for this. Insert the USB / Type-C plug of the cable into the USB-PD charger and the other end into your device. The charging process starts automatically.

The USB-PD charger has both USB and Power Delivery (PD) protocols. In order to be able to use this technology, please check that your end-device is compatible.

Simultaneous charging of multiple end-devices is possible with restrictions. This is dependent on the total required charge current and charge voltage.

The USB-PD charger switches off automatically once the charging is complete. Please disconnect your device from the USB-PD charger once the charging process is complete.

The USB-PD charger may heat up a little depending on the output power required.

USE

NOTE: MAINS VOLTAGE 110-240V

The USB-PD charger is suitable for a mains voltage of 100-240V and so can be used throughout the world. Please note that a suitable country-specific adapter may be required for this.

NOTE: POWER DELIVERY

Automatic detection: No manual adjustments or changes required - only the correct components are required (cable and end-device must be PD-compatible).

• With the huge number of different PD end-devices and their software/ firmware versions, it is possible that the function is not detected or that it is not fully or flawlessly supported.
• End-devices whose original chargers require more than 45W of rated output power will charge slower with this charger.

WARNING

It is important that all end-devices to be charged with the USB PD charger are suitable for the PD protocol.
- Ensure that your end-device (smartphone, tablet, notebook, console or other applications) is suitable for one of the output voltages 5V/9V/12V/15V/19V/20V.

CARE

Disconnect the device from the mains before cleaning or before storing for an extended period of time.

Clean the charger only with a dry, soft cloth.

TECHNICAL DATA

1. Input: AC110-240V | 50-60Hz | max. 1A
   2.0Output: USB-A:5V/2.4A USB Type-C (PD): 5V/3A 9V/3A 12V/3A 15V/3A 19V/2.25A 20V/2.25A

2. Max. output power: 45W (PD)

3. Max. outside temperature: 0^ C 30^ C

ENVIRONMENTAL INFORMATION

The device should not be discarded in the normal household waste under any circumstances. Dispose of the device via an authorised disposal centre or your communal waste disposal facility. Observe the current applicable regulations. Contact your waste disposal facility in the event of any doubt. Dispose of all packaging materials via an environmentally friendly disposal facility.

LIMITATION OF LIABILITY

The information contained within these operating instructions can be changed without prior notification. ANSMANN accepts no liability for direct, indirect, incidental or other damage or consequential damage arising through improper handling or through disregard of the information contained within these operating instructions.

GUARANTEE

The device has a three-year guarantee. The guarantee does not apply to damage to the device arising through a failure to comply with the operating instructions.

Subject to technical changes. We assume no liability for printing errors. 06/2019

You can find our warranty terms online at www.ansmann.de
