7.5x44 RAPID - Binoculars MINOX - Free user manual and instructions

Product Type	Binoculars
Brand	Minox
Model	7.5x44 RAPID
Magnification	7.5x
Objective lens diameter	44 mm
Prism system	Schmidt-Pechan
Exit pupil	5.9 mm
Field of view at 1,000 m	132 m
Diopter compensation	-2 to +5 diopters
Eye relief	20 mm
Operating temperature	-10°C to +50°C
Waterproof	Up to 5 m (floating)
Dimensions (H x W x D)	150 x 131 x 53 mm
Weight	Approx. 780 g
Housing material	Makrolon with rubber coating
Filling	Nitrogen (fog-proof)
Focusing	Individual on each eyepiece
Eyecups	Retractable (for use with/without glasses)
Included accessories	Strap, case, objective and eyepiece covers, cleaning cloth, instruction manual
Available options	Tripod adapter (ref. 69730), optical cleaning kit (ref. 69731)
Power supply	None (optical)
Main functions	Terrestrial observation, focusing from 20 m to infinity
Maintenance and cleaning	Clean with a soft cloth and lens-specific product; rinse with fresh water after use in marine environments
Safety instructions	Never look at the sun; use the carrying strap to avoid drops
Repairability and spare parts	Maintenance by Minox customer service or authorized dealer; contact: www.minox.com

Frequently Asked Questions - 7.5x44 RAPID MINOX

How to adjust the Minox 7.5x44 RAPID binoculars?

To adjust the binoculars, first adjust the interpupillary distance by folding the housing until you see a single circular image. Then, perform individual focusing on each eyepiece: close one eye and turn the corresponding eyepiece until the image is sharp, then repeat for the other eye. Note your diopter settings for future use.

Can I use these binoculars with glasses?

Yes, the eyecups are retractable. If you wear glasses, push down the eyecups to bring your eyes closer to the lenses and see the full field. Without glasses, leave the eyecups up for optimal comfort and reduced stray light.

Are these binoculars waterproof?

Yes, they are waterproof up to 5 meters (0.5 bar pressure) and float. The housing is filled with nitrogen to prevent internal condensation. They can be used in rain or humid environments.

How to clean the binocular lenses?

First, use a soft brush to remove dust. For fingerprints or stubborn dirt, use a lens cleaning cloth and a lens cleaning solution. Avoid harsh solvents. After use in marine environments, rinse with fresh water.

How to mount the binoculars on a tripod?

Unscrew the cover screw located under the binocular housing. Then screw the Minox tripod adapter (ref. 69730) into the thread. Attach the adapter to the tripod. Keep the cover screw to replace after use.

What is the warranty on Minox binoculars?

The legal warranty is 2 years from the date of purchase from an authorized dealer. It covers manufacturing defects. To claim the warranty, present the original proof of purchase. You can also register your product at www.minox.com for an extended warranty.

What is included in the box of the Minox 7.5x44 RAPID binoculars?

The package includes: the binoculars, a neoprene carrying strap, a protective case, protective covers for objectives and eyepieces, an optical cleaning cloth, and the instruction manual.

How to properly use the carrying strap?

Thread the strap through the rings on the binocular housing and tie a slip knot to secure it. Adjust the length to your preference. Always wear the strap around your neck during observation to prevent drops.

What is the recommended operating temperature range?

The Minox 7.5x44 RAPID binoculars can be used in a temperature range of -10°C to +50°C. Avoid exposing them to extreme temperatures, especially in a car in direct sunlight, as this could damage the coating and eyecups.

How to adjust the interpupillary distance on these binoculars?

The interpupillary distance is adjusted by folding the housing at the central hinge. Open or close the two barrels until you see a single circular image without shadow areas. This adjustment is essential for optimal visual comfort.

USER MANUAL 7.5x44 RAPID MINOX

www.minox.com/service

3415

MINOX 7.5x44 RAPID

1517

Welcome to MINOX!

Congratulations!

With the purchase of these MINOX binoculars you have acquired a product that has been manufactured to the highest optical standard with high precision mechanics. These instructions are to help you benefit from the full performance range of your MINOX binoculars.

Enjoy your new MINOX product!

Note: We have done our best to produce a complete and accurate manual. However, we cannot ensure that there are no errors or omissions during the printing process.

Contents

1. Scope of delivery 18
2. Get to know your binoculars 18
3. Controls 19
4. General instructions
   Preparing your binoculars 20
5. Attaching the neck strap 20
6. Attaching the eyepiece cap 20
7. Objective lens cap 20
8. Adjusting the binoculars 20
9. Interpupillary distance adjustment 21
10. Focusing 21
    Using the binoculars with and without eyeglasses 2
11. Attachment to a tripod mount 22
12. General care recommendations 23
    Binocular case 23
13. Cleaning your binoculars 23
14. Cleaning the lenses 2
    Serial number 23
15. Helpful advice on the use of your binoculars 24
16. Technical Data 25
17. Conditions of warranty 26
18. Servicing 27

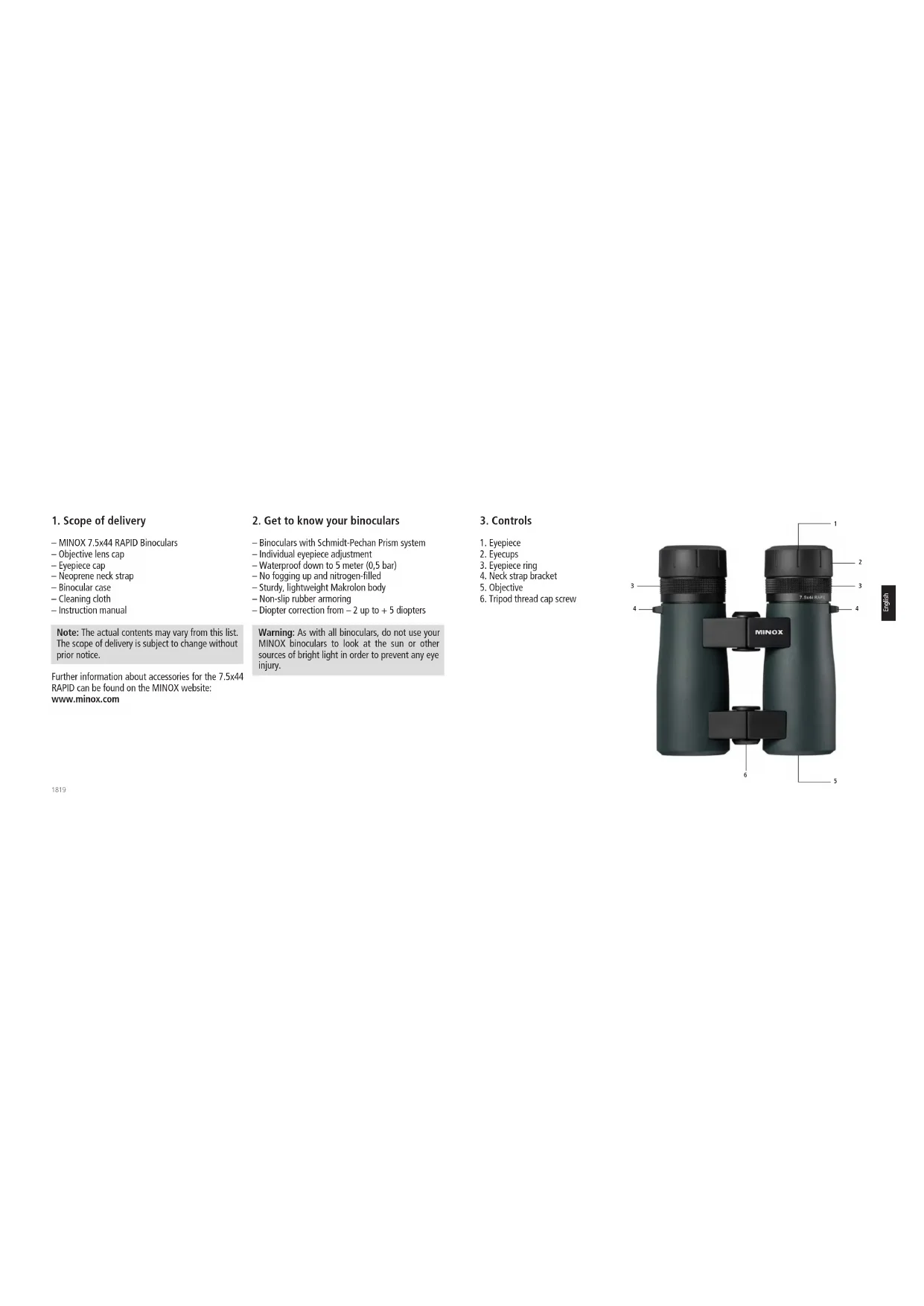

1. Scope of delivery

MINOX 7.5x44 RAPID Binoculars
Objective lens cap
Eyepiece cap
- Neoprene neck strap
Binocular case
- Cleaning cloth
-Instruction manual

Note: The actual contents may vary from this list. The scope of delivery is subject to change without prior notice.

Further information about accessories for the 7.5x44 RAPID can be found on the MINOX website: www.minox.com

2. Get to know your binoculars

Binoculars with Schmidt-Pechan Prism system
-Individual eyepiece adjustment
Waterproof down to 5 meter (0,5 bar)
- No fogging up and nitrogen-filled
Sturdy, lightweight Makrolon body
Non-slip rubber amoring
-Diopter correction from -2 up to +5 diopters

Warning: As with all binoculars, do not use your MINOX binoculars to look at the sun or other sources of bright light in order to prevent any eye injury.

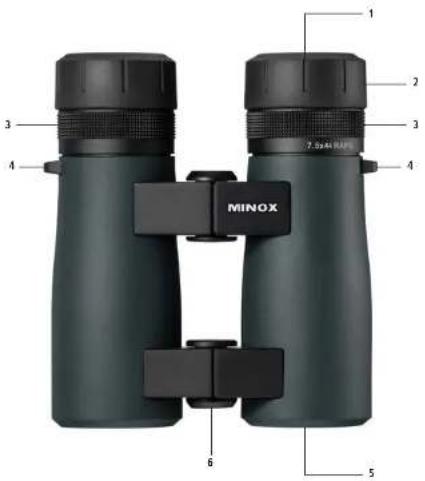

3. Controls

1. Eyepiece
2. Eyecups
3. Eyepiece ring
4. Neck strap bracket
5. Objective
6. Tripod thread cap screw

4. General instructions

Preparing your binoculars

The scope of delivery of your MINOX 7.5x44 RAPID includes a neoprene neck strap. We recommend that you wear the neck strap whenever you are using your MINOX binoculars.

Note: By wearing the strap you can avoid damage caused by dropping the binoculars.

Attaching the neck strap

Thread the strap through the bracket on the body of the binoculars. Pull the end of the strap back to the buckle and then thread it through the buckle from behind to secure the strap. Fasten the neck strap on the other side of the binoculars in the same way. Adjust the neck strap to a comfortable length once you have fastened it on both sides.

Attaching the eyepiece cap

Connect the eyepiece cap to the neck strap via the loop on the left side. The eyepiece cap protects the

optics on the eyepieces against foreign particles, rain, dust and sand. Remove the eyepiece cap from the eyepiece when you want to use your binoculars. This cap then hangs down out of the way on the left side of the strap.

Objective lens cap

Use the objective lens cap to protect the objective lenses of the 7.5x44 RAPID against foreign particles, rain, salt water, dust and sand. You can attach this lens cap to your binoculars by placing the loop on the objective lens cap bracket over the cap screw of the tripod thread and threading it through until the loop is completely inserted behind the tripod thread. Remove the lens cap from the objective lens when you want to use your binoculars and let it hang down.

Adjusting the binoculars

Before you use your 7.5x44 RAPID it must be adjust

ed to your individual requirements.

Observe the following steps for correct use.

Interpupillary distance adjustment

Your 7.5x44 RAPID has a folding bridge that you can use to adjust the two eyepieces to the distance between your eyes. Your 7.5x44 RAPID is properly adjusted to the interpupillary distance when you can see one round full circle when you look through your MINOX binoculars. Adjust your MINOX binoculars until the two circles are superimposed to form one full circle.

Focusing

Your 7.5x44 RAPID has an individual eyepiece focusing system. The advantage of this feature is that all observed objects within a range from 20 meters to infinity can be seen as a pin sharp image without having to readjust the focusing of your binoculars to close or far away objects. The adjustable range of the individual eyepieces is -2 up to +5 diopters. Proceed as follows to ensure optimum adjustment to your vision: Choose an observation object at a distance of about 50 meters. First close your right eye. Look

through the left eyepiece of your binoculars with your left eye. Turn the left eyepiece ring in clockwise or counterclockwise direction until you see a sharp image. Now close your left eye and adjust the right eyepiece in the same way by turning the right eyepiece ring. Your binocular is now adjusted to your individual vision. Both eyepieces have a diopter scale. Remember your individual diopter setting for the left and right eyepiece or mark it with a permanent marker. In this way you will be able to quickly readjust the binoculars to your vision if, for example, another person has used them and changed the settings.

The 7.5x44 RAPID features a tactile detent at the dioptre zero position of the eyecups for easy adjustment when focusing.

Using the binoculars with and without eyeglasses

Your MINOX 7.5x44 RAPID is fitted with twist-up eyecups, which can be used to adjust the distance to your eye, depending on whether you are wearing glasses or not. Users not wearing glasses should twist the eyecups up to the fully extended position. This position provides the ideal distance between the eye and ocular lens and also ensures comfortable positioning of the binoculars, thus minimising stray light. For those wearing glasses, the eyecups must be twisted all the way down to be able to see the entire field of view without vignetting.

Attachment to a tripod mount

To ensure steady and fatigue-free viewing you can mount your MINOX 7.5x44 RAPID on a tripod using the tripod thread integrated in the body. For this purpose we recommend the MINOX tripod mount (order number 69730) that is available from our range of accessories. To use the tripod mount first remove the cap screw from the tripod thread on the underside of the MINOX 7.5x44 RAPID. Connect the MINOX tripod mount to the thread turning it in clockwise direction. Keep the cap screw in a safe place and screw it back into the tripod thread after removing the tripod mount.

5. General care recommendations

Follow the following care recommendations to ensure maximum enjoyment and excellent viewing for many years with your MINOX binoculars.

Binocular case

To protect your binoculars when not in use or when traveling we recommend that you keep them in the provided neoprene case.

Cleaning your binoculars

Keep your binoculars clean and dry. Avoid exposure to excessive heat. Remove dust and foreign particles from the body using a soft damp cloth. If you are using your binoculars at sea or near salt water we strongly recommend rinsing them off with fresh water after use. Over time, sea salt can damage the objective lenses and the optical quality of your binoculars.

Cleaning the lenses

Contamination such as dust, foreign particles and grease from fingerprints impairs the imaging quality (sharpness and contrast) of your MINOX binoculars. Remove minor soiling and particles on the lenses using a soft brush. More severe soiling or fingerprints on the lens surfaces can be removed using and optical lens cloth and lens cleaner solution. We recommend the MINOX Optical Cleaning Kit (order number 69731) for cleaning your binoculars. Other suitable optical cleaning solutions can also be purchased from specialist dealers.

Serial number

On the bottom of every pair of MINOX binoculars you will find the "individual" serial number. It is important to make a record of this number and keep it in a safe place in case of any loss.

6. Helpful advice on the use of your binoculars

Never expose your binoculars to severe heat for prolonged periods. This can cause damage to the armoring or to the eyecups. Avoid places such as the dashboard or the rear shelf in motor vehicles for storing binoculars. These places are not suitable as exposure to the sun directly behind glass causes extremely high temperatures that can damage your binoculars.

Always use the provided neck strap and avoid damage caused by dropping the binoculars.

Never walk away when the binoculars are mounted on a tripod. Always remove the binoculars before moving out of the tripod range. Keep your binoculars in the provided case in a dry place and at a moderate temperature if you are not using them for any length of time.

1. Technical Data

Magnification 75x
Prism system Schmidt-Pechan
Lens diameter 44mm
Exit pupil 5.9mm
Field of view at 1,000m / 1,000 yards	132m/396 ft.
Diopter correction -2/+5
Eye relief 20mm
Operating temperature -10°C up to +50°C
Watertight Waterproof down to 5 m (0,5 bar)
Height x Width x Depth 150x131 x53 mm
Weight	ca. 780 g
Order number 80405445

8. Conditions of warranty

With the purchase of this MINOX product you have acquired a product which has been manufactured and checked to special quality standards. For this product the MINOX GmbH provides warranty of 2 years. The period commences on the date of purchase from an authorized dealer and the warranty is subject to the following conditions:

1. During the warranty period we shall deal with complaints based on faulty manufacture (free of charge) by repair, replacement of defective parts or replacement by an identical flawless product at our own discretion. Consequential claims, no matter what kind of what legal argument in connection with this warranty, cannot be accepted.

2. Claims under warranty are null and void, if the defect has been caused by improper handling - which also can include the use of non-MINOX accessories - if the MINOX product is serviced by unauthorized persons or workshops, or if the serial number has been obliterated.

3. Warranty claims can only be made by submission of the typewritten sales slip of an authorized dealer.

4. When submitting claims under warranty please return the MINOX product together with the typewritten sales slip and a description of the claim to the MINOX GmbH or MINOX agency.
5. Tourists may, if required, make use of the Agency of the country in which they are travelling (within the terms of the Warranty of the MINOX GmbH) by presenting the typewritten sales slip.

Extended MINOX Warranty Service

Take advantage of the extended MINOX product warranty and register your MINOX product. Find out more at www.minox.com/service.

MINOX GmbH

Walter-Zapp-Str.4
D-35578 Wetzlar
Tel: [phone] / 917-0
Fax: [phone] / 917-612
E-Mail: [e-mail]
Internet: www.minox.com

9. Servicing

To avoid unnecessary costs and lost time, please carefully read these instructions, including the roubleshooting suggestions, before sending your MINOX binoculars in for repair. If you are unable to resolve the problem yourself and wish to send the product in for repair by our MINOX customer service or your local authorized MINOX dealer, please follow the instructions below:

1. Ensure to use sufficient padding material to make sure that your binoculars is not damaged during transport.
2. Send your binoculars to:

In Germany:

In all other countries, please send your MINOX

binoculars to your local MINOX distributor.

You will find the corresponding address at:

www.minox.com/service
