VOLTCRAFT

Programmable laboratory power supply unit

GB OPERATINGINSTRUCTIONS

Page 34-62

Alimentation de laboratoire programmable

MODE D'EMPLOI

Page 63-91

These Operating Instructions accompany this product. They contain important information on setting up and using the device. You should refer to these instructions, even if you are buying this product for someone else.

Please retain these Operating Instructions for future use! A list of the contents can be found in the Table of contents, with the corresponding page number, on page 34.

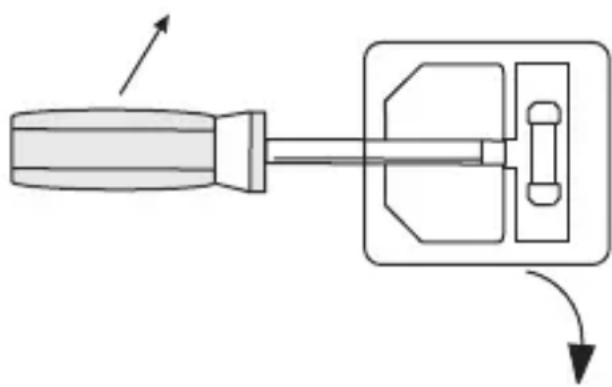

Proceed as follows to replace the mains fuse:

1. Introduction 35
2. Intended Use 36
3. Delivery content 37
4. Symbol explanation 37
5. Safety instructions 38
6. Operating elements 40
7. Software installation 40
   8.Start-up 41
8. Normal Operation 44
9. Memory Slot Operation "Preset" and "Set". 46
10. Remote Control Operation "Remote Ctrl" 49
11. Control with the PC software 53
12. Protective measures 58
    14.Maintenance and cleaning 59
    15.Troubleshooting 59
    16.Disposal 60
13. Technical data 62

1. INTRODUCTION

Dear Customer,

In purchasing this Voltcraft® product, you have made a very good decision for which we would like to thank you.

Voltcraft® - In the field of measuring, charging and network technology, this name stands for high-quality products which perform superbly and which are created by experts whose concern is continuous innovation.

From the ambitious hobby electronics enthusiast to the professional user, products from the Voltcraft® brand family provide the optimum solution even for the most demanding tasks. And the remarkable feature is: we offer you the mature technology and reliable quality of our Voltcraft® products at an almost unbeatable price-performance ratio. In this way, we aim to establish a long, fruitful and successful co-operation with our customers.

We wish you a great deal of enjoyment with your new Voltcraft® product!

All names of companies and products are trademarks of the respective owner. All rights reserved.

If there are any technical questions, contact: www.conrad.com/contact

Up-to-date operating instructions

Download the latest operating instructions at www.conrad.com/downloads or scan the QR code shown. Follow the instructions on the website.

2. INTENDED USE

The laboratory power unit serves as a potential-free DC voltage source to operate low-voltage consumers. The adjustable output can be tapped with up to 5 A at the front and up to the full nominal current at the back. The front output is limited to 5 A and protected against overload. When switching the outputs of several power supplies in series, voltages of >75V / DC , which are dangerous to touch, may be generated. This is why insulated lines/measuring cables must be used for safety reasons for voltages above this. Connection on the front is performed with 4 mm safety sockets, on the back with high-current socket screw connectors. The outputs (front and back) are connected to each other.

The connection cables used must be large enough. Where the conductor section is too small, overheating and fire may result.

The output data of the laboratory measuring devices is as follows:

Type Output voltage Output current	(Total, MAIN + AUX)
PPS 11810 1 – 18 V/DC 0 – 10 A
PPS 11360 1 – 36 V/DC 0 – 5 A
PPS 11603 1 – 60 V/DC 0 – 250 mA
PPS 13610 1 – 18 V/DC 0 – 20 A
PPS 16005 1 – 36 V/DC 0 – 10 A
PPS 11815 1 – 60 V/DC 0 – 5 A

Current and voltage can be set continually through digital rotary controls using coarse and fine settings in order to allow fast and precise value settings. The values are displayed on the structured LC display. A power limit for constant power operation can be pre-set without a shorting bar.

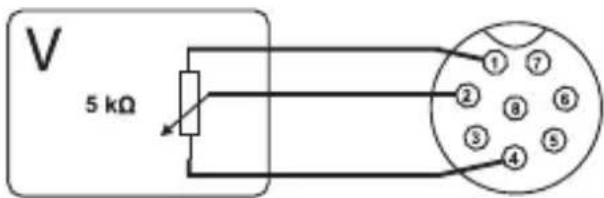

The power unit can be remote-controlled. An external voltage (0 - 5 V/DC) or external potentiometer (5 kOhm) can be used to set the output voltage and output current. The DC output is turned on and off via the a switching contact.

Three freely programmable memory slots can be assigned to different fixed voltages and current limitations. The selection switch is located at the back of the device.

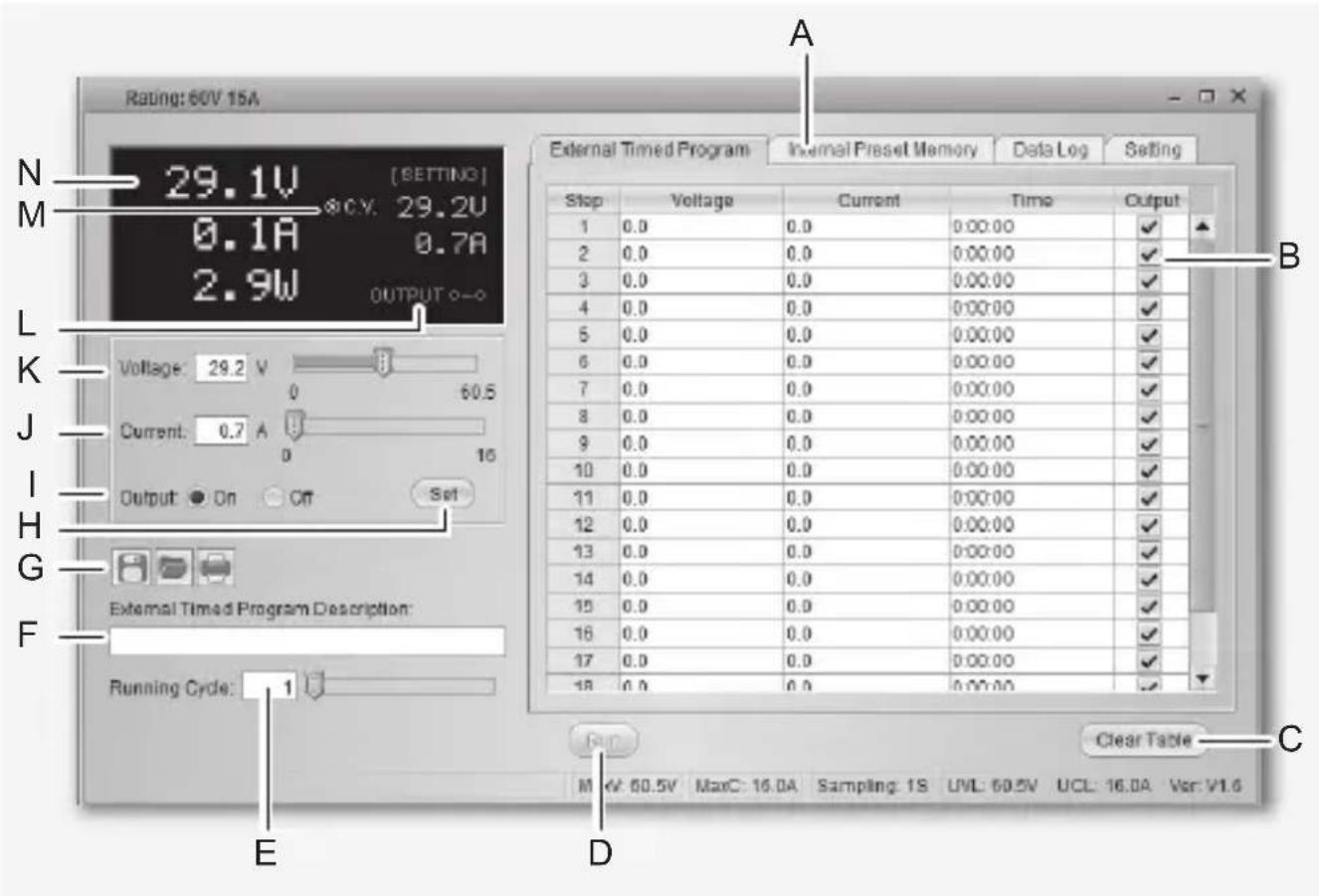

With the software included and the USB connection, the power supply can be controlled by a personal computer for running cyclical operations. Up to 20 programmable sets of voltage and current at different time durations can be programmed into the operation and the cyclical operations can be repeated up to 999 times.

The device is overload- and short-circuit-proof and contains a safety temperature cut-off. The laboratory power unit is designed in compliance with protection class 1. It is only approved for connection to shockproof sockets with protective grounding and an alternating current of 230V / AC commonly used in households.

Unauthorised conversion and/or modification of the device are inadmissible because of safety and approval reasons (CE). Any usage other than described above is not permitted and can damage the product and lead to associated risks such as short-circuit, fire, electric shock, etc. Please read the operating instructions thoroughly and keep them for further reference.

Observe all safety instructions and information within this operating manual.

3. DELIVERY CONTENT

Laboratory power unit
- Remote connection socket
- Cable with grounding contact
USB cable
- CD (software)
- Operating instructions

4. SYMBOL EXPLANATION

An exclamation mark in a triangle indicates important instructions in this operating manual which absolutely have to be observed.

The triangle containing a lightning symbol warns of danger of an electric shock or of the impairment of the electrical safety of the device.

The symbol can be found when you are to be given tips and information on operation.

Only to be used in dry indoor areas.

This product has been CE-tested and meets the required European guidelines.

Grounding wire connection; this screw may not be loosened.

5. SAFETY INSTRUCTIONS

Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/guarantee.

Persons / Product

• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. These may become dangerous playing material for children.
• Protect the product from extreme temperatures, direct sunlight, strong jolts, high humidity, moisture, flammable gases, vapours and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of operation and protect it from any accidental use. Safe operation can no longer be guaranteed if the product:

-is visibly damaged,
-is no longer working properly,
-has been stored for extended periods in poor ambient conditions or
-has been subjected to any serious transport-related stresses.

• Please handle the product carefully. Jolts, impacts or a fall even from a low height can damage the product.
• Also observe the safety and operating instructions of any other devices which are connected to the product.
• Products operated using the mains voltage must be kept out of the reach of children. For this reason, be particularly careful when using the product in the presence of children. They may try to stick objects into the device through openings in the housing. This poses a risk of death by electric shock.
• Never pour liquids over electrical appliances and never leave objects filled with liquids (e.g. vases) on it or in the vicinity. There is a high risk of fire or life-threatening electric shock.
• Operate the product in dry interior spaces only. It must not get damp or wet. Otherwise there is a risk of a life-threatening electric shock!
• In schools, training facilities, hobby or self-service workshops, handling of electrical devices must be monitored by trained personnel.
• When operating on commercial premises, the relevant accident prevention regulations of workers' compensation boards for electrical equipment must be observed.
• Live parts may become exposed when opening covers or removing parts. You must therefore disconnect the product from all power sources before performing any maintenance or repairs. Capacitors in the device can still carry a charge even if the device has been disconnected from all voltage sources.

• Always lay the cables so that nobody can trip over or become entangled in them. This poses a risk of injury.

• When working with power supplies or chargers, do not wear any metallic or conductive chains, bracelets, rings etc. Never connect the power supply or charger with humans or animals.

• Check the product for damage(s) each time before use. If you discover any damages, do not use the product. Disconnect the power supply and unplug the mains adapter from the wall outlet. Then bring the product to a specialised workshop.
• Use only a proper mains socket (230V~/50Hz) connected to the public power supply.
• Do not pull the mains adapter out of the wall outlet by its cable!
• The plug must be pulled out of the socket under the following conditions:

-before cleaning the product
-during a thunder storm
-if the product is not being used over a long period.

• Make sure that the product is provided with adequate ventilation during operation. Do not cover the ventilation openings with magazines, blankets, curtains or similar. Keep a minimum distance of approx. 15 cm from other objects.
• When setting up the product, make sure that the cable is not pinched, kinked or damaged by sharp edges.
• Make sure there are no devices with strong electric or magnetic fields such as transformers, motors, cordless telephones and radio-controlled devices in the vicinity of the product as these can influence the product.
• Do not operate the charger in places or rooms with unfavourable ambient conditions. This can damage the sensitive electronics found inside the charger and can potentially pose life-threatening risks. Poor ambient conditions are:

-High humidity (>80%) relative, condensation
-Humidity, dust, flammable gases, solvent vapours, benzine
-High ambient temperatures (> approx. +50^)

• Electromagnetic fields (motors, transformers, audio systems for model building etc.) or electrostatic fields

• The product should not be used immediately after it has been brought from an area of cold temperature to an area of warm temperature. Condensed water might destroy the product. Wait until the product adapts to the new ambient temperature before use.

Miscellaneous

• Consult an expert when in doubt about operation, safety or connection of the device.
• Maintenance, modifications and repairs are to be performed exclusively by an expert or at a qualified shop.

6. OPERATING ELEMENTS

1. LED panel meter display with C.V. (Constant voltage) and C.C (Constant current) indicator
2. Rear control indicator
3. Output voltage control knob
4. Output current control knob
5. POWER (on/off) switch
6. AUX. OUTPUT 5A MAX. (Auxiliary output terminals)
7. MAIN OUTPUT (Output terminals)
8. Mode selection switch
9. Recall selection switch
10. Remote control terminal
11. Cooling fan air intake grille
12. Power input and fuse
13. USB port

7. SOFTWARE INSTALLATION

Software is compatible with Windows® operating systems XP, 2003, Vista, 7,8

1. Insert the supplied software CD into the DVD drive of your computer.
2. Located in directory USB CP210x Drivers... install the driver (USB to UART Bridge) suitable to your operating system.
3. Copy the directory hcs from the CD to the computer's application directory or any location of your choosing.
4. Open the file hcs.exe in the directory hcs. The program starts up.

8. START-UP

The laboratory power unit is not a charger. To charge batteries, use suitable chargers with a charging current cut-off.

During a longer period of operation under nominal load, the surface of the housing will heat up. Attention! Risk of burns! Therefore, make sure that there is adequate ventilation of the power unit and never operate it partly or fully covered to avoid any damage.

When connecting a consumer, ensure that it is not connected when switched on. A switched-on consumer can result in sparks when connecting to the output terminals of the power unit, which in turn can damage the sockets or the connected cables and/or their clamps.

If your power unit is not required, switch it off and disconnect it from the mains.

The displays remain on for a few seconds after it is switched off to unload the internal capacitors and to store the last parameters that were set.

Always ensure a sufficient conductor cross-section for the DC connection lines, since overload may cause fire in the line.

Connecting the Power Cable

1. Connect the supplied grounding mains cable to the low-power device installation socket (12) on the power unit. Ensure a tight fit.
2. Connect the power cable to a shockproof mains socket with protective grounding. The maximum length of the power cable to the outlet must not exceed 2m .

Unit Installation

Place the laboratory power unit on a stable, level and robust surface. Make sure that ventilation slots in the casing are not covered up.

General Informations

The laboratory power unit is micro-processor-controlled and is operated through two digital controls (incremental encoders without end position) with sensor function. This enables fine and coarse control via a control.

After the device switches on, a system check is performed. The test status is displayed on the two displays. The displays are in the following order:

Display of the current software state.

Segment test to determine if the display works with all its individual segments. Then the LED displays "C.V.", "C.C." and "REAR CONTROL" are tested.

System test of the protective measures starts.

The over-voltage protection is tested.

The over-load protection is tested.

The over-temperature protection is tested.

Fan test The fan is shortly tested throughout the speed range.

For a short time, the fan speed increases audibly.

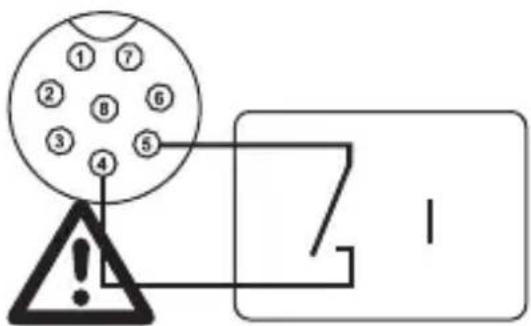

The remote control function for "output out" is tested.

After this step, the device switches to the regular operating display mode.

The power unit enables operation in 4 modes. These modes are selected by the "MODE" (8) slider on the back. The following modes are possible:

Normal Normal operation. Voltage and current are adjusted on the front.

Preset Memory slot operation Three fixed voltages can be stored in the device and directly selected through this "Preset" function. The memory slot is selected with the "RECALL" (9) slider. The front controls are inactive.

Remote Ctrl Remote control operation. The power unit can be remote-controlled via an external voltage or external potentiometer. The remote settings can be performed for voltage and current. The front controls are inactive.

Set Settings operation. The three preset slots can be programmed freely. Select the memory slot with the "RECALL" (9) slider and make the settings using the controls (3, 4).

The separate operating modes are described in more detail in the following.

Added functions

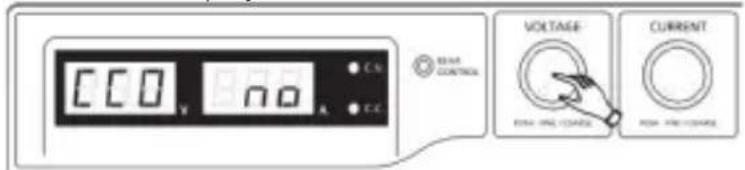

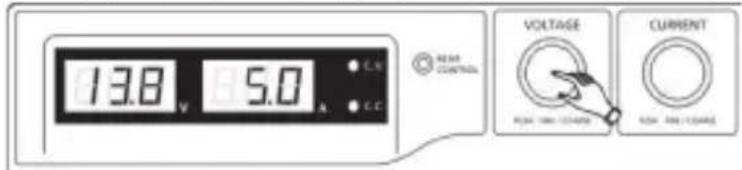

The power supply is auto-zeroed every time you turn it on. In case you need to zero the unit during operation and do not want to restart it, zero it manually.

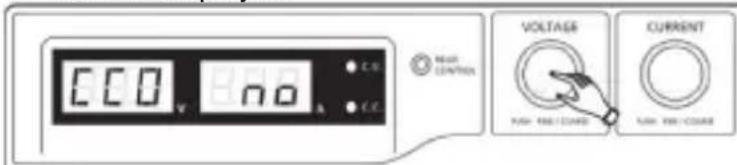

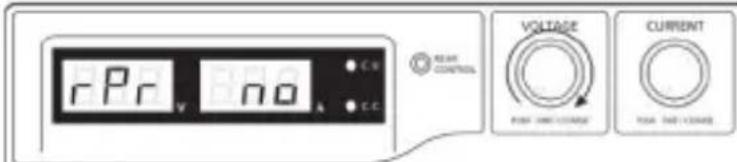

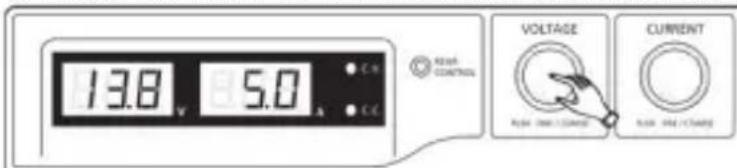

1. Press and hold the VOLTAGE control knob for approx. 30 s to enter the MENU mode. "CCO" and "no" are displayed.

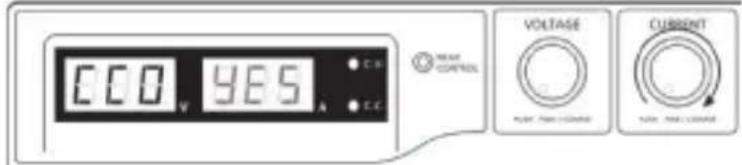

1. Rotate the CURRENT control knob until "CCO" and "YES" are displayed.

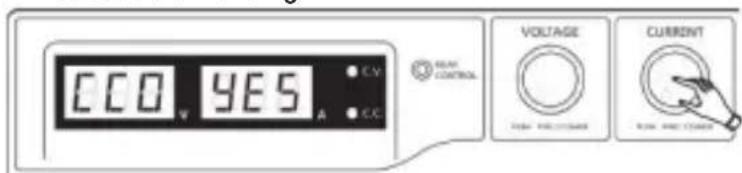

1. Press the CURRENT control knob once to zero the unit. "YES" lights up in the display to confirm successful zeroing.

1. Press the VOLTAGE control knob to exit the MENU mode.

9. NORMAL OPERATION

In normal operation, the power unit can be operated through the front controls. Ensure that the "MODE" slider is in the "Normal" position. Remove any connected consumers from output (6 or 7).

Switch on the power unit at the power switch (5). The display (1) lights up, and after a short self test, the current and voltage displays appear.

MODE

Normal

Preset

Remote Ctrl

Set

Set the current limitation before setting any voltages. If the current value is too high, your connection lines can be damaged; if it is too low (<1 A), the output voltage can be limited.

Set current limitation

Limiting the output current is a protection mechanism to protect the consumer or connection cables. Current limitation can be pre-set at the output without any short circuit. The power unit then supplies the maximum current set.

1. Remove any connected consumers from the power unit.
2. Switch on the power unit at the power switch (5). The display (1) lights up, and after a short self test, the current and voltage displays appear.
3. Set the current limitation at the "CURRENT" control (4) according to your application.
4. Turn the control and a current limitation value appears.

Where no setting is made within 3 seconds, the display switches back to the current current display.

1. Turn the control to the left or right to set the current limitation. After switching on, the fine settings area (0.1 A) is always active. This is indicated by a slightly lighter digit. Press the rotary control slightly from the front. The decimal position (1.0 or 0.1) of the setting range changes each time you press. Turning changes the value.
2. Settings can be made coarsely (whole numbers) or fine (by tenths).
3. Where the desired current value was set, the display switches back to normal display after 3 seconds.

If the preset current is reached in normal operation, the power unit switches to current limitation mode and reduces the voltage value. This operation is signalled with the red status display "C.C." (1).

Set output voltage

The output voltage can be set at the "VOLTAGE" (3) control. The coarse and fine control is performed in the same way as for setting the current limitation.

With the large control range, it is possible that the voltage setting takes approx. 1-2 seconds to switch from a high to a low voltage value.

In normal mode the device operates in constant voltage mode. This means that the power unit emits a constant, preset output voltage. This operation is indicated with a green status LED "C.V." (1).

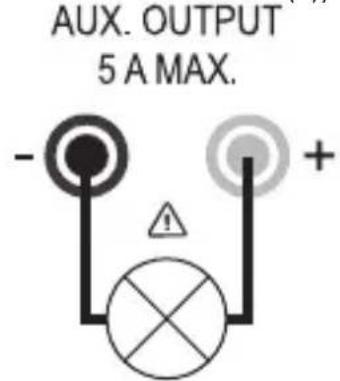

Connecting a load

When connecting a consumer, make sure that it is connected to the power unit when switched off. The maximum current consumption of the device to be connected must not exceed the capacity indicated in the technical specifications.

For serial connection of the outputs with several power supplies, the resulting voltages can be fatal on contact ( >75V / DC ). As of this voltage, you may only use insulated accessories.

Avoid the use of non-insulated metallic cables and contacts. All these exposed areas must be covered with suitable, flame-resistant insulation materials or by other measures and be protected from direct contact and short circuits.

Ensure a sufficient cable diameter for the intended current.

The power unit has two outputs. These outputs always have the same output voltage. The difference, however, is in the current carrying capacity.

At the front sockets (6), only a current of max. 5 A can be tapped. An automated current limitation is integrated.

The screw sockets on the back are indicated for full nominal current. From an output current of 20 A, the screw clamp function of the rear sockets is recommended to avoid overheating of the plug sockets.

1. Remove any connected consumers from the output.
2. Switch on the power unit at the power switch (5). The operating display (1) lights up and the current and voltage display appears on the display.
3. Set the parameters according to your specifications as described in the chapter "Start-Up".
4. Check once more that the correct output voltage is set.

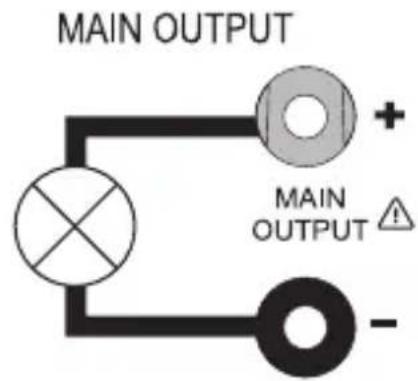

5. Connect the plus pole (+) of the consumer with the red socket "+" and the minus pole (-) of the consumer with the black socket "-" of the respective output (front = "AUX. OUTPUT" (6), rear = "MAIN OUTPUT"(7)).

Now you can switch on the connected consumer.

The current consumption of the connected consumer is displayed in Ampere (A) in the display (1).

10. MEMORY SLOT OPERATION “PRESET” AND “SET”

Three fixed voltages, including current settings, can be stored in the device with the "Set" function and directly selected through the "Preset" function.

Ex works, all three memory slots (P1, P2, P3) are preset.

They are assigned as follows:

Memory Type	P1 P2 P3
	Voltage Current Voltage		Current Voltage	Current
PPS 11810	5 V	Maximum	13.8 V	Maximum	15 V	Maximum
PPS 11360	5 V	Maximum	13.8 V	Maximum	25 V	Maximum
PPS 11603	5 V	Maximum	13.8 V	Maximum	55 V	Maximum
PPS 13610	5 V	Maximum	13.8 V	Maximum	15 V	Maximum
PPS 16005	5 V	Maximum	13.8 V	Maximum	25 V	Maximum
PPS 11815	5 V	Maximum	13.8 V	Maximum	55 V	Maximum

Make sure that no consumers are connected.

The memory can also be set via the software provided, check the chapter CONTROL WITH THE PC SOFTWARE.

1. Activate the "Preset" function through the "MODE" (8) slider on the rear.
2. Put the switch in the "Preset" position. The front LED display "REAR CONTROL" (2) lights up. The front rotary controls are now inactive.
3. Select the respective memory slot "P1, P2 or P3" on the rear slider "RECALL" (9). The respective output voltage is indicated on the display (1).
4. Now you can connect and switch on the consumer.
5. For deactivating the fixed voltage function, slide the "MODE" (8) slider back to the "Normal" position. The LED display "REAR CONTROL" (2) goes out. The device switches back to normal power unit operation (always remove DC consumers before!).

Assigning memory slots with "Set"

All three memory slots can be assigned user-specific values for output voltage and current limitation.

Make sure that no consumers are connected.

1. Activate the "Set" function through the "MODE" (8) slider on the rear. Put the switch in the "Set" position. The front LED display "REAR CONTROL" (2) lights up.
2. Select the respective memory slot "P1, P2 or P3" on the rear "RECALL" (9) slider. The respective values for current and voltage are indicated on the display (1).
3. The front rotary controls (3 and 4) can be used to set the desired output voltage and current limitation.
4. If required, repeat these steps with the other memory slots.
5. When all parameters are set, slide the "MODE" (8) slider back to the "Preset" position for fixed voltage operation or to the "Normal" position for standard operation.

Resetting output presets (P1/P2/P3) to factory default values

The power supply allows for presetting three voltage values (including current settings) by means of three memory slots: P1, P2, and P3. In case you want to reset the memory slots to the factory default values during operation, do the following.

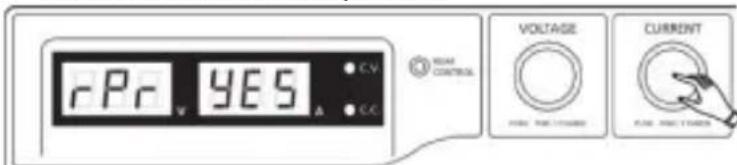

1. Press and hold the VOLTAGE control knob for approx. 30 s to enter the MENU mode. "CCO" and "no" are displayed.

1. Rotate the VOLTAGE control knob until "rPr" and "no" are displayed.

1. Rotate the CURRENT control knob until "rPr" and "YES" are displayed.

1. Press the CURRENT control knob once to reset the preset values. "YES" lights up when the values have been successfully reset.

1. Press the VOLTAGE control knob to exit the MENU mode.

Reset to memory slots to default settings

1. Switch off the power unit.
2. Press the two rotary controls on the front at the same time and keep them pressed.
3. Switch on the power unit. When the displays light up, let go of both rotary controls. The default settings for the parameters are active again.

11. REMOTE CONTROL OPERATION “REMOTE CTRL”

Through the built-in "Remote control" connection (10), the voltage and current can be set through an external voltage source or an external adjustable resistance (short "poti"). The remote control is connected on the rear "Remote Control" built-in plug (10). There is a remote socket included for connection.

In remote-controlled operation, the current control path must also be connected, since the output otherwise switches to the current limitation mode "C.C." and limits the output voltage.

Preparation of the remote control connection

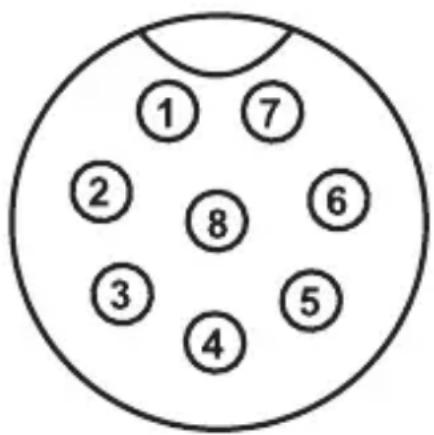

1. Turn the lateral screw of the supplied socket and remove the front, black contact socket turning it slightly.
2. Draw five connecting cables with a conductor cross-section of at least 0.34mm^2 through the metal sleeve from the rear. Carefully solder these cables to the soldering lugs nos.1, 2, 3, 4 and 5 of the black contact socket. Ensure that no short circuits are created.

The numbers of the soldering lugs are indicated on the black insulator.

Mark the loose ends of the cables with the corresponding contact numbers (1-5) to avoid confusion. Insert the black contact jack in the reverse order into the metal sleeve and screw them tight.

The contacts are assigned as follows:

Contact 1 Internal control voltage + 5 V/DC (<50 mA)

Contact 2 Voltage setting

Contact 3 Current setting

Contact 4 Reference ground ("Ground")

Contact 5 Output on / off

Contact 6 - 8 Not assigned

Control through external voltage source

The power unit can be remote-controlled with an external voltage source from 0 to 5 V/DC throughout the range for voltage and current.

Proceed as follows for connection:

Connect the connecting cables of the remote sockets as illustrated:

Voltage setting "V"

• Connection 2 to the plus pole (+) of the external control voltage.
• Connection 4 to the minus pole (-) of the external control voltage.

Current setting "l":

• Connection 3 to the plus pole (+) of the external control voltage.
• Connection 4 to the minus pole (-) of the external control voltage

The voltage on the remote control connection must not exceed 5V The connections must not be shorted.

1. Switch off the power unit and then connect the remote socket to the rear remote connection. Screw on the external fastening ring.
2. Turn the voltage of the external voltage source to 0V
3. Switch on the power unit.
4. Put the MODE switch (8) on the rear into the "Remote Ctrl" position. The "REAR CONTROL" (2) display is lit.
5. The desired output value can now be set through the external voltage source. Control the complete adjustment area for correct function. The output voltage can be monitored in the display.

Short-circuit the rear main output (7) with a sufficiently thick cable for checking the current control (at least 8mm^2 ). Check the entire setting for proper operation.

If this remote control function is no longer required, put the MODE switch (8) to the "Normal" position.

Control through a controllable resistance (poti)

The power unit can be remote-controlled with an external poti (5 Kohm) throughout the range for voltage and current.

Proceed as follows for connection:

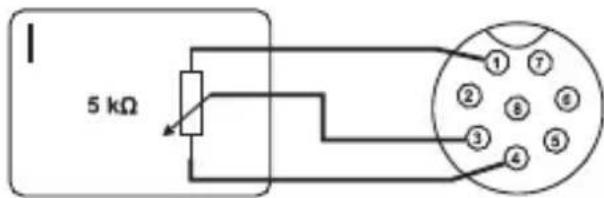

Connect the connecting cables of the remote sockets as illustrated.

Voltage setting "V"

• Connection 1 at one end of the resistance.
• Connection 2 at the centre sliding contact of the resistance.
• Connection 4 at the second end of the resistance.

Current setting "l":

• Connection 1 at one end of the resistance.
• Connection 3 at the centre sliding contact of the resistance.
• Connection 4 at the second end of the resistance.

Connections 1 and 4 must not be short-circuited.

1. Switch off the power unit and then connect the remote socket to the rear remote connection. Screw on the external fastening ring.
2. Switch on the power unit.
3. Put the MODE switch (8) on the rear into the "Remote Ctrl" position. The "REAR CONTROL" display is lit.
4. The desired output values can now be set through the external poti. Control the complete adjustment area for correct function. The output voltage can be monitored in the display.

Short-circuit the rear main output (7) with a sufficiently thick cable for checking the current control (at least 8mm^2 ). Check the entire setting for proper operation.

If this remote control function is no longer required, put the MODE switch (8) to the "Normal" position.

Remote-control output (on/off)

The DC output can be turned on and off via the a switching contact.

Proceed as follows for connection:

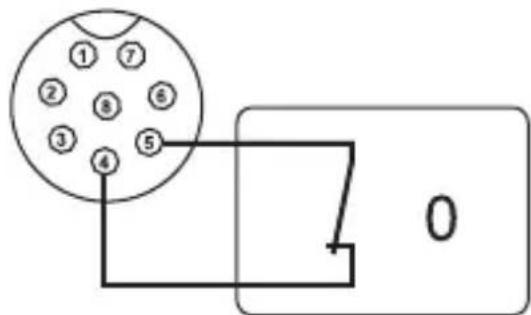

1. Connect the connecting cables of the remote sockets as illustrated.
2. Contact connections 4 and 5 with an isolated switching contact.
3. When the output is turned off, the status displays "C.V." and "C.C." (1) will flash. The display will then show the current settings of the output voltage and the output current (1).
4. When the output is turned off, you can set the output values with the controls for voltage (3) and current limiting (4).

No voltage must be applied to contacts 4 and 5.

1. Switch off the power unit and then connect the remote socket to the rear remote connection. Screw on the external fastening ring.
2. Switch on the power unit.
3. Put the MODE switch (8) on the rear into the "Remote Ctrl" position. The "REAR CONTROL" display is lit.
4. If the switching contact is open, the DC output is active; if it is closed, the DC output is switched off. Check the switching function for correct function.
5. When the DC output is switched off, "O P OFF" is displayed.
6. If this remote control function is no longer required, put the MODE switch (8) to the "Normal" position.

12. CONTROL WITH THE PC SOFTWARE

1. Set selection switch MODE into position Normal.
2. Connect the power supply with the USB cable to a USB hub on your computer. Connect the USB cable to the USB port on the rear.
3. Turn the power supply on.
4. Start the program with the hcs.exe file. After start-up the power supply is controlled via the program.
5. The control indicator REAR CONTROL lights up. The power supply no longer registers inputs by the front control knobs.

Operating elements of the software and the basic operation

A Function tabs Switch the function of the window on the right-hand side between:

• External timed program (External Timed Program)
• Internal preset memory (Internal Preset Memory)
  Data log (Data Log)
• Setting (Setting)

B Data entry table The data entry field for the external timed programming function.

The maximum number of actions is 20.

C Clear Table Clear all the data in the data entry table for the external timed programming function.
D Run / Stop	Run (Run) / Stop (Stop) the external timed program according to the values in the data entry table.
E Running Cycle The number of cycle that the timed program is going to run. The value is valid from 0 - 999, where 0 means an infinite cycle.
F Table Description A text field for entering a table description.
G File management	Export table/settings as .csv file.Import .csv formatted table/settingsPrint current view
H Transfer settings Transfer set voltage and current to power supply.
I Output on/off	Activate/deactivate power supply. Confirm input with button (H).The LED display displays “O P OFF”.
J Current The field where you can program the current to the power supply. After inputting the value, press the enter button (H) to transfer the settings to the power supply. Optionally, you may set the current by the slider.
K Voltage The field where you can program the voltage to the power supply. After inputting the value, press the enter button (H) to transfer the settings to the power supply. Optionally, you may set the voltage by the slider.
L Output on/off Activate/deactivate power supply. Click on the control. While the output is deactivated the LED display displays “O P OFF”.
M Settings You can read the voltage setting and current limitation of the power supply.
N Status You can read the present voltage, current and power output of the power supply. “C.V” is equivalent to the C.V. indicator; “C.C.” is equivalent to the C.C. indicator.

Internal preset memory

You can read, set and apply the preset memory of the power supply via the software.

• The preset values are loaded into the software automatically, but if not, press the button Read From PS button to load the information.
• If you want to use either of the preset values, select the corresponding option. Then press the button Set.
• If you want to change the preset values, double-click on voltage (Voltage) or current field (Current) and set the desired values with the sliders.
  The set values for voltage and current must be >0.0 (larger than zero) in order for you to transfer the settings to the power supply via the button Set.
• If you want to clear the table, press the button Clear Table.

With the buttons for file management (G) you can import, export or print the settings.

Data log

You can see the real-time/recorded voltage-current-power chart in this function.

With the buttons for file management (G) you can import, export or print the settings.

• Switch between recorded diagram (Import) and the real-time diagram (Now) by selecting the corresponding option in the left bottom corner.
• Shift the diagram by time with the slider Move.
• Proportionally resize the diagram with the slider Zoom.
• Read voltage, current und power consumption from the diagram. These three units are colour-coded and can easily be distinguished by the legend.

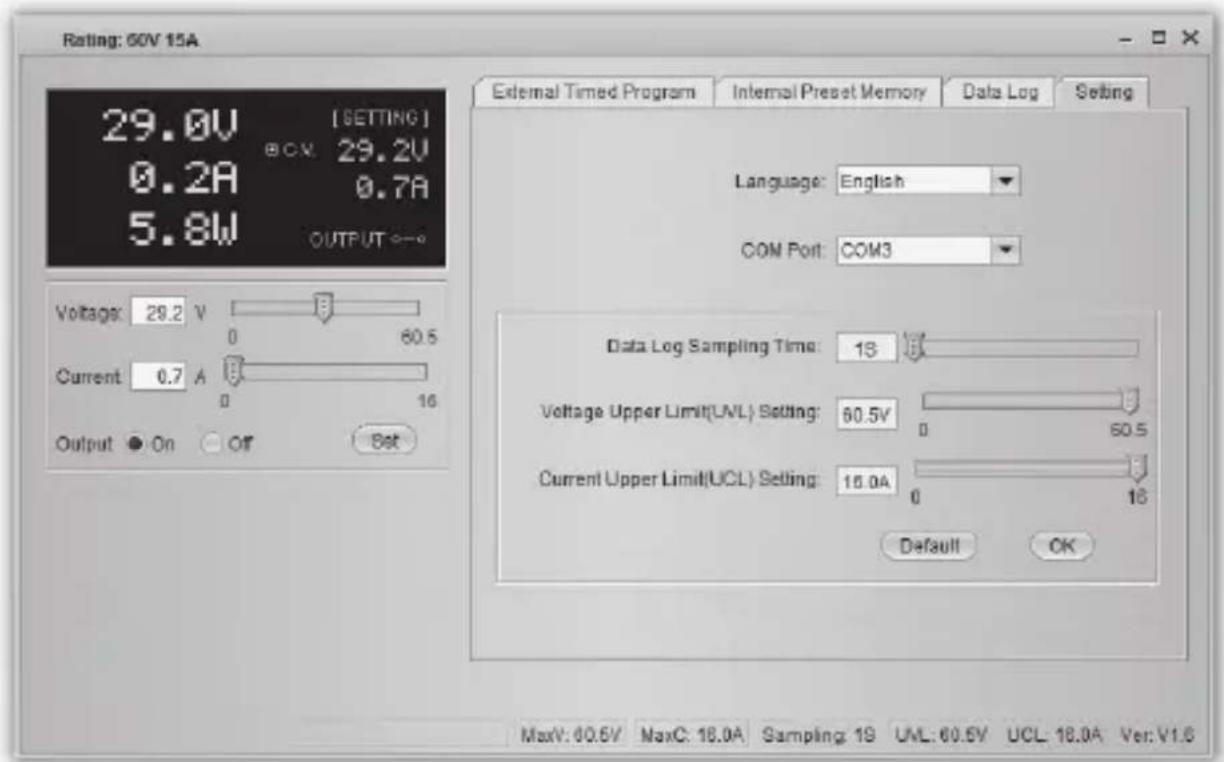

Setting

Language Choose software language.

COM Port The connection between the personal computer

and the power supply. It is automatically configured during software launch and not recommended to be changed manually.

Data Log Sampling Time The time interval between each sampling.

Voltage Upper Limit (UVL) Setting Limit the voltage output from the software side.

Current Upper Limit (UCL) Setting Limit the current output from the software side.

• Press the OK button to save the setting.
• Press the Default button to set it back to the default settings.

13. PROTECTIVE MEASURES

The power unit has several integrated automatic protective measures that protect the power unit from damage. The activated protective measures are displayed with letter codes and the DC output is switched off for safety reasons at the same time.

When a protective measures is active, the consumer must be switched off and disconnected from the power unit immediately.

To reactivate the output, switch off the power unit. Wait until all displays have gone out. Switch on the power unit again. The power unit should work normally again. Where this is not the case, please contact our customer service.

The following displays are possible:

Over-voltage Protection

• A higher external voltage than provided by the power unit was determined at the DC output. The output is switched off.
• The current levels for switching off are listed in the technical data.

Overheating Protection

• The integrated temperature sensor determined that the system temperature is too high. To prevent overheating, the output is switched off.
• Turn off the power unit and let it cool down for at least 30 minutes. After switching it on, check if the fan or ventilation apertures are blocked. During the start-up self-test stage, the fan must start up audibly. Where this is not the case, please contact our customer service.

Overload Protection

• In case of overload at the DC output, the power limitation is usually switched on. If this is not the case, the second protective function becomes active.
• Switch off the power unit at once when this warning message appears and check the connection data of the consumer. Remove the consumer from the power unit's DC output.
• Switch on the power unit again and check its function. If the error message remains on, please contact our customer service.

14. MAINTENANCE AND CLEANING

• Unplug the product from the power source.
• Apart from an occasional cleaning or exchanging the fuse, this laboratory power unit is maintenance free.
• Use a clean, lint-free, antistatic and dry cloth to clean the device. Do not use any abrasive or chemical agents or detergents containing solvents.

Exchanging the fuse

If it is no longer possible to switch on the laboratory power unit, the rear mains fuse (12) is probably defective.

Proceed as follows to replace the mains fuse:

1. Switch off the power unit and remove all the connection cables and the mains plug from the device.
2. Lever the rear fuse holder (12) with a suitable screwdriver from the bracket.
3. Replace the defective fuse with a new fine-wire fuse (5 × 20 ~mm) of the same type and rated current. The fuse value is listed in the chapter on "Technical Data".
4. Press the fuse into the fuse holder.

Fuses are replacement parts and not covered by the warranty/guarantee.

15. TROUBLESHOOTING

By purchasing the laboratory power unit, you have acquired a product that is reliable and operationally safe.

Nevertheless, problems or errors may occur.

For this reason we want to describe how to troubleshoot potential malfunctions:

Always follow the safety instructions!

Error Possible cause
The power unit cannot be switched on.	• Does the operating display (1) on the power unit light up? • Check the mains voltage (you may also want to check the mains fuse in the device or the line circuit breaker).
Connected consumer devices do not work.	·Is the voltage set correctly? ·Is the polarity correct? ·Check the technical data of the consumers.
The “REAR CONTROL” display is lit. The device can not be operated via the rotary controls.	Remote control operation is active. Put the rear “MODE” slider into the “Normal” position.
The “O P PFF” display is lit.	The DC output was switched off through the remote control output (10). Release the connection between contacts 4 and 5. The output is switched on again.
The output current is limited to 5 A, although the current settings are higher.	The output current is limited to 5 A. For higher currents, connect the consumer to the rear main output.
The “C.C.” LED is lit. Constant current operation: The preset current was exceeded. Check power consumption on your consumer and increase the current limitation on your power unit, if applicable.
The “C.V.” LED is lit. Constant voltage operation: The power unit works normally. The output provides the constant voltage set.
OVP Over-voltage protection:	See chapter PROTECTIVE MEASURES.
OtP Overheating protection:	See chapter PROTECTIVE MEASURES.
OLP Overload-protection:	See chapter PROTECTIVE MEASURES.

Repairs other than those described above may only be carried out by an authorised specialist.

16. DISPOSAL

This symbol must appear on any electrical and electronic equipment placed on the EU market. This symbol indicates that this device should not be disposed of as unsorted municipal waste at the end of its service life.

Owners of WEEE shall dispose of it separately from unsorted municipal waste. Spent batteries and accumulators, which are not enclosed by the WEEE, as well as lamps that can be removed from the WEEE in a non-destructive manner, must be removed by end users from the WEEE in a non

destructive manner before it is handed over to a collection point.

Distributors of electrical and electronic equipment are legally obliged to provide free takeback of waste. Conrad provides the following return options free of charge (more details on our website):

in our Conrad offices
- at the Conrad collection points
- at the collection points of public waste management authorities or the collection points set up by manufacturers or distributors within the meaning of the ElektroG

End users are responsible for deleting personal data from the WEEE to be disposed of. It should be noted that different obligations about the return or recycling of WEEE may apply in countries outside of Germany.

1. TECHNICAL DATA

	PPS 11810 PPS 11360 PPS 11603
Operating voltage: 100 – 240 V/AC, 50/60 Hz
Max. input current (230 V/AC, 100 V/AC): 1.2	A / 2.4 A 1.2 A / 2.5	A 1.0 A / 2.0 A
Maximum output power: 180 W 180 W 150 W
Output voltage: 1 – 18 V/DC 1 – 36 V/DC 1 –	60 V/DC
Output current: 0 – 10 A 0 – 5 A 0 – 2500 mA
Residual ripple at nominal load:	5 mV, 30 mA
Voltage control response at 10 – 100 %load change:	50 mV
Voltage control response at mainsfluctuation (90 – 260 V/AC):	20 mV
Current control response at 10 – 90 % loadchange:	100 mA
Current control response at mainsfluctuation (90 – 260 V/AC):	50 mA
Display accuracy:	±0.2% +3 dgt
OVP switch-off level of the V output:	+2 V (1 – 5 V)	+2 V (1 – 5 V)	+2 V (1 – 5 V)
	+3 V (5 – 18 V)	+3 V (5 – 20 V)	+3 V (5 – 20 V)
		+4 V (20 – 36 V)	+4 V (20 – 60 V)
Degree of effectiveness:	84.7 %	85.9 %	86 %
Clock signal:	100 – 120 kHz
Performance factor with active PFC:	>0.95
Device fan:	Temperature controlled (0 – 100 %)
Mains fuse slow-blow (5 x 20 mm):	F6AL250V
Operating temperature:	0 to +45 °C
Operating humitiy:	10 – 80 %, non-condensing
Storage temperature:	-15 to +70 °C
Storage humidity:	0 – 85 %, non-condensing
Operating altitude:	max. 2000 m above mean sea level
Safety class:	1
Weight:	2.4 kg
Dimensions (W x H x D):	200 x 90 x 208 mm
	PPS 13610 PPS 16005 PPS 11815
Operating voltage: 100 - 240 V/AC, 50/60 Hz
Max. input current (230 V/AC, 100 V/AC): 2.1	A / 4.6 A 2.1 A / 4.6 A 1.7 A / 3.8 A
Maximum output power: 360 W 360 W 300 W
Output voltage: 1 - 18 V/DC 1 - 36 V/DC 1 -	60 V/DC
Maximum output current: 0 - 20 A 0 - 10 A 0 -	-5 A
Residual ripple at nominal load (eff): 5 mV, 30 mA
Voltage control response at 10 - 100 %load change	50 mV
Voltage control response at mainsfluctuation (90 - 260 V/AC):	20 mV
Current control response at 10 - 90 % loadchange:	100 mA
Current control response at mainsfluctuation (90 - 260 V/AC):	50 mA
Display accuracy: ±0.2% +3 dgt
OVP switch-off level of the V output:	+2 V (1 - 5 V) +3 V (5 - 18 V)	+2 V (1 - 5 V) +3 V (5 - 20 V) +4 V (20 - 36 V)	+2 V (1 - 5 V) +3 V (5 - 20 V) +4 V (20 - 60 V)
Degree of effectiveness: 82.5 % 82.9 % 83.3 %
Clock signal:	100 - 120 kHz
Performance factor with active PFC:	>0.95
Device fan:	Temperature controlled (0 - 100 %)
Mains fuse slow-blow (5 x 20 mm):	F6AL250V
Operating temperature:	0 to +45 °C
Operating humitiy:	10 - 80 %, non-condensing
Storage temperature:	-15 to +70 °C
Storage humidity:	0 - 85 %, non-condensing
Operating altitude:	max. 2000 m above mean sea level
Safety class:	1
Weight:	2.4 kg
Dimensions (W x H x D):	200 x 90 x 208 mm

Chere cliente, cher client,

France (email): [e-mail]

Stroominstelling "I":

Stroominstelling "I":
