USER MANUAL FCLD 150 BK Fulgor Milano

FULGOR MILANO
LD12 LD15 CD12 CD15 FUD 120 FUD 150 FD 150 FCLD 150
CASSETTO	IT ISTRUZIONI PER L'INSTALLAZIONE E L'uso
DRAWER	EN INSTRUCTIONS FOR INSTALLATION AND USE
TIROIR	FR INSTRUCTIONS POUR L'INSTALLATION ET L'UTILISATION
SHUBLADE	DE INSTALLATION UND GEBRAUCH
CAJON	ES INSTRUCCIONES PARA LA INSTALACION Y USO
GAVETA	PT INSTRUÇÉS DE INSTALAÇÃO E UTILIZAZão

Caro CLIENTe,

we would like to thank you and congratulate you on your choice.

This new product has been carefully designed and built using top quality materials, and meticulously tested to ensure that it meets all your culinary requirements.

Please read and observe these simple instructions, which will enable you to achieve excellent results from the very first time you use it. This state-of-the-art appliance comes to you with our very best wishes.

THE MANUFACTURER

Italiano

English

Français

Deutsch

Espanol

Portugués

THIS PRODUCT IS DESIGNED FOR DOMESTIC USE. THIS APPLIANCE IS INTENDED FOR DOMESTIC AND SIMILAR USE, SUCH AS:

• IN THE STAFF KITCHEN AREAS OF STORES, OFFICES AND OTHER WORKPLACES;
• IN FARMHOUSES;
• FOR USE BY HOTEL AND MOTEL GUESTS AND OTHER PROFESSIONAL ENVIRONMENTS;
• IN BED-AND-BREAKFASTS.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGES TO THINGS OR PEOPLE DERIVING FROM INCORRECT INSTALLATION OR IMPROPER, ERRONEOUS OR

UNSUITABLE USE.

THE APPLIANCE MUST NOT BE USED BY PEOPLE (INCLUDING CHILDREN) WITH PHYSICAL, SENSORIAL OR MENTAL IMPAIRMENTS, OR BY PEOPLE WITHOUT THE NECESSARY EXPERIENCE OR KNOWLEDGE, UNLESS THEY ARE SUPERVISED OR INSTRUCTED IN THE USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY. CHILDREN MUST BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.

Table of Contents

1. PRECAUTIONS
2. INSTRUCTIONS FOR RECYCLING - PROTECTION OF THE ENVIRONMENT
3. SAFETY INSTRUCTIONS
4. APPLIANCE DESCRIPTION
5. BEFORE YOU BEGIN
6. USING YOUR WARMING DRAWER
7. APPLIANCE INSTALLATION

CONSUMER INSTRUCTIONS: Includes recommendations for use, description of commands and correct procedures for the care and clearing of the appliance.

INSTALLATION INSTRUCTIONS: Use intended for qualified technicians.

1. PRECAUTIONS

This manual is an integral part of the appliance.

Take care of it and keep it within reach for the entire life of the object-holder drawer.

Read these instructions before installing and using the appliance. Installation should be performed by qualified personnel only, in conformity with current law. This appliance is intended for domestic use only in conformity with current EEC directives. The manufacturer will not be held liable in the event of a failure to follow THESE WARNINGS AND SAFETY INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE APPLIANCE. IF THE APPLIANCE SHOULD BE GIVEN TO ANOTHER PERSON MAKE SURE THESE INSTRUCTIONS ARE SUPPLIED WITH IT.

DO NOT DISPOSE OF MATERIALS IN THE HOME. SORT THE VARIOUS MATERIALS BY CLASSIFICATION AND DISPOSE OF THEM PROPERLY.

THE IDENTIFICATION PLATE BEARING THE TECHNICAL DATA, SERIAL NUMBER AND BRAND IS LOCATED IN A PROMINENT POSITION AT THE BOTTOM OF THE EXTRACTABLE DRAWER. NEVER REMOVE THE DATA LABEL.

WARNING! NEVER USE SHARP METAL OBJECTS OR ABRASIVE SCRUBBING PADS THAT COULD CAUSE DAMAGE TO THE SURFACE OF THE APPLIANCE. IF NECESSARY, USE STANDARD NON-ABRASIVE UTENSILS MADE OF WOOD OR PLASTIC.

2. INSTRUCTIONS FOR RECYCLING

- PROTECTION OF THE ENVIRONMENT

Our products are made solely from non-polluting materials that do not harm the environment and are recyclable. We ask for your effort and collaboration in disposing of the packaging in a proper manner. Contact the product retailer or local organizations for further information on recycling. Dispose of the packaging properly. Parts of the package especially plastic, pose a risk for children.

Your old appliance must also be disposed of properly.

Important: consign the appliance to the proper local organization authorized to collect broken appliances. Proper and intelligent disposal consists of recovering materials of value.

3 SAFETY INSTRUCTIONS

THIS APPLIANCE IS INTENDED FOR DOMESTIC USE ONLY! FOLLOW THESE INSTRUCTIONS TO AVOID DAMAGING THE APPLIANCE OR CREATING DANGEROUS SITUATIONS:

• Do not lean or sit on the warming drawer when opened, this could cause damage to the telescopic guide. The maximum carrying weight of the warming drawer is 10kg .

CLEANING:

• Never use a vacuum cleaner. The vacuum may also damage the surface and the components of the appliance: damages for which the manufacturer will not be liable.
• For cleaning the appliance we recommend following the suggestions listed under "Cleaning and Maintenance" of the manual.

REPAIRS:

• ATTENTION! Maintenance work and/or repairs must be performed exclusively by specialized personnel. Incorrect installation and maintenance can cause personal injury to the consumer for which the manufacturer will not be liable.
• ATTENTION! During the warranty period, the appliance may only be serviced by technicians authorized by the manufacturer or the warranty will be void.
• WARNINGS! The manufacturer will not be liable for injury or property damage caused by a failure to follow the above rules or caused by tampering with even part of the appliance and the use of non-original spare parts.

4. INSTRUCTIONS FOR THE CONSUMER

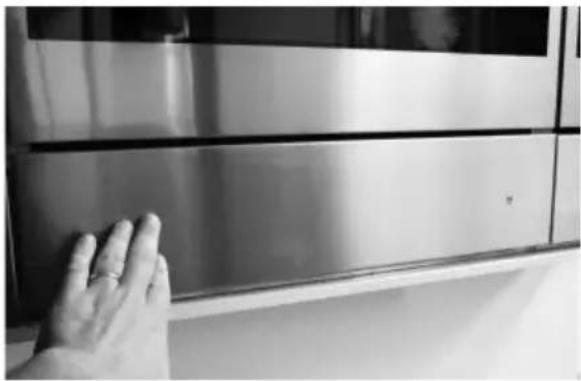

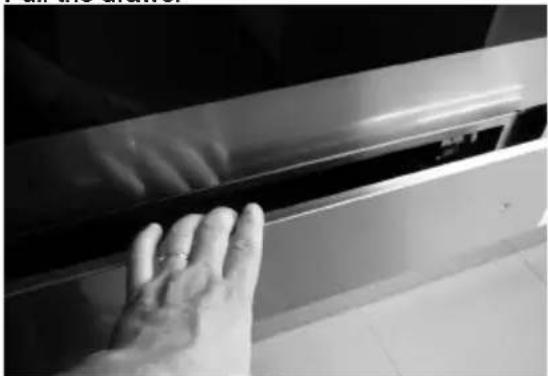

4.0 OPENING OF THE DRAWER

To open the drawer press the front of the drawer

(fig. A)

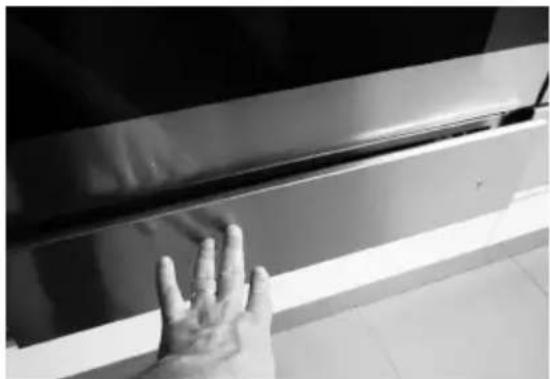

Grasp the handle

(fig.B),

Pull the drawer

(fig.C)

towards you until it is opened completely.

4.1 CLOSING THE DRAWER

To close the drawer, gently push the drawer back, pushing the front until it has completely gone back. Release the handle.

5. BEFORE YOU BEGIN

Do not leave parts of the packaging in the home. Separate the remaining packaging materials by category and deliver them to your nearest recycling center.

Before using the appliance for the first time, gently clean it with a moist cloth and dry it completely as described under "Cleaning and Maintenance".

6 CLEANING AND MAINTENANCE

Generally speaking, cleaning is the only form of maintenance necessary.

Warning! Do not use harsh detergents or abrasive products and/or scrubbing pads and sponges and sharp objects as they can stain and damage the appearance of the appliance.

Warning! Never use a vacuum cleaner on the internal parts of the appliance.

6.1 Front

The use of a moist cloth is sufficient when cleaning the appliance. In the event the appliance requires further cleaning, add drops of detergent in the water. Dry the appliance with a dry cloth. The stainless steel front of the object-holder drawer can be cleaned with special cleaners for that purpose. Such products prevent the formation of dirt on the surface of the drawer. Apply a minimal amount of the product on a soft and apply it to the surface of the appliance.

6.2 Inside Space

To clean the inside space use a moist cloth. In the event the appliance requires further cleaning add drops of detergent to the water. Dry the surface with a dry cloth.

7 APPLIANCE INSTALLATION

7.1 Before you begin installation

Open the drawer and remove all accessories and packing materials.

Attention! The front of the drawer may be covered with a protective coating over it. Carefully remove the protection before using the object-holder drawer, starting to detach it from below. Make sure that the drawer is not damaged. Be certain that the drawer closes properly. In case of damage, contact the Service Department.

The object-holder drawer can only be built-in on appliances specified by the manufacturer. The manufacturer does not guarantee the operation of the appliance if materials from a different manufacturer have been used. The manufacturer is not responsible for damage caused by improper use.

7.2 Proceed

Before installing the object-holder drawer and the appliance combined with it, provide a fixed intermediate shelf in the cabinet with the capacity to support both appliances.

The combined appliance is then positioned without further intermediate shelves directly on the built-in object-holder drawer.

For the combined, built-in appliance, absolutely follow the instructions for use and assembly.

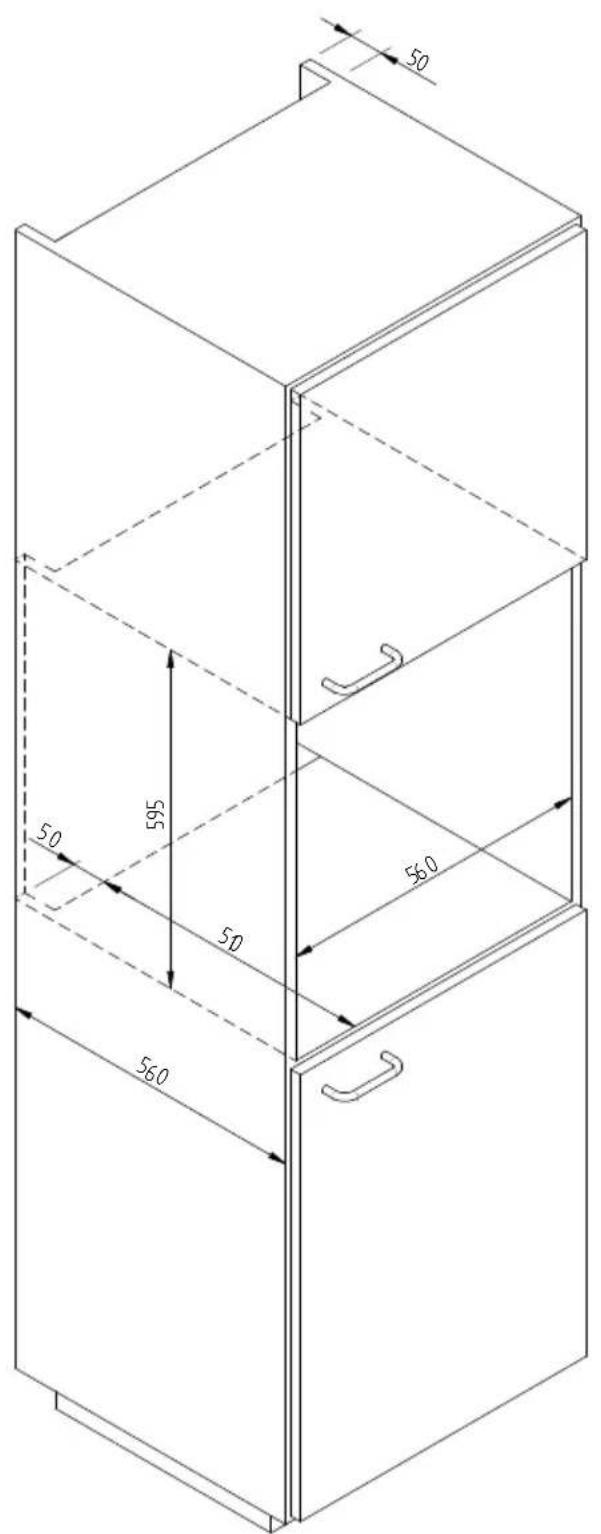

The main dimensions for the built-in appliance are indicated in mm and shown on the installation diagram. For installation proceed as follows:

1. place the drawer of the cabinet so that it is well centred and aligned;
2. make sure that the frame perfectly adheres to the cabinet;
3. open the drawer and fasten the housing to the walls of the cabinet with the two screws provided.

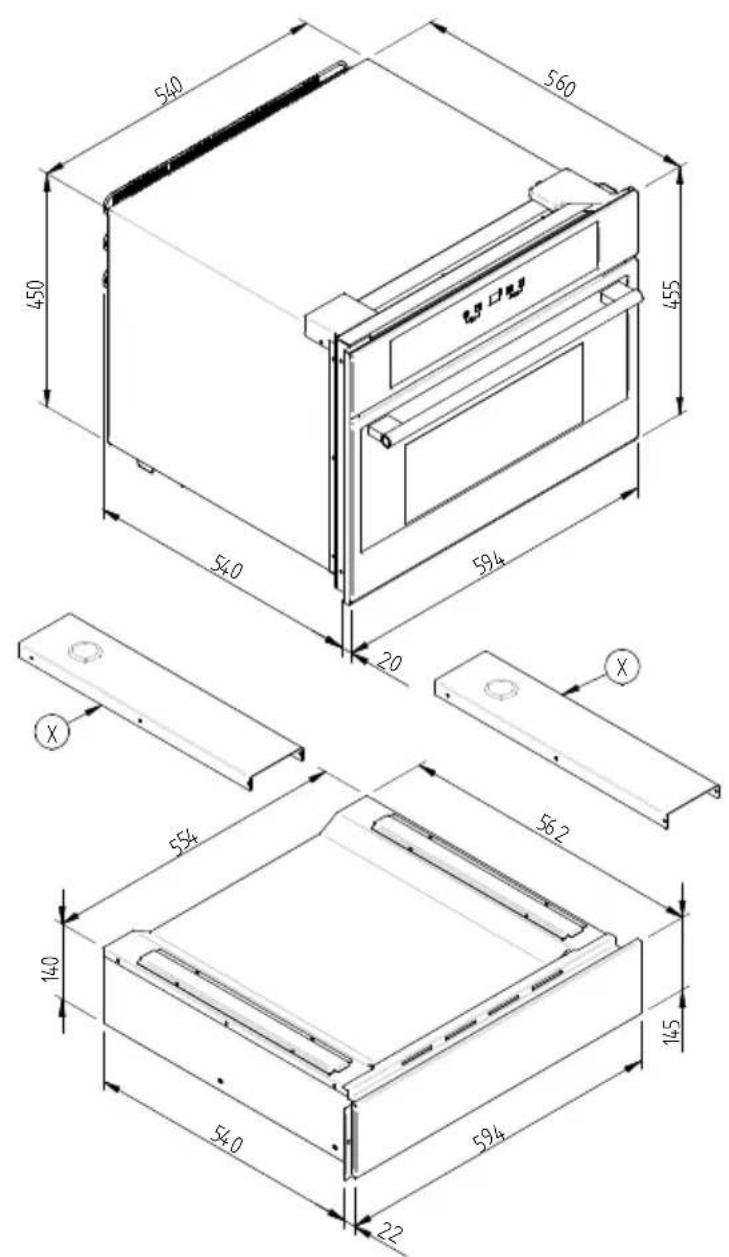

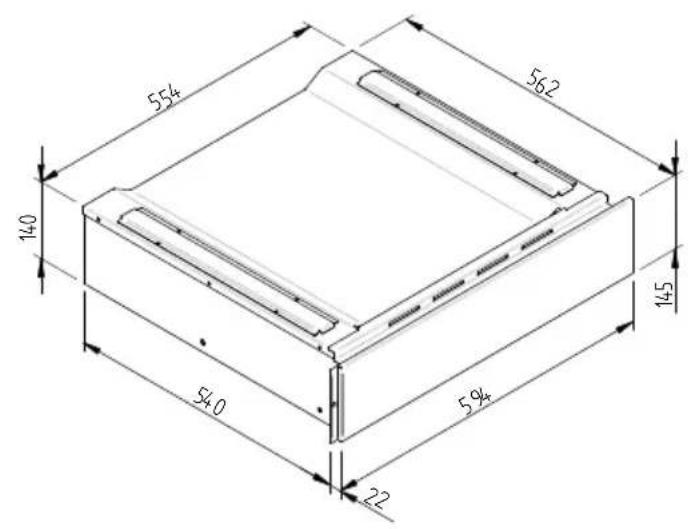

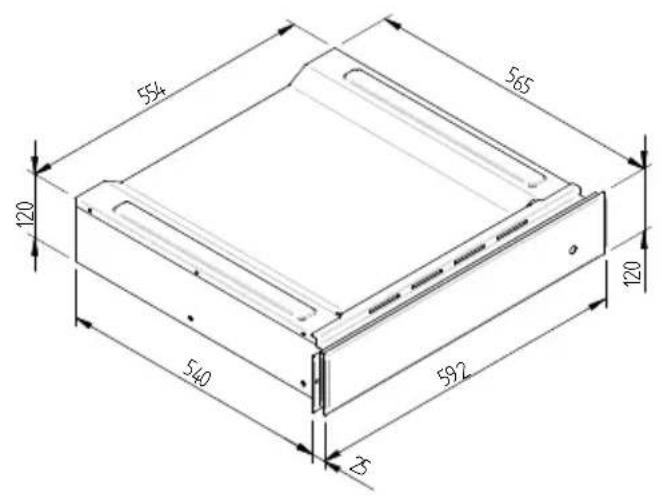

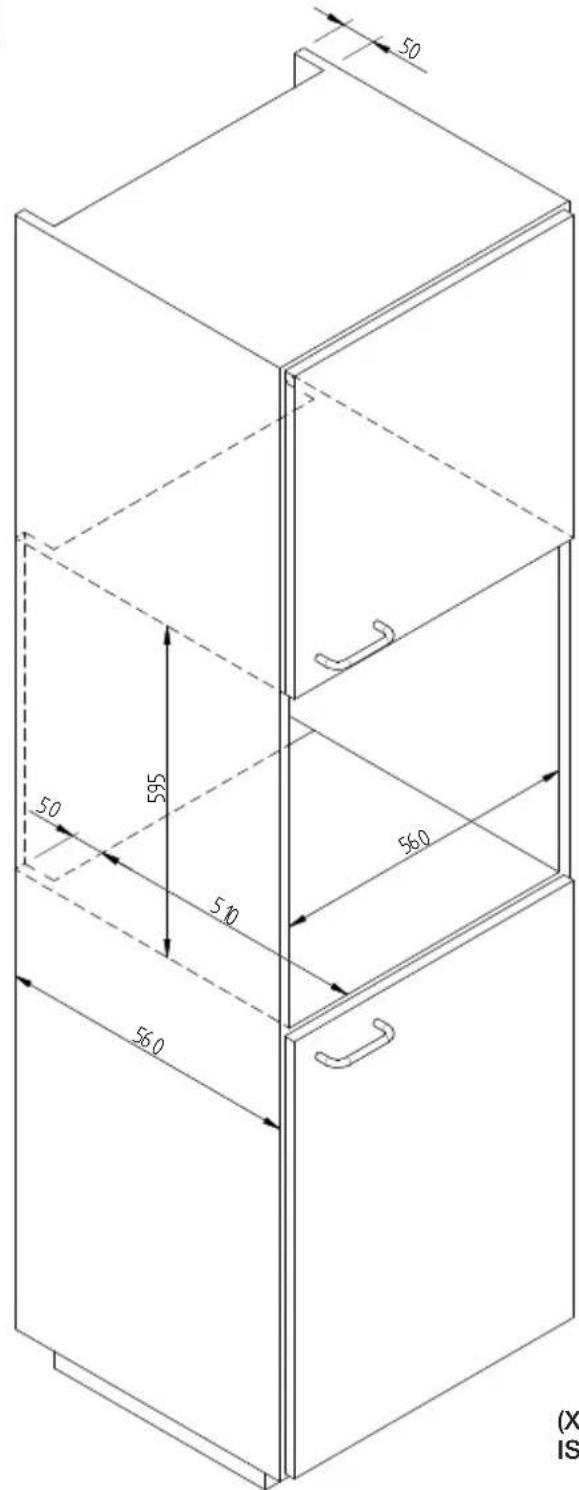

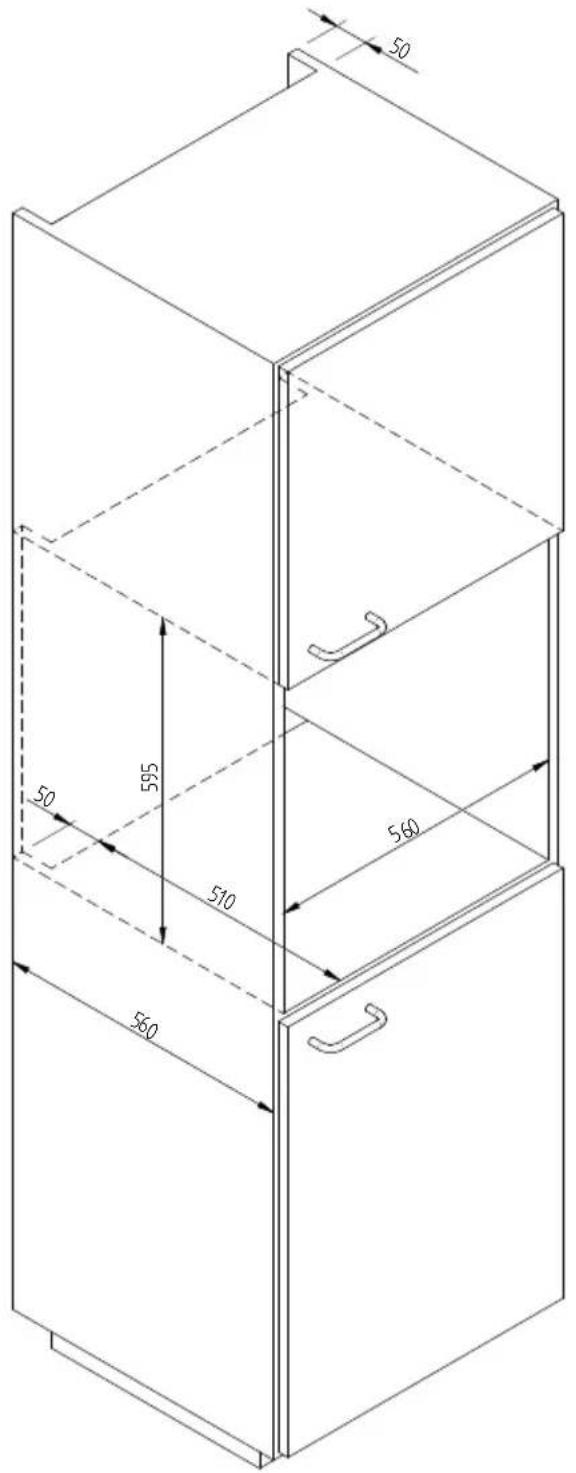

WARMING DRAWER DIMENSION DIAGRAM 560 X 595 FOR 480 OVENS

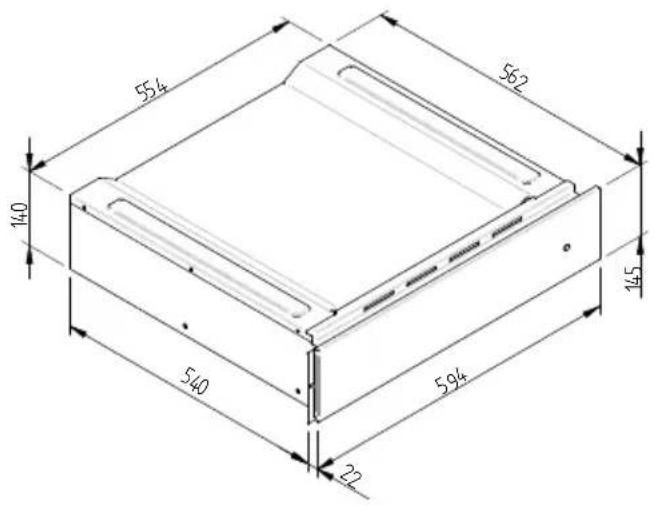

DIMENSIONAL DIAGRAM DRAWER 145 BUILT-IN 560 X 595

WITH 455 MM WINE CELLAR

(X) OPTIONAL BRACKETS TO ORDER WHEN THE WOODEN STRIP
IS COMBINED WITH THE OBJECT-HOLDER DRAWER

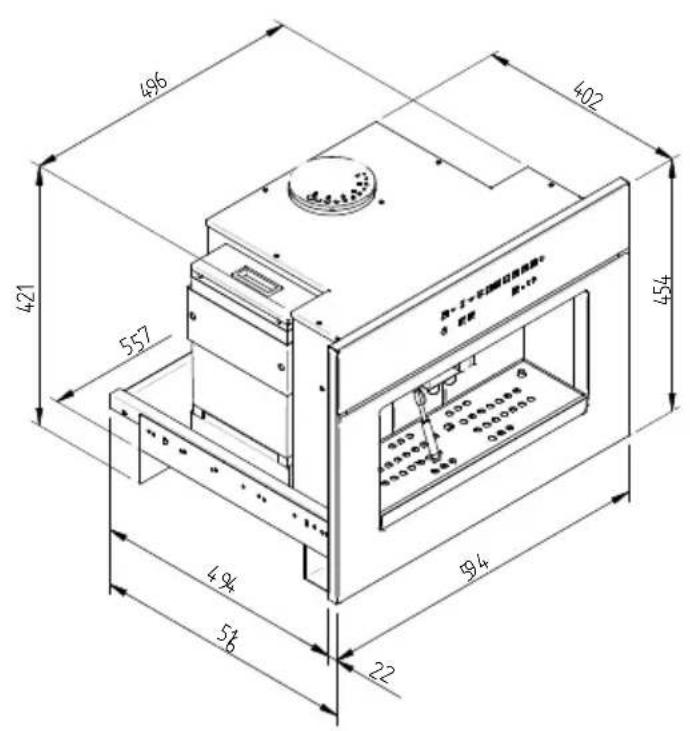

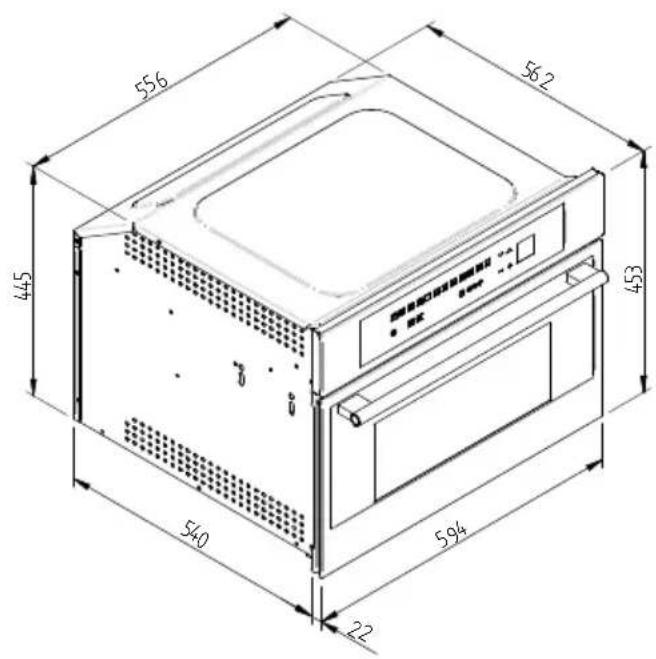

DIMENSIONAL DRAWING DRAWER 145 BUILT-IN 560 X 595

WITH 454 MM COFFEE MACHINE

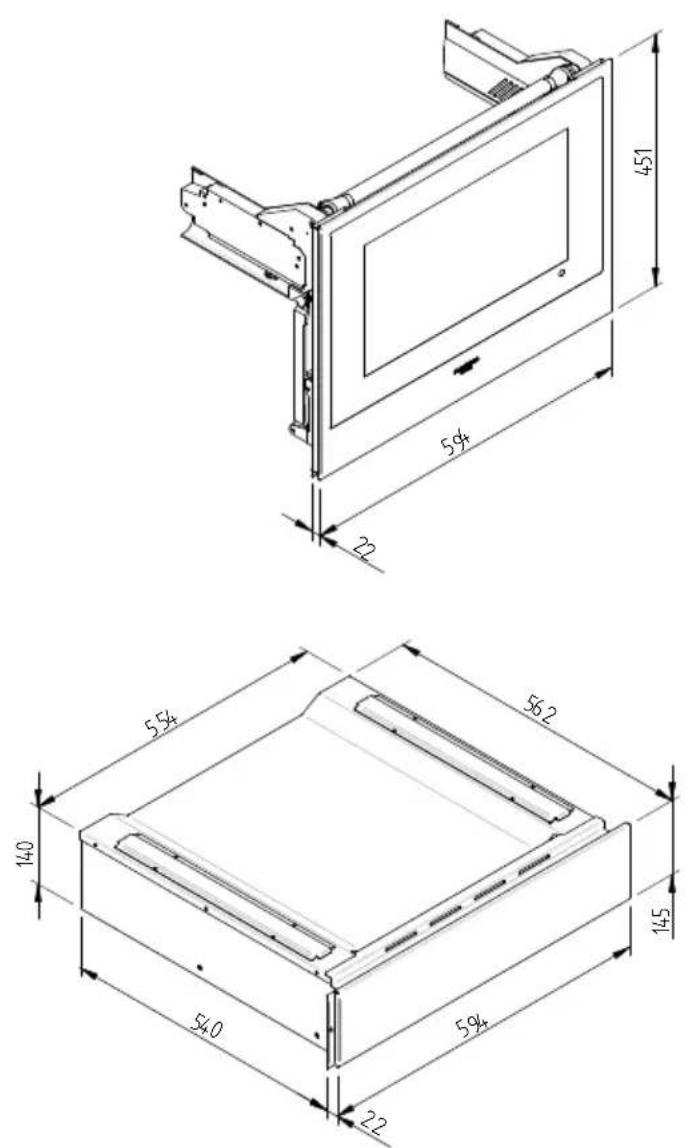

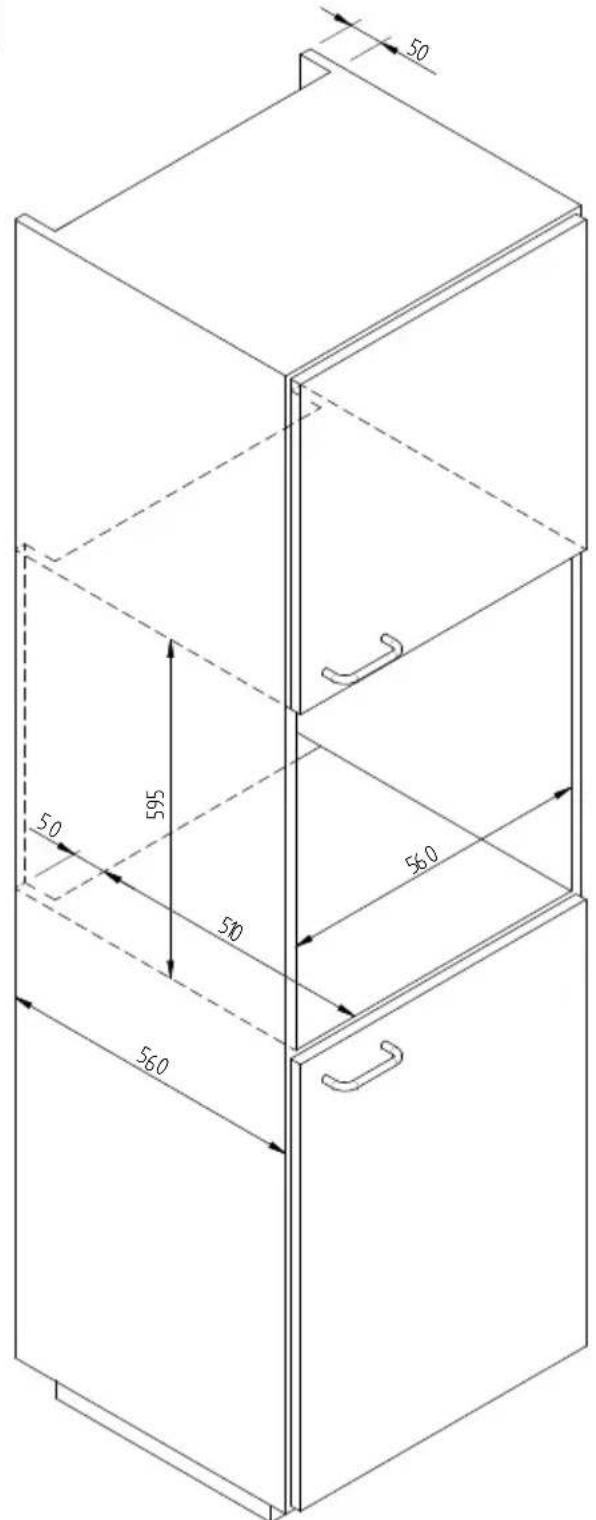

DIMENSIONAL DIAGRAM DRAWER 145 BUILT-IN 560 X 595 WITH 451 MM TV

GB

WARNING!

The manufacturer and retailers will not be liable for property damage and personal injury caused by a failure to follow the instructions provided in this manual.
