Product Type	Built-in Oven
Brand	JENN-AIR
Model	KOSE507EWH
Oven Width	30" (76,2 cm)
Cutout Width for Oven	28½" (72,4 cm)
Minimum Recessed Height	27¾" (70,5 cm)
Recommended Cabinet Depth	24" (61 cm)
Electrical Supply	240 V, 40 A (recommended)
Main Functions	Convection cooking, circulating heat, grill, pyrolytic self-cleaning
Capacity	Approximately 142 L (5,0 cu ft)
Maintenance and Cleaning	Pyrolytic cleaning, easy-to-clean enamel surfaces
Safety	Door lock, automatic safety shut-off, cooling system
Spare Parts and Repairability	Parts available on request, JENN-AIR technical support

Frequently Asked Questions - KOSE507EWH JENN-AIR

What are the installation dimensions for the KOSE507EWH oven?

For a 30-inch oven, the cutout opening is 28½ in (72.4 cm) wide. The minimum recessed height is 27¾ in (70.5 cm) and the recommended cabinet depth is 24 in (61 cm).

Can this oven be installed under a cooktop?

Yes, this oven is designed for installation under a cooktop. Make sure the cooktop is approved for this use and follow the clearances indicated in the manual.

What type of electrical supply is required?

The oven requires a 240 V, 40 A supply. A dedicated connection box must be installed in an adjacent cabinet.

How to choose the location of the connection box?

Place the connection box in the adjacent cabinet, to the right or left of the oven. Provide a 1 in (2.5 cm) hole in the rear corner for the power cable.

What are the approved oven/cooktop combinations?

Refer to the undercounter label on the oven chassis and on the bottom of the cooktop burner box for compatible models.

Can I install a gas cooktop above this oven?

Yes, provided specific clearances are met (1 in / 2.5 cm between the oven and cooktop). The gas line can run through the wall or floor.

What is the height between the cabinet base and the countertop?

The recommended distance is 36 in (91.4 cm) between the cabinet base and the top of the countertop.

Does the oven have a self-cleaning system?

Yes, this oven features a pyrolytic self-cleaning function that burns residues at high temperature.

How to clean the enamel surfaces?

Use a soft cloth and soapy water. Avoid abrasive cleaners and metal sponges.

Where to find spare parts for this oven?

Spare parts are available upon request from JENN-AIR customer service. Contact technical support to order.

USER MANUAL KOSE507EWH JENN-AIR

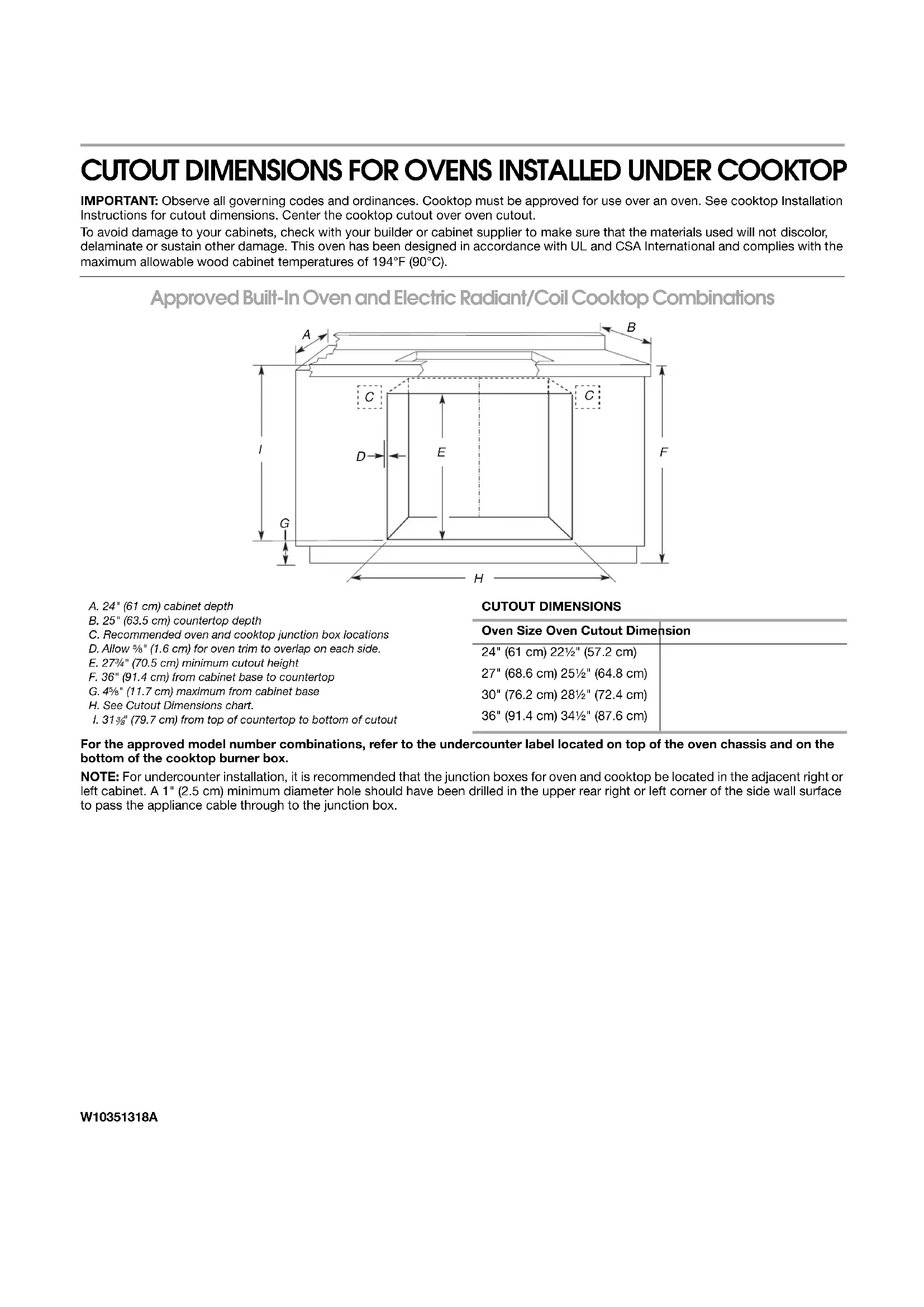

CUTOUT DIMENSIONS FOR OVENS INSTALLED UNDER COOKTOP

IMPORTANT: Observe all governing codes and ordinances. Cooktop must be approved for use over an oven. See cooktop Installation Instructions for cutout dimensions. Center the cooktop cutout over oven cutout.

To avoid damage to your cabinets, check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate or sustain other damage. This oven has been designed in accordance with UL and CSA International and complies with the maximum allowable wood cabinet temperatures of 194^ (90^) .

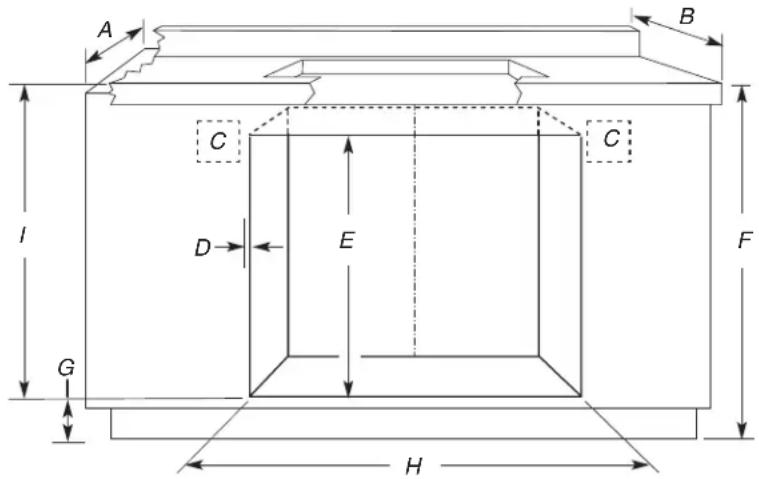

Approved Built-In Oven and Electric Radiant/Coil Cooktop Combinations

A. 24^ (61 cm) cabinet depth
B. 25^ (63.5 cm) countertop depth
C. Recommended oven and cooktop junction box locations
D. Allow 5 / 8 (1.6 cm) for oven trim to overlap on each side.
E. 2734 (70.5 cm) minimum cutout height
F. 36^th (91.4 cm) from cabinet base to countertop
G. 4% (11.7 cm) maximum from cabinet base
H. See Cutout Dimensions chart.
I. 31% (79.7 cm) from top of countertop to bottom of cutout

CUTOUT DIMENSIONS

Oven Size Oven Cutout Dimension
24" (61 cm) 22½" (57.2 cm)
27" (68.6 cm) 25½" (64.8 cm)
30" (76.2 cm) 28½" (72.4 cm)
36" (91.4 cm) 34½" (87.6 cm)

For the approved model number combinations, refer to the undercounter label located on top of the oven chassis and on the bottom of the cooktop burner box.

NOTE: For undercounter installation, it is recommended that the junction boxes for oven and cooktop be located in the adjacent right or left cabinet. A 1" (2.5 cm) minimum diameter hole should have been drilled in the upper rear right or left corner of the side wall surface to pass the appliance cable through to the junction box.

Approved Built-In Oven and Induction Cooktop Combinations

A. 24^ (61~cm) cabinet depth

B. 25^ (63.5 cm) countertop depth

C. Recommended oven and cooktop junction box locations

D. Allow 5 / 8 (1.6 cm) for oven trim to overlap on each side.

E. 273% (70.5 cm) minimum cutout height

F. 36^ (91.4 cm) from cabinet base to countertop

G. 3% (9.2 cm) from cabinet base. If dimension "F" is greater than 36 (91.4 cm), dimension "G" can be increased the same difference for induction combinations.

H. See Cutout Dimensions chart.

1. 32% (82.2 cm) from top of countertop to bottom of cutout

CUTOUT DIMENSIONS

Oven Size Oven Cutout Dimension
24" (61 cm) 22½" (57.2 cm)
27" (68.6 cm) 25½" (64.8 cm)
30" (76.2 cm) 28½" (72.4 cm)

For the approved model number combinations, refer to the undercounter label located on top of the oven chassis and on the bottom of the cooktop burner box.

NOTE: For undercounter installation, it is recommended that the junction boxes for oven and cooktop be located in the adjacent right or left cabinet. A 1^ (2.5 cm) minimum diameter hole should have been drilled in the upper rear right or left corner of the side wall surface to pass the appliance cable through to the junction box.

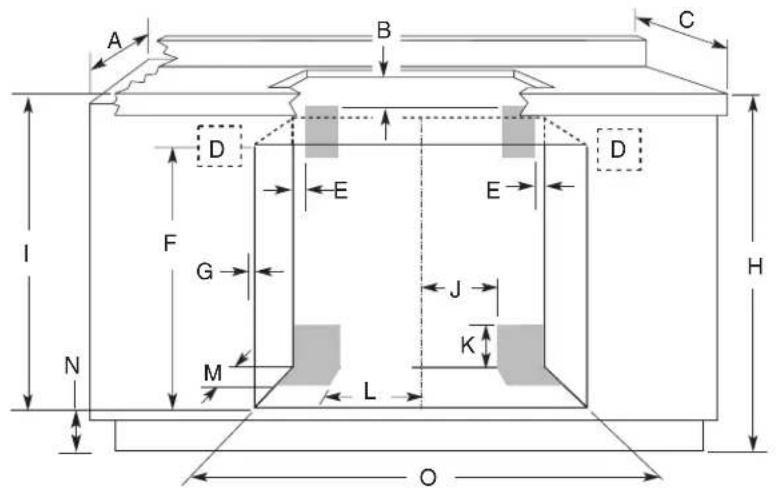

Approved Built-In Oven and Gas Cooktop Combinations

A. 24^ (61~cm) cabinet depth
B. 1'' (2.5 cm) clearance to bottom of countertop
C. 25^ (63.5 cm) countertop depth
D. Recommended oven junction box locations
E. 1'' (2.5 cm) clearance to cabinet
F. 27 ‰ '' (70.5 cm) minimum cutout height
G. Allow %" (1.6 cm) for oven trim to overlap on each side.
H. 36" (91.4 cm) from cabinet base to countertop
I. 31% (79.7 cm) from top of countertop to bottom of cutout
J. Gas line through wall 1012 (26.7 cm) to center of cutout
K. 3 14'' (8.3 cm)
L. Gas line through floor 10 12 (26.7 cm) to center of cutout
M. 312 (8.9 cm)
N. 4% (11.7 cm) maximum from cabinet base
O. See Cutout Dimensions chart.

CUTOUT DIMENSIONS

Oven Size Oven Cutout Dimension
24" (61 cm) 22½" (57.2 cm)
27" (68.6 cm) 25½" (64.8 cm)
30" (76.2 cm) 28½" (72.4 cm)
36" (91.4 cm) 34½" (87.6 cm)

For the approved model number combinations, refer to the undercounter label located on top of the oven chassis.

NOTE: For undercounter installation, it is recommended that the junction box for oven be located in the adjacent right or left cabinet. A 1'' (2.5 cm) minimum diameter hole should have been drilled in the upper rear right or left corner of the side wall surface to pass the appliance cable through to the junction box.

The upper shaded areas are recommended locations for recessed junction box for 120-volt grounded outlet for cooktop.

Lower shaded areas are recommended locations for flexible or rigid gas pipe installation. The gas connection on the cooktop is on the right (same location as "J" in the above diagram). The gas pipe can be installed on either side of the cutout, and either through the floor or through the wall. Refer to local codes regarding the use of gas lines.

Notes
