| Product Type | Built-in Oven |
| Brand | JENN-AIR |
| Model | JMW2427DB |
| Electrical Supply | 240 V AC, 40 A |
| Oven Capacity | Approximately 4.8 cubic feet |
| Cooking Functions | Bake, Roast, Broil, Convection (Bake, Roast, Broil), Bread Proof, Warm, Probe, Timed and Delayed Cooking |
| Self-Cleaning | High-temperature self-cleaning cycle (3 to 5 hour durations) |
| Oven Light | Halogen bulbs 40 W max, touch control and door opening |

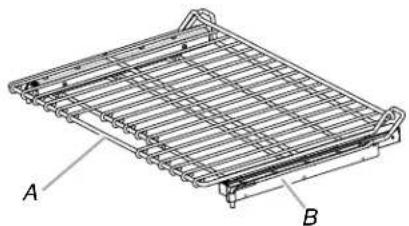

| Included Racks | Flat and/or sliding racks depending on model |
| Temperature Probe | Yes, for precise internal temperature measurement |
| Control Lockout | Yes, with random shape sequence for unlocking |
| Sabbath Mode | Yes, programmable for cooking until canceled |
| Touchscreen | Yes, with menu display and controls |
| Kitchen Timer | Yes, up to 23 hours 59 minutes 59 seconds |
| Temperature Calibration | Adjustable from -35°F to +35°F (-20°C to +20°C) |
| Cavity Material | Porcelain on steel |
| Oven Door | Removable for cleaning, gasket seal |
| Child Safety | Control lockout, Sabbath mode |
| Care and Cleaning | Self-cleaning, manual cleaning of stainless steel surfaces |
| Warranty | 2-year limited warranty (parts and labor), 1 year for appearance defects |
Frequently Asked Questions - JMW2427DB JENN-AIR
How to use Sabbath Mode?
To activate Sabbath Mode, press Power, then Tools, select 'Sabbath', set it to On and follow the instructions to set the temperature and optionally a timer. The oven will stay on until canceled or the programmed timer ends.
How to clean the oven with the self-cleaning cycle?
Remove all accessories, manually clean residue around the door. Press Self Clean (or via Tools), select the duration (3-5h depending on soil), and confirm. The door locks; once the cycle is complete and the oven cools, wipe up ashes with a damp cloth.
The oven temperature seems inaccurate, how to calibrate it?
Go to Tools > Temp Calibration and adjust from -35°F to +35°F (-20°C to +20°C). A negative adjustment makes the oven cooler, positive warmer. This does not affect the displayed set temperature.
How to lock the controls to prevent accidental use?
In the Tools menu, select Control Lockout then press Lock. To unlock, press Power and follow the shape sequence displayed on screen.
Can I use the temperature probe with all modes?
The temperature probe only works with Bake, Convection Bake, and Convection Roast modes. Insert it into the food before selecting the mode.
The oven door does not close properly, what to do?
Check that the racks are properly inserted and nothing is blocking the door. If the gasket is damaged, do not clean it harshly. If the problem persists, refer to the Troubleshooting section or contact customer service.
How to remove the oven door for cleaning?
Open the door fully, lift the hinge locks on each side, then partially close the door and lift it to disengage. To replace, insert the suspension arms, open the door until it clicks, then lower the locks.
The fan is noisy, is this normal?
Yes, the cooling fan may run at a higher speed if the door is open for more than 60 seconds, producing more noise. It returns to normal speed about 60 seconds after the door is closed.
Can I use aluminum foil in the oven?
Yes, but never cover the oven bottom. Place foil on the rack under the dish to catch spills, leaving at least 1.3 cm clearance around the dish and turning up the edges.
How to set a delayed cook?
Select the mode and temperature, then press Delay. Set the Cook Start Time and Cook Stop Time (in 15 min increments). Press Set then Start Now. The oven will start at the programmed time.
