MEW9530AS - Oven JENN-AIR - Free user manual and instructions

Product Type	Built-in Oven
Brand	JENN-AIR
Model	MEW9530AS
Width	30 inches (76.2 cm)
Opening Width	28 1/2 inches (72.4 cm)
Minimum Opening Height	27 3/4 inches (70.5 cm)
Power Supply	240 V, 60 Hz, single-phase
Approximate Capacity	4.8 cu ft (136 L)
Cooking Functions	Convection, traditional cooking, broil, pyrolytic cleaning, temperature probe
Cleaning	Self-cleaning by pyrolysis
Safety	Control lock, child safety, automatic shut-off
Door Material	Tempered glass and stainless steel
Color	Stainless steel
Installation Type	Built-in, compatible with electric, induction or gas cooktop
Estimated Weight	70 kg
Replacement Parts	Available from the manufacturer (references on the rating plate)
Repairability	Repairability index not communicated

Frequently Asked Questions - MEW9530AS JENN-AIR

What are the exact opening dimensions to install the MEW9530AS oven?

For a 30 inch (76.2 cm) oven, the cutout opening must be 28 1/2 inches (72.4 cm) wide, 27 3/4 inches (70.5 cm) minimum height and 24 inches (61 cm) cabinet depth. Refer to the opening table in the manual for other sizes.

Can I install a cooktop above this oven?

Yes, this oven is designed to be installed under a listed cooktop. Check approved combinations on the undercounter label located on the oven chassis and on the bottom of the cooktop burner box.

What type of power supply is required?

The oven requires a 240 V, 60 Hz, single-phase power supply. The junction box must be located in the adjacent cabinet, to the right or left, and a minimum 1 inch (2.5 cm) hole is required for cable passage.

How to clean the oven?

This oven is equipped with a pyrolytic self-cleaning cycle. Remove racks and accessories, then start the cycle. Do not use harsh chemical cleaners on the cavity.

Does the oven have a child lock?

Yes, the oven includes a control lock and child safety. Activate it by pressing the lock key for 3 seconds.

What is the oven capacity?

The approximate capacity is 4.8 cu ft (136 L), sufficient to cook large meat pieces or multiple dishes simultaneously.

Can I use a temperature probe?

Yes, the oven is compatible with an internal temperature probe (not included). Plug it into the designated socket to monitor core cooking.

How to install the gas line if I have a gas cooktop?

For a gas cooktop, the flexible or rigid gas line must be installed in the shaded areas indicated in the installation diagram. The connection point is on the right. Consult local codes.

Where to find replacement parts?

Replacement parts are available from Jenn-Air or authorized dealers. Refer to the rating plate for the exact model number.

What to do if the oven does not heat?

First check the power supply and circuit breaker. If the oven is in lock mode, disable it. If the problem persists, contact Jenn-Air technical service.

USER MANUAL MEW9530AS JENN-AIR

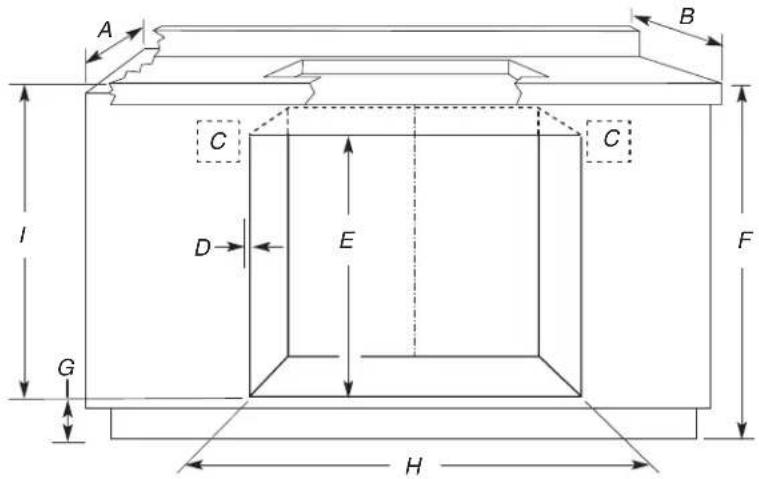

CUTOUT DIMENSIONS FOR OVENS INSTALLED UNDER COOKTOP

IMPORTANT: Observe all governing codes and ordinances. Cooktop must be approved for use over an oven. See cooktop Installation Instructions for cutout dimensions. Center the cooktop cutout over oven cutout.

To avoid damage to your cabinets, check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate or sustain other damage. This oven has been designed in accordance with UL and CSA International and complies with the maximum allowable wood cabinet temperatures of 194^ F ( 90^ C).

Approved Built-In Oven and Electric Radiant/Coil Cooktop Combinations

A B C D E F G H

A. 24" (61 cm) cabinet depth

B. 25" (63.5 cm) countertop depth

C. Recommended oven and cooktop junction box locations

D. Allow 58 " (1.6 cm) for oven trim to overlap on each side.

E. 27 ^3/4 " (70.5 cm) minimum cutout height

F. 36" (91.4 cm) from cabinet base to countertop

G. 4 ^5/8 " (11.7 cm) maximum from cabinet base

H. See Cutout Dimensions chart.

I. 31¾" (79.7 cm) from top of countertop to bottom of cutout

CUTOUT DIMENSIONS

Oven Size Oven Cutout Dimension
24" (61 cm) 22 12 " (57.2 cm)
27" (68.6 cm) 25 12 " (64.8 cm)
30" (76.2 cm) 28 12 " (72.4 cm)
36" (91.4 cm) 34 12 " (87.6 cm)

For the approved model number combinations, refer to the undercounter label located on top of the oven chassis and on the bottom of the cooktop burner box.

NOTE: For undercounter installation, it is recommended that the junction boxes for oven and cooktop be located in the adjacent right or left cabinet. A 1" (2.5 cm) minimum diameter hole should have been drilled in the upper rear right or left corner of the side wall surface to pass the appliance cable through to the junction box.

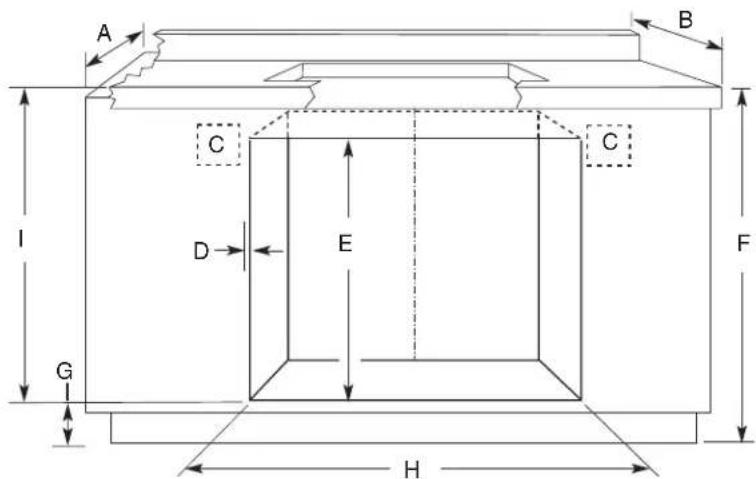

Approved Built-In Oven and Induction Cooktop Combinations

A B C D E F G H

A. 24" (61 cm) cabinet depth

B. 25" (63.5 cm) countertop depth

C. Recommended oven and cooktop junction box locations

D. Allow 58 " (1.6 cm) for oven trim to overlap on each side.

E. 27 ^3/4 " (70.5 cm) minimum cutout height

F. 36" (91.4 cm) from cabinet base to countertop

G. 3 ^5/8 " (9.2 cm) from cabinet base. If dimension "F" is greater than 36" (91.4 cm), dimension "G" can be increased the same difference for induction combinations.

H. See Cutout Dimensions chart.

1. 32 ^3/8 (82.2 cm) from top of countertop to bottom of cutout

CUTOUT DIMENSIONS

Oven Size Oven Cutout Dimension
24" (61 cm) 22 12 " (57.2 cm)
27" (68.6 cm) 25 12 " (64.8 cm)
30" (76.2 cm) 28 12 " (72.4 cm)

For the approved model number combinations, refer to the undercounter label located on top of the oven chassis and on the bottom of the cooktop burner box.

NOTE: For undercounter installation, it is recommended that the junction boxes for oven and cooktop be located in the adjacent right or left cabinet. A 1" (2.5 cm) minimum diameter hole should have been drilled in the upper rear right or left corner of the side wall surface to pass the appliance cable through to the junction box.

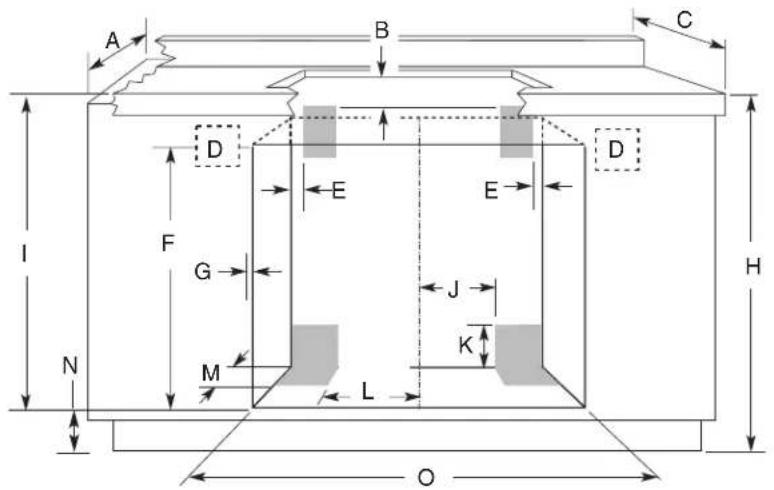

Approved Built-In Oven and Gas Cooktop Combinations

A B C D E F G M L J K N O H

A. 24" (61 cm) cabinet depth
B. 1" (2.5 cm) clearance to bottom of countertop
C. 25" (63.5 cm) countertop depth
D. Recommended oven junction box locations
E. 1" (2.5 cm) clearance to cabinet
F. 27 ^3/4 " (70.5 cm) minimum cutout height
G. Allow 58 " (1.6 cm) for oven trim to overlap on each side.
H. 36" (91.4 cm) from cabinet base to countertop
I. 31% (79.7 cm) from top of countertop to bottom of cutout
J. Gas line through wall 10½" (26.7 cm) to center of cutout
K. 3 ^1/4 " (8.3 cm)
L. Gas line through floor 10½" (26.7 cm) to center of cutout
M. 3½" (8.9 cm)
N. 4 ^5/8 " (11.7 cm) maximum from cabinet base
O. See Cutout Dimensions chart.

CUTOUT DIMENSIONS

Oven Size Oven Cutout Dimension
24" (61 cm) 22 12 " (57.2 cm)
27" (68.6 cm) 25 12 " (64.8 cm)
30" (76.2 cm) 28 12 " (72.4 cm)
36" (91.4 cm) 34 12 " (87.6 cm)

For the approved model number combinations, refer to the undercounter label located on top of the oven chassis.

NOTE: For undercounter installation, it is recommended that the junction box for oven be located in the adjacent right or left cabinet. A 1" (2.5 cm) minimum diameter hole should have been drilled in the upper rear right or left corner of the side wall surface to pass the appliance cable through to the junction box.

The upper shaded areas are recommended locations for recessed junction box for 120-volt grounded outlet for cooktop.

Lower shaded areas are recommended locations for flexible or rigid gas pipe installation. The gas connection on the cooktop is on the right (same location as "J" in the above diagram). The gas pipe can be installed on either side of the cutout, and either through the floor or through the wall. Refer to local codes regarding the use of gas lines.

Notes

FOUR INSTALLÉ SOUS LA TABLE DE CUISSON - DIMENSIONS POUR L'OUVERTURE À DÉCOUPER

A B C D E F G H

A B C D E F G H

1. 32 ^3/8 (82,2 cm) from top of countertop to bottom of cutout

OUVERTURE À DÉCOUPER - DIMENSIONS

A B C D E E F G J K M L N O H
