Product type	Single built-in oven
Brand	JENN-AIR
Model	MEW7530AS
Oven width	76.2 cm (30")
Minimum built-in height	70.5 cm (27 3/4")
Cabinet depth	61 cm (24")
Cutout width	72.4 cm (28½")
Electrical supply	240 V, 60 Hz, single phase
Rated power	4.8 kW
Capacity	Approximately 142 L (5 ft³)
Cooking modes	Conventional, convection, broil, pyrolytic
Cleaning	Automatic pyrolytic
Cavity material	Enameled stainless steel
Door type	Soft-close door
Controls	Touchscreen or rotary knobs
Timer	Programmable electronic timer
Safety	Child lock, auto shut-off
Estimated net weight	68 kg (150 lb)
Repairability index	Not disclosed

Frequently Asked Questions - MEW7530AS JENN-AIR

What are the built-in dimensions for the MEW7530AS oven?

The minimum built-in height is 70.5 cm (27 3/4"). The cutout width for a 30" (76.2 cm) oven is 72.4 cm (28½"). The cabinet depth must be at least 61 cm (24"). Refer to the diagram in the manual for exact clearances.

Can this oven be installed under a cooktop?

Yes, the MEW7530AS oven is designed to be installed under an approved cooktop. Check the approved combinations on the undercounter label located on the top part of the oven chassis.

What type of electrical supply is needed?

The oven requires a 240 V, 60 Hz, single phase supply. A dedicated circuit is recommended. Consult a qualified electrician for installation.

How do I clean the oven?

This oven features a pyrolytic cleaning cycle that burns off residues at high temperature. Simply wipe away the ashes after the cycle ends. For stubborn stains, use a non-abrasive cleaner.

What cooking functions are available?

The oven offers several modes: conventional (top and bottom heat), convection, broil, and pyrolytic. Depending on the model, other functions such as defrost or keep warm may be included.

Can I use a gas cooktop with this oven?

Yes, approved combinations of built-in oven and gas cooktop are available. Refer to the manual for clearance dimensions and gas line routing instructions.

Is there a child lock?

Yes, the oven has a child lock function to prevent unsupervised use. Activate it via the control panel.

Where is the recommended junction box location?

It is recommended to place the junction box in the adjacent cabinet, to the right or left. A hole of at least 2.5 cm (1") in diameter must be drilled for the cable passage.

What is the capacity of the oven?

The internal capacity is approximately 142 liters (5 cubic feet), allowing you to cook large dishes like a turkey or multiple baking sheets.

How to install the oven safely?

Ensure compliance with all local codes and regulations. The appliance must be installed by a professional. Verify that the opening is suitable and that cabinet materials can withstand a maximum temperature of 90°C (194°F).

USER MANUAL MEW7530AS JENN-AIR

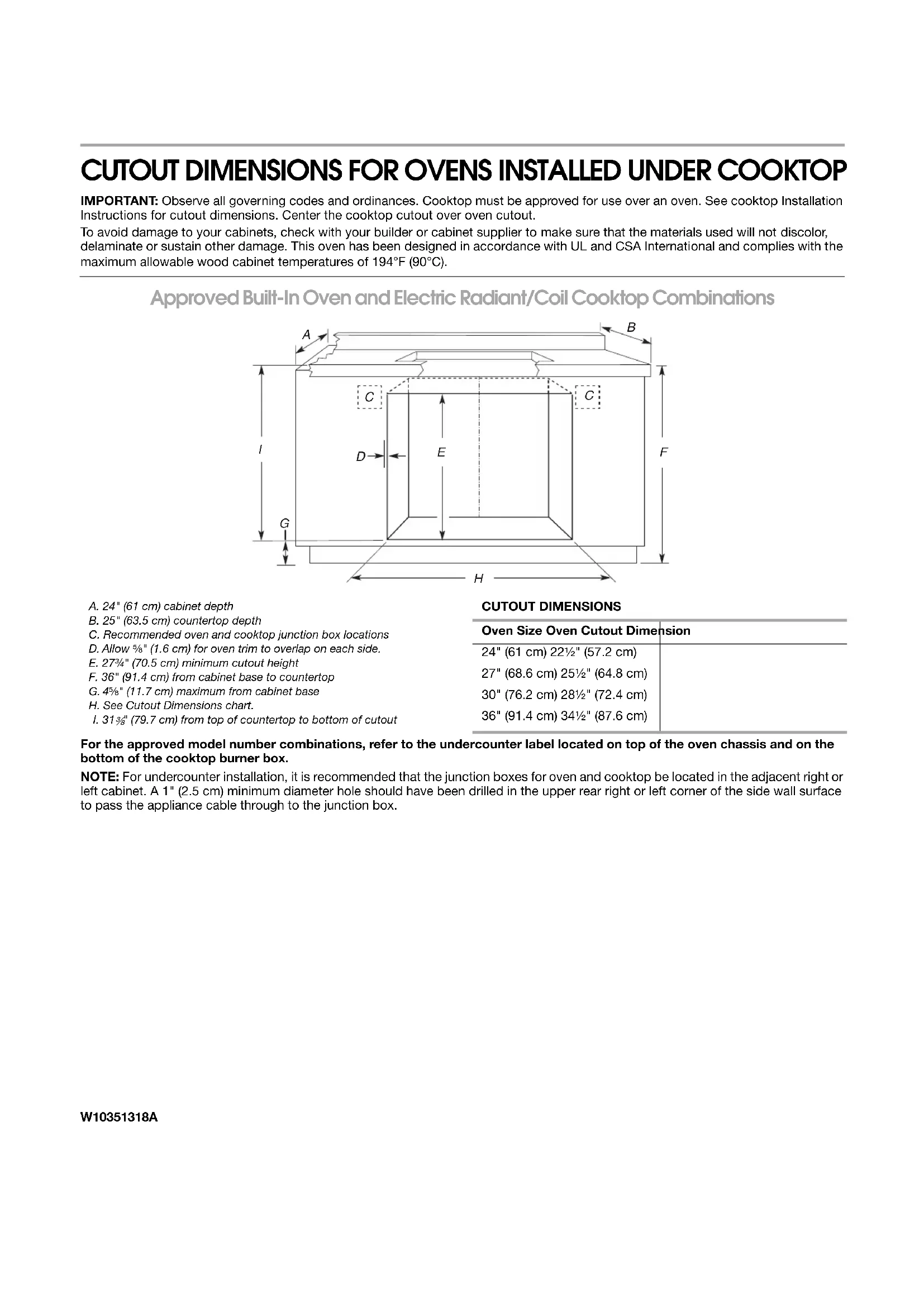

CUTOUT DIMENSIONS FOR OVENS INSTALLED UNDER COOKTOP

IMPORTANT: Observe all governing codes and ordinances. Cooktop must be approved for use over an oven. See cooktop Installation Instructions for cutout dimensions. Center the cooktop cutout over oven cutout.

To avoid damage to your cabinets, check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate or sustain other damage. This oven has been designed in accordance with UL and CSA International and complies with the maximum allowable wood cabinet temperatures of 194^ (90^) .

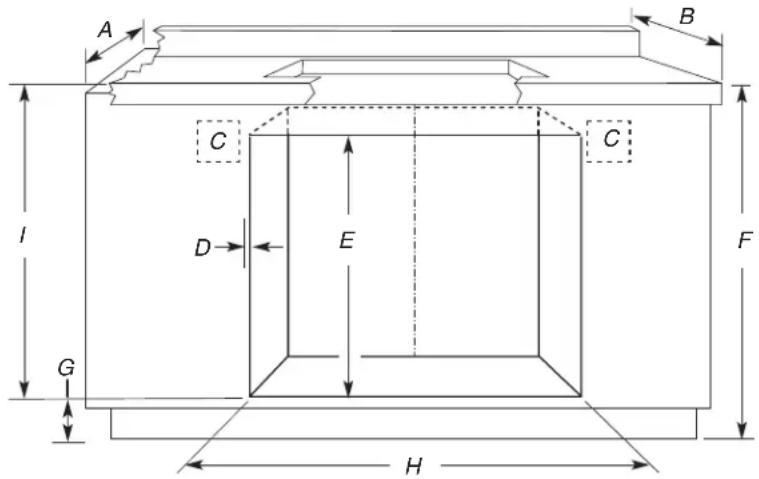

Approved Built-In Oven and Electric Radiant/Coil Cooktop Combinations

A. 24^ (61 cm) cabinet depth
B. 25^ (63.5 cm) countertop depth
C. Recommended oven and cooktop junction box locations
D. Allow 5 / 8 (1.6 cm) for oven trim to overlap on each side.
E. 2734 (70.5 cm) minimum cutout height
F. 36^th (91.4 cm) from cabinet base to countertop
G. 4% (11.7 cm) maximum from cabinet base
H. See Cutout Dimensions chart.
I. 31% (79.7 cm) from top of countertop to bottom of cutout

CUTOUT DIMENSIONS

Oven Size Oven Cutout Dimension
24" (61 cm) 22½" (57.2 cm)
27" (68.6 cm) 25½" (64.8 cm)
30" (76.2 cm) 28½" (72.4 cm)
36" (91.4 cm) 34½" (87.6 cm)

For the approved model number combinations, refer to the undercounter label located on top of the oven chassis and on the bottom of the cooktop burner box.

NOTE: For undercounter installation, it is recommended that the junction boxes for oven and cooktop be located in the adjacent right or left cabinet. A 1" (2.5 cm) minimum diameter hole should have been drilled in the upper rear right or left corner of the side wall surface to pass the appliance cable through to the junction box.

Approved Built-In Oven and Induction Cooktop Combinations

A. 24^ (61~cm) cabinet depth

B. 25^ (63.5 cm) countertop depth

C. Recommended oven and cooktop junction box locations

D. Allow 5 / 8 (1.6 cm) for oven trim to overlap on each side.

E. 273% (70.5 cm) minimum cutout height

F. 36^ (91.4 cm) from cabinet base to countertop

G. 3% (9.2 cm) from cabinet base. If dimension "F" is greater than 36 (91.4 cm), dimension "G" can be increased the same difference for induction combinations.

H. See Cutout Dimensions chart.

1. 32% (82.2 cm) from top of countertop to bottom of cutout

CUTOUT DIMENSIONS

Oven Size Oven Cutout Dimension
24" (61 cm) 22½" (57.2 cm)
27" (68.6 cm) 25½" (64.8 cm)
30" (76.2 cm) 28½" (72.4 cm)

For the approved model number combinations, refer to the undercounter label located on top of the oven chassis and on the bottom of the cooktop burner box.

NOTE: For undercounter installation, it is recommended that the junction boxes for oven and cooktop be located in the adjacent right or left cabinet. A 1^ (2.5 cm) minimum diameter hole should have been drilled in the upper rear right or left corner of the side wall surface to pass the appliance cable through to the junction box.

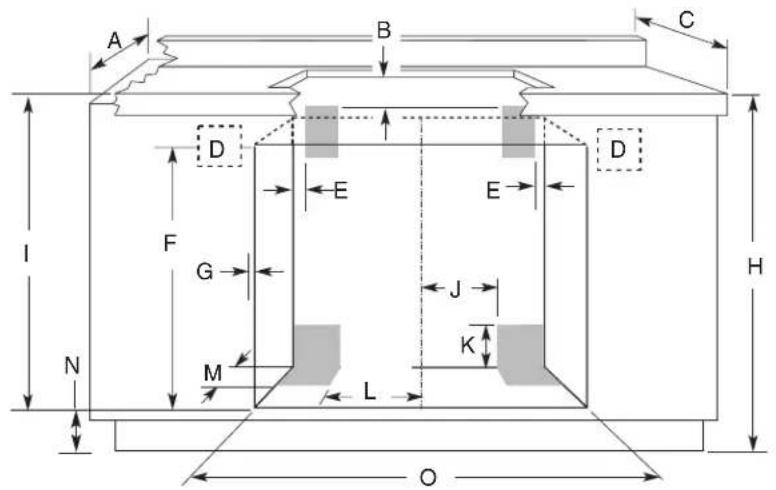

Approved Built-In Oven and Gas Cooktop Combinations

A. 24^ (61~cm) cabinet depth
B. 1'' (2.5 cm) clearance to bottom of countertop
C. 25^ (63.5 cm) countertop depth
D. Recommended oven junction box locations
E. 1'' (2.5 cm) clearance to cabinet
F. 27 ‰ '' (70.5 cm) minimum cutout height
G. Allow %" (1.6 cm) for oven trim to overlap on each side.
H. 36" (91.4 cm) from cabinet base to countertop
I. 31% (79.7 cm) from top of countertop to bottom of cutout
J. Gas line through wall 1012'' (26.7 cm) to center of cutout
K. 3 12'' (8.3 cm)
L. Gas line through floor 10 12 (26.7 cm) to center of cutout
M. 312 (8.9 cm)
N. 4% (11.7 cm) maximum from cabinet base
O. See Cutout Dimensions chart.

CUTOUT DIMENSIONS

Oven Size Oven Cutout Dimension
24" (61 cm) 22½" (57.2 cm)
27" (68.6 cm) 25½" (64.8 cm)
30" (76.2 cm) 28½" (72.4 cm)
36" (91.4 cm) 34½" (87.6 cm)

For the approved model number combinations, refer to the undercounter label located on top of the oven chassis.

NOTE: For undercounter installation, it is recommended that the junction box for oven be located in the adjacent right or left cabinet. A 1'' (2.5 cm) minimum diameter hole should have been drilled in the upper rear right or left corner of the side wall surface to pass the appliance cable through to the junction box.

The upper shaded areas are recommended locations for recessed junction box for 120-volt grounded outlet for cooktop.

Lower shaded areas are recommended locations for flexible or rigid gas pipe installation. The gas connection on the cooktop is on the right (same location as "J" in the above diagram). The gas pipe can be installed on either side of the cutout, and either through the floor or through the wall. Refer to local codes regarding the use of gas lines.
