USER MANUAL OW5005 IFM

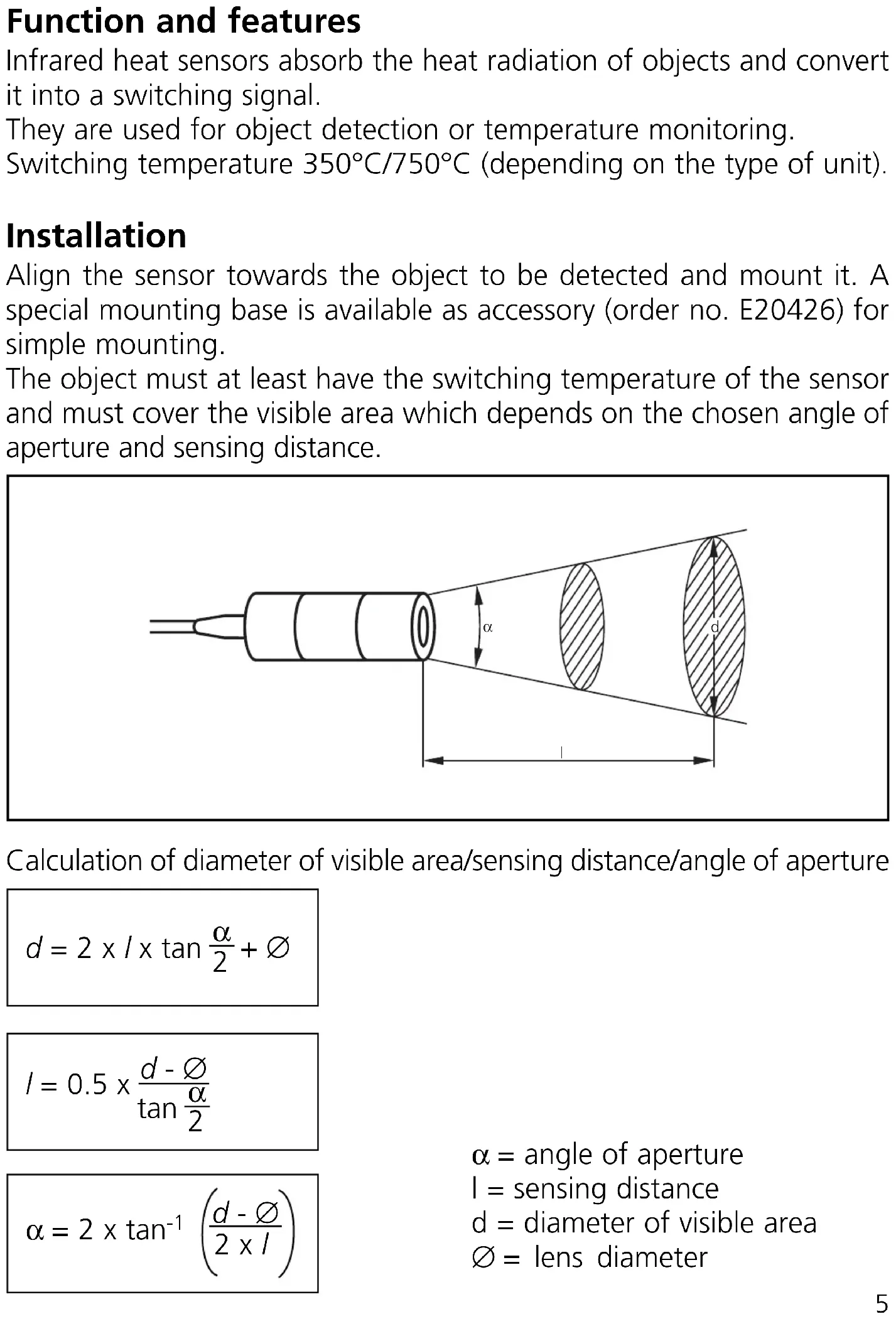

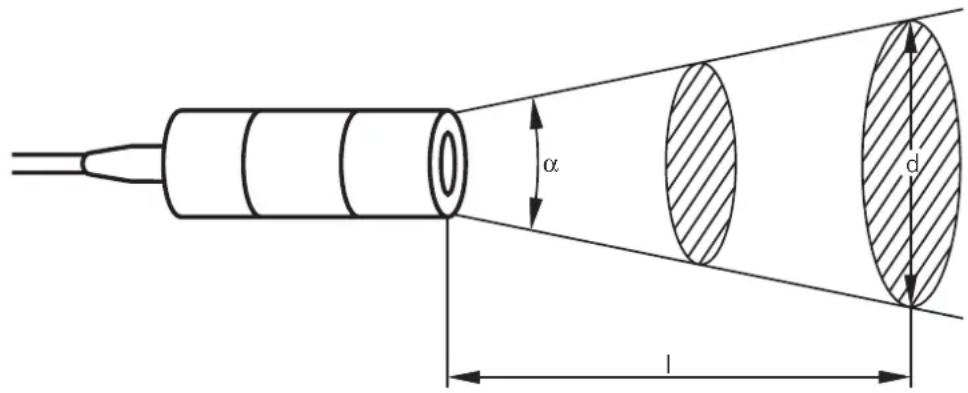

Function and features Infrared heat sensors absorb the heat radiation of objects and convert it into a switching signal. They are used for object detection or temperature monitoring. Switching temperature 350°C/750°C (depending on the type of unit). Installation Align the sensor towards the object to be detected and mount it. A special mounting base is available as accessory (order no. E20426) for simple mounting. The object must at least have the switching temperature of the sensor and must cover the visible area which depends on the chosen angle of aperture and sensing distance. Calculation of diameter of visible area/sensing distance/angle of aperture

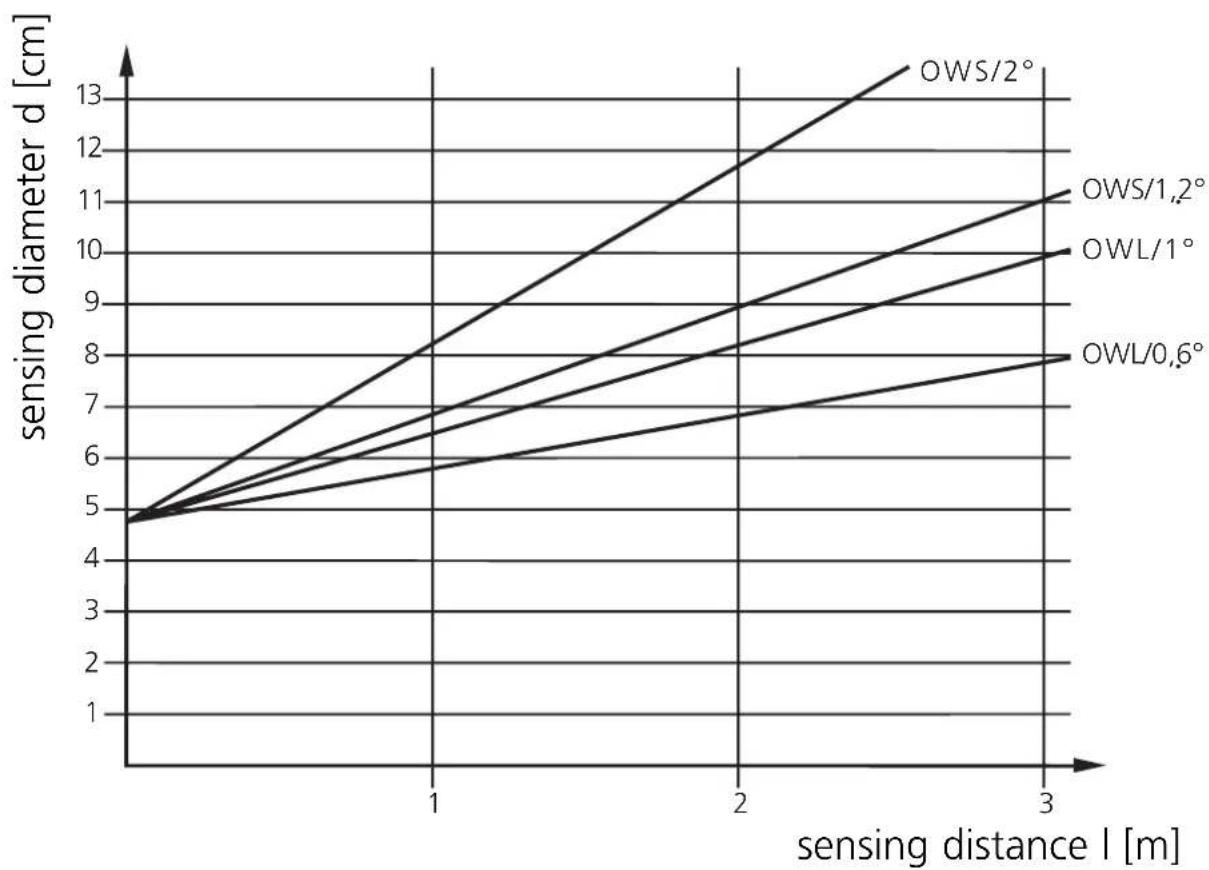

d - ∅ 2 x l α = angle of aperture l = sensing distance d = diameter of visible area ∅ = lens diameterSensing range diagram: In the event of ranges of >5m radiation losses must be taken into account. The temperature of the object should therefore be much higher than the switching temperature of the sensor. Electrical connection Disconnect power, then connect the unit according to the wiring diagram.
