Product Type	Rope Tension Kit
Brand	IFM
Model	ZB0057
Rope Length	50 m
Material	Stainless Steel
Included Components	20 Eyebolts, 1 Tensioner, 1 Allen Key
Tensile Strength	1500 N
Max Distance Between Eyebolts	3 m
Min Distance from Switch	500 mm
Compatible Accessories	Safety Spring ZB0061, Pulley ZB0062
Safety Spring Length	220 mm
Installation	Mount eyebolts at 2.5-3 m intervals; tension rope to mid position
Intended Use	For safety rope e-stop switches
Qualified Personnel	Required for installation and maintenance
Maintenance	Clean with damp cloth; inspect periodically
Storage	Dry, clean environment
Warranty	Refer to manufacturer

Frequently Asked Questions - ZB0057 IFM

What is the IFM ZB0057 rope tension kit used for?

The IFM ZB0057 is a stainless steel rope tension kit designed for use with safety rope e-stop switches. It allows easy installation and adjustment of the pull force on the rope.

What is the rope length of the ZB0057?

The ZB0057 comes with a 50-meter rope.

What components are included in the kit?

The kit includes 20 eyebolts, 1 tensioner, and 1 Allen key. The rope is also included.

What is the tensile strength of the tensioner?

The tensioner has a tensile strength of 1500 N.

How far apart should eyebolts be installed?

Eyebolts should be installed at a distance of 2.5 to 3 meters apart along the rope length.

What is the minimum distance from the switch?

The rope must be mounted at a maximum of 500 mm from the switch eyebolt or tension spring. The first 500 mm is not active for e-stop triggering.

Can the rope be shortened?

Yes, if the rope is shorter, it can be fastened using a safety spring on one end.

What accessories are available for the ZB0057?

Available accessories include the ZB0061 safety spring (220 mm) and the ZB0062 pulley for changing rope direction.

How do I adjust the rope tension?

Push the rope end through the tensioner holes, tighten the Allen screw, then turn the setting thread to adjust tension. The correct tension is indicated on the switch's rope status display.

Is the kit suitable for outdoor use?

Yes, the stainless steel components are suitable for indoor and outdoor installation.

USER MANUAL ZB0057 IFM

Operating instructions Rope Tension Kit

UK

ZB0054 / ZB0055 ZB0056 / ZB0057 ZB0058 / ZB0059 ZB0060

1 Preliminary note

- An instruction is indicated by „▶“. Example: ▶ Mount the unit as shown.

• A reaction to the action is indicated by „>“.

Important note

Non-compliance can result in malfunction or interference.

Information

Supplementary note.

2 Safety instructions

• Please read the operating instructions prior to set-up of the device. Ensure that the product is suitable for your application without any restrictions.
• Improper or non-intended use may lead to malfunctions of the unit or to unwanted effects in your application.
  • Installation, set-up, operation and maintenance of the unit must only be carried out by qualified personnel authorised by the machine operator.

3 Items supplied

Description	Rope	Eyebolts	Tensioner	Allen Key
ZB0054 5m 3 1 1
ZB0055 10m 5 1 1
ZB0056 20m 9 1 1
ZB0057 50m 20 1 1
ZB0058 80m 30 2 1
ZB0059 100m 37 2 1
ZB0060 126m 45 2 1

4 Installation

Installation of the rope and setting of the pull force are extremely simplified using the stainless steel rope tension kit. Just push the end of the rope through the holes on the rope tensioner and tighten with the Allen screw. Then set the correct pull force via the setting thread. Advantage: This setting is directly made on the safety rope e-stop switch so that the adjustment for the correct rope tension is directly indicated on the rope status display of the switch. Insert the free end of the rope into the intended clip.

▶

Close-up of a metallic mechanical component with a central hub and mounting bracket, mounted on a textured surface (no visible text or symbols)

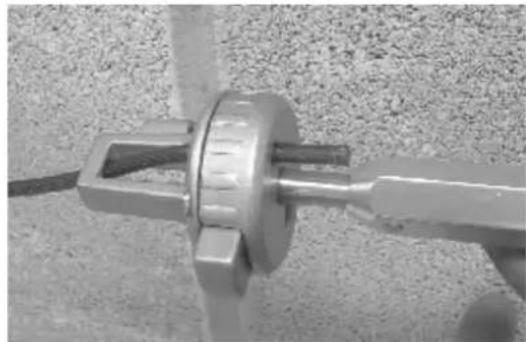

1.

Close-up of a hand holding a coiled cable or wire with a metallic connector (no visible text or symbols)

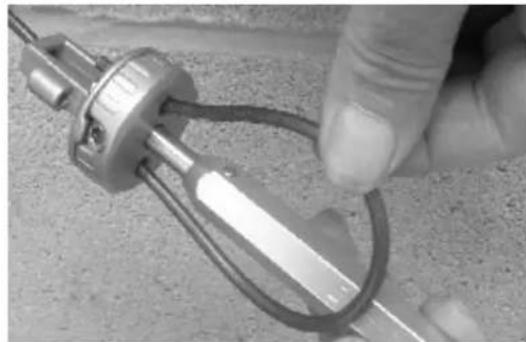

2.

Close-up of a hand using a tool to adjust a mechanical component (no visible text or symbols)

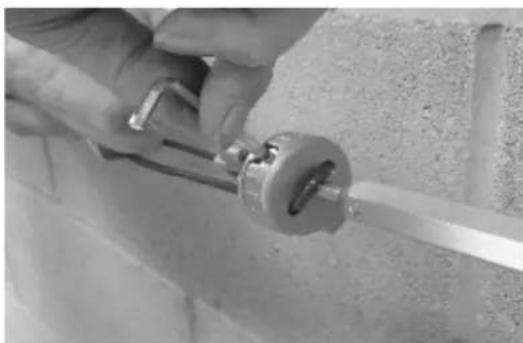

3.

Close-up of hands using a metal tool to apply material, no visible text or symbols

4.

Close-up of hands using a tool to connect two metallic components, one with a hook and the other with a coiled spring (no text or symbols visible)

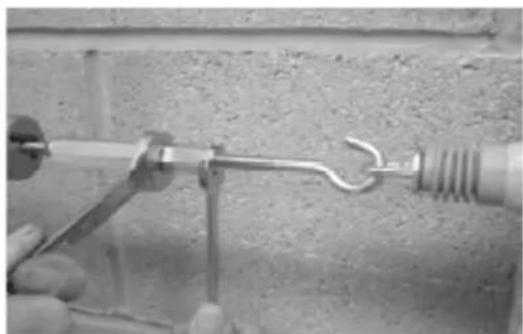

5.

Close-up of a hand holding a metallic tool with wires, mounted on a textured surface (no visible text or symbols)

6.

Diagram of a mechanical connector with yellow and gray parts, showing internal components and a red wire (no text or symbols)

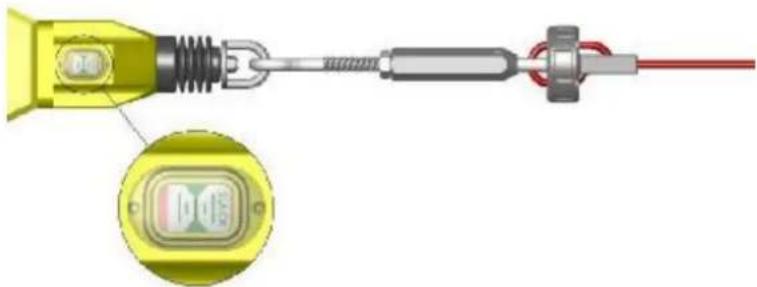

Tension the rope to mid position as indicated by the green arrows.

3D rendering of a mechanical tool with a red wire and black handle (no text or symbols visible)

Tensioner: tensile strength up to 1500N. Just mount and adjust the rope at the ends.

If the rope is shorter, it can also be fastened using a safety spring on one end. Pulleys may only be mounted so that the whole rope length is visible and accessible.

Mechanical pulley or bracket component (no text or symbols visible)

Pure mechanical spring bar with two circular end caps (no text or symbols)

Safety spring

Stainless steel pulley for correctly reversing the direction of the rope. Suitable for inside and outside installation of the rope.

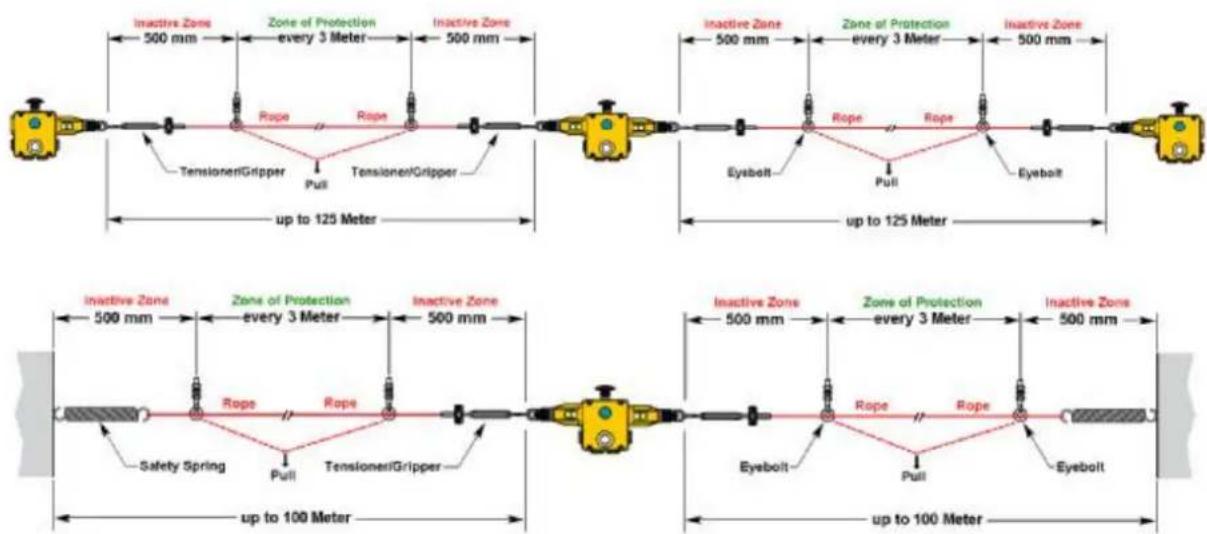

Eye bolts have to be installed between the switches across the whole length of the rope at a distance of min. 2.5m to max. 3m. The rope must be mounted at a distance of max. 500mm of the switch eye bolt or the tension spring (if it is used). It is important to note that the first 500mm cannot be used as part of the active protected area (E-stop triggering).

Installation of the components

5 Accessories

ZB0061: Safety spring, stainless steel, 220 mm

ZB0062: Pulley
