Product type	Incremental encoder (digital decoder)
Brand	IFM
Model	RU6033
Category	Digital decoder
Power supply	5 V TTL or 10…30 V HTL depending on version
Short-circuit protection	5 V TTL version: outputs short-circuit proof to 0 V; HTL version: outputs short-circuit proof to 0 V and L+ (max. 1 min)
Maximum cable length	100 m (5 V TTL) / 300 m (10…30 V HTL)
Minimum distance to parasitic sources	20 cm
Output signals	A, B, combined zero index (digital pulses)
Phase shift between outputs A and B	90°
Zero index	One pulse per mechanical revolution of the shaft
Connection	ifm1000 or ifm1013 male connector, or cable
Mounting	On mounting flange (ref. E60033) with flexible coupling
Use	Measurement of linear and angular displacements, position determination
Accessories	Mounting flange E60033, connection cables
Documentation	Manual available at www.ifm.com
Unused wires	Must be insulated to avoid short circuits
Safety	Disconnect power before connecting or disconnecting
Mechanical protection	Avoid impacts on the shaft; use a flexible coupling to compensate for misalignment

Frequently Asked Questions - RU6033 IFM

How to connect the RU6033 encoder?

Before any connection, disconnect the installation from power. Connect the wires according to the wiring diagram provided in the manual. Unused wires must be insulated to avoid short circuits.

What is the supply voltage of the RU6033?

The encoder is available in 5 V TTL or 10…30 V HTL version. Check the housing label for the exact version.

What is the maximum allowed cable length?

For the 5 V TTL version, the maximum length is 100 m; for the 10…30 V HTL version, it is 300 m, provided appropriate cables are used.

How to protect the encoder against short circuits?

The outputs are protected: 5 V TTL version against short circuits to 0 V; HTL version against short circuits to 0 V and L+ (max. 1 minute).

What are the output signals of the RU6033?

The encoder provides digital pulses on outputs A and B, phase shifted by 90°, as well as a combined zero index (one pulse per revolution).

How to determine the direction of rotation with the RU6033?

The direction of rotation is determined by the 90° phase shift between outputs A and B. The electronic module can evaluate this phase shift.

How to mount the RU6033 encoder?

Screw the encoder onto a mounting flange (ref. E60033). Connect the shaft via a flexible coupling to compensate for misalignment and avoid damaging the encoder.

Where to find accessories for the RU6033?

Accessories, such as the mounting flange E60033 or cables, are available on the website www.ifm.com.

What to do with unused wires during connection?

Unused wires must be insulated to avoid any direct short circuit or accidental connection between conductors.

What is the role of the combined zero index?

The zero index provides a pulse once per mechanical revolution of the shaft. In case of power failure, it serves as a reference for the position within one revolution.

USER MANUAL RU6033 IFM

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with mounting bracket and motor (no text or symbols)

Function and features

The encoder transforms rotational movement into pulse sequences. These allow the measurement of linear distances and angular movement as well as the determination of positions.

Electrical connection

Disconnect power from the installation before connecting or disconnecting cables or connectors!

Unused wires must be insulated to avoid short circuits and cross faults.

Short-circuit protection

5 V TTL version: outputs short-circuit protected against 0 V

10...30 V HTL version: outputs short-circuit protected against 0 V

and L+ for maximum 1 minute

Standard wiring:

	Flange plug ifm1000.xx ifm1001.xx5-pole
L+ 2 9 12
L+ sensor - 5 2
0V 1 12 10
0V sensor -	10 11
A	3	1	5
A neg.	- 2 6
B	4	3	8
B neg.	- 4 1
0 index	5 6 3
0 index neg.	- 7 4
fault neg.	-	-	7
free	-	-	9
free	-	-	-
screen	housing	11	housing
	ifm1013.xx 5-wire cable 13-wire cable
L+ 1 brown brown/green
L+ sensor - - blue
0V 6 grey white/green
0V sensor - - white
A 2	green	brown
A neg.	- - green
B	4	white	grey
B neg.	- - pink
0 index	5	yellow	red
0 index neg.	- - black
fault neg.	- -	lilac
free	- -	-
free	- -	yellow
screen	3	housing	housing

Wiring is also indicated on the housing cap. If there is a deviation, the encoder must be connected as indicated on the label on the housing cap.

The wires L+ (sensor) and 0V (sensor) are internally connected to the supply voltage. When using external electronics which regulate the supply voltage these wires can be used as test wires. If unused, these wires must be connected to the supply voltage or insulated.

Depending on the version, the electrical connection is made via the cable or via cables to be obtained separately.

When using suitable cables the maximum cable length is 100 m for the 5 V TTL version and 300 m for the 10...30 V HTL version.

The cables must be laid separately from interfering sources, the minimum distance is 20 cm.

The braided screen in the cable is connected to the encoder housing.

Output signals

output A

output B

0 index

The encoder provides digital pulse sequences at the output stages.

The outputs A and B are electrically offset by 90^ . Thus the direction of rotation can be evaluated in the external electronics.

The combined zero index is provided once in a mechanical revolution of the shaft. In case of power failure it can be used as a reference point within a revolution.

The inverted output signals are used for external electronics with differential voltage input to filter interference.

Installation

Do not hit the shaft, do not use a file or similar tool on the shaft: This could destroy the unit!

The encoder can be screwed to the angle bracket. The shaft should be connected using a flexible bellows or spring disc coupling to compensate for shaft displacement and to protect the encoder against damage.

Linear movements can be transformed into a rotational movement using a measuring wheel or rack and pinion. For mounting the maximum permissible shaft loads of the encoder must be taken into account.

Mounting the angle bracket on a resilient base protects the encoder against too high a stress due to roughness of the material.

Technical line drawing of a mechanical assembly with mounting bracket and motor housing (no text or symbols)

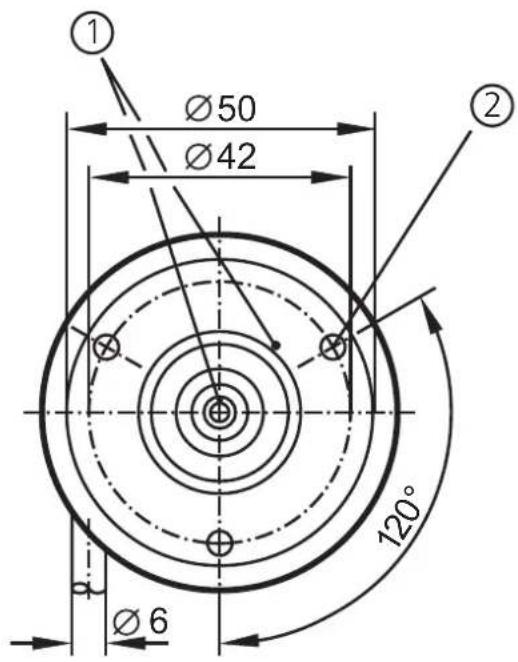

angle bracket E60033

1) reference mark
2) M4 thread / 5mm deep

The data sheet, further documents and suitable accessories are available on our website at www.ifm.com.

Technical line drawing of a mechanical assembly with mounting bracket and motor housing (no text or symbols)

Holder of Certificate: ifm electronic gmbh

Friedrichstr. 1

45128 Essen

GERMANY

Production 20196

Facility(ies):

Certification Mark:

Electronic measuring equipment (encoders)

Product: Electronic measuring equipment (encoders)

Model(s): RAx, ROx, RPx, RBx, RCx, RUx, RVx, RSx, RMs, RNx "x" can be any character (up to 15 digits) and defines configurations, interface, resolution and length.

Parameters: Rated Voltage: 5-30 Vdc Rated Current: max. 370 mA

Remark: When installing, requirements of mentioned Test Standards and Installation Guide has to be fulfilled. Supply shall fulfil requirements of limited energy circuit or Class 2 power.

Tested UL 61010-1:2004 according to: CAN/CSA-C22.2 No. 61010-1:2004

The product was voluntarily tested according to the relevant safety requirements and mentioned properties. It can be marked with the certification mark shown above. The certification mark must not be altered in any way. This product certification system operated by TÜV SÜD America Inc. most closely resembles that described by ISO/IEC Guide 67, Conformity assessment - Fundamentals of product certification, System 3. See also notes overleaf.

Test report no.: 028-71370093-000

Date, 2010-08-18

Page 1 of 1

TÜV SÜD AMERICA INC. • 10 Centennial Drive • Peabody MA 01960 USA • www.TUVamerica.com
