RU1114 - Digital decoder IFM - Free user manual and instructions

Product type	Rotary incremental encoder
Brand	IFM
Model	RU1114
Series	efector400
Power supply	5 V TTL or 10...30 V HTL
Output signals	A, B, zero index, inverted outputs (A neg., B neg., index neg.)
Output protection	Short-circuit protected (on 0 V for 5 V TTL; on 0 V and L+ for HTL, max. 1 min)
Electrical connection	Via cable or connector (male base ifm1000.xx / ifm1001.xx, 5-pin)
Max cable length	100 m (5 V TTL) or 300 m (10...30 V HTL)
Minimum distance to interference sources	20 cm
Mounting	On mounting flange (ref. E60033) with flexible coupling
Linear displacement	Possible via measuring wheel or rack and pinion
Protection rating	Not specified (estimated IP65 for industrial encoders)
Operating temperature	-20 °C to +85 °C (typical)
Dimensions	Approx. 58 mm diameter, 70 mm length (typical)
Weight	Approx. 0.2 kg
Maintenance and cleaning	Avoid shocks to the shaft; do not use abrasive tools; clean with a dry cloth
Safety	Disconnect power before any connection; insulate unused wires
Spare parts / repairability	Accessories available at www.ifm.com; encoder not user-repairable
General information	Used to measure linear displacements and angular movements; provides digital pulses for rotation direction and position

Frequently Asked Questions - RU1114 IFM

What type of power supply is required for the RU1114?

The RU1114 is available in two versions: 5 V TTL or 10...30 V HTL. Check the label on the housing to know the version.

How to connect the RU1114 encoder?

Disconnect power. Use a suitable cable or connector (male base ifm1000.xx or ifm1001.xx). Follow the wiring diagram provided on the housing cover. Insulate unused wires.

What are the output signals of the RU1114?

The encoder delivers pulse sequences on outputs A and B, phase-shifted by 90° to determine the direction of rotation. A zero index is provided once per revolution. Inverted outputs (A neg., B neg., index neg.) are available for differential transmission.

What is the maximum cable length?

For the 5 V TTL version, the maximum length is 100 m. For the 10...30 V HTL version, it is 300 m. Use shielded cables and install them at least 20 cm away from interference sources.

How to mount the RU1114?

Screw the encoder onto a mounting flange (ref. E60033). Connect the shaft via a flexible bellows or elastic disk coupling to compensate for misalignment. Avoid impacts on the shaft.

Can linear displacements be measured with this encoder?

Yes, by using a measuring wheel or rack and pinion to convert linear motion to rotation. Observe the maximum shaft loads.

What to do in case of a short circuit?

The outputs are short-circuit protected. For the HTL version, protection is active on 0 V and L+ for max. 1 minute. After that, disconnect power and check the wiring.

How to clean the RU1114?

Clean the housing with a dry, non-abrasive cloth. Do not use files or tools on the shaft to avoid damaging the device.

Where to find accessories or spare parts?

Check the website www.ifm.com for datasheets, accessories (flanges, cables, connectors) and other documents.

What to do if the device does not work?

Check the wiring, power supply and signal integrity. If the problem persists, contact IFM support. The encoder is not user-repairable.

USER MANUAL RU1114 IFM

Function and features

The encoder transforms rotational movement into pulse sequences. These allow the measurement of linear distances and angular movement as well as the determination of positions.

Electrical connection

Disconnect power from the installation before connecting or disconnecting cables or connectors!

Unused wires must be insulated to avoid short circuits and cross faults.

Short-circuit protection

5 V TTL version: outputs short-circuit protected against 0 V 10...30 V HTL version: outputs short-circuit protected against 0 V and L+ for maximum 1 minute

Standard wiring:

	Flange plug ifm1000.xx ifm1001.xx5-pole
L+ 2 9 12
L+ sensor - 5 2
0V 1 12 10
0V sensor -	10 11
A	3	1	5
A neg.	- 2 6
B	4	3	8
B neg.	- 4 1
0 index	5 6 3
0 index neg.	- 7 4
fault neg.	-	-	7
free	-	-	9
free	-	-	-
screen	housing	11	housing
	ifm1013.xx 5-wire cable 13-wire cable
L+ 1 brown brown/green	n/green
L+ sensor - - blue	green
0V 6 grey white/green	green
0V sensor - - white	green
A 2	green	brown
A neg.	- - green
B	4	white	grey
B neg.	- - pink
0 index	5	yellow	red
0 index neg.	- - black
fault neg.	- -	lilac
free	- -	-
free	- -	yellow
screen	3	housing	housing

Wiring is also indicated on the housing cap. If there is a deviation, the encoder must be connected as indicated on the label on the housing cap.

The wires L + (sensor) and 0V (sensor) are internally connected to the supply voltage. When using external electronics which regulate the supply voltage these wires can be used as test wires. If unused, these wires must be connected to the supply voltage or insulated.

Depending on the version, the electrical connection is made via the cable or via cables to be obtained separately.

When using suitable cables the maximum cable length is 100m for the 5 V TTL version and 300m for the 10...30 V HTL version.

The cables must be laid separately from interfering sources, the minimum distance is 20~cm .

The braided screen in the cable is connected to the encoder housing.

Output signals

output A

output B

0 index

The encoder provides digital pulse sequences at the output stages. The outputs A and B are electrically offset by 90^ . Thus the direction of rotation can be evaluated in the external electronics.

The combined zero index is provided once in a mechanical revolution of the shaft. In case of power failure it can be used as a reference point within a revolution.

The inverted output signals are used for external electronics with differential voltage input to filter interference.

Installation

Do not hit the shaft, do not use a file or similar tool on the shaft: This could destroy the unit!

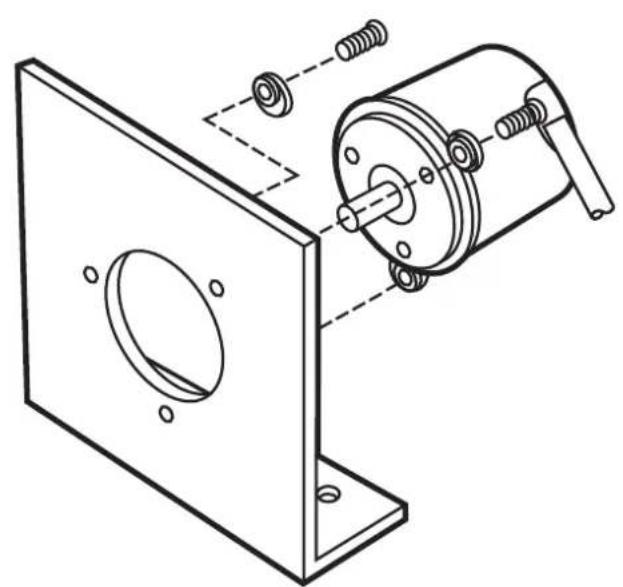

The encoder can be screwed to the angle bracket. The shaft should be connected using a flexible bellows or spring disc coupling to compensate for shaft displacement and to protect the encoder against damage.

Linear movements can be transformed into a rotational movement using a measuring wheel or rack and pinion. For mounting the maximum permissible shaft loads of the encoder must be taken into account.

Mounting the angle bracket on a resilient base protects the encoder against too high a stress due to roughness of the material.

angle bracket E60033

1) reference mark
2) M4 thread / 5mm deep

The data sheet, further documents and suitable accessories are available on our website at www.ifm.com.

Holder of Certificate: ifm electronic gmbh

Friedrichstr. 1

45128 Essen

GERMANY

Production

20196

Facility(ies):

Certification Mark:

Product:

Electronic measuring equipment (encoders)

Model(s):

RAX, ROx, RPx, RBx, RCx, RUX, RVx, RSx, RMs, RNx "x" can be any character (up to 15 digits) and defines configurations, interface, resolution and length.

Parameters:

Rated Voltage: 5-30 Vdc

Rated Current: max. 370 mA

Remark:

When installing, requirements of mentioned Test

Standards and Installation Guide has to be fulfilled.

Supply shall fulfil requirements of limited energy

circuit or Class 2 power.

Tested

UL 61010-1:2004

according to:

CAN/CSA-C22.2 No.61010-1:2004

The product was voluntarily tested according to the relevant safety requirements and mentioned properties. It can be marked with the certification mark shown above. The certification mark must not be altered in any way. This product certification system operated by TÜV SÜD America Inc. most closely resembles that described by ISO/IEC Guide 67, Conformity assessment - Fundamentals of product certification, System 3. See also notes overleaf.

Test report no.:

028-71370093-000

Date, 2010-08-18

Page 1 of 1

TUV SUD AMERICA INC. 10 Centennial Drive Peabody MA 01960 USA www.TUVamerica.com
