OW0003 - Temperature Controller IFM - Free user manual and instructions
Find the device manual for free OW0003 IFM in PDF.
| Product type | Temperature controller / Infrared detector |
| Brand | IFM |
| Model | OW0003 |
| Switching temperature | 350 °C or 750 °C depending on type |
| Power supply | DC PNP, DC NPN, AC/DC |
| Output | Not short-circuit protected (for AC/DC) |
| Maximum detection distance | 5 m (beyond that, radiation losses) |
| Opening angle | Variable, calculated according to distance and detection diameter |
| Mounting | Point towards object; mounting base optional (E20426) |
| Accessories | Mounting base (E20426), Protective sleeve (E20427) |
| Maintenance and cleaning | Use a protective sleeve with compressed air to clean the optics |
| Safety | Disconnect power before connection; insert a miniature fuse if specified |
| Spare parts and repairability | Mounting base (E20426), Protective sleeve (E20427) |
| General information | User manual available free of charge in PDF format |
Frequently Asked Questions - OW0003 IFM
User questions about OW0003 IFM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Temperature Controller in PDF format for free! Find your manual OW0003 - IFM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. OW0003 by IFM.
USER MANUAL OW0003 IFM

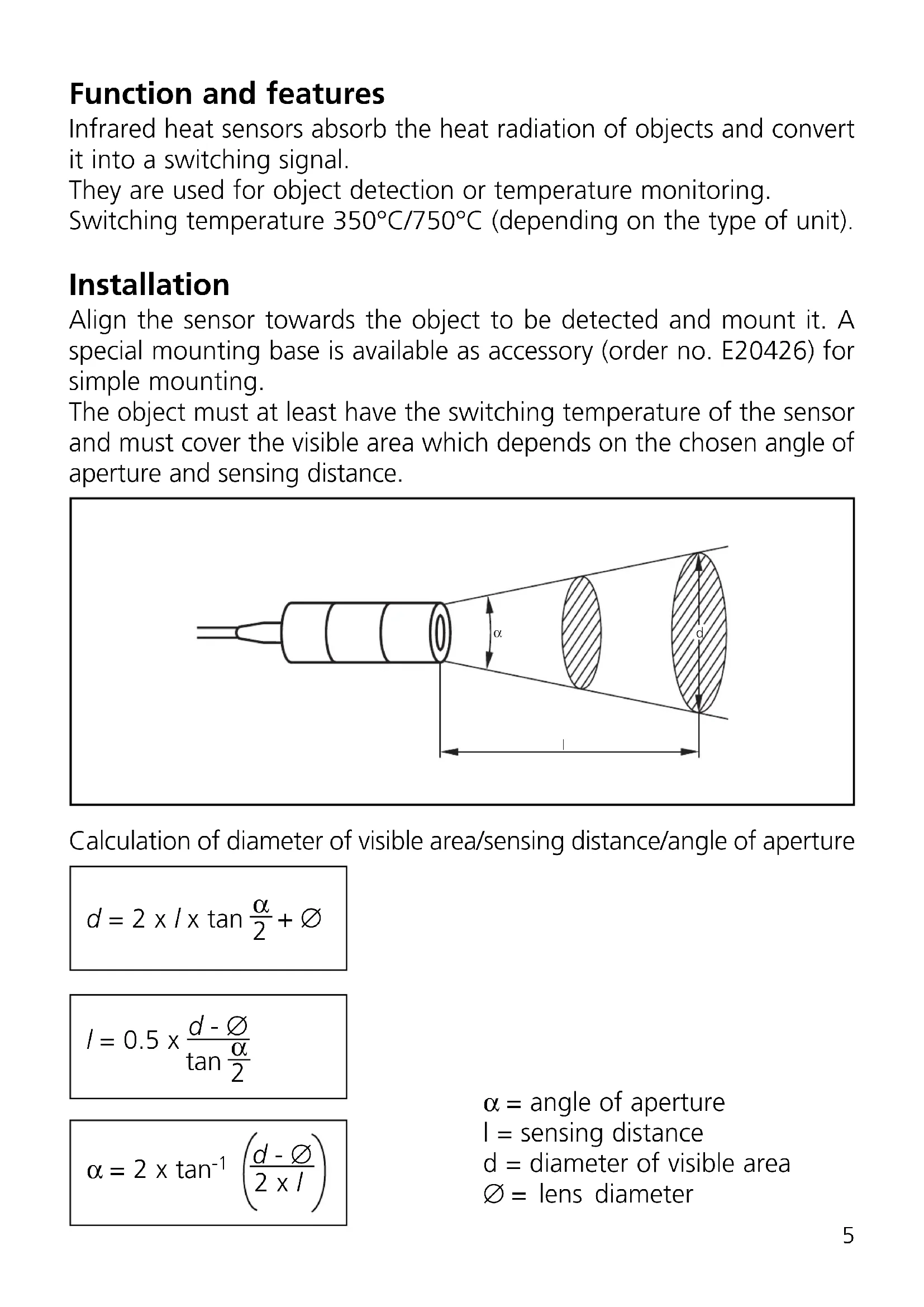

Function and features
Infrared heat sensors absorb the heat radiation of objects and convert it into a switching signal.
They are used for object detection or temperature monitoring.
Switching temperature 350^ / 750^ (depending on the type of unit).
Installation
Align the sensor towards the object to be detected and mount it. A special mounting base is available as accessory (order no. E20426) for simple mounting.
The object must at least have the switching temperature of the sensor and must cover the visible area which depends on the chosen angle of aperture and sensing distance.

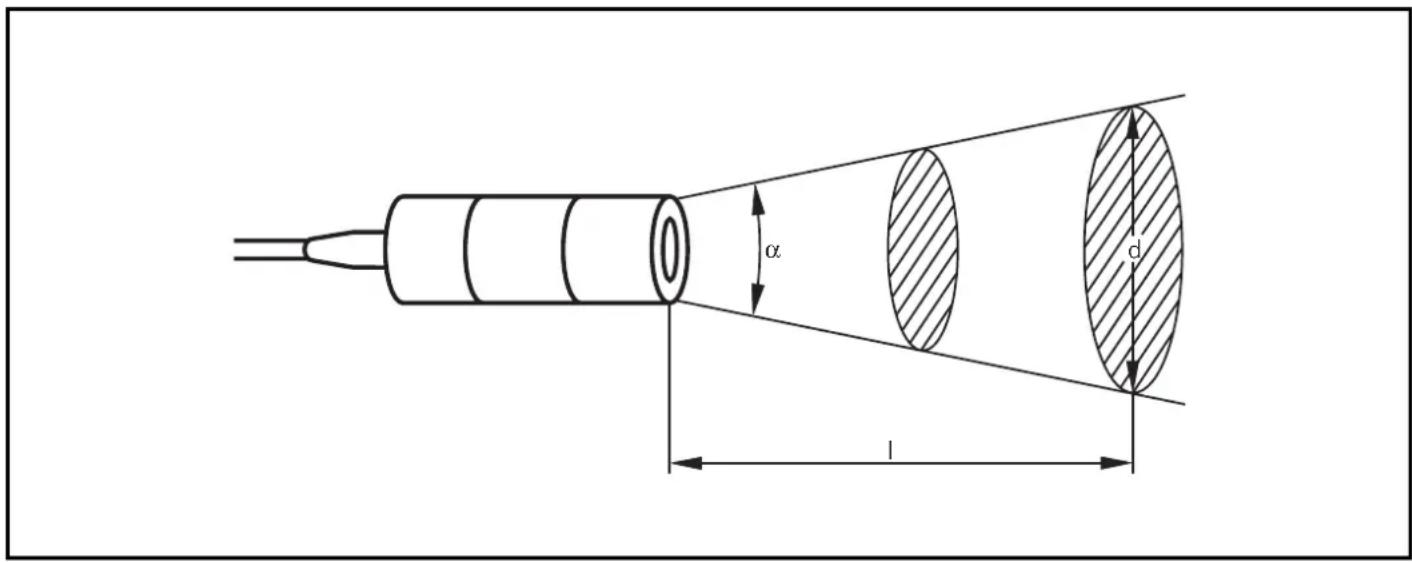

Calculation of diameter of visible area/sensing distance/angle of aperture
$$ \boxed {d = 2 \times I \times \tan \frac {\alpha}{2} + \varnothing} $$
$$ \boxed {I = 0. 5 \times \frac {d - \varnothing}{\tan \frac {\alpha}{2}}} $$
$$ \boxed {\alpha = 2 \times \tan^ {- 1} \left(\frac {d - \varnothing}{2 \times I}\right)} $$
$$ \alpha = \text {a n g l e o f a p e r t u r e} $$
$$ \mathsf {l} = \text {s e n s i n g d i s t a n c e} $$
$$ d = d i a m e t e r o f v i s i b l e a r e a $$
$$ \varnothing = \text {l e n s} $$

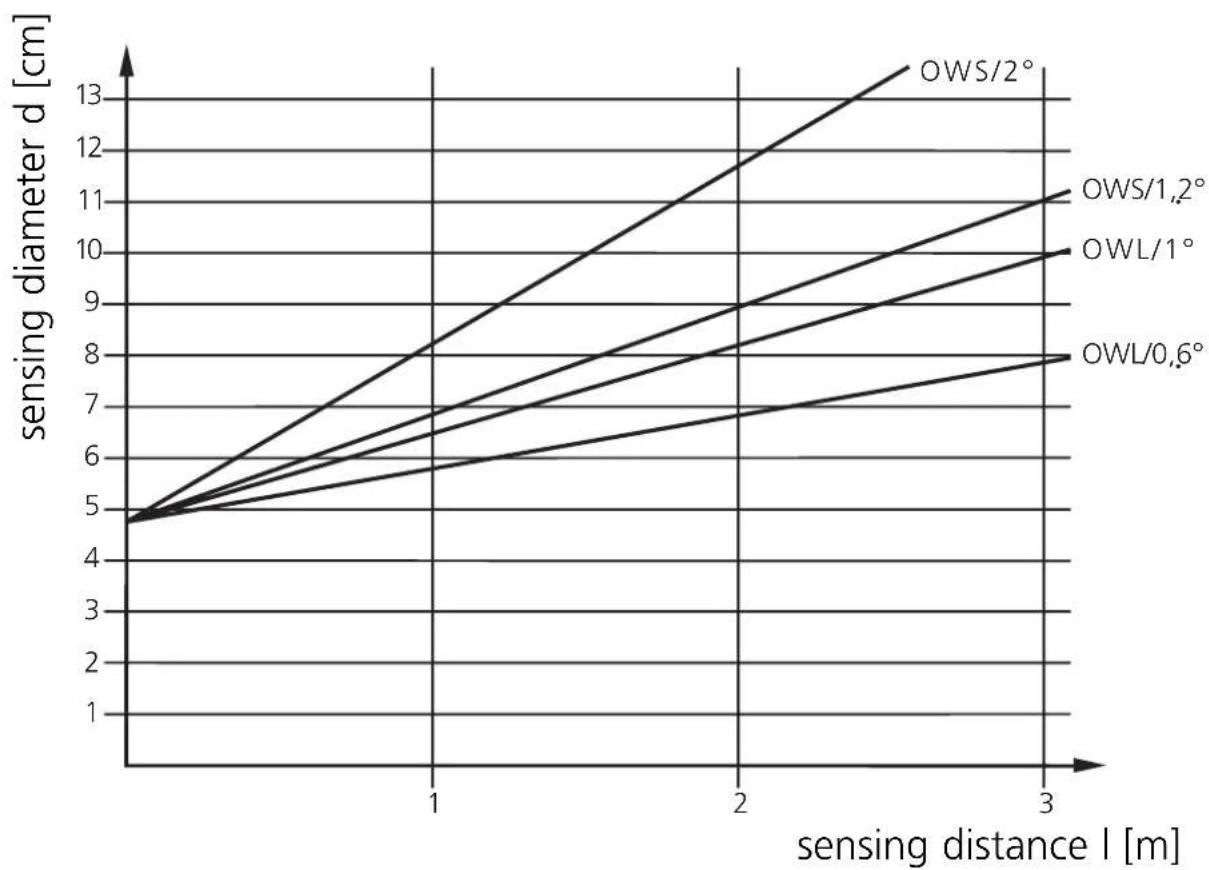

Sensing range diagram:
In the event of ranges of >5m radiation losses must be taken into account. The temperature of the object should therefore be much higher than the switching temperature of the sensor.
Electrical connection
Disconnect power, then connect the unit according to the wiring diagram.
DC PNP
DC NPN
AC/DC*
Note: insert a miniature fuse according to the technical data sheet, if specified.
Recommendation: check the unit for reliable function after a short cirucit.
Core colours of ifm sockets: BN = brown, BU = blue, BK = black,
GN/YE = green/yellow.
*Output not short-circuit protected.
Short circuit can lead to immediate destruction of the unit.
Operation
Check the safe functioning of the sensor.
If in the application wrong switching occurs due to background radiation (e.g. ovens), use units with higher switching temperatures.
For applications in difficult environments (e.g. dust, vapour) or in the event of heat reflections of the environment use infrared heat sensors with a protective tube (order no. E20427).
If necessary, keep the optics clean by means of passing compressed air into the connection piece of the protective tube.
