USER MANUAL HW150BP14986ES8 HAIER

User manual Washing machine

HW150-BP14986E

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Legend

Warning-Important Safety information

General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

WARNING!

Risk of injury or suffocation!

Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the door catch to prevent children and pets to get closed in the appliance.

EN

Content

1-Safety information. 4
2-Product description 7
3-Control panel 8
4-Programmes 12
5-Consumption. 15
6-Daily use. 16
7-Eco-friendly washing 21
8-Care and cleaning 22
9-Troubleshooting 25
10-Installation 28
11-Technical data 32
12-Customer service 33

1-Safety information

EN

Read the following safety instructions before using the appliance

WARNING!

Before first use

Make sure there is no transport damage.
Make sure all transport bolts are removed.
Remove all packaging and keep out of children's reach.
- Handle the appliance always with at least two persons because it is heavy.

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Keep away children under 3 years of age from the appliance unless they are constantly supervised.
Children shall not play with the appliance.
- Do not let children or pets come close to the appliance when the door is open.
Store washing agents out of reach of children.
- Pull up zips, fix loose threads and take care for small items to prevent laundry from being entangled. If necessary, use an appropriate bag or net.
- Do not touch or use the appliance when barefoot or with wet or damp hands or feet.
Do not cover or encase the appliance during operation or afterwards to allow any moisture or dampness to evaporate.
- Do not place heavy objects or sources of heat or damp on top of the appliance.
- Do not use or store flammable detergent or dry cleaning agent in close vicinity to the appliance.
Do not use any flammable sprays in close vicinity to the appliance.
Do not wash any garments treated with solvents in the appliance without having dried them previously in the air.

WARNING!

Daily use

Do not remove or insert the plug in the presence of flammable gas.
Do not hot wash foam rubber or sponge-like materials.
Do not wash any laundry which is polluted with flour.
Do not open detergent drawer during any wash cycle.
Do not touch the door during the washing process, it gets hot.
Do not open the door if the water level is visibly over the porthole.
Do not force the door to open. The door is fitted with a self-lock device and will open shortly after the washing procedure is ended.
Switch off the appliance after each wash programme and before undertaking any routine maintenance and disconnect the appliance from the electrical supply to save electricity and for safety.
Hold the plug, not the cable, when unplugging the appliance.

Maintenance / cleaning

Make sure children are supervised if they carry out cleaning and maintenance.
Disconnect the appliance from the electrical supply before undertaking any routine maintenance.
- Keep the lower part of the porthole clean and open door and detergent drawer if appliance is not in use to prevent odours.
Do not use water spray or steam to clean the appliance.
Replace a damaged supply cord only by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Do not try to repair the appliance by yourself. In case of repair please contact our customer service.

Installation

The appliance should be placed in a well-ventilated place. Ensure a location which allows opening the door fully.
- Never install the appliance outdoors in a damp place, or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak cut power supply and allow the machine to dry naturally.

1-Safety information

EN

WARNING!

Installation

Install or use the appliance only where the temperature is above 5^ .
Do not place the appliance directly on a carpet, or close to a wall or furniture.
- Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
Do not use multi-plug adapters and extension cables.
Make sure only the delivered electric cable and hose set are used.
Make sure not to damage the electric cable and the plug. If damaged have it replaced by an electrician.
- Use a separate earthed socket for the power supply which is easy accessible after installation. The appliance must be earthed.
Make sure the hose joints and connections are firm and there is no leakage.

Intended use

This appliance is intended for washing machine-washable laundry only. Anytime follow the instructions given on the label of each garment label. It is designed exclusively for domestic use inside the house. It is not intended for commercial or industrial use.

Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of all warranty and liability claims.

Note:

Due to technical changes and different models, the illustrations in the following chapters may differ from your model.

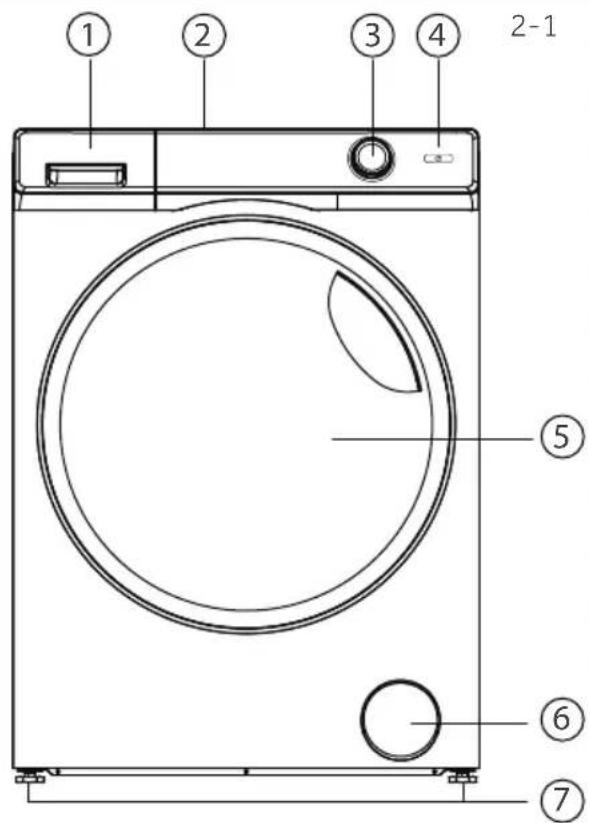

2.1 Picture of appliance

Front side(Fig. 2-1): Rear side (Fig. 2-2):

1 Dispenser drawer

5 Washer door

2 Worktop

6 Filter/ Service flap

3Programme selector

7 Adjustable feet

4 Control Panel

1 Shipping bolts (T1-T4)
2 Back cover
3 Back cover screws (S1-S8)
4 Power cord
5 Water inlet valve
6 Drain hose

2.2 Accessories

Check the accessories and literature in accordance with this list (Fig.2-3):

Inlet hose-assembly

6 Blanking plugs

Drain hose bracket

Screws

Warranty- User manual card

Sponge

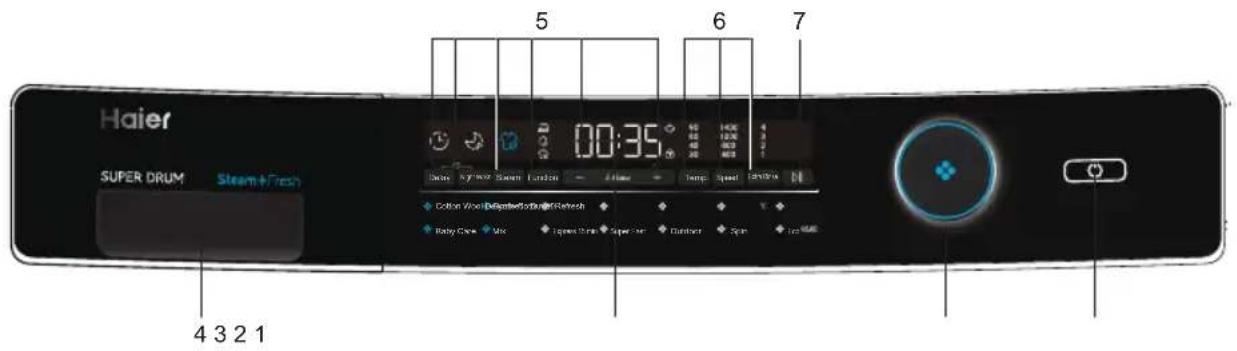

3-Control panel

EN

3-1

Note: Variety

Appearance and features will vary.

1 "Power" button

3 Display

5 Function buttons

7 "Start/Pause" button

2 Programme selector

4 Dispenser drawer

6 Setting buttons

Note: Acoustic signal

In following cases an acoustic signal sounds:

when pressing a button

at the end of programme

when turning the programme selector

in case of failures

The acoustic signal can be deselected if necessary ; see DAILY USE (see P20 6.13).

3-2

3.1 "Power" button

Touch this button (Fig. 3-2) to switch on, the display lights up. Touch it again for about 3 seconds to switch off.

Note: Mode

Display will turn into standby "OFF" mode if standby mode lasts too long

Note: Power supply.

Unplug power cord to disconnect the appliance from power supply.

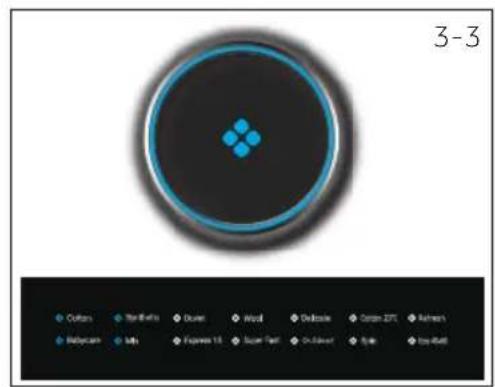

3.2 Programme selector

By turning the knob (Fig. 3-3) one of 14 programmes can be selected, related LED will light up, its default settings will be displayed.

3.3 Display

The display (Fig. 3-4) shows following information:

Wash time
End time delay
Error codes and service information
Function buttons and "Start/Pause" button

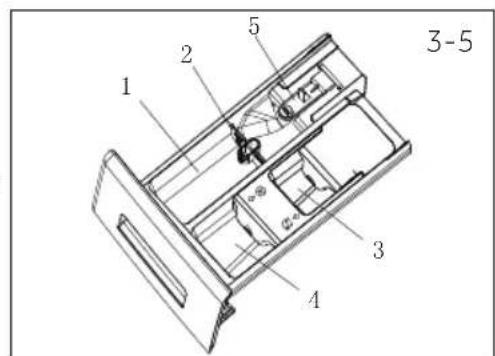

3.4 Detergent drawer

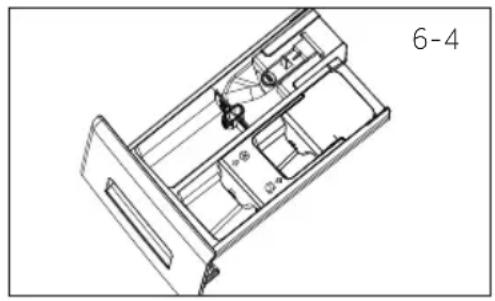

Open dispenser drawer, the following components can be seen (Fig. 3-5):

1: Compartment for powder or Liquid detergent
2: Detergent flap sclector, lift it up for powder detergent, keep it down for liquid detergent.
3: Compartment for sanitizer.
4: Compartment for softener.
5: Lock tab, press it down to pull out dispenser drawer.

The recommendation on the type of detergents is suitable for the various washing temperatures, please refer to the manual of detergent

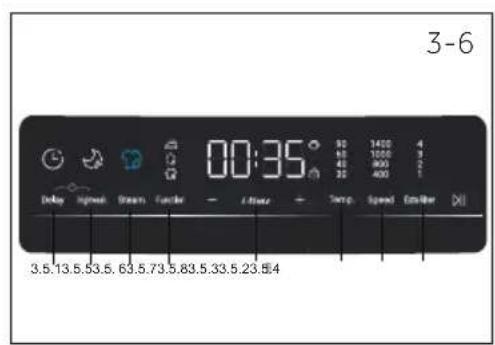

3.5 Function buttons

The function buttons (buttons 3.5.1-3.5.5, Fig. 3-6) enable additional functions to programmes before starting the programme. The related indicators are displayed.

By switching off the appliance or setting a new programme, all options are disabled.

If a button has multiple options, the desired option can be selected by pressing the button in sequence.

To delete the setting or to cancel the setting process, press the function button until the desired LED lights or-in case of only one option-the LED switches off

Note: Factory settings

To get best results in each programme Haier has well defined specific default settings. If there is no special requirement default settings are recommended.

3.5.1-Function button "Delay"

Press this button (Fig. 3-7) to start the programme with a delay. End time delay could be increased in steps of 30 minutes from 0,5-24h (add time to the original programme time). For example display off 6:30 means end of programme cycle will be in 6 hours and 30 minutes. Touch "Start/Pause" button to activate the time delay. It is not applicable to programme "Spin".

3.5.2-"Nightwash" button

Press this button (Fig. 3-8) to select Nightwash function to achieve better performance at night. All the acoustic signal will be turned off, except for failure signal. A 12 hour dispersing of laundry load is added to the programme as 1 minute left..

Note: Nightwash

Max. speed can be setted is 800 rpm as you add Nightwash to a programme. Easy Iron is the default setting of Nightwash. Nightwash will be cancelled if Easy Iron is cancelled.

3.5.3 "Steam" button

This function (Fig. 3-9) is available on cycles of Cotton, synthetic, Babycare, Mix. When it is selected, temperature function turns to be unselectable. Icon will be lighted when above cycles are selected.

3.5.4-"Function" button

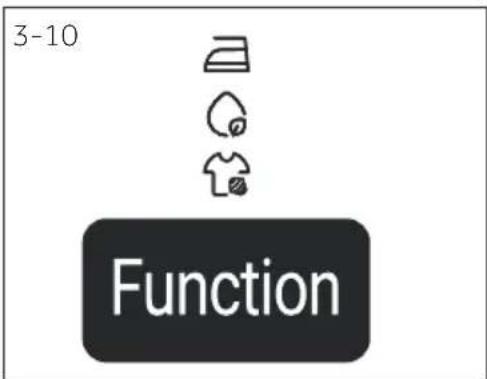

Press this button (Fig.3-10) to choose special features. The symbols are explained below.

Easy Iron

Allergen

Intense

3.5.5-Function button "t-line"

This function (Fig. 3-11) intensifies different washing time. The "i-time" can't operate in single washing function, washing spin function and easy self-cleaning.

3.6 Setting buttons

Individual settings for water temperature (Temp.), spin speed (Speed) extra rinse times (Extra Rinse) can be set to programmes. Each setting has several options to be set from minimum to maximum.

Note: Settings

Settings are not aviable on some programmes.

3.6.1-Setting button "Temp."

Touch this button (Fig. 3-12) to change the washing temperature of the programme. If no value is illuminated the water will not heated.

3.6.2-Setting button"Speed"

Touch this button (Fig. 3-13) to change or deselect the spin of the programme. If no value is illuminated the laundry will not spun.

3.6.3-Setting button "Extra Rinse"

Touch this button (Fig. 3-14) to rinse the laundry more intense with fresh water. This is recommended for people with sensitive skin. By touching the button several times one to three extra cycles can be selected. Extra rinse times will be lighting when it is selected.

3.7 "Start/Pause" button

Press this button (Fig. 3-15) to start a selected programme. Press it again will pause the appliance and unlock the door when appliance is running. A few seconds may be taken to unlock the door Extra rinse times will be lighting when it is selected.

3.8 Child lock

Press button "Delay" and "Nightwash" (Fig. 3-16) for 3 seconds simultaneously to all panel elements against activation. For unlocking please touch the two buttons again. The child lock indicator lights up when the child lock works. This feature is optional when the machine is running.

4-Programmes

EN

Wash Programmes

The wash programmes are optimized for specific types of laundry. Select the programme that most closely matches the items being washed. Settings shown in bold are the suggested settings for the programme

o Optional, / Not available			1 2 3			Detergent compartment for: 1 Liquid or powder Detergent 2 Softener or care product 3 Sanitizer
Programme 1 2 3 Fabrics type						Spin speed in rpm		Extra Rinse
Cotton	15	90 60 40 30 -	o	o	/	Cotton	1400 1000 800 400 -	3 2 1 -
Synthetic	7.5	60 40 30 -	o	o	/	Synthetic or mixed fabrics	1000 800 400 -	3 2 1 -
Duvet	3	40 30 -	o	o	/	Duvet	800 400 -	2 1 -
Wool 3		40 30 -	o	o	/	Machine-washable fabric made of wool or with wool content	800 400 -	2 1 -
Delicate 3		30 -	o	o	/	Delicate laundry and Silk	400 -	1 -
Cotton 20°C	15	/	o	o	/	Cotton	1000 800 400 -	3 2 1 -
Refresh 1		/	/	/	/	Cotton/Synthetic	/	/
Babycare	7.5	90 60 40 30 -	o	o	/	Cotton/Synthetic	1000 800 400 -	2 1 -

o Optional, / Not available

Detergent compartment for:

Liquid or powder Detergent
Softener or care product
3 Sanitizer

Programme 123 Fabrics type
Mix	15	60	o	o	/	Lightly soiled mixed laundry of cotton and synthetic	1000	3
		40					800	2
		30					400	1
		-					-	-
Express 15min	2	40	o	o	/	Cotton/Synthetic	1400	2
		30					1000	1
		-					800	2
							400	1
							-	-
Super Fast	7.5	40	o	o	/	Cotton/Synthetic	1000	1
		30					800	-
		-					400
Outdoor	7.5	40	o	/	/	Cotton, linen and synthetic	1000	1
		30					800	-
		-					400
Spin 15		/	///			All fabrics	1400	/
							1000
							800
							400
							-
Eco 40-60	15	/	o	o	/	Cotton/linen	/	/

Note: Index

1. Max. load refers to weight of dry laundry;
2. "-" refers to display light off for corresponding setting. For temperature setting, it refers to inlet water will not being heated; for speed setting, it refers to no spinning for selected programme; for extra rinse setting, it refers to no extra rinse.
3. Choose 90^ wash temperature only for special hygienic requirements.
4. Reduce detergent amount for Express 15 and Super Fast because programme duration is short.
5. The recommendation on laundry load of "Refresh" is a single piece for adult clothing, no more than 5 pieces for baby clothing.
6. The design and specifications are subject to change without notice for quality improvement purposes.

4-Programmes

EN

Functions below are available on specific programmes to provide enhanced performance. "O" indicates that function can be selected to the programme. "--" indicates that function cannot be selected to the programme.

Programme	Options
	Delay Nightwash Steam					Function			i-time
Cotton	0 0	0 0	0 0			0		0
Synthetic 0 0 0	0					0		0	0
Duvet	0 0	-	0 0			0		-
Wool 0 0 - 0						0		-	0
Delicate 0 0 - 0						0		-	0
Cotton 20℃	0 -	-	-		-	-		-
Refresh	-		-		-	-	-	-	-
Babycare	0 0	0 0	0 0			0		0
Mix	0 0	0 0	0 0			0		0
Express 15 min	0 0	-	0 0			0		-
Super Fast	0		0 - 0			0		-	0
Outdoor	0 0	-	0 0			0		0
Spin	-		0 -			0	-	-
Eco 40-60	-		- - -		-	-	-	-

Note: Sub-function

Sub-function of Intense can not be selected to programmes of Duvet, Delicate, Express 15, Super Fast.

Scan QR code on energy label for energy consumption information.

The actual energy consumption may differ from the declared one according to local conditions.

Note: Auto Weight

The appliance is equipped with a loading recognition. At low loading, energy, water and washing time will be reduced automatically in some programmes. The display shows

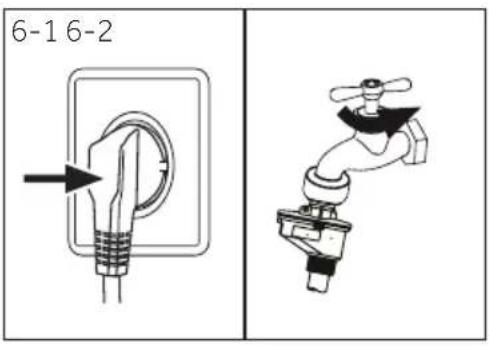

6.1 Power supply

Connect the washing machine to a power supply (220V to 240V~/50Hz; Fig. 6-1). Please refer also to section INSTALLATION.

6.2 Water connection

Before connecting check the cleanliness and clarity of the water inlet.

Turn on the tap (Fig.6-2).

Note: Tightness

Before use check for leakage in the joints between the tap and the inlet hose by turning on the tap.

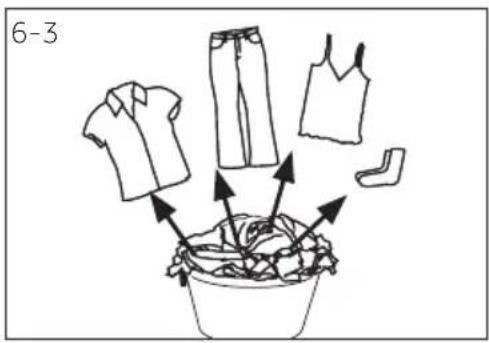

6.3 Preparing laundry

• Sort out clothes according to fabric (cotton, synthetics, wool or silk) and to how dirty they are (Fig. 6-3). Pay attention to the care labelling of washing labels.
• Separate white clothes from coloured ones. Wash coloured textiles first by hand to check if they fade or run.
• Empty pockets (keys, coins, etc.) and remove harder decorative objects (e.g. brooches).
  Garments without hems, delicates and finely woven textile such as fine curtains are to be put into a wash bag to care for this delicate laundry (hand or dry cleaning would be better).
• Close zippers, velco fastener and hooks, make sure the buttons are sewn on tightly.
• Place sensitive items like laundry without firm hem, delicate underwear (Dessous) and small items such as socks, belts, bras, etc. in a wash bag.
• Unfold large pieces of fabric such as bed sheets, bedspreads etc.
• Turn jeans and printed, decorated or color-intensive textiles inside out; possibly wash separately.

CAUTION!

Non-textile, as well as small, loose or sharp-edged items may cause malfunctions and damage of clothes and appliance.

Care chart

Washing

Washable up to 95^ normal process

Washable up to 60^ normal process

Washable up to 60^ mild process

Washable up to 40^ normal process

Washable up to 40^ mild process

Washable up to 40^ very mild process

Washable up to 30^ normal process

Washable up to 30^ mild process

Washable up to 30^ very mild process

Wash by hand max. 40^

Do not wash

Bleaching

Any bleaching allowed Only: oxygen/

non -chlorine

Do not bleach.

Drying

Tumble drying possible normal temperature

Tumble drying possible lower temperature

Do not tumble dryr

Line drying Flat drying

Ironing

Iron at a maximum temperature up to 200^ C

Iron at a medial temperature up to 150^

Iron at a low temperature up to 110^ ; without steam (steam ironing may cause irreversible damage)

Do not iron

Professional Textile Care

Dry cleaning in tetrachloroethene

Dry cleaning in hydrocarbons

Do not dry clean

Professional wet clean Do

Professional wet clean

6.4 Loading the appliance

Put in the laundry piece by piece

• Don't overload. Note the different maximum load according to programmes! Rule of thumb for maximum load: Keep six inches between load and drum top.
• Close the door carefully. Make sure that no pieces of laundry are pinched.

6-Daily use

EN

6.5 Selecting detergent

Washing efficiency and performance is determined by used detergent quality.
Use only machine wash approved detergent.
If needed use specific detergents, e.g. for synthetic and woolen fabric.
Mind always detergent manufacturer recommendations.
Do not use dry cleaning agents such as trichloroethylene and similar products.

Choose the best detergent

Programme	Kind of detergent
	Universal Colour Deluxe Special Softener
Cotton	L/PL/P	- - o
Synthetic - o	-	-	L/P
Duvet	-	-	L	L/P	-
Wool o	-	-	L/PL/P
Delicate	-	-	-	L/P	-
Cotton 20℃	L/PL/P		-	-	o
Refresh	- - -			-	-
Babycare	-	-	-	L/P	o
Mix	L/PL/P	- - o
Espress 15 min	L	L - - o
Super Fast	L/PL/P		- - o
Outdoor	L/PL/P		-	L/P	-
Spin	-	-	- - -
Eco 40-60	L/PL/P		- - o

L = gel-/liquid detergent P = powder detergent O = optional - = no

If using liquid detergent, it is not recommended to activate the time delay.

We recommend by using:

Laundry powder: 20^ to 90^^* (best use: 40 - 60^)
Color detergent: 20^ C to 60^ C (best use: 30 - 60^ C )
Wool/delicate detergent: 20^ to 30^ (best use: 20 - 30^ )

• Choose 90^ C wash temperature only for special hygienic requirements.

• If you choose the water temperature 60^ or above, we would like to advise you to use less detergent. Please kindly use the special disinfectant, which is suitable for cotton or synthetic cloth.

• It is better to use less or free suds detergent powder.

6.6 Adding detergent

1. Slide out the detergent drawer.
2. Put the required chemicals into corresponding compartments (Fig. 6-4)
3. Push back the drawer gently.

Note:

• Remove detergent residues before next wash cycle from the detergent drawer.

Do not overuse detergent or softener.
Please follow the instruction on the detergent package.

Always fill the detergent just before the beginning of the wash cycle.
Concentrated liquid detergent should be diluted before adding.
The best use of liquid detergent is by using a dosing ball, which is given with the laundry into the washing machine.
Do not use liquid detergent if "end time delay" is selected.
- Carefully choose the programme settings according to the care symbols on all laundry labels and according to the programme table.

6.7 Switch on the appliance

Touch the "Power"- button to switch on the appliance (Fig. 6-5). The LED of the "Start/Pause" button is flashing.

6.8 Select a programme

To get the best washing results, select a programme which fits the degree of soiling and sort of laundry type.

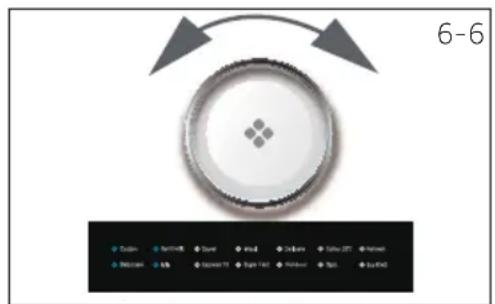

Turn the programme knob (Fig. 6-6) to select the right programme. Related programme LED lights up and the default settings are displayed.

6.9 Add individual selections

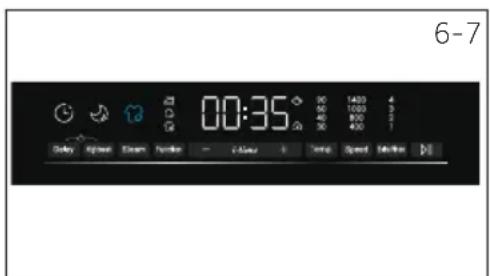

• Select required options and settings (Fig. 6-7); refer to CONTROL PANEL.

6-8

6.10 Start wash programme

Touch "Start/Pause" button (Fig. 6-8) to start. The LED of the "Start/Pause" button stops flashing and lights up continuously

Appliance operates according to present settings.

Changes are only possible by cancelling the programme.

6.11 Pause/ cancel wash programme

To pause a running programme press gently "Start/Pause". The LED above the button is flashing. Press it again to resume operation.

To cancel a running programme and all its individual settings

1. Touch "Start/Pause" button to interrupt the running programme.
   2 . Touch "Power" button for about 2 seconds to switch the appliance off .
2. Select "Spin" and "no speed", then run the programme to drain the water.
3. Select a new programme and start it..

6.12 After washing

Note: Door lock

For safety reasons the door is locked partially during the washing cycle. It is only possible to open the door at the end of the programme or after the programme was cancelled correctly (see description above).
In case of high water level, high water temperature and during spinning it is not possible to open the door; Loct is displayed

1. At programme cycle end End is displayed.
2. The appliance switches off automatically.
3. Remove laundry as soon as possible to go easy on it and to prevent more wrinkling.
4. Turn off the water supply.
5. Unplug the power cord.
6. Open the door to prevent formation of moisture and odours. Let it open while not used.

Note: Standby mode / energy-saving mode

The switched on appliance will go into standby-mode if it will not be activated within 2 minutes before starting the program or at the end of program. The display switsches off. This saves energy. To interrupt the standby mode touch " Start/Pause" button.

6.13 Activate or deactivate the buzzer

The acoustic signal can be deselected if necessary:

1. Switch on the appliance.
2. Select the Spin programme.
3. Touch the "Extra Rinse" and "+" button at the same time for about 3 seconds. "bEEP OFF" will be displayed and the buzzer will be deactivated.

For activating the buzzer press these two buttons at the same time again. "BEEP On" will be displayed.

Environmentally responsible use

To achieve best use of energy, water, detergent and time you should use the recommended maximum load size.
Do not overload (hand width clearance above laundry).
For slightly soiled laundry select the Express 15 programme.
Apply exact dosages of each washing agent.
Choose the lowest adequate washing temperature - modern detergents are efficiently cleaning below 60^ .
- Raise default settings only due to heavy staining.
Select max. spinning speed if a domestic dryer is used.

8-Care and cleaning

EN

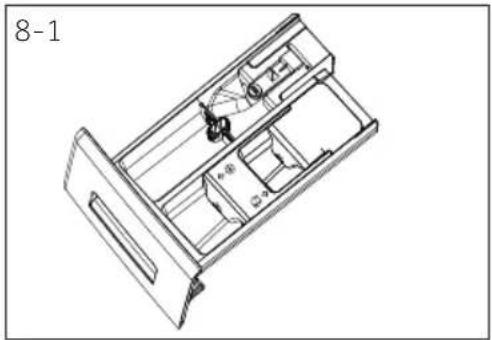

8.1 Cleaning the detergent drawer

Take always care there are no detergent residues. Clean the drawer regularly (Fig. 8-1):

1. Pull out the drawer until it stops.
2. Press the release button and remove the drawer.
3. Flush the drawer with water until it is clean and insert the drawer back in the appliance.

8.2 Cleaning the machine

Unplug the machine during cleaning and maintenance.

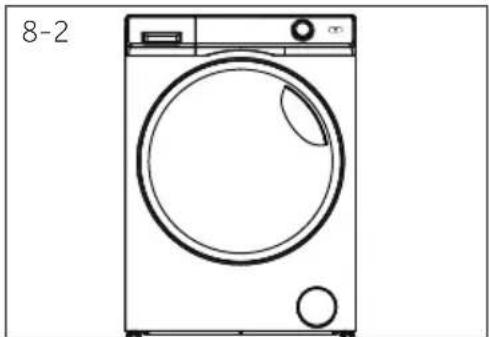

Use a soft cloth with soap liquid to clean the machine case (Fig. 8-2) and rubber components.

Do not use organic chemicals or corrosive solvents.

8.3 Water inlet valve and inlet valve fi Iter

To prevent blockage of water supply by solid substances like lime clean regularly the inlet valve fi Iter.

Unplug the power cord and turn off the water supply.

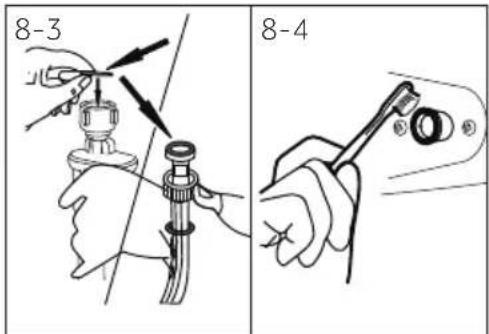

Unscrew the water inlet hose at the back (Fig. 8-3) of the appliance as well as on the tap.
Flush the filters with water and a brush (Fig. 8-4).
Insert the filter and install the inlet hose.

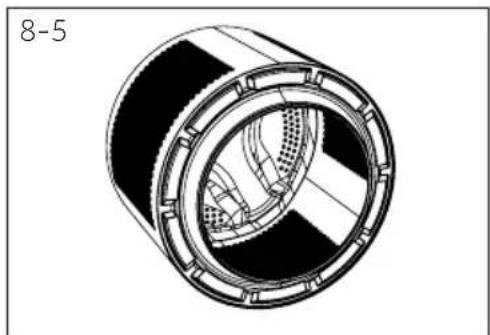

8.4 Cleaning the drum

• Remove any foreign object especially metal parts such as pins, coins, etc. from the drum(Fig. 8-5) because they cause rust stains and damage.
  Use a non-chloride cleaner for removing rust stains. Observe the warning hints of the cleaning agent manufacturer.
  Do not use any hard objects or steel wool for cleaning.

Note: Clean

Water and power should be cut off after each laundry cycle. To prevent the dirt from sticking to clothes,lint on the interlayer gasket and window should be cleaned.

8.5 Long periods of disuse

If the appliance is left idle for a longer period:

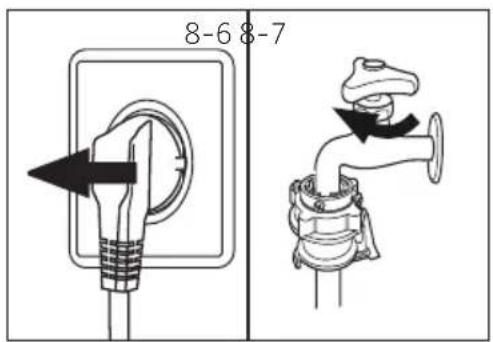

1. Pull out the electrical plug (Fig. 8-6).
2. Turn off water supply (Fig. 8-7).
3. Open the door to prevent formation of moisture and odours. Let door open while not used.

Before next usage check carefully power cord, water inlet and drain hose. Make sure everything is properly installed and without leackage.

8.6 Pump filter

Clean the filter once a month and check the pump filter for instance if the appliance:

Doesn't drain the water.
Doesn't spin.
Cause unusual noise while running.

WARNING!

Scalding Risk! Water in the pump filter can be very hot! Before any action please ensure water has cooled down.

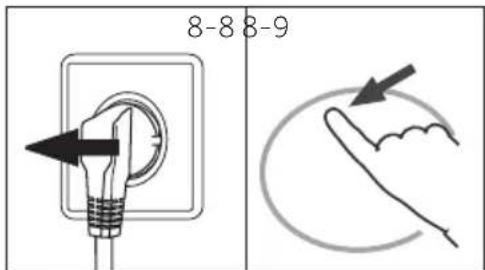

1. Turn off and unplug the machine (Fig. 8-8).
2. Open service flap. You can either use a coin or a screwdriver (Fig. 8-9).

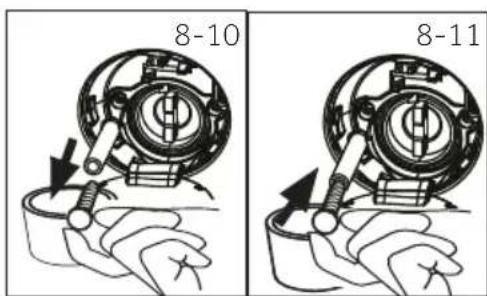

3. Provide a flat container to catch leach water (Fig. 8-10). There could be huge amounts!
4. Pull the drainhose out and hold its end above the container (Fig. 8-10).
5. Take the sealing plug out of the drainhose (Fig. 8-10).
6. After complete drainage close drainhose (Fig. 8-11), and push it back into the machine.

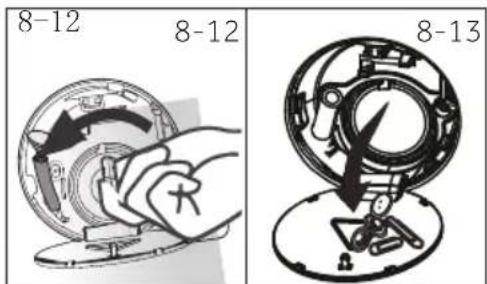

7. Unscrew and remove counter clockwise the pump filter (Fig. 8-12).
8. Remove contaminants and dirt (Fig. 8-13).

8-Care and cleaning

EN

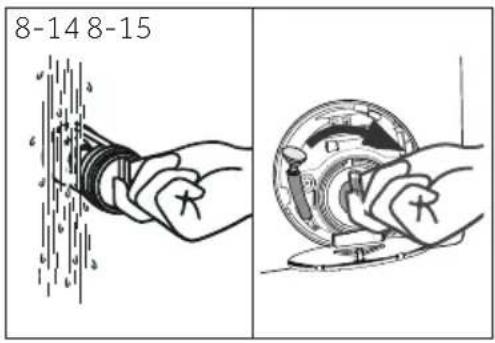

1. Clean carefully pump filter, e.g. using running water (Fig. 8-14).
2. Refix it thoroughly (Fig. 8-15).
3. Close service flap.

CAUTION!

Pump filter sealing has to be clean and unhurt. If the lid is not full tightened, water can escape.
The filter must be in place, or it may lead to leakage.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
- Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages..
A damaged power cable should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

9.1 Information codes

Following codes are displayed only for information referring to the washing cycle. No measures must be performed.

Code	Message
1:25	The remaining wash cycle time will be 1 hour and 25 minutes
6:30	The remaining wash cycle time including chosen end-time delay will be 6 hours and 30 min-utes
P-- 1/2/3	1/2/3 additional rinses are chosen (see FUNCTION BUTTONS "Extra rinse").
End	The washing cycle is finished. The appliance shuts off automatically.
[Loc]	Function child lock is activated.
Loc-	Door is closed because of high water level, high water temperature or spinning cycle.
bEEP OFF	The buzzer is deactivated
bEEP On	The buzzer is activated

9.2 Troubleshooting with display code

Problem Cause Solution
CLr FLBr	• Drainage error, water is not fully drained within 6 minutes.	• Clean pump fi I ter. • Check drain hose installation.
E2	• Lock error • Shut the door properly.
E4	• Water level not reached after 8 minutes. • Drain hose is self-syphoning.	• Make sure that tap is fully opened and water pressure is normal. • Check drain hose installation.
E5	• Drainage error in the beginning 3 minutes of Refresh.	• Select no speed and run Spin to drain water • Run solutions in Caslirepair actions.
E8	• Water protective level error.	• Contact the After sales service.

9-Troubleshooting

EN

Problem Cause Solution
F3	• Temperature sensor error. • Contact the After sales service.
F4	• Heating error.	• Contact the After sales service.
F7	• Motor error. • Contact the After sales service.
F8	• Water level sensor error. • Contact the After sales service.
FC0 or FC1 or FC2	• Abnormal communication error.	• Contact the After sales service.
Unb	• Unbalanced load error.	• Check and balance laundry load in the drum. Reduce the load.

9.3 Troubleshooting without display code

Problem	Cause Solution
Washing machine fails to operate.	Programme is not yet started. Door is not properly closed. Machine has not been switched on. Power failure. Child lock is activated.	Check programme and start it. Close the door properly. Switch the machine on. Check power supply. Deactivate child lock.
Washing machine will not be filled with water.	No water. Inlet hose is kinked. Inlet hose filter is blocked. Water pressure is less than 0.03 MPa. Door is not properly closed. Water supply failure.	Check water tap. Check inlet hose. Unblock inlet hose filter. Check water pressure. Close the door properly. Ensure the water supply.
Machine is draining while being filled.	Height of drain hose is below 80 cm. Drain hose end could reach into water.	Make sure that drain hose is properly installed. Make sure the drain hose is not in water.
Drainage failure.	Drain hose is blocked. Pump filter is blocked. Drain hose end is higher than 100 cm above floor level.	Unblock drain hose. Clean pump filter. Make sure that drain hose is properly installed.
Strong vibration while spinning.	Not all transportation bolts have been removed. Appliance has no solid position. Machine load is not correct.	Remove all transportation bolts. Ensure solid ground and a levelled position. Check load weight and balance.
Operation stops before completing wash cycle.	Water or electric failure.	Check power and water supply.
Operation stops for a period of time.	Appliance displays error code. Problem due to load pattern. Programme performs soaking cycle.	Consider display codes. Reduce or adjust load. Cancel programme and restart.

Problem Cause Solution

Excessive foam foats drum and/or detergent drawer.

Automatic adjustment of washing time.

Spinning fails.

Unsatisfactory washing result.

Washing powder residues are on the laundry.

Laundry has grey patches.

• Detergent is not a appropriate.
• Excessive use of detergent.

• Washing programme duration will be adjusted.
  Unbalance of laundry.

• Degree of pollution does not agree with selected programme.

• Detergent quantity was not sufficient.
  Maximum load has been exceeded.

• Laundry was unevenly distributed in the drum.

• Insoluble particles of detergent can remain as white spots on the laundry.

• Caused by fats such as oils, creams or ointments.

ck detergent recommendations.
- Reduce amount of detergent.
- This is normal and doesn't affect functionality.
- Checkmachineloadandlaundry and run a spinning programme again.
- Select an other programme.
- Choose the detergent acc. to the degree of pollution and acc. to manufacturer specifications.
- R educe loading.
- Loose the laundry.
Perform extra rinse.
Try to brush the points from the dry laundry.
- Choose an other detergent.
- Pretreat the laundry with a special cleaner.

Note: Foam formation

If too much foam is inspected during spin cycle, motor stops and drain pump will be activated for 90 seconds. If that elimination of foam fails up to 3 times, programme ends without spinning.

Should the error messages reappear even after the taken measures, switch off the appliance, disconnect the power supply and contact the customer service.

9.4 In case of power failure

The current programme and its setting will be saved. When power supply is restored operation will be resumed. In case of power failure during programme running door opening is mechanically blocked. If the laundry is to be removed, the water level must not be visible in the glass door. - Danger of scalding!

Lower the water level according to the chapter "Care and cleaning-Pump filter".

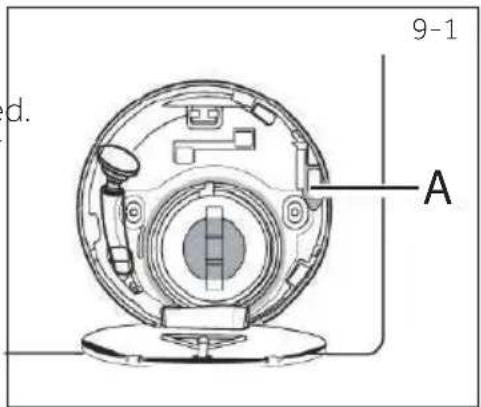

Pull lever (A) beneath service flap (Fig. 9-1) until
door is unlocked by a gentle click.
Fix all parts and close the service flap.

When the washing machine in a safe state (under the water level below the window along a certain distance, barrel temperature below 55^ , the inner barrel did not turn), may unlock the doors of the machine operation.

10-Installation

EN

10.1 Preparation

Take the appliance out of the packaging.

• Remove all packaging material including polystyrene base, keep them out of childrens reach. While opening the package, water drops may be seen on plastic bag and port-hole. This normal phenomenon results from water tests in the factory.

Note: Packaging disposal

Keep all packaging materials out of children's reach and dispose them in an environmentally friendly manner.

10.2 Install metal board

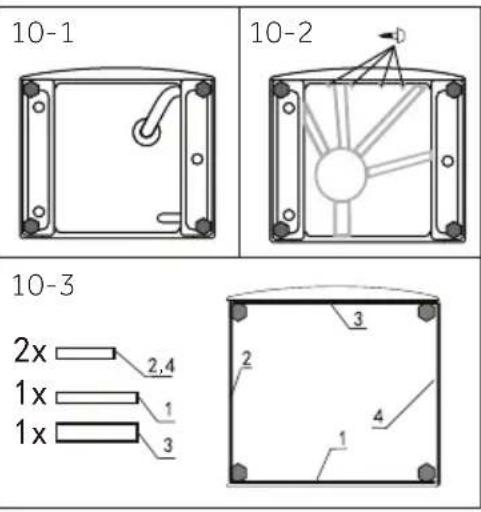

1. Tilt back the appliance (Fig. 10-1).
2. Get the metal board from the top of the packaging foam and install to the bottom of the appliance, then fix the metal board with four screws (Fig. 10-2).
3. Take out the noise reduction pads and remove the double-sided adhesive protective film; place the noise reduction pads under the washing machine cabinet as shown in Figure 10-3(two longer pads in position 1 and 3, two shorter pads in position 2 and 4). Finally set the machine upright again.

Note: Noise reduction pad

Noise reduction pad is optional, could help to reduce noise, please assemble it or not according to your own demand.

10.3 Dismantle the transportation bolts

The transportation bolts are designed for clamping anti-vibration components inside the appliance during transportation to prevent inner damage.

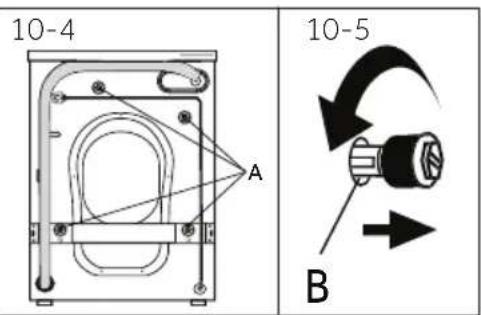

1. Remove the 4 transportation bolts (A) on the rear side and take out plastic spacers (B) from inner side of the machine (Fig. 10-4 and 10-5).

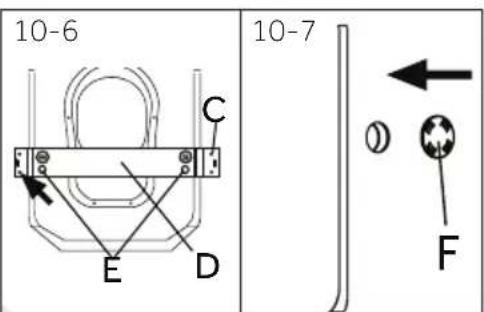

2. Remove the strengthen pieces screws (C), then re-move the strengthen pieces (D) and take out packing-rods (E) insideside of the appliance (Fig. 10-6).
3. Fill left holes with blanking plugs (F) (Fig. 10-7).

Note: Keep in safe place

Keep the transportation bolts in a safe place for later use. Whenever the appliance is to be moved at first reinstall the bolts.

10.4 Moving the appliance

If the machine is to be moved to a distant location, replace the transportation bolts removed before installation to prevent damage:

1. Remove the blanking plugs.
2. Remove the back cover
3. Insert the plastic spacers and the transportation bolts.
4. Tighten the bolts with a spanner.
5. Replace the back cover.

10.5 Aligning the appliance

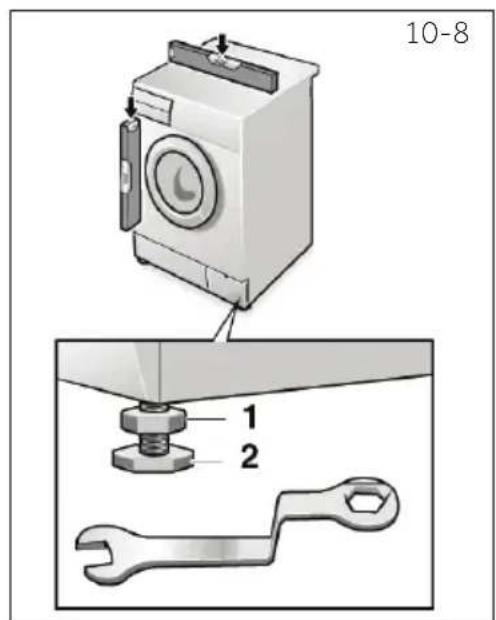

Adjust all feet (Fig. 10-8) to achieve a complete level position. This will minimize vibrations and thus noise during use. It will also reduce wear and tear. We recommend to use a spirit level for adjustment. Floor should be as stable and flat as possible.

1. Loose the locknut (1) by using a wrench.
2. Adjust the high by turning the foot (2).
3. Tighten lock ut (1) against the housing.

10-Installation

EN

10.6 Drain Water Connection

Fix the water drain hose properly to the piping. The hose has to reach at one point a height between 80 and 100cm above the appliance bottom line! If possible keep always drain hose fixed to the clip at the appliance back.

WARNING!

• Use only the supplied hose set for the connection.
  Never reuse old hose sets!
  Only connect to cold water supply.
  Before connection, check whether the water is clean and clear.

Following connections are possible:

10.6.1 Drain hose to sink

• Hang the drain hose with the U-support over the edge of a sink with adequate size (Fig. 10-9).

• Protect the U-support sufficiently against slipping.

10.6.2 Drain hose to waste water connection

The internal diameter of the stand pipe with vent-hole must be minimum 40mm

Put the drain hose for approx. 80~mm in the wastewater pipe.

Attach the U-support and secure it sufficiently (Fig. 10-10).

10.6.3 Drain hose to sink connection

The junction must lie above the siphon

A spigot connection is usually closed by a pad (A). That must be removed to prevent any disfunction (Fig. 10-11).

• Secure the drain hose with a clamp.

CAUTION!

The drain hose should not be submerged in water and should be securely fixed and leak-free. If the drain hose is placed on the ground or if the pipe is at a height of less than 80~cm , the washing machine will continuously drain while being filled (self-siphoning).
Drain hose is not to be extended. If necessary contact after sales service.

10.7 Fresh Water Connection

Make sure that the gaskets are inserted.

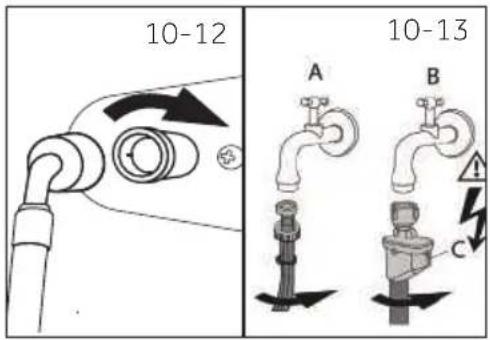

1. Connect the water inlet hose with the angled end to the appliance (Fig. 10-12). Tighten the screw joint by hand.
2. The other end connect to a water tap with a 3/4'' thread (Fig. 10-13).

Note: Aqua-stop-system

Some models are equipped with an aqua-stop inlet hose (B). The aqua-stop system protects against water damage by automatically cutting the fresh water supply in case of a leaking hose. This is indicated by a red marker (C). The hose must be replaced.

10.8 Electrical Connection

Before each connection check if:

• power supply, socket and fusing are appropriate to the rating plate.

the power socket is earthed and no multi-plug or extension are used.
the power plug and socket are strictly according.

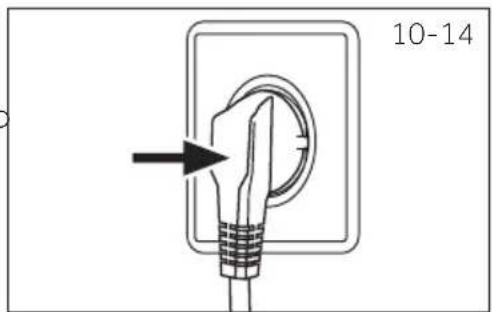

Put the plug into the socket (Fig. 10-14).

WARNING!

• Ensure always that all connections (power supply, drain and fresh water hose) are firm, dry and leack free!
  Take care these parts are never to be crushed, kinked, or twisted.
  If the supply cord is damaged, it must be replaced by the service agent (see warranty card) in order to avoid a hazard.

11-Technical data

EN

11.1 Additional technical data

HW150-BP14986E
Dimension (HxWxD in mm)	985x701x630
Voltage in V	220-240 V~/50Hz
Current in A	10
Max power in W	2000
Water pressure in MPa	0.03≤P≤1
Netto weight in kg	103

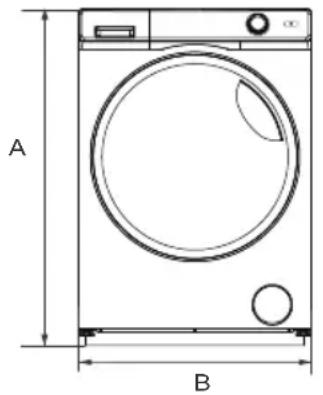

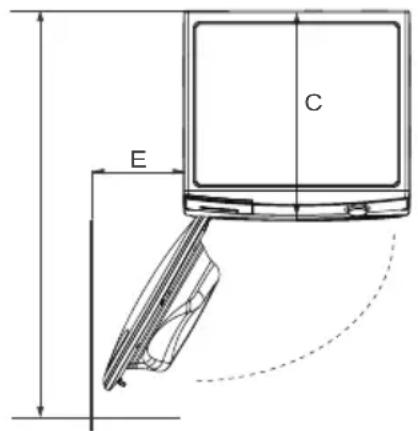

11.2 Product dimensions

D
TOP VIEWWallFRONTVIEW

PRODUCT DIMENSIONS	HW150-BP14986E
A Overall height of product mm	985
B Overall width of product mm	701
C Overall width of product (To maincontrol board size) mm	630
D Depth of door open mm	1260
E Minimum door clearance to adjacent wall mm	400

Note: The exact height of your washer is dependent on how far the feet are extended from the base of the machine. The space where you install your washer needs to be at least 40mm wider and 20mm deeper than its dimensions.

11.3 Standards and Directives C

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

We recommend our Haier Customer Service and the use of original spare parts.

If you have a problem with your appliance, please first check section TROUBLESHOOTING.

If you cannot find a solution there, please contact

your local dealer or

• the Service & Support area at www.haier.com where you can find telephone numbers and FAQs and where you can activate the service claim.

To contact our Service, ensure that you have the following data available.

The information can be found on the rating plate.

Model

Serial No.

Also check the Warranty Card supplied with the product in case of warranty.

For general business enquiries please find below our addresses in Europe:

European Haier addresses
Country*	Postal address	Country* Postal address
Italy	Haier Europe Trading SRL Via De Cristoforis, 12 21100 Verese ITALY	France	Haier France SAS 53 Boulevard Ornano-Pleyad 393200 Saint Denis FRANCE
Spain Portugal	Haier Iberia SL Pg. Garcia Faria, 49-51 08019 Barcelona SPAIN	Belgium-FR Belgium-NL Netherlands Luxembourg	Haier Benelux SA Anderlecht Route de Lennik 451 BELGIUM
Germany Austria	Haier Deutschland GmbH Konrad-Zuse-Platz 6 81829 München GERMANY	Poland Czechia Hungary Greece Romania Russia	Haier Poland Sp. zo.o. Al. Jerozolimskie 181B 02-222 Warszawa POLAND
United Kingdom	Haier Appliances UK Co.Ltd. One Crown Square Church Street East Woking, Surrey, GU21 6HR UK

*For more information please refer to www.haier.com
