Product type	Professional laser projector
Brand	Laserworld
Model	EL400RGB MK2
Laser class	3B
Laser sources	Diodes, DPSS
Wavelengths	Red 650 nm, Green 532 nm, Blue 445 nm
Total optical power	400 mW
Power supply	85-250 V AC, 30 W
Dimensions (L x W x H)	255 x 245 x 100 mm
Weight	3 kg
Operating modes	Automatic, music, DMX (16/36 channels), ILDA, master-slave
Scanner	Galvo, 15 kpps
Operating temperature	+10°C to +35°C
Connectors	DMX (XLR), Interlock
Safety functions	Key switch, Scan Safety, interlock
Maintenance	Clean the output window with glass cleaner, ensure proper ventilation
Package contents	Laser projector, key, interlock connector, power cable, user manual
Intended use	Shows and display (professional use)
Standards	Complies with Decree No. 2007-665

Frequently Asked Questions - EL400RGB MK2 Laserworld

How to turn on the EL400RGB MK2 laser projector?

Connect the power cable, connect the Interlock connector, insert the safety key and turn it to ON, then switch on the device. The 'Emission - Laser on' LED lights up when the device is ready.

What operating modes are available?

The modes are: automatic (AUt0, AUt1, AUt2), music (SoU0), DMX (16 or 36 channels), ILDA, and master-slave.

How to set up DMX mode?

Set the device to A001 on the display, choose the DMX address (001-511) with the Up/Down buttons, then select DMX mode CH16 (16 channels) or CH36 (36 channels).

What safety precautions should be observed?

Never look directly into the laser beam. Use the device only indoors and for professional use. Observe safety distances and the maximum permissible exposure (MPE). Use the interlock and safety key.

How to clean the laser device?

Clean the output window occasionally with glass cleaner. Ensure that fans and heatsinks are free of dust. Avoid moisture and water spray.

What to do if the fuse blows?

Replace the fuse with a new one of the same type. If the problem persists, contact your dealer or Laserworld after-sales service.

How to use master-slave mode?

Choose one device as master by setting it to Sound or Automatic mode. The other devices must be set to DMX mode (A001). Connect them with a standard XLR cable. The slaves reflect the master's behavior.

What is the power of the EL400RGB MK2 laser?

The guaranteed total optical power is 400 mW, with red (650 nm), green (532 nm), and blue (445 nm) sources.

How to disable Scan Safety (SFS)?

Enter test mode on the display (long press ENTER), then select the submenu 'Beon' to activate or 'BeoF' to deactivate. By default, SFS is activated.

Where is the device's serial number located?

The serial number is on the safety label attached to the laser housing, usually on the back or side.

USER MANUAL EL400RGB MK2 Laserworld

Please spend a few minutes to read this manual fully before operating this laser!

Black industrial laser projector with warning label and mounting bracket (no visible text or symbols)

English

Deutsch

Français

10/2024

Thank you for purchasing this Laserworld product. Due to continual product developments and technical improvements, Laserworld AG reserves the right to make modifications to its products. This manual and its content have been made with due care but Laserworld AG cannot however, take any responsibility for any errors, omissions or any resulting damages forthwith. The brands and product names mentioned in this manual are trade marks or registered trade marks of their respective owners.

Attention: This device is a show laser device for commercial use. This device is not a laser pointer, not suitable for pointing purposes and must not be used as a laser pointer.

Please read manual before operation

Use in enclosed spaces only!

Front Panel | Frontplatte | Panneau frontal

Black industrial machine base with warning symbols and labeled points A and B (no readable text or labels)

A. Emission led | LED: Laseremission | LED témoln - émission laser
B. Laser aperture | Laseraustritts-fenster | Ouverture laser

1. Product and package contents 6
2. Preliminary warning notices 6
3. Initial operations, safety instructions 6
4. Working on the device 7
5. Service notes 7
6. General Operation 8

Final statement 17

Technical data 46

Manual: EL-400RGB S Manual: EL-400RGB S

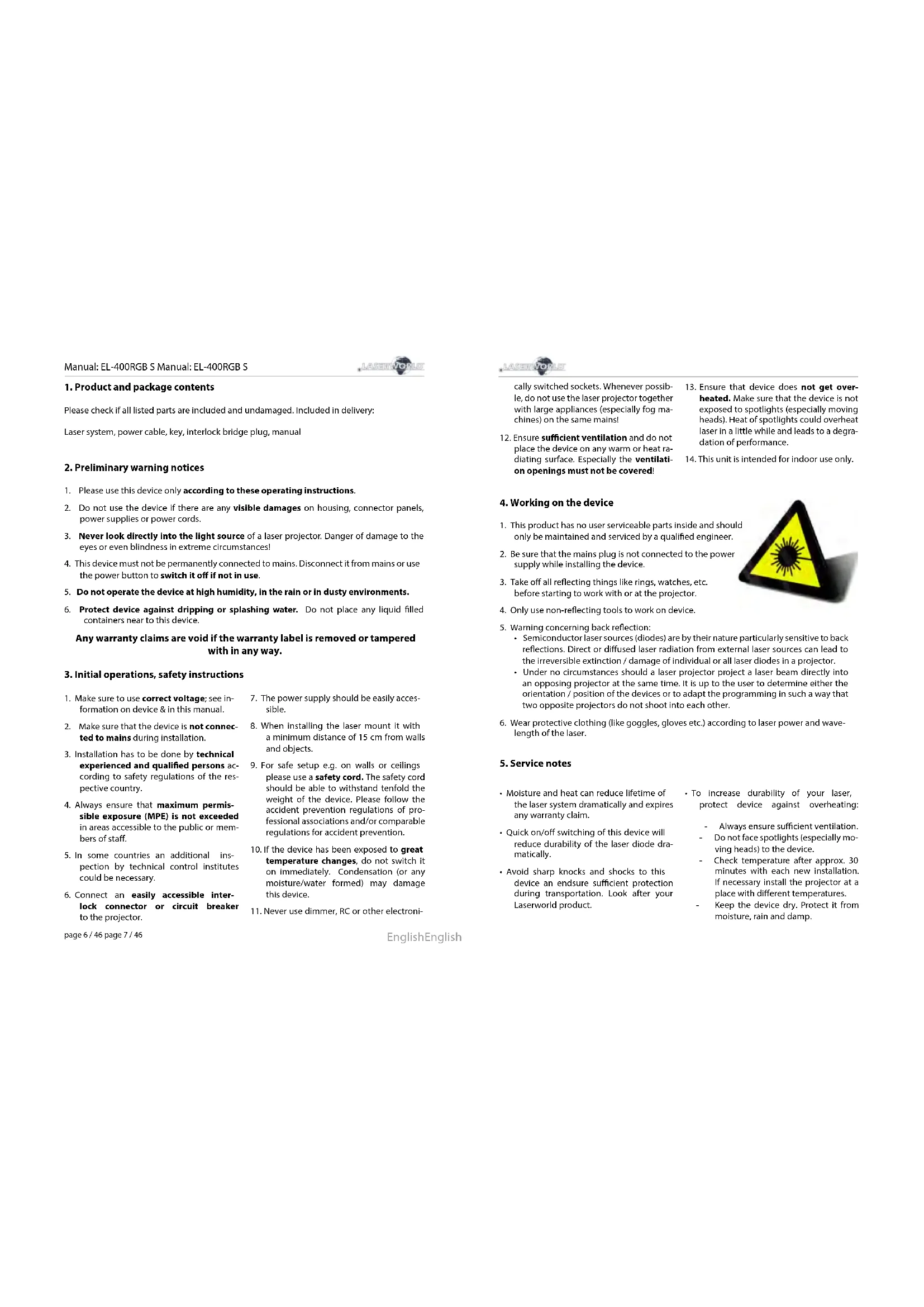

1. Product and package contents

Please check if all listed parts are included and undamaged. Included in delivery:

Laser system, power cable, key, interlock bridge plug, manual

2. Preliminary warning notices

1. Please use this device only according to these operating instructions.
2. Do not use the device if there are any visible damages on housing, connector panels, power supplies or power cords.
3. Never look directly into the light source of a laser projector. Danger of damage to the eyes or even blindness in extreme circumstances!
4. This device must not be permanently connected to mains. Disconnect it from mains or use the power button to switch it off if not in use.
5. Do not operate the device at high humidity, in the rain or in dusty environments.
6. Protect device against dripping or splashing water. Do not place any liquid filled containers near to this device.

Any warranty claims are void if the warranty label is removed or tampered with in any way.

3. Initial operations, safety instructions

1. Make sure to use correct voltage; see information on device & in this manual.
2. Make sure that the device is not connected to mains during installation.
3. Installation has to be done by technical experienced and qualified persons according to safety regulations of the respective country.
4. Always ensure that maximum permissible exposure (MPE) is not exceeded in areas accessible to the public or members of staff.
5. In some countries an additional inspection by technical control institutes could be necessary.

6. Connect an easily accessible inter-lock connector or circuit breaker to the projector.

7. The power supply should be easily accessible.

8. When installing the laser mount it with a minimum distance of 15 cm from walls and objects.
9. For safe setup e.g. on walls or ceilings please use a safety cord. The safety cord should be able to withstand tenfold the weight of the device. Please follow the accident prevention regulations of professional associations and/or comparable regulations for accident prevention.
10. If the device has been exposed to great temperature changes, do not switch it on immediately. Condensation (or any moisture/water formed) may damage this device.
11. Never use dimmer, RC or other electroni-

page 6 / 46 page 7 / 46

EnglishEnglish

cally switched sockets. Whenever possible, do not use the laser projector together with large appliances (especially fog machines) on the same mains!

1. Ensure sufficient ventilation and do not place the device on any warm or heat radiating surface. Especially the ventilation openings must not be covered!

2. Ensure that device does not get overheated. Make sure that the device is not exposed to spotlights (especially moving heads). Heat of spotlights could overheat laser in a little while and leads to a degradation of performance.

3. This unit is intended for indoor use only.

4. Working on the device

1. This product has no user serviceable parts inside and should only be maintained and serviced by a qualified engineer.
2. Be sure that the mains plug is not connected to the power supply while installing the device.

3. Take off all reflecting things like rings, watches, etc. before starting to work with or at the projector.

4. Only use non-reflecting tools to work on device.

5. Warning concerning back reflection:

6. Semiconductor laser sources (diodes) are by their nature particularly sensitive to back reflections. Direct or diffused laser radiation from external laser sources can lead to the irreversible extinction / damage of individual or all laser diodes in a projector.

7. Under no circumstances should a laser projector project a laser beam directly into an opposing projector at the same time. It is up to the user to determine either the orientation / position of the devices or to adapt the programming in such a way that two opposite projectors do not shoot into each other.

8. Wear protective clothing (like goggles, gloves etc.) according to laser power and wavelength of the laser.

5. Service notes

- Moisture and heat can reduce lifetime of the laser system dramatically and expires any warranty claim.

- Quick on/off switching of this device will reduce durability of the laser diode dramatically.

- Avoid sharp knocks and shocks to this device an endsure sufficient protection during transportation. Look after your Laserworld product.

• To increase durability of your laser, protect device against overheating:

• Always ensure sufficient ventilation.
• Do not face spotlights (especially moving heads) to the device.
• Check temperature after approx. 30 minutes with each new installation. If necessary install the projector at a place with different temperatures.
• Keep the device dry. Protect it from moisture, rain and damp.

Manual: EL-400RGB S Manual: EL-400RGB S

• Switch off device when it is not needed. Diodes are switched on and can wear out even if there is no visible laser output.
• Please ensure the fans and heatsinks are clear from dust and debris otherwise the risk of overheating may occur. If the unit or air inlets appear to be blocked, please contact a qualified service engineer to maintain and service the product.
  • Always place the laser behind fog machi-
• Avoid direct exposure of the laser to moisture
• Clean the exit window with glass cleaner from time to time
• Removal of the warranty label as well as damages to the device caused by improper handling, neglect of the safety instructions and service notes will void the warranty.

nes and hazers

6. General Operation

1. Power

Connect the power cord to the device and to the mains. Make sure that your device is provided with the correct voltage. Wrong voltage could lead to irreparable damages. Please find the correct voltage data in the synoptical table at the end of this manual. Make sure that the device is not directed to people or inflammable objects during installation. To start the device, connect the interlock bridge, insert the key and switch it on, and switch the device on. The "Emission - Laser on" LED at the front side of the device begins to light up when the device is ready for use.

2. Key Switch

There is a key switch at the back of the laser system. Please plug the key to the switch and turn it on. The laser device only runs when the key is inserted and switched on. Prevent misuse! Unplug the key when the laser is unattended to prevent misuse of the system.

3. Fuse

There is a fuse at the back side of the device. If the fuse should blow, please exchange it with a new one. If the problems recurs, please contact your dealer or the Laserworld service department.

4. Safety Presets

This device has an integrated Scan Safety (SFS). Is the Scan Safety active (on), single beams are prevented. If the Scan Safety is switched off, it is possible to create full power single beams - be careful.

Operating the laser system with disabled SFS may not be allowed in some countries. Always ensure that maximum permissible exposure (MPE) is not exceeded in areas accessible to the public or members of staff.

To enable or disable SFS enter test mode in the display, then select „Beon”/“BeoF” sub-menu.

5. Modes / Functions

The different operation modes can be selected via the four buttons next to the „Settings" display.

page 8 / 46 page 9 / 46

„Menu" permits to choose the operating mode of laser..

"Enter" confirms a selection or navigates to the selected menu item.

„Up“ / „Down“ allows for stepping through the current menu or to make a selection.

Primary Menu Sub Menu
A001(DMX mode)	A001-A511(DMX Address 001-511)
CH16 16CH/36CH
AUt0(Auto mode, default)	AUt0 (Play all list, default)AUt1 (Animation)AUt2 (Geometric patterns)
SP50 SP00-SP99
SoU0(Sound active mode)	AUt0 (Play all list, default)AUt1 (Animation)AUt2 (Geometric patterns)
80DB	00DB-99DB(Sound control sensitivity)
Long press ENTER key 3S to enter test mode, and then long press ENTER key to exit test mode
(Lighting setting)	tEST Select test pattern 1, 2, 3
	Invert XY and swap XY	PHn1: NormalPHn2: Invert YPHn3: Invert XYPHn4: Invert XPHc1: Normal (Swap XY)PHc2: Invert Y (Swap XY)PHc3: Invert XY (Swap XY)PHc4: Invert X (Swap XY)
	H100X Size	H010-H100(H100)
	y100Y Size	y010-y100(y100)
	S100XY Size	S010-S100(S90)
	P128Horizontal position adjust	P0-P128(P128)
	t128Vertical position adjust	t0-t128(t128)
	SC15(Scanner speed)	SC10-SC30(Speed: 10k-30k, default 15k)CS15 value should remain unchanged to offer best scan performances

Manual: EL-400RGB S Manual: EL-400RGB S

Primary Menu Sub Menu
(Lighting setting)	Co11(Color setting)	Co01-Co07: Single color/whiteCo08: RGYCo09: RBPCo10: GBCCo11: RGBCo12: WYPC
	Beon/BeoF(Security protection settings)	Beon/BeoF(Safety protection is on/off)
	DEFA	Press ENTER to confirm the recovery by default
	0506 Version number

5.1. SOUND-TO-LIGHT

Set the device to SoUo and press „Enter“. Then select a value in the submenu:

• Set the device to AUt0 to play all the list
• Set the device to AU1 to play animations.
• Set the device to AU(0) to play geometric patterns.
  Control the music sensitivity by setting the menu to 80DB and press „Enter“. Then select a value in the submenu, from 00DB to 99DB.

5.2. STAND-ALONE/AUTO

Set the device menu to AU0 and press „Enter“. Then select a value in the submenu:

• Set the device to AUt0 to play all the list.
• Set the device to AUr1 to play animations.
• Set the device to AU10 to play geometric patterns.

5.3. MASTER-SLAVE

This mode will allow to link up several units together without a controller. Choose a unit to function as Master, set the display to select Sound mode or Automatic mode. The other units must be set to DMX mode (A001). Use standard XLR cable to chain your units together via the XLR connector on the rear of the units. After the slave units are turned „on“ they will reset and start in Slave mode to mirror the behavior of the master unit.

5.4. DMX 512

Connect a DMX controller to operate the laser.
Set the device to A001 and press „Enter“.
Set the DMX address with „Up“ / „Down“ and press „Enter“.

This laser has Standard (16 DMX channels) and Pro (36 DMX channels) modes. Set the device to CH16 to select the mode and press „Enter“.

Channel Function Value Description
1	Laser ON/OFF	0-0	Laser OFF
		1-255	Laser ON
2	Auto Mode Trigger	0-26	Default automatic speed
		27-127	Select the automatic speed
	Sound Active Trigger	128-255	Select the sound active sensitivity
3	Pattern Group	0-15	Geometric patterns
		16-31	Geometric patterns
		32-47	Geometric patterns
		48-63	Geometric patterns: Dot type pattern
		64-127	Location for the downloaded ILD programs
	Effect Group	128-143	Animated programs
		144-255	Dynamic effects of program
4	Pattern Selection	0-255	5 digits is for one static pattern
	Effect Selection	0-1	Play all animated programs
		2-255	2 digits is for one animated program
5	Color Selection	0-0	Built-in color 1, static patterns are white
		1-3	Built-in color 2
		4-7	White
		8-11	Red
		12-15	Yellow
		16-19	Green
		20-23	Cyan
		24-27	Blue
		28-31	Pink
		32-35	Seven color change effect
		36-39	RGB three color change effect
		40-43	Built-in color change effect
		44-239	Multi-color flow effect, 4 digits is for one color
		240-255	Color drawing effect

Manual: EL-400RGB S Manual: EL-400RGB S

Channel	Function Value Description
6 Color	Speed	0-3 Color speed closed
		4-127 Color speed is from slow to fast, in the positive direction
		128-255 Color speed is from slow to fast, in the opposite direction
7	Line Scanning Speed	0-63 Adjust line scanning speed (effect 1)
		64-127 Adjust line scanning speed (effect 2)
	Dot Scanning Speed	28-255 Adjust dot scanning speed
8 Pattern Size XY 0-255 Adjust XY size
9	Z Rotation	0-0 Default, no rotation
		1-127 Rotation Z angle Selection
		128-191 Clockwise rotation Z speed selection
		192-255 Counterclockwise rotation Z speed selec-tion
10	X rolling-over	0-0 Default, no rolling-over
		1-127 Horizontal rolling-over angle selection
		128-191 Clockwise horizontal rolling-over speed selection
		192-255 Counterclockwise horizontal rolling-over speed selection
11	Y rolling-over	0-0 Default, no rolling-over
		1-127 Vertical rolling-over angle selection
		128-191 Clockwise vertical rolling-over speed selection
		192-255 Counterclockwise vertical rolling-over speed selection
12	X Move	0-0 Default, no moving
		1-127 Horizontal position selection
		128-159 Move 1 from left to right automatically
		160-191 Move 2 from right to left automatically
		192-223 Move 3 from right to left automatically
		224-255 Move 4 from right and left circularly
13	Y Move	0-0 Default, no moving
		1-127 Vertical position selection
		128-159 Move 1 from up to down automatically
		160-191 Move 2 from down to up automatically

Channel	Function Value Description
13	Y Move	192-223 Move 3 from up to down automatically
		224-255 Move 4 from up and downt circularly
14	Zoom	0-0 Default, no zoom
		1-127 Pattern size selection
		128-159 Zoom -
		160-191 Zoom +
		192-223 Zoom (+/-) circularly
		224-255 Zoom (+/-) circularly
15	Drawing	0-0 Default, no drawing
		1-127 Drawing 1 speed selection, 0~100%
		128-255 Drawing 2 speed selection, 0~100%~0
16	X Wave	0-15 X small Wave 1 speed selection
		16-31 X medium Wave 1 speed selection
		32-47 X big Wave 1 speed selection
		48-63 X biggest Wave 1 speed selection
		64-79 X small Wave 2 speed selection
		80-95 X medium Wave 2 speed selection
		96-111 X big Wave 2 speed selection
		112-127 X biggest Wave 2 speed selection
	Y Wave	128-143 Y small Wave 1 speed selection
		144-159 Y medium Wave 1 speed selection
		160-175 Y big Wave 1 speed selection
		176-191 Y biggest Wave 1 speed selection
		192-207 Y small Wave 2 speed selection
		208-223 Y medium Wave 2 speed selection
		224-239 Y big Wave 2 speed selection
		240-255 Y biggest Wave 2 speed selection

Professional Mode 36CH
Channel 3 to 19 is for pattern 1 controls; channel 20 to 36 is for pattern 2 controls. In PRO/
36CH DMX mode, when CH21 value is 0, then pattern 2 is hidden. Only pattern 1 appears.

Channel	Function	Value Description
1	Laser ON/OFF	0-0 Laser OFF
		1-255 Laser ON

Manual: EL-400RGB S Manual: EL-400RGB S

Channel Function Value Description
2		Auto Mode Trigger	0-26 Default automatic speed
			27-127 Select the automatic speed
		Sound Active Trigger	28-255 Select the sound active sensitivity
3	20	Pattern Group	0-15 Geometric patterns
			16-31 Geometric patterns
			32-47 Geometric patterns
			48-63 Geometric patterns: Dot type pattern
			64-127 Location for the downloaded ILD programs
		Effect Group	128-143 Animated programs
			144-255 Dynamic effects of program
4	21	Pattern Selection	0-255 5 digits is for one static pattern, when CH21 is 0, then pattern 2 is hidden. Hidden pattern 1 when CH21 is not 0 and CH4 is 0.
		Effect Selection	0-1 Play all animated programs
			2-255 2 digits is for one animated program
5 22	Pattern	Size 0-255 Adjust size
6 23		X Position 0-255 Adjust X position, 128 in the center
7 24		Y Position 0-255 Adjust Y position, 128 in the center
8 25		Color Selection	0-0 Built-in color 1, static patterns are white
			1-3 Built-in color 2
			4-7 White
			8-11 Red
			12-15 Yellow
			16-19 Green
			20-23 Cyan
			24-27 Blue
			28-31 Pink
			32-35 Seven color change effect
			36-39 RGB three color change effect
			40-43 Built-in color change effect
			44-239 Multi-color flow effect, 4 digits is for one color
			240-255 Color drawing effect

Channel Function Value Description
9 26		Color Speed	0-3 Color speed closed
			4-127 Color speed is from slow to fast, in the positive direction
			128-255 Color speed is from slow to fast, in the opposite direction
10	27	Line Scanning Speed	0-63 Adjust line scanning speed (effect 1)
			64-127 Adjust line scanning speed (effect 2)
		Dot Scanning Speed	128-255 Adjust dot scanning speed
11	28	Strobe	0-0 No strobe
			1-255 Auto strobe, strobe speed from low to fast
12	29	Z Rotation	0-0 Default, no rotation
			1-127 Rotation Z angle Selection
			128-191 Clockwise rotation Z speed selection
			192-255 Counterclockwise rotation Z speed selection
13	30	X rolling-over	0-0 Default, no rolling-over
			1-127 Horizontal rolling-over angle selection
			128-191 Clockwise horizontal rolling-over speed selection
			192-255 Counterclockwise horizontal rolling-over speed selection
14	31	Y rolling-over	0-0 Default, no rolling-over
			1-127 Vertical rolling-over angle selection
			128-191 Clockwise vertical rolling-over speed selection
			192-255 Counterclockwise vertical rolling-over speed selection
15	32	X Move	0-0 Default, no moving
			1-127 Horizontal position selection
			128-159 Move 1 from left to right automatically
			160-191 Move 2 from right to left automatically
			192-223 Move 3 from right to left automatically
			224-255 Move 4 from right and left circularly
16	33	Y Move	0-0 Default, no moving
			1-127 Vertical position selection

Channel Function Value Description
16 33	Y Move		128-159 Move 1 from up to down automatically
			160-191 Move 2 from down to up automatically
			192-223 Move 3 from up to down automatically
			224-255 Move 4 from up and downt circularly
17 34	Zoom		0-0 Default, no zoom
			1-127 Pattern size selection
			128-159 Zoom -
			160-191 Zoom +
			192-223 Zoom (+/-) circularly
			224-255 Zoom (+/-) circularly
18 35	Drawing		0-0 Default, no drawing
			1-127 Drawing 1 speed selection, 0~100%
			128-255 Drawing 2 speed selection, 0~100%~0
19 36		X Wave	0-15 X small Wave 1 speed selection
			16-31 X medium Wave 1 speed selection
			32-47 X big Wave 1 speed selection
			48-63 X biggest Wave 1 speed selection
			64-79 X small Wave 2 speed selection
			80-95 X medium Wave 2 speed selection
			96-111 X big Wave 2 speed selection
			112-127 X biggest Wave 2 speed selection
		Y Wave	128-143 Y small Wave 1 speed selection
			144-159 Y medium Wave 1 speed selection
			160-175 Y big Wave 1 speed selection
			176-191 Y biggest Wave 1 speed selection
			192-207 Y small Wave 2 speed selection
			208-223 Y medium Wave 2 speed selection
			224-239 Y big Wave 2 speed selection
			240-255 Y biggest Wave 2 speed selection

Manual: EL-400RGB S

Final statement

Laserworld products are tested and product packaging is inspected before leaving our warehouse. Users must to follow the local safety regulations and warnings within this manual and adhere to any regulations within its place of use. Damages through inappropriate use will void any liability or warranty of our products. Due to continual product developments, please check for the latest update of this product manual at www.laserworld.com. If you do have any further questions, then please contact your dealer/place of purchase or use our contact section on our website.A For service issues, please contact your dealer/place of purchase and ensure only genuine Laserworld spare parts are used in any service repairs.

Errors and Omissions excepted and products are subject to change.

Laserworld AG

Kreuzlingerstrasse 5

8574 Lengwil

Switzerland

Registered office:

8574 Lengwil / Switzerland

Company number: CH-440.3.020.548-6

Commercial Registry Kanton Thurgau

CEO: Martin Werner

VAT no. (Switzerland): 683 180

UID (Switzerland): CHE-113.954.889

VAT no. (Germany): DE 258030001

WEEE-Reg.-No. (Germany): DE 90759352

www.laserworld.com

[e-mail]

representative according to EMVG:

83626 Vallley, Germany

representative according to EMVG:

83626 Vallley, Germany

Manuel: EL-400RGB S Manuel: EL-400RGB S

Table des matières:

Manuel: EL-400RGB S Manuel: EL-400RGB S

April April June

Manuel: EL-400RGB S Manuel: EL-400RGB S

Manuel: EL-400RGB S Manuel: EL-400RGB S

5.2. STAND-ALONE / AUTO

Manuel: EL-400RGB S Manuel: EL-400RGB S

Manuel: EL-400RGB S Manuel: EL-400RGB S

Manuel: EL-400RGB S Manuel: EL-400RGB S

83626 Vallley, Germany
