USER MANUAL 99383 TREBS

White outdoor air conditioner tower with ventilation grille and control knob (no text or symbols visible)

Handleiding Torenventilator

Manual Tower fan

Technical diagram of a vertical cylindrical device with numbered components, likely an air conditioner or fan assembly.

Mechanical assembly diagram showing a rotating component with a shaft and base, no text or symbols present

Technical line drawing of a mechanical component with two views: top shows internal gear structure, bottom shows external housing (no text or symbols)

Technical line drawing of a mechanical component with radial slots and central hub (no text or symbols)

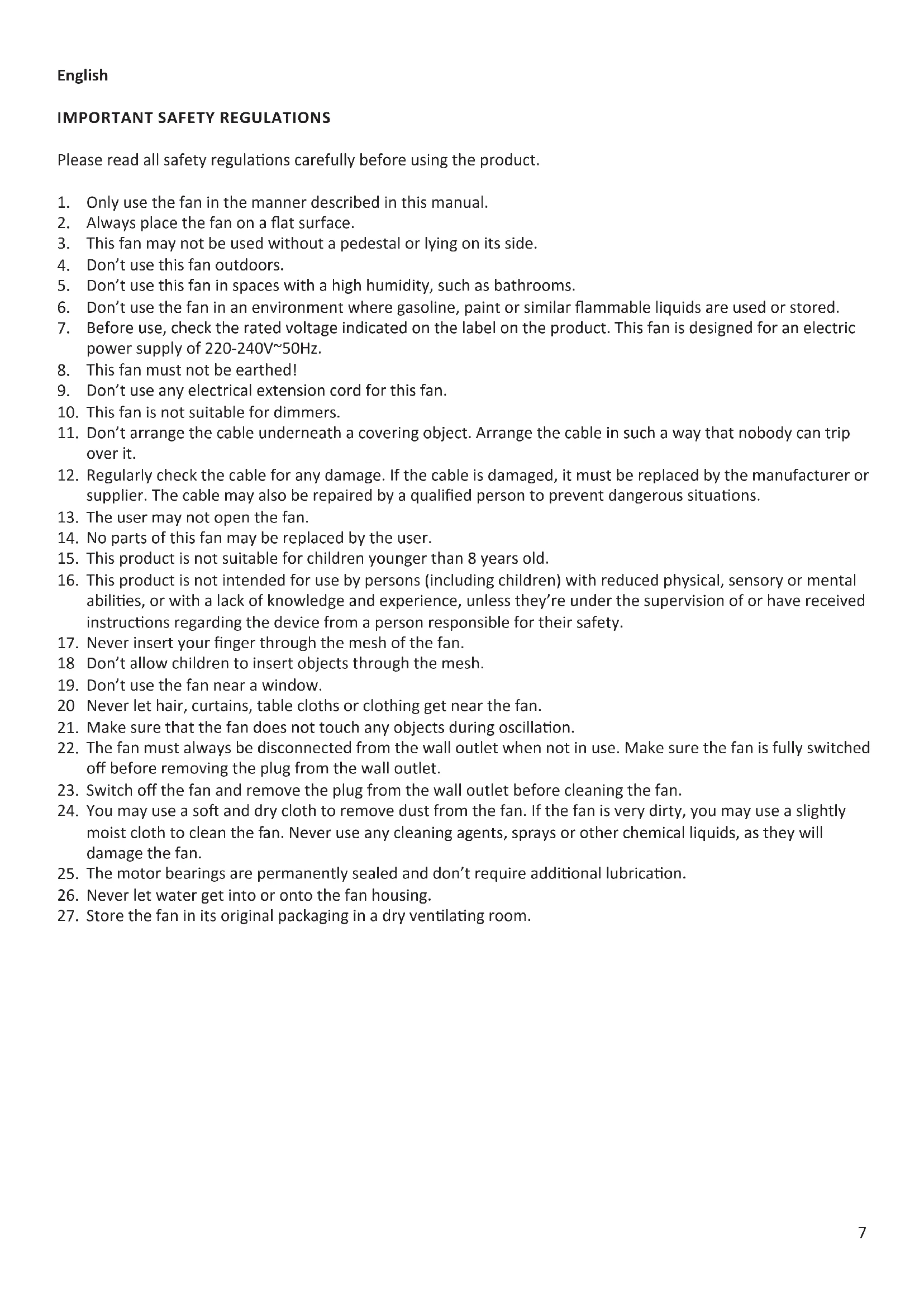

IMPORTANT SAFETY REGULATIONS

Please read all safety regulations carefully before using the product.

1. Only use the fan in the manner described in this manual.
2. Always place the fan on a flat surface.
3. This fan may not be used without a pedestal or lying on its side.
4. Don't use this fan outdoors.
5. Don't use this fan in spaces with a high humidity, such as bathrooms.
6. Don't use the fan in an environment where gasoline, paint or similar flammable liquids are used or stored.
7. Before use, check the rated voltage indicated on the label on the product. This fan is designed for an electric power supply of 220-240V\~50Hz.
8. This fan must not be earthed!
9. Don't use any electrical extension cord for this fan.
10. This fan is not suitable for dimmers.
11. Don't arrange the cable underneath a covering object. Arrange the cable in such a way that nobody can trip over it.
12. Regularly check the cable for any damage. If the cable is damaged, it must be replaced by the manufacturer or supplier. The cable may also be repaired by a qualified person to prevent dangerous situations.
13. The user may not open the fan.
14. No parts of this fan may be replaced by the user.
15. This product is not suitable for children younger than 8 years old.
16. This product is not intended for use by persons (including children) with reduced physical, sensory or mental abilities, or with a lack of knowledge and experience, unless they're under the supervision of or have received instructions regarding the device from a person responsible for their safety.
17. Never insert your finger through the mesh of the fan.
    18 Don't allow children to insert objects through the mesh.
18. Don't use the fan near a window.
    20 Never let hair, curtains, table cloths or clothing get near the fan.
19. Make sure that the fan does not touch any objects during oscillation.
20. The fan must always be disconnected from the wall outlet when not in use. Make sure the fan is fully switched off before removing the plug from the wall outlet.
21. Switch off the fan and remove the plug from the wall outlet before cleaning the fan.
22. You may use a soft and dry cloth to remove dust from the fan. If the fan is very dirty, you may use a slightly moist cloth to clean the fan. Never use any cleaning agents, sprays or other chemical liquids, as they will damage the fan.
23. The motor bearings are permanently sealed and don't require additional lubrication.
24. Never let water get into or onto the fan housing.
25. Store the fan in its original packaging in a dry ventilating room.

FAN STRUCTURE

Technical diagram of a vertical industrial fan or air conditioner unit with numbered components and wiring, labeled 1 through 7.

1. Airflow speed dial

2. Time setting dial

3. Housing

4. Screws

5. Pedestal rear

6. Pedestal front

7. Power cable

INSTALLATION

1. Loosen the 3 screws at the bottom of the housing.
2. Snap the front and rear of the pedestal into each other and make sure that the cable extends through the middle. Position the pedestal underneath the housing as follows: A1 above A2, B1 above B2 and C1 above C3.

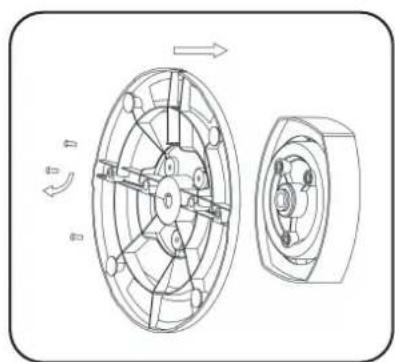

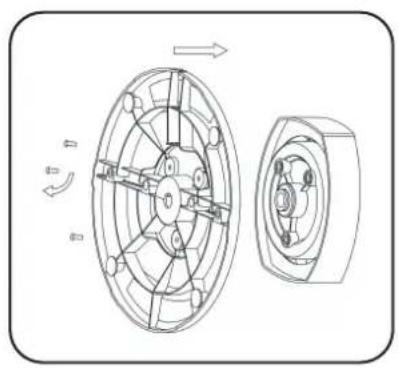

3. Mount the pedestal onto the housing using the 3 screws.

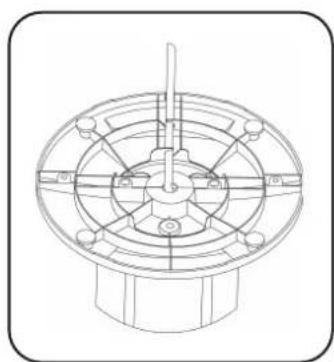

4. Press the power cable into the recesses underneath the pedestal.

1. 2. 3. 4.

Mechanical assembly diagram showing a rotating component with shaft and housing (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows internal gear structure, bottom shows external housing (no text or symbols)

Technical line drawing of a mechanical component with radial slots and central hub (no text or symbols)

OPERATION INSTRUCTIONS

1. Place the fan on a flat surface.
2. Check whether the voltage corresponds to what is indicated on the product label.
3. Insert the plug into a wall outlet.

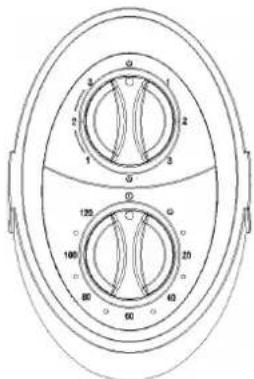

4. Rotate the top knob to activate the fan and set the airflow speeds.

• Position 1 provides the lowest airflow.
- Position 2 provides an average airflow.
- Position 3 provides a high airflow.

1. Rotate the upper button anti-clockwise to make the fan oscillate automatically.

Rotate the upper button clockwise to fix the fan in the desired position.

1. Rotate the button to the '0' setting to switch off the fan.
2. Rotate the lower button clockwise to set the desired time. The fan will stop automatically as soon as the time is expired.
3. Remove the plug from the wall outlet when not using the fan. Make sure that the fan is fully switched off before doing so.

Technical diagram of a dual-chamber device with numbered components and labeled parts

DISCARDING OLD EQUIPMENT

Old electric and electronic devices often contain valuable materials. However, they also contain harmful substances that were necessary for their functionality and safety. If these are placed with the non-recyclable waste or disposed of incorrectly, they can be harmful to human health and the environment. Never place your device with the non-recyclable waste.

REMARK

• Use the collection points available in your community and recycle old electric and electronic devices. Contact your town hall, the local waste disposal company or your dealer for more information.
  • Make sure that your old device, until it's picked up, is safely stored out of reach of children.

WARRANTY

• We provide a warranty of 24 months for this product. The warranty starts on the date of purchase and is intended for faults due to production or the used materials.
- Your statutory warranty rights in accordance with § 439 ff. BGB-E will remain unaffected by this.
- The warranty does not apply to damages as a result of improper handling or use, nor to malfunctions that only have a minor effect on the functionality or value of the product. Normal wear and tear, transport damage, to the extent that we are not responsible for this, as well as damages caused by repairs not performed by us, are also excluded from the warranty rights.
• This device is designed for household use and has the right performance levels.
- Any use in commercial situations is only covered by the warranty if the device is not put under a heavier strain that in a household situation. The device is not intended for additional commercial use.
- In the case of well-founded complaints, we will repair the defective device at our discretion or replace it with a device that shows no problems.

All possible manufacturing faults must be reported within 14 days of delivery. All further claims are excluded. When invoking the warranty, please contact us first before sending us the product (you must always provide us with proof of purchase).

TECHNICAL DETAILS

• Model: 99383 - Tower fan
• Voltage: 220V-240V; 50Hz
• Power consumption: 30 W
• Oscillation angle: 70 degrees
• Noise level: 54 dB(A)
• Product dimensions: 73.5x22.2x22.2 cm
• Weight: 1.75 kg

SERVICE

If you have any further questions regarding the product after having read the user's manual, please contact the Trebs customer service:

CE Regulations

Hereby, Trebs B.V., Thermiekstraat 1a, 6361 HB Nuth, The Netherlands, declares that this product is in compliance with the essential EU directive requirements.

The declaration of conformity may be consulted via [e-mail]

CE
