USER MANUAL KCR150 LENCO

Version: 1.03 English KCR-150 CAUTION: Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This unit should not be adjusted or repaired by anyone except qualified service personnel.

PRECAUTIONS BEFORE USE

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not use this device near water.

2. Clean only with a slightly damp cloth.

3. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2”) free space around the whole device.

4. Install in accordance with the supplied user manual.

5. * Don’t step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable’s exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children’s reach! When playing with the power cable, they can seriously injure themselves.

6. * Unplug this device during lightning storms or when unused for a long period.

7. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame.

8. Avoid using the device near strong magnetic fields.

9. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment. 10. Warning! Never insert an object into the product through the vents or openings. High voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.

11. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.

12. Do not use this device when condensation may occur.

13. Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately. 14. This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.

15. * The socket outlet must be installed near the equipment and must be easily accessible.

16. * Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.

17. * Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.

18. * Devices with class 2 construction do not require a earthed connection.

19. Keep away from rodents. Rodents enjoy biting on power cords.

20. * Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.

21. Avoid placing the device on any surfaces that may be subject to vibrations or shocks.

22. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent. 23. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement. 24. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost. 25. If the unit has USB playback function, the usb memory stick should be plugged into the unit directly. Don’t use an usb extension cable because it can cause interference resulting in failing of data. 26. The apparatus shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus. 27. * To completely disconnect the power input, the mains plug of the apparatus shall be disconnected from the mains, as the disconnect device is the mains plug of apparatus.

28. If the unit works with battery, Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

29. Attention should be drawn to the environmental aspects of battery disposal.

30. The apparatus can only be used in moderate extremely cold or climates warm environments should be avoided.

31. The rating label has been marked on the bottom or back panel of the apparatus.4

32. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they’re under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.

33. This product is intended for non-professional use only and not for commercial or industrial use.

34. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.

35. Never remove the casing of this apparatus.

36. Never place this apparatus on other electrical equipment.

37. Do not use or store this product in a place where it is subject to direct sunlight, heat, excessive dust or vibration.

38. Do not allow children access to plastic bags.

39. Only use attachments/accessories specified by the manufacturer.

40. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

41. *Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

42. Prolonged exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.

• *Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made. *Those instructions are related only to products using power cable or AC power adaptor.5

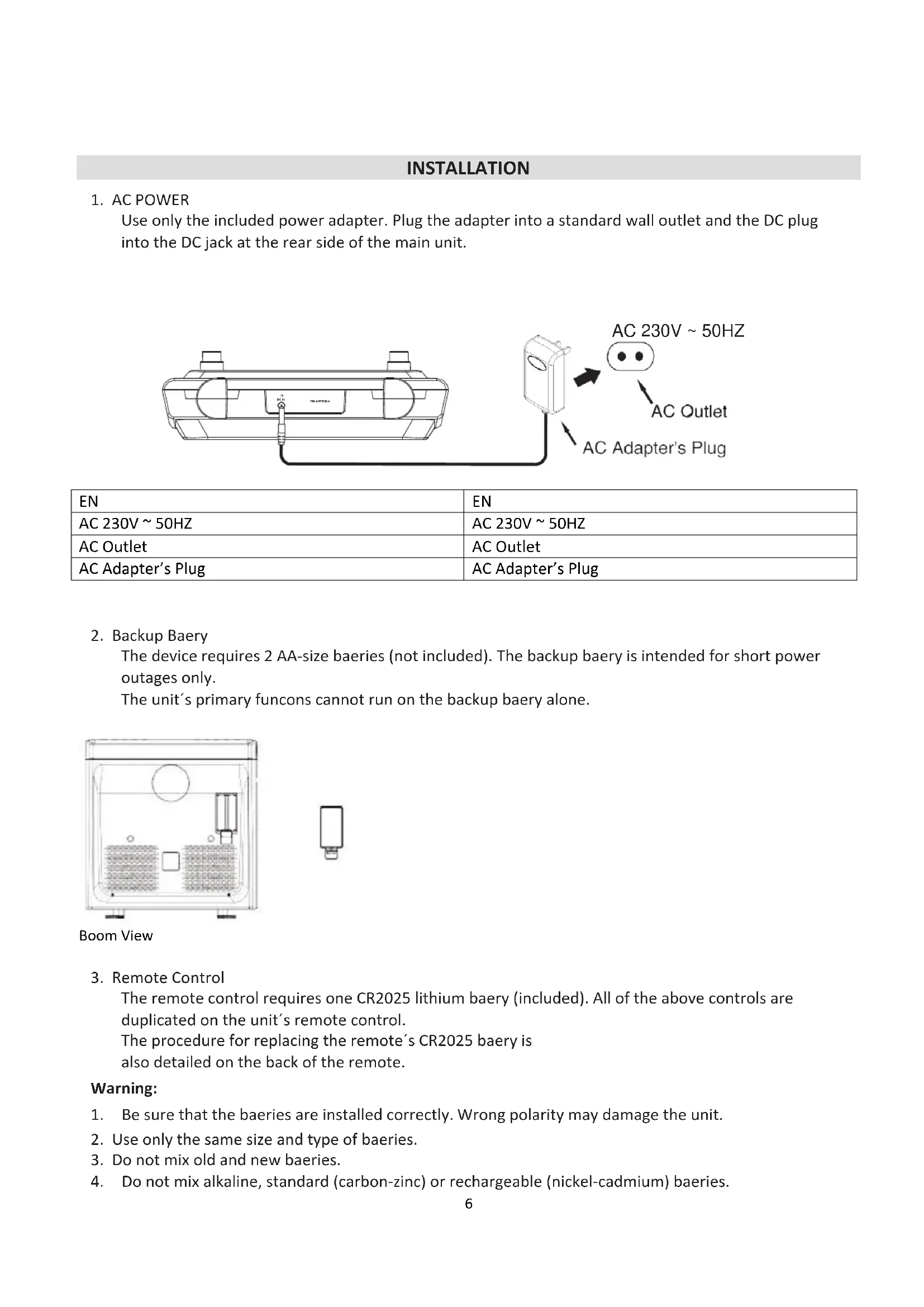

Use only the included power adapter. Plug the adapter into a standard wall outlet and the DC plug into the DC jack at the rear side of the main unit.

The device requires 2 AA-size batteries (not included). The backup battery is intended for short power outages only. The unit´s primary functions cannot run on the backup battery alone.

The remote control requires one CR2025 lithium battery (included). All of the above controls are duplicated on the unit´s remote control. The procedure for replacing the remote´s CR2025 battery is also detailed on the back of the remote.

1. Be sure that the batteries are installed correctly. Wrong polarity may damage the unit.

2. Use only the same size and type of batteries.

3. Do not mix old and new batteries.

4. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.

5. If the unit is not to be used for an extended period of time remove the batteries.

6. Do not try to recharge the batteries which are not intended to be recharged. They can overhead

Push here Push here Slide out Slide out

CLOCK Setting the clock

1. When the unit is in Standby press and hold the “CLK SET/MEM” button. The hour on the display

will begin flashing.

2. Press the “SKIP/TUNE / ” buttons to adjust the hour.

3. Press the “CLK SET/MEM” button again to adjust the minutes. The minutes on the display will begin

5. Press the “CLK SET/MEM” button to finish setting the time or wait for the display to stop.

2. Press the “TIMER” button to adjust the timer in increments of 10 minutes.

5. After the set time has expired the device will sound an alarm.8

Disabling the timer To cancel the alarm after it has sounded press the “POWER” button or the “TIMER” button. To cancel the timer before the alarm has sounded press the “TIMER” button until the display shows “000” and the timer light is no longer lit. CD OPERATION

1. Turn the device on and press the “SOURCE” button to switch to CD mode.

2. Press the “OPEN/CLOSE” button to open the CD tray.

3. Place a CD into the tray with the label side facing up.

4. Press the “OPEN/CLOSE” button again to close the CD tray. The CD will starts playing

5. Press the “PLAY/PAUSE” button to interrupt the playback. Press the button again to resume

7. Press the “STOP ” button to stop the play mode.

1. Press the “STOP ” button to stop the CD during play.

2. Press the “PROG” button.

3. “Prog” will begin to blink on the display.

4. Press the “SKIP/TUNE / ” buttons to select a track.

5. Press the “PROG” button to save the selected track to the program.

6. Repeat step 4 and 5 to program up to 20 tracks.

7. If you are ready press the “PLAY/PAUSE” button to start playing the programed titles.

Repeat Function Repeat one track on Music CD

1. During CD playback press the “SKIP/TUNE / ” buttons to select the track which you

2. Press the “REPEAT” button until the “ 1” indicator shows on display. The unit will play the selected

3. To cancel the setting press the “REPEAT” button continuously until the “ 1” or “ ALL” indicators

disappear. Repeat the entire DISC

1. During CD playback press the “REPEAT” button continuously until the “ ALL” indicator shows on the

display. The unit will play all tracks on the disc repeatedly.

2. To cancel the setting press the “REPEAT” button continuously until the “ 1” or “ ALL” indicators

disappear. RADIO To improve the best FM radio reception try altering the position/length of the FM wire antenna.9

1. Turn the device on and press the “SOURCE” button to switch to FM radio mode.

2. Press the “SKIP/TUNE / ” buttons to tune the radio manually in 50kHz steps.

3. Press and hold the “SKIP/TUNE / ” buttons to scan for available stations.

Saving and playing a station as a Preset

1. Press the “SKIP/TUNE / ” buttons to tune the FM radio to the desired station.

2. Press the “CLK SET/MEM” button. Preset number (P01) will appear on the display.

3. Press the “M+/M-” buttons to adjust the desired preset number (P01-P20).

4. Press the “CLK SET/MEM” button to save the current FM radio station to this selected preset.

5. Repeat steps 1 to 4 to program further radio stations.

6. Press the “M+/M-” buttons to cycle through saved radio stations.

BLUETOOTH FUNCTION Pairing to a device and playing audio

1. Turn the device on and press the “SOURCE” button to switch to BLUETOOTH mode. The

Bluetooth indicator will light up.

2. Press and hold the “PLAY/PAUSE” button to begin pairing. The indicator on the display will begin

3. Start the Bluetooth mode on your Bluetooth device and start the scan. Select “Lenco KCR-150” in your

setting to pair it. If your device requests a password enter the default password “0000”.

4. When the devices are successfully paired the indicator on the display will stop flashing and an

audible chime will sound through the speaker.

5. Use the controls on the connected device to select an audio track, to start the playback, pause

etc. After initial pairing the unit will stay paired unless you manually disconnect the connection or the devices are out of range. AUX-IN FUNCTION You require a 3.5mm audio cable (not included).

1. Connect a 3.5mm audio cable to the “LINE IN” input on the right side of the unit and the audio

output on an audio device.

2. Turn the device on and press the “SOURCE” button to switch to LINE IN mode.

3. Use the controls on the connected device to start the playback.

Information for power adaptor Power supply adaptor - Manufacturer: Jie Dong Electronic Factory - Model number: JDA0501200DM2 - Adaptor type: External AC adaptor - Use only the power supply listed in the user instructions GUARANTEE Lenco offers service and warranty in accordance with the European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer. Important note: It is not possible to send products that need repairs to Lenco directly. Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires. This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided. DISCLAIMER Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to a particular situation. No legal right or entitlements may be obtained from the description made in this manual.

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).
