HIVE Pins 3 ANC - Earphones Niceboy - Free user manual and instructions

Product Type	Wireless In-Ear Headphones
Brand	Niceboy
Model	HIVE Pins 3 ANC
Bluetooth Technology	Bluetooth 5.3
Frequency Band	2.4 GHz
Transmission Range	10 m
Bluetooth Profiles	HFP, A2DP, AVRCP
Compatible Codecs	AAC, SBC
Active Noise Cancellation (ANC)	Yes, with Ambient mode
Gaming Mode	Yes, low latency
Earbud Battery Life (per charge)	Up to 10 hours
Total Battery Life (with case)	Up to 40 hours
Earbud Battery Capacity	50 mAh (x2)
Case Battery Capacity	400 mAh
Protection Rating	IPX4 (splash resistant)
Speaker	10 mm
Frequency Response	20 Hz – 20 kHz
Sensitivity	118 ± 1.5 dB
Voice Assistants	Siri, Google Assistant
Case Charging	USB-C
Box Contents	Earbuds, charging case, replacement ear tips, USB-C cable, manual
Care and Cleaning	Do not expose to liquids or moisture. Protect from sharp objects and drops. Clean with a dry cloth.
Safety	Listen at moderate volume to avoid hearing damage. Do not disassemble. If battery is damaged, risk of fire.
General Information	Manufacturer: NICEBOY s.r.o., Czech Republic. Made in China. Declaration of conformity at niceboy.eu.

Frequently Asked Questions - HIVE Pins 3 ANC Niceboy

How do I connect the earbuds to my phone?

Take the earbuds out of the case. The LED flashes white. Enable Bluetooth on your phone and search for Niceboy HIVE Pins 3 ANC. Tap to connect. A beep confirms pairing.

How to turn the earbuds on or off manually?

To turn on, take them out of the case or long-press both multi-function buttons. To turn off, place them in the case or press both buttons for 5 seconds.

How to use Active Noise Cancellation (ANC)?

Long-press (about 2 seconds) the right button to cycle between Normal, Ambient, and ANC modes. A beep indicates the change. ANC mode uses more power.

How to activate Gaming Mode?

Long-press the left button to activate Gaming Mode with low latency. Long-press again to deactivate. This mode consumes more battery.

How to reset the earbuds in case of issues?

Place the earbuds in the case, delete them from the Bluetooth list, disable Bluetooth. Take them out, then quickly press each button 5 times simultaneously. A beep confirms reset. Put them back in the case.

How long does the battery last and how to charge?

The earbuds provide up to 10 hours of playback per charge, and the case offers up to 40 hours total. Charge the case via the USB-C port. During charging, the 4 LEDs flash, then remain steady when fully charged.

Are the earbuds water resistant?

Yes, they have an IPX4 rating, making them resistant to splashes and sweat. Avoid immersion.

How to make a call or control music?

Single press: play/pause or answer/end call. Double press right: next track or reject call. Double press left: previous track. Triple press: activate voice assistant.

How to use the Niceboy ION app?

Download the Niceboy ION app from your store. Create an account, enable Bluetooth, then add the device by pressing '+'. Follow the instructions to complete the connection. Before connecting to a new device, reset the earbuds.

What to do if one earbud is not working or connecting?

Ensure both earbuds are charged. Perform a reset (see question 5). Check that Bluetooth is enabled and no other device is connected. If the problem persists, contact support via niceboy.eu.

USER MANUAL HIVE Pins 3 ANC Niceboy

PRVNÍ SPUŠTĚNÍ A PÁROVÁNÍ

REŽIM NORMAL, AMBIENT A ANC:

PRVÉ SPUSTENIE A PÁROVANIE

REŽIM NORMAL, AMBIENT A ANC:

1. LED
2. Multifunction button

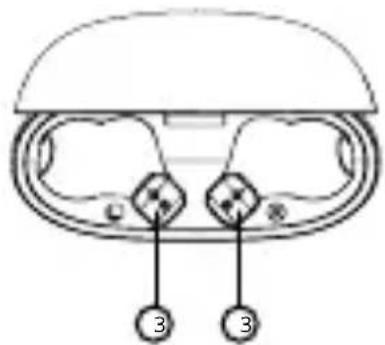

3. Charging pins

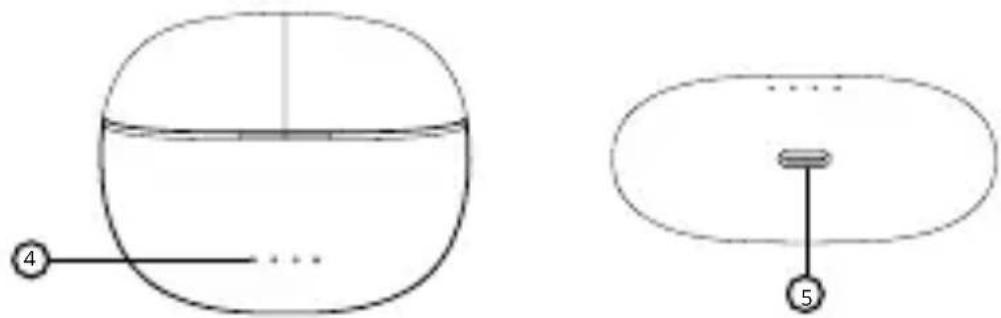

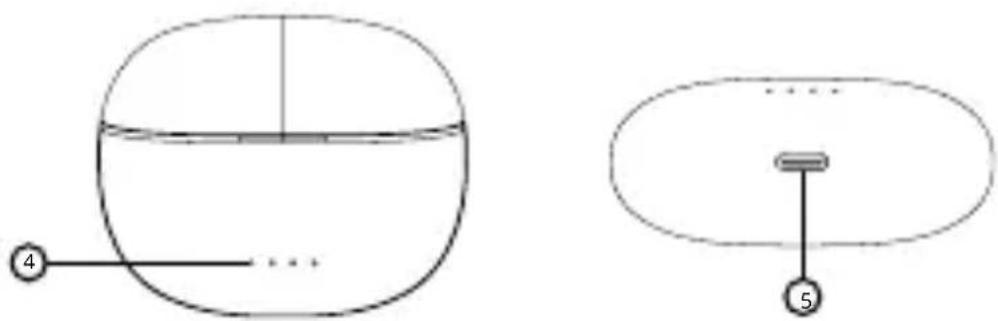

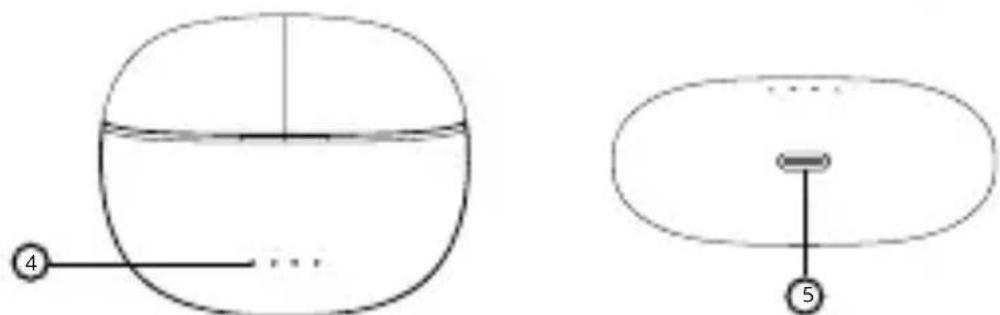

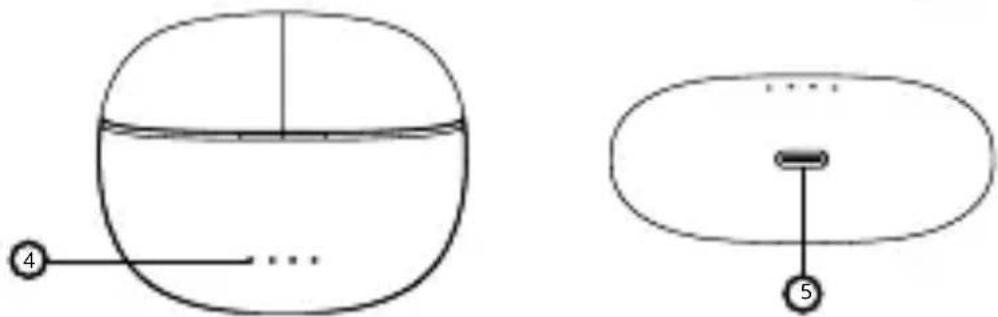

4. LED charging indicator
5. USB-C charging port

Simple line drawing of a dome-shaped object with a horizontal line and a numbered label (4) pointing to its base, no text or symbols present.
    note right of B
        ......
    end

FIRST START-UP AND PAIRING

1. Remove both headphones from the charging box. The earphones will switch on and pair with each other. When the LED (1) starts flashing white, the headset is ready to connect to Bluetooth.
2. Open the Bluetooth settings on your device and search for "Niceboy HIVE Pins 3 ANC" on the list of available devices.
3. An acoustic prompt announces successful pairing, and the

LED (1) will start flashing white at long intervals. When reconnecting to an already paired device, remove the earphones from the box. They will switch on and connect to the device automatically.

SWITCHING ON AND OFF

To switch the earphones on, remove them from the charging box or manually switch them on by pressing and holding both multifunction buttons.

To switch them off, place the earphones in the charging box. They will automatically turn off and disconnect from your device. When the earphones are fully charged, the LED goes out. Alternatively, to switch the earphones off, press and hold both multifunction buttons (2) for approx. 5 seconds.

MULTIFUNCTION BUTTON - BASIC CONTROLS

Press any button once - play/pause, answer/hang up Press the right button twice – next song, reject call Press the left button twice – previous song, reject call Press and hold the right button - switch the ANC mode Press and hold the left button - switch the gaming mode Press any button three times - to activate Siri / Google Assistant

CHARGING

To charge the charging box itself, connect the charging cable to the USB-C port (5). Four LED indicators (4) will gradually start flashing; when fully charged, they will all turn light blue.

NORMAL, ANC AND AMBIENT MODES:

After activation, the earphones remain in normal mode, where they do not amplify or suppress the surrounding noise. In Ambient mode, the headphones pick up and amplify sounds from the surroundings, which is especially handy when traversing the city or in traffic for safety reasons. ANC (Active Noise Canceling) is a feature that eliminates ambient noise by sending out a sound of the same wavelength as the incoming noise but with an inverted frequency phase. When these two waves collide, they cancel each other out. To switch between the individual modes in this order, press and hold the right button (approx. 2 seconds). An acoustic prompt will announce a mode change.

Note: the Ambient and ANC modes have a higher power demand and thus result in the battery draining faster.

GAMING MODE

Press and hold the left button to activate gaming mode with a short audio delay. Long-pressing the button also deactivates the mode.

Note: Gaming mode has a higher power demand and thus results in the battery draining faster.

CONNECTING TO THE APP

1. Download the app by scanning the QR code using your phone or search for „Niceboy ION“ in the mobile app store and download it.
2. Start the „Niceboy ION“ app and register a new account or sign in with your existing account.
3. Set the password and proceed to „Add device“.
4. Turn on Bluetooth; nearby devices will be detected based on the strength of the signal.
5. Press the „+“ button.
6. Wait for „connection“.
7. If the device was added successfully, „completed“ appears on the screen.
8. Your device is now successfully connected.

Note: Reset the earphones to factory settings before pairing them with any new device and connect them to the Niceboy ION app.

FACTORY RESET:

In case of technical issues, reset the earphones to factory settings.

1. Insert both earpieces into the charging box, remove them from the list of paired devices, and turn Bluetooth off.
2. Remove both headphones from the charging box.
3. Press the multifunction button five times in succession (2) on both earphones. An acoustic prompt indicates a successful reset, and the earphones will switch off.
4. Place both earphones back in the charging box.
5. After removing both earpieces from the charging box, they will switch on automatically and pair with each other. The reset process is now complete.

SPECIFICATIONS

BT: 5.3

Frequency band: 2.4 GHz

Radiofrequency power: ≤ 2.5 mW

BT profiles: HFP, A2DP, AVRCP

Supported codecs: AAC, SBC

Degree of protection: IPX4

Transmission range: 10 m

Speaker: 10 mm

Frequency: 20 Hz-20 kHz

Sensitivity: 118 ± 1.5 dB

Battery life (earphones): up to 10 hours

Maximum battery life: up to 40 hours

Earphones battery capacity: 50 mAh

Charging box battery capacity: 400 mAh

Voice assistants: Siri and Google

Assistant

Multipoint pairing: YES

PACKAGE CONTENTS:

Niceboy HIVE Pins 3 ANC earphones

Charging box

Replacement earpiece tips

USB-C cable

Manual

SAFETY INFORMATION

Listening to music at very high volume can damage your hearing. For your own safety, do not use the ANC function when in hazardous locations (e.g. in traffic). Do not expose the device to fluids or humidity. Do not expose the device to extreme temperatures or try to disassemble it. Protect the device from sharp objects and falls from height. Batteries – improper handling (prolonged charging, short circuit, breakage by other objects,

etc.) may result in fire, overheating or battery leakage. The battery or accumulator that may be included with the product has a service life of six months, as it is a consumable.

Information on all frequency bands in which the radio equipment operates and intentionally transmits radio waves as well as the maximum radio frequency power transmitted in the frequency band in which the radio equipment is operated is included in the instructions and safety information.

DECLARATION OF CONFORMITY

NICEBOY s.r.o. hereby declares that the type of radio equipment NICEBOY HIVE PINS 3 ANC complies with Directives 2014/53 / EU, 2014/30 / EU, 2014/35 / EU, and 2011/65 / EU. The full content of EU Declaration of Conformity is available on the following websites: https://niceboy.eu/en/declaration/hive-pins-3-anc

USER INFORMATION FOR DISPOSING ELECTRICAL AND ELECTRONIC DEVICES (HOME USE)

This symbol located on a product or in the product's original documentation means that the used electrical or electronic products may not be disposed together with the communal waste. In order to dispose of these

products correctly, take them to a designated collection site,

where they will be accepted for free. By disposing of a product in this way, you are helping to protect precious natural resources and helping to prevent any potential negative impacts on the environment and human health, which could be the result of incorrect waste disposal. You may receive more detailed information from your local authority or nearest collection site. According to national regulations, fines may also be given out to anyone who disposes of this type of waste incorrectly.

User information for disposing electrical and electronic devices. (Business and corporate use)

In order to correctly dispose of electrical and electronic devices for business and corporate use, refer to the product's manufacturer or importer. They will provide you with information regarding all disposal methods and, according to the date stated on the electrical or electronic device on the market, they will tell you who is responsible for financing the disposal of this electrical or electronic device. Information regarding disposal processes in other countries outside the EU. The symbol displayed above is only valid for countries within the European Union. For the correct disposal of electrical and electronic devices, request the relevant information from your local authorities or the device seller.
