Product type	Induction hob with integrated hood
Brand	Blaupunkt
Model	5IX80290
Hob dimensions (W x D x H)	780 x 520 x 4 mm (glass)
Cut-out dimensions (W x D)	750 x 500 mm
Total power	7400 W
Power supply	230 V ~ 50/60 Hz (1 phase + N) or 400 V ~ 50/60 Hz (2 phases + N)
Number of cooking zones	4 (induction)
Cooking zone dimensions	Each 210 x 190 mm (rectangular)
Power per zone (nominal/booster)	Front left: 2100 W / 3000 W; Rear left: 2100 W / 3000 W; Rear right: 2300 W / 3000 W; Front right: 1400 W / 3000 W
Main functions	Booster, Timer (1-999 min), Automatic preheating, Stop & Go, Memory, Keep warm, Bridge (zone fusion), Grill/Chef function, Child lock, Pan detection, Residual heat indicator
Control type	Touch Control with Smart Slider
Integrated hood	Yes, controlled from the hob, 9 speeds, Booster (10 min), Timer (15 min), Automatic function, Washable grease filter, Activated carbon filter (replace every 6 months)
Energy consumption (hob)	180.4 Wh/kg (model 5IX80290)
Recommended cookware categories	Steel, enameled steel, cast iron, stainless steel with magnetic base, aluminum with magnetic base
Unsuitable materials	Copper, aluminum without magnetic base, glass, stoneware, porcelain
Cleaning and maintenance	Clean with a damp cloth and mild detergent; do not use steam cleaner; grease filter dishwasher-safe (max 60°C); activated carbon filter to be replaced
Safety	Automatic shut-off, child lock, pan detection, overheating monitoring, safety shut-off
Weight (estimate)	Approximately 12 kg (not specified, reasonable estimate)
Protection class	Y
Included accessories	Seal, power cable, brass clamps

Frequently Asked Questions - 5IX80290 BLAUPUNKT

How to turn on the hob?

Press the On/Off key (â²) for 2 seconds until the display lights up. Then, select a cooking zone by touching its Smart Slider and adjust the power by sliding your finger.

What does the display 'U' on a cooking zone mean?

The U display indicates that no pan is detected or the pan is not suitable for induction. Check that the pan is centered, has a magnetic base, and is large enough (minimum diameter 110 mm for large zones).

How to activate the child lock?

Turn on the hob, then press and hold the selection key of a cooking zone for 3 seconds. Then, slide your finger on the Smart Slider from left to right. The indicator lights up. To deactivate, repeat the operation sliding from right to left.

What to do if the display shows 'E' (error)?

Unplug the appliance from the mains for a few minutes, then plug it back in. If the error persists, contact customer service. Do not attempt to repair yourself.

How to clean the ceramic hob?

Let the hob cool down, then clean with a damp cloth and a mild cleaning product (no abrasive products). Dry with a clean cloth. In case of sugar or melted plastic residues, remove them immediately after turning off using a special scraper (be careful of burns).

The hood does not turn on, what to check?

Make sure the hob is on. Press the hood selection key. Check that the hood is plugged into a 230 V outlet. If the problem persists, refer to the manual for filter reset.

How to set the timer on a cooking zone?

Select the desired cooking zone by touching its Smart Slider, set the power, then press the Timer key. Use the + and - keys to adjust the time (from 1 to 999 minutes). The timer starts after a few seconds.

What types of pans are compatible with this induction hob?

Use magnetic pans: steel, enameled steel, cast iron, stainless steel with magnetic base or aluminum with magnetic base. Check with a magnet: it must stick to the bottom. Copper, non-magnetic aluminum, glass, or porcelain pans do not work.

How to use the 'Bridge' function to link two zones?

Place a large pan or pot on two adjacent zones. Press simultaneously the selection keys of both zones. The display flashes. Adjust the power on one of the Smart Sliders. To deactivate, press both keys again.

What to do if the hob turns off by itself?

This may be due to safety shut-off: if a zone stays on too long without change, if you have covered the keys, or if the pan is empty and has overheated. Check the conditions and turn on again. If the problem persists, contact after-sales service.

USER MANUAL 5IX80290 BLAUPUNKT

Illustration of three frying panes with no cooking symbols and a smiling emoji, shown in two panels (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

MONTAGEHINWEISE

3 Precautions before start-up
4 General safety instructions
5 Protection against damage
6 Precautions in case of appliance failure
6 Protection against other hazards

7 APPLIANCE DESCRIPTION

7 Technical description
8 Operating panel

8 OPERATING THE HOB

8 Display
9 Ventilation

9 STARTING UP THE HOB

9 Before first use
9 Induction principle
10 Touch control function
10 Smart Slider function
11 Switching the hob on/off
11 Pot detection
12 Residual heat display
12 Booster function (power level)
13 Timer
15 Automatic preheating
15 Stop & Go function
16 Memory function
16 Keep warm function
18 Child lock/locking the hob

17 Automatic bridge and bridge function (Only for 5IX80290)

19 Grill function/Chef Function (Only for 5IX80290)

20 COOKING RECOMMENDATIONS

20 Cookware
21 Cookware size
21 Setting ranges

22 OPERATING THE HOOD (Not for 5|Z34291)
22 First steps
22 Booster function
22 Timer function
23 Automatic function

24 MAINTENANCE AND CLEANING OF THE HOB
24 Filter cleaning indicator
25 Cleaning the grease filter in the dishwasher

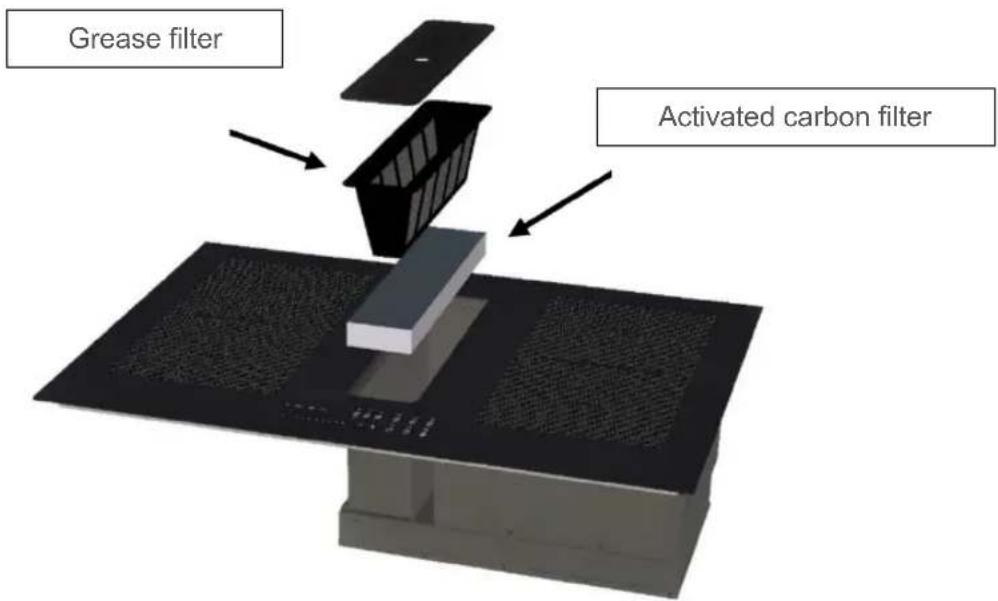

25 Replacement of the activated carbon filter
26 CLEANING AND MAINTENANCE
26 WHAT TO DO IF
28 ENVIRONMENTAL PROTECTION

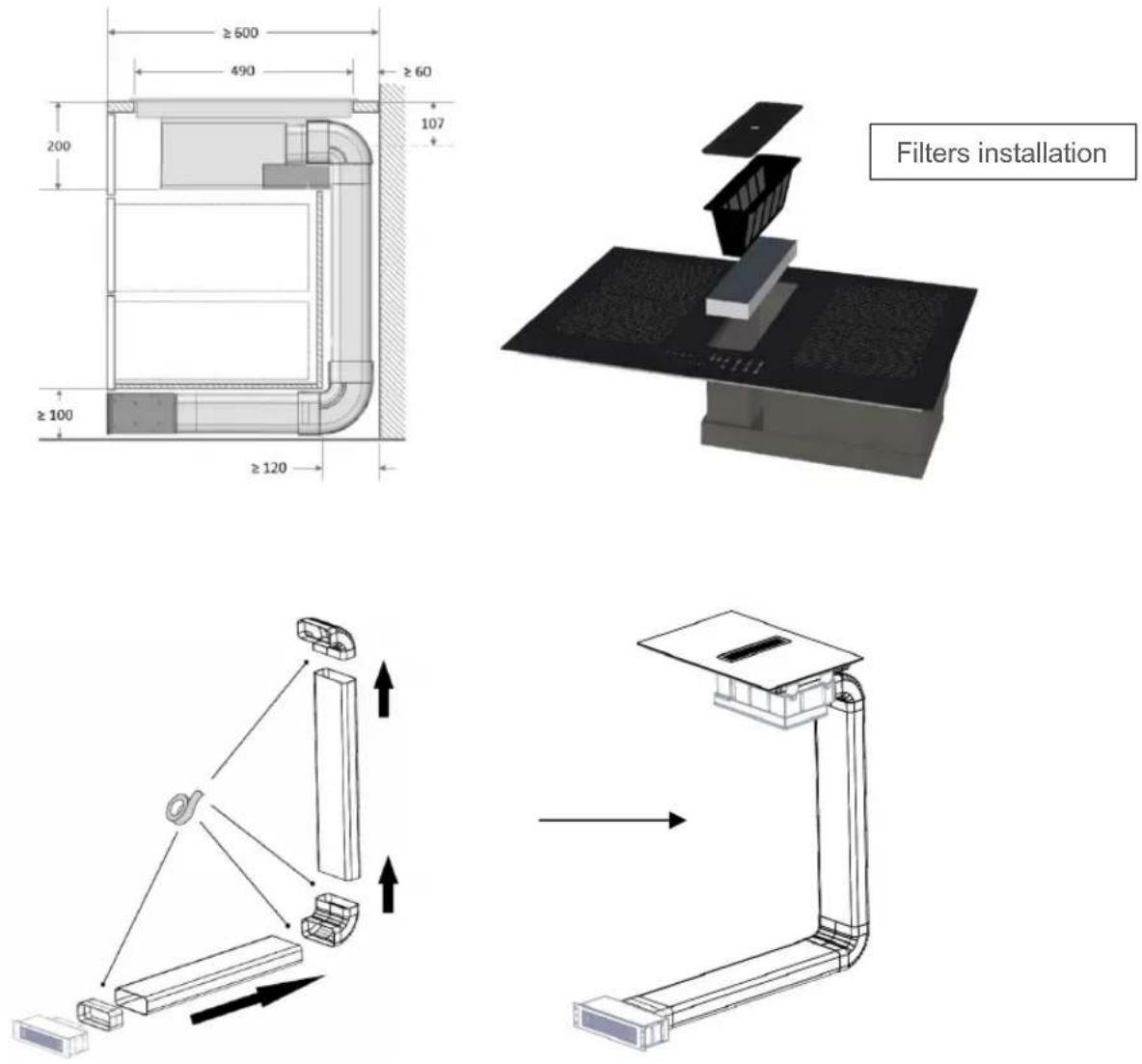

28 INSTALLATION INSTRUCTIONS
31 ELECTRICAL CONNECTION

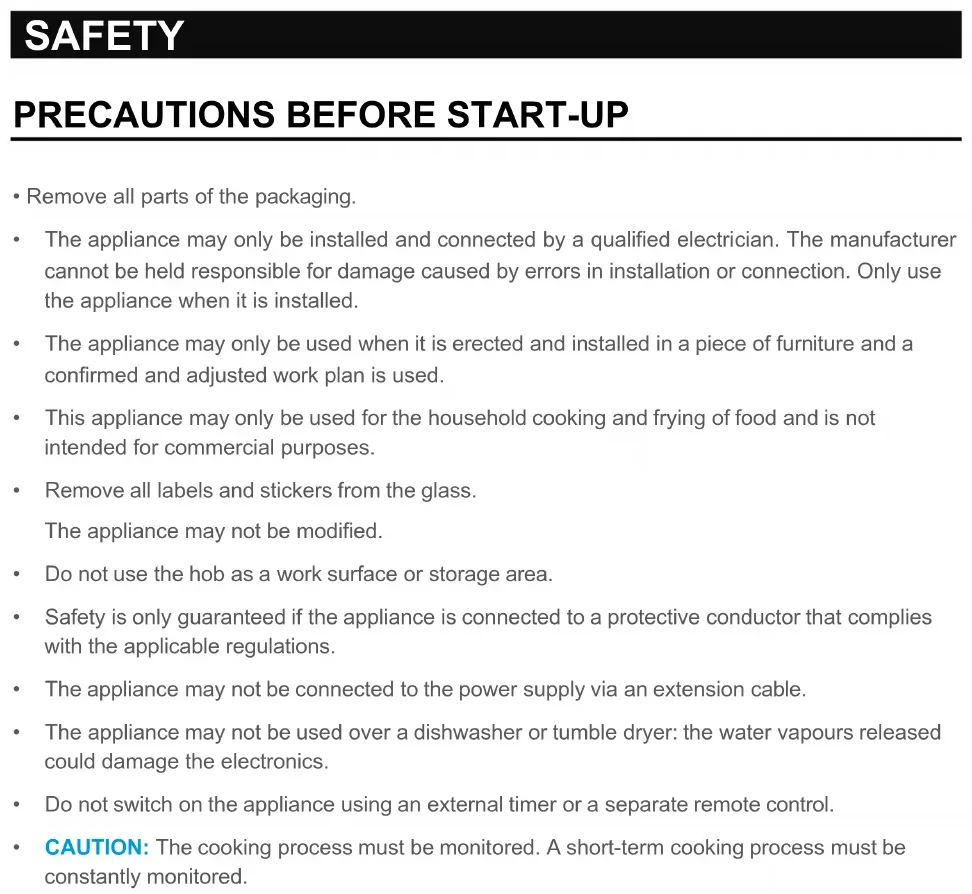

SAFETY

PRECAUTIONS BEFORE START-UP

• Remove all parts of the packaging.
• The appliance may only be installed and connected by a qualified electrician. The manufacturer cannot be held responsible for damage caused by errors in installation or connection. Only use the appliance when it is installed.
• The appliance may only be used when it is erected and installed in a piece of furniture and a confirmed and adjusted work plan is used.
• This appliance may only be used for the household cooking and frying of food and is not intended for commercial purposes.
• Remove all labels and stickers from the glass.
  The appliance may not be modified.
• Do not use the hob as a work surface or storage area.
• Safety is only guaranteed if the appliance is connected to a protective conductor that complies with the applicable regulations.
• The appliance may not be connected to the power supply via an extension cable.
• The appliance may not be used over a dishwasher or tumble dryer: the water vapours released could damage the electronics.
• Do not switch on the appliance using an external timer or a separate remote control.

• CAUTION: The cooking process must be monitored. A short-term cooking process must be constantly monitored.

• Switch off the cooking zones after each use.
  • Overheated fats and oils ignite quickly. If you prepare dishes in fat or oil (e.g. chips), you should observe the cooking process.

• When you cook and fry, the cooking zones become hot. For this reason, protect yourself from burns while and after using the appliance.
• Ensure that no electrical cable from a freestanding or built-in appliance comes into contact with the panel or the hot cooking zone.
• Magnetic objects such as credit cards, diskettes, pocket calculators, etc. must not be in the immediate vicinity of the appliance when it is switched on. Their function could be impaired.
• Metal objects such as knives, forks, spoons and pot lids should not be placed on the hob as they could become hot.
• In general, do not place any metal objects (e.g. spoons, pot lids, etc.) on the induction surface, as they may heat up during operation.
• Never cover the cooking surface with a cloth or protective foil; these could become very hot and catch fire.
• This appliance can be used by children from the age of 8 years and above and persons with reduced physical, sensory or mental abilities or a lack of experience and knowledge if they are supervised or if they are instructed in the safe use of the appliance and understand the resulting hazards.
  • Children may not play with the appliance.
• Cleaning and user maintenance may not be carried out by children without supervision.

- Do not use any pots or pans with unpolished or damaged bases (e.g. made of cast iron). These can scratch the glass ceramic panels.

- Note that grains of sand can also cause scratches.

• Glass ceramic is insensitive to temperature shocks and very resistant, but it is not unbreakable.

- Especially pointed and hard objects that fall onto the cooking surface can damage them.

- Do not knock pots and edges against the panel.

- Do not use the cooking zones with empty cookware.

- Avoid placing sugar, plastic or aluminium foil on the hot cooking zones. These materials melt, stick firmly and can therefore lead to cracks, fractures or other permanent changes in the panel when cooling down. If they still get onto the hot cooking zones, please switch off the appliance and remove these substances while they are still hot. As the cooking zones are hot, there is a risk of burns.

- Do not place any objects on the cooking zone.

- Never place hot cookware on the control unit. The electronics under the glass could be damaged.

- If there is a drawer under the built-in appliance, make sure there is a minimum distance of 2 cm between the underside of the appliance and the contents of the drawer, otherwise the ventilation of the appliance is not guaranteed.

- No flammable objects (e. g. aerosol cans) may be stored in this drawer. Any cutlery trays in the drawer must be made of heat-resistant material.

- Do not heat closed containers (e. g. tins) on the cooking zones. The containers or tins can burst due to the resulting excess pressure, resulting in a risk of injury!

• If an error is detected, the appliance must be switched off and disconnected from the mains.
• If breaks, fissures or cracks occur on the glass: Immediately switch off the hob, unscrew or remove the hob fuse, and contact our customer service or your specialist retailer.
  • Repairs to the appliance may only be carried out by qualified personnel.

WARNING: If the glass surface is cracked, switch off the appliance to avoid the risk of electric shock.

PROTECTION AGAINST OTHER HAZARDS

• Make sure that the cookware is always centred on the cooking zone. The base of the pan must cover as much of the cooking zone as possible.
• For persons with a pacemaker: an electromagnetic field is generated near the appliance when it is switched on, which could possibly affect the pacemaker. In case of doubt, please contact the manufacturer of the pacemaker or your doctor.
• Do not use cookware made of aluminum or plastic: it could melt on the hot cooking zones.
• NEVER try to extinguish a fire with water. Switch the device off and then cover the flame, e.g. with a lid or a fire blanket.

WARNING

The use of pots of poor quality or of an adapter disc for induction will lead to a premature termination of the warranty. The manufacturer accepts no liability for damage that may occur on or near the hob.

DESCRIPTION OF THE APPLIANCE

TECHNICAL CHARACTERISTICS

Type	5IX80290	5IX60290
Total power	7.400 W	7.400 W
Energy consumption for the hob EChob**	180.4 Wh/kg	162.3 Wh/kg
Front left heating zone	210x190 mm	∅ 160 mm
Minimum detection	∅ 110 mm	∅ 90 mm
Nominal power*	2.100 W	1.400 W
Booster power*	3.000 W	1.850 W
Standardised cookware category**	B	A
Energy consumption ECcw**	188 Wh/kg	170.9 Wh/kg
Rear left heating zone	210x190 mm	∅ 175 mm
Minimum detection	∅ 110 mm	∅ 90 mm
Nominal power*	2.100 W	1.400 W
Booster power*	3.000 W	2.100 W
Standardised cookware category**	B	C
Energy consumption ECcw**	188 Wh/kg	145 Wh/kg
Rear right heating zone	210x190 mm	∅ 160 mm
Minimum detection	∅ 110 mm	∅ 90 mm
Nominal power*	2.300 W	1.400 W
Booster power*	3.000 W	1.850 W
Standardised cookware category**	C	A
Energy consumption ECcw**	159.5 Wh/kg	170.9 Wh/kg
Front right heating zone	210x190 mm	∅ 175 mm
Minimum detection	∅ 110 mm	∅ 90 mm
Nominal power*	1.400 W	1.400 W
Booster power*	3.000 W	2.100 W
Standardised cookware category**	A	B
Energy consumption ECcw**	186.4 Wh/kg	162.7 Wh/kg

* The given power may change according to the dimensions and material of the pan.

**Calculated according to the method of measuring performance (EN 60350-2).

OPERATING THE HOB

DISPLAY

Display	Name	Description
0	Zero	The hub is activated
1...9	Power level	The power setting
U	No pot detection	Pot not in place or not suitable
A	Automatic preheating	Maximum power + preheating
E	Error display	Electronics error
H	Residual heat	Hob is hot
P	Booster	Booster power is activated
U	Keep warm function	With this function, food is kept warm at 70°C.
II	Pause	The hob is on pause
Π	Bridge	Two cooking zones can be combined into one cooking zone
GRILL	Grill function	The grill function is activated

The fan works automatically. It starts at low speed as soon as the values released by the electronics exceed a certain threshold. The higher speed is activated when the induction hob is used intensively. The fan reduces ist speed and switches off automatically as soon as the electronics have cooled down sufficiently.

STARTING UP THE HOB

BEFORE FIRST USE

First clean your appliance with a damp cloth and then rub it dry with a clean cloth. Do not use any cleaning agent, which could cause a bluish tint on the glazed surface.

INDUCTION PRINCIPLE

Under each cooking zone is an induction coil. When the cooking zone is switched on, the induction coil generates a variable electromagnetic field. The magnetic field generates inductive currents in the base of the pot, which must be magnetic. As a result, the base of the pot, which is located on the heating zone, heats up. The cooking zone heats up only indirectly through the heat emitted by the pot.

Induction cooking zones only work with magnetic cookware:

• Suitable induction cookware with a magnetic base such as: cast iron, steel, enamelled steel, stainless steel with a magnetic base.
• Unsuitable induction cookware: copper, aluminium, glass, wood, earthenware, ceramic, nonmagnetic stainless steel.

The induction cooking zone is automatically adjusted to the size of the cookware. The cookware must not fall below a certain base diameter, otherwise the induction will not activate. Each pot base diameter must have a minimum size depending on the size of the cooking zone.

If the cookware is not suitable for induction, the [U] display will appear.

The hob is controlled by sensor buttons. These react to gentle touches of the glass with the finger. If you touch the buttons for about one second, the control commands are executed. Each reaction of the control buttons is acknowledged with an acoustic and/or visual signal.

For general use, only press one button at a time.

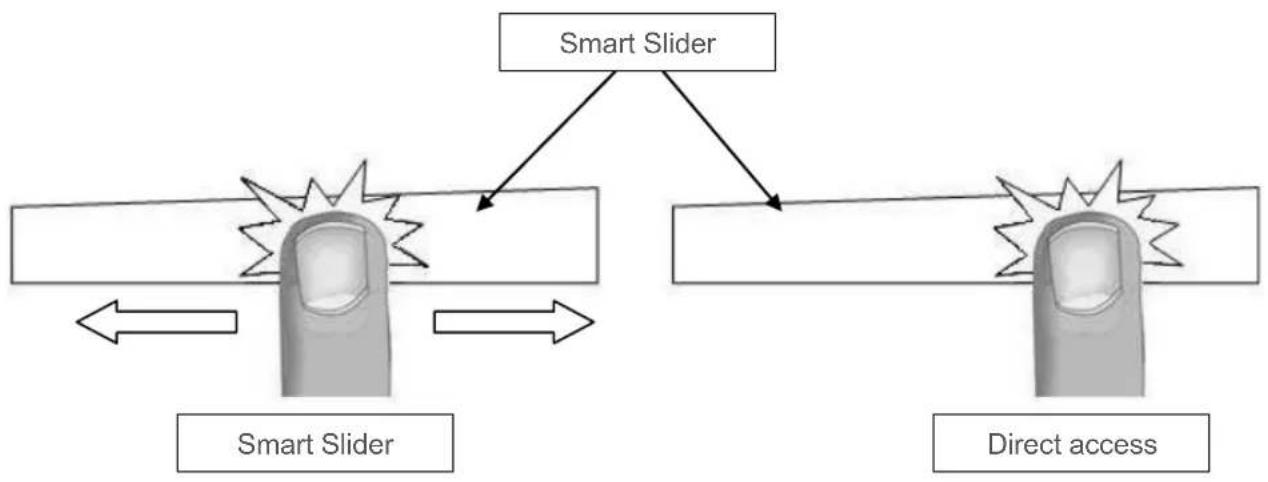

SMART SLIDER FUNCTION

To select the power level using the SMART SLIDER, move your finger on the SLIDER ZONE. The desired performance can also be selected directly by touching the respective level.

First switch on the hob and then the cooking zone.

Hob: switch on/switch off:
Operation	Operating panel	Display
Switch on	Press [1] for 2 sec.	Press [0]
Switch off	Press [1]for 2 sec.	None or [H]

Switch cooking zone on/off:
Operation	Operating panel	Display
Increase power	Slide your finger over the Smart Slider	[1] to [P]
Switch off	Slide your finger over the Smart Slider	[0] or [H]

If no further input is made, the hob will switch off after approx. 20 seconds for safety reasons.

POT DETECTION

For greater comfort and simplicity, this hob is equipped with a control system.

Switch on the hob and place a pot on the hob. The intuitive operation will automatically detect the pot or will display the [0] symbol above the Smart Slider to be used. You can now adjust the cooking level as desired. The pot detection feature ensures complete safety.

The induction system will not work:

• If there is no cookware on the cooking zone or if a pot unsuitable for induction is used. In this event, the power level cannot be increased and the [U] symbol will appear on the display. The [U] will disappear when a pot is placed on the cooking zone.
• If the pot is removed from the cooking zone during cooking, the cooking zone will immediately switch off and the [U] sign will appear in the display. The [U] will disappear when a pot is placed back on the cooking zone. The cooking zone then resumes at the previously set power level.

After use, switch off the cooking zone so that the [U] symbol no longer appears in the display.

After the cooking zones or hob have been switched off, the residual heat of the cooking zones that are still hot is displayed with an [H]. The [H] will disappear if the cooking zones can be touched safely. As long as the residual heat display is lit, the cooking zones should not be touched and no heat-sensitive objects should be placed on them: Risk of burns!

BOOSTER FUNCTION (POWER LEVEL)

All cooking zones are equipped with a booster function, i.e. with power amplification. The booster function is displayed with [P]. If they are switched on, these cooking zones operate for a period of 10 minutes. This high power is intended to enable you to do things like quickly heating large quantities of water, to boil water for pasta for example. After the appliance has automatically switched back after 10 minutes, you should not switch back to the booster. The appliance could overheat and will trigger a safety shutdown.

Switching booster on/off:
Operation	Operating panel	Display
Switch on booster	Slide your finger over the Smart Slider or press the end immediately	[ P ]
Switch off booster	Slide your finger over the Smart Slider or press the end immediately	[ 9 ] to [ 0 ]

Management of the maximum power:
The hob is equipped with a maximum power level. To ensure that this maximum power is not exceeded, the electronics automatically reduce the cooking level of another cooking zone when the booster function is activated. This cooking zone will then display the reduced power [9] by flashing.
Selected cooking zone	Other cooking zone (e.g.: Power level 9)
[ P ] lights up	[9] is reduced to [6] or [8] and flashes

With the integrated timer, a cooking time of 1 to 999 minutes can be set on all four cooking zones. Each cooking zone can have a different setting.

Activating or changing the duration:
Operation	Operating panel	Display
Select cooking zone	Press the corresponding cooking zone button
Select power	Slide your finger over the Smart Slider	[1] to [P]
Select timer	Press [ ]	The display of the selected cooking zone will light up
Reduce time	Press [-] for the timer	[60] ...
Increase time	Press [ + ] for the timer	Time in min. will increase

After a few seconds, the flashing will stop. The duration is activated and the time lapse begins.

Switching off the timer:
Operation	Operating panel	Display
Select timer	Press [ ]	The display of the selected cooking zone will light up
Switch off timer	Press [-] to [000]	[000]

If several timers are running, please repeat the procedure.

Timer as egg timer:
The timer functions independently of the cooking zones and switches off as soon as one cooking zone is in operation. The process is carried out even if the hob is switched off.
Operation	Operating panel	Display
Switch on the hob	Press [1] for 2 sec.	[0]
Select timer	Press [000]	[000]
Reduce time	Press [-] for the timer	[60] ...
Increase time	Press [+] for the timer	Time in min. will increase

After a few seconds, the flashing will stop. The duration is activated and the time lapse begins.

Automatic switch off:

When the programmed cooking time has elapsed, [ 000 ] will flash and an acoustic signal will be given.To switch off the signal tone and flashing, simply press the [- ] or [ + ] button.

All cooking zones are equipped with automatic preheating. When the automatic preheating system is activated, the cooking zone automatically heats up at maximum power and then switches back to the cooking level you have selected. The preheating time depends on the selected continuous cooking level.

Activating the automatic preheating feature:
Operation	Operating panel		Display
Select power (e. g. « 7 »)	Slide your finger over the Smart Slider and remain for 3s		[7] flashes with [A]
	Set continuous cooking level	Automatic preheating Time (min:sec)
	1	0:40
	2	1:12
	3	2:00
	4	2:56
	5	4:16
	6	7:12
	7	2:00
	8	3:12
	9	-:-

Switching off the automatic preheating feature:
Operation	Operating panel	Display
Select power	Slide your finger over the Smart Slider	[0] to [9]

STOP & GO FUNCTION

With this feature, you can temporarily interrupt the cooking process and restart with the same settings.

Switching Stop & Go function on/off:
Operation	Operating panel	Display
Switch on Stop & Go	Press [ II ] for 2s	[ II ] on displays
Switch off Stop & Go	Press [ II ] for 2s	Flashing Smart Slider
	Press the flashing Smart Slider	Former settings

After switching off the hob, the last settings remain stored. You can reactivate these values using the memory function. The following settings can be reactivated using the memory function:

• Power levels of the cooking zones.
• Timer settings of the cooking zones.

Settings of the automatic preheating function Calling up the memory function:

• Switch on hob (Press [①] for 2 sec.)
- Press [ II ] within 6 seconds.
• The values of the last settings are reactivated.

KEEP WARM FUNCTION

With this function, food is kept warm at 70 °C . This function prevents overflow and burning.

Switching on and off:
Operation	Operating panel	Display
Switch on	Press [IMAGE]	[U]
Switch off	Press [IMAGE]	[0]

AUTOMATIC BRIDGE AND BRIDGE FUNCTION (ONLY FOR 5IX80290)

This function allows two cooking zones to be linked together for a single cooking process.

Process	Operating panel	Display
Switch on the hob	Press [1] for 2 sec.	[0]
Switch on bridge	Place a pot on one of the two cooking zones to be bridged and press the corresponding selection buttons	[0] and [7]
	or place a large pan on both of the zones you wish to use with this function	[7] will flash [7]
Increase power	Slide to the right over the Smart Slider that shows the power	[1] to [P]
Switch off bridge	Press the two desired zones	[0]

To prevent the cooking zone setting from being altered, e.g. when cleaning the glass, the Glase, operating buttons (except the [①] button) can be locked.

Activating the lock:
Operation	Operating panel	Display
Switch on the hob	Press [1] for 2 sec.	[0]
Switch on lock	Hold the button of a cooking zone for 3s. Then place your finger on the Smart Slider and slide your finger from left to right	Light on
Switch off lock	Hold the button of a cooking zone for 3s. Then place your finger on the Smart Slider and slide your finger from right to left	Light off

"Chef" function (only for 5IX80290)

This function changes the hob in 2 big zones.

Start up/stop the chef function:
Operation	Operating panel	Display
Engage the chef function	Press [IMAGE]	[5] and [i] on the right,[9] and [i] on the left
Stop the chef function	Press [IMAGE]	[0]

GRILL FUNCTION/CHEF FUNCTION (ONLY FOR 5IX80290)

This function allows optimum use of the Blaupunkt griddle / Teppan Yaki plate.

By bridging two cooking zones and using a suitable power level, this feature guarantees a pure indoor grilling pleasure. You can find the right accessories in our online shop at www.blaupunkt-einbaugeraete.com or from your specialist retailer.

Switching the grill function on/off:
Operation	Operating panel	Display
Switch on grill function	Press [ GRILL ]
Switch off grill function	Press [ GRILL ]	[0]

Operating time limit:
The hob has an automatic operating time limit. The continuous operating time of each cooking zone depends on the selected cooking level. A precondition is that no setting changes are made to the cooking zone during the period of use. The cooking zone is switched off once the operating time limit has responded.
Set cooking level	Operating time limit (hours:min)
1	8:36
2	6:42
3	5:18
4	4:18
5	3:30
6	2:18
7	2:18
8	1:48
9	1:30

COOKING RECOMMENDATIONS

COOKWARE

Suitable materials:

Steel, enamelled steel, cast iron, stainless steel with magnetic base, aluminium with magnetic base

Unsuitable materials:

Aluminium and stainless steel without magnetic base, copper, brass, glass, earthenware, porcelain

Check with the manufacturer's instructions to determine whether the cookware is suitable for induction.

To check the induction compatibility of pots:

• Fill the cookware with some water and place them on the induction cooking zone. Switch on the cooking zone at power level [9]. This water must heat up in a few seconds.
• Hold a magnet against the base of the cookware. If the magnet sticks, the cookware is suitable.

Certain pans can make a noise when placed on an induction cooking zone. This noise does not cause any interference with the appliance and has no influence on the cooking process.

The properties of the base of the cookware can influence the uniformity of the cooking result. Only use pots and pans with a smooth base. Otherwise, rough pot or pan bases could scratch the glass ceramic panel.

Use pans with straight edges if possible. When using pans with sloping edges, induction also acts in the edge area of the pan. This can discolour the edge of the pan.

Illustration of three frying pan designs with no accompanying text or symbols

Up to a certain limit, the cooking zones automatically adjust to the size of the base of the pot. The cookware must not fall below a certain base diameter, otherwise the induction will not activate. Always centre the pot in the middle of the cooking zone to achieve the best possible efficiency.

SETTING RANGES

(these data are approximate values)

1 to 2	Melting, heating	Sauces, butter, chocolate, gelatin, pre-cooked dishes
2 to 3	Swelling, defrosting, keeping warm	Rice, pudding, sugar syrup, dried vegetables, fish, frozen products
3 to 4	Steaming	Vegetables, fish, meat
4 to 5	Steaming, swelling, defrosting	Steamed potatoes, soups, pasta, fresh vegetables
6 to 7	Preheating, continued cooking	Goulash, roulades, sausage, hard-boiled eggs
7 to 8	Gentle frying	Potatoes, fish, schnitzel, fried sausage, fried eggs
9	Bake, roast, boil water	Steaks, omelets, fried dishes, water
P	Cooking	Large quantities of water

OPERATING THE HOOD (NOT FOR 5IZ34291)

FIRST STEPS

Start up/stop the hood:
Action	Control panel	Display
Activate the hood	press on the hood selection key	[0]
Select the power level	slide on the “SLIDER”	[1] á [9]
Stop the hood	slide on the “SLIDER” towards the left	[0]

BOOSTER FUNCTION

When the function is activated, the hood operates at its maximum power level for 10 minutes.

Start up/stop the booster function:
Action	Control panel	Display
Select the power level	slide on the “SLIDER”	[1] á [9]
Activate the booster	slide until the end of the “SLIDER” or press directly at the end of the “SLIDER”	[0]
Stop the booster	slide on the “SLIDER”	[1] á [9]

TIMER FUNCTION

This function allows to operate the hood for 15 minutes after the switch off of the hob.

Start the timer:
Action	Control panel	Display
Activate the hood	press on the hood selection key	[0]
Select the power level	slide on the “SLIDER”	[1] á [P]
Start the timer	press [ ] above the hood selection key	[ ] of the hood is on, [015] on the timer display

Stop the timer:
Action	Control panel	Display
Stop the timer	Press [ ]above the hood selection key	Nothing

This function adjusts automatically the power level of the hood depending on the power level of the cooking zones.

Activate / deactivate the automatic function:
Action	Control panel	Display
Activate the automatic function	press 3 seconds on the hood selection key	[A]
deactivate the automatic function	press 3 seconds on the hood selection key	[0]

Note: it is possible to quickly change the power of the hood when the automatic function is activated, by sliding your finger on the "SLIDER".

This temporarily stops the automatic function.

The automatic function is reactivated the next time the hob is started.

MAINTENANCE AND CLEANING OF THE HOB

Switch-off the appliance before cleaning.

Do not clean the hob if the glass is too hot because they are risk of burn.

• Remove light marks with a damp cloth with washing up liquid diluted in a little water. Thenrinse with cold water and dry the surface thoroughly.
• Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratchesmust be absolutely avoided.
• Do not ever use any steam-cleaner or pressure washer
• Do not use any object that may scratch the ceramic glass.
• Ensure that the pan is dry and clean. Ensure that there are no grains of dust on yourceramic hob or on the pan. Sliding rough saucepans will scratch the surface.
• Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the surface being damaged.

Regular cleaning of the hood guarantees correct and error-free operation and extends the life of the hood.

FILTER CLEANING INDICATOR

When the hood is on and the suction power is set to [0], the time remaining before cleaning the filter is displayed on the timer display. The default setting is 30 hours, but you can change this setting if you want.

Show the remaining time:
Action	Control panel	Display
Activate the hood	press on the hood selection key	[remaining time] on the timer display

Grease filter cleaning indicator:

When the grease filters are to be cleaned, the timer display shows [00h] and a dot flashes on the hood selection key.

Reset the time remaining before cleaning the hood filter
Action	Control panel	Display
Activate the hob	Press key [0] for 2 sec.	[0] and a dot flashes on the hood selection key
Select the hood	press on the hood selection key	[0] and [00h] on the timer display
Reset the counter	press on the timer key for 3 secondes	The last user-specified setting is activated
Confirm the setting	press on the timer key again	-
Change the time remaining before cleaning the hood filter
Action	Control panel	Display
Activate the hob	press key [∅for 2 sec.	[0] and a dot flashes on the hood selection key
Select the hood	press on the hood selection key	[remaining time] on the timer display
Change the counter time	press on the timer key for 3 secondes adjust to press on the key [+] or [-]	[remaining time] on the timer display
Confirm the setting	press on the timer key again	-

CLEANING THE GREASE FILTER IN THE DISHWASHER

The grease filter has to be placed vertically in the lower basket and washed at 60 °C maximum with a mild detergent. After cleaning, replace the grease filters in the hood.

REPLACEMENT OF THE ACTIVATED CARBON FILTER

The active carbon filter used for the recirculation and to catch the smells, must be replaced after 6 month of normal use.

Grease filter Activated carbon filter

CLEANING AND MAINTENANCE

Before cleaning the hob after cooking, you should first allow it to cool down. Otherwise there is a risk of burns. Clean the dirty hob regularly. Use a damp cloth and a small amount of cleaning agent. Then rub it dry with a clean cloth.Um das Gerät zu reinigen, muss es ausgeschaltet sein.

• The appliance must be switched off before cleaning.
• Cleaning the appliance with a steam cleaner or high-pressure cleaner is not permitted for safety reasons.
• Never use abrasive or aggressive cleaning agents such as grill and oven sprays, stain or rust removers, scouring powders or sponges with scratchy surfaces.
• Afterwards, rub the hob dry with a clean cloth.
• If things like sugar, plastic or aluminium foil accidentally get on the hob, you should switch off the hob as soon as possible and remove them immediately. Be very careful when doing so, as otherwise there is a risk of burns. Remove them immediately after switching off the cooking zones.

WHAT TO DO IF...

The hob or cooking zones cannot be switched on:

• The hob is incorrectly connected to the mains power.
• The fuse of the household installation is not inserted correctly or is defective.
• The hob is locked.
• The sensor buttons are covered with water or dirt.
• A pot or objects are covering the buttons.

The display shows [U]:

• The cookware is not on the cooking zone.
  • The cookware is not suitable for induction
• The diameter of the pot base is too small for this cooking zone.

The display shows [E]:

• Disconnect the appliance from the mains and reconnect it.
• Call customer service.

One cooking zone or the entire cooking zone switches off:

• The safety shutdown has been triggered.
• Someone forgot to turn off a cooking zone.
• Several sensor buttons are covered.
• The pot is empty and overheated.
• Due to overheating, the electronics have automatically reduced or automatically switched off the power.

The cooling fan keeps running after it has been switched off:

• This is not a fault; the fan continues to run until the appliance has cooled down.
• The fan switches off automatically.

The automatic preheating function does not switch on:

• The cooking zone is still hot [H]
- The maximum power level is switched on [9].

Display [U]:

• Refer to the chapter on the keep warm level.

Display [ II ]:

- Refer to the chapter on the Stop&Go function.

The display shows [7] or [Er03]:

- An object or a liquid is covering the buttons. The display will disappear as soon as the buttons are released or cleaned

The display shows [ E2 ]:

• The hob has overheated; let it cool down first and then turn it on again.

The display shows [E8]:

- The air intake of the fan is clogged; please remove the things that are causing the interference.

The display shows [U400]:

• The hob is not connected to the mains. Check the connection and turn on the hob.

The display shows [Er47]:

- The hob is not connected to the mains. Check the connection and turn on the hob

If any of the above signs persist, please contact customer service.

ENVIRONMENTAL PROTECTION

The packaging materials are environmentally friendly and recyclable.

Electrical and electronic devices still contain valuable materials. However, they also contain

harmful substances necessary for their function and safety.

• For this reason, never dispose of your old appliance in the residual waste.
  • Instead, use the collection point provided by your local authority to return and recycle old electrical and electronic equipment.

Symbol of a trash bin crossed out by diagonal lines, representing no waste or discharge (no text or labels)

INSTALLATION INSTRUCTIONS

The installation must be performed by a qualified electrical contractor.

How to stick the gasket:

The gasket supplied with the hob prevents the intrusion of liquids into the cabinet below. It's installation has to be done carefully, in conformity with the following drawing.

2mm 2 3 G

Stick the gasket (2) two millimetres from the external edge of the glass, after removing the protection tape (3).

Fitting – installing

The cut out sizes are:

	Cut size		Glass size			Flush mounting
Ref.	Width	Depth	Width	Depth	Thick	Width	Depth	Thick	Radius
5IX60290	560	500	590	520	4	596	526	4	8
5IX80290	750	500	780	520	4	786	526	4	8

- Ensure that there is a distance of 40 ~mm between the hob and the wall or sides.

• The hobs are classified as "Y" class for heat protection. Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or divider must stand higher than the hob.
• The piece of furniture or the support in which the hob is to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 75 °C.
  • Do not install the hob at the top of a non ventilated oven or a dishwasher.
• Ensure under the bottom of the hob casing a space of 20 mm to ensure good air circulation of the electronic device.

• If a drawer is placed under the hob, avoid putting into this drawer flammable objects (for example: sprays) or non heat-resistant objects.

• Materials which are often used to make worktops expand on contact with water. To protect the cut out edge, apply a coat of varnish or special sealant. Particular care must be taken when applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. This gasket ensures a good seal when used in conjunction with smooth work top surfaces.

• The connection cord should not be subjected to any mechanical constraint.
  • Do not use inappropriate child safety shields or hob guards. These can cause accidents.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.
• The extraction piping which isn't included has a standard dimension of 222x89mm.
• The plinth grid must be installed in order to guarantee the good working of the ventilation system.

ELECTRICAL CONNECTION

• The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously.
  • Protection against the parts under tension must be ensured after the building-in.
• The data of connection necessary are on the stickers place on the hob casing near the connection box.
• The connection to the main must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3 mm.
• The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.
• If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.
• The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or oven.

Caution!

This appliance must only be connected to a network 230 V\~ 50/60 Hz.

Always connect the earth wire.

Respect the connection diagram.

The connection box is located underneath at the back of the hob casing. To open the cover use a medium screwdriver. Place it in the slits and open the cover.

Mains	Connection	Cable diameter	Cable	Protection calibre
230V~50/60Hz	1 Phase + N	3 × 2.5 mm^2	H 05 VV - FH 05 RR - F	25 A *
400V~ 50/60Hz	2 Phasen + N	4 × 1.5 mm^2	H 05 VV - FH 05 RR - F	16 A *

(*) calculated with the simultaneous factor following the standard EN 60 335-2-6

L1 L2 L3 N1 N2 1P+N L N 2P L1 L2 L3 N1 N2 2P L1 L2 L3 N1 N2 2P+N

Frequent loosening and screwing of the screws on the connection box risks damaging the efficiency of the tightness once screwed. It is therefore advisable to keep screwing and unscrewing to a minimum.

Ensure that the cables are correctly inserted and tightly screwed down.

4 weeks after installation, be sure to tighten again the screws in the terminal block.

Connection of the hood

It is necessary to plug the hood too on a standard electrical outlet 230 V\~50/60 Hz.

We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.

TABLE DES MATIÈRES

3 SÉCURITÉ

7 Description technique

Illustration of three frying pan designs with no accompanying text or symbols

REPLACEMENT DU FILTRE Á CHARBON ACTIF

Symbol of a trash bin crossed out by diagonal lines, representing no waste or discharge (no text or labels)

INSTRUCTIONS D'INSTALLATION

2mm 2 3 G

7 APPARAATBESCHRIJVING

BESCHERMING TEGEN ANDERE GEVAREN

APPARAATBESCHRIJVING

Illustration of frying panes with no cooking tools and sad faces, shown in two panels (no text or symbols)

GROOTTE VAN HET KOOKGEREI

Symbol of a trash bin crossed out by diagonal lines, representing no waste or discharge (no text or labels)

MONTAGE-INSTRUCTIES

Three 3D-rendered kitchen utensils with crossed panes and sad faces, shown in separate panels (no text or symbols)

Symbol of a trash bin crossed out by diagonal lines, representing no waste or discharge (no text or labels)

ISTRUZIONI PER IL MONTAGGIO

2mm 2 3 G

INNEHÅLLSFÖRTECKNING

3 SÄKERHET

Illustration of frying panes with no smoking restrictions, showing various expressions of stress or fear (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels)

MONTERINGSANVISNINGAR

2mm 2 3 G

Illustration of three frying pan designs with no accompanying text or symbols

Symbol of a trash bin crossed out by diagonal lines, representing waste sorting or disposal (no text or labels)

INDICACIONES DE MONTAJE

2mm 2 3 G

Illustration of three frying pan designs with no accompanying text or symbols

HVAD SKAL MAN G∅RE, HVIS ...

Symbol of a trash bin crossed out by diagonal lines, representing no waste or discharge (no text or labels)

MONTERINGSANVISNINGER

2mm 2 3 G

BOOSTERFUNKSJON (POWER-TRINN)

Illustration of three frying panes with crossed panes and sad faces, plus a separate view of a smiling dish (no text or symbols)

Symbol of a trash bin crossed with diagonal lines, representing no waste or discharge (no text or labels)

MONTERINGSINSTRUKSJONER

2mm 2 3 G

Technical line drawing of a mechanical assembly with a bracket and top panel (no text or symbols)

Close-up of blue fabric with a medical device labeled 'BLAUPUNKT' inserted into a clip (no other text or symbols visible)
