USER MANUAL OnAir Panel 1 IP Chauvet

Technical line drawing of a mechanical device with no visible text or symbols

Model ID: ONAIRPANEL1IP

About This Guide

The onAir IP Panel 1 Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 19.7 in (50 cm) is not expected.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
• The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
• The luminaire is intended for professional use only.
• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product's housing may be hot when lights are operating.
  • Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • DO NOT leave any flammable material within 7.87 in (20 cm) of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
• DO NOT submerge this product (IP65). Regular outdoor operation is fine.
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket or the handles to carry this product.
• In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 ^ ( 45 ^ ). Do not operate this product at higher temperatures.
• The minimum startup temperature is -4^ (-20°C). Do not start the product at lower temperatures.
  • The minimum ambient temperature is -22^ ( -30^ ). Do not operate the product at lower temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RF Exposure Warning for North America, and Australia

Warning! This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

- onAir IP Panel 1

- Seetronic Powerkon IP65 cable

- Omega bracket with mounting hardware

• Junior or pin

- Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Power Linking

You can link up to 7 onAir IP Panel 1 products at 100 V, 8 products at 120 V, 15 products at 208 V, 16 products at 230 V, or 17 products at 240 V. Never exceed this number. Power linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground	Green/Yellow	Green/Yellow	Green

DC Power

This product has a 3-pin IP65 XLR power input port that can work with an input voltage of 28 V DC which is SELV voltage supplied by short-circuit-proof power supply.

If AC power and DC power are input to the product at the same time, the product will automatically give priority to AC power input.

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Signal Connections

The onAir IP Panel 1 will work with a controller or controller software using a wired DMX connection, a wireless Lumenradio CRMX ^™ connection, or an Ethernet connection, If using other Art-Net ^™ or sACN-compatible products with the onAir IP Panel 1, each can be controlled individually on a single network. See the User Manual for information about how to connect and configure the product for these signals.

Control Personalities

The onAir IP Panel 1 uses DMX, CRMX™, Art-Net™, and sACN for its control personalities: 1Ch, 3Ch, 4Ch, 5Ch, 6Ch, 8Ch1, 8Ch2, 10Ch, 11Ch, 15Ch1, 15Ch2, 16Ch, XYBasic(6), and XYExtended(10).

DMX Connection

The onAir IP Panel 1 will work with a DMX controller using a 5-pin DMX data connection or a wireless CRMX ^™ connection. A DMX Primer is available from www.chauvetprofessional.com.

Art-Net™ Connection

Art-Net™ is an Ethernet protocol that uses TCP/IP which transfers a large amount of DMX512 data using an Neutrik® etherCON® RJ45 connection over a large network. An Art-Net™ protocol document is available from www.chauvetprofessional.com. Chauvet Professional recommends using unicast Art-Net™ for best results.

Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.

sACN Connection

Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the layering and formatting of Architecture for Control Networks to transport DMX512 data over IP or any other ACN compatible network.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The onAir IP Panel 1 supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

USB Software Update

The onAir IP Panel 1 allows for software update through USB using the built-in USB port. To update the software using USB flash drive, do the following:

1. Power on the fixture and plug the flash drive into the USB port.
2. Once the flash drive has been detected, the message "Upgrade Firmware" will be displayed. Press .

3. If a different message appears on the display, search for the updated software in the Main Menu (Update Firmware) and select from Only This Unit, Multiple Units, or Other Fixture Type. A list of the software update files will be displayed.

4. Select the file that needs to be uploaded. The message "Are you sure?" will be displayed. Press .

5. If the selected file is correct, the upgrade will be completed. Restart the fixture.

- If the selected file is incorrect, the upgrade will fail, and the display will go back to the main interface. Repeat steps 1-3 using the correct file.

The “Other Fixture Type” option can only be selected for connected products compatible with the Upload 03 (the first 2 digits of the item code must be 03).

Wireless Operation

In optimal conditions, the onAir IP Panel 1 can operate up to 300 m (900 ft) away from the CRMX ^™ transmitter, The CRMX ^™ receiver in the onAir IP Panel 1 must be paired with the CRMX ^™ transmitter for wireless operation.

Initial Setup

1. Turn the CRMX ^TM transmitter on.
2. Connect the CRMX ^™ transmitter to a DMX controller.
3. Place the onAir IP Panel 1 within 300 m from the CRMX™ transmitter.
4. Turn the onAir IP Panel 1 on.

Configuration

1. From the onAir IP Panel 1's control panel, go to DMX Address.
2. Select the start address, as with any other DMX compatible product.
3. Go to Wireless Setting >Receive On/Off.
4. Select On. (The Signal Strength Indicator will show a ? in front of the bars)
5. Press the reset button on the CRMX™ transmitter. (The Signal Strength Indicator on the onAir IP Panel 1 will show a 5 in front of the bars for 3 seconds while a connection is established.)

Product Pairing

If the onAir IP Panel 1 has already been paired with the CRMX™ transmitter, the Signal Strength Indicator on top of the display will show the strength of the signal. In this case, the onAir IP Panel 1 is ready to work in Wireless mode.

Pairing the onAir IP Panel 1 and a New CRMX™ Transmitter

1. From the onAir IP Panel 1 control panel, go to Wireless Setting >Receive Reset.
2. Select Yes.
3. From the CRMX™ transmitter, press . The signal indicator on the transmitter will flash.
4. Once the transmitter has found the onAir IP Panel 1, the signal indicator on the CRMX™ transmitter will illuminate solid.
5. The display screen on the onAir IP Panel 1 will show the strength of the signal.

CRMX™ operation can be interrupted or inhibited by people or liquid masses, including water or snow, between the transmitter and receiver. For best results, keep the area between the transmitter and receiver clear of any liquid masses.

Mounting

Before mounting this product, read the Safety Notes. Make sure the mounting clamps are capable of supporting the weight of the product. For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products.

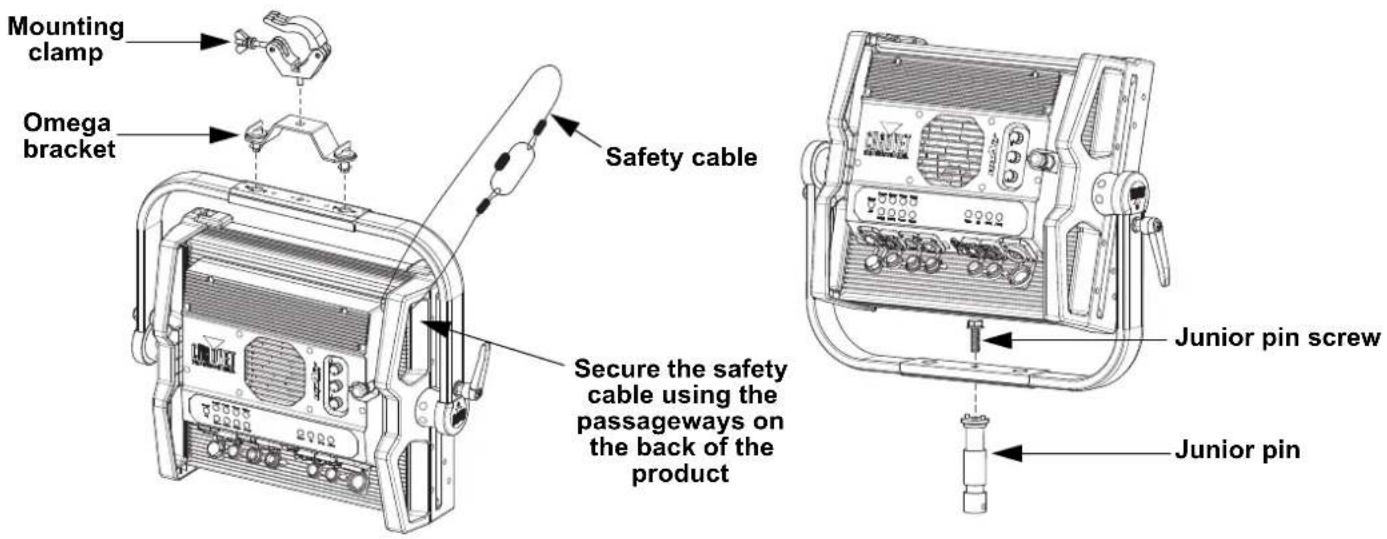

Mounting Diagram

Mounting clamp Omega bracket Safety cable Secure the safety cable using the passageways on the back of the product Junior pin screw Junior pin

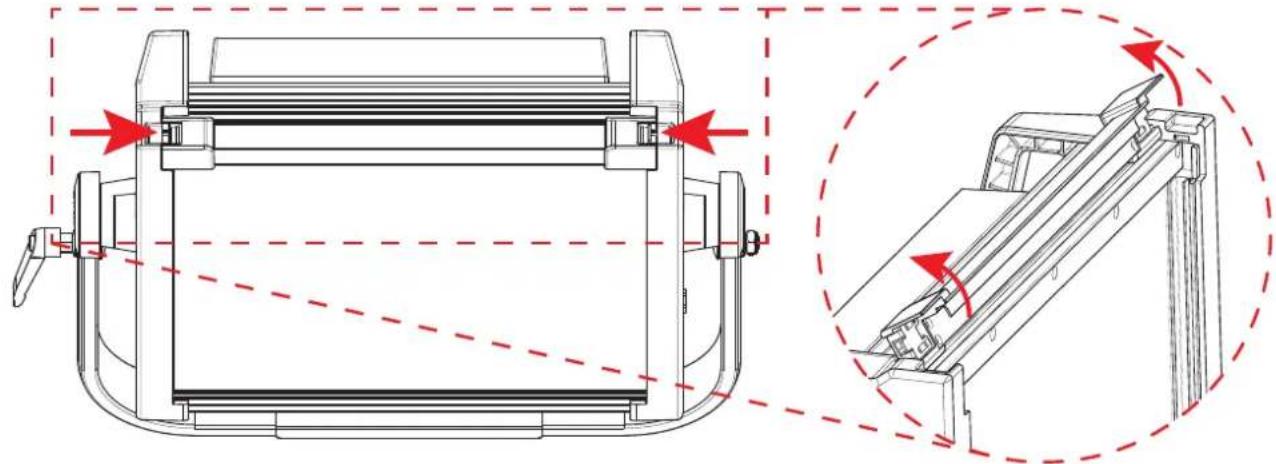

Accessory Slots

The onAir IP Panel 1 has 2 accessory slots that can be accessed by pressing the accessory slot tabs inward and opening the hinged accessory slot cover.

• Do not use when the diffuser is removed. The diffuser cannot be removed when the fixture is powered on.

• For fixed mounted luminaires, the risk group shall not exceed RG1 at the distance obtaining 500 lx.

• The back slot is for a diffuser or intensifier.

• The front slot is for accessories such as a honeycomb or barndoors.

Technical line drawing of a mechanical device with red arrows indicating assembly or motion, shown from two views (top and side), no text or symbols present.

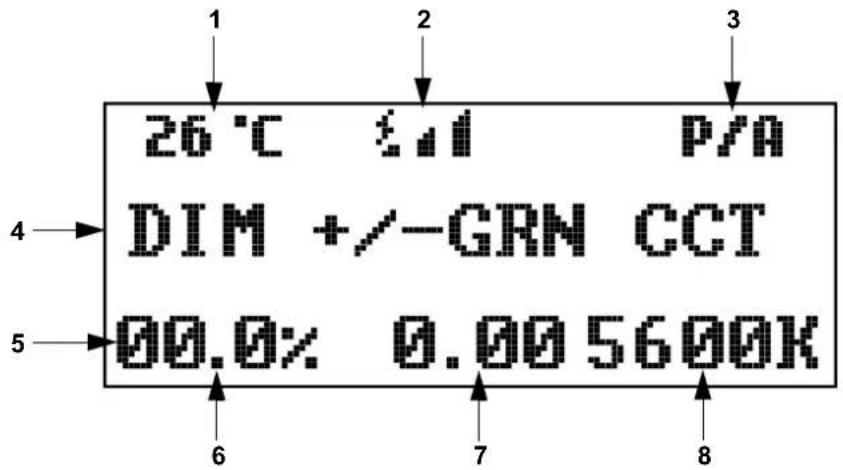

Home Screen

The home screen of the onAir IP Panel 1 shows the current settings and status of the product.

26 °C DIM +/-GRN CCT 00.0% 0.00 5600K

Number Description

1 Current product temperature
2 Current wireless signal status
3 Current preset or preset bank
4	Middle line shows current control mode. Shows DIM +/-GRN CCT in CCT mode, DIM HUE SAT in HSV mode, DIM X Y in XY Control mode, Master Mode in master mode, Slave Mode in slave mode, etc.
5 Bottom line shows details of the current control mode
6 Current dimmer or intensity value (00.0–100%) in CCT, HSV, or XY Control mode
7	Current +/- green value (-0.25–+0.25) in CCT mode, hue value (000–360°) in HSV mode, or X value (0.00–0.850) in XY Control mode
8	Current color temperature (2800–8000K) in CCT mode, saturation value (000–255) in HSV mode, or Y value (0.00–0.850) in XY Control mode

Control Panel Description

Button/Knob Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list or increases the numeric value when in a function
	Navigates downwards through the menu list or decreases the numeric value when in a function
	Increases or decreases the dimmer value or intensity
	Increases or decreases the hue value or X value
	Increases or decreases the color temperature, saturation, or Y value
	Toggles between A presets (built-in) and B presets (custom)
	Selects a preset. Hold for 3 seconds to save the current look to the selected B preset.

Menu Map

Refer to the onAir IP Panel 1 product page on www.chauvetprofessional.com for the latest menu map.

Main Level Programming Levels Description
Protocol	DMX512				Sets the control protocol
	Artnet
	sACN
DMX Address	001-509*				Selects DMX address (*Highest channel restricted to personality chosen)
DMX Channel	1Ch	Preset CCTs	Hue	<-25-25>	1-channel: selects a preset CCT and hue
		Manual Color Mixer	Red	<000-255>	1-channel: combine red, green, blue, and white to make a custom color (0-100%)
			Green <000	0-255>
			Blue	<000-255>
			White	<000-255>
	3Ch				3-channel: dimmer, color temperature, hue
	4Ch				4-channel: RGBW
	5Ch				5-channel: 16-bit dimmer, color temperature, hue, strobe
	6Ch				6-channel: dimmer, RGBW, strobe
	8Ch1				8-channel: RGBW 1 and 2
	8Ch2				8-channel: 16-bit RGBW
	10Ch				10-channel: dimmer, RGBW 1 and 2, strobe
	11Ch				11-channel: dimmer, RGBW, strobe, color temperature, hue, effect macros and speed, control
	15Ch1				15-channel: 16-bit dimmer, 16-bit RGBW, strobe, color temperature, hue, effect macros and speed
	15Ch2				15-channel: dimmer, RGBW 1 and 2, strobe, color temperature, hue, effect macros and speed, control
	16Ch				16-channel: 16-bit RGBW 1 and 2
	XYBasic(6)				6-channel: 16-bit dimmer, 16-bit X, 16-bit Y
	XYExtended(10)				10-channel: 16-bit dimmer, 16-bit X, 16-bit Y, strobe, effect macros and speed, control
Static	CCT Control				Correlated color temperature control
	HSV Control				Hue, saturation, value control
	XY Control				X and Y coordinate control
	Preset CCTs	2800K	DimmerHue	<000-255><-25-25>	Selects preset color temperature, dimmer and hue
		2900K
		3000K
		3100K
		3200K
		3300K
		3400K
Static (cont.)	Preset CCTs (cont.)	3500K	Dimmer Hue	<000-255><-25-25>	Selects preset color temperature, dimmer and hue
		3600K
		3700K
		3800K
		3900K
		4000K
		4100K
		4200K
		4300K
		4400K
		4500K
		4600K
		4700K
		4800K
		4900K
		5000K
		5100K
		5200K
		5300K
		5400K
		5500K
		5600K
		5700K
		6000K
		6500K
		7000K
		7500K
		8000K
	Manual Color Mixer	Red	<000-255>		Combine red, green, blue, and white to make custom color (0-100%)
		Green
		Blue
		White
Effect Macros	Color Chase	<001-100> Selects effect macro and speed
	Police Car
	Firetruck
	Fire
	Clouds
	Fireworks
	Paparazzi
	Lightning
Red Shift	On				Enables or disables red shift
	Off
Master/Slave	Master Standalone mode
	Slave Slave mode
DMX Loss	Hold Last Holds last signal received
	Stop DMX Holds output
	Blackout Blacks out the product
Dimmer Curve	S Curve				Sets the dimmer curve
	Linear
	Square
	Inverse Square
Dimmer Mode	Off Instantaneous dimmer
	Dimmer 1-3				Dimmer mode, fast (1) to slow (3)
Main Level	Programming Levels			Description
Color Calibration	Off Color calibration off
	User Calibration	Red	<125-235>	Sets maximum red LED value
		Green Sets maximum green LED value
		Blue Sets maximum blue LED value
		White Sets maximum white LED value
	Factory Calibration Color calibration set by factory
LED Frequency	600Hz			Sets the Pulse Width Modulation frequency
	1200Hz
	2000Hz
	4000Hz
	6000Hz
	25KHz
Fan Mode	Auto Sets the fan to auto mode
	On Sets the fan to always on
	Off Sets the fan to always off
	Silent Sets the fan to silent
Wireless Setting	Receive On/Off	Off		Enables/disables CRMX^TM
		On
	Receive Reset	No		Resets wireless receiver
		Yes
	Wireless To DMX	No		Enables/disables wireless to DMX
		Yes
Back Light	10S			Turns off display after 10 seconds of inactivity
	30S Turns off display after 30 seconds
	2Min Turns off display after 2 minutes of
	Always On Display always on
Ethernet Setting	Universe	000-255 (Art-netTM)		Sets the Art-NetTM or sACN universe
		001-256 (sACN)
	Start Channel	001-512		Sets the starting channel
	IP Address	2	000-255.000-255.000-255	Sets the IP address
		10
		239
	Ethernet To DMX	No		Enables/disables Ethernet to DMX
		Yes
Information	Fixture Hours	<______H>		Shows total hours the product has been powered on
	LED Hours	<______H>		Shows total hours the LEDs have been powered on
	Disp Version			Shows current display version
	Drv Version			Shows current driver version
	Net Version			Shows current net version
	UID	21A40139______		Shows product UID
Upgrade Firmware	Only This Unit		______CHL	Selects an update file for this product, or shows “No such file!”
			...
	Multiple Units		______CHL	Selects an update file for this and connected onAir IP Panel 2 products, or shows “No such file!”
			...
	Other Fixture Type		______CHL	Selects an update file for other connected products, or shows “No such file!”
			...
Factory Reset	No			Resets the product to factory default settings
	Yes

DMX Values
XYExtended(10)

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2	Fine dimmer	000 ⇔ 255	0–100%
3	X coordinate	000 ⇔ 255	0–100%
4	Fine X coordinate	000 ⇔ 255	0–100%
5	Y coordinate	000 ⇔ 255	0–100%
6	Fine Y coordinate	000 ⇔ 255	0–100%
7	S t r o	000 ⇔ 010 No function011 ⇔ 255 Strobe, slow to fast
8 Effect macros		000 ⇔ 010 No function011 ⇔ 039 Color chase040 ⇔ 068 Police car069 ⇔ 096 Firetruck097 ⇔ 125 Fire126 ⇔ 154 Clouds155 ⇔ 182 Fireworks183 ⇔ 211 Paparazzi212 ⇔ 240 Lightning241 ⇔ 255 No function
9	Effect macro speed	000 ⇔ 255	Speed, slow to fast
10	Control	000 ⇔ 255	See the Control Chart

XYBasic(6)

Channel	Function	Value	Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2	Fine dimmer	000 ⇔ 255	0–100%
3	X coordinate	000 ⇔ 255	0–100%
4	Fine X coordinate	000 ⇔ 255	0–100%
5	Y coordinate	000 ⇔ 255	0–100%
6	Fine Y coordinate	000 ⇔ 255	0–100%

16Ch

Channel	Function Value Percent/Setting
1	Red 1	000 ⇔ 255	0–100%
2	Fine red 1	000 ⇔ 255	0–100%
3	Green 1	000 ⇔ 255	0–100%
4	Fine green 1	000 ⇔ 255	0–100%
5	Blue 1	000 ⇔ 255	0–100%
6	Fine blue 1	000 ⇔ 255	0–100%
7	White 1	000 ⇔ 255	0–100%
8	Fine white 1	000 ⇔ 255	0–100%
9	Red 2	000 ⇔ 255	0–100%
10	Fine red 2	000 ⇔ 255	0–100%
11	Green 2	000 ⇔ 255	0–100%
12	Fine green 2	000 ⇔ 255	0–100%
13	Blue 2	000 ⇔ 255	0–100%
14	Fine blue 2	000 ⇔ 255	0–100%
15	White 2	000 ⇔ 255	0–100%
16	Fine white 2	000 ⇔ 255	0–100%

15Ch2

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2	R	e	d	1	000 ⇔	255 0–100%
3	G	r	e	e	n	1 000 ⇔ 255 0–100%
4	B	l	u	e	1	000 ⇔ 255 0–100%
5	W	h	i	t	e	1 000 ⇔ 255 0–100%
6	R	e	d	2	000 ⇔	255 0–100%
7	G	r	e	e	n	2 000 ⇔ 255 0–100%
8	B	l	u	e	2	000 ⇔ 255 0–100%
9	W	h	i	t	e	2 000 ⇔ 255 0–100%
10 Strobe					000 ⇔ 010	No function
					011 ⇔ 255	Strobe, slow to fast
11	Color temperature				000 ⇔ 255	See the Color Temperature Chart
12 Hue					000 ⇔ 001	0
					002 ⇔ 255	-25–+25
13 Effect macros					000 ⇔ 010	No function
					011 ⇔ 039	Color chase
					040 ⇔ 068	Police car
					069 ⇔ 096	Firetruck
					097 ⇔ 125	Fire
					126 ⇔ 154	Clouds
					155 ⇔ 182	Fireworks
					183 ⇔ 211	Paparazzi
					212 ⇔ 240	Lightning
					241 ⇔ 255	No function
14	Effect macro speed				000 ⇔ 255	Speed, slow to fast
15	Control				000 ⇔ 255	See the Control Chart

15Ch1

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2	Fine dimmer	000 ⇔ 255	0–100%
3	Red	000 ⇔ 255	0–100%
4	Fine red	000 ⇔ 255	0–100%
5	Green	000 ⇔ 255	0–100%
6	Fine green	000 ⇔ 255	0–100%
7	Blue	000 ⇔ 255	0–100%
8	Fine blue	000 ⇔ 255	0–100%
9	White	000 ⇔ 255	0–100%
10	Fine white	000 ⇔ 255	0–100%
11	Strobe	000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
12	Color temperature	000 ⇔ 255	See the Color Temperature Chart
13 Hue		000 ⇔ 001	0
		002 ⇔ 255	-25–+25
Channel	Function Value Percent/Setting
14 Effect macros		000 ⇔ 010	No function
		011 ⇔ 039	Color chase
		040 ⇔ 068	Police car
		069 ⇔ 096	Firetruck
		097 ⇔ 125	Fire
		126 ⇔ 154	Clouds
		155 ⇔ 182	Fireworks
		183 ⇔ 211	Paparazzi
		212 ⇔ 240	Lightning
		241 ⇔ 255	No function
15	Effect macro speed	000 ⇔ 255	Speed, slow to fast

11Ch

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2	R e d	000 ⇔ 2	55 0–100%
3	G r e e	n	000 ⇔ 255 0–100%
4	Blue	000 ⇔ 255	0–100%
5	White	000 ⇔ 255	0–100%
6	S t r o	000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast
7	Color temperature	000 ⇔ 255	See the Color Temperature Chart
8	Hue	000 ⇔ 001	0
		002 ⇔ 255	-25–+25
9 Effect macros		000 ⇔ 010	No function
		011 ⇔ 039	Color chase
		040 ⇔ 068	Police car
		069 ⇔ 096	Firetruck
		097 ⇔ 125	Fire
		126 ⇔ 154	Clouds
		155 ⇔ 182	Fireworks
		183 ⇔ 211	Paparazzi
		212 ⇔ 240	Lightning
		241 ⇔ 255	No function
10	Effect macro speed	000 ⇔ 255	Speed, slow to fast
11	Control	000 ⇔ 255	See the Control Chart

10Ch

Channel	Function Value Percent/Setting
1 Dimmer	000 ⇔ 255 0–100%
2	Red 1	000 ⇔ 255	0–100%
3	Green 1	000 ⇔ 255	0–100%
4	Blue 1	000 ⇔ 255	0–100%
5	White 1	000 ⇔ 255	0–100%
6	Red 2	000 ⇔ 255	0–100%
7	Green 2	000 ⇔ 255	0–100%
8	Blue 2	000 ⇔ 255	0–100%
9	White 2	000 ⇔ 255	0–100%
10 Strobe		000 ⇔ 010	No function
		011 ⇔ 255	Strobe, slow to fast

8Ch2

Channel Function Value Percent/Setting
1	R	e	d		000 ⇔ 255 0–100%
2	F	i	n	e	r	e	d	000 ⇔ 255 0–100%
3	G	r	e	e	n		000 ⇔ 255 0–100%
4	F	i	n	e	g	r	e	e n 000 ⇔ 255 0–100%
5	B	l	u	e		000 ⇔ 255 0–100%
6	Fine blue				000 ⇔ 255		0–100%
7	White				000 ⇔ 255		0–100%
8	Fine white				000 ⇔ 255		0–100%

8Ch1

Channel Function Value Percent/Setting
1	Red 1	000 ⇔ 255	0–100%
2	Green 1	000 ⇔ 255	0–100%
3	Blue 1	000 ⇔ 255	0–100%
4	White 1	000 ⇔ 255	0–100%
5	Red 2	000 ⇔ 255	0–100%
6	Green 2	000 ⇔ 255	0–100%
7	Blue 2	000 ⇔ 255	0–100%
8	White 2	000 ⇔ 255	0–100%

6Ch

Channel	Function	Value	Percent/Setting
1	Dimmer					000 ⇔ 255 0–100%
2	Red					000 ⇔ 255 0–100%
3	G	r	e	e	n	000 ⇔ 255 0–100%
4	B	l	u	e	000 ⇔ 255 0–100%
5	White					000 ⇔ 255 0–100%
6	S	t	r	o	000 ⇔ 010 No function011 ⇔ 255 Strobe, slow to fast

5Ch

Channel	Function Value Percent/Setting
1	Dimmer	000 ⇔ 255	0–100%
2	Fine dimmer	000 ⇔ 255	0–100%
3	Color temperature	000 ⇔ 255	See the Color Temperature Chart
4	Hue	000 ⇔ 001 0002 ⇔ 255 -25–+25
5	S t r o	000 ⇔ 010 No function011 ⇔ 255 Strobe, slow to fast

4Ch

Channel Function Value Percent/Setting
1	R	e	d		000 ⇔ 255 0–100%
2	G	r	e	e	n	000 ⇔ 255 0–100%
3	B	l	u	e	000 ⇔ 255 0–100%
4	White				000 ⇔ 255	0–100%

3Ch

Channel	Function Value Percent/Setting
1 Dimmer	000 ⇔ 255 0–100%
2	Color temperature	000 ⇔ 255	See the Color Temperature Chart
3	Hue	000 ⇔ 001 0002 ⇔ 255 -25–+25

1Ch

Channel	Function Value Percent/Setting
1	Dimmer	000 ⇔ 255	0–100% (color set through display menu)

Control Chart

Value Percent/Setting Value Percent/Setting
000 ⇔ 007	No function	072 ⇔ 079	Dimmer mode 1 (fast)
008 ⇔ 015	Reset dimmer	080 ⇔ 087	Dimmer mode 2
016 ⇔ 023	Red shift on	088 ⇔ 095	Dimmer mode 3 (slow)
024 ⇔ 031	Red shift off	096 ⇔ 103	Fan mode auto
032 ⇔ 039	S-curve dimmer	104 ⇔ 111	Fan mode on
040 ⇔ 047	Linear dimmer	112 ⇔ 119	Fan mode off
048 ⇔ 055	Square dimmer	120 ⇔ 127	Fan mode silent
056 ⇔ 063	Inverse square dimmer	128 ⇔ 255	Reserved for future use
064 ⇔ 071	Dimmer mode off

Color Temperature Chart

Value Percent/Setting Value Percent/Setting
000 ⇔ 005	No function	125 ⇔ 131	4500K
006 ⇔ 012	2800K	132 ⇔ 138	4600K
013 ⇔ 019	2900K	139 ⇔ 145	4700K
020 ⇔ 026	3000K	146 ⇔ 152	4800K
027 ⇔ 033	3100K	153 ⇔ 159	4900K
034 ⇔ 040	3200K	160 ⇔ 166	5000K
041 ⇔ 047	3300K	167 ⇔ 173	5100K
048 ⇔ 054	3400K	174 ⇔ 180	5200K
055 ⇔ 061	3500K	181 ⇔ 187	5300K
062 ⇔ 068	3600K	188 ⇔ 194	5400K
069 ⇔ 075	3700K	195 ⇔ 201	5500K
076 ⇔ 082	3800K	202 ⇔ 208	5600K
083 ⇔ 089	3900K	209 ⇔ 215	5700K
090 ⇔ 096	4000K	216 ⇔ 222	6000K
097 ⇔ 103	4100K	223 ⇔ 229	6500K
104 ⇔ 110	4200K	230 ⇔ 236	7000K
111 ⇔ 117	4300K	237 ⇔ 243	7500K
118 ⇔ 124	4400K	244 ⇔ 255	8000K

Acerca de Esta Guía

Technical line drawing of a mechanical device with red arrows indicating assembly or motion, shown from two views (top and side), no text or symbols present.

Pantalla de inicio

Technical line drawing of a mechanical device with red arrows indicating assembly or motion, showing internal components and alignment (no text or symbols)

Écran d'accueil

RDM (Remote Device Management)

Technical line drawing of a mechanical device with red arrows indicating force or movement, shown from front and side views (no text or symbols)

Startbildschirm

Technical line drawing of a mechanical device with red arrows indicating motion or assembly, shown from two views (top and side), no text or symbols present.

Startscherm

General Information Technical Support

Chauvet World Headquarters

Address: 3360 Davie Rd. Voice: [phone]

Davie, FL 33314 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet U.K.

Address: Pod 1 EVO Park Email: [e-mail]

Little Oak Drive, Sherwood Park

Nottinghamshire, NG15 0EB Website: www.chauvetprofessional.eu

UK

Voice: [phone]

Fax: [phone]

Chauvet Benelux

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U. K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

UL 1573 ® CSA C22.2 No. 166 US E113093
