HPBT5056GY - Headphones NEDIS - Free user manual and instructions

Product type	Fully wireless earphones
Brand	Nedis
Model	HPBT5056GY
Bluetooth version	Bluetooth 5.0
Frequency response	20 - 20 000 Hz
Impedance	16 Ω
Speaker size	6 mm
Battery life (playback)	Up to 3 hours
Battery capacity (earphones)	2 x 30 mAh (Lithium-polymer)
Battery capacity (case)	280 mAh (Lithium-polymer)
Charging time (earphones)	Up to 2 hours
Case recharges	Up to 4 full recharges
Power supply	5 VDC / 0.3 A via USB-C
Voice control	Siri, Google Assistant
Touch control	Yes
Water resistance	No
Weight	Approximately 4 g per earphone (estimated)
Included accessories	USB-C cable, 3 pairs of ear tips (S/M/L), charging case
Intended use	Pairing with any Bluetooth-compatible audio/video device
Care and cleaning	Wipe with a soft, dry cloth. Do not use chemicals.
Safety	Do not expose to water, heat, do not open, do not use at high volume for long periods.

Frequently Asked Questions - HPBT5056GY NEDIS

How do I pair the earphones with my phone?

Remove the earphones from the charging case. They will turn on automatically and enter pairing mode (the LED flashes red and blue). Enable Bluetooth on your phone and select "HPBT5056GY" from the list of devices.

How long does it take to fully charge the earphones?

The charging time for the earphones is about 2 hours when placed in the charging case. The case itself recharges via USB-C (also about 2 hours).

What is the battery life?

The earphones provide up to 3 hours of continuous playback. The charging case can recharge the earphones up to 4 times, providing a total battery life of approximately 15 hours.

Are the earphones water-resistant?

No, the earphones are not water-resistant. Avoid any contact with water or moisture to prevent damage.

How do I answer calls with these earphones?

To answer an incoming call, tap once on the touch control of the left or right earphone. To reject a call, press and hold the touch control for 2 seconds. To hang up, tap once.

How do I control music?

Tap once on the touch control to play/pause. Tap twice on the right earphone to skip to the next track, tap twice on the left earphone to go back to the previous track.

Can I use Siri or Google Assistant?

Yes, press and hold the touch control on either earphone for 3 seconds to activate your phone's voice assistant (Siri or Google Assistant).

What should I do if one earphone does not turn on?

Make sure the earphones are charged. Place them in the case and check that the indicators light up. If the problem persists, reset the earphones by putting them back in the case and closing the lid for a few seconds, then try again.

Can I replace the ear tips?

Yes, three pairs of different-sized ear tips (S, M, L) are provided. Simply remove them gently and replace them with the size that offers the best comfort and fit.

How do I clean the earphones?

Use a soft, dry cloth to clean the exterior. Do not use chemicals or water. Clean the ear tips and grilles regularly to prevent earwax buildup.

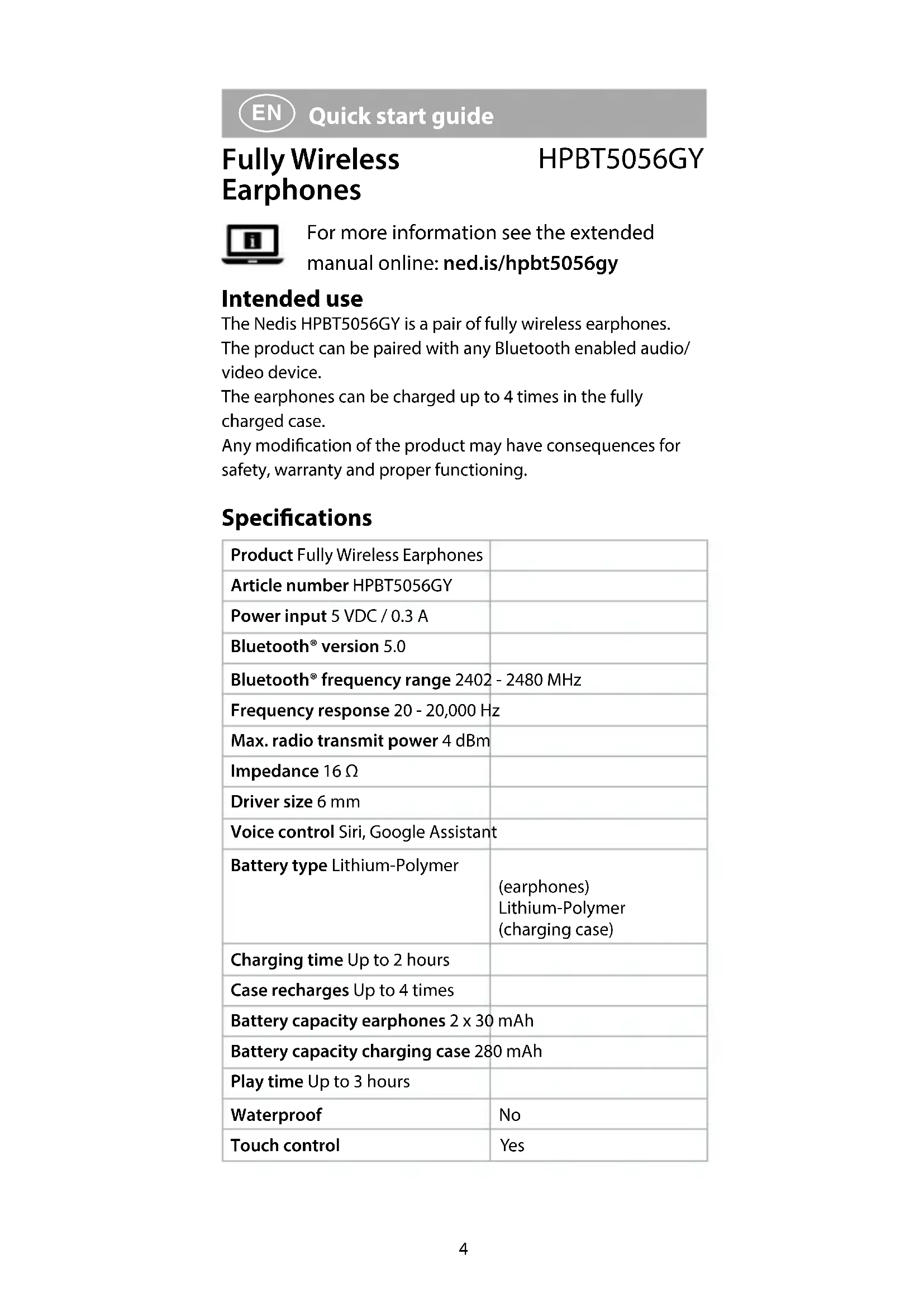

USER MANUAL HPBT5056GY NEDIS

Fully Wireless Earphones with voice and touch control

HPBT5056GY

EN Quick start guide 4
DE Kurzanleitung 7
FR Guide de démarrage rapide 11
NL Snelstartgids 15
IT Guida rapida all'avvio 19
ES Guia de inicio=rápido 23
PT Guia de iniciação=rapida 27
(SV) Snabbstartsguide 31
FI Pika-aloitusopas 35
NO Hurtigguide 38
DA Vejledning til hurtig start 42
HU Gyors beüzemelési utmutató 46
PL Przewodnik Szybki start 50
EL O8nyoc ypnyopnc EKKivnoonc 54
SK Rychly námod 58
CS Rychly námod 62
RO Ghid rapid de initiiere

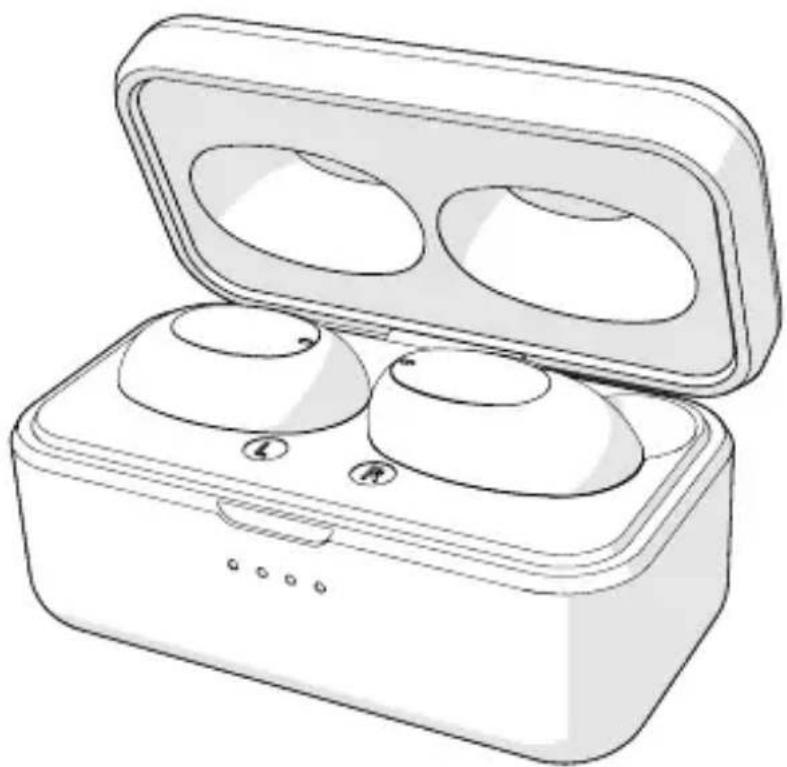

Fully Wireless

Earphones

HPBT5056GY

For more information see the extended

manual online:ned.is/hpbt5056gy

Intended use

The Nedis HPBT5056GY is a pair of fully wireless earphones.

The product can be paired with any Bluetooth enabled audio/video device.

The earphones can be charged up to 4 times in the fully charged case.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Fully Wireless Earphones
Article number HPBT5056GY
Power input 5 VDC / 0.3 A
Bluetooth® version 5.0
Bluetooth® frequency range 2402 - 2480 MHz
Frequency response 20 - 20,000 Hz
Max. radio transmit power 4 dBm
Impedance 16 Ω
Driver size 6 mm
Voice control Siri, Google Assistant
Battery type Lithium-Polymer	(earphones) Lithium-Polymer (charging case)
Charging time Up to 2 hours
Case recharges Up to 4 times
Battery capacity earphones 2 x 30 mAh
Battery capacity charging case 280 mAh
Play time Up to 3 hours
Waterproof	No
Touch control	Yes

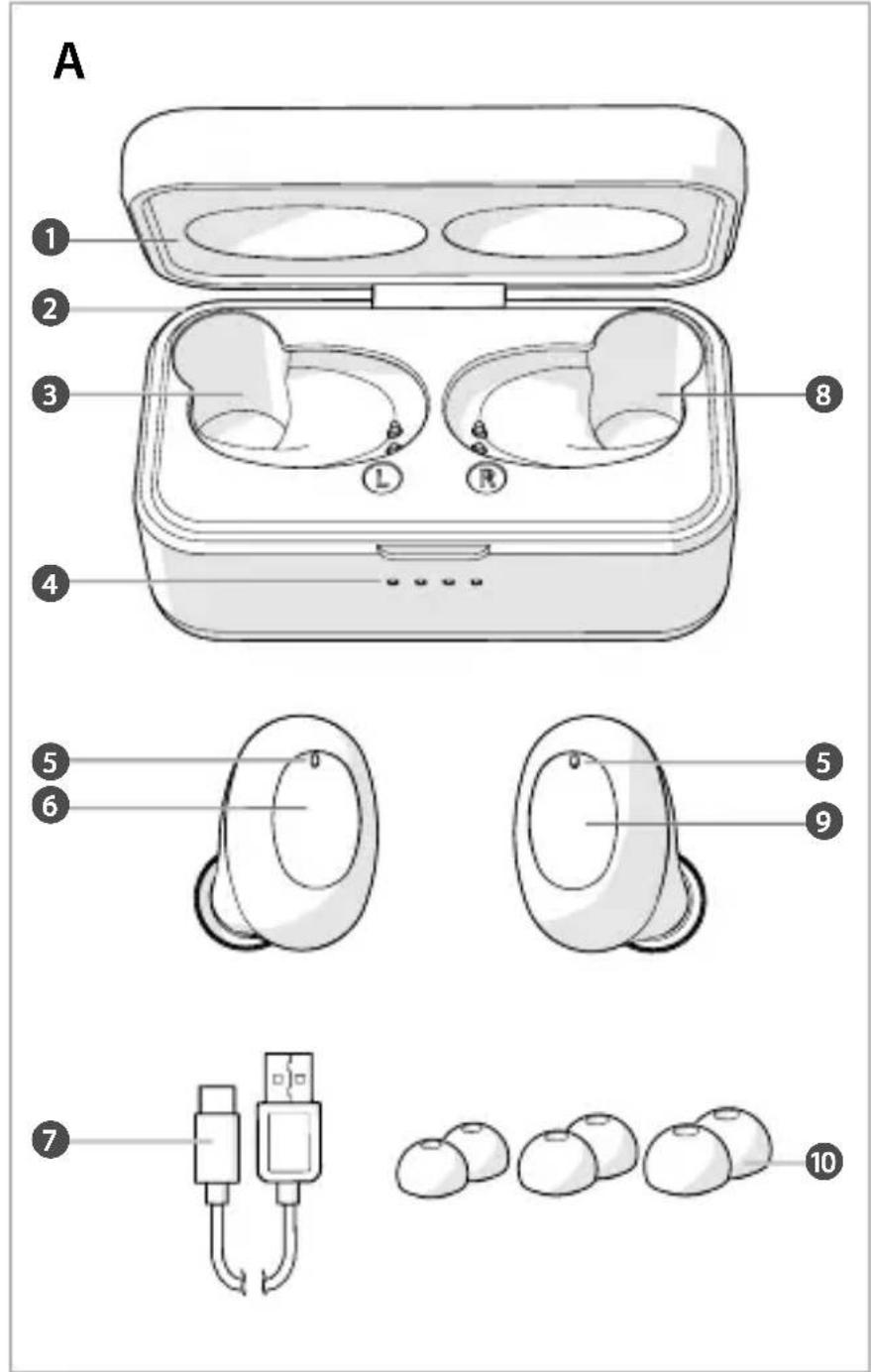

Main parts (image A)

1 Lid
2 USB-C port
3 Leftearphone slot
4 Charging indicator LED
Status indicator LED
6 Leftearphone touch control

7 USB-C cable
8 Rightearphone slot
9 Rightearphone touch control
10 3 pairs of ear tips (S/M/L)

Safety instructions

WARNING

To prevent possible hearing damage, do not listen at high volume levels for long periods.

• Only use the product as described in this document.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not expose the product to direct sunlight, naked flames or heat.
• Do not expose the product to water or moisture.
• Do not drop the product and avoid bumping.
• Do not open the product.
• Keep the product out of reach from children.
• This product is not a toy. Never allow children or pets to play with this product.
• Using earphones with both ears covered while participating in traffic is discouraged and may be illegal in some areas.
• Charge the battery for at least 2 hours when you use it for the first time.
• Only use the provided USB charging cable.
• Some wireless devices may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants and hearing aids. Consult the manufacturer of your medical equipment for more information.

• Do not use the product at locations where the use of wireless devices is prohibited due to potential interference with other electronic devices, which may cause safety hazards.

• Disconnect the product from the power source and other equipment if problems occur.

• This product is equipped with a non-removable internal battery. Do not attempt to replace the battery yourself.
• Do not short circuit.
• Do not repair the product. If damaged, it must be properly disposed of.

Pairing the earphones to a Bluetooth audio source

1. Take the earphones out of the charging case. The earphones switch on automatically.
   Tap and hold both earphone touch controls A6A9 for 2 seconds to manually switch on the earphones.
2. A 5 blinks red and blue to indicate pairing mode is active.
3. Enable Bluetooth on the device you want to pair the earphones with.
4. Select "HPBT5056GY" from the list of available Bluetooth devices on your device.

Charging the product

1. Plug the USB-C cable A 7 into the USB-C port A2 of the charging case.
2. Plug the other end of A 7 into a computer or power adapter.
3. Plug the power adapter into a power outlet.

The charging indicator LED A 4 indicates the charging progress of the battery.

1. Place the earphones into the respective slots A 3A 8 and close the lid A to charge the earphones.

The earphones and the charging case can charge simultaneously.

The status indicator LED A 5 on the earphones burns red to indicate the earphones are charging.

Making phone calls

With the earphones connected to a mobile phone via Bluetooth, phone calls will automatically be redirected to the earphones.

To answer an incoming call, tap A 6 or A 9.
- To reject an incoming call, tap and hold A 6 or A9 for 2 seconds.
To end a call, tap A 6 or A9.

Controlling the music

• Tap A 6 or A 9 to play or pause the music.

• Double tap A 9 to skip to the next track.

• Double tap A 6 to skip to the previous track.

Add Siri/Google Assistant function

Tap and hold A 6 or A 9 for 3 seconds to activate Siri/Google Assistant.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product HPBT5056GY from our brand Nedis, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/hpbt5056gy#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC 's-Hertogenbosch, the Netherlands
