| Product type | Compact fog machine |
| Brand | Eurolite |
| Model | N11 |
| Item numbers | 51701957 (blue LED), 51701958 (amber LED) |
| Power supply | 230 V AC, 50 Hz |
| Total power consumption | 400 W |
| Protection type | IP20 |
| Fuse | F 4 A (replaceable) |
| LED | 3 x 1 W (blue or amber depending on model) |
| Heating time | Approx. 5 minutes |
| Output volume | Approx. 14 m³/min |
| Range of emission | Approx. 2 m |
| Tank capacity | 0.3 L (water-based liquid, fixed tank) |
| Fluid consumption | Approx. 14 ml/min |
| Control | Wired remote control |
| Housing color | Black |
| Dimensions (W x D x H) | 14.5 x 26.5 x 17 cm |
| Weight | 1.80 kg |
| Included accessories | 1 unit, instruction manual, power cable, bracket, 2 thumbscrews, wedge, filter |
| Safety instructions | Minimum distance 50 cm from nozzle, do not direct towards people or flames, use safety strap when mounting overhead |
| Maintenance | Clean the heating element after each use with distilled water; replace the fuse with an identical model |
| Spare parts and repairability | Fuse F 4 A; special power cable available; repairs by qualified personnel |
Frequently Asked Questions - N11 Eurolite
User questions about N11 Eurolite
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Effect machine in PDF format for free! Find your manual N11 - Eurolite and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. N11 by Eurolite.
USER MANUAL N11 Eurolite
LED Hybrid Fog machine


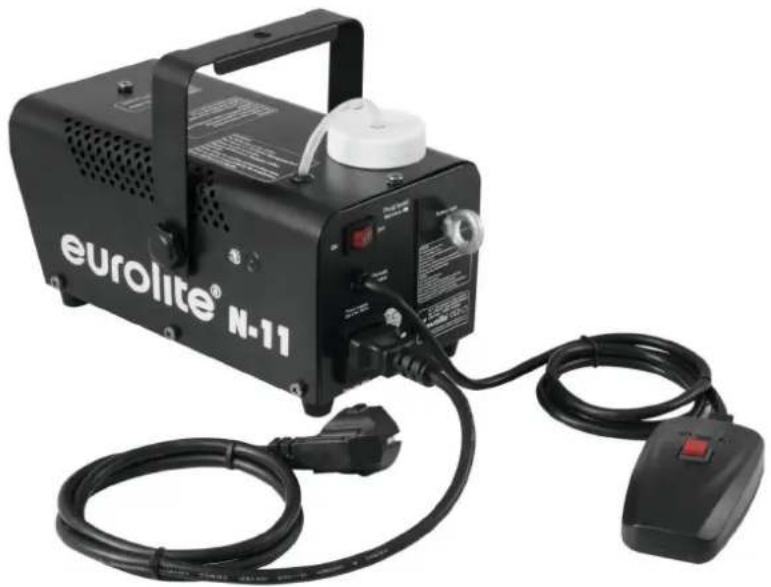

Exterior view of a black euro-litite N-11 spray gun with attached power cord and control unit (no visible text or symbols on main body)Bedienungsanleitung
User manual
Mode d'emploi
eurolite®
N-11 LED Hybrid Fog machine
Compact 400 W fog machine with blue or amber LEDs
MULTI-LANGUAGE INSTRUCTIONS
Inhaltsverzeichnis/
Table of contents
Table des matières
Deutsch
EINFÜHRUNG 4
Lieferumfang 4
Delivery includes 12
SAFETY INSTRUCTIONS.... 12
OPERATING DETERMINATIONS....14
DESCRIPTION OF THE DEVICE 14
Features 14
Overview 15
Connection with the mains 17
OPERATION 17
Cleaning the heating element 18
Storage 18
Replacing the fuse 18
TECHNICAL SPECIFICATIONS....19
Français
INTRODUCTION 20
You can find the latest update of this user manual in the Internet under:
Keep this device away from rain and moisture! Unplug mains lead before opening the housing!
For your own safety, please read this user manual carefully before you initially start-up.
Every person involved with the installation, operation and maintenance of this device has to
- be qualified
- follow the instructions of this manual
- consider this manual to be part of the total product
- keep this manual for the entire service life of the product
- pass this manual on to every further owner or user of the product
- download the latest version of the user manual from the Internet

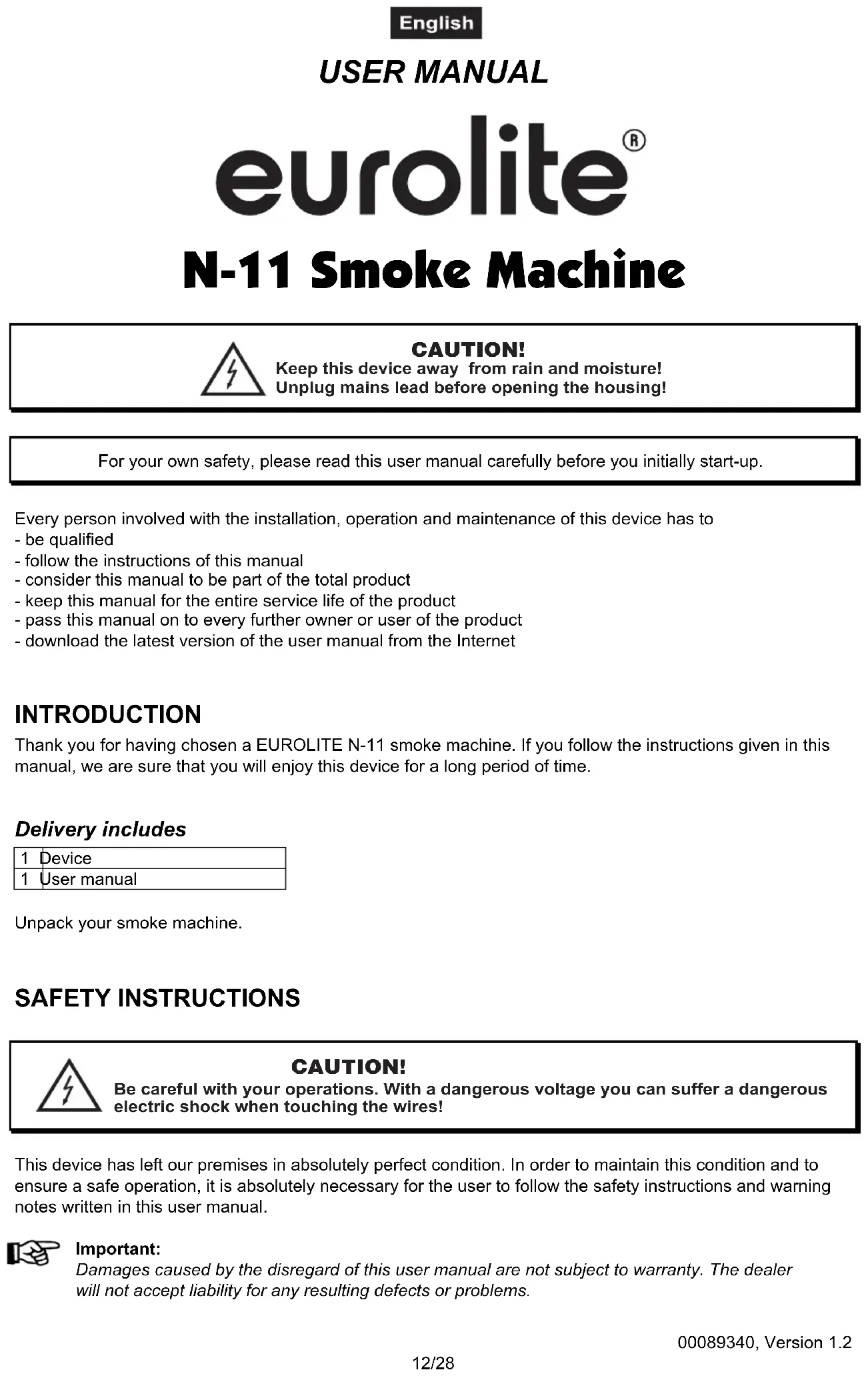

INTRODUCTION
Thank you for having chosen a EUROLITE N-11 smoke machine. If you follow the instructions given in this manual, we are sure that you will enjoy this device for a long period of time.
Delivery includes
| 1 | Device |
| 1 | User manual |
Unpack your smoke machine.
SAFETY INSTRUCTIONS
CAUTION!
Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems.
English
Before you initially start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. The power plug must only be plugged into a protection class I outlet.
Always plug in the power plug least. Make sure that the power-switch is set to OFF position before you connect the device to the mains.
Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution!
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-cord from time to time.
CAUTION! Before filling the machine disconnect from mains.
Never drink fluid or use it on the inside or outside of a human body. If fluid gets in contact with skin or eyes, rinse thoroughly with water. If it is necessary call a doctor immediately!
DANGER OF EXPLOSION! Never add flammable liquids of any kind to the fog liquid.
Keep device upright.
Never aim the output nozzle directly at people or at open flames.
Never aim the smoke at yourself, people or animals.
Never aim the smoke at power sockets or other objects that are powered by electrical current. You could damage them or even expose yourself to hazardous electric shocks.
Never aim the smoke at the device itself or at surfaces that are not heat resistant.
Avoid direct skin contact with the smoke. Inappropriate use may cause burns due to high temperatures.
DANGER OF BURNING! Keep minimum distance of 50 cm to nozzle!
For overhead use (mounting height >100 cm), always fix the fixture with an appropriate safety bond.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.
When the fog machine is not in use for a longer period of time empty the entire smoke fluid from the machine before storing it.
Unused machines must be disconnected from the mains. If the power plug or the power switch is not accessible, the device must be disconnected via the mains.
Keep away children and amateurs!
Never leave this device running unattended.
Store this device out of reach of children and amateurs who may not operate the device without supervision.
OPERATING DETERMINATIONS
This device is a smoke-machine for creating a thick smoke made of a special smoke fluid. This product is only allowed to be operated with an alternating voltage of 230 V, 50 Hz and was designed for indoor use only.
Do not shake the device. Avoid brute force when installing or operating the device.
When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. There should not be any cables lying around. You endanger your own and the safety of others!
Before filling the device disconnect from mains. Never fill in any hot liquids.
Only use high-quality, water-based smoke fluid recommended by the manufacturer. Other smoke fluids may cause clogging.
Always make sure there is sufficient smoke fluid in the fluid tank. Operating this smoke-machine without smoke fluid will cause damage to the pump as well as over-heating of the heater.
Operate the device only after having familiarized with its functions. Do not permit operation by persons not qualified for operating the device. Most damages are the result of unprofessional operation!
Always store the device dry!
Always drain the tank and please use the original packaging if the device is to be transported.
Please consider that unauthorized modifications on the device are forbidden due to safety reasons!
If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-circuit, burns, electric shock, etc.
WEEE Directive
When to be definitively put out of operation, take the unit(s) to a local recycling plant for a disposal which is not harmful to the environment. Do not dispose of as municipal waste. Contact your retailer or local authorities for more information.
DESCRIPTION OF THE DEVICE
Features
Compact 400 W fog machine with blue or amber LEDs
- Output nozzle with blue (article no 51701957) or amber (article no 51701958) LED illumination
• 3 powerful LEDs 1 W blue (B) or amber (A)
• Output distance: Approx. 2 m
• Control via wired remote control - With Mounting bracket
- For application areas such as: Party room; mobile djs / entertainer; small rental
- With level indication
- Operates on water-based fluid
- Application possibility: Standing; suspended
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x filter, 1 x mounting bracket, 2 x knurled screw, 2 x washer

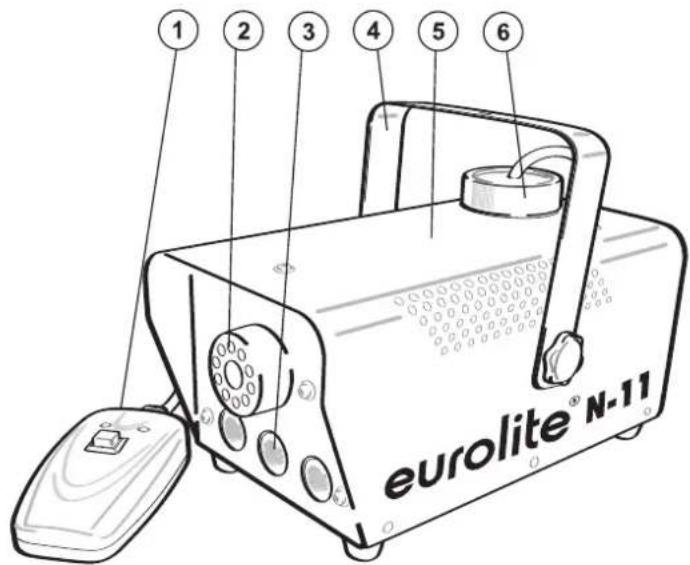

Overview
(1) Remote control
(2) Escape nozzle
(3) LEDs
(4) Mounting bracket
(5) Housing
(6) Fluid tank


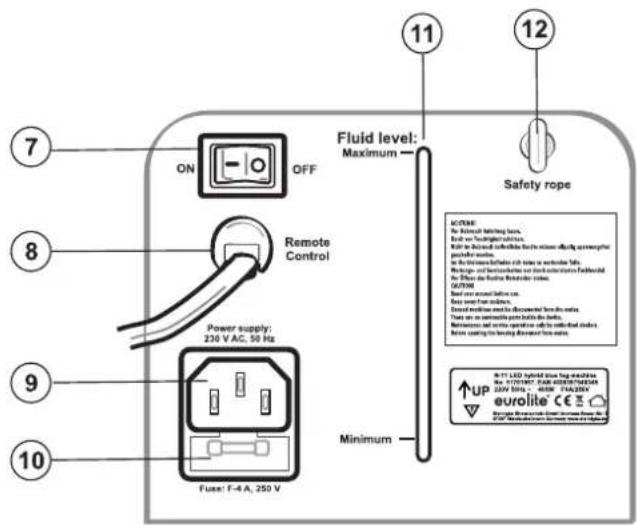

1 2 3 4 5 6 eurolite® N-11(7) Power switch
(8) Remote control
(9) Power supply
(10) Fuseholder
(11) Fluid level display
(12) Attachment eyelet
Remove all packing materials from the shipping box. Make sure that there are no packing remnants at the fog output nozzle.
Unscrew the tank cap and fill the tank with fog fluid. Tightly close the tank again.
Install the device on a plane surface.
CAUTION!
Always disconnect from the mains before filling the machine. Only use water-based fluids. We recommend high-quality EUROLITE fluids. Never add flammable liquids. If fluid gets inside the machine, have it checked by skilled personnel before it is operated.
Installation
Install the device in a well-ventilated area. The operation in an insufficiently ventilated room can lead to a condensation of the smoke fluid. The resulting slippery surface can cause accidents. Keep a minimum distance of 20 cm around and above the device.
English
Furthermore do not orientate the escape nozzle directly in the direction of the audience's eyes. In order to create a good effect, there should be a distance between the device and the audience of at least 1.5 m.
Only install the smoke-machine on fire-resistant, scratch-resistant and water-resistant surfaces.
Please make sure that the inclination angle does not exceed 15^ .
This device is constructed for a standing or hanging installation. If the device is to be installed overhead, the following safety instructions are binding:
DANGER TO LIFE!
Please consider the EN#0365-pet196e-anational norms during the installation! The installation must only be carried out by an authorized dealer!
The installation of the device has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.
When rigging, derigging or servicing the device staying in the area below the installation place, on bridges, under high working places and other endangered areas is forbidden.
The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time.
The operator has to make sure that safety-relating and machine-technical installations are approved by an expert after every four year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.
Procedure:
When hanging, the device must not be installed in areas where persons may walk by or be seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to) calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the device. If you lack these qualifications, do not attempt the installation yourself, but instead use a professional structural rigger. Improper installation can result in bodily injury and or damage to property.
The device has to be installed out of the reach of people.
Caution: Devices in overhead installations may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do NOT install the device!
Before rigging make sure that the installation area can hold a minimum point load of 10 times the device's weight.
Mount the device with the bracket to your trussing system using an appropriate clamp.
For overhead use, always install an appropriate safety bond.
You must only use safety bonds and quick links complying with DIN 56927, shackles complying with DIN EN 1677-1 and BGV C1 carbines. The safety bonds, quick links, shackles and the carbines must be sufficiently dimensioned and used correctly in accordance with the latest industrial safety regulations (e. g. BGV C1, BGI 810-3).
English
Please note: for overhead rigging in public or industrial areas, a series of safety instructions have to be followed that this manual can only give in part. The operator must therefore inform himself on the current safety instructions and consider them.
The manufacturer cannot be made liable for damages caused by incorrect installations or insufficient safety precautions!
Pull the safety bond through the attachment eyelet and over the trussing system or a safe fixation spot. Insert the end in the quick link and tighten the safety screw.
The maximum drop distance must never exceed 20 cm.
A safety bond which already hold the strain of a crash or which is defective must not be used again.
Adjust the desired inclination-angle via the mounting-bracket and tighten the fixation screws.
DANGER TO LIFE!
Before taking into operation for the first time, the installation has to be approved by an expert!
Connection with the mains
Connect the device to the mains with the enclosed power supply cable.
The occupation of the connection cables is as follows:
| Cable | Pin | International | |
| Brown Live L | |||
| Blue Neutral N | |||
| Yellow/Green | Earth |  | |
The earth has to be connected!
If the device will be directly connected with the local power supply network, a disconnection switch with a minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.
The device must only be connected with an electric installation carried out in compliance with the IEC standards. The electric installation must be equipped with a Residual Current Device (RCD) with a maximum fault current of 30 mA.
OPERATION
Switch the device on via the power switch.
After a certain warm-up time, the device is ready to operate. Then the stand-by lamp of the remote control lights up. By operating the smoke switch on the remote control the smoke emission starts. It may happen that the stand-by lamp turns off and the smoke emission stops. In this case the device is heating up again and will be ready to operate in approx. 1-2 min. This process guarantees an appropriate vaporization temperature and the best smoke emission possible. The temperature is regulated by a high quality thermostat.
CAUTION: The escape nozzle will heat up during operation. Therefore do not touch the nozzle until it has cooled down completely.
We recommend a frequent cleaning of the unit, in particular the output nozzle. Excessive dust, fluid residue and dirt will degrade performance and cause overheating. Remove dust from air vents using an air
00089340, Version 1.2
English
compressor, vacuum or a soft brush. Please use a soft lint-free and moistened cloth for the outside of the unit. Never use alcohol or solvents! Do not allow the fog liquid to become contaminated. Always replace the caps on the fog liquid container and the fog machine liquid tank immediately after filling.
Cleaning the heating element
After every use, the heating element should be cleaned in order to avoid clogging. It is recommended to run distilled water through the system. All fog machines are prone to clogging due to the thick consistency of fog liquid and the high temperature at which it vaporizes. However, a properly maintained fog machine should provide years of reliable use.
Procedure:
Fill distilled water into empty fluid tank. Run the machine approx. 5 minutes in a well-ventilated room. Empty the tank after use. Residues of distilled water may remain in the machine.
The EUROLITE fog fluids we recommend are non-hazardous to the environment and can be disposed of via the sewage system.
There are no serviceable parts inside the device except for the fuse. Maintenance and service operations are only to be carried out by authorized dealers.
Storage
It is recommended to operate the machine at least once a month with a warm-up period and a few minutes of fog emission. Prior to storage, run distilled water jhrough the system as described in the cleaning regimen above. This will help avoid any particles condensing inside the pump or heater.
Replacing the fuse
If the fine-wire fuse of the device fuses, only replace the fuse by a fuse of same type and rating
Before replacing the fuse, unplug mains lead.
Procedure:
Step 1: Open the fuseholder on the rearpanel with a fitting screwdriver.
Step 2: Remove the old fuse from the fuseholder.
Step 3: Install the new fuse in the fuseholder.
Step 4: Replace the fuseholder in the housing.
Should you need any spare parts, please use genuine parts.
If the power supply cable of this device will be damaged, it has to be replaced by a special power supply cable available at your dealer.
Should you have further questions, please contact your dealer.
TECHNICAL SPECIFICATIONS
| Article no: | 51701957 | 51701958 |
| Power supply: 230 V AC, 50 Hz | ||
| Power consumption: 400 W | ||
| IP classification: IP20 | ||
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) | |
| Fuse: F 4 A Fuse replaceable | ||
| LED: 3 x 1 W blue (B) 3 x 1 W amber (A) | ||
| Warm-up time: Approx. 5 min | ||
| Output volume: Approx. 14 m3/min | ||
| Output distance: Approx. 2 m | ||
| Tank capacity: 0,3 l water-based fluid fixed tank | ||
| Fluid consumption: Approx. 14 ml/min | ||
| Control: Wired remote control | ||
| Housing color: Black | ||
| Attachment system: | Mounting bracket | |
| Controls: | Overheat | |
| Color: | Black | |
| Dimensions: | Width: 14.5 cm | |
| Depth: 26.5 cm | ||
| Height: 17 cm | ||
| Weight: | 1.80 kg | |
Accessory:
| EUROLITE Smoke Fluid -B2D- Basic 5l | No. 51703752 |
| EUROLITE Smoke Fluid -C2D- Standard 5l | No. 51703798 |
| EUROLITE Smoke Fluid -P2D- professional 5l | No. 51703832 |
| EUROLITE Smoke Fluid -E2D- extreme 5l | No. 51703846 |
| EUROLITE Smoke fluid -DSA- effect, 5l | No. 5170435A |
| EUROLITE Fog Fragrance Set with all 14 Types | No. 51704655 |
| EUROLITE TPC-10 Coupler, silver | No. 59006856 |
| EUROLITE Safety Bond A 3x600mm up to 5kg, silver | No. 58010310 |
Please note: Every information is subject to change without prior notice. 22.05.2024 ©
