Product type	Fog machine
Brand	Antari
Model	FT-50
Dimensions (L × W × H)	346 × 152 × 251 mm
Power supply (US model)	AC 100-120 V, 50/60 Hz, 15 A
Power supply (EU model)	AC 220-240 V, 50/60 Hz, 8 A
Power	1450 W
Heating time	Approximately 7.5 minutes
Fluid consumption	110 ml/min
Fog output volume	20,000 ft³/min (566 m³/min)
Compatible fluid	Antari FLP aerosol
Control	Manual (button on handle and rotary regulator)
Operation without power supply	Up to 45 minutes after full preheating
Power connector type	IEC
Operating ambient temperature	0 °C to 40 °C (32 °F to 104 °F)
Safety	Circuit breaker, overcurrent protection
Maintenance	Clean with dry cloth; rinse with distilled water before storage
Fuse replacement	Identical fuse: 120V→15A 250V, 230V→8A 250V
Package contents	FT-50 machine, power cable, instruction manual
Warranty	Exclusive use of Antari FLP fluid under penalty of warranty exclusion

Frequently Asked Questions - FT50 Antari

What fluid to use with the FT-50?

Use exclusively Antari FLP-700 fog fluid. Using other fluids may damage the machine and void the warranty.

How to turn on the machine?

Plug the power cable into a grounded outlet, then set the switch to ON. The LED blinks green during preheating (about 7.5 minutes). When it stays on, the machine is ready.

Can the FT-50 be used wirelessly?

Yes, once hot, you can unplug it. It then operates autonomously for up to 45 minutes. If the fog becomes thin and blue, plug it back in to reheat.

How to adjust the fog volume?

Turn the rotary regulator: left to increase, right to decrease the flow.

Why is the machine not producing fog?

Check that the machine is properly plugged in, the switch is in ON position, the aerosol can is correctly screwed on, and the preheating is complete. If the problem persists, press the button on the handle.

How to maintain the FT-50?

Regularly clean the ventilation openings with an air compressor or soft brush. Use a dry cloth for the exterior. Before storage, rinse the circuit with distilled water.

What to do in case of overheating?

Immediately turn off the machine and unplug it. Check that the air vents are not blocked. Let it cool before reuse. If the problem persists, contact your Antari dealer.

How to replace the fuse?

Unplug the machine. Open the fuse compartment and replace it with a fuse of the same type: for 120 V, a 15 A / 250 V fuse; for 230 V, an 8 A / 250 V fuse.

What safety precautions to follow?

Place the machine on a flat surface with at least 50 cm of free space around it. Use a grounded outlet. Never leave the machine unattended. Do not mix flammable liquids with the fog fluid.

What to do if fluid is leaking from the nozzle?

This indicates that the machine has not reached its operating temperature. Wait for the preheating to finish (solid green LED). If the problem persists, check that the aerosol can is properly attached.

USER MANUAL FT50 Antari

FT-50 Fire Training Fog Machine User Manual

User Manual - English

Safety Information

Please read the following safety information carefully before operating the machine. This information includes important safeguards about installation, usage, and maintenance. Pay attention to all warning labels and instructions in this manual and printed on the machine.

If you have questions about how to operate the machine safely, please contact your local Antari dealer for help.

• Keep this device dry.
  • Always connect to a grounded circuit to avoid risk of electrocution.
• Before connecting machine to power, always check the voltage indicated on machine matches your local AC voltage. Do not use the machine if the AC power voltage does not match.
• Disconnect the machine from AC power before servicing and when not in use.
• This product is for indoor use only! Do not expose to rain or moisture. If fluid is spilled, disconnect the AC power and clean with a damp cloth. If fluid is spilled onto electronic parts, immediately unplug the machine and contact your local Antari dealer for advice.
• No user serviceable and modifiable parts inside. Never try to repair this product, an unauthorized technician may cause damage or malfunction to the machine.
  • For adult use only. Never leave the machine running unattended.
  • Install the machine in a well-ventilated area. Provide at least 50 cm of space around the machine.
• Never add flammable liquid of any kind to the machine.
  • Make sure there are no flammable materials close to the machine while operating.
  • Only use Antari aerosols. Other aerosols may lead to heater clog or malfunction.

• Remove aerosols after use.

• If the machine fails to work, unplug the machine and stop operation immediately. Contact your local Antari dealer for advice.
  • Before transporting the machine, make sure the aerosols is removed

• Fog fluid may present health risks if swallowed. Do not drink fog fluid. Store it securely. In case of eye contact or if fluid is swallowed, immediately look for medical advice.

Unpacking and Inspection

Immediately upon receiving the machine, carefully unpack the carton, check the content to ensure that all parts are present and have been received in good condition. If any parts appear damaged or mishandled from shipping, notify the shipper immediately and retain the packing material for inspection.

What is included: 1 x FT-50 Fog Machine

1 x Power Cord

1 x User Manual

Product Dimensions

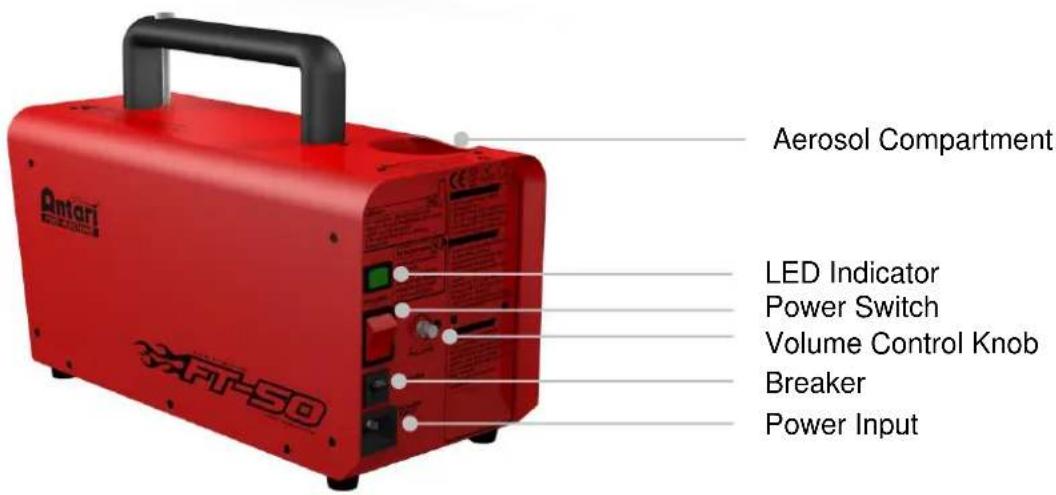

Product Overview

Operation

Step 1: Place the machine on a flat surface and in a suitably large area with at least 50 ~cm open space around the machine.

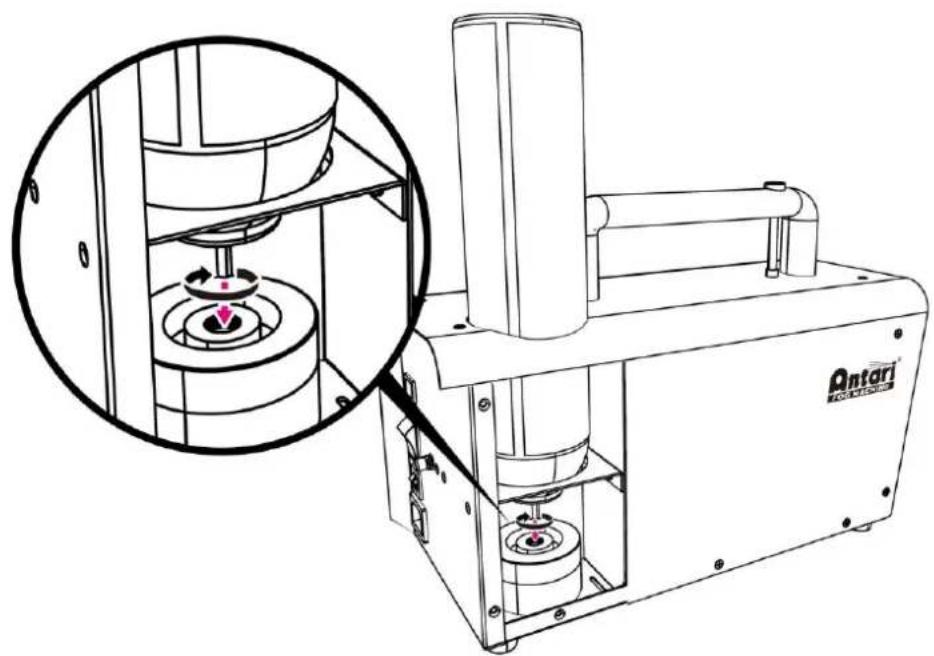

Step 2: Ensure that there aren't any foreign objects obstructing the threaded aerosol insert. Align aerosol valve with threaded insert and carefully turn clockwise to fix into position. Aerosol should be screwed in tightly to create an effective seal

Technical line drawing of a mechanical testing machine with a magnified inset showing internal components (no text or symbols)

Step 3: Connect the machine to a suitably rated power supply. To determine the power requirement for the machine refer to the label on the back of the machine.

Always connect the machine to a protected circuit and ensure it is properly grounded to avoid risk of electrocution.

Step 4: Turn on the machine and allow it to heat up. Heat up takes approximately 7.5 mintues. Once the machine has reached operating temperature, the LED inidicator located in back panel will turn solid green. Now the machine is ready for operation.

Step 5: To start making fog, press and hold the push button on handle bar, release to stop.

Step 6: To adjust output volume, rotate the knob located in back panel. Turn counter-clockwise to increase, clockwise to decrease.

Step 7: To turn off the machine, flip the power switch to OFF position. Remove aerosol and power cord.

Off Power Operation

FT-50 can be operating off the main power once it has reached working temperature. The amount of smoke can be produced depends on its temperature cycle when it is disconnected. With a complete heating cycle the machine can still generate smoke up to 45 minutes after disconnection.

The quality of fog must be carefully observed while operating off the reserved power. When smoke has become thin and blue indicates the temperature is getting low. Reconnect machine to power for heating process, once it reached working temperature it can be operate off power again.

FT-50 might eject fluid when working temperature is not reached.

Aerosols

Only use Antari FLP-700 aerosol for the FT-50 Fire Training Fog Machine.

The machine is tested and calibrated with this aerosol to get the best output performance. Warranty will be voided if any other type of aerosol is used, improper use of aerosol may lead to machine failure and malfunction.

Service and Maintenance

• Do not allow the machine to become contaminated.
• Remove dust from air vents with air compressor, vacuum or a soft brush.
• Only use a damp cloth to clean the casing.
• Before storing run distilled water through the system to help avoid condensing the pump or heater.
• It is recommended to run the machine on a monthly basis in order to achieve best performance and output condition.
• Excessive dust, liquid, and dirt built up will degrade performance and cause overheating.

Breaker Reset

Disconnect AC power before resetting the breaker. Only replace fuse with same type and rating.

Step 1: Disconnect AC power.

Step 2: Flip breaker to ON position.

Step 3: Turn on machine for testing.

Breaker

120V = 15A 250V

230V = 8A 250V

Technical Specifications

- Input voltage	US model : AC 100-120V, 50 / 60Hz 15A
	EU model : AC 220-240V, 50 / 60Hz 8A
- Rated power	1450W
- Warm-up time	7.5 minutes (approx.)
- Fluid consumption	110 ml/min
- Compatible fluid	Antari FLP-700 Aerosol
- Ambient temp. range	0 °C - 40 °C (32 °F-104 °F)
- Output	20,000 ft ^3 /min (566 m ^3 /min)
- Control	Manual
- Connection	IEC (Power)
- Dimension	L346 W152 H251 mm(L13.62 W5.98 H9.88 inch)
- Weight	9.8 kg (21.61 lbs)

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

(L13.62 I5.98 H9.88 inch)

Poids 9.8 kg (21.61 lbs)

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)
