IAN 366944 - Musical toy Playtive - Free user manual and instructions

Brand	Playtive
Model	IAN 366944
Product type	Educational musical toy
Recommended age	From 2 years
Dimensions	Approx. 130 × 48 cm
Power supply	3 LR6 (AA) 1.5 V batteries
Batteries included	Yes
Available instruments	Piano, violin, accordion, saxophone, xylophone, clarinet, electric guitar, recorder
Game modes	Free mode, demo mode, "One Key One Note" mode, recording, playback
Recording	Up to 15 minutes
Sound volume	Adjustable via rotary knob and +/− buttons
Automatic standby	After about 2 minutes of inactivity
Care and cleaning	Damp cloth, no harsh chemicals
Safety	Do not use near the ear; adult supervision required; keep away from fire
Spare parts	Batteries commercially available; other parts via after-sales service
Warranty	3 years (excluding batteries and normal wear)
After-sales service France	0800 919270 / [e-mail]

Frequently Asked Questions - IAN 366944 Playtive

How to turn the musical mat on and off?

Slide the switch (1e) to ON to turn on, to OFF to turn off. The device goes into standby after about 2 minutes of inactivity.

How to change the volume?

Use the rotary knob (1f) for continuous adjustment or the buttons (1h) to increase/decrease the volume in steps.

How to record a melody?

Press the (11) button to start recording. Play on the piano keys. Press (11) again to stop. Maximum duration is 15 minutes.

How to play back a recording?

Press the (1m) button to play the recording. During playback, you can change the instrument by pressing the corresponding button.

What instruments are available?

Piano, violin, accordion, saxophone, xylophone, clarinet, electric guitar, and recorder. Piano is the default instrument.

How to use demo mode?

Press the (1i) button to start demo mode. Each piano key plays a melody. Press a key to hear the next melody (10 melodies total).

What does One Key One Note mode mean?

Press the (1j) button to activate this mode. Press any piano key to play a melody. You can choose an instrument to accompany it.

Which batteries to use and how to change them?

Use 3 non-rechargeable LR6 (AA) 1.5 V batteries. Open the battery compartment under the device with a screwdriver, insert the batteries respecting polarity, then screw the cover back on.

How to clean the musical mat?

Clean with a damp cloth and wipe dry. Never use harsh cleaning products. Remove batteries before cleaning if necessary.

What are the important safety instructions?

Do not use near the ear (risk of hearing damage). Adult supervision required. Keep away from fire. Check for damage before use. Batteries must be kept out of reach of children.

USER MANUAL IAN 366944 Playtive

Instructions for use

NL BE

MUZIEK- EN SPRINGMAT

Gebruiksaanwijzing

CZ

HUDEBNÍ SKÁKACÍ PODLOŽKA

Návod k použití

ES

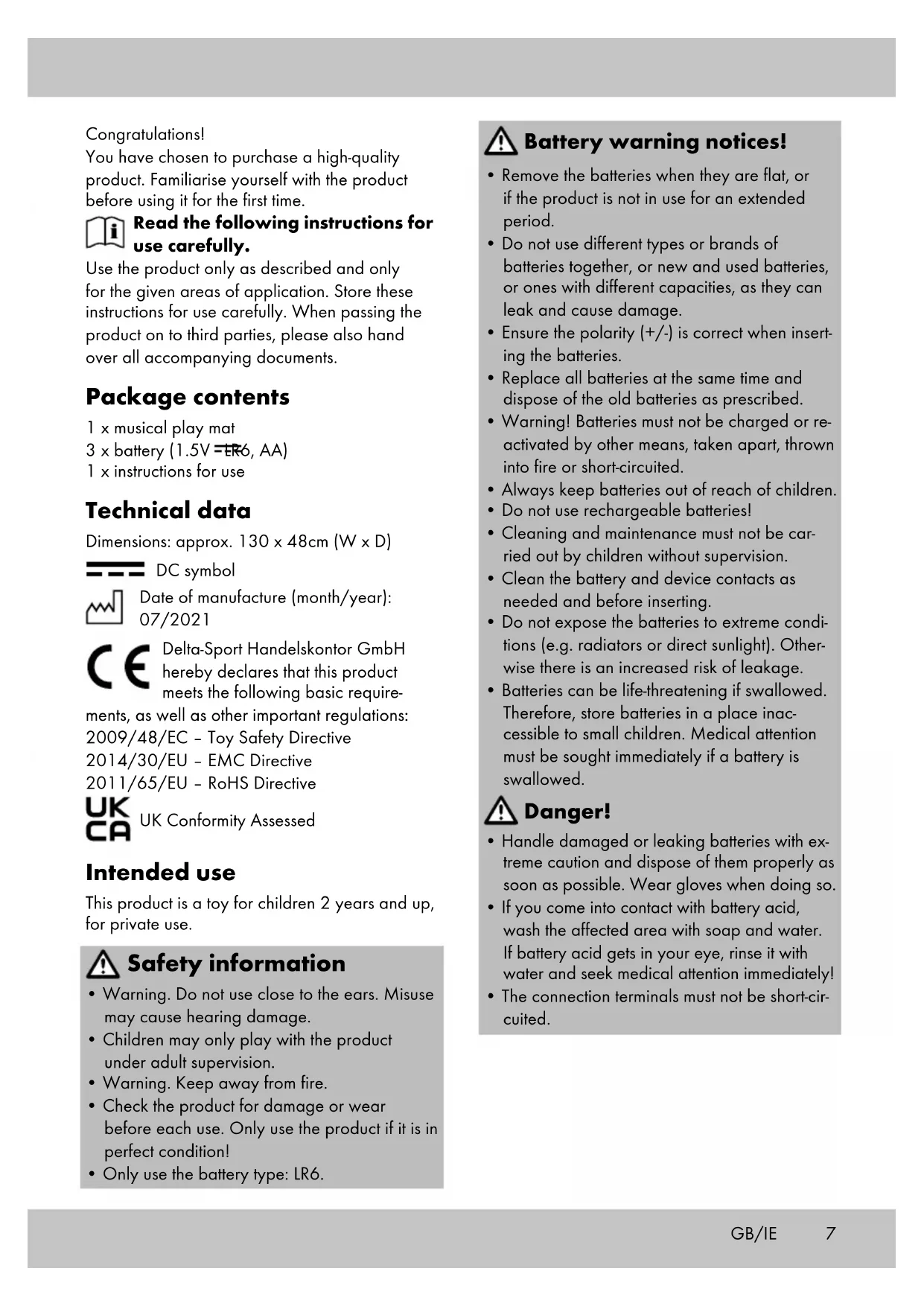

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Package contents

1 x musical play mat
3 x battery (1.5V=ER6, AA)
1 x instructions for use

Technical data

Dimensions: approx. 130 x 48cm (W x D)

DC symbol

Date of manufacture (month/year): 07/2021

Delta-Sport Handelskontor GmbH hereby declares that this product meets the following basic require-

ments, as well as other important regulations:

2009/48/EC - Toy Safety Directive

2014/30/EU - EMC Directive

2011/65/EU - RoHS Directive

UK Conformity Assessed

Intended use

This product is a toy for children 2 years and up, for private use.

Safety information

• Warning. Do not use close to the ears. Misuse may cause hearing damage.
  • Children may only play with the product under adult supervision.
• Warning. Keep away from fire.
• Check the product for damage or wear before each use. Only use the product if it is in perfect condition!
• Only use the battery type: LR6.

Battery warning notices!

• Remove the batteries when they are flat, or if the product is not in use for an extended period.
• Do not use different types or brands of batteries together, or new and used batteries, or ones with different capacities, as they can leak and cause damage.
• Ensure the polarity (+/-) is correct when inserting the batteries.
• Replace all batteries at the same time and dispose of the old batteries as prescribed.
• Warning! Batteries must not be charged or re-activated by other means, taken apart, thrown into fire or short-circuited.
  • Always keep batteries out of reach of children.
• Do not use rechargeable batteries!
• Cleaning and maintenance must not be carried out by children without supervision.
• Clean the battery and device contacts as needed and before inserting.
• Do not expose the batteries to extreme conditions (e.g. radiators or direct sunlight). Otherwise there is an increased risk of leakage.
• Batteries can be life-threatening if swallowed. Therefore, store batteries in a place inaccessible to small children. Medical attention must be sought immediately if a battery is swallowed.

Danger!

• Handle damaged or leaking batteries with extreme caution and dispose of them properly as soon as possible. Wear gloves when doing so.
• If you come into contact with battery acid, wash the affected area with soap and water. If battery acid gets in your eye, rinse it with water and seek medical attention immediately!
• The connection terminals must not be short-circuited.

Inserting the batteries (Fig. A) WARNING! Observe the following instructions to avoid mechanical and electrical damage.

Before using the product (1) for the first time, insert the batteries (2) included with the product.

1. Using a suitable screwdriver (not included in the package contents), unscrew the screw (1a) on the battery compartment cover (1c) on the underside of the product.

Note: make sure that the screw and the washer (1b) do not get lost or get into the hands of children.

1. Remove the battery compartment cover and carefully insert the batteries into the battery compartment (1d). The battery must be completely fitted into the battery compartment.

Note: pay attention to the plus/minus poles on the battery and insert the battery accordingly. 3. Screw the battery compartment cover back on.

Note: make sure that the washer is always between the screw and the battery compartment.

Replacing the batteries

When the batteries are flat, replace them as described in the insertion instructions. Remove the batteries from the product before inserting new ones.

Use (Fig. B)

Turning the product on and off

• Slide the switch (1e) to the 'ON' position to turn the product (1) on.
• Slide the switch to the 'OFF' position to turn the product off.

Note: the product switches to sleep mode if it has not been used for approx. two minutes.

Adjusting the volume

Adjust the volume using the buttons (1h) and the control knob (1f).

• Turn the control knob to the desired volume.
• Press the buttons to reduce or increase the volume.

Functions

The product contains the following instruments:

• piano
• violin
• accordion
• saxophone
• xylophone
• clarinet
  • electric guitar
• recorder

The piano is pre-set when the product is switched on.

Note: the black piano keys cannot be played.

Active/sleep

- Press the button (1g) to switch the product into active or sleep mode.

Demo

• Press the button (1i) to activate the demo mode.
• A melody is stored on each piano key.

Note: there are ten melodies in total.

• To play the next melody, either press the button (1i) again or press any piano key.
• While it is playing, select one of the eight instruments to add that instrument to the melody.

One key one note

• Press the button (1j) to activate the one-key-one-note mode.
• Press any piano keys to play the melody.
• Select an instrument to play the melody in the sound of the chosen instrument.
• Press the button (1j) again to select the next melody.

Note: there are ten melodies in total.

Reset

- Press the button (1k) to return to the basic setting and delete recordings.

Record

- Press the button (11) to record playing the piano keys.

Note: the recording time is approx. 15 seconds.

Replay

• Press the button (1m) to play back the recording.
• While it is replaying, press on another instrument to play the recording on that instrument.

Storage, cleaning

When not in use, always store the product dry, clean, without batteries and at room temperature. Only clean the product with a damp cloth and wipe dry afterwards.

IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

In the interest of protecting the environment, do not throw your product into the household waste once you are finished with it, but rather take it to a specialty disposal facility. Find out about collection sites and their hours of operation from your local authority.

Defective or used batteries must be recycled pursuant to Directive 2006/66/EC and changes to it. Return batteries and/or the product via the collecting sites provided. Packaging materials, such as plastic bags, must be kept away from children. Keep the packaging materials out of reach of children.

Environmental damage caused by improper disposal of batteries! Batteries may not be disposed of with household waste. They may contain toxic heavy metals and are subject to hazardous waste treatment. The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. Dispose of used batteries at a municipal collection site.

Dispose of the product and packaging in an environmentally friendly manner.

Note the label on the packaging materials when separating waste, as these are labelled with abbreviations (a) and numbers (b) with the following meaning: 1–7: plastics/20–22: paper and cardboard/80–98: composite materials.

The product and the packaging materials can be recycled, dispose of them separately for better treatment of waste. The Triman logo only applies to France. Find out how to dispose of the used product from your municipal or city administration.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions.

The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice. Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN: 366944_2101

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]
