HG04963 - Kite Playtive - Free user manual and instructions
Find the device manual for free HG04963 Playtive in PDF.
| Product type | Acrobatic kite |
| Brand | Playtive |
| Model | HG04963 |
| Material | Fiberglass, synthetic fabric |
| Package contents | 1 kite, 1 short rod, 1 long rod, 2 control handles with control lines, 1 storage bag |
| Intended use | Outdoor leisure item, non-commercial use |
| Recommended wind conditions | Beaufort scale force 2 to 4 (light to moderate breeze) |
| Minimum age | 10 years (adult supervision required) |
| Functions | Acrobatic flying, right and left turns, rotations |
| Safety | Do not use near power lines, airports, roads, trees, residential areas, or during thunderstorms; do not use in strong wind; wear protective gloves |
| Care and cleaning | Clean with a damp cloth and soapy water; do not use harsh chemicals |
| Storage | In a dry, dark place |
| Warranty | 3 years from date of purchase |
| Certifications | Not applicable |
Frequently Asked Questions - HG04963 Playtive
User questions about HG04963 Playtive
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Kite in PDF format for free! Find your manual HG04963 - Playtive and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HG04963 by Playtive.
USER MANUAL HG04963 Playtive
DE AT CH
LENKDRACHEN / LENKMATTE
Assembly, operating and safety instructions
FR BE
CERF-VOLANT PILOTABLE / CERF-VOLANT DE TRACTION

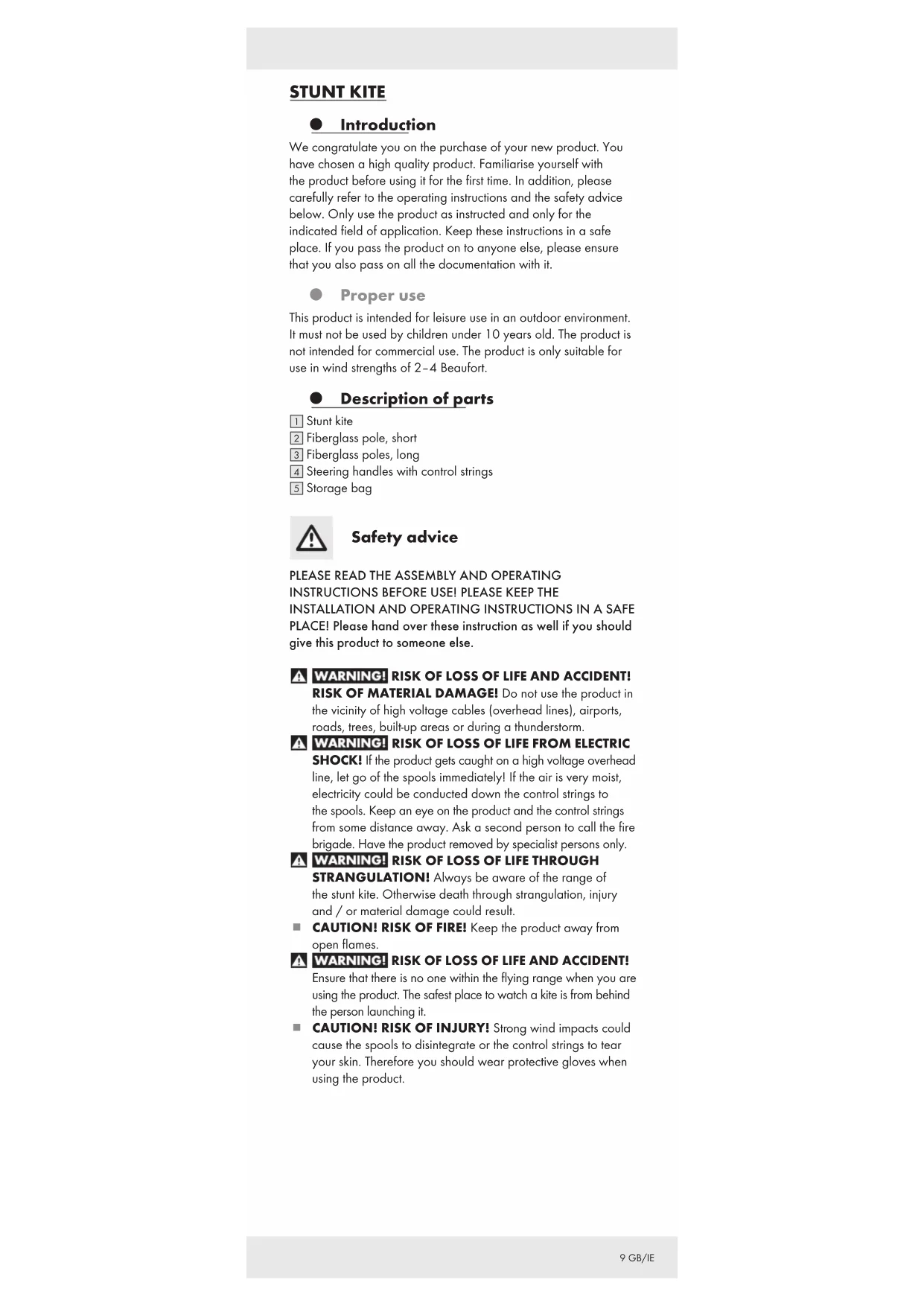

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
- Proper use
This product is intended for leisure use in an outdoor environment. It must not be used by children under 10 years old. The product is not intended for commercial use. The product is only suitable for use in wind strengths of 2–4 Beaufort.
● Description of parts
1 Stunt kite
② Fiberglass pole, short
3 Fiberglass poles, long
4 Steering handles with control strings
5 Storage bag
Safety advice
PLEASE READ THE ASSEMBLY AND OPERATING INSTRUCTIONS BEFORE USE! PLEASE KEEP THE INSTALLATION AND OPERATING INSTRUCTIONS IN A SAFE PLACE! Please hand over these instruction as well if you should give this product to someone else.
WARNING! RISK OF LOSS OF LIFE AND ACCIDENT! RISK OF MATERIAL DAMAGE! Do not use the product in the vicinity of high voltage cables (overhead lines), airports, roads, trees, built-up areas or during a thunderstorm.
WARNING! RISK OF LOSS OF LIFE FROM ELECTRIC SHOCK! If the product gets caught on a high voltage overhead line, let go of the spools immediately! If the air is very moist, electricity could be conducted down the control strings to the spools. Keep an eye on the product and the control strings from some distance away. Ask a second person to call the fire brigade. Have the product removed by specialist persons only.
WARNING! RISK OF LOSS OF LIFE THROUGH STRANGULATION! Always be aware of the range of the stunt kite. Otherwise death through strangulation, injury and / or material damage could result.
■ CAUTION! RISK OF FIRE! Keep the product away from open flames.
WARNING! RISK OF LOSS OF LIFE AND ACCIDENT! Ensure that there is no one within the flying range when you are using the product. The safest place to watch a kite is from behind the person launching it.
■ CAUTION! RISK OF INJURY! Strong wind impacts could cause the spools to disintegrate or the control strings to tear your skin. Therefore you should wear protective gloves when using the product.
WARNING! RISK TO LIFE FROM STRONG WIND!
Ensure that the wind conditions are suitable for your abilities and the capabilities of the kite. Supervise in particular children who are playing with the kite. Never fly a kite if you or your children cannot safely control it. Keep an eye on the wind conditions and the chance of gusts.
Children must be supervised by an adult when they are playing with the product.
Do not use the product in the following weather: Rain, gales, thunderstorms. Check the latest weather forecast before you use the product.
Do not attach any additional kites to the strings.
Use the product only in places where kite flying is permitted. Note that this is not always the case, for example, on all beaches. Before using the product, check with your local authority.
- Check that all the connections and strings are intact before each use.
Assembly
HG04963:
■ Mount the product according to fig. B and C.
HG04965:
■ Attaching the kite lines to the stunt kite.
Connect the kite lines with the controlling strings 4a using a lark's head knot. Proceed as shown in fig. B.
Operation
Wind force
| 0 Bft(Calm) | ■ Smoke climbs vertically, no movement in the air■ Kites will only fly with support |
| 1 Bft(Light Air) | ■ Smoke drifts away■ Suitable for very light kites |
| 2 Bft(Light Breeze) | ■ Leaves rustle, wind noticeable on skin■ Good for professionals |
| 3 Bft(Gentle Breeze) | ■ Leaves und small twigs move■ Good wind for beginners |
| 4 Bft(Moderate Breeze) | ■ Small branches move, raises loose paper■ Good for medium-sized kites |
| 5 Bft(Fresh Breeze) | ■ Big branches and small trees sway■ Large kites can get damage |
| 6 Bft(Strong Breeze) | ■ Big branches move, wind whistles■ Limit for all rigid kites |
| 7 Bft(High Wind) | ■ Whole tree in motion■ Only suitable for power kites and professionals |
- Launching
Two persons (beginner):
Stand with your back to the wind and hold the two spools tightly. Your partner holds the kite tightly and moves about 30 m downwind of you. Allow the control strings to unwind from the spools during this process. Hold the stunt kite so that the strings are kept taut.
Tell your partner when he can let the kite go. He must then immediately remove himself from the flying range of the kite and the control strings.
■ Move backwards into the wind. The kite should now climb.
One person (advanced):
■ Unwind approx. 2 m of the control strings and place the kite approx. 2 m away from you on the ground with its top side facing upwards. Hold the two spools tightly.
Now pull sharply backwards on the kite using the spools. The kite should now climb.
Stunt flying
- Hold the two spools at a height such that the kite calmly hangs in the air.
■ Pulling on the right spool turns the kite clockwise. Pulling on the left spool turns the kite anticlockwise.
Attention: After turning the kite a certain number of rotations in one direction, you should always then turn it the same number of rotations in the opposite direction to disentangle the two control strings.
Pulling quickly on the spool causes the kite to move in a tight curve. Pulling slowly on the spool causes the kite to move in a wide curve.
Landing
■ Ensure that the landing zone is large enough so that you cannot injure any other persons.
Variant A:
Steer the kite out of the wind and slacken the control strings quickly by allowing more string to unwind from the spools. Stand with your shoulder to the wind.
- Have a second person hold the kite while you wind the control strings back on to the spools. This will ensure that the kite cannot inadvertently climb back into the air.
Variant B:
"Rock" the kite down by steering it alternately to the left and right. Avoid making tight curves.
● Cleaning and care
■ Remove dirt on the product by using a damp cloth and soapy water. Do not use aggressive cleaning detergents. Store the product in a dry and light-protected area.
● Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
CE
