Product Type	PC Power Supply
Brand	Corsair
Model	HX1500i
Dimensions (L × W × H)	200 mm × 150 mm × 86 mm
Weight	2.5 kg (estimated)
Color	Black
AC Input	100-240 V AC, 15-9 A, 47-63 Hz
Total Power	1500 W (115-240 V) / 1200 W (100-115 V)
+12V Output	125 A, 1500 W
+5V Output	25 A, 150 W
+3.3V Output	25 A, 150 W
-12V Output	0.3 A, 3.6 W
+5Vsb Output	3.5 A, 17.5 W
Efficiency	Certified 80 PLUS Platinum
Modularity	Fully modular
Fan	135 mm (estimated)
Protections	OVP, OCP, OTP, SCP, OPP, catastrophic failure protection
Included Connectors	1x ATX 24-pin, 3x EPS/ATX12V 8-pin (4+4), 1x 12VHPWR 12+4-pin, 6x PCIe 8-pin (6+2), 2x SATA (4 connectors each), 2x PATA (4-pin), 1x USB Type-C to motherboard
Package Contents	Power supply, AC cable, DC cables, cable ties, USB cable, mounting screws, safety manual
Monitoring Software	Compatible with iCUE (monitoring, fan profiles, single-rail/multi-rail OCP)
Warranty	10 years (Corsair standard)

Frequently Asked Questions - HX1500i CORSAIR

How to install the Corsair HX1500i power supply?

Unplug the old power supply, install the new one with the provided screws, connect the ATX, EPS, PCIe, SATA cables, etc., then plug in the AC power cable and turn on the switch. Consult the manual for full details.

What are the built-in protections?

The power supply has multiple protections: OVP (over voltage), OCP (over current), OTP (over temperature), SCP (short circuit), OPP (over power), and catastrophic failure protection.

Can I use modular cables from other Corsair models?

It is recommended to use only the cables provided with the HX1500i. Cables from other models may have different pinouts and can damage components.

How to configure single-rail or multi-rail OCP mode with iCUE?

Connect the USB cable to the motherboard, launch iCUE, select the power supply, go to device settings and toggle the OCP mode between single-rail and multi-rail as needed.

The power supply fan does not spin, is that normal?

Yes, the HX1500i has a semi-passive mode: the fan only spins under load or high temperature. If the fan never spins under load, check the settings in iCUE.

What is the warranty of the Corsair HX1500i?

Corsair offers a 10-year warranty on this model, subject to the conditions stated in the documentation.

Is the power supply compatible with standard ATX motherboards?

Yes, it complies with ATX specification and is compatible with all ATX, micro-ATX motherboards, etc. The main connector is a 24-pin ATX.

What cables are provided for modern graphics cards?

The HX1500i includes a 12VHPWR 12+4-pin cable for recent GPUs, as well as six PCIe 8-pin (6+2) cables for older cards.

How to clean the power supply?

Unplug the power supply and use a dry cloth or compressed air can to remove dust. Never open the power supply casing.

Can I use this power supply with an input voltage of 100 V?

Yes, it accepts 100-240 V AC. However, at 100-115 V, the maximum power is limited to 1200 W instead of 1500 W.

USER MANUAL HX1500i CORSAIR

CORSAIR HXi Series fully modular ATX 3.0 power supplies deliver reliable 80 PLUS Platinum efficient power to your system.

SAFETY AND PROTECTION

Over-Voltage Protection (OVP)

Over-voltage protection for the 12V, 5V, and 3.3V DC outputs is required to comply with the ATX specification. OVP shuts down the PSU in the event that the DC outputs exceed a set level, determined by the PSU manufacturer.

Over-Current Protection (OCP)

OCP is featured on the 3.3V, 5V, and 12V rails. OCP ensures that the output of the DC voltage rails remains within safe operating limits.

Over-Temperature Protection (OTP)

OTP ensures that the PSU will shut down when the internal temperature reaches a set point. This is usually as a result of internal current overloading or a fan failure.

• Short-Circuit Protection (SCP)

A short-circuit is defined as any output impedance of less than 0.1 ohms. Amongst other things, SCP ensures that the PSU shuts down should the 3.3V, 5V, and 12V rails short to any other rail, or to ground. It also ensures that no damage should occur to the unit, or your PC's components in the event of a short.

Over Power Protection (OPP)

Over power protection shuts off the PSU when the power drawn is between 115% and 135% of the rated power.

• Catastrophic Failure Protection

PSU must have protection circuitry to shut down safely to prevent damage from any catastrophic failures such as flame, excessive smoke, charred PCB, fused PCB conductor, startling noise, emission of molten material, etc.

HX1000i INCLUDED HARDWARE AND SPECIFICATIONS

Dimensions: 180mm(L) x 150mm(W) x 86mm(H)

Package Contents: Power Supply, AC Cable, DC Cables, Cable Ties, USB Cable, Mounting Screws, Safety Leaflet

CORSAIR HX1000i POWER TABLE MAX LOAD MAX OUTPUT
MODEL RPS0131 +3.3V	25A			150W
PART NO.	75-005684	+5V	25A
AC INPUT RATING	100 - 240V a.c.	+12V	83.3A	999.6W
INPUT CURRENT	13 - 6.5A	-12V	0.3A	3.6W
FREQUENCY	47 - 63Hz	+5Vsb	3.0A	15W
TOTAL POWER: 1000W

CORSAIR HX1000i POWER SUPPLY EFFICIENCY

CORSAIR HX1000i POWER SUPPLY FAN NOISE CURVE

HX1500i INCLUDED HARDWARE AND SPECIFICATIONS

Dimensions: 200mm(L) x 150mm(W) x 86mm(H)

Package Contents: Power Supply, AC Cable, DC Cables, Cable Ties, USB Cable, Mounting Screws, Safety Leaflet

CORSAIR HX1500i POWER TABLE MAX LOAD MAX OUTPUT
MODEL RPS0132 +3.3V	25A			150W
PART NO.	75-005686	+5V	25A
AC INPUT RATING	100 - 240V a.c.	+12V	125A	1500W
INPUT CURRENT	15 - 9A	-12V	0.3A	3.6W
FREQUENCY	47 - 63Hz	+5Vsb	3.5A	17.5W
TOTAL POWER 1500W 115V a.c. - 240V a.c. TOTAL POWER 1200W 100V a.c. - 115V a.c.

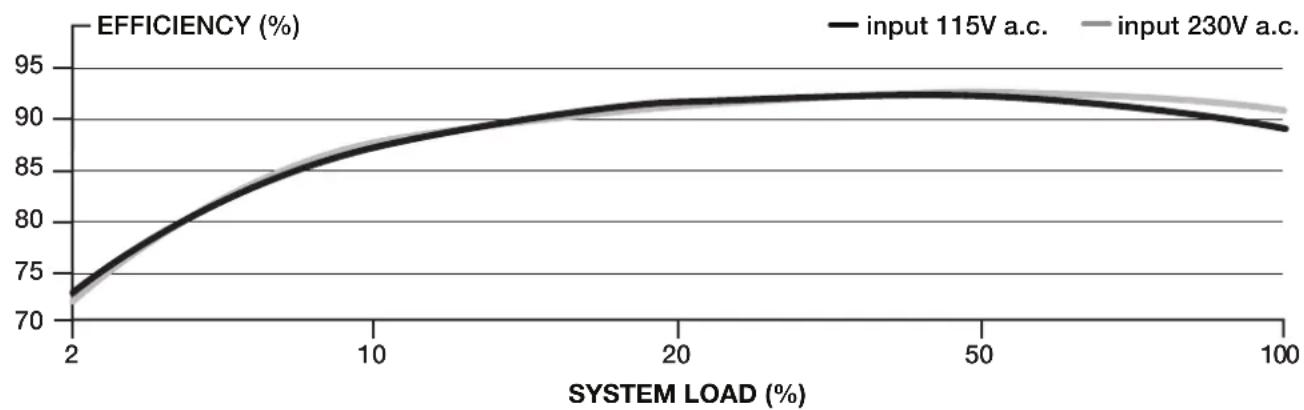

CORSAIR HX1500i POWER SUPPLY EFFICIENCY

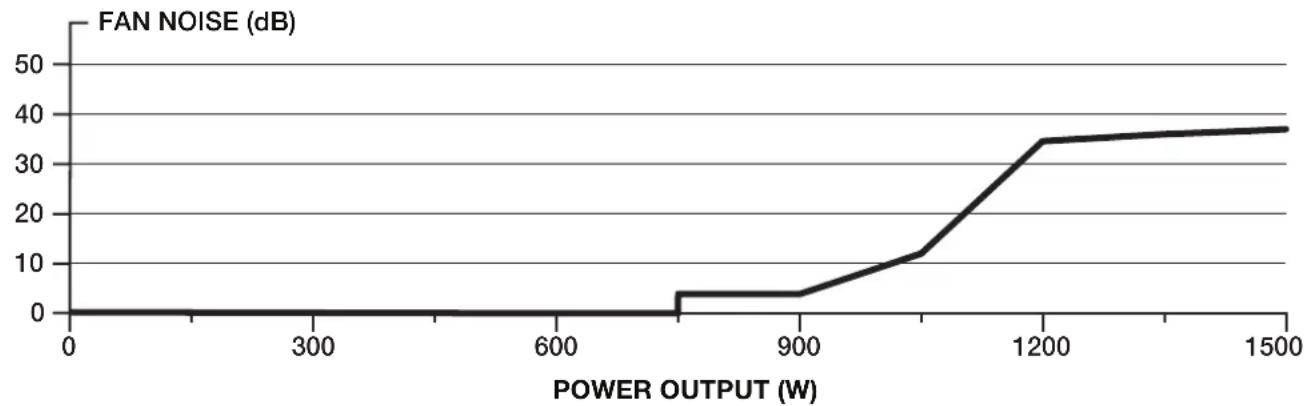

CORSAIR HX1500i POWER SUPPLY FAN NOISE CURVE

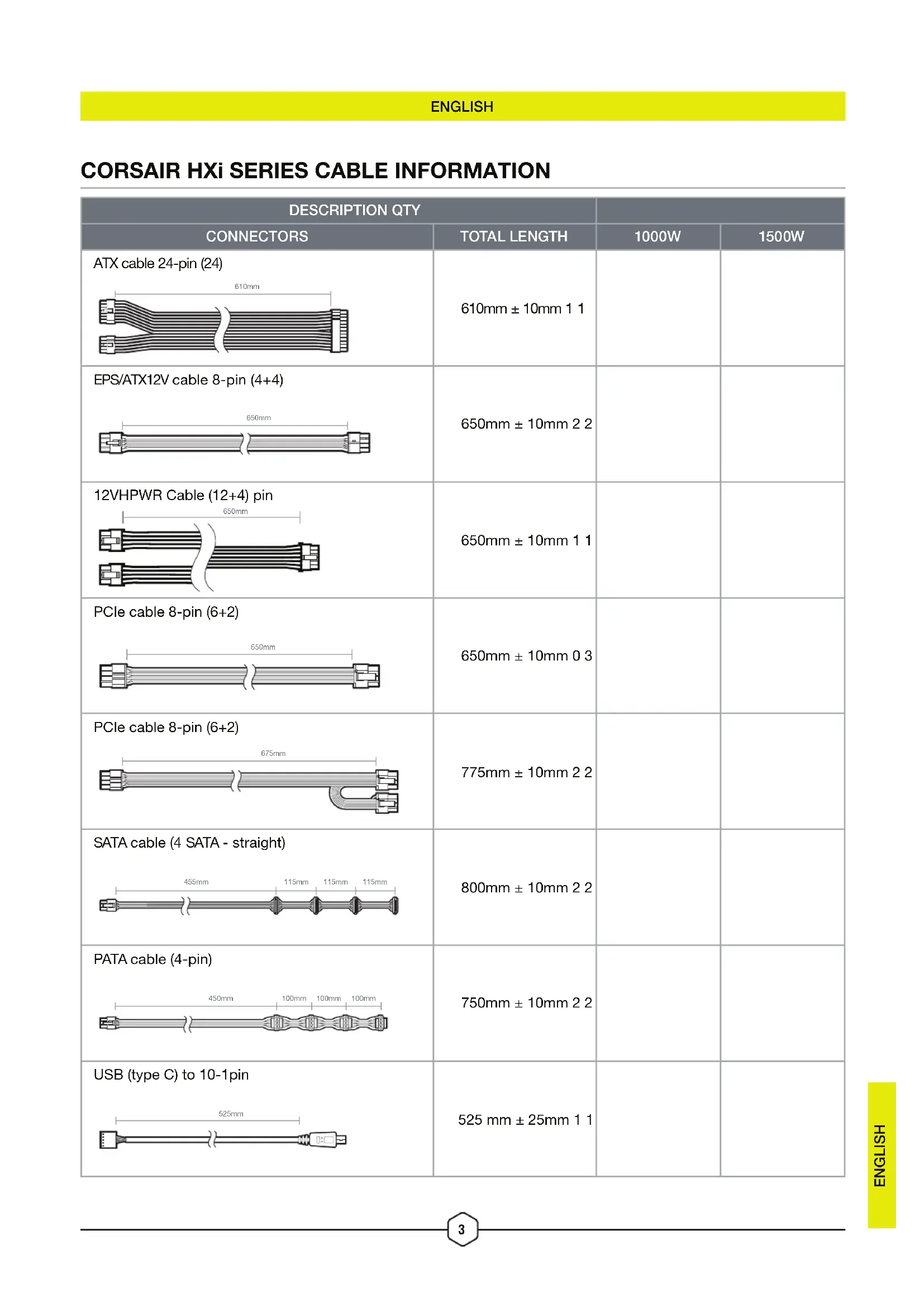

CORSAIR HXi SERIES CABLE INFORMATION

DESCRIPTION QTY
CONNECTORS	TOTAL LENGTH	1000W	1500W
ATX cable 24-pin (24)610mm	610mm ± 10mm 1 1
EPS/ATX12V cable 8-pin (4+4)650mm	650mm ± 10mm 2 2
12VHPWR Cable (12+4) pin650mm	650mm ± 10mm 1 1
PCIe cable 8-pin (6+2)650mm	650mm ± 10mm 0 3
PCIe cable 8-pin (6+2)675mm	775mm ± 10mm 2 2
SATA cable (4 SATA - straight)455mm	800mm ± 10mm 2 2
PATA cable (4-pin)450mm	750mm ± 10mm 2 2
USB (type C) to 10-1pin525mm	525 mm ± 25mm 1 1

INSTALLING YOUR NEW HXi SERIES POWER SUPPLY

STEP 1: REMOVING YOUR EXISTING PSU

Warning! To ensure proper function, only use the DC cables included with your new PSU, unless your old cables are genuine CORSAIR cables of the same type. Please confirm your existing cables' type before using them!

If you are building a new system, skip to Step 2:

1. Disconnect the AC power cord from your wall outlet or UPS and from the existing power supply.
2. Disconnect all the power cables from your video card, motherboard and all other peripherals.
3. Follow the directions in your chassis manual and uninstall your existing PSU.
4. Proceed to Step 2.

STEP 2: INSTALLING THE NEW POWER SUPPLY

1. Make sure the power supply's AC power cable is not connected.
2. Follow the directions in your chassis manual and install the power supply with the screws provided.
3. Connect the 24-pin (ATX) cable to the motherboard. Connect the 8-pin +12V (EPS12V) cable to the motherboard.

a. If your motherboard has an eight-pin +12V socket, connect the eight-pin cable directly to your motherboard.
b. If your motherboard has a four-pin socket, detach the four-pin from the eight-pin cable, and then plug this four-pin cable directly to your motherboard.
c. Some motherboards will require a mix of 8+4 pins, use as many EPS12V cables as necessary and do not mistake them for PCIe cables.

1. Connect the peripheral cables, PCI-Express cables, and SATA cables.

a. Connect the SATA cables to your SATA SSD or hard drive's power sockets.
b. Connect the PCI-Express cables to the power sockets of your PCI-Express video cards if required.
c. Connect the peripheral cables to any peripherals requiring a 4-pin connector.
d. Make sure all the cables are tightly connected. Be sure to save any unused modular cables for future component additions.
5. Connect the AC power cord to the power supply and turn it on by pushing the switch to the ON position (marked with "I").

ICUE

The HXi power supply boasts a range of connectivity options for any system, users can take advantage of CORSAIR's robust iCUE software to monitor power settings, toggle between single to multi-rail overcurrent protection (OCP) on-the-fly, or create custom fan profiles.

1. Connect the included USB-C cable to the power supply and MB.

2. Launch iCUE, make sure it's updated to the latest version.

3. From Home screen, select HXi power supply to the right.

4. Cooling - Adjust Fan Curve and create custom Cooling Presets. Sensor tiles to the right are rearrangeable, simply drag and move the tile to the desired position.

1. Alerts - Create custom alerts profile. 6. Device Settings - Toggle between Single Rail OCP and Multi-Rail OCP under PSU Mode.

TABLE DES MATIÈRES

HX1000i

HX1500i

INSTALLATION

iCUE

NOUS VOUS REMERCIONS D'AVOIR ACHETÉ LE BLOC D'ALIMENTATION CORSAIR HXi SERIES!

DESCRIPICQN CTD.
CONECTORES	LONGITUD TOTAL	1000W	1500W
Cable ATX de 24 pines (24)610mm	610mm ± 10mm 1 1
Cable EPS/ATX12V de 8 pines (4+4)650mm	650mm ± 10mm 3 3
Cable 12VHPWR (12+4) pines650mm	650mm ± 10mm 1 1
Cable PCIe de 8 pines (6+2)650mm	650mm ± 10mm 0 3
Cable PCIe de 8 pines (6+2)675mm	775mm ± 10mm 3 3
Cable SATA (4 SATA rectos)455mm 115mm 115mm 115mm	800mm ± 10mm 2 2
Cable PATA (4 pines)450mm 100mm 100mm 100mm	750mm ± 10mm 2 2
USB Type-C a 10-1 pines525mm	525 mm ± 25mm 1 1

CORSAIR HXi Series fully modular ATX 3.0 power supplies deliver reliable 80 PLUS Platinum efficient power to your system.

安全和防護

過電壓防護(OVP)

1. AC 1eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR eR e R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R E R

ICUE

HXi 电元公国昌长当是多的，S上电电一电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电电
