Product type	Wall thermostat
Brand	Homematic IP
Model	HmIP-WTH-B-2 / HmIP-WTH-B-A
Part Number	HmIPeTRVBUK
Dimensions (W x H x D)	85 x 85 x 22 mm
Weight (with batteries)	~150 g
Power supply	2 batteries 1.5 V LR6/Mignon/AA
Battery life	Up to 5 years (typical)
Protection rating	IP20
Operating temperature	0 °C to 50 °C
Radio frequency	868.0-868.60 MHz / 869.4-869.65 MHz
Radio transmission power	10 dBm max
Range in open field	250 m
Duty cycle	< 1% per hour
Main functions	Temperature and humidity measurement, heating regulation (floor/radiators), manual/automatic/vacation modes, boost function, heating profile programming, command lock, temperature offset
Display	Screen with icons (temperature, humidity, modes, time, etc.)
Mounting	On wall with double-sided adhesive tape or screws, or on flush-mounted box
Delivery contents	Wall thermostat, wall mount, 2 adhesive tapes, 2 screws, 2 dowels, 2 AA batteries, instructions
Safety	Do not open the device, do not expose to moisture, replace batteries with same type, observe polarity
Maintenance	Clean with a soft dry cloth; do not use solvents; replace batteries if necessary

Frequently Asked Questions - HmIPeTRVBUK Homematic IP

How to install the Homematic IP wall thermostat?

To install the thermostat, first choose a suitable location (smooth, clean wall). Attach the wall mount: either with the supplied double-sided adhesive tapes (on a flat surface) or with screws and dowels (drilling with 60 mm spacing). Then insert the electronic module into the mount until it snaps into place. Ensure the batteries are inserted with correct polarity before fixing.

How to replace the thermostat batteries?

When the empty battery symbol appears, remove the electronic module from the wall mount by grasping it from the sides. Turn it over, remove the used batteries and insert two new 1.5 V LR6/Mignon/AA batteries, observing polarity (+/-). Reattach the module to the mount. After insertion, the LED performs a self-test (orange then green light).

What to do if the display shows the empty battery symbol?

The empty battery symbol indicates low batteries. Replace them with two new batteries of the same type (1.5 V LR6/Mignon/AA). If the voltage is still sufficient, the device may temporarily operate, but it is advisable to change the batteries quickly to avoid loss of communication. Refer to the Battery Replacement section of the manual.

How to switch to manual mode?

Press and hold the Menu button (approx. 2 seconds) to open the configuration menu. Use the + or - buttons to select the MANU symbol, then confirm with the Menu button. The symbol flashes twice and the device switches to manual mode. You can then set the desired temperature with the +/- buttons.

How to program a heating profile?

Access the configuration menu (long press on Menu), select the Prg symbol and confirm. Choose the days (week, weekend, all days, etc.). Set the start time (default 00:00) and desired temperature for each period. You can define up to 6 heating phases and 13 switching times. Confirm each step with the Menu button.

How to activate vacation mode?

In the configuration menu (long press on Menu), select the Vacation symbol and confirm. Enter the end time and date of the vacation, then the desired set temperature during absence. Confirm each entry with Menu. The vacation mode symbol is displayed on the screen until the end date.

What does the orange flashing LED mean?

A short orange flash (every 10 seconds) indicates that teaching-in mode is active. In this mode, the device can be taught-in to another Homematic IP device or to the Access Point. For direct teaching-in, press the system button for 4 seconds. If the LED flashes orange without teaching-in, wait for the 3-minute timeout.

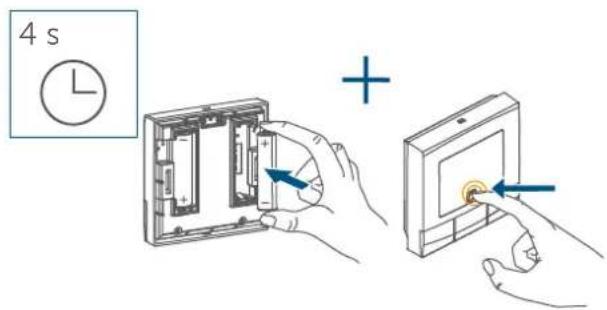

How to reset the device to factory settings?

Remove the electronic module from the wall mount. Remove one battery. While reinserting the battery, press and hold the system button for about 4 seconds until the LED flashes orange rapidly. Release, then press the system button again for 4 seconds until the LED lights up green. Release to complete the reset.

What is the radio range of the thermostat?

The radio range in open field is typically 250 meters. Indoors, the range may be reduced due to obstacles (walls, furniture, etc.). Transmission uses the 868 MHz frequency band with a maximum power of 10 dBm. For reliable communication, maintain a minimum distance of 50 cm between devices during teaching-in.

Can I use the thermostat without a Homematic IP Access Point?

Yes, the wall thermostat can operate in standalone mode without an Access Point. In this case, you can use manual, automatic and vacation modes directly via the screen and buttons. Direct teaching-in with a heating actuator or radiator thermostat is possible without an Access Point. However, to benefit from all features (remote programming, scenarios, notifications), it is recommended to use a Homematic IP Access Point or a CCU3.

USER MANUAL HmIPeTRVBUK Homematic IP

EN Installation and operating manual

0 I 6 I 12 I 18 I 24 SET 8:00.8 AUTOMANU BOOST Prg MoTu WeThFrSaSu Offset

Abbildung 2

5 Allgemeine

Systeminformationen

Diagram showing a device with labeled parts and directional arrows indicating movement or insertion steps

Abbildung 3

4 s ↓ Battery → □ □ ▼

Abbildung 4

4 s ↓ ← → ✓

Abbildung 5

6.2 AnlernenamHomematic IP Access Point

Line drawing of a hand pressing a button on a wall-mounted device (no text or symbols)

Abbildung 6

Diagram of a device with two panels and directional arrows indicating movement or force (no text or symbols)

Abbildung 9

Isometric diagram of a TV set with directional arrows indicating orientation (no text or symbols)

Abbildung 10

Diagram of a screwdriver with two screws inserted into a pin, showing alignment (no text or symbols)

Abbildung 13

Diagram showing a device with labeled components and directional arrows, including a magnified view of the internal structure.

Abbildung 15

Illustration of hands installing or adjusting a battery pack with arrows indicating direction (no text or symbols)

Abbildung 16

Line drawing of a hand pointing at a wall-mounted device with an arrow indicating direction (no text or symbols)

Abbildung 18

Hand inserting a green circular button into a 3D box (no text or symbols)

Abbildung 19

1 Package contents.... 24
2 Information about this manual.... 24
3 Hazard information 24
4 Function and device overview....25
5 General system information 26
6 Start-up 26

6.1 Direct pairing 26

6.1.1 Pairing with a Homematic IP Floor Heating Actuator ....27
6.1.2 Pairing with other Homematic IP devices....28

6.2 Pairing to the Homematic IP Access Point 28
6.3 Mounting 29

6.3.1 Adhesive strip mounting 29
6.3.2 Screw mounting....30
6.3.3 Installation on flush-mounted boxes 31

7 Configuration menu 32

7.1 Manual operation....32
7.2 Automatic mode 32
7.3 Holiday mode 33
7.4 Operating lock....33
7.5 Time and date....33
7.6 Offset temperature....34
7.7 Programming a heating profile 34

8 Operation 35
9 Replacing batteries....35
10 Troubleshooting.... 36

10.1 Low battery 36
10.2 Command not confirmed 36
10.3 Duty Cycle 36
10.4 Error codes and flashing sequences 37

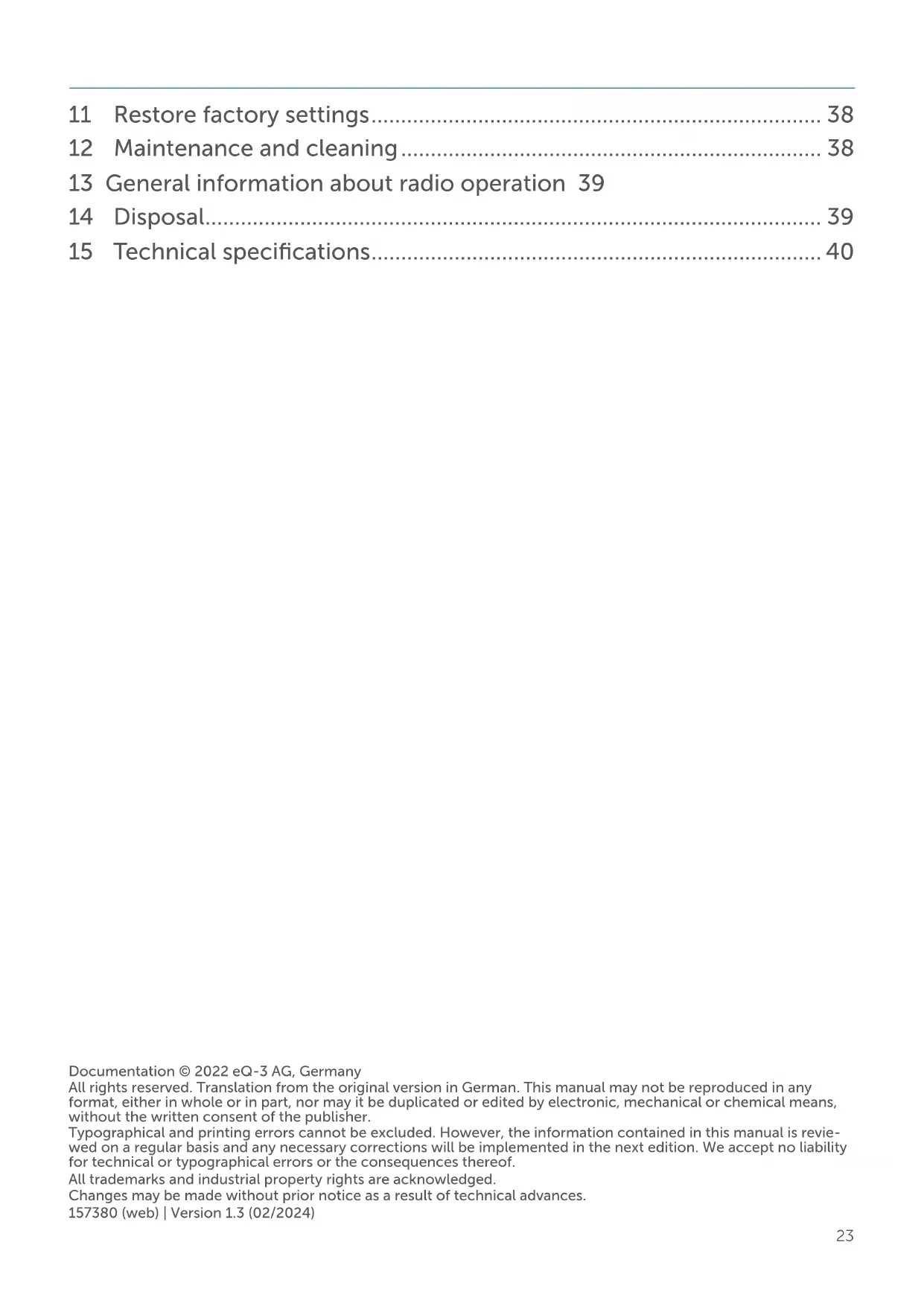

11 Restore factory settings.... 38
12 Maintenance and cleaning 38
13 General information about radio operation 39
14 Disposal.... 39
15 Technical specifications....40

Documentation © 2022 eQ-3 AG, Germany

All rights reserved. Translation from the original version in German. This manual may not be reproduced in any format, either in whole or in part, nor may it be duplicated or edited by electronic, mechanical or chemical means, without the written consent of the publisher.

Typographical and printing errors cannot be excluded. However, the information contained in this manual is reviewed on a regular basis and any necessary corrections will be implemented in the next edition. We accept no liability for technical or typographical errors or the consequences thereof.

All trademarks and industrial property rights are acknowledged.

Changes may be made without prior notice as a result of technical advances.

157380 (web) | Version 1.3 (02/2024)

1 Package contents

1x Homematic IPWandthermostat-basic

1x Wandhalterung

2 Information about this manual

Please read this manual carefully before operating your Homematic IP components. Keep the manual so you can refer to it at a later date if you need to. If you hand over the device to other persons for use, please hand over this manual as well.

Symbols used:

Attention!

This indicates a hazard.

Note. This section contains important additional information!

3 Hazard information

Caution! There is a risk of explosion if the batteries are not replaced correctly. Replace only with the same or equivalent type. Never recharge non-rechargeable batteries. Do not throw the batteries into a fire. Do not expose batteries to excessive heat. Do not short-circuit batteries.

Doing so will present a risk of explosion.

Contact with batteries that are dead or damaged can cause skin irritation. Use protective gloves in this case.

Do not open the device. It does not contain any parts that can be maintained by the user. In the event of an error, have the device checked by an expert.

For safety and licensing reasons (CE), unauthorized change and/or modification of the device is not permitted.

The device may only be operated in dry and dust-free environment and must be protected from the effects of moisture, vibrations, solar or other methods of heat radiation, cold and mechanical loads.

The device is not a toy; do not allow children to play with it. Do not leave packaging material lying around. Plastic films/bags, pieces of polystyrene, etc. can be dangerous in the hands of a child.

We accept no liability for damage to property or personal injury caused by improper use or failure to observe the hazard warnings. In such cases, all warranty claims are void. We accept no liability for any consequential damage.

The device must only be operated within residential buildings.

Using the device for any purpose other than that described in this operating manual does not fall within the scope of intended use and will invalidate any warranty or liability.

4 Function and device overview

The Homematic IP Wall Thermostat offers time-controlled regulation of your conventional radiators with

Homematic IP Radiator Thermostats or your floor heating in connection with

Homematic IP Floor Heating Actuators according to individually tailored heating phases.

The wall thermostat serves to measure the temperature in a room. The data is cyclically transmitted to a radiator thermostat or floor heating actuator in order to regulate the room temperature precisely. In connection with a

Homematic IP Window and Door Contact the temperature is reduced automatically during ventilation.

You can directly connect the wall thermostat to one or more Homematic IP devices (e.g. the Homematic IP Radiator Thermostat – basic) and adjust it to your personal settings. Alternatively, you can control the wall thermostat in connection with a Homematic IP Access Point comfortably via the free smartphone app.

Thanks to battery operation and radio communication, the device is highly flexible where mounting and selecting a mounting location are concerned.

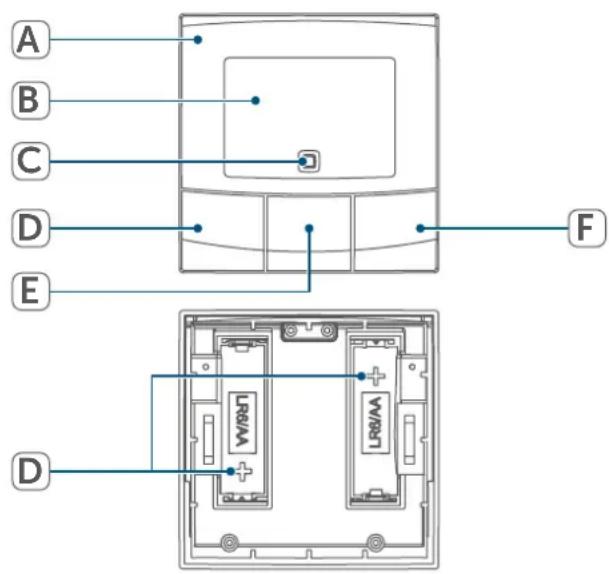

Device overview:

(A) Electronic unit (thermostat)
(B) Display
(C) System button (pairing button and LED)
(D) Minus button
(E) Menu/Boost button
(F) Plus button
(G) Battery compartment

A B C D E F D WR/AA LR/AA

Figure 1

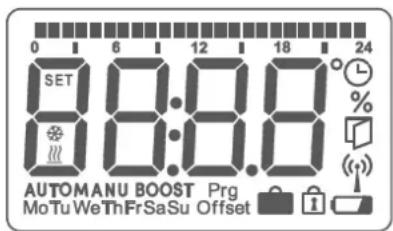

Display overview:

°C	Setpoint/actual temperature
%	Humidity
	Open window symbol
	Battery symbol
	Radio transmission
BOOST	Boost function
MANU	Manual operation*
AUTO	Automatic mode*
	Holiday mode*
	Heating
	Cooling
	Operating lock*
SET	Setpoint temperature
	Overview of heating phases
	Time and date*
Offset	Offset temperature*
Prg	Programming a heating profile*

MoTu WeThFrSaSu Days of the week
* (see „7 Configuration menu“ on page 32)

0 I 6 I 12 I 18 I 24 SET 8:00.8 AUTOMANU BOOST Prg MoTu WeThFrSaSu Offset

Figure 2

5 General system information

This device is part of the climate control solution of Homematic IP and works with the Homematic IP radio protocol. All devices of the climate control solution can be configured comfortably and individually with a smartphone via the Homematic IP app. The available functions provided by the Homematic IPsystemincombination

with other components are described in the Homematic IP User Guide. All current technical documents and updates are provided at www.homematic-ip.com.

6 Start-up

i Please read this entire section before starting the pairing procedure.

For more information on teaching and setting up the wall thermostat using a CCU3, please refer to the WebUI manual on our homepage at www.homematic-ip.com.

The wall thermostat must first be added in order to be able to communicate with other devices in your system. To control your heating, you can teach the wall thermostat to the Homematic IP Access Point as described in (see „6.2 Pairing to the Homematic IP Access Point“ on page 28).

6.1 Direct pairing

You can connect the Homematic IP Wall Thermostat to a Homematic IP Floor Heating Actuator (HmIP-FALx-Cx, HmIP-FALMOT-Cx), a Homematic IPRadiatorThermostat – basic (HmIP-eTRV-B/HmIP-eTRV-B-2/HmIP-eTRV-B-A) or a Homematic IP Window- and Door Contact with magnet (HmIP-SWDM/HmIP-SWDM-2).

i Please make sure you maintain a distance of at least 50 cm between the devices.

You can cancel the pairing procedure by briefly pressing the system button (C) again. This will be indicated by the device LED (C) lighting up red.

The device LED (C) lights up green to indicate that pairing has been successful. If pairing failed, the device LED lights up red. Please try again.

If no pairing operations are carried out, pairing mode is exited automatically after 3 minutes.

If you want to add another device to an existing device group, first activate the pairing mode of the existing device in the group and afterwards the pairing mode of the new device.

If you want to add a wall thermostat to an existing device group including a radiator thermostat and a window contact, you first need to pair the wall thermostat to the radiator thermostat. Afterwards, you can pair the wall thermostat with the window and door contact.

If you are using several devices in one room, you should pair all devices with each other.

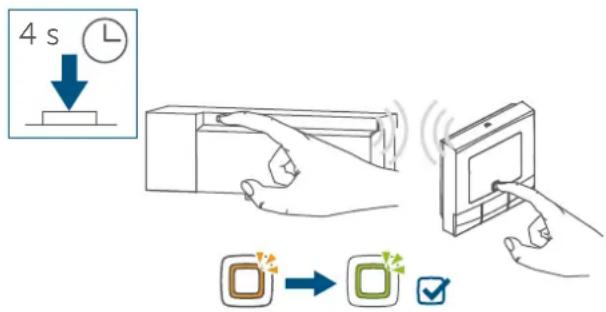

6.1.1 Pairing with a Homematic IP Floor Heating Actuator

If you want to pair the wall thermostat with a Homematic IP Floor Heating Actuator, the pairing mode of both devices has to be activated first. To do this, proceed as follows:

• Select the required channel of the floor heating actuator and activate the pairing mode using a long button press. The device LED starts to flash orange. For further information, please refer to the user manual of the floor heating actuator.

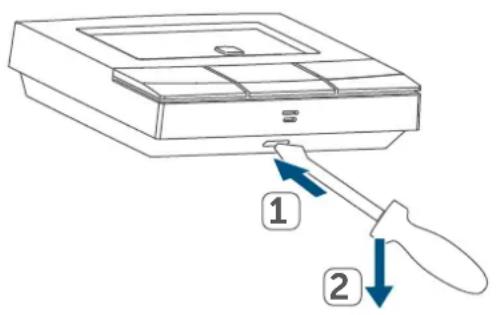

• Open the battery compartment (G) using a slotted screwdriver to loosen the wall mouting plate.

Diagram showing a device with labeled parts and directional arrows indicating movement or insertion steps

Figure 3

• Remove the insulation strip from the battery compartment of the wall thermostat.
• Press and hold down the system button (C) of the wall thermostat for at least 4 seconds to activate the pairing mode. The device LED (C) flashes orange

4 s ↓ Battery → ✓

Figure 4

- If pairing was successful, the LED lights up green.

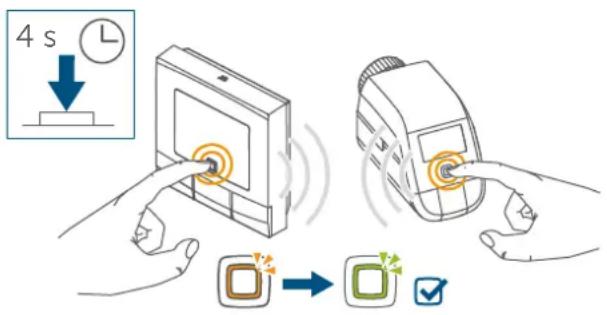

6.1.2 Pairing with other Homematic IPdevices

To connect the wall thermostat with another Homematic IP device, the pairing mode of both devices has to be activated. To do this, please proceed as follows:

• Open the battery compartment (G) using a slotted screwdriver to loosen the wall bracket ( see figure).
• Remove the insulation strip from the battery compartment of the wall thermostat.
• Press and hold down the system button (C) for at least 4 seconds to activate the pairing mode. The device LED (C) starts to flash orange. Pairing mode remains activated for 3 minutes.

4 s ↓ Display Panel → OK

Figure 5

• Press and hold down the system button of the device you want to connect (e.g. the radiator thermostat – basic) for at least 4 seconds to activate the pairing mode. The device LED starts to flash orange. For further information, please refer to the operating manual of the corresponding device.

- If pairing was successful, the LED lights up green.

6.2 Pairing to the Homematic IP Access Point

You can connect the device either to the Homematic IP Access Point or the Central Control Unit CCU3. For detailed information, refer to the Homematic IP User Guide, available for download in the download area of www.homematic-ip.com).

i First set up your Homematic IP Access Point via the Homematic IP app to enable operation of other Homematic IP devices within your system. For further information, refer to the operating manual of the Access Point.

i After pairing the wall thermostat to the Homematic IP Access Point, the menu of the wall thermostat will be hidden and settings can be adjusted only via the Homematic IPapp.

To integrate the wall thermostat into your system and to enable control via the Homematic IP app, you must add the device to your Homematic IP Access Point first. To do this, please proceed as follows:

• Open the Homematic IP app on your smartphone.
• Select the menu item "Add device"(see figure 6).
• Open the battery compartment (G) using a slotted screwdriver to loosen the wall mounting plate ( see figure).
• Remove the insulation strip from the battery compartment of the wall thermostat.

- Pairing mode remains activated for 3 minutes.

You can manually start the pairing mode for another 3 minutes by pressing the system button (C) shortly

Line drawing of a hand pressing a button on a wall-mounted device (no text or symbols)

Figure 6 Your device will automatically appear in the Homematic IP app.

• Your device will automatically appear in the Homematic IP app.
• To confirm, enter the last four digits of the device number (SGTIN) in your app or scan the QR code. Therefore, see the sticker supplied or attached to the device.
• Wait until the connection is completed.
• If pairing was successful, the LED (C) lights up green. The device is now ready for use.
• If the LED lights up red, please try again.
• Select the desired solution for your device.
• Allocate the device to a room and give the device a name.

6.3 Mounting

Please read this entire section before starting to mount the device.

You can operate the wall thermostat with

• the supplied double-sided adhesive strips or
  • the supplied screws
  to fix it to a wall.

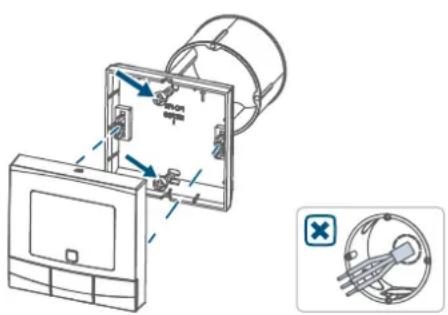

You can also mount the wall thermostat on a flush-mounting box.

6.3.1 Adhesive strip mounting

For mounting the wall thermostat using the adhesive strips, please proceed as follows:

- Choose a site for installation.

Make sure that the mounting surface is smooth, solid, non-disturbed, free of dust, grease and solvents and not too cold to ensure long-time adherence.

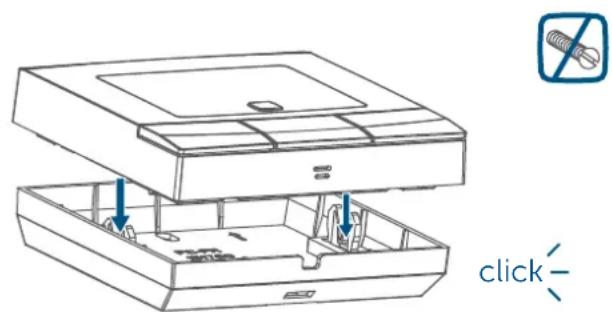

- Insert the electronic unit (A) into the mounting plate (see figure 7). Make sure that the electronic unit properly engages into the mounting plate.

click-

Figure 7

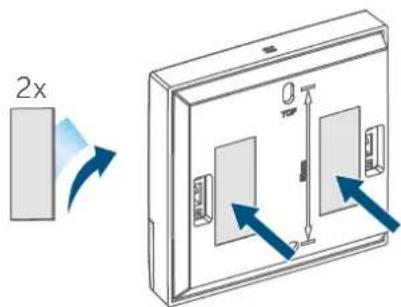

- Fix the adhesive strips on the back side of the mounting plate in the provided area. You should be able to read the letters ("TOP") on the back side.

2x

Figure 8

- Remove the protective film from the adhesive strips.

Diagram of a double door with two screens and directional arrows indicating airflow or movement (no text or symbols)

Figure 9

- Press the assembled wall thermostat with the back side to the wall in the position where it should subsequently be attached.

Illustration of a TV set mounted on a wall with blue arrows indicating direction (no text or symbols)

Figure 10

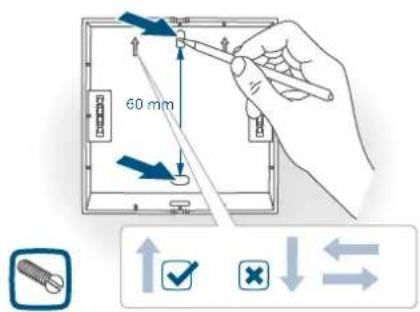

6.3.2 Screw mounting

For mounting the wall thermostat by screws, please proceed as follows:

- Choose a site for installation.

Make sure that no electricity or similar lines run in the wall at this location!

- Position the mounting plate on the desired site on the wall. Make sure that the arrows on the back side of the mounting plate point upwards. Use a pen to mark the positions of the two bore holes according to the mounting plate with a distance of 60 mm on the wall.

60 mm

Figure 11

- Drill the marked holes.

Figure 12

If you are working with a stone wall, drill the marked two 5 mm holes and insert the plugs supplied. If you are working with a wooden wall, you can pre-drill 1.5 mm holes to make screws easier to insert.

- Use the supplied screws and plugs to fasten the mounting plate to the wall.

Diagram of screwdriver and screwdriver assembly with a central component (no text or symbols)

Figure 13

- Insert the electronic unit (A) into the mounting plate. Make sure that the electronic unit properly engages into the mounting plate.

ROR ROR click-

Figure 14

6.3.3 Installation on flush-mounted boxes

You can mount the wall thermostat on flush-mounting/installation boxes using the screw holes. Abb 13

Diagram showing a device with labeled components and directional arrows, including a magnified view of the internal structure.

Figure 15

If the device is mounted to a flush-mounting box, there may be no open conductor ends.

If changes or works have to be made on the house installation (e.g. extension, bypass of switch-or socket inserts) or the low-voltage distribution for mounting or installing the device, the following safety instruction must be considered:

i Please note! Only to be installed by persons with the relevant electro-technical knowledge and experience!*

Incorrect installation can put

• your own life at risk;
• and the lives of other users of the electrical system.

Incorrect installation also means that you are running the risk of serious damage to property, e.g. because of a fire. You may be personally liable in the event of injuries or damage to property.

Contact an electrician!

*Specialist knowledge required for installation:

The following specialist knowledge is particularly important during installation:

• The "5 safety rules" to be used: Disconnect from mains; Safeguard from switching on again; Check that system is de-energised; Earth and short circuit; Cover or cordon off neighbouring live parts;
• Select suitable tool, measuring

equipment and, if necessary, personal safety equipment;

• Evaluation of measuring results;
• Selection of electrical installation material for safeguarding shut-off conditions;
  • IP protection types;
  • Installation of electrical installation material;
• Type of supply network (TN system, IT system, TT system) and the resulting connecting conditions (classical zero balancing, protective earthing, required additional measures etc.).

7 Configuration menu

When using the wall thermostat without Homematic IP Access Point, you can select the following modes via the configuration menu after set-up directly on the device and adjust the settings to your personal needs. To do this, proceed as follows:

• By pressing and holding the menu button (E) for at least 2 s, you will be entering the configuration menu.
• Select the desired icon via the plus and minus buttons (D + F) by pressing the menu button briefly to change the settings of the different menu items.

Press and hold down the menu button (E) to get back to the previous level. The menu automatically closes without applying changes if there is no operation for more than 1 minute.

7.1 Manual operation

In manual mode, the temperature is controlled in accordance with the current temperature set via the push-buttons (D + F). The temperature remains activated until the next manual change. To activate the manual mode, please proceed as follows:

• Press and hold down the menu button (E) to open the configuration menu.
• Select "Manu" via the plus and minus buttons (D + F) in the menu.
• Confirm with the menu button.

To confirm, the symbol flashes twice and the device changes back to manual mode.

7.2 Automatic mode

Switching from manual to automatic mode is only possible if the date and time have been set.

In automatic mode, the temperature is controlled in accordance with the set heating profile. Manual changes are activated until the next point at which the profile changes. Afterwards, the defined heating profile will be activated again. To activate the automatic mode, please proceed as follows:

• Press and hold down the menu button (E) to open the configuration menu.
• Select "Auto" via the plus and minus buttons (D + F) in the menu.
• Confirm with the menu button.

To confirm, the symbol flashes twice and the device changes back to automatic mode.

7.3 Holiday mode

If you want to maintain a constant temperature for a certain period, e.g. during your holidays or a party, the holiday mode can be used. To activate the holiday mode, please proceed as follows:

• Press and hold down the menu button (E) to open the configuration menu.
• Select "Holiday" using the plus or minus buttons (D + F) and confirm with the menu button.
• Use the plus or minus buttons to select the time, until which you want to activate the holiday mode and confirm with the menu button.
• Use the plus or minus buttons to select the date, until which you want to activate the holiday mode and confirm with the menu button.
• Use the plus or minus buttons to select the temperature for the holiday mode and confirm with the menu button.

To confirm, the symbol flashes twice and the device changes to holiday mode.

7.4 Operating lock

Operation of the device can be locked to avoid settings being changed unintended (e.g. through involuntary touch). To activate the operating lock, please proceed as follows:

• Press and hold down the menu button (E) to open the configuration menu.
• Select "Operating lock" via the plus and minus buttons (D + F) in the

menu.

• Confirm with the menu button.
• Use the plus button to select "On" to activate the operating lock or minus "OFF", to deactivate the function and confirm with the menu button.

To confirm, On or OFF flashes twice and the device changes back to the standard display.

After activating the operating lock, the "lock" symbol is shown in the display.

To deactivate the operating lock, please proceed as follows:

• Press and hold down the menu button (E) to open the configuration menu.
• Confirm with the menu button.
• Select "OFF" via the minus buttons (D) to deactivate the operating lock.

7.5 Time and date

To set the date and time, please proceed as follows:

• Press and hold down the menu button (E) to open the configuration menu.
• Select "Date/time" via the plus and minus buttons (D + F) in the menu.
• Confirm with the menu button.
• Select the desired year using the plus or minus button and confirm with the menu button.
• Select the desired month using the plus or minus button and confirm with the menu button.
• Select the desired day using the plus or minus button and confirm

with the menu button.

• Select the desired hours using the plus or minus button and confirm with the menu button.
• Select the desired minutes using the plus or minus button and confirm with the menu button.

To confirm, the time flashes twice and the device changes back to the standard display.

7.6 Offset temperature

As the temperature is measured on the room thermostat, the temperature distribution can vary throughout a room. To adjust this, a temperature offset of ±3.5 ^ can be set. If a nominal temperature of e.g. 20 ^ is set but the room presents with only 18 ^ , an offset of -2.0 ^ needs to be set. An offset temperature of 0.0^ is set in the factory settings. To adjust the offset temperature, please proceed as follows:

• Press and hold down the menu button (E) to open the configuration menu.
• Select "Offset" via the plus and minus buttons (D + F) in the menu.
• Confirm with the menu button.
• Select the desired offset temperature using the plus or minus button and confirm with the menu button.

To confirm, the temperature flashes twice and the device changes back to the standard display.

7.7 Programming a heating profile

In this menu item, you can create a heating profile with six heating and cooling phases (13 change settings) according to your personal needs:

• Press and hold down the menu button (E) to open the configuration menu.
• Select "Prg" using the plus or minus buttons (D + F) and confirm with the menu button.
• In the menu item "dAy", use the plus and minus buttons to select single days of the week, all weekdays, the weekend or the entire week for your heating profile and confirm with the menu button.
• Confirm the start time 00:00 pm with the menu button.
• Select the desired temperature and start time using the plus or minus button and confirm with the menu button.
• The next time is shown in the display. You can adjust the time via the plus or minus buttons.
• Select the desired temperature for the next time period using the plus or minus button and confirm with the menu button.
• Repeat this procedure until temperatures are stored for the entire period between 0:00 and 23:59 h.

To confirm, the time flashes twice and the device changes back to the standard display.

8 Operation

After pairing and mounting have been performed, simple operations are available directly on the device:

• Temperature: Press the left (D) or right (F) push-button to manually change the temperature. In automatic mode, the manually set temperature will remain the same until the next point at which the profile changes. Afterwards, the defined heating profile will be activated again. During manual operation, the temperature remains activated until the next manual change.
• Boost function: Press the boost button (E) briefly to activate the boost function for heating up the radiator quickly and briefly by opening the valve. There will be a pleasant room temperature right away because of the radiated heat.

The boost function can only be activated if the wall thermostat is used in connection with a radiator thermostat, floor heating actuator or a switch actuator.

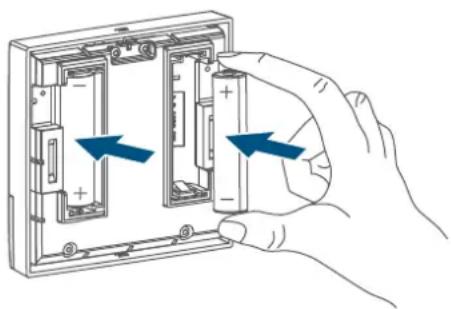

9 Replacing batteries

If the symbol for empty batteries (☐) appears in the display or in the app, please replace the used batteries by two new LR6/mignon/AA batteries. You must observe the correct battery polarity.

To replace the batteries of the device, please proceed as follows:

- Once mounted, the electronic unit

(A) can easily be pulled out of the mounting plate. Take hold of the sides of the electronic unit and pull it from the mounting plate.

• Turn the electronic unit over to remove or insert the batteries.
• Insert two new 1.5 V LR6/mignon/AA batteries into the battery compartment, making sure that you insert them the right way round.

Illustration of hands installing a battery pack into an open panel (no text or symbols visible)

Figure 16

• Place the electronic unit back into the mounting plate ( see figure).
• Please pay attention to the flashing signals of the device LED while inserting the batteries (see „10.4 Error codes and flashing sequences“ on page 37).

Once the batteries have been inserted, the device will perform a self-test (approx. 2 seconds). Afterwards, initialisation is carried out. The test display will indicate that initialisation is complete: orange and green lighting.

10 Troubleshooting

10.1 Low battery

Provided that the voltage value permits it, the wall thermostat will remain ready for operation also if the battery voltage is low. Depending on the particular load, it may be possible to send transmissions again repeatedly once the batteries have been allowed a brief recovery period.

If the voltage drops too far during transmission, the empty battery symbol (☐) and the corresponding error code will be displayed on the device (see "10.4 Error codes and flashing sequences" on page 37). In this case, replace the empty batteries by two new batteries (see "9 Replacing batteries" on page 35).

10.2 Command not confirmed

If at least one receiver does not confirm a command, the device LED lights up red at the end of the failed transmission process. The failed transmission may be caused by radio interference (see „13 General information about radio operation“ on page 39).

This may be caused by the following:

• Receiver cannot be reached.
• Receiver is unable to execute the command (load failure, mechanical blockade, etc.).
• Receiver is faulty.

10.3 Duty Cycle

The duty cycle is a legally regulated limit of the transmission time of devices in the 868 MHz range. The aim of this regulation is to safeguard the operation of all devices working in the 868 MHz range.

In the 868 MHz frequency range we use, the maximum transmission time of any device is 1% of an hour (i.e. 36 seconds in an hour). Devices must cease transmission when they reach the 1% limit until this time restriction comes to an end. Homematic IP devices are designed and produced with 100% conformity to this regulation.

During normal operation, the duty cycle is not usually reached. However, repeated and radio-intensive pairing processes mean that it may be reached in isolated instances during start-up or initial installation of a system. If the duty cycle is exceeded, this is indicated by three slow flashes of the device LED, and may manifest itself in the device temporarily working incorrectly. The device starts working correctly again after a short period (max. 1 hour).

10.4 Error codes and flashing sequences

Error and flashing codes	Meaning Solution
Battery symbol (☐) Battery	voltage too low	Replace the batteries of the device (see „9 Repla-cing batteries" on page 35).
Antenna symbol flashing (☐)	Communication problem withtheHomematic IP Access Point or connected device	Please check the connection with the Homematic IPAccess Point or the connected devices.
Lock symbol (☐) Operating	lock activated	Deactivate the operating lock via the app or the menu.
Short orange flashing	Radio transmission/attempting to transmit/data transmission	Wait until the transmission is completed.
1x long green lighting Operation confirmed		You can continue operation.
Short orange flashing (every 10 seconds)	Pairing mode active	Please enter the last four numbers of the device serial number for con-firmation (see „6.1 Direct pairing" on page 26).
Short orange lighting (after green or red confirmation)	Batteries empty	Replace the batteries (see „9 Replacing batteries" on page 35).
1x long red lighting	Transmission failed or duty cycle limit is reached	Please try again (see „10.2 Command not confirmed" on page 36) or (see „10.3 Duty Cycle" on page 36).
6x long red flashing Device	defective	Have a look at your app for error message or contact your retailer.
1x orange and 1 x green lighting (after inserting batteries)	Test display	After the test display has stopped, you can continue.

11 Restore factory settings

The factory settings of the device can be restored. If you do this, you will lose all your settings.

To restore the factory settings of the device, proceed as follows:

• Once mounted, the electronic unit (A) can easily be pulled out of the mounting plate. Take hold of the sides of the electronic unit and pull it from the mounting plate.
• Remove a battery.
• Insert the battery ensuring that the polarity is correct and press and hold down the system button (C) for 4 s at the same time, until the LED will quickly start flashing orange.

4 s +

Figure 17

- Release the system button.

Line drawing of a hand pointing at a wall-mounted device with an arrow indicating direction (no text or symbols)

Figure 18

- Press and hold down the system button (C) again for 4 seconds, until the LED lights up green.

Hand inserting a green circular button into a 3D box (no text or symbols)

Figure 19

- Release the system button to finish the procedure.

The device will perform a restart..

12 Maintenance and cleaning

The device does not require you to carry out any maintenance other than replacing the battery when necessary. Enlist the help of an expert to carry out any repairs.

Clean the device using a soft, lint-free cloth that is clean and dry. Do not use any detergents containing solvents, as they could corrode the plastic housing and label.

13 General information about radio operation

Radio transmission is performed on a non-exclusive transmission path, which means that there is a possibility of interference occurring. Interference can also be caused by switching operations, electrical motors or defective electrical devices.

The range of transmission within buildings can differ greatly from that available in the open air. Besides the transmitting power and the reception characteristics of the receiver, environmental factors such as humidity in the vicinity have an important role to play, as do on-site structural/screening conditions.

eQ-3 AG, Maiburger Straße 29, 26789 Leer, Germany hereby declares that the radio equipment type Homematic IP HmIP-WTH-B-2, HmIP-WTH-B-A is compliant with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

www.homematic-ip.com

14 Disposal

Instructions for disposal

This symbol means that the device and the batteries or accumulators must not be disposed of with household waste, the residual waste bin or the yellow bin or yellow bag. For the protection of health and the environment, you must take the product, all electronic parts included in the

scope of delivery, and the batteries to a municipal collection point for old electrical and electronic equipment to ensure their correct disposal. Distributors of electrical and electronic equipment or batteries must also take back obsolete equipment or batteries free of charge.

By disposing of it separately, you are making a valuable contribution to the reuse, recycling and other methods of recovery of old devices and old batteries.

You must separate any old batteries and accumulators of old electrical and electronic devices from the old device if they are not enclosed by the old device before handing it over to a collection point and to dispose of them separately at the local collection points.

Please also remember that you, the end user, are responsible for deleting personal data on any old electrical and electronic equipment before disposing of it.

Information about conformity

The CE mark is a free trademark that is intended exclusively for the authorities and does not imply any assurance of properties.

For technical support, please contact your retailer.

15 Technical specifications

Device short name: HmIP-WTH-B-2, HmIP-WTH-B-A

Supply voltage: 2x 1.5 V LR6/mignon/AA

Current consumption: 40 mA max.

Battery life: 5 years (typ.)

Degree of protection: IP20

Degree of pollution: 2

Ambient temperature: 0 to 50 °C

Dimensions (W x H x D): 85 x 85 x 22 mm

Weight: 140 g (including batteries)

Radio frequency band: 868.0-868.60 MHz 869.4-869.65 MHz

Maximum radiated power: 10 dBm

Receiver category: SRD category 2

Typ. open area RF range: 250 m

Duty cycle: < 1 % per h/< 10 % per h

Method of operation: Type 1

Software class: A

Subject to technical changes.

Table des matières

Diagram showing a device with labeled parts and directional arrows indicating movement or insertion steps

Figure 3

4 s ↓ Battery → Screen Display

Figure 4

Line drawing of a hand pressing a button on a wall-mounted device (no text or symbols)

Diagram of a double door with two blue liquid-filled chambers and a valve, showing airflow direction (no text or symbols)

Figure 9

Illustration of a TV set with directional arrows indicating orientation (no text or symbols)

Figure 10

Diagram of a screwdriver with two screws, showing alignment and disassembly (no text or symbols)

Figure 13

Diagram showing a device with labeled components and a close-up view of a mechanical component with a cross symbol.

Figure 15

Illustration of hands installing or adjusting a battery pack into a housing (no text or symbols visible)

Figure 16

Line drawing of a hand pressing a button on a wall-mounted device (no text or symbols)

Hand inserting a green circular button into a wall-mounted device (no text or symbols visible)

Poids : 140 g (piles comprises)

A B C D E F D WR/AA LR/AA

Figura 1

Diagram showing a device with labeled parts and directional arrows indicating movement or force, marked as 1 and 2.

Figura 2

4 s ↓ ← → → ✓

Figura 3

4 s ↓ ← → ✓

Figura 4

Line drawing of a hand pressing a button on a wall-mounted device (no text or symbols)

Figura 5

Diagram of a double door with two screens and directional arrows indicating movement (no text or symbols)

Figura 8

Illustration of a TV set with directional arrows indicating orientation (no text or symbols)

Figura 9

Diagram of a screwdriver with two screws inserted into a pin, showing alignment (no text or symbols)

Figura 12

Diagram showing a device with labeled components and a close-up view of a mechanical component with a cross symbol.

Figura 14

Illustration of hands installing or adjusting a battery pack into a housing (no text or symbols visible)

Line drawing of a hand pointing at a device panel with an arrow indicating direction (no text or symbols)

Figura 16

Hand inserting a green circular component into a rectangular panel (no text or symbols)

Figura 17

1x Homematic IPTermostatoa parete – basic

1x Supporto a parete

A B C D E F D WR/AA WR/AA

Figura 1

Vista d'insieme del display:

Diagram showing a device with labeled parts and directional arrows indicating movement or force, marked as 1 and 2.

Figura 3

4 s ↓ ← → → ✓

Figura 4

Line drawing of a hand pressing a button on a wall-mounted device (no text or symbols)

Figura 6

Diagram of a double door with two screens and a lamp, showing airflow direction (no text or symbols)

Figura 9

Illustration of a TV set mounted on a wall with blue arrows indicating direction (no text or symbols)

Figura 10

Diagram of a screwdriver with two screws, showing alignment and disassembly (no text or symbols)

Figura 13

Diagram showing a device with labeled components and a close-up view of a mechanical component with a cross symbol.

Figura 15

Hand inserting a battery into an open panel, showing internal components and blue arrows indicating direction (no text or symbols)

Figura 16

Line drawing of a hand pointing at a device screen with an arrow indicating direction (no text or symbols)

Figura 18

Hand inserting a green circular button into a 3D box (no text or symbols)

Figura 19

A B C D E F D L/R/AA LR/AA

Afbeelding 1

Diagram showing a device with labeled parts and directional arrows indicating movement or insertion steps

Afbeelding 3

4 s ↓ ← → ✓

Afbeelding 4

4 s ↓ ← → → ✓

Afbeelding 5

Line drawing of a hand pressing a button on a wall-mounted device (no text or symbols)

Afbeelding 6

Diagram of a double door with two blue liquid channels and directional arrows indicating flow or movement (no text or symbols)

Afbeelding 9

Isometric diagram of a TV mounted on a wall with two blue arrows indicating direction (no text or symbols)

Afbeelding 10

Diagram of a screwdriver with two screws inserted into a central component, no text or symbols present

Afbeelding 13

- Plaats de elektronische unit (A) in de wandhouder. Let op dat de elektronische unit correct in de wandhouder vastklikt.

ON OFF click-

Afbeelding 14

Diagram illustrating a device's internal components and a close-up of its mechanical assembly with a warning symbol.

Afbeelding 15

Illustration of hands holding a battery pack with arrows indicating direction (no text or symbols)

Afbeelding 16

Line drawing of a hand pointing at a wall-mounted device with an arrow indicating direction (no text or symbols)

Afbeelding 18

Hand inserting a green circular button into a wall-mounted device (no text or symbols visible)

Afbeelding 19

Free download of the Homematic IPapp!

Blue QR code image, scannable for digital content retrieval

Download on the

App Store

Blue QR code image, scannable for digital content retrieval

GET IT ON

Google Play

Bevollmächtigter des Herstellers: Manufacturer's authorised representative

eQ-3 AG

Maiburger Straße 29

26789 Leer / GERMANY

www.eQ-3.de
