Product Type	U.2 to PCIe Adapter
Brand	Tripp Lite
Model	PCEU2PX4 (PCE-U2-PX4)
Dimensions (L x W x H)	140 x 121 x 93 mm
Power Supply	Powered by PCIe bus, no external power required
Main Features	Adds a 2.5" U.2 PCIe NVMe or SATA SSD to a PC, backward compatible PCIe 3.0/2.0/1.0, M.2 support via optional P970-U2M2 adapter
Maintenance and Cleaning	Handle with care, use an antistatic wrist strap, clean with a dry non-abrasive cloth
Safety Precautions	Unplug the computer before installation, avoid electrostatic discharge (ESD), do not touch the connectors
Spare Parts and Repairability	1-year limited warranty, no spare parts specified, return under RMA
Drive Connector	U.2 SFF-8639
PCIe Interface	PCIe x4
Supported SSD Types	2.5" U.2 NVMe or SATA SSD, 2.5" SATA SSD/HDD
Supported Operating Systems	Windows (7, 8.1, 10, 11), Mac OS High Sierra and later
Operating Temperature	10 to 70 °C
Storage Temperature	0 to 65 °C
Relative Humidity	10 to 80% non-condensing
Certifications	FCC, CE, RoHS
Package Contents	Adapter card, 2 bracket screws, 4 SSD screws, screwdriver, 7-pin SATA cable, quick start guide
Warranty	1-year limited

Frequently Asked Questions - PCEU2PX4 Tripp Lite

What types of SSDs are supported by the PCEU2PX4?

The adapter supports 2.5-inch U.2 NVMe and SATA SSDs, as well as standard 2.5-inch SATA SSDs/HDDs. For M.2 modules, it is compatible with the P970-U2M2 adapter (sold separately).

How do I install the adapter in my computer?

Turn off the computer, unplug the power cord and peripherals. Remove the side panel, insert the card into a free PCIe x4 slot, connect the SATA cable to the motherboard if necessary, secure the bracket to the chassis, then reassemble the case.

Does this product require external power?

No, the adapter is directly powered by the PCIe bus from the motherboard. No external power connection is required.

Can I use an M.2 SSD with this adapter?

Yes, by combining the PCEU2PX4 with the P970-U2M2 adapter from Tripp Lite (sold separately), you can install an M.2 NVMe or SATA module. Follow the P970-U2M2 guide for installation.

What operating systems are supported?

The adapter is compatible with Windows 7, 8.1, 10, 11 and Mac OS High Sierra and later. Older versions of Mac OS do not support NVMe.

How do I format a new disk after installation?

On Windows, open 'Computer Management' > 'Disk Management'. Delete the existing volume (if present), create a New Simple Volume and follow the wizard. On Mac, use Disk Utility.

What should I do if my disk is not recognized?

Check that the disk is properly inserted and the card is fully seated in the PCIe slot. Ensure the NVMe driver is present (Windows 10/11 include it). Check in the BIOS that the PCIe port is enabled.

What is the warranty period for this adapter?

Tripp Lite offers a 1-year limited warranty from the date of purchase, covering defects in materials and workmanship. For any claims, contact support to obtain an RMA number.

What safety precautions should I take during installation?

Always unplug the computer before installation. Use an ESD antistatic wrist strap (recommended) and handle the card by its edges without touching the connectors.

Can I use this adapter with a standard SATA SSD?

Yes, it supports 2.5-inch SATA SSDs/HDDs. Insert the drive into the provided adapter housing and screw it in, then connect the provided SATA cable to the motherboard.

USER MANUAL PCEU2PX4 Tripp Lite

U.2 to PCIe Adapter for 2.5" U.2 NVMe SSD, SFF-8639, PCI Express (x4) Card

Model: PCE-U2-PX4

Español 13 • Français 25 • Русский 37 • Deutsch 49

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

tripplite.com/warranty

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2022 Tripp Lite. All rights reserved.

Features

• Enhance your PC's speed and increase internal storage by adding a U.2 PCIe SSD
  • Supports U.2 SSD and 2.5" SATA I/II/III SSD/HDD
• Compatible with Tripp Lite's P970-U2M2 (sold separately) U.2 to NVMe/SATA M.2 adapter for installing an M.2 module
• PCIe U.2 SSD speeds provide ultra-fast data access to your computer
• Compatible with PCIe 3.0 motherboards; backward compatible with PCIe 2.0 and PCIe 1.0
• Plug-and-play, no software or drivers required
  • No external power required

Package Contents

• PCE-U2-PX4 U.2 to PCIe Adapter
  • (x2) Bracket Screws
• (x4) SSD Screws
• Screwdriver
• 7-Pin SATA Cable
• Quick Start Guide

Optional Hardware

- P970-U2M2 M.2 to U.2 PCIe NVMe SSD Adapter (Sold Separately)

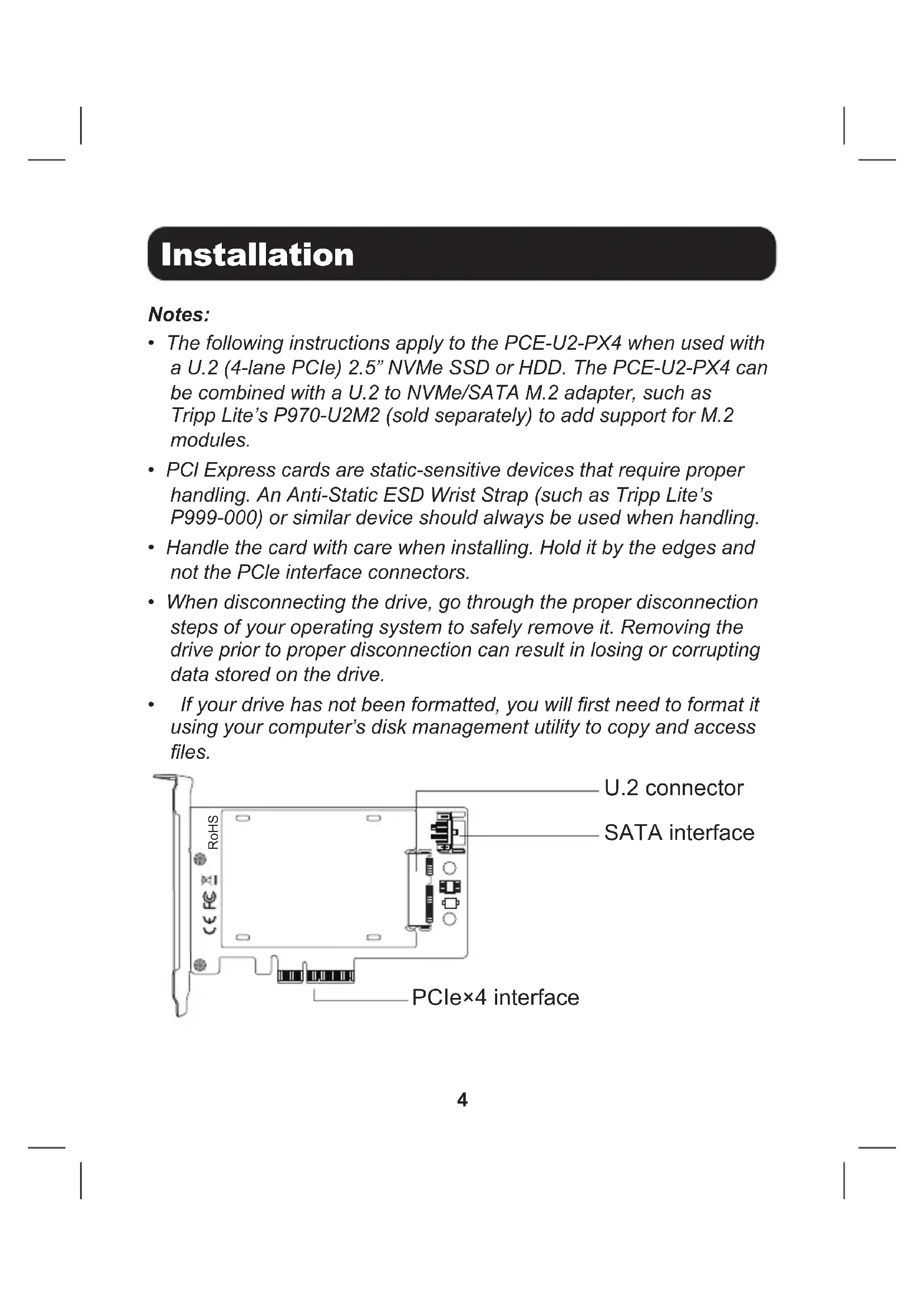

Installation

Notes:

• The following instructions apply to the PCE-U2-PX4 when used with a U.2 (4-lane PCIe) 2.5" NVMe SSD or HDD. The PCE-U2-PX4 can be combined with a U.2 to NVMe/SATA M.2 adapter, such as Tripp Lite's P970-U2M2 (sold separately) to add support for M.2 modules.
• PCI Express cards are static-sensitive devices that require proper handling. An Anti-Static ESD Wrist Strap (such as Tripp Lite's P999-000) or similar device should always be used when handling.
• Handle the card with care when installing. Hold it by the edges and not the PCIe interface connectors.
• When disconnecting the drive, go through the proper disconnection steps of your operating system to safely remove it. Removing the drive prior to proper disconnection can result in losing or corrupting data stored on the drive.
• If your drive has not been formatted, you will first need to format it using your computer's disk management utility to copy and access files.

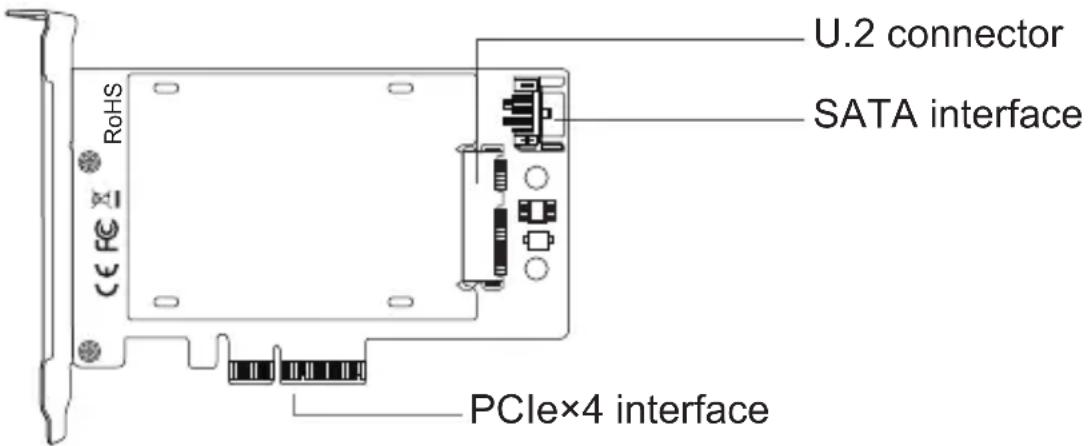

RoHS U.2 connector SATA interface PCIe×4 interface

Installation

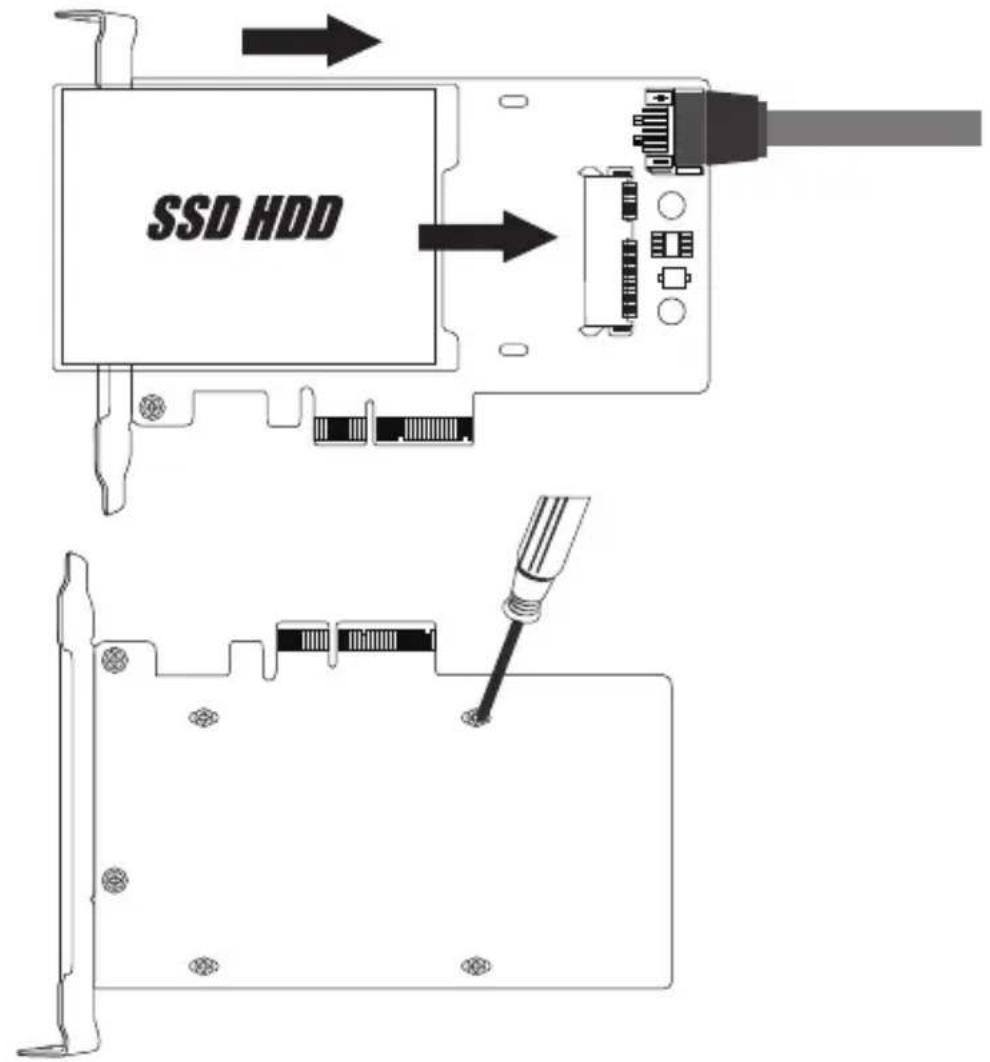

Installing an HDD/SSD Drive

1. Insert a 2.5" HDD/SSD drive (sold separately) into the 2.5" SATA HDD/SSD adapter. Secure the drive into place using the provided SSD screws.

Note: The connector on the U.2 SSD is keyed so the drive will fit only one way.

SSD HDD

Installation

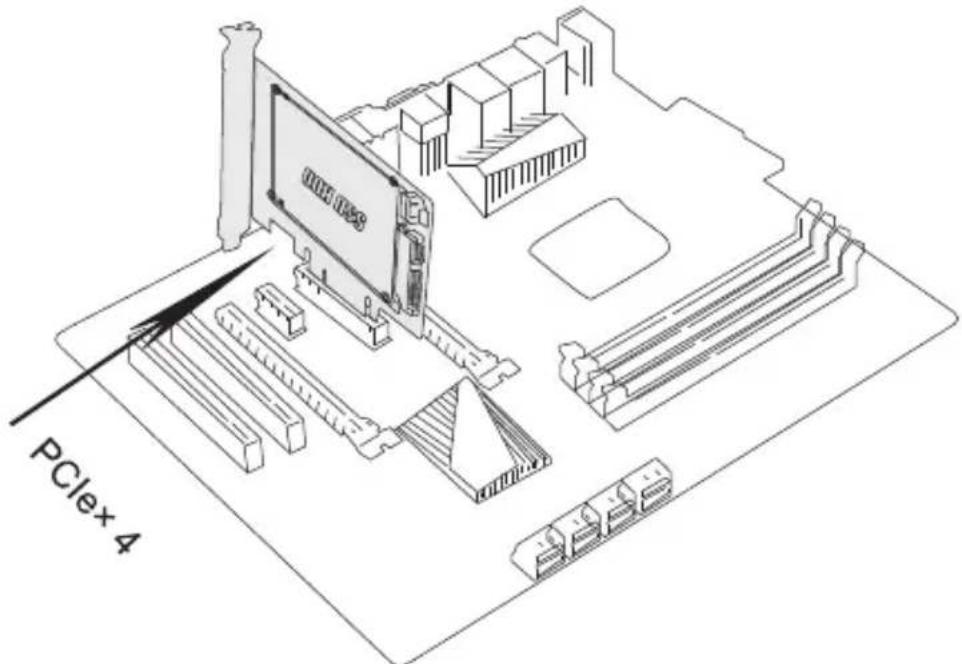

1. Turn off the computer you are installing the PCIe card in. Unplug its power cord and disconnect all peripheral devices (monitor, keyboard, mouse, etc.) from it.
2. Remove the cover from your PC to locate the motherboard and available PCI Express slots.
3. Locate an available PCI Express slot (if necessary, remove the metal bracket from the back of the PC to allow for insertion of the card).
4. Gently connect the 7-pin SATA cable from PCI Express Card to the motherboard on your PC.
5. Connect the PCI Express Card adapter to the PCIe x4 slot on the motherboard.

PClex 4

Installation

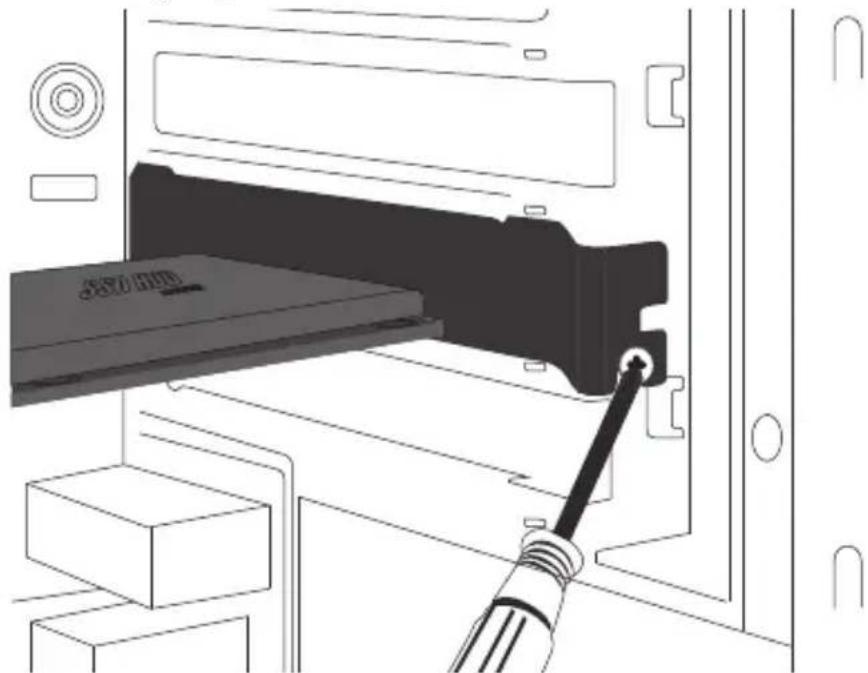

1. Fix the full profile bracket to the tower rear panel of the PC and screw tightly to secure connection.

Diagram of a computer monitor with a screwdriver inserted, showing internal components and no text or symbols.

1. If necessary, fasten the metal bracket to the back of the computer using the included screws.

2. Place the cover back onto the computer and reconnect its power cords and peripheral devices.

3. Your adapter is now ready for use.

Installation

Installing an M.2 M-Key or B-Key NVMe SSD Using a Tripp Lite P970-U2M2 U.2 to PCIe Adapter (Sold Separately)

Refer to the instructions and diagrams in the P970-U2M2 Quick Start Guide to install an M.2 module in a computer's PCIe port.

Operation

1. After turning your computer back on, locate the "Computer Management" system tool and go to the "Disk Management" dropdown menu to find the new disk.
2. Before formatting the new disk, make sure to delete the volume.
3. Right click on the external disk you want to format. Click on "New Simple Volume".
4. Follow the instructions on the screen, choosing the size of partition, and click "Next" to finish.
5. The new hard disk will be found in the list of drive locations on your computer.
6. Once found, it is ready to be used.

Specifications

Drive Connection U.2 SFF-8639
PCIe Card Connection PCIe X4
Supported SSD 2.5” SATA or 2.5” U.2
Operating Temperature Range	50°F to 158°F(10°C to 70°C)
Storage Temperature Range	32°F to 149°F(0°C to 65°C)
Relative Humidity 10 to 80% RH, Non-Condensing
Unit Dimensions[L x W x H]	5.5 x 4.76 x 3.66 inches(140 x 121 x 93 mm)
Certifications FCC, CE
Supported Operating Systems	Windows (7, 8.1, 10, 11),Mac OS (High Sierra and above;older Mac OS versions do not support NVMe)

Warranty and Product Registration

1-YEAR LIMITED WARRANTY

Tripp Lite warrants its products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. Tripp Lite's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from Tripp Lite or an authorized Tripp Lite service center. Products must be returned to Tripp Lite or an authorized Tripp Lite service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, Tripp Lite is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.
