USER MANUAL SRCOOLTPDUCT Tripp Lite
Installation Instructions
Hot Air Duct for the SRCOOL3KTP AC Unit
Model: SRCOOLTPDUCT
Español 4 • Français 7
Parts List
| Part Number Description Qty. | ||
| 8702C2 Duct Hose 1 | ||
| 103A0CA Duct Adapter 1 | ||
| 390834 Clamp 1 | ||
| 3011DD Screw | 8 |
WARRANTY REGISTRATION
Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!
tripplite.com/warranty
Copyright © 2022 Tripp Lite. All rights reserved.
Installation
Before proceeding to install the SRCOOLTPDUCT, first make sure the air conditioning unit is correctly installed per the instructions shown in the SRCOOL3KTP Owner's Manual.
The air duct assembly is installed on the air outlet side of the condenser of the top-mounted air conditioner to duct hot air to the outdoors or into a dedicated hot air return.
The air duct assembly consists of three main parts: air duct, clamp, and air duct adapter.
To install the air duct assembly:
- Remove the 8 screw plugs around the top fan of the top-mounted air conditioner unit.
- Use the supplied 8 M6x16 combination screws to attach the sheet metal air duct to the top-mounted air conditioner unit.
- Place one end of the air duct on the outside of the sheet metal air duct and secure with a hose clamp.
- Connect the other end of the air duct where the hot air can be properly discharged.
- Check for air leaks after installation and adjust as needed.
Note: The hose can be trimmed to a shorter length depending on your application.


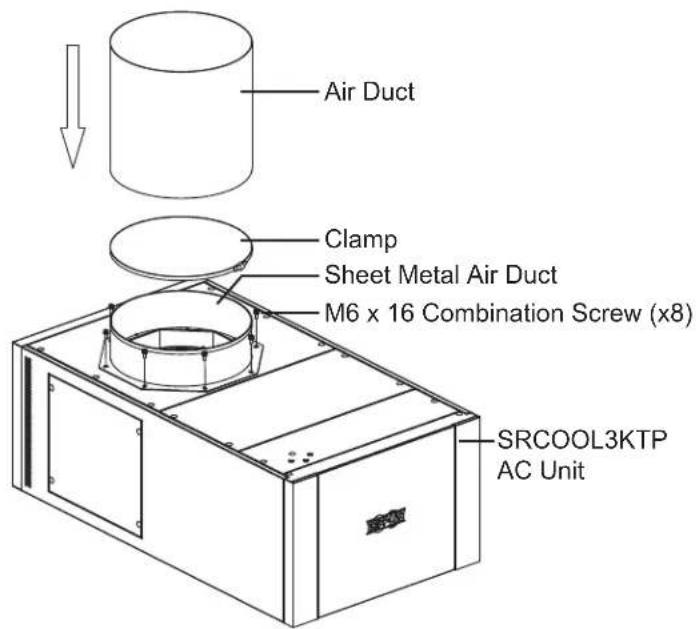

Air Duct Clamp Sheet Metal Air Duct M6 x 16 Combination Screw (x8) SRCOOL3KTP AC Unit


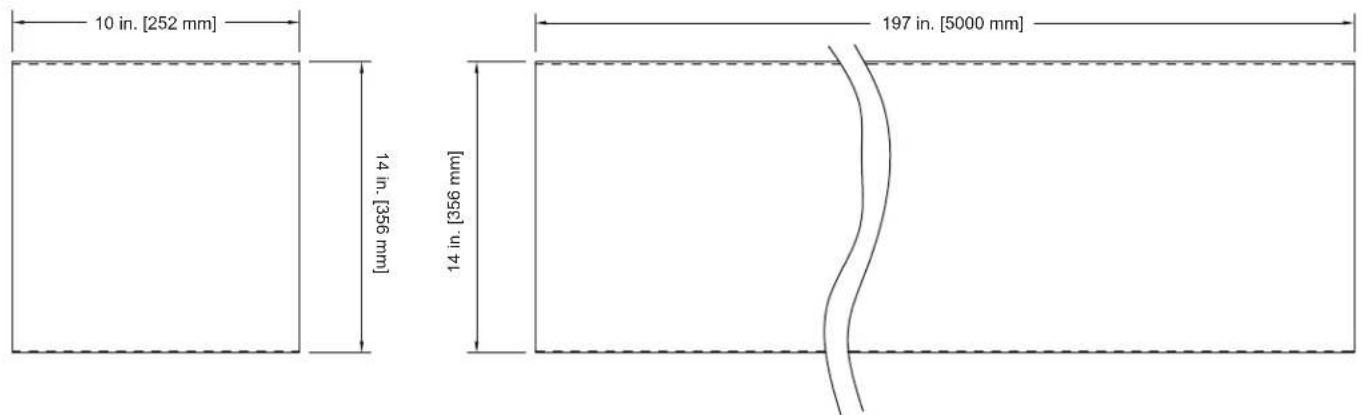

10 in. [252 mm] 14 in. [356 mm] 14 in. [359 mm] 197 in. [5000 mm]Compressed State Stretched State
