Croq'y 4 189410 - Waffle Maker LAGRANGE - Free user manual and instructions

Product type	Sandwich maker
Brand	LAGRANGE
Model	Croq'y 4 189410
Power supply	230 V, 50 Hz, 1800 W
Cooking plates	Aluminum with double-layer non-stick coating
Dimensions of croque-monsieur	2 times 120 x 120 mm
Appliance dimensions	315 x 370 x 130 mm
Capacity	4 croque-monsieur at once
Housing material	Thermosetting plastic
Handle	Thermosetting plastic
Indicators	Red (power on), Green (ready)
Timer	Adjustable from 1 to 15 minutes, +30 seconds button
Automatic standby	After 20 minutes of inactivity
Audible signal	Preheat and end of cooking
Locking clip	Yes
Cord storage	Yes
Power cord	H05V2V2-F 3 x 0.75 mm²
Maintenance and cleaning	Plates: damp sponge, do not immerse. Housing: damp sponge with mild detergent.
Warranty	2 years + 1 extra year upon registration on lagrange.fr
Spare parts	Available 5 years after manufacturing date
Usage	Household use only

Frequently Asked Questions - Croq'y 4 189410 LAGRANGE

How to clean the cooking plates?

Unplug and let the appliance cool down completely. Clean the plates with a damp sponge possibly soaked in a mild detergent, then dry with absorbent paper or a dry cloth. Never immerse the appliance or put it in the dishwasher.

Can I use the appliance without closing the locking clip?

Yes, if you have prepared thick croque-monsieur, you do not have to close the locking clip. The appliance works normally even without the clip closed.

What to do if the appliance smokes during first use?

A slight smoke emission is normal during first use. To minimize this, heat the appliance open for 10 minutes, then let it cool for about 1/2 hour before first cooking.

How to set the cooking time?

Use the « - » and « + » buttons to set the cooking time from 1 to 15 minutes. The countdown displays minutes then seconds during the last minute. You can add an extra 30 seconds with the « +30 sec » button.

How many croque-monsieur can I prepare at once?

The appliance can cook 4 croque-monsieur simultaneously, in the designated slots.

What does the green indicator mean?

The green indicator shows that the ideal cooking temperature has been reached and the appliance is ready. It also lights up during cooking when the thermostat maintains the temperature.

How to stop the appliance?

Press the on/off button then unplug the power cord. The appliance automatically enters standby after 20 minutes of inactivity.

Can I use an extension cord with the appliance?

Yes, but you must use an extension cord equipped with a grounded plug and wires with a cross-section equal to or greater than 0.75 mm².

What is the warranty of the appliance?

The appliance is guaranteed 2 years parts and labor. You can get a free extra year by registering on the website www.lagrange.fr. The warranty covers manufacturing defects, but not damage due to misuse.

How to contact LAGRANGE customer service?

You can contact consumer service by email at [e-mail] or by mail at: LAGRANGE, Service consommateurs, 17 chemin de la Plaine, ZA Les Plattes, CS30228, 69390 VOURLES, France.

USER MANUAL Croq'y 4 189410 LAGRANGE

Exterior view of a modern stainless steel baking appliance with control panel and display (no visible text or symbols)

FR

NED

DEU

ENG

NOTICE

CONDITIONS DE GARANTIE

BESCHRIJVING VAN HET APPARAAT

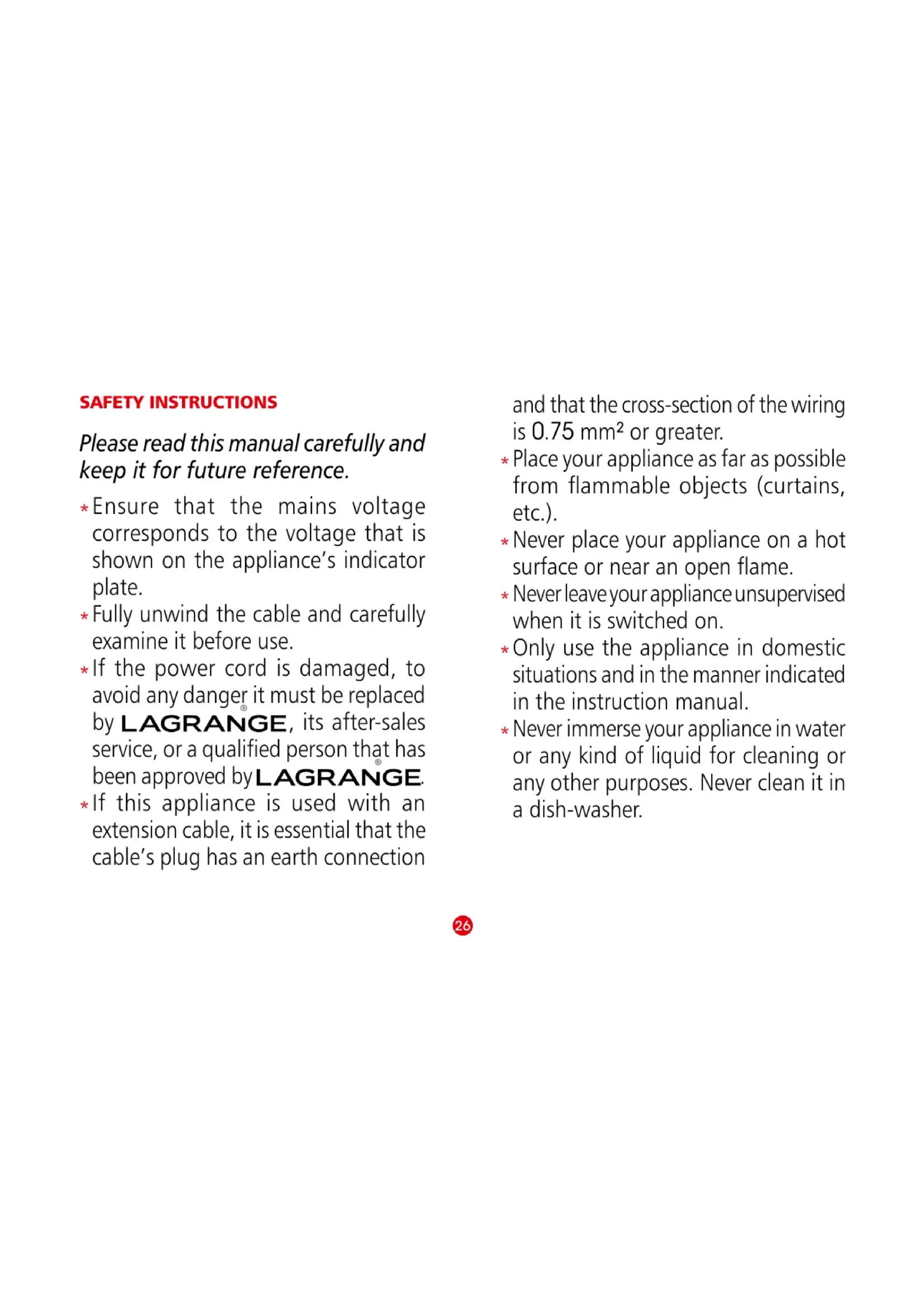

Please read this manual carefully and keep it for future reference.

* Ensure that the mains voltage corresponds to the voltage that is shown on the appliance's indicator plate.
* Fully unwind the cable and carefully examine it before use.
* If the power cord is damaged, to avoid any danger it must be replaced by LAGRANGE, its after-sales service, or a qualified person that has been approved by LAGRANGE.
*If this appliance is used with an extension cable, it is essential that the cable's plug has an earth connection

and that the cross-section of the wiring is 0.75 mm ^2 or greater.

* Place your appliance as far as possible from flammable objects (curtains, etc.).
* Never place your appliance on a hot surface or near an open flame.
* Never leave your appliance unsupervised when it is switched on.
* Only use the appliance in domestic situations and in the manner indicated in the instruction manual.
* Never immerse your appliance in water or any kind of liquid for cleaning or any other purposes. Never clean it in a dish-washer.

* Do not use or store the appliance outside, in the rain. Store it in a dry place.
* Never move the appliance by pulling the cable. Prevent the appliance from accidentally falling by ensuring that the power cord cannot become entangled.
* Do not wind the cord around the appliance, do not twist it, and ensure that it does not come into contact with any of the hot parts of the appliance.
* Warning: hot surface. The temperature of accessible surfaces may be high when the appliance is in operation.
* This appliance can be used by children from the age of 8 and up, and persons with limited physical, sensory or cognitive capacities or who lack

adequate experience or knowledge, provided they are supervised or receive instructions for the safe use of the appliance and insofar as they fully understand the potential dangers. Children should not play with the appliance. Cleaning and upkeep should not be performed by children unless they are over the age of 8 and are under supervision.

* Keep the appliance and its power cord out of the reach of children younger than 8 years old.
* This appliance is intended for use in domestic and similar settings such as: – staff kitchen facilities in shops, offices, and other professional environments;

- farms, and for the use of customers in hotels, motels, or other residential environments; - home-stay type environments.

* These appliances are not intended to be used with an external timer or a separate remote control system.
*For cleaning the parts in contact with food, refer to the "Maintenance" paragraph.

LAGRANGE ① ② ③

Croq'y ^® 4
Type 189

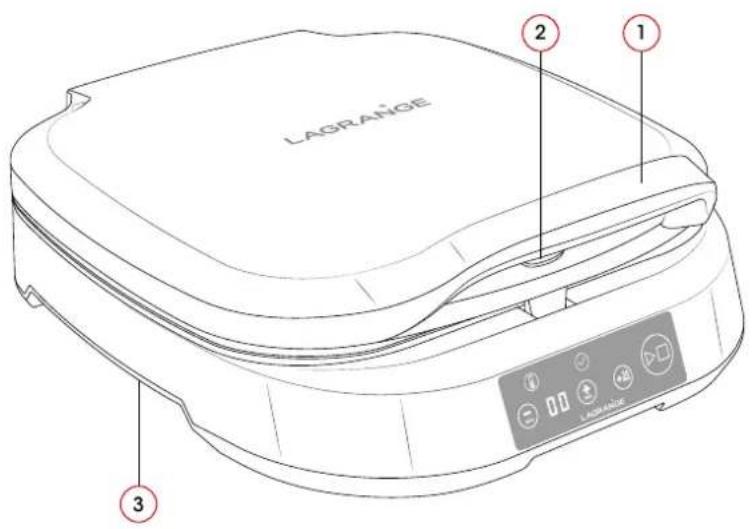

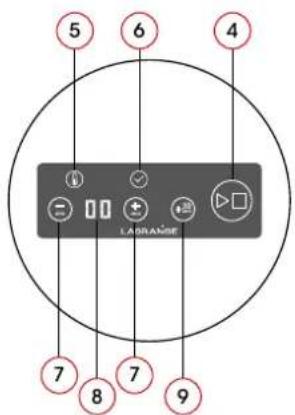

DESCRIPTION OF THE APPLIANCE

1. Thermosetting handle
2. Locking clip
3. Cable compartment
4. On/Off button
5. Red light to indicate power
6. Thermostat activity and ready to use indicator
7. Timer adjustment buttons
8. Display of the cooking time
9. Additional cooking time button (30 seconds)

5 6 4 LAORANGE 7 8 7 9

ENG

CHARACTERISTICS

* Thermosetting cover
* Aluminium cooking plates with non-stick coating
* Power light
* Thermostat activity and ready to use indicator
* 230 Volts - 50Hz - 1800 Watts
* Size of toasted sandwiches 2 times 120 x 120 mm
* Size of the appliance in total 315 x 370 x 130 mm
* The cord used is a H05V2V2-F 3 x 0.75 mm ^2

These appliances comply with directives 2014/35/EU, 2014/30/EU, DEEE 2012/19/EU, RoHs 2011/65/EU and regulation EC 1935/2004 for materials in contact with foodstuffs.

ENVIRONMENT

Environmental protection - 2012/19/UE DIRECTIVE

In order to preserve our environment and our health, disposing of electrical appliances at the end of their lifetime must be carried out in line with very specific rules that require the contribution of all concerned, whether supplier or user. That is why your appliance, as indicated by the symbol that appears on its information label, must under no circumstances be disposed of in a public or private waste disposal unit intended for domestic waste.

As part of its disposal, it is your responsibility to deposit your appliance in a public collection centre intended for the recycling of electrical or electronic equipment. To obtain information about the collection and recycling centres for obsolete appliances, please contact the local authorities in your region, the household waste collection services or the shop in which you purchased your appliance.

INSTALLATION AND USE

FIRST USE

* Ensure that you carefully remove all the protective elements when unpacking your appliance.
* Place your appliance on a flat surface.
* We advise cleaning the plates before using them for the first time. Use a little hot water and a sponge. Dry thoroughly.
* A new appliance may smoke a little when used for the first time. To reduce this phenomenon, proceed in the following manner: heat up the appliance with the lid open for 10 minutes, then let it cool for around 30 minutes.

DAILY OPERATIONS

* Fully unwind the cord.
* Plug in the appliance, with the lid closed. The red light comes on when you switch the appliance on using the on/off button.
* When the ideal cooking temperature is reached, the green light comes on and a sound signal will alert you to this. You can begin cooking after greasing the plates. Place your toasted sandwiches in the moulds intended for them (4 sandwiches at a time) and choose the desired cooking time by pressing the "-" or "+" buttons. You can add up to 15 minutes of cooking time. The time is counted in minutes. During the final minute, the time is counted in seconds.
* Close the appliance by pressing down the cover until you can close the locking clip and press the on / off button.

* If you want to add cooking time at the end of the set time, you can press the "+30 sec". You now have an additional 30 seconds to cook your toasted sandwich.
* When the lights go out, remove your toasted sandwiches using a wooden spatula.
* Depending on your preference, you do not have to take the green light into account and can judge whether your toasted sandwiches are cooked by opening the appliance.

AFTER USE

* When you are finished using the appliance, press stop and unplug the power cord.

MAINTENANCE

* Never immerse the appliance in water. Always unplug it and allow it to cool completely before cleaning.
* Cooking plates: Clean them with a damp sponge, perhaps containing a light detergent product and dry using absorbent kitchen paper or a dry cloth.
* Do not use scouring pads as they may scratch the non-stick surface.
* Outer casing: if necessary, use a damp sponge with a small amount of detergent and wipe dry using a soft cloth.

RECIPES AND TIPS

Toasted sandwiches cook very quickly, so we advise you to prepare all the ingredients before heating up your Croq'y® 4. Fill your toasted sandwiches and put them on a plate.

Remember to lightly butter the two outside faces of the toasted sandwich before cooking. Do this for all the recipes (optional).

The chef's secret: when you place a slice of ham on the toast, first cut it into several pieces. This makes it easy to enjoy!

COUNTRY TOASTED SANDWICH

The ingredients: 2 spoons of mustard, 1 sliced tomato, 2 thin slices of bacon.

Spread the mustard on the inside faces of the bread, lay the slices of tomato on one side and top with a thin slice of bacon after previously frying it in a pan. Cover with the second slice of bread and cook.

CHICKEN TOASTED SANDWICH

The ingredients: 100 gr of grated Swiss cheese, 100 gr of chopped white chicken or turkey.

Dress one slice of bread with the grated cheese. Place the chopped poultry on top of the cheese, cover with more cheese, add the second slice of bread and cook.

GOAT'S CHEESE TOASTED SANDWICH

The ingredients: 100 gr of ham, 1 crottin de Chavignol goat's cheese.

Cover one slice of bread with thin slices of cheese, place a slice of ham cut to fit the shape of the bread on top, add more slices of cheese, cover with the second slice of bread and cook.

DESSERT TOASTED SANDWICH

The ingredients: a few squares of chocolate, 1 slice of pineapple.

Cover one slice of bread with the squares of dark chocolate, add a slice of pineapple, cover with the second slice of bread and cook.

WARRANTY CONDITIONS

LAGRANGE domestic appliances guarantee.

Your appliance comes with a 2-year warranty.

To enjoy an additional year of warranty free of charge, sign up to the LAGRANGE website (www.lagrange.fr).

The warranty applies to parts and labour and covers manufacturing defects.

The following are not covered by the warranty: damage due to poor use or not following the instructions and breakages due to a fall.

THIS WARRANTY ONLY APPLIES TO DOMESTIC USE AND UNDER NO CIRCUMSTANCES DOES IT COVER PROFESSIONAL OR SEMI PROFESSIONAL USE.

The retailer's obligation to offer a legal warranty in no way excludes the manufacturer's legal obligation to cover flaws or hidden defects in accordance with articles 1641 to 1649 of the Civil Code of France. In the event of a breakdown or malfunction, please contact your retailer.

In the event of a technical defect in the 8 days following your purchase, appliances will be exchanged.

After this period, they are repaired by the LAGRANGE after-sales service.

In order to benefit from the guarantee, the user must present a copy of the invoice specifying the date on which the appliance was purchased.

Duration of availability of spare parts

In accordance with article L 111-2 of the Consumer Code, we plan for spare parts to be available for a product that can be repaired for a period of 5 years following its manufacturing date.

However, this availability is only guaranteed in the country in which the product was purchased.

Shipping costs for returns

After the first year which benefits from the distributor guarantee, you only have to bear the costs of returning the product to the factory. The cost of re-shipping will be covered by us within the shortest possible time frame.

If you have any other questions about our products, you can contact us at the following address:

LAGRANGE
