WGen12000DFc

Dual Fuel Portable Generator

Gasoline: 12,000 Running Watts | 15,000 Peak Watts

Propane: 10,800 Running Watts | 13,500 Peak Watts

DO NOT RETURN THIS PRODUCT TO THE STORE

If you have questions or need assistance, please call customer service at 855-944-3571.

INTRODUCTION

TABLE OF CONTENTS

INTRODUCTION

DISCLAIMERS....2

SPECIFICATIONS....3

SAFETY

SAFETY DEFINITIONS....4

SAFETY SYMBOLS....4

SAFETY INSTRUCTIONS ....5

SAFETY LABELS AND DECALS....8

CO SENSOR....9

ACTION LABEL......9

CONTROL PANEL CO AUTO-SHUTOFF 9

COMPONENTS

GENERATOR COMPONENTS....10

CONTROL PANEL COMPONENTS....11

DATA CENTER....12

MAINTENANCE REMINDERS ....12

ASSEMBLY

UNPACKING 13

CARTON CONTENTS 13

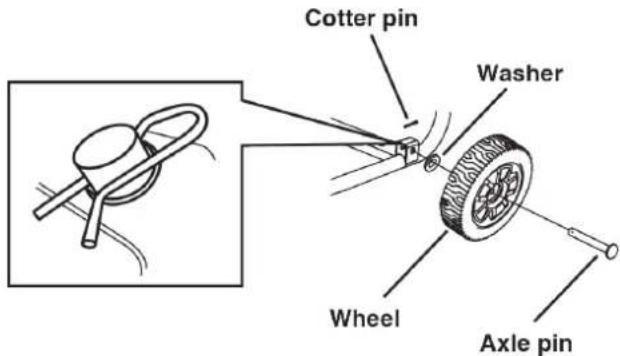

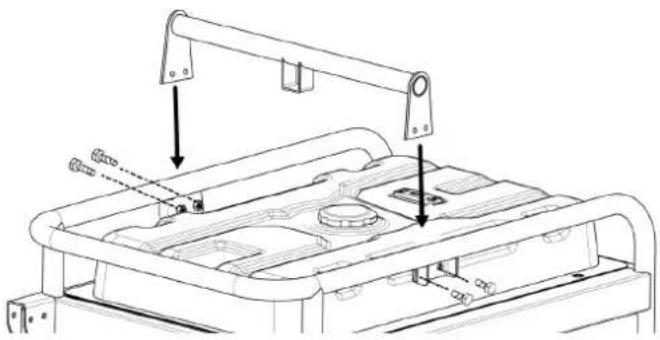

INSTALL WHEELS AND LIFTING BRACKET....13

INITIAL OIL FILL 14

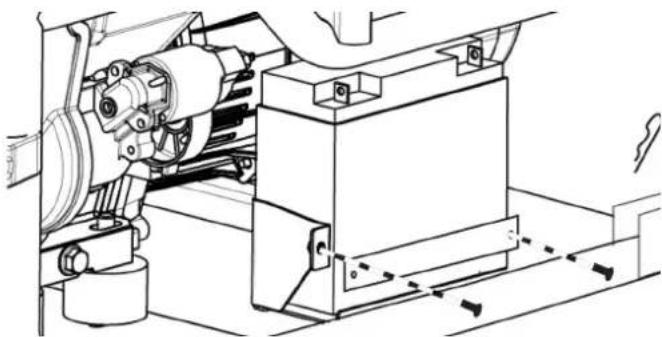

BATTERY INSTALLATION....14

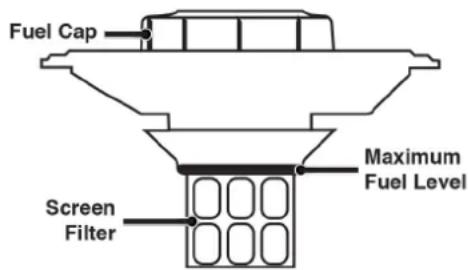

FUEL....15

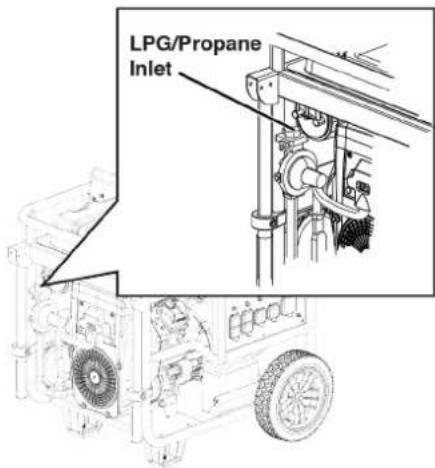

CONNECT AN LPG/PROPANE TANK....16

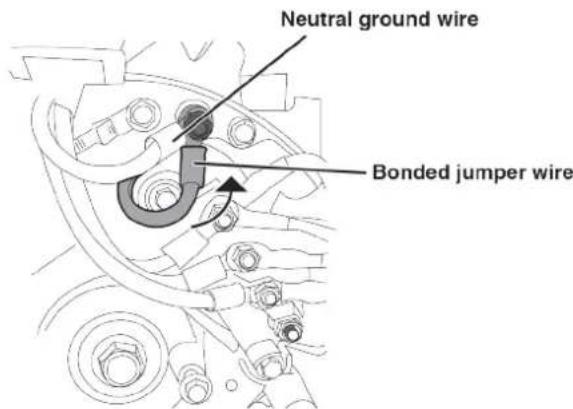

GROUNDING....16

OPERATION

GENERATOR LOCATION....18

⚠ WARNING: Operating, servicing, and maintaining this equipment can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, and wear gloves or wash your hands frequently when servicing this equipment. For more information go to www.P65warnings.ca.gov.

DISCLAIMERS

All information, illustrations, and specifications in this manual were in effect at the time of publishing. The illustrations used in this manual are intended as representative reference views only. We reserve the right

STARTING THE ENGINE: PROPANE 20

SWITCHING FUEL SOURCES....20

STOPPING THE ENGINE....21

FREQUENCY OF USE 21

AC CIRCUIT BREAKERS....21

POWER MANAGEMENT....22

EXTENSION CORDS 22

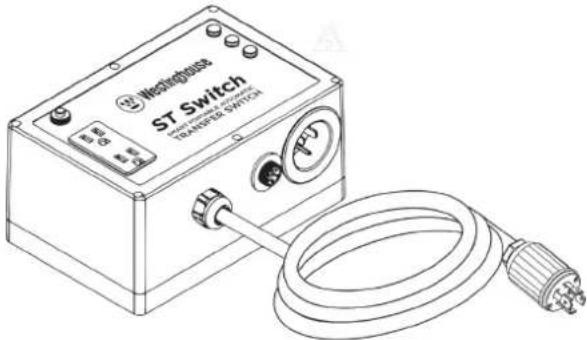

ST SWITCH....23

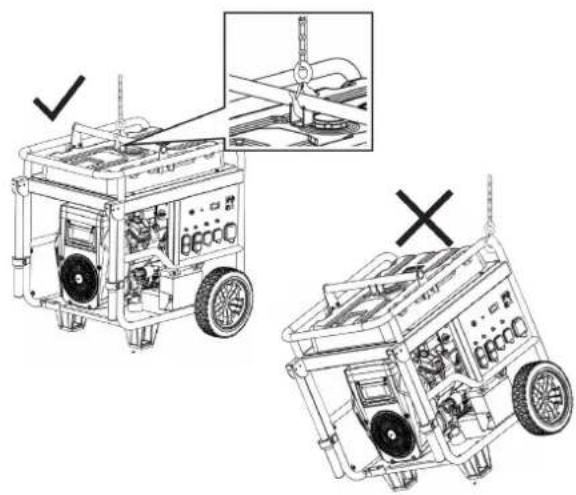

TRANSPORTING....23

MAINTENANCE

MAINTENANCE SCHEDULE 25

MAINTENANCE REPLACEMENT PARTS 25

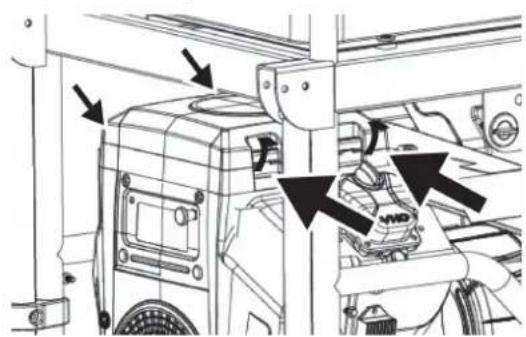

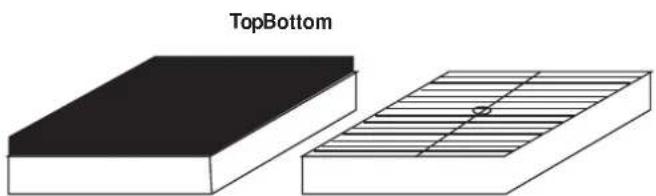

AIR FILTER MAINTENANCE....25

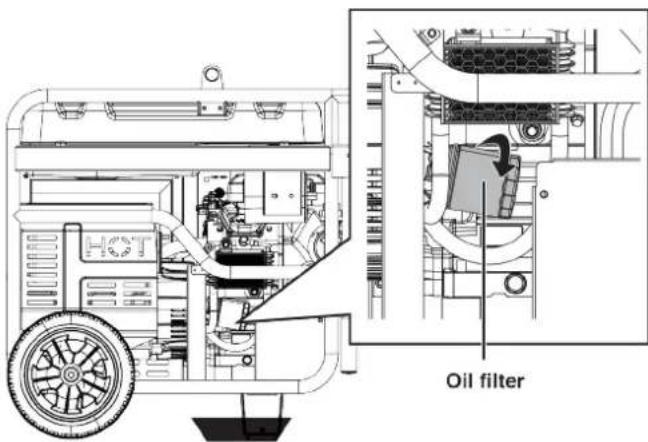

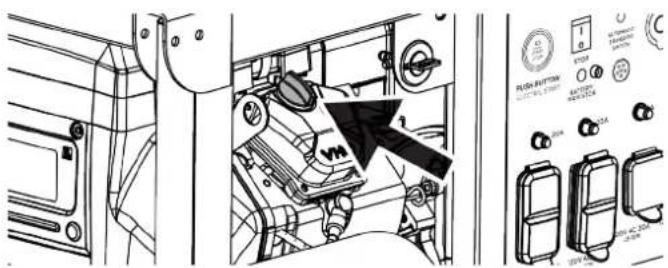

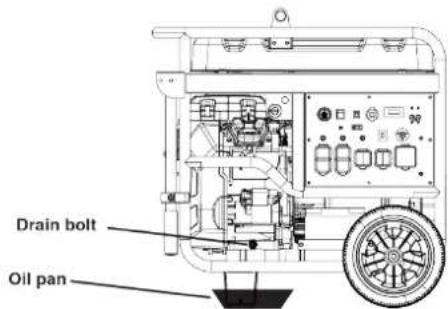

ENGINE OIL CHANGE 26

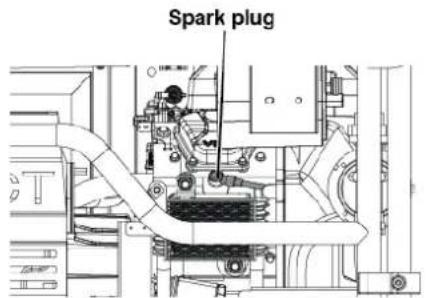

SPARK PLUG MAINTENANCE 27

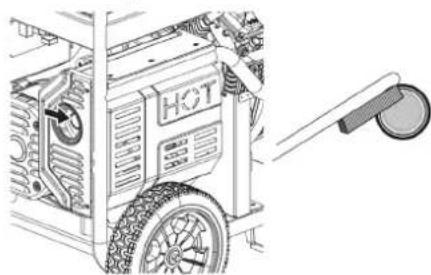

SPARK ARRESTOR SERVICE....27

FUEL FILTER 27

BATTERY MAINTENANCE....28

BATTERY REPLACEMENT....28

STORAGE....28

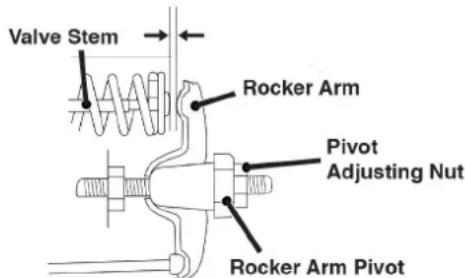

VALVE CLEARANCE 29

TROUBLESHOOTING

TROUBLESHOOTING....30

EXPLODED VIEWS AND PARTS LISTS

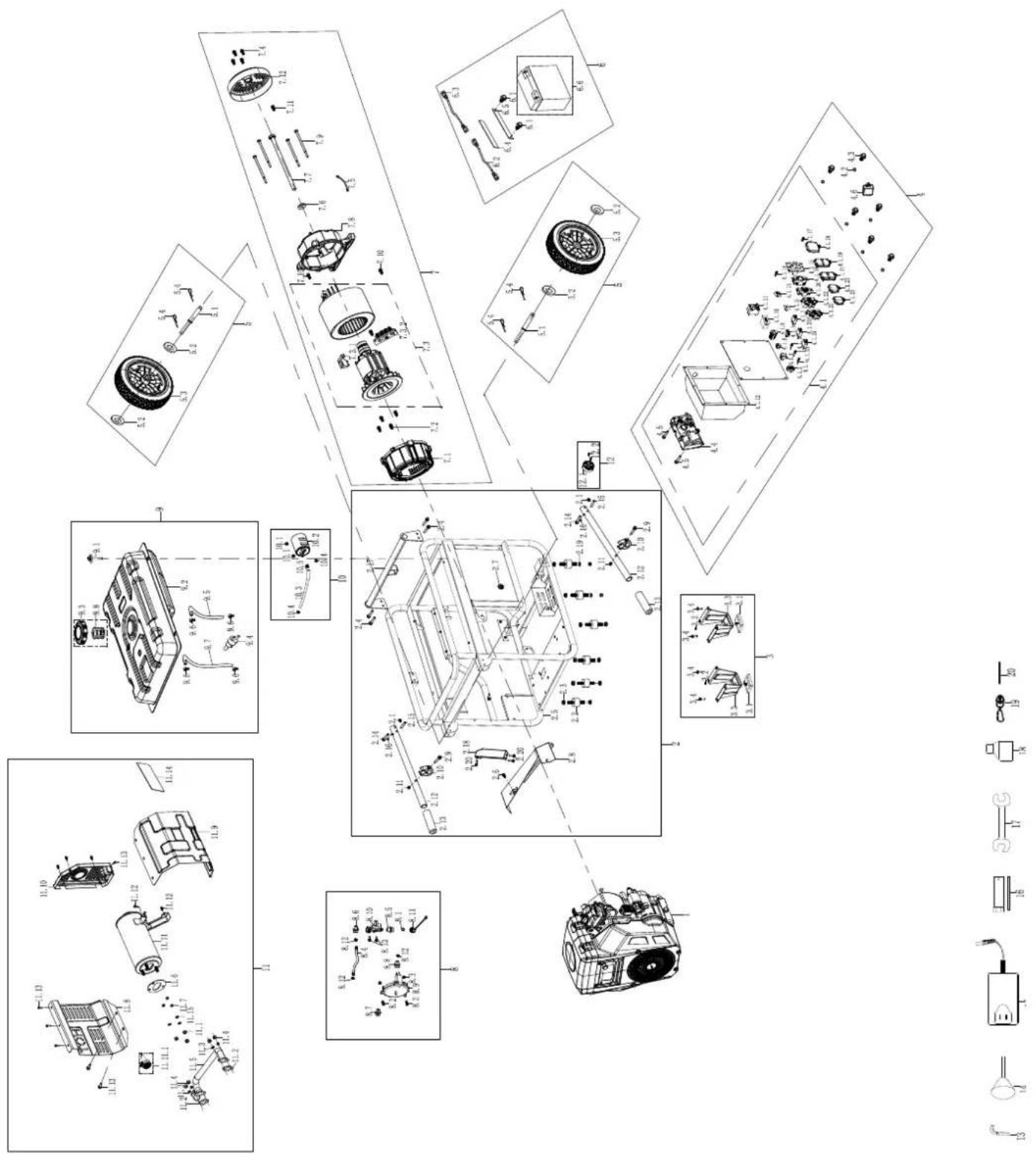

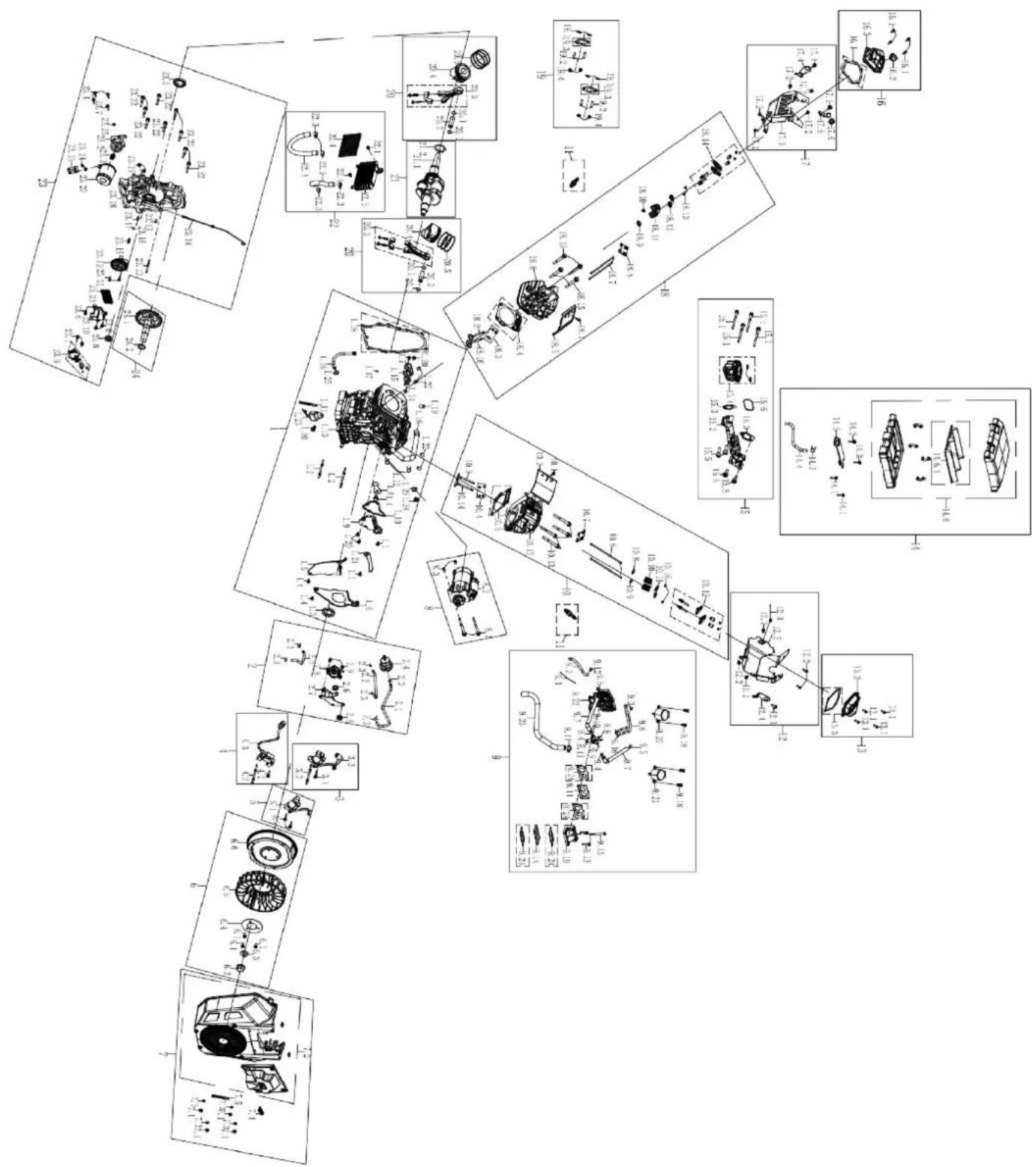

ENGINE EXPLODED VIEW....32

ENGINE PARTS LIST ....33

ENGINE PARTS LIST CONTINUED....34

GENERATOR EXPLODED VIEW 35

GENERATOR PARTS LIST....36

GENERATOR PARTS LIST CONTINUED ....37

SCHEMATICS

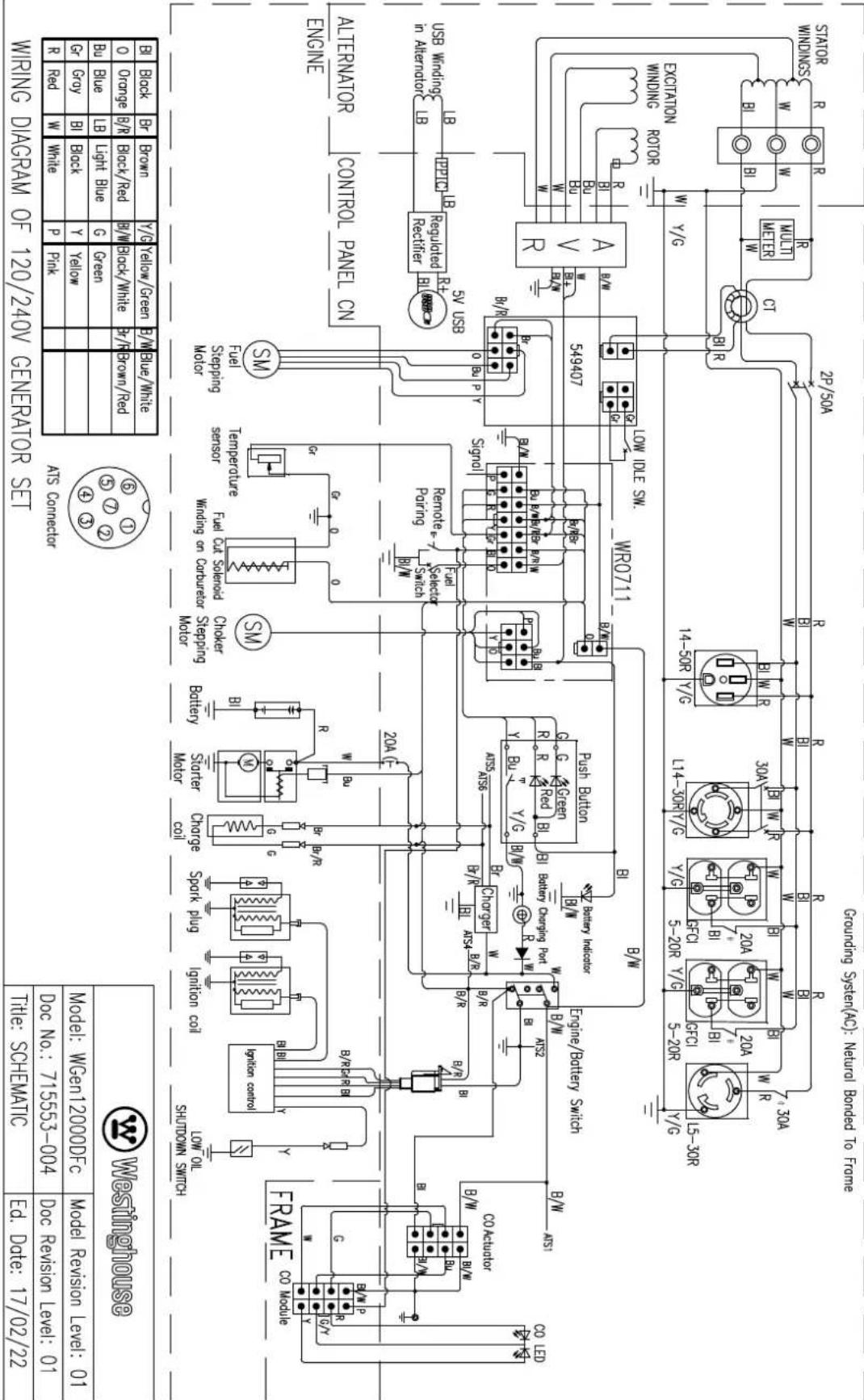

SCHEMATICS....38

ESPAÑOL....39

FRANÇAIS....71

to make any specification or design change without notice.

ALL RIGHTS RESERVED

All rights reserved. No reproduction allowed in any form without written permission from Westinghouse Outdoor Power Equipment.

DANGER

Read this manual before using or performing maintenance on this product. Failure to follow the instructions and safety precautions in this manual can result in serious injury or death.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

Specifications
Running Watts:	12,000 Gas / 10,800 LPG
Peak Watts:	15,000 Gas / 13,500 LPG
Rated Voltage:	120/240V
Rated frequency:	60 Hz @ 3600 RPM
Phase:	Single phase
Total Harmonic Distortion:	≤ 5%
Engine Displacement:	713 cc
Starting Type:	Recoil, Electric Start, Remote
Fuel Capacity:	10.5 Gallons (40 Liters)
Fuel Type:	• Unleaded gasoline 87–93 octane* • HD-5 Propane
Oil Capacity:	1.7 US Quart (1.6 Liter)

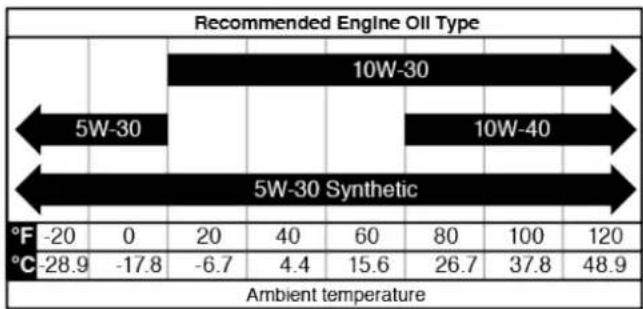

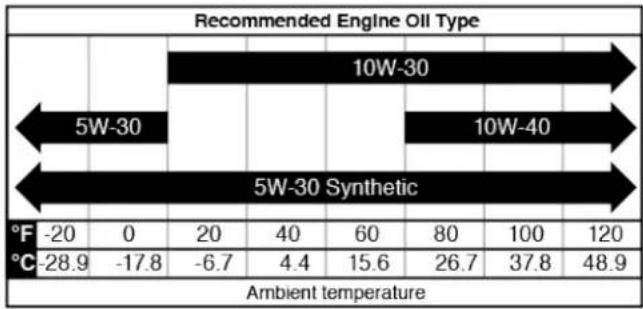

Oil Type:	SAE 10W-30
Spark Plug:	97110 (5357)
Spark Plug Gap:	0.024 – 0.032 in. (0.60 – 0.80 mm)
Valve Intake Clearance:	0.0031 – 0.0047 in. (0.08 – 0.12 mm)
Valve Exhaust Clearance:	0.0051 – 0.0067 in. (0.13 – 0.17 mm)
Battery:	511092
AC Grounding System:	Bonded to frame
Voltage Regulator:	AVR
Alternator Type:	Brushed
Maximum Ambient Temperature:	104°F (40°C)
Certifications:	• EPA • CARB

*Ethanol content of 10% or less. DO NOT use E15 or E85.

UPDATES

The latest User Manual for your Westinghouse generator can be found under our support tab. https://westinghouseoutdoorpower.com/pages/manuals

Or scan the following QR code with your smartphone camera to be directed to the link.

NOTICE

This product is designed and rated for continuous operation at ambient temperatures up to 104^ F ( 40^ C). If needed, this product can be operated at temperatures ranging from 5^ F (- 15^ C)– 122^ F ( 50^ C) for short periods. If the product is exposed to temperatures outside of this range during storage, it should be brought back within this range before operation. This product must always be operated outdoors in a well-ventilated area and far away from doors, windows, and other vents.

Maximum wattage and current are subject to and limited by such factors as fuel BTU content, ambient temperature, altitude, engine conditions, etc. Maximum power decreases about 3.5% for each 1,000 feet above sea level, and will also decrease about 1% for each 10°F (6°C) above 60°F (16°C) ambient temperature.

PRODUCT REGISTRATION

For trouble-free warranty coverage, it is important to register your Westinghouse generator.

You can register by:

• Completing and mailing the product registration card included in the carton.
• Registering your product online at: https://westinghouseoutdoorpower.com/pages/warranty-registration
• Scan the following QR code with your smartphone camera to be directed to the mobile registration link.

- Sending the following product information to:

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

For Your Records

Date of Purchase: ____

Model Number: ____

Serial Number:

Place of Purchase:

IMPORTANT: Keep your purchase receipt for trouble-free warranty coverage.

SAFETY

SAFETY DEFINITIONS

The words DANGER, WARNING, CAUTION, and NOTICE are used throughout this manual to highlight important information. Make sure that the meanings of this safety information is known to all who operate, perform maintenance on, or are near the generator.

This safety alert symbol appears with most safety statements. It means attention, be alert, your safety is involved! Please read and abide by the message that follows the safety alerts symbol.

▲ DANGER

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTICE

Indicates a situation which can cause damage to the generator, personal property, and/or the environment, or cause the equipment to operate improperly.

Note: Indicates a procedure, practice or condition that should be followed for the generator to function in the manner intended.

DANGER

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

Diagram showing two scenarios: a house with a circular no-smoking symbol and a car with a donut-shaped no-smoking symbol.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

SAFETY SYMBOLS

Follow all safety information contained in this manual and on the generator.

Symbol Description
	Safety Alert Symbol
	Electrocution Hazard
	Asphyxiation Hazard
	Burn Hazard. Do not touch hot surfaces.
	Electrical Shock Hazard
	Fire Hazard
	Maintain Safe Distance
	Lifting Hazard
	Read Manufacturer's Instructions
	Do Not Operate in Wet Conditions

SAFETY INSTRUCTIONS

CORRECT USE

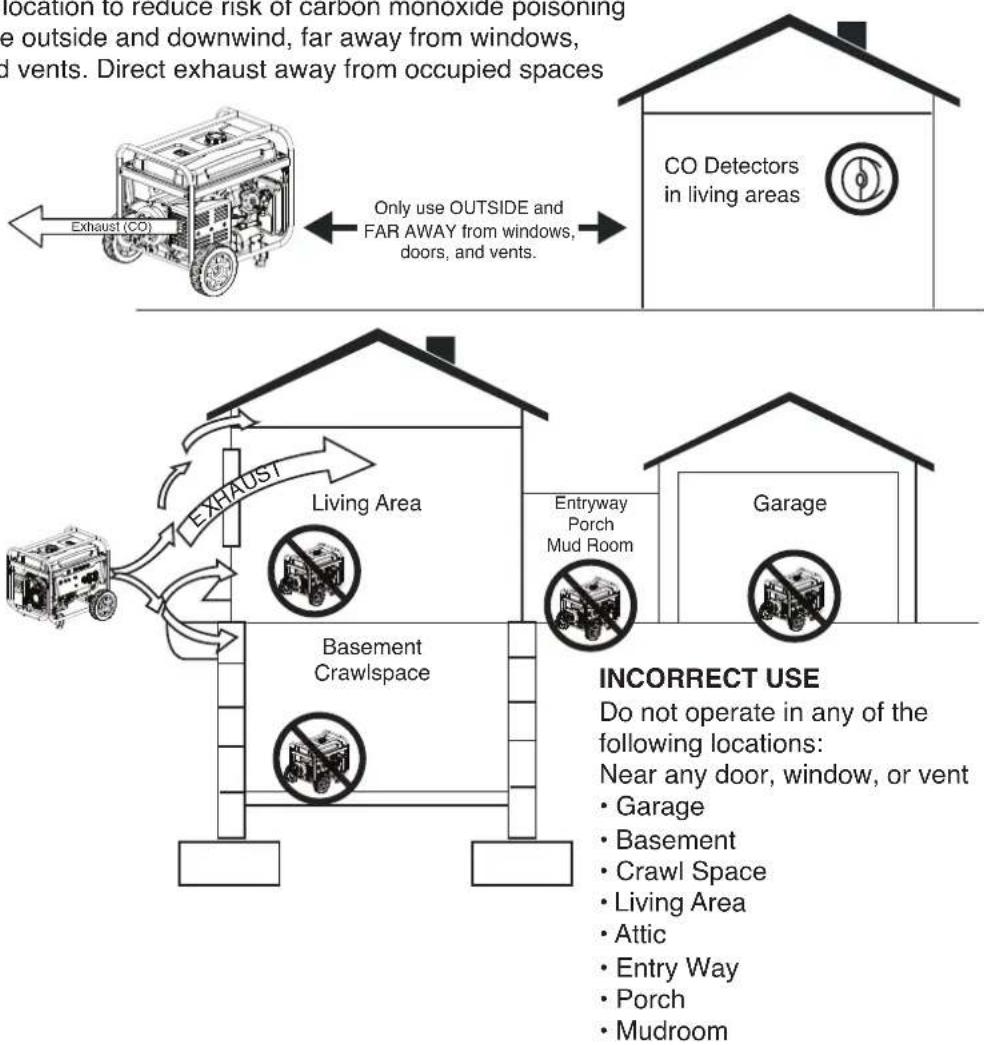

Example location to reduce risk of carbon monoxide poisoning ONLY use outside and downwind, far away from windows, doors and vents. Direct exhaust away from occupied spaces

NOTICE

Install battery-powered carbon monoxide detectors or plug-in carbon monoxide detectors with battery back-up in living areas.

DANGER

Fire and electrocution hazard. Do not connect to a building's electrical system unless the generator and transfer switch have been properly installed and the electrical output has been verified by a qualified electrician. The connection must isolate the generator power from utility power and must comply with all applicable laws and electrical codes.

▲ DANGER

Electrocution hazard. Never use the generator in a location that is wet or damp. Never expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit.

GENERAL SAFETY PRECAUTIONS

• Never use the generator to power medical support equipment.
• DO NOT operate the generator when you are tired or under the influence of drugs, alcohol, or medication.
• When this generator is used to supply a building wiring system the generator must be installed by a qualified electrician and connected to a transfer switch as a separately derived system in accordance with NFPA 70, National Electrical Code.
• Only use OUTSIDE and far away from windows, doors, and vents as recommended by the US Department of Health and Human Services Centers for Disease Control and Prevention. Your specific home and/or wind conditions may require additional distance.
• If you begin to feel sick, dizzy, or weak while using the generator, move to fresh air IMMEDIATELY. See a doctor, as you can have carbon monoxide poisoning.
• While operating and storing, keep at least five feet of clearance on all sides of the generator, including overhead. Allow the generator to cool a minimum of 30 minutes before storage. Heat created by the muffler and exhaust gases could be hot enough to cause serious burns and/or ignite combustible objects.
• DO NOT use generator with electrical cords which are worn, frayed, bare, or otherwise damaged.
• All electrical tools and appliances operated from this generator must be properly grounded by use of a third wire or be double-insulated.
• DO NOT touch the muffler or engine. They are very HOT and will cause severe burns. Do not put body parts or any flammable or combustible materials in the direct path of the exhaust.
• ALWAYS remove any tools or other service equipment used during maintenance from the generator before operating.
• Avoid skin contact with engine oil or gasoline. Wear protective clothing and equipment. Wash all exposed skin with soap and water.

FUEL SAFETY

• Store fuel in a container approved for gasoline.
• Do not smoke when filling the generator with gasoline.
• Wear eye protection while refueling.
• Never remove the fuel cap when the generator is running. Shut off the engine and allow the unit to cool at least five minutes. Remove the fuel cap slowly to release pressure, keep fuel from escaping around the cap, and to avoid the heat from the muffler igniting fuel vapors. Tighten the fuel cap securely after refueling.
• Never overfill the fuel tank. Leave room for fuel to expand. Overfilling the fuel tank can result in a sudden overflow of gasoline and result in spilled gasoline coming in contact with HOT surfaces.
• Spilled fuel can ignite. If fuel is spilled on the generator, wipe up any spills immediately. Dispose of rag properly. Allow area of spilled fuel to dry before operating the generator.
• Store any containers containing gasoline in a well-ventilated area, away from any combustibles or source of ignition.

Fire and explosion hazard. Gasoline is highly explosive and flammable and can cause severe burns or death.

• Gasoline is highly flammable and explosive.
- Gasoline can cause a fire or explosion if ignited.
- Gasoline is a skin irritant and needs to be cleaned up immediately if it comes in contact with the skin.
- Gasoline has a distinctive odor, this will help detect potential leaks quickly.
- In any petroleum gas fire, flames should not be extinguished unless by doing so the fuel supply valve can be turned OFF. This is because if a fire is extinguished and a supply of fuel is not turned OFF, then an explosion hazard could be created.
- Gasoline expands or contracts with ambient temperatures. Never fill the gasoline tank to full capacity, as gasoline needs room to expand if temperatures rise.

LIQUID PETROLEUM GAS (LPG/PROPANE)

WARNING

Fire and explosion hazard. Never use a gas container, LPG/propane connector hose, LPG/propane tank or any other fuel item that appears to be damaged.

CAUTION

Fire and explosion hazard. Only use approved LPG/propane tanks with an Overfilling Prevention Device (OPD) valve. Always keep the tank in a vertical position with the valve on top and placed at ground level on a flat surface. Do not allow tanks to be near any heat source. When transporting and storing, turn the propane tank valve to the fully closed position and disconnect the tank. Make sure to always cover the generator inlet and tank outlet with protective plastic caps.

• LPG/Propane is highly flammable and explosive.
- Flammable gas under pressure can cause a fire or explosion if ignited.
- LPG/Propane can settle in low places because it is heavier than air.
- LPG/Propane has a distinctive odor added to help detect potential leaks.
• Always keep a LPG/Propane tank in an upright position.
- When exchanging LPG/propane tanks, be sure the tank valve is the same type.
- In case of a LPG/propane fire, do not attempt to extinguish unless the fuel supply can be shut off safely.
- LPG/propane will burn the skin. Prevent skin contact at all times.
- Keep the propane tank away from the generator exhaust.
- A step down regulator is required when using LPG/propane tanks over 100 gallons. The pressure as measured at the regulator mounted to the generator must be 7" to 14" of water column.
- Large (500–1000 gallon) LPG/propane tanks will require a certified plumber to install the fuel line to the generator and the loose regulator is not used (the regulator that is attached to the fuel tank). The pressure as measured at the regulator mounted to the generator must be 7" to 14" of water column. A certified plumber must ensure that the pressure is correct or install a step down regulator if needed.

▲ WARNING

Fire and explosion hazard. If there is a strong smell of propane while operating the generator, fully close the LPG/propane tank valve immediately. Once the propane is off, use soapy water to check for leaks on the hose and connections on the tank valve and the generator. Do not smoke or light a cigarette or check for leaks using any open flame source such as a match or lighter. If a leak is found, contact a qualified technician to inspect and repair the LPG/propane system before using the generator.

When starting the generator:

• Make sure that the fuel cap, air filter, spark plug, fuel lines, and exhaust system are properly in place.
- If you spill any gasoline on the tank, allow it to fully evaporate before operating.
- Make sure the generator and LPG/propane tank are on a flat surface before operating.
- If there is a propane odor do not start the unit because there may be a potential leak. Never place a LPG/propane tank near the engine exhaust.

When transporting or servicing the generator:

• Make sure the LPG/propane tank and LPG/propane hose are not attached to the generator.
• Disconnect the spark boot to prevent accidental starting.

When storing the generator:

• Store away from sparks, open flames, pilot lights, heat, and other sources of ignition.
• Do not store gas or a LPG/propane tank near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions.

SAFETY LABELS AND DECALS

CO SENSOR

The carbon monoxide (CO) sensor monitors for the accumulation of poisonous carbon monoxide gas around the generator when the engine is running. If unsafe levels of CO gas are detected, the CO Sensor automatically shuts down the engine.

The CO Sensor will also detect the accumulation of carbon monoxide from other fuel burning sources used in the area of operation. For example, if the exhaust of fuel burning tools is pointed at a CO Sensor-equipped generator, a shut-off may be initiated due to unsafe CO levels. This is not an error. Hazardous carbon monoxide has been detected. Move and redirect any additional fuel burning sources to dissipate carbon monoxide away from personnel and occupied buildings.

Note: Remote start-equipped generators must be restarted with the START/STOP button on the control panel after an automatic shut-down occurs.

Generators are intended to be used outdoors, far from occupied buildings and the exhaust pointed away from personnel and buildings. If misused and operated in a location that results in the accumulation of CO, like in a partially enclosed area, the CO Sensor shuts off the engine. A RED indicator light will indicate the unit was shut down due to an unsafe level of CO being detected around the generator. Before approaching the generator allow the CO to dissipate from around the generator. The CO Sensor DOES NOT replace carbon monoxide alarms. Install battery-powered carbon monoxide alarm(s) in your home.

WARNING

Automatic shutoff accompanied with a flashing RED light in the CO Sensor portion of the control panel is an indication that the generator was improperly located. If you start to feel sick, dizzy, weak, or carbon monoxide detectors in your home indicate an alarm, get to fresh air immediately. Call emergency services. You may have carbon monoxide poisoning.

CONTROL PANEL CO AUTO-SHUTOFF

CARBON MONOXIDE AUTO-SHUTOFF

AUTOMATIC SHUTOFF SEE ACTION LABEL

RED

Unsafe levels of carbon monoxide accumulated around the generator. After shut-off, the RED indicator light in the CO Sensor area of the control panel will flash to provide notification that the generator was shut-off due to an accumulating of unsafe CO levels. The RED light will flash for at least five minutes after a CO shut-off.Move the generator to an open, outdoor area far away from occupied spaces with exhaust pointed away. Once relocated to a safe area and the red light is off, the generator can be restarted. Introduce fresh air and ventilate the area where the generator had shut down.

YELLOW

A CO sensor system fault occurred. When a system fault occurs, the generator is automatically shut down and the YELLOW indicator light in the CO auto-shutoff area of the control panel will flash to provide notification that a fault has occurred. The YELLOW light will flash for at least five minutes after a fault. The generator can be re-started, but may continue to shutoff. A CO sensor fault can only be diagnosed and repaired by an authorized Westinghouse service center.

ACTION LABEL

ACTION LABEL

ETIQUETA DE FUNCIONAMIENTO ÉTIQUETTE D' ACTION

AUTOMATIC SHUTOFF - YOU MUST: ETIQUETA DE FUNCIONAMIENTO: ETIQUETTE D'ACTION:

• MOVE GENERATOR TO AN OPEN, OUTDOOR AREA.

• POINT EXHAUST AWAY.

- DON'T RUN GENERATOR IN ENCLOSED AREAS (E.G. NOT IN HOUSE OR GARAGE).

• GET MEDICAL HELP IF SICK, DIZZY OR WEAK.

■ MOVER AL AIRE LIBRE

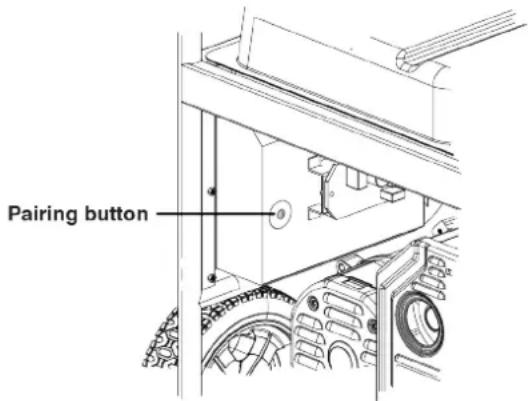

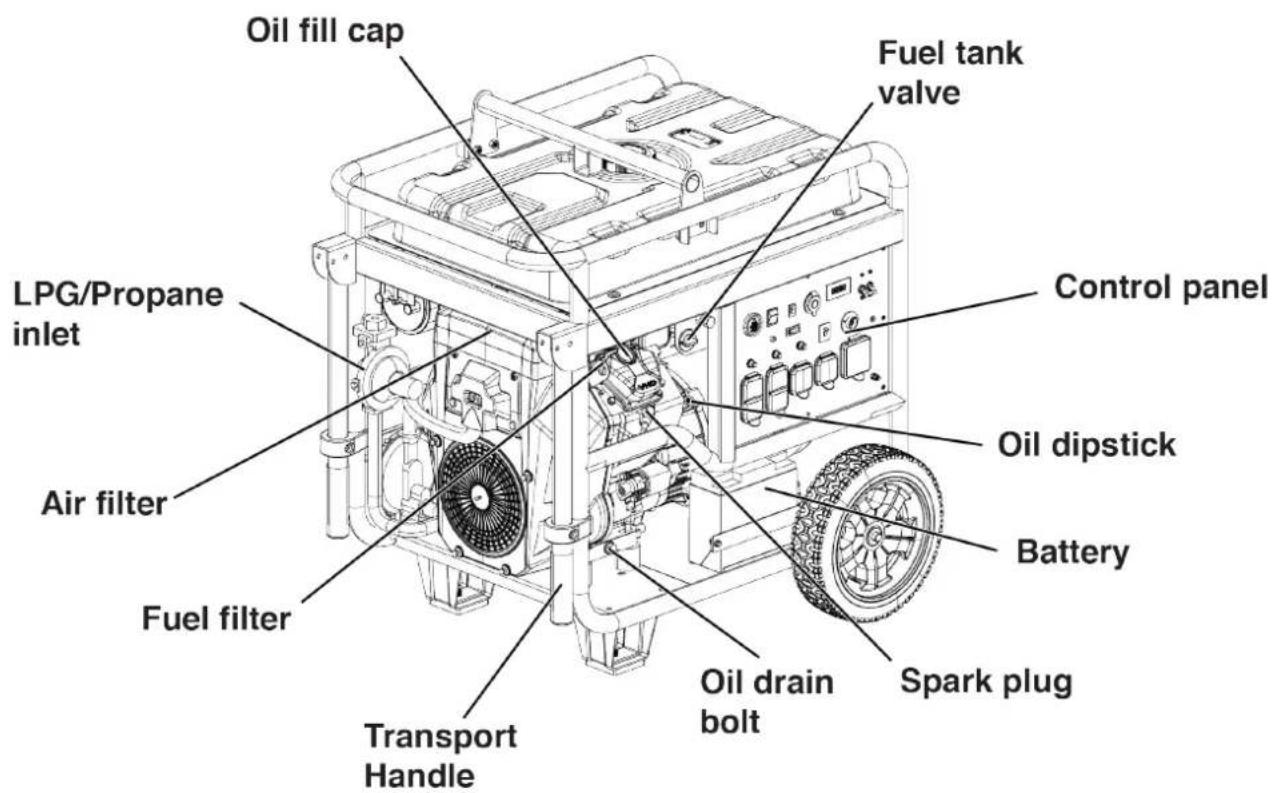

Lifting hook Fuel cap Fuel gauge Serial number Remote start pairing button Alternator cover Muffler/Spark arrestor Carbon canister Spark plug Oil filter

Oil fill cap LPG/Propane inlet Air filter Fuel filter Transport Handle Fuel tank valve Control panel Oil dipstick Battery Oil drain bolt Spark plug

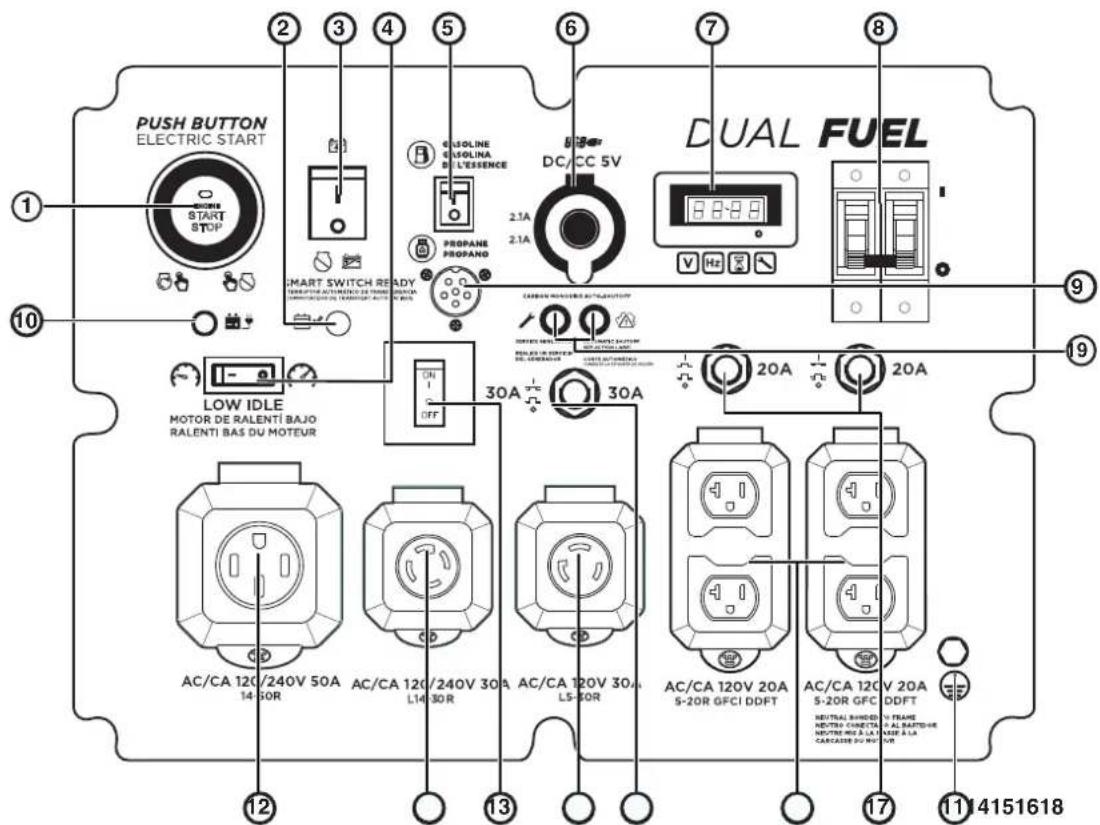

CONTROL PANEL COMPONENTS

PUSH BUTTON ELECTRIC START START STOP SMART SWITCH READY 2.1A 2.1A PROpane PROpane DC/CC 5V DUAL FUEL LOW IDLE MOTOR DE RALENTI Bajo RALENTI BAS DU MOTEUR AC/CA 120V/240V 50A 14-50R AC/CA 120V/240V 30A L14-30R AC/CA 120V 30A L5-50R AC/CA 120V 20A 5-20R GFCI DDFT AC/CA 120V 20A 5-20R GFCI DDFT NEUTRAL SHANDED V TRADE NEUTRAL CONNECTOR O AL SAPTOR NEUTRAL MIG & LA NEB & LA CARCASSIE DU NOVR 114151618

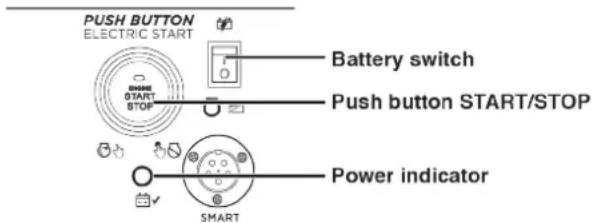

1. Push-Button START/STOP: Push once to automatically start the engine. Push again to stop the engine.

2. Battery Indicator: Indicates that power is ON. Light will remain illuminated while the unit is ON.

3. Battery Switch: Turns battery ON and OFF. Must be ON before electric or remote start.

4. Low Idle: Low Idle minimizes fuel consumption, noise, and engine wear by lowering the engine RPM during intermittent use. See LOW IDLE section for important use considerations.

5. Fuel Selector Switch: Used to select gas or propane operation.

6. USB Ports: Two-port 5V/2.1A USB outlet. Accepts Type A USB plugs.

7. Data Center: Displays voltage, frequency, total hour meter, and run/maintenance timer.

8. Main Circuit Breaker: The main circuit breaker controls total output of all outlets to protect the generator from overload or short circuit.

9. Smart Switch Outlet: Connects the Westinghouse ST Switch (sold separately) to the control panel.

10. Battery Charging Port: Used to charge the battery with the included battery charger.

11. Ground Terminal: The ground terminal is used to externally ground the generator.

12. 120/240-Volt AC, 50-Amp NEMA 14-50R Receptacle: Receptacle can supply either 120V or 240V up to 50 amps.

13. 30 Amp AC Circuit Breaker: Circuit breaker limits the current that can be delivered through the NEMA L14-30R receptacle to 30 amps.

14. 120/240-Volt AC, 30-Amp NEMA L14-30R Receptacle: Receptacle can supply either 120V or 240V up to 30 amps.

15. 30 Amp AC Circuit Breaker: Circuit breaker limits the current that can be delivered through the NEMA L5-30R receptacle to 30 amps.

16. 120-Volt AC, 30-Amp NEMA L5-30R Receptacle: Receptacle can supply a maximum of 30 Amps.

17. 20 Amp AC Circuit Breakers: Circuit breakers limits the current that can be delivered through each NEMA 5-20R receptacle to 20 Amps.

18. 120-Volt AC, 20-Amp NEMA 5-20R GFCI Receptacles: Each receptacle is capable of carrying a maximum of 20 amps on a single receptacle or a combination of both receptacles.

19. CO Sensor indicator lights: The CO Sensor monitors for the accumulation of poisonous carbon monoxide gas. If increasing levels of CO gas are detected, the CO Sensor automatically shuts down the engine.

DATA CENTER

Use the Mode button on the Data Center to switch between displays.

DATA CENTER

Voltage:
Displays current voltage output.

Frequency (Hz):
Displays power output frequency in Hertz.

Lifetime Hours:
Displays the lifetime run hours.

Run Time/Maintenance:
Displays current run time. Resets to zero when shut down. Maintenance reminder displayed when required.

Diagram of a digital display with control buttons and indicator lights labeled V, Hz, and a tool icon

Push the Mode button to cycle through the data display modes.
Mode Button

Maintenance reminder codes will be shown on the Data Display based on unit lifetime hours. The maintenance codes will be displayed until the unit is turned off. Refer to the Maintenance section for specific procedures.

Maintenance Code Required Maintenance
P25 Change	engine oil
P50 Change	engine oil, clean air filter
P100 Change	engine oil, clean air filter, replace fuel filter

ASSEMBLY

This unit ships fully assembled from our factory without oil in the engine. It must be properly serviced with fuel and oil before operation.

If you have any questions regarding preparing your generator for initial start, contact our service team at [e-mail] or call 1-855-944-3571.

UNPACKING

▲ CAUTION

Weight hazard. Always have assistance when lifting the generator.

1. Place shipping carton on a solid, flat surface and carefully open the carton.
2. Remove and save the carton contents.
3. Remove and discard the packing tray.
4. Unfold the top of the plastic bag enclosing the generator.
5. Carefully cut the vertical corners of the carton to access the generator.
6. Recycle or dispose of the packaging materials properly.

CARTON CONTENTS

• Generator
• User manual
• Quick Start Guide/Maintenance Schedule
  • LPG/propane hose with regulator
• Remote start key fob
  • 1.7 US Quart (1.6 Liter) bottle of SAE 10W-30 Oil
• Battery charger
• Spark plug socket wrench
• Oil Funnel
• Assembly wrench
  • Wheel and lifting hook components

Item Quantity

• Lifting hook 1
• Flange bolt, M8 4
• Wheel 2
• Axle pin 2
• Washer 4
• Cotter pin 4

If any parts are missing, contact our service team at [e-mail] or call 1-855-944-3571.

INSTALL WHEELS AND LIFTING BRACKET

NOTICE

Assembling the generator will require lifting the unit on one side. Install the wheels before adding fuel or oil.

▲ CAUTION

Lifting hazard. Use two people when installing the wheels. Refer to LIFTING HOOK in the OPERATION section.

1. Place generator on a flat surface.
2. Align the lifting hook bracket with the mounting brackets on the top of the fuel tank. Secure with four M8 flange bolts.

Technical line drawing of a mechanical assembly with mounting bracket and internal components (no text or symbols)

1. Use the Lifting Hook to raise the unit enough to install the wheels as shown.

Cotter pin Washer Wheel Axle pin

Note: The wheels are only intended for hand transport. The wheels are not suitable for towing the generator either on or off-road.

INITIAL OIL FILL

NOTICE

THIS GENERATOR HAS BEEN SHIPPED WITHOUT OIL. Do not attempt to crank or start engine before it has been properly serviced with recommended oil. Failure to add engine oil before starting will result in serious engine damage.

NOTICE

Use of 2-stroke/cycle oil or other unapproved oil types can cause severe engine damage that is not covered under warranty.

The included, recommended oil type for typical use is 10W-30 engine oil. If running the generator in extreme temperatures, refer to the following chart.

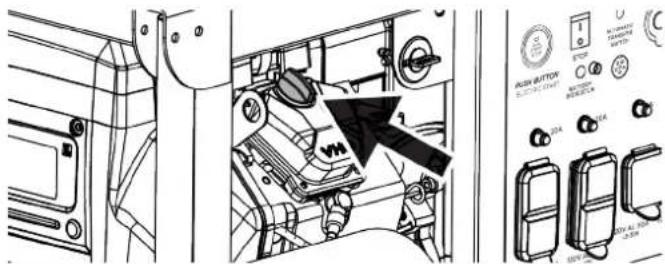

1. On a level surface, remove the oil fill cap.

Technical diagram of a vehicle air intake system with labeled components and directional arrow indicating flow or movement.

1. Using the supplied funnel and oil, add the oil into the engine.

2. Replace the oil fill cap and tighten securely.

BATTERY INSTALLATION

CAUTION

Battery posts, terminals contain lead and lead compounds. Wash hands after handling.

WARNING

The battery gives off explosive hydrogen gas during normal operation. A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you. Wear protective clothing and a face shield, or have a skilled technician perform battery maintenance.

WARNING

Burn hazard. The battery contains sulfuric acid (electrolyte) which is highly corrosive and poisonous. Wear protective clothing and eye protection when working near the battery. Keep children away from the battery.

▲ WARNING

NEVER smoke or work near sparks or other sources of ignition. NEVER touch both battery terminals at the same time with your hand or any non-insulated tools. If battery acid contacts skin or clothing, flush immediately with water and neutralize with baking soda.

The battery shipped with the generator has been fully charged. A battery may lose some charge when not in use. See the BATTERY MAINTENANCE section for battery charging procedure.

Note: Once started, the generator will charge the battery after 30–60 minutes of use.

1. Remove the two battery plate bolts and battery plate. Tilt the battery forward and remove.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Connect the positive (+) battery cable (red boot) to the positive (+) battery post. Secure the boot over the battery post.

Diagram of a battery with positive terminal labels and connection points, showing internal components and polarity indicators.

1. Connect the negative (-) cable (black boot) to the negative (-) battery post. Secure the boot over the battery post.

2. Install the battery in the battery tray. Install the battery plate and bolts. Tighten the bolts securely.

FUEL

WARNING

Fire and explosion hazard. Never use a gasoline container, gasoline tank, propane connector hose, propane tanks, or any other fuel item that is broken, cut, torn or damaged.

DANGER

Fire and explosion hazard. Do not overfill fuel tank. Fill only to the red fill ring located in the in-tank fuel screen filter. Overfilling may cause fuel to spill onto engine causing a fire or explosion hazard.

DANGER

Fire and explosion hazard. Never refuel the generator while the engine is running. Always turn the engine off and allow the generator to cool for two minutes before refueling.

NOTICE

Do not use E15 or E85 fuel in this product. Engine or equipment damage caused by stale fuel or the use of unapproved fuels (such as E15 or E85 ethanol blends) is not covered by warranty. Only use unleaded gasoline containing up to 10% ethanol.

FUEL REQUIREMENTS

• CLEAN, FRESH, unleaded gasoline, 87–93 octane.
• Up to 10% ethanol (gasohol) is acceptable (where available; non-ethanol fuel is recommended).
  • DO NOT use E85 or E15.
  • DO NOT use a gas oil mix.
• DO NOT modify the engine to run on alternate fuels.
  • DO NOT fuel indoors.
• DO NOT create a spark or flame while fueling.

USING FUEL STABILIZER

Adding a fuel stabilizer (not included) extends the usable life of fuel and helps prevent deposits from forming that can clog the fuel system. Follow the manufacturer's instructions for use.

Always mix the correct amount of fuel stabilizer to gasoline in an approved gasoline container before fueling the generator. Run the generator for five minutes to allow the stabilizer to treat the entire fuel system.

FILLING THE FUEL TANK

1. Turn the generator OFF and allow to cool for a minimum of two minutes before fueling.
2. Place the generator on level ground in a well ventilated area.
3. Clean area around fuel cap and remove the cap slowly.

NOTICE

Only fill the tank from an approved gasoline container. Make sure the gasoline container is internally clean and in good condition to prevent fuel system contamination.

1. Slowly add the recommended fuel. Do not overfill. Fill only to the red maximum fill ring on the fuel screen filter visible in the filler neck.

Fuel Cap Screen Filter Maximum Fuel Level

1. Install the fuel cap.

NOTICE

Fuel can damage paint and plastic. Use caution when filling the fuel tank. Damage caused by spilled fuel is not covered under warranty.

NOTICE

Clean the fuel screen filter of debris before and after each fueling. Remove the fuel screen filter by slightly compressing it while removing it from the fuel tank.

CONNECT AN LPG/PROPANE TANK

NOTICE

• The LPG/propane tank can be of any capacity but the tank must conform to the standard as listed in Fuel Safety section.
  • Propane tanks that use liquid withdrawal system can not be used on these models.
• Verify the re-qualification date on the tank has not expired.
• Do not use included LPG/propane hose for any other appliances.

NOTICE

• All new tanks must be purged of air and moisture prior to filling. Used tanks that have not been plugged or kept closed must also be purged. The purging process should be done by a propane supplier (Tanks from an exchange supplier should have been purged and filled properly).
• Always position the tank so the connection between the valve and the gas inlet will not cause sharp bends or kinks in the hose.

WARNING

Explosion hazard. Do not start generator if you smell LPG. Always fully close the propane tank valve and disconnect the LPG/propane hose from the generator when not in use.

1. Turn the generator OFF and place on a flat surface in a well ventilated area.
2. Verify that the propane tank valve is in the fully closed position.
3. Remove the cover on the generator propane inlet valve.
4. Use your fingers to hand thread the LPG/propane hose (included) to the propane inlet on the generator.

IMPORTANT: DO NOT use thread seal tape or any other type of sealant to seal the LPG/propane hose connection.

1. Tighten the LPG/propane hose connector to the generator with a 19 mm or adjustable wrench. DO NOT over-tighten.

Torque: 5-10 lb-ft.

LPG/Propane Inlet

1. Remove the safety plug or cap from the propane tank valve and attach the other end of the hose to the LPG/propane connector on the tank. Hand tighten.
2. Turn the propane tank valve to the fully open position. Check all connections for leaks by wetting the fittings with a solution of soap and water. Bubbles which appear or bubbles which grow indicate that a leak exists. If a leak exists at a fitting, turn the propane tank valve to the fully closed position and tighten the fitting. Open the propane tank valve and recheck the fitting with the soap and water solution. If the leak continues or if the leak is not at a fitting then do not use the generator and contact customer service.

IMPORTANT: Keep the propane tank valve in the fully closed position unless in use.

GROUNDING

▲ WARNING

Shock hazard. Failure to properly ground the generator can result in electric shock.

NOTICE

Only use grounded extension cords, tools, and appliances, or double-insulated tools and appliances.

The generator neutral is bonded to the frame. There is a permanent conductor between the generator (stator wire) and the frame. If this generator will be used only with cord and plug equipment connected to the receptacles mounted on the generator, National Electric Code does not require that the unit be grounded. However, other methods of using the generator may require grounding to reduce the risk of shock or electrocution.

Before using the ground terminal, consult a qualified electrician, electrical inspector, or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator.

DISCONNECTING THE BONDED NEUTRAL

Removing the bonded neutral disables the GFCI protection from the 5-20R receptacles. The bonded neutral should only be removed under specific circumstances. Consult a qualified electrician to determine if your situation requires disconnecting the bonded neutral.

1. Remove the alternator cover.
2. Remove the bonded jumper wire and reinstall the nut.

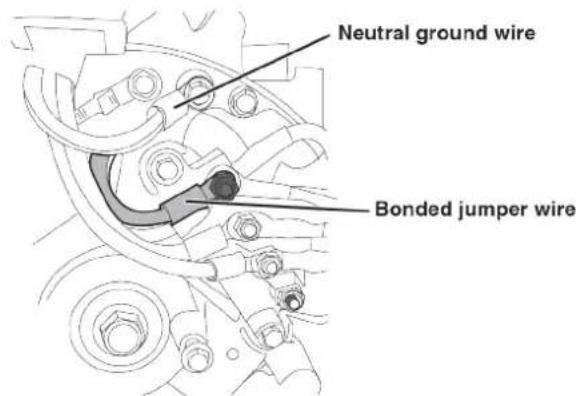

Neutral ground wire Bonded jumper wire

1. Remove the nut securing the neutral ground wire and attach the bonded jumper wire. Reinstall the nut.

Neutral ground wire Bonded jumper wire

1. Reinstall the alternator cover.

IMPORTANT: Apply a new "NEUTRAL UNBONDED" Label over the "NEUTRAL BONDED TO FRAME" label on the front of the control panel.

OPERATION

GENERATOR LOCATION

Read and understand all safety information before starting the generator.

DANGER

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

Diagram showing two scenarios: one with a car and a circle containing a person, the other with a car and a double circle containing a person.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

NEVER operate the generator inside any building, including garages, basements, crawlspaces, sheds, enclosure, or compartment, including the generator compartment of a recreational vehicle.

▲ DANGER

Electrocution hazard. Never use the generator in a location that is wet or damp. Never expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit. Using a generator or electrical appliance in wet conditions, such as rain or snow, or near a pool or sprinkler system, or when your hands are wet, could result in electrocution

WARNING

Fire hazard. Only operate the generator on a solid, level surface. Operating the generator on a surface with loose material such as sand or grass clippings can cause debris to be ingested by the generator that could block cooling vents or the air intake system. Allow the generator to cool for 30 minutes before transport or storage.

The generator should be on a flat, level surface at all times (Even while not in operation). The generator must have at least 5 ft. (1.5 m) of clearance from all combustible material.

Do not operate the generator in the back of a SUV, camper, trailer, truck bed (regular, flat, or otherwise), under stairs, next to walls or buildings, or in any other location that will not allow for adequate cooling of the generator and/or the muffler. DO NOT contain generators during operation.

▲ DANGER

Asphyxiation hazard. Place the generator in a well-ventilated area. DO NOT place the generator near vents or intakes where exhaust fumes could be drawn into occupied or confined spaces. Carefully consider wind and air currents when positioning the generator.

Engine power is reduced the higher you operate above sea level. Output will be reduced approximately 3.5% for every 1000 feet of increased altitude from sea level.

High altitude adjustment is required for operation at altitudes over 2,000 ft. (762 m). Operation without this adjustment will cause decreased performance, increased fuel consumption, and increased emissions.

NOTICE

Do not operate the generator at altitudes below 2,000 ft. (762 m) with the high altitude kit installed. Engine damage may occur.

High Altitude Carburetor Kit Part# 518904

REMOTE START

WARNING

Verify that the area around the generator is clear before remote starting the generator.

The remote start key fob included with the generator should be attached to the recoil handle or control panel. If your unit was shipped without a key fob, contact Westinghouse customer service.

The generator can be started remotely from up to 99 feet (30 meter) using the remote start key fob.

Note: As the batteries in the remote start key fob drain, operational distance will decrease.

PAIRING THE REMOTE START

Remote replacement batteries: (2) CR2016

If the remote start key fob is replaced or needs re-paired to the generator, follow this procedure.

1. Turn the generator battery switch to the ON position. The power indicator light will illuminate.

PUSH BUTTON ELECTRIC START BATTERY SWITCH BONE START STOP Push button START/STOP Power indicator SMART

1. Push and hold the red Pairing button on the back of the control panel until the START/STOP button illuminates.

Pairing button

1. Push and hold the STOP button on the key fob until the START/STOP button illumination turns OFF. Release the button. The START/STOP button will illuminate after the button is released.

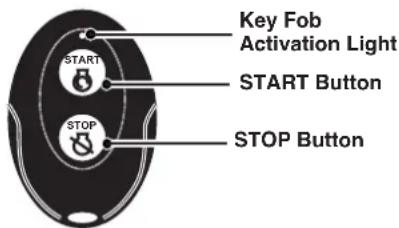

Key Fob Activation Light START Button STOP Button

1. Push and hold the START button on the key fob until the START/STOP button illumination turns OFF. Release the button. The START/STOP button will illuminate after the button is released.
2. Push the Pairing button on the side of the control panel until the START/STOP button illumination turns OFF. Release the button.
3. Turn the generator battery switch to the OFF position. The remote is now paired.

FUEL SELECTOR SWITCH

Position the fuel selector switch on the front control panel to the desired fuel choice.

GASOLINE GASOLINA DE L'ESSENCE PROpane PROPANO

Push the fuel selector switch fully upward for gasoline operation.

Push the fuel selector switch fully downward for propane operation.

BREAK-IN PERIOD

For proper break-in, do not exceed 50% of the rated running watts (6000 watts) during the first five hours of operation.

Vary the load occasionally to allow stator windings to heat and cool and help seat the piston rings.

LOW IDLE

NOTICE

Always start the generator with Low Idle OFF. Allow the engine speed to stabilize before switching Low Idle ON.

NOTICE

Frequency output of the generator is dependent on engine speed. DO NOT use Low Idle when powering sensitive electronics or large surge loads, such as an air conditioner, electric pump, refrigerator, or when connected to a home transfer switch.

Low Idle minimizes fuel consumption, noise, and engine wear by lowering the engine RPM to idle (2400 RPM) when electrical loads have been turned off and automatically returns to rated speed when loads are turned back on.

Turn Low Idle ON when powering intermittent, non-electronic loads, such as power tools at a construction site.

BEFORE STARTING THE GENERATOR

Verify that:

• The generator is placed in an safe, appropriate location.
• The generator is on a dry, flat, and level surface.
  • The engine is filled with oil.
• All loads are disconnected.

▲ DANGER

Fire and explosion hazard. DO NOT move or tip the generator during operation.

STARTING THE ENGINE: GASOLINE

During Push-Button or Remote Start the engine will automatically set the choke and begin the start sequence. If the engine fails to start, the generator will attempt to start the engine two more times. The battery switch can be turned off at any time during the automatic start sequence to abort the engine start attempt.

If the cranking speed drops after each unsuccessful attempt, then the battery may not be adequately charged. See BATTERY MAINTENANCE section.

1. Verify that fuel is in the gas tank.

2. Turn the fuel selector switch to gasoline operation.

3. Turn the fuel tank valve to the ON position.

FUEL VALVE VÁLVULA DE GASOLINA SOUPAPE DE CARBURANT

1. Push the battery switch to the ON position.
2. Choose the starting method:

a. Remote Start: Push and hold the START button on the remote start key fob for one second.

Note: Remote start-equipped generators must be restarted with the START/STOP switch on the control panel after an automatic shut-down occurs.

b. Push-Button Start: Push and hold the engine START/STOP button for two seconds.

STARTING THE ENGINE: PROPANE

DANGER

Fire and explosion hazard. Always turn the propane tank valve to the fully closed position if not operating the generator on propane.

1. Make sure the LPG/propane hose is correctly connected to the generator and propane tank.
2. Turn the fuel selector switch to propane operation.
3. Fully open the valve on the propane tank.
4. Push the battery switch to the ON position.
5. Choose the starting method:

a. Remote Start: Push and hold the START button on the remote start key fob for one second.
b. Push-Button Start: Push and hold the engine START/STOP button for two seconds.

SWITCHING FUEL SOURCES

DANGER

Fire and explosion hazard. DO NOT add gasoline to the fuel tank or connect the LPG/propane hose to the generator while the generator is in operation.

The fuel source can be switched while the engine is running if a propane tank is connected to the generator BEFORE operation.

Note: Switching fuel sources while over 50% load capacity may cause the engine to stop. If the engine stops when switching fuel sources, disconnect all loads then restart the unit on the fuel source of choice.

GASOLINE TO PROPANE

IMPORTANT: Load capacity is reduced when running on propane. Make sure the generator can supply enough (running) and surge (starting) watts for the items you are powering before switching to propane.

1. Fully open the valve on the propane tank.
2. Turn the fuel selector switch to propane operation.
3. Turn the fuel tank valve to the OFF position.

PROPANE TO GASOLINE

1. Turn the fuel tank valve to the ON position.
2. Turn the fuel selector switch to gasoline operation.
3. Turn the propane tank valve to the fully closed position.

Note: When switching to propane operation the engine may run rough for a few seconds while it purges gasoline in the carburetor.

STOPPING THE ENGINE

1. Turn off and unplug all connected electrical loads.
   IMPORTANT: Never start or stop the generator with electrical devices connected.
2. Let the generator run with no load for several minutes to stabilize internal temperatures of the engine.
3. Push and hold the START/STOP button for one second or push STOP on the remote start key fob for one second.
   Note: Alternately, if the generator is used infrequently, turn the fuel tank valve to the OFF position to limit the residual fuel remaining in the system. The engine will stop when fuel in the carburetor and fuel line is exhausted.
4. Push the battery switch to the OFF position.
5. If operating on propane, turn the propane tank valve to the fully closed position.

FREQUENCY OF USE

If the generator will be used on an infrequent or intermittent basis (more than one month before next use), refer to the Battery Maintenance and Storage sections of this manual for information regarding battery charging and fuel deterioration.

AC CIRCUIT BREAKERS

The circuit breakers will automatically switch OFF if there is a short circuit or a significant overload of the generator at each receptacle.

If an AC circuit breaker switches OFF automatically, check that the appliance is working correctly and it does not exceed the rated load capacity of the circuit before resetting the AC circuit breaker ON.

The main circuit breaker controls total output of all outlets to protect the generator from overload or short circuit.

Receptacle Circuit Breakers

ON OFF ← Push to Reset

Main Circuit Breaker

GENERATOR CAPACITY

NOTICE

Do not overload the generator's capacity. Exceeding the generator's wattage/amperage capacity can damage the generator and/or electrical devices connected to it.

Make sure the generator can supply enough continuous (running) and surge (starting) watts for the items you will power at the same time.

The total power requirements (Volts x Amps = Watts) of all appliances connected must be considered. Appliance and power tool manufacturers usually list rating information near the model or serial number.

To determine power requirements:

1. Select the items you will power at the same time.
2. Total the continuous (running) watts of these items. This is the amount of power the generator must produce to keep the items running. See the wattage reference chart on the next page.
3. Estimate how many surge (starting) watts you will need. Surge wattage is the short burst of power needed to start electric motor-driven tools or appliances such as a circular saw or refrigerator. Because not all motors start at the same time, total surge watts can be estimated by adding only the item(s) with the highest additional surge watts to the total rated watts from step 2.

Example:

Tool or Appliance	Running Watts*	Starting Watts*
RV Air Conditioner (11,000 BTU) 1010 1600
TV (Tube Type) 300 0
RV Refrigerator 180 600
Radio 200 0
Light (75 Watts) 300 0
Coffee Maker 600 0
	2590 Total	1600
	Running	Highest
	Watts*	Starting Watts*

Total Running Watts 2590

Highest Starting Watts + 1600

Total Starting Watts Needed 4190

*Wattages listed are approximate. Verify actual wattage.

POWER MANAGEMENT

To prolong the life of the generator and attached devices, use care when adding electrical loads to the generator. There should be nothing connected to the generator outlets before starting the engine. The correct and safe way to manage generator power is to sequentially add loads as follows:

1. With nothing connected to the generator, start the engine as described in this manual.
2. Plug in and turn on the first load, preferably the largest load you have.
3. Permit the generator output to stabilize (engine runs smoothly and attached device operates properly).
4. Plug in and turn on the next load.
5. Again, permit the generator to stabilize.
6. Repeat steps 4 and 5 for each additional load.

Wattage Reference

Tool or Appliance	Estimated Running Watts*	Estimated Starting Watts*
Incandescent Lights(4 Quantity x 75 Watts)	300 0
TV (Tube Type) 300 0
Sump Pump (1/3 hp) 800 1300
Refrigerator or Freezer 700 2200
Well Pump (1/3 hp) 1000 2000
Furnace (1/2 hp) 800 2350
Radio 200 0
Drill (3/8", 4 amps) 440 600
Circular Saw(Heavy Duty, 7-1/4")	1400 2300
Miter Saw (10")	1800 1800
Table Saw (10")	2000 2000

*Wattages listed are approximate. Verify actual wattage.

EXTENSION CORDS

WARNING

Asphyxiation hazard. Extension cords running directly into the home increase the risk of carbon monoxide poisoning through any openings. If an extension cord running directly into your home is used to power indoor items, there is a risk of carbon monoxide poisoning to people inside the home. Always use battery-powered carbon monoxide detector (s) that meet current UL 2034 safety standards when running the generator. Regularly check the detector (s) battery.

WARNING

Asphyxiation hazard. When operating the generator with extension cords, make sure the generator is located in an open, outdoor area, far away from occupied spaces with exhaust pointed away.

WARNING

Fire and electrocution hazard. Never use worn or damaged extension cords. Damaged or overloaded extension cords could overheat, arc, and burn resulting in death or serious injury.

Before connecting an AC appliance or power cord to the generator:

• Use grounded 3-prong extension cords, tools, and appliances, or double-insulated tools and appliances.
• Make sure the tool or appliance is in good working order. Faulty appliances or power cords can create a potential for electric shock.
• Make sure the electrical rating of the tool or appliance does not exceed the rated power of the generator or the receptacle being used.

EXTENSION CORD SIZING

Only use grounded 3-prong extension cords marked for outdoor use that are rated for the electrical load.

Total Amperage	Minimum Gauge, Outdoor Rated
	Up to 50 FT (15 M)	Up to 100 FT (30 M)
Up to 10A
Up to 15A
Up to 20A
Up to 30A
Up to 35A

ST SWITCH

The generator is compatible with the Westinghouse ST Switch, purchased separately. When utility power is on it will provide power (up to 120V @ 20A) to the appliances plugged into the 5-20R receptacle on the ST Switch. When utility power is lost the ST Switch automatically transfers input power from utility to generator power. When utility power is restored, the ST Switch transfers input power back to utility. Visit www.westinghouseoutdoorpower.com for more information.

Westinghouse ST Switch 100kW/250Hz SWITCH

TRANSPORTING

CAUTION

Weight hazard. Always have assistance when lifting the generator.

• Allow the generator to cool a minimum of 30 minutes before transporting.
• If operating on propane, turn the propane tank valve to the fully closed position.
• Disconnect the LPG/propane hose from the generator and propane tank.
• Replace all protective covers on the generator control panel.
• Keep the unit level during transport to minimize the possibility of fuel leakage or, if possible, drain the fuel or run the engine until the fuel tank is empty before transport.
• The generator wheels are only intended for hand transport. The wheels are not suitable for towing the generator either on or off-road.
• Use the extendable handle for hand transport. Only use the handle while the generator is OFF, stationary, and resting on a horizontal surface. Do not use the handle to lift the generator entirely off the ground, tow it, or up-end it.

CAUTION

Fire hazard. Do not up-end the generator or place it on its side. Fuel or oil can leak and damage to the generator may occur.

LIFTING HOOK

Technical diagram showing two views of a portable electric bus (BECO) with labeled components and directional indicators.

Only use the lifting hook to lift the unit or attach any load restraints such as ropes or tie-down straps. Do not attempt to lift or secure the generator by holding onto any of its other components.

Before lifting the generator, inspect the bracket and make sure it is securely fastened to the generator. Do not lift the generator unless the lifting bracket is securely fastened.

1. Hook a chain or strap through the eye on the lifting hook and make sure it is securely fastened.
2. Connect a suitable lifting device to the chain or strap. Inspect chain and hook for any damaged links or any defects that could cause failure. It is recommended to use hooks with safety latches installed.
3. Lift the generator slightly to ensure it is lifting straight and level.

MAINTENANCE

WARNING

Accidental start-up. Disconnect the spark plug boot from the spark plugs when performing maintenance on the generator.

MAINTENANCE SCHEDULE

Regular maintenance will improve performance and extend the service life of the generator. Follow the hourly or calendar intervals, whichever occurs first. More frequent service is required when operating in adverse conditions as noted below.

Before Each Use

Check engine oil

Check air filter

After First 20 Hours or First Month

Change engine oil ^1

After 50 Hours or Every 3 Months

Clean air filter ^2

After 100 Hours or Every 6 Months

Change engine oil ^1

Inspect/clean spark arrestor

Inspect/clean spark plug

Replace fuel filter

Clean float bow ^3

After 300 Hours or Every Year

Replace spark plug

Replace air filter

Replace fine oil filter

Inspect/adjust valve clearance ^3

Every 2 years

Replace fuel pipe

1 Change oil every month when operating under heavy load or in high temperatures.
^2 Clean more often under dirty or dusty conditions. Replace air filter if it cannot be adequately cleaned.
^3 Recommend service to be performed by authorized Westinghouse service dealer.

MAINTENANCE REPLACEMENT PARTS

Description Part Number

Air filter 5061
Oil drain bolt crush washer 94242
Battery, 18 AH 511092
Fuel filter 516401
Spark plug 97108 (F7TC)
Spark Arrester 6859

AIR FILTER MAINTENANCE

The air filter must be cleaned after every 50 hours of use or six months (frequency should be increased if the generator is operated in a dusty environment).

1. Place the generator on a level surface and allow the engine to cool for several minutes.

2. Release the four clips then remove the air filter cover.

Technical line drawing of a vehicle chassis with arrows indicating assembly or maintenance points (no text or symbols present)

1. Remove the air filter and clean using compressed air. DO NOT submerge the filter in liquids or add oil.

2. Install the air filter in the housing, making sure it is correctly oriented and seated in the housing.

TopBottom

1. Install the air cleaner cover and secure with the cover clips.

ENGINE OIL LEVEL CHECK

CAUTION

Avoid skin contact with engine oil. Wear protective clothing and equipment. Wash all exposed skin with soap and water.

NOTICE

Always use the specified engine oil. Failure to use the specified engine oil can cause accelerated wear and/or shorten the life of the engine.

When using the generator in dusty conditions or in extremely hot weather, change the oil more frequently.

Ambient air temperature will affect engine oil performance. Change the type of engine oil used based on weather conditions.

Check the engine oil level before each use or every 8 hours of operation.

1. Place the generator on a level surface and allow the engine to cool for several minutes.
2. Remove the oil dipstick and wipe the dipstick clean.
3. Insert, then remove the oil dipstick.

Acceptable Oil Level – On the flat side of the dipstick, oil is visible up to the first notch.

Low Oil – Oil is below the first notch on the dipstick

Acceptable oil level

1. If low, remove the oil fill cap and add the recommended engine oil incrementally and recheck until the level is at the top notch on the dipstick. DO NOT overfill. If over the top notch on the dipstick, drain the oil to reduce the oil level to the full mark.

2. Replace the oil dipstick and oil fill cap.

ENGINE OIL CHANGE

When using the generator in dusty conditions or extremely hot weather, change the oil more frequently. Change the oil while the engine is still warm from operation.

1. Place the generator on a level surface and allow the engine to cool for several minutes.
2. With a damp rag, clean around the oil fill cap. Remove the oil fill cap.
3. Place an oil pan (or suitable container) under the oil drain hose.
4. Unclip the oil drain hose and twist the cap counterclockwise to allow the oil the to drain.

Drain bolt Oil pan

1. Twist the cap clockwise to close. Secure the hose in the hose clip.
2. Place the oil pan under the oil filter. Remove the oil filter by rotating it counterclockwise. Allow the oil to drain completely. Clean the area where the oil filter contacts the engine.

Oil filter

1. Apply clean oil to the rubber seal on the new oil filter. Install by hand, turning clockwise until the seal contacts the engine then turn another 3/4 turn. DO NOT over tighten.
2. Fill with the recommended oil. Stop frequently to check the oil level. Do not overfill. If the engine is overfilled, the excess oil may get transferred to the air cleaner housing and air filter. An indication of overfilling is white or blue smoke coming from the muffler when the engine is running.

Technical diagram showing car interior components with labeled buttons and a directional arrow indicating movement or flow.

Maximum oil capacity: 1.7 Quart (1.6 Liter)

1. Install the oil dipstick. Screw in the oil fill cap securely.

NOTICE

Do not pollute. Follow the guidelines of the EPA or other governmental agencies for proper disposal of hazardous materials. Consult local authorities or reclamation facility.

SPARK PLUG MAINTENANCE

NOTICE

Always use the Westinghouse OEM or compatible non-resistor-type spark plug. Use of resistor-type spark plug can result in rough idling, misfire, or may prevent the engine from starting.

Inspect and clean the spark plugs after every 100 hours of use or six months. Replace the spark plugs after 300 hours of use or every year.

1. Place the generator on a level surface and allow the engine to cool.

2. Remove the spark plug boots by firmly pulling the boot directly away from the engine.

Spark plug

1. Clean the area around the spark plugs.

2. Remove the spark plugs with the included spark plug socket wrench.

NOTICE

Never apply any side load or move the spark plug laterally when removing the spark plug.

1. Inspect the spark plugs. Replace if electrodes are pitted, burned, or the insulator is cracked. Only use a recommended replacement plug.

2. Measure the spark plug electrode gap with a wire-type feeler gauge. If necessary, correct the gap by carefully bending the side electrode.

Spark plug gap: 0.024 - 0.032 in. (0.60 - 0.80 mm)

Side Electrode 0.024 - 0.032 in. (0.60 - 0.80 mm) Insulator

1. Carefully install each spark plug finger tight, then tighten as additional 3/8 to 1/2 turn with the spark plug wrench.

2. Attach the spark plug boots.

SPARK ARRESTOR SERVICE

Allow the muffler to cool completely before servicing the spark arrestor. Check and clean the spark arrestor after every 100 hours of use or six months. Failure to clean the spark arrestor will result in degraded engine performance.

1. Place the generator on a level surface.

2. Carefully remove the carbon deposits from the spark arrestor screen with a wire brush. The spark arrestor must be free of breaks and tears. Use compressed air to clear removed deposits.

Technical line drawing of a portable electric vehicle (no text or symbols visible)

FUEL FILTER

Replace the fuel filter after 100 hours of use.

Note: Have an appropriate gasoline container and rags ready to catch residual fuel in the filter and fuel line.

1. Allow the generator to cool completely.

2. Turn the fuel valve to the OFF position.

Fuel filter

1. Note the orientation of the fuel filter. Using pliers, remove the fuel line clamps and remove the fuel filter.

2. Install the new fuel filter in the reverse order of removal.

BATTERY MAINTENANCE

WARNING

The battery gives off explosive hydrogen gas during normal operation. A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you. Wear protective clothing and a face shield, or have a skilled technician perform battery maintenance.

WARNING

Burn hazard. The battery contains sulfuric acid (electrolyte) which is highly corrosive and poisonous. Wear protective clothing and eye protection when working near the battery. Keep children away from the battery.

WARNING

NEVER smoke or work near sparks or other sources of ignition. NEVER touch both battery terminals at the same time with your hand or any non-insulated tools. If battery acid contacts skin or clothing, flush immediately with water and neutralize with baking soda.

The battery shipped with the generator has been fully charged. A battery may lose some charge when not in use for prolonged periods of time.

Note: Once started, the generator will charge the battery after 30–60 minutes of use.

When the generator is not running, the included trickle charger can remain connected and will maintain the battery for an indefinite period of time. A red light on the charger indicates charging in progress. A green light indicates charging complete. Charge in a dry location.

1. Plug the charger into the battery charging port on the control panel.
2. Plug the wall receptacle end of the battery charger into a 120 Volt AC wall outlet.

BATTERY REPLACEMENT

CAUTION

Battery posts, terminals contain lead and lead compounds. Wash hands after handling.

1. Remove the two battery plate bolts and battery plate. Tilt the battery forward and remove.

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

1. Disconnect the negative (-) cable (black boot) from the negative (-) battery post.
2. Disconnect the positive (+) battery cable (red boot) from the positive (+) battery post.

NOTICE

Always connect the cables in the following sequence to avoid possible shock.

1. On the replacement battery, connect the positive (+) battery cable (red boot) to the battery positive (+) terminal. Secure the boot over the battery post.
2. Connect the negative (-) battery cable (black boot) to the negative (-) positive terminal. Secure the boot over the battery post.
3. Install the battery in the battery tray. Install the battery plate and bolts. Tighten the bolts securely.

NOTICE

Dispose of the used battery properly according to the guidelines established by your local or state government.

STORAGE

Proper storage preparation is required for trouble-free operation and generator longevity.

NOTICE

Gasoline stored for as little as 30 days can deteriorate, causing gum, varnish, and corrosive buildup in fuel lines, fuel passages, and the engine. This corrosive buildup restricts the flow of fuel, which can prevent the engine from starting after a prolonged storage period. The use of fuel stabilizer significantly increases the storage life of gasoline. Full-time use of fuel stabilizer is recommended. Follow the manufacturer's instructions for use.

STORAGE TIME RECOMMENDED PROCEDURE

Less than 1 month No	service required.
2 to 6 months	Fill with fresh gasoline and add gasoline stabilizer. Drain the carburetor float bowl.
6 months or longer	Drain the fuel tank and carburetor float bowl.

SHORT TERM STORAGE

• Allow the generator to cool a minimum of 30 minutes before storage.
• If operating on propane, turn the propane tank valve to the fully closed position and disconnect the LPG/propane hose from the generator and propane tank.
• Replace all protective covers on the generator control panel.
• Wipe the generator with a moist cloth. Clean any debris from the muffler cooling vents.
• Store the generator in a well-ventilated, dry location away from sparks, open flames, pilot lights, heat, and other sources of ignition such as areas with a spark-producing electric motor or where power tools are operated.
• Do not store the generator, gasoline, or propane tanks near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions.
• With the engine and exhaust system cool and all surfaces dry, cover the generator to keep out dust. Do not use a plastic sheet as a dust cover. Non-porous materials trap moisture and promote rust and corrosion.

LONG TERM STORAGE

Even properly stabilized fuel can leave residue and cause corrosion if left long term. If storing the generator for over six months, drain the fuel tank.

DRAINING THE FUEL TANK

If storing the generator for longer than six months, drain the fuel tank to prevent fuel separation, deterioration, and deposits in the fuel system.

1. Unscrew the fuel tank cap. Remove the fuel screen filter by slightly compressing it while removing it from the tank.

2. Using a commercially available gasoline hand pump (not included), siphon the gasoline from the fuel tank into an approved gasoline container. DO NOT use an electric pump. OR
   Disconnect the fuel line from the bottom of the fuel tank and allow the fuel to drain into an approved gasoline container. Reinstall the fuel line.

3. Reinstall the fuel screen filter and the fuel tank cap.

4. Start the generator and allow it to run until the generator engine stops.

5. Push the battery switch to the OFF position.

6. Disconnect the battery.

VALVE CLEARANCE

NOTICE

Checking and adjusting valve clearance must be done when the engine is cold.

Perform this procedure on both cylinders.

1. Remove the rocker arm cover and carefully remove the gasket. If the gasket is torn or damaged, it must be replaced.
2. Remove the spark plug so the engine can be rotated more easily.
3. Rotate the engine to Top Dead Center (TDC) by momentarily pushing the Start button. Looking through the spark plug hole, the piston should be at the top (both valves are closed).
4. Both the rocker arms should be loose at TDC on the compression stroke. If they are not, rotate the engine 360°.
5. Insert a feeler gauge between the rocker arm and the valve stem to measure valve clearance.

Valve Stem Rocker Arm Pivot Adjusting Nut Rocker Arm Pivot

Intake Valve Exhaust Valve

Valve Clearance	0.0031 – 0.0047 in(0.08 – 0.12 mm)	0.0051 – 0.0067 in(0.13 – 0.17 mm)
Torque 8-12 N·m 8-12 N·m

1. If an adjustment is necessary, hold the rocker arm pivot and loosen the pivot adjusting nut.
2. Turn the rocker arm pivot to obtain the specified clearance. Hold the rocker arm pivot and re-tighten the pivot adjusting nut to the specified torque.

Torque: 106 inch-pound (12 N·m)

1. Perform this procedure for the other valve.
2. Install the gasket, rocker arm cover, and spark plug.

TROUBLESHOOTING

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE CORRECTION
Engine will not start Battery switch in the OFF position. Turn battery switch to the ON position.
Engine starts, then shuts down	Out of fuel. Refuel.
	Incorrect engine oil level. Check engine oil level.
	Dirty air filter. Clean the air filter.
	Contaminated fuel. Drain the fuel tank. Refuel with fresh gasoline.
	Defective low oil level switch. Contact Westinghouse customer service toll-free at 1 [phone].
Engine lacks power Air filter restricted. Clean or replace air filter.
		Drain the fuel tank. Refuel with fresh gasoline.
		Contact Westinghouse customer service toll-free at 1 [phone].
Engine runs rough or bogs when load applied	Dirty air filter. Clean the air filter.
	Generator overloaded. Unplug some devices.
	Faulty power tool or appliance.	Replace or repair tool or appliance. Stop and restart the engine.
	Fuel filter restricted, fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc.	Contact Westinghouse customer service toll-free at 1 [phone].
No power at AC receptacles	OUTPUT READY LED is OFF and OVERLOAD LED is ON.	Check AC load. Stop and restart engine.
		Check the air inlet. Stop and restart the engine.
	AC circuit breaker/s tripped.	Check AC loads and reset circuit breaker/s.
	Faulty power tool or appliance.	Replace or repair tool or appliance. Stop and restart the engine.
	Faulty generator.	Contact Westinghouse customer service toll-free at 1 [phone].
Frost on the propane tank or regulator	If the temperature of the propane tank drops below the dew point, condensation on the tank may turn to frost or ice. This typically occurs in humid conditions.	Providing all the propane fuel handling equipment is functioning normally, no correction is needed.
	The Propane tank is not equipped with an Overfilling Prevention Device (OPD).	If you suspect your propane fuel tank is not equipped with an OPD device, discontinue operation immediately and replace the propane fuel tank with a propane tank equipped with a an OPD.
	Propane fuel tank overfilled. If you suspect your pro	pane fuel tank has been overfilled, discontinue operation immediately and return the propane fuel tank to the place of purchase or refilling.
Propane fuel smell	Fuel regulator or fuel hose and fittings not securely sealed.	Using a soap solution check each connection and tighten as needed.
	Propane fuel regulator vent active. The propane fuel	regulator is equipped with a vent that will allow a small amount of propane fuel vapor to escape from the regulator when the propane tank valve is opened. This can be normal providing the venting of the propane is brief. If you suspect that this is abnormal, immediately discontinue use and have the propane regulator inspected by a qualified technician.
	Residual fuel from the carburetor dispersing after operation.	Normal, no correction is needed.
Poor performance or engine stalling on Propane	Propane fuel line kinked or crushed. Inspect propane	fuel line and remove kinks or other obstructions.
	Fuel selector valve not properly positioned. Rotate	the fuel valve fully until the pointer is directly in line with the desired fuel.
	Gasoline not purged from the carburetor before switching to propane.	Close the propane fuel tank valve. Move the fuel selector switch to gas. Start the engine and allow the engine to run until the gasoline has been consumed in the carburetor. Begin propane start up procedure.

EXPLODED VIEWS AND PARTS LISTS

ENGINE EXPLODED VIEW

Technical diagram of automotive engine components with labeled parts and exploded views

ENGINE PARTS LIST

NO. PART # DESCRIPTION
1 50120	038 CRANKCASE ASSEMBLY
1.1 9137	1 BOLT M6X35
1.2 9104	3 BOLT M6X113
1.3 9353	0 CRANKSHAFT OIL SEAL
1.4 9136	5 BOLT M6X12
1.5 3205	03 LEFT WINDSHIELD
1.6 3205	04 RIGHT WINDSHIELD
1.7 9137	4 BOLT M6X22
1.8 3206	02 BREATHER VALVE ASSEMBLY
1.9 3206	00 BREATHING VALVE COVER
1.10 961	33 BREATHING VALVE GASKET
1.11 599	601 METAL CLAMP
1.12 944	19 FUEL HOSE CLIP 16.5x2
1.13 320	206 CRANKASE
1.14 240	904 LOCATING PIN 8X12
1.15 329	902 ROCKER ARM SUPPORT BASE ASSEMBLY
1.16 956	18 BLAST PIPE
1.17 940	33 SEALING RING
1.18 962	96 CRANKCASE COVER GASKET
1.19 327	001 PLUG
1.20 913	70 BOLT M6X16
1.21 329	900 CRIMPING BOARD
1.22 260	901 LOCATING PIN
1.23 325	101 OIL PROTECTOR
1.24 918	32 BOLT M14X1.5X12
1.25 942	42 FLAT WASHER
1.26 918	87 OIL DRAIN SOLENOID
2 50690	001 PETROL PUMP ASSEMBLY
2.1 9554	5 GASOLINE PUMP INLET PIPE
2.2 9554	6 GASOLINE PUMP OUTLET PIPE
2.3 9442	3 FUEL HOSE CLIP 9
2.4 5164	01 FILTER
2.5 9546	3 GASOLINE PUMP NEGATIVE PRESSURE PIPE
2.6 9441	8 PROTECTIVE SLEEVE
2.7 3699	04 GASOLINE PUMP BRACKET
2.8 3299	14 PETROL PUMP
2.9 9137	0 BOLT M6X16
3 50100	029 RIGHT IGNITER ASSEMBLY
3.1 9138	3 BOLT M6X28
3.2 9104	3 BOLT M6X113
3.3 9754	0 RIGHT IGNITER
4 50100	028 LEFT IGNITER ASSEMBLY
4.1 9138	3 BOLT M6X28
4.2 9104	3 BOLT M6X113
4.3 9753	9 LEFT IGNITER
5 50680	002 CHARGING COIL ASSEMBLY
5.1 9721	2 CHARGING COIL
5.2 9137	1 BOLT M6X35
6 50180	019 FLYWHEEL ASSEMBLY
6.1 9138	5 BOLT M8X16
6.2 9004	1 NUT M20
6.3 9403	0 FLAT WASHER
6.4 3299	13 IMPELLER PRESSURE PLATE
6.5 3246	00 IMPELLER

NO. PART # DESCRIPTION
6.6 3204	00 FLYWHEEL ASSEMBLY
7 50090	059 WIND-LEAD COVER ASSEMBLY
7.1 9004	3 NUT M6
7.2 3247	01 RECOIL COVER ASSEMBLY
7.3 9426	0 FLAT WASHER
7.4 9137	0 BOLT M6X16
7.5 5996	01 METAL CLAMP
8 50260	011 STARTER MOTOR ASSEMBLY
8.1 9137	8 BOLT M8X10
8.2 9741	4 STARTER ALTERNATOR
8.3 2409	04 LOCATING PIN 8X12
9 50040	083 CARBURETOR ASSEMBLY
9.1 3199	01 CARBURETOR SOLENOID VALVE LINE
9.2 9546	4 CARBURETOR OVERFLOW PIPE
9.3 9442	3 FUEL HOSE CLIP 9
9.4 9442	1 FUEL HOSE CLIP 16x12x1
9.5 9440	6 FUEL HOSE CLIP 13.5
9.6 5173	19 LOW PRESSURE PIPE
9.7 5173	14 LOW PRESSURE PIPE
9.8 5453	18 IDLE SPEED MEASURING HOLE
9.9 5453	17 MAIN MEASURING HOLE
9.10 5453	316 MAIN MEASURING HOLE
9.11 3299	25 FIVE-WAY CONNECTOR
9.12 9440	2 FUEL HOSE CLIP 8.5
9.13 9138	3 BOLT M6X28
9.14 961	41 CARBURETOR HEAT SHIELD
9.15 914	25 BOLT M6X65
9.16 9440	8 FUEL HOSE CLIP 10
9.17 501	138 CLAMP
9.18 9223	9 BOLT M3*8
9.19 959	06 CARBURETOR CONNECTION ELBOW
9.20 3299	29 STEPPER MOTOR
9.21 3299	24 STEPPER MOTOR
9.22 3228	11 DOUBLE CHAMBER CARBURETOR
9.23 5173	309 LOW PRESSURE PIPE
9.24 961	37 CARBURETOR GASKET
10	50020051 CYLINDER HEAD ASSEMBLY
10.1 9136	5 BOLT M6X12
10.2 3205	07 WIND-LEAD-COVER
10.3 2617	02 INTAKE VALVE
10.4 2608	02 VALVE LOCK CLAMP
10.5 961	35 INTAKE WASHER
10.6 3219	00 PUSH ROD
10.7 3222	201 LIMIT PLATE ASSEMBLY
10.8 2618	07 INTAKE VALVE SPRING LOWER SEAT
10.9 9351	13 VALVE SEAL
10.10	326000 VALVE SPRING
10.11	261805 VALVE SPRING SEAT
10.12	322100 ROCKER ARM ASSEMBLY
10.13	91380 BOLT M10X80
10.14	265903 INTAKE VALVE
10.15	321005 RIGHT CYLINDER HEAD ASSEMBLY
10.16	261806 TOP CAP
11 97110	SPARK PLUG
12	50130015 WIND LEAD COVER ASSEMBLY
12.1 9138	5 BOLT M8X16

ENGINE PARTS LIST CONTINUED

NO.	PART #	DESCRIPTION
	12.2 913	65 BOLT M6X12
	12.3 325	801 TEMPER ATURE SENSOR
	12.4 329	901 LIFTING EAR
	12.5 320	501 RIGHT CYLINDER HEAD AIR DEFLECTOR
	13 5001	0033 CYLINDER HEAD COVER ASSEMBLY
	13.1 913	65 BOLT M6X12
	13.2 321	101 RIGHT CYLINDER HEAD COVER
	13.3 961	36 CYLINDER HEAD COVER GASKET
	14 5003	0058 AIR CLEANER ASSEMBLY
	14.1 913	71 BOLT M6X35
	14.2 913	83 BOLT M6X28
	14.3 944	02 FUEL HOSE CLIP 8.5
	14.4 951	17 CARBON CANISTER AND AIR FILTER CONNECTING PIPE
	14.5 323	000 AIR FILTER PRESSURE PLATE
	14.6 322	902 AIR CLEANER ASSEMBLY
	14.6.1 5061	AIR CLEANER ELEMENT
	15 5070	0001 AIR FILTER CONNECTING PIPE ASSEMBLY
	15.1 913	77 BOLT M6X95
	15.2 959	07 DUAL CHAMBER INTAKE PIPE
	15.3 961	39 INTAKE PIPE GASKET
	15.4 959	05 AIR FILTER CONNECTING PIPE
	15.5 920	48 SCREW M8X50
	15.6 961	38 AIR FILTER CONNECTING PIPE GASKET
	16 5001	0034 CYLINDER HEAD COVER ASSEMBLY
	16.1 913	65 BOLT M6X12
	16.2 321	400 OIL PLUG
	16.3 321	100 LEFT CYLINDER HEAD COVER
	16.4 961	36 CYLINDER HEAD COVER GASKET
	17 5013	0016 WIND LEAD COVER ASSEMBLY
	17.1 913	85 BOLT M8X16
	17.2 913	65 BOLT M6X12
	17.3 320	506 LEFT CYLINDER HEAD AIR DEFLECTOR
	17.4 329	901 LIFTING EAR
	17.5 329	922 TUBING BRACKET
	17.6 944	18 PROTECTIVE SLEEVE
	18 5002	0052 CYLINDER HEAD ASSEMBLY
	18.1 913	65 BOLT M6X12
	18.2 261	702 INTAKE VALVE
	18.3 260	802 VALVE LOCK CLAMP
	18.4 961	35 INTAKE WASHER
	18.5 320	502 WIND-LEAD-COVER
	18.6 321	004 LEFT CYLINDER HEAD ASSEMBLY
	18.7 321	900 PUSH ROD
	18.8 322	201 LIMIT PLATE ASSEMBLY
	18.9 261	807 INTAKE VALVE SPRING LOWER SEAT
	18.10 93	513 VALVE SEAL
	18.11	326000 VALVE SPRING
	18.12 261	805 VALVE SPRING SEAT
	18.13 261	806 TOP CAP
	18.14 321	2100 ROCKER ARM ASSEMBLY
	18.15 913	380 BOLT M10X80
	18.16 261	5903 INTAKE VALVE
	19 5060	0003 SEAL WASHER ASSEMBLY
	19.1 942	06 SPRING WASHER

NO. PART # DESCRIPTION
19.2 91007 BOLT M8X38
19.3 96140 EXHAUST	GASKET
19.4 90011 NUT M8
20 50050023 PISTON	& PISTON RING ASSEMBLY
20.1 241301 PISTON	PIN RING
20.2 325500 PISTON	PIN
20.3 321500 CONNECTING ROD ASSEMBLY
20.4 321200 PISTON
20.5 321602 PISTON	RING COMBINATION
21 50190004 CRANKSHAFT ASSEMBLY
21.1 320300 CRANKSHAFT
21.2 94031 FLAT WASHER
22 50710001 HEAT SINK ASSEMBLY
22.1 91383 BOLT M6X28
22.2 95465 RADIATOR CONNECTING OIL PIPE
22.3 94421 FUEL HOSE CLIP 16x12x1
22.4 329911 RADIATOR MOUNTING BRACKET
22.5 329912 RADIATOR ASSEMBLY
23 50200040 CRANKCASE COVER ASSEMBLY
23.1 91371 BOLT M6X35
23.2 329909 OIL FILTER SEAT
23.3 91833 OIL FILTER CONNECTING SOLENOID
23.4 91383 BOLT M6X28
23.5 93530 CRANKSHAFT OIL SEAL
23.6 91331 BOLT M6X25
23.7 91342 BOLT M8*12
23.8 93023 BEARING
23.9 325100 OIL SENSOR
23.10 329907 OIL FILTER COVER
23.11 92047 SCREW M6X16
23.12 329903 OIL PUMP ASSEMBLY
23.13 324301 CENTRIFUGAL GOVERNOR GEAR ASSEMBLY
23.14 325600 DIPSTICK ASSEMBLY
23.15 329904 PRESSURE RELIEF VALVE SPRING
23.16 329905 STEELBALL
23.17 320900 LOCATING PIN
23.18 320101 CRANKCASE COVER
23.19 94085 O-SHAPE SEAL RING
23.20 329908 OIL FILTER
23.21 91834 OIL FILTER SEAT CONNECTION PIPE
23.22 91379 BOLT M8X50
23.23 329906 OIL FILTER
23.24 94241 FLAT WASHER 10.2X17X1
23.25 94257 FLAT WASHER 8x16x1.5
24 50150012 ALTERNATOR ASSEMBLY
24.1 322000 CAMSHAFT ASSEMBLY
24.2 94032 FLAT WASHER

GENERATOR EXPLODED VIEW

Exploded view diagram of a mechanical assembly with exploded and assembled parts, numbered annotations, and component labels.

GENERATOR PARTS LIST

NO. PART # DESCRIPTION
1 1148720	220040 ENGINE DHTLG720E
2 6007006	2 FRAME KIT ASSEMBLY
2.1 90026	SELF-LOCKING NUTS
2.2 501041	DAMPING SUPPORT B
2.3 90075	NUT M10*1.5
2.4 91343	BOLT M8*16
2.5 770043	8-116 FRAME
2.6 91345	BOLT M8X20
2.7 518403	OIL SWITCH SEAT
2.8 501131	AIR DUCT WELDING PARTS
2.9 91339	BOLT M6X50
2.10 52860	06 GLUE CARD
2.11 90016	NUT M6
2.12 52661	14-116 HANDLE
2.13 52850	01 HANDLE RUBBER SLEEVE
2.14 91363	BOLT M8*50
2.15 52740	06 HANDLE PIN
2.16 52740	01 HANDLE DAMPING RUBBER PAD
2.17 53360	04-116 LIFTING BRACKET
2.18 53560	02-116 INSULATION BOARD
2.19 94224	4 CRANKSHAFT FLAT WASHERΦ10*30*2
2.20 91327	BOLT M6*12
3 6015003	1 FOOT BRACKET KIT ASSEMBLY
3.1 531905	5 FOOT BRACKET ISOLATION SUPPORT
3.2 90026	SELF-LOCKING NUTS
3.3 525905	5-116 FOOT BRACKET ASSEMBLY
3.4 91343	BOLT M8*16
4 6004009	0 PANEL KIT ASSEMBLY
4.1 715553	PANEL ASSEMBLY
4.1.1 1042	CO INDICATOR(YELLOW)
4.1.2 53600	02 ONE PUSH BOTTON SWITCH
4.1.3 6393	BATTERY INDICATOR
4.1.4 6502	POWER SWITCH
4.1.5 6685	ECO SWITCH
4.1.6 6683	FUEL SELECTOR SWITCH
4.1.7 6439-30	30A THERMAL PROTECTOR
4.1.8 6796	USB SOCKET 10-35V
4.1.9 6436-30	BREAKER 2P30A
4.1.10	6041	DIGITAL DISPLAY
4.1.11	6513-50	BREAKER 2P50A
4.1.12	9001	PANEL REAR COVER
4.1.13	6488	AVIATION SOCKET GXP20-7P
4.1.14	6387	DC CHARGING SOCKET 2.0mm
4.1.15	6254	AMERICAN FOUR-HOLEINDUSTRIAL SOCKET 14-50R
4.1.16	6850	WATERPROOF CAP

NO. PART # DESCRIPTION
4.1.17	6386	GROUND BOLT ASSEMBLY
4.1.18	6385	L14-30R RECEPTACLE
4.1.19	6848	WATERPROOF CAP
4.1.20	6383	L5-30R RECEPTACLE
4.1.21	6847	WATERPROOF CAP
4.1.22	6275	GFCI SOCKET 5-20RA
4.1.23	6845	WATERPROOF CAP
4.1.24	6439-20	20A THERMAL PROTECTOR
4.1.25	1041	CO INDICATOR (RED)
4.2 96120	PAPER WASHER
4.3 91327	BOLT M6*12
4.4 534905	AVR
4.5 91306	BOLT M6*25
4.6 599078	CO FLAMEOUT ACTUATOR
5 6006003	2 WHEEL KIT ASSEMBLY
5.1 501137	CASTER SHAFT ASSEMBLY
5.2 94213	FLAT WASHER
5.3 523623	WHEEL
5.4 548301	COTTER PIN
6 6020002	8 BATTERY BRACKET KIT ASSEMBLY
6.1 91327	BOLT M6*12
6.2 512042	BATTERY POSITIVE WIRE
6.3 512015	BATTERY NEGATIVE WIRE
6.4 599702	ADHESIVE STRIP
6.5 501135-116	BATTERY HOLDER
6.6 511092	BATTERY
7 6014004	5 ALTERNATOR KIT ASSEMBLY
7.1 533602	MOTOR FRONT COVER
7.2 91354	BOLT M10×1.25
7.3 750009	ALTERNATOR ASSEMBLY
7.3.1 6186	CARBON BRUSH
7.3.2 6188	TERMINAL
7.4 91325	BOLT M6*12
7.5 544612	SHORT WIRE
7.6 96813	FLAT WASHER
7.7 91725	BOLT M10*1.25*295
7.8 533603	BACK SUPPORT
7.9 91623	BOLT M8*1.25*215
7.10 91323	BOLT M5X16
7.11 91322	BOLT M5*12
7.12 53330	4-221 ALTERNATOR TAIL COVER
8 6049001	6 PRESSURE REDUCING VALVE KIT ASSEMBLY
8.1 96120	PAPER WASHER
8.2 91306	BOLT M6*25
8.3 90016	NUT M6
8.4 517318	LOW PRESSURE HOSE

GENERATOR PARTS LIST CONTINUED

NO. PART # DESCRIPTION
8.5 32630	INTAKE CONNECTOR II
8.6 32630	OUTLET CONNECTOR I
8.7 32630	OURLET CONNECTOR
8.8 32720	INTAKE CONNECTOR
8.9 54591	PRESSURE REDUCING VALVE
8.10 32640	PRESSURE REDUCING VALVE
8.11 5193	B7 PROTECTIVE CASE
8.12 5011	38 CLAMP
8.13 9131	BOLT M6*45
9 6001006	FUEL TANK KIT ASSEMBLY
9.1 91461	BOLT M6X25
9.2 70090	5L-116 FUEL TANK
9.3 51942	FUEL CAP
9.4 51840	1 FUEL SWITCH
9.5 95729	L FUEL LINE
9.6 94412	FUEL LINE CLAMP
9.7 95488	L FUEL HOSE CLIP 12.5 × 6.2 × 430 MM
9.8 51880	1 FUEL TANK FILTER
10 605700	16 CARBON CANNISTER KITASSEMBLY
10.1 9001	6 NUT M6
10.2 5436	03L CARBON CANISTER ASSEMBLY
10.3 9512	1 CARBON CANISTER AND FUELTANK CONNECTING PIPE
10.4 5030	34 FUEL LINE CLAMP 9.5 × 0.8
10.5 9441	1 FUEL LINE CLAMP 11 × 0.8
11 600300	34 EXHAUST MUFFLER KIT ASSEMBLY
11.1 9007	5 NUT M10*1.5
11.2 9614	0 EXHAUST GASKET
11.3 9420	SPRING WASHER 8
11.4 9001	NUT M8
11.5 9525	MUFFLER CONNECTING PIPE
11.6 9614	MUFFLER CONNECTING PIPEGASKET
11.7 9420	SPRING WASHER 10
11.8 5159	12 EXHAUST MUFFLER GUARD COVERA
11.9 5159	13 EXHAUST MUFFLER GUARD COVERB
11.10	515911 EXHAUST MUFFLER GUARD COVERC
11.11	705010	MUFFLER
11.11.1	6859	SPARK ARRESTER
11.12	91345 BOLT M8X20
11.13	91327 BOLT M6*12
11.14	501139 HIGH TEMPERATURE INSULATIONCOTTON
11.15	94214 FLAT WASHER 10.3 × 20.6 × 1.65

NO. PART # DESCRIPTION
12 604500	10 CO MODULE KIT ASSEMBLY
12.1 599079	CO MODULE
12.2 92345	SCREW M4*28
13 94432	NYLON BRAIDED TUBE
14 99509	FUNNEL
15 511043	CHARGER
16 99012	SPARK PLUG SLEEVE
17 99025	WRENCH
18 99576	OIL BOTTLE ASSEMBLY
19 6629	REMOTE KEY
20 517324	HIGH PRESSURE PIPE

SCHEMATICS

SCHEMATICS

WIRING DIAGRAM OF 120/240V GENERATOR SET File: SCHMATIC Ed. Date: 17/02/22 Doc No.: 71553-004 Model: WGEN12000FC Model Revision Level: 01 Doc Revision Level: 01 ATS Connector R Red W White P Pink 8 Black BR Brown y/g Yellow/Green y/w Blue/White 0 Orange 8/8 Black/Red y/b/8 Black/White 9/8 Brown/Red Cr Grey BI Yellow Bu Blue LB Light Blue G Green WRANEG WASHINGTON HOUSE WRONG WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN WRAN

ESPAÑOL

WGen12000DFc

Generador Portátil de Combustible Dual

Gasolina: 12,000 Vatios en Funcionamiento | 15,000 Vatios de arranque

Propano: 10,800 Vatios en Funcionamiento | 13,500 Vatios de arranque

MANUAL DE USUARIO

NO DEVUELVA ESTE PRODUCTO A LA TIENDA

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

Para su archivo

https://westinghouseoutdoorpower.com/pages/manuals

Diagram showing two house-shaped structures with a crossed-out car and a figure holding a cross symbol, indicating no crossing or prohibition.

Technical line drawing of a mechanical assembly with mounting bracket and internal components (no text or symbols)

Technical diagram showing vehicle interior components with labeled parts and a directional arrow indicating motion or flow.

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a battery with positive and negative terminals, likely indicating charging or discharging process.

LPG/Propane Inlet

Two illustrations showing a house with a 'no car' symbol and a car parked in front, indicating no vehicle use or parking.

Technical diagram showing two views of a portable power supply unit with labeled components and inspection indicators.

Technical line drawing of a truck cab with directional arrows indicating components (no text or symbols)

Two 3D block diagrams showing different structural configurations: one with a black top and one with a grid-patterned bottom (no text or symbols)

Technical diagram showing vehicle air intake and control panel with labeled buttons and a directional arrow indicating motion.

Technical line drawing of a portable electric vehicle (no text or symbols visible)

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

NE PAS RETOURNER CE PRODUIT AU MAGASIN

CENTRE DE DONNÉES....82

RAPPELS D'ENTRETIEN....82

ASSEMBLÉ

INSTALLER LES ROUES ET LE SUPPORT DE LEVAGE....83

REMLISSAGE D'HUILE INITIAL....84

INSTALLATION DE LA BATTERIE....84

CARBURANT....84

REMLIR LE RÉSERVOIR DE CARBURANT ....85

CONNEXION D'UN RÉSERVOIR DE GPL/PROPANE .....86

OPÉRATION

EMPLACEMENT DU GÉNÉRATEUR....87

MISE À LA TERREMISE À LA TERRE....87

FONCTIONNEMENT À HAUTE ALTITUDE....88

DÉMARRAGE À DISTANCE....88

SÉLECTEUR DE CARBURANT ....89

PÉRIODE DE RÓDAGE 89

AVANT DE DÉMARRER LE GÉNÉRATEUR....89

DÉMARRAGE DU MOTEUR: ESSENCE....89

DÉMARRAGE DU MOTEUR: PROPANE....90

CHANGEMENT DE SOURCE DE CARBURANT....90

ARRÊT DU MOTEUR ....90

FRÉQUENCE D'UTILISATION....91

DISJONCTEURS AC 91

CAPACITÉ DU GÉNÉRATEUR....91

GESTION DE L'ALIMENTATION 92

RALLONGES 92

DIMENSIONS DU CORDON D'EXTENSION....93

INTERRUPTEUR ST....93

TRANSPORT....93

ENTRETIEN

CALENDRIER DE MAINTENANCE....95

RAPPELS D'ENTRETIEN....95

PIÈCES DE RECHANGE D'ENTRETIEN....95

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

Pour vos dossiers

Date d'achat:

Diagram showing two scenarios: one with a house and no car, the other with a car and no car.

- Disconnect the spark plug wire to prevent accidental starting.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating assembly steps

Technical diagram showing internal components of a vehicle's air intake system with labeled parts and directional arrow

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Diagram showing two connected electrical components with positive charges and a label on the battery cover.

DIMENSIONS DU CORDON D'EXTENSION

Technical diagram showing two different types of electric shock absorbers with labeled components and inspection indicators.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force vectors.

Two 3D block diagrams showing different structural configurations: one with a black top and one with a grid-patterned bottom (no text or symbols)

Technical diagram showing car interior components with labeled buttons and a directional arrow indicating motion or movement.

Technical line drawing of a portable electricity generator with visible fan and wheels (no text or symbols)

FILTRE À CARBURANT

Remarque: Once started, the generator will charge the battery after 30–60 minutes of use.

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Couple: 106 inch-pound (12 N·m)

WestinghouseOutdoorPower.com

Service Hotline: [phone]

777 Manor Park Drive

Columbus, OH 43228

and Westinghouse are trademarks of Westinghouse Electric Corporaton.

Used under license by Westinghouse Outdoor Power Equipment. All Rights Reserved

WGen12000DFc Rev01

122337 Rev01 4/22
