USER MANUAL WGen12000c WESTINGHOUSE

Gasoline: 12,000 Running Watts | 15,000 Peak Watts

DO NOT RETURN THIS PRODUCT TO THE STORE

If you have questions or need assistance, please call customer service at 855-944-3571.

INTRODUCTION

TABLE OF CONTENTS

INTRODUCTION

DISCLAIMERS 2

ALL RIGHTS RESERVED. 2

SPECIFICATIONS. 3

SAFETY

SAFETY DEFINITIONS. 4

SAFETY SYMBOLS 4

SAFETYINSTRUCTIONS 5

SAFETY LABELS AND DECALS. 7

CO SENSOR 8

ACTION LABEL 8

CONTROL PANEL CO AUTO-SHUTOFF 8

COMPONENTS

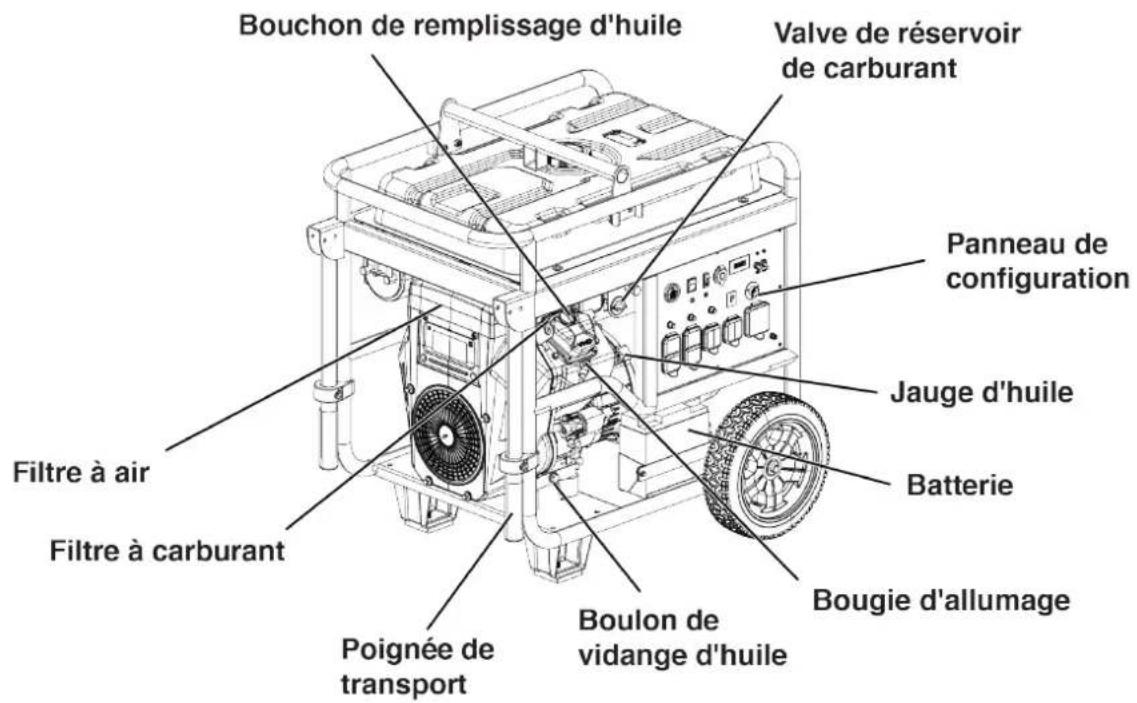

GENERATOR COMPONENTS 9

CONTROL PANEL COMPONENTS. 10

DATA CENTER. 11

WARNING: Operating, servicing, and maintaining this equipment can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, and wear gloves or wash your hands frequently when servicing this equipment. For more information go to www. P65 warnings.ca.gov.

DISCLAIMERS

All information, illustrations, and specifications in this manual were in effect at the time of publishing. The illustrations used in this manual are intended as representative reference views only. We reserve the right to make any specification or design change without notice

STARTING THE ENGINE 17
STOPPING THE ENGINE 18
FREQUENCY OF USE 18

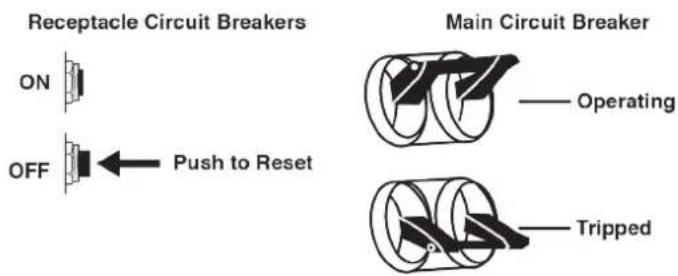

AC CIRCUIT BREAKERS 18
POWER MANAGEMENT 19
EXTENSION CORDS 19

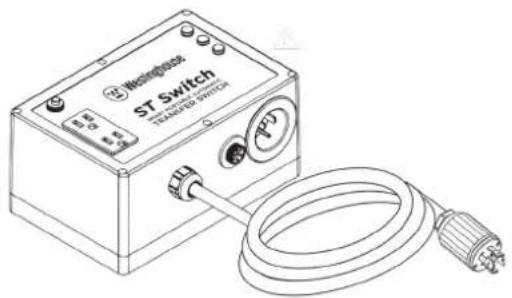

ST SWITCH. 20
TRANSPORTING 20
MAINTENANCE SCHEDULE 22
MAINTENANCE REPLACEMENT PARTS 22

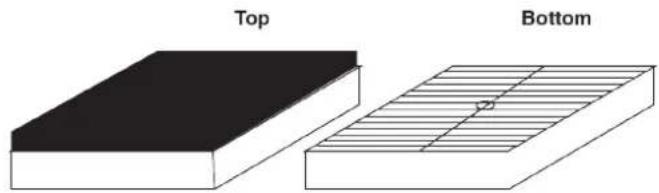

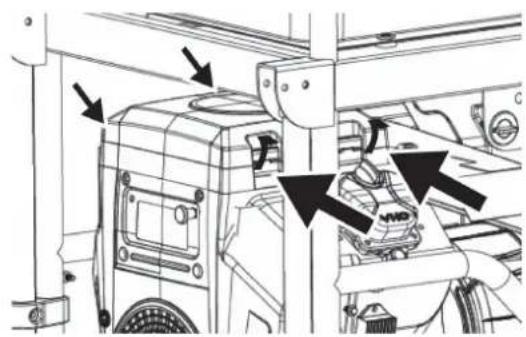

AIR FILTER MAINTENANCE. 22

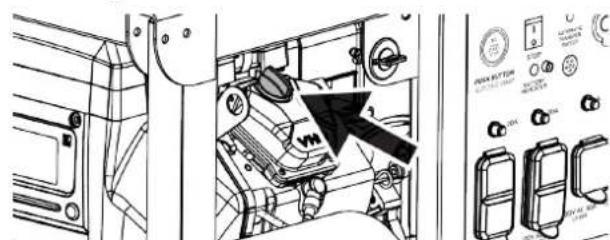

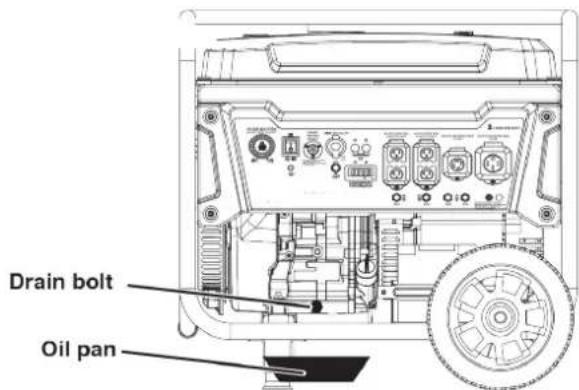

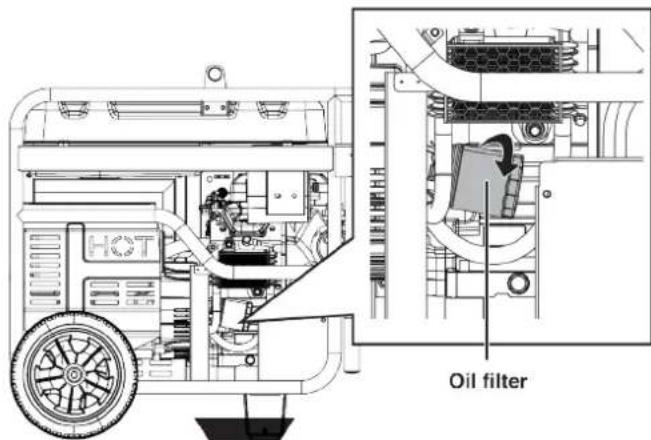

ENGINE OIL CHANGE 23
SPARK PLUG MAINTENANCE 24

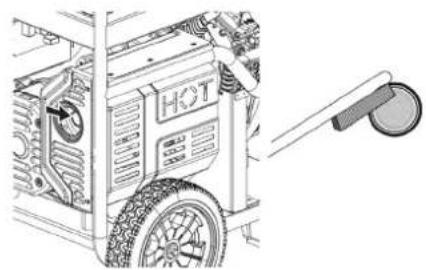

SPARK ARRESTOR SERVICE 24
FUEL FILTER 24
BATTERY MAINTENANCE 25
BATTERY REPLACEMENT 25
STORAGE 25
VALVE CLEARANCE 26
TROUBLESHOOTING 27

EXPLODED VIEWS AND PARTS LIST

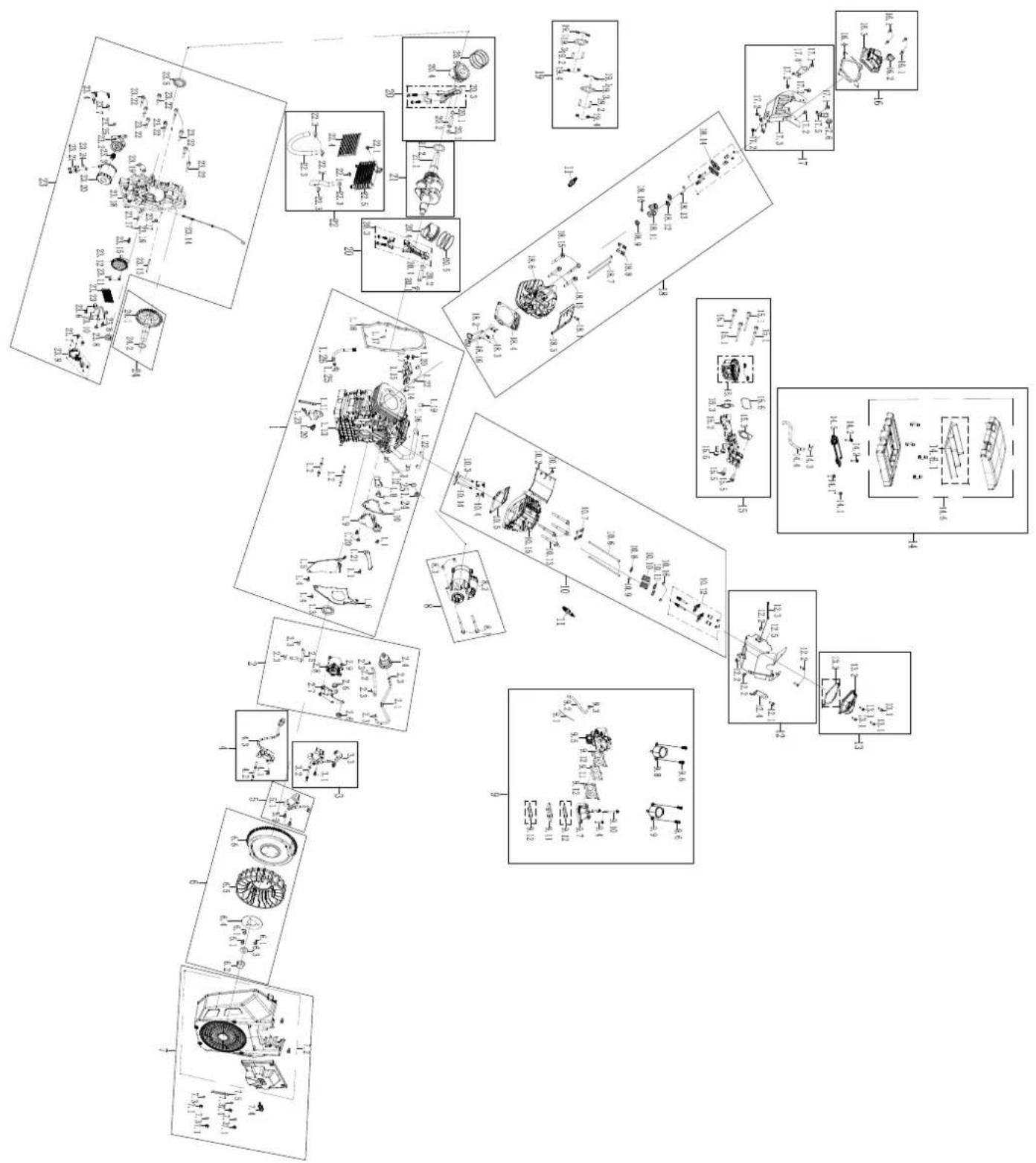

ENGINE EXPLODED VIEW 28
ENGINE PARTS LIST 29
ENGINE PARTS LIST CONTINUED 31

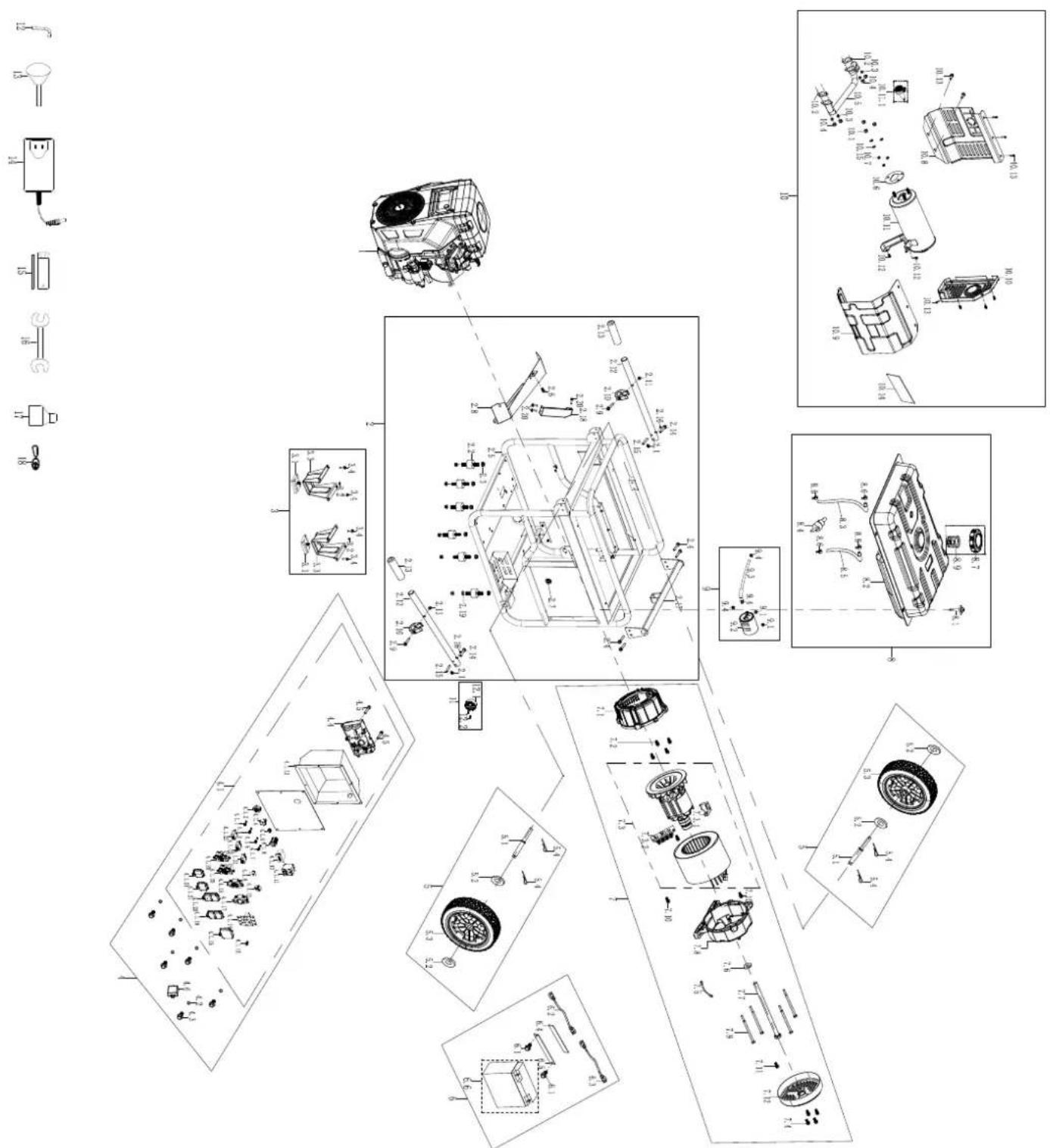

GENERATOR EXPLODED VIEW 32
GENERATOR PARTS LIST 33
33
GENERATOR PARTS LIST CONTINUED 34
34

SCHEMATICS

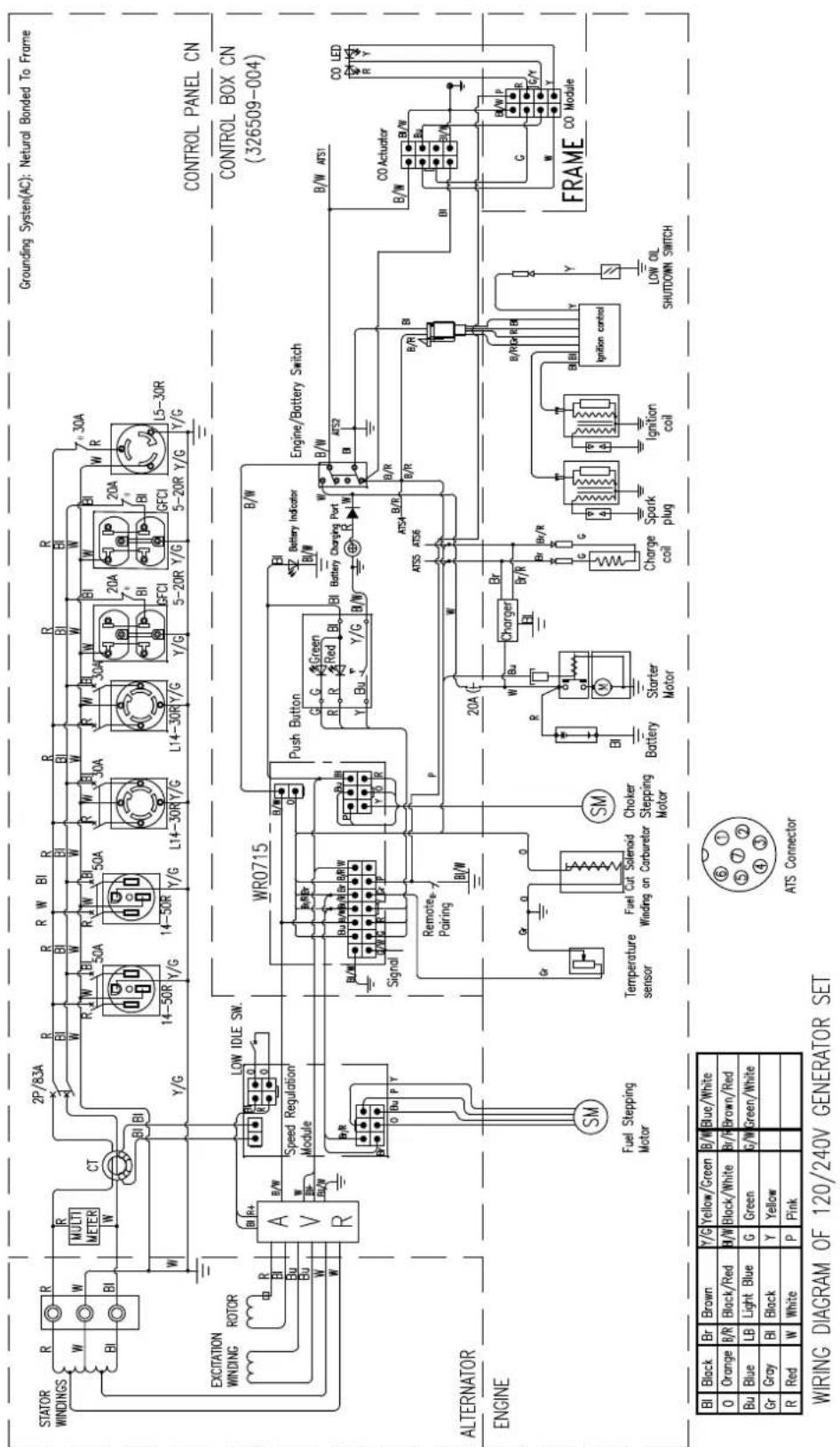

SCHEMATICS 35
ESPANOL 36
FRANÇAIS 65

ALL RIGHTS RESERVED

All rights reserved. No reproduction allowed in any form without written permission from Westinghouse Outdoor Power Equipment.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

Specifications
Running Watts:	12,000
Peak Watts:	15,000
Rated Voltage:	120/240V
Rated frequency:	60 Hz @ 3600 RPM
Phase:	Single phase
Total Harmonic Distortion:	≤ 5%
Engine Displacement:	713 cc
Starting Type:	Recoil, Electric Start, Remote
Fuel Capacity:	0.5 Gallons (40 Liter)
Fuel Type:	Unleaded gasoline 87-93 octane*
Oil Capacity:	1.7 US Quart (1.6 Liter)
Oil Type:	SAE 10W-30

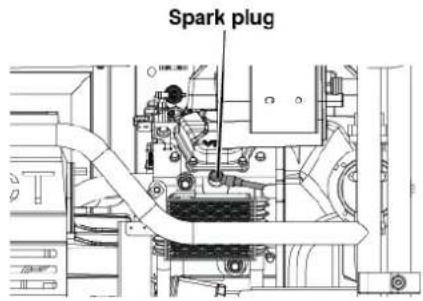

Spark Plug:	TORCH F7TC
Spark Plug Gap:	0.024 - 0.032 in. (0.60 - 0.80 mm)
Valve Intake Clearance:	0.0031 - 0.0047 in. (0.08 - 0.12 mm)
Valve Exhaust Clearance:	0.0051 - 0.0067 in. (0.13 - 0.17 mm)
Battery:	511092
AC Grounding System:	Bonded to frame
Voltage Regulator:	AVR
Alternator Type:	Brushed
Maximum Ambient Temperature:	104°F (40°C)
Certifications:	· EPA · CARB

*Ethanol content of 10% or less. DO NOT use E15 or E85.

UPDATES

The latest User Manual for your Westinghouse generator can be found under our support tab. https://westinghouseoutdoorpower.com/pages/manuals

Or scan the following QR code with your smartphone camera to be directed to the link.

NOTICE

This product is designed and rated for continuous operation at ambient temperatures up to 104^ (40^) . If needed, this product can be operated at temperatures ranging from 5^ (-15^) - 122^ (50^) for short periods. If the product is exposed to temperatures outside of this range during storage, it should be brought back within this range before operation. This product must always be operated outdoors in a well-ventilated area and far away from doors, windows, and other vents.

Maximum wattage and current are subject to and limited by such factors as fuel BTU content, ambient temperature, altitude, engine conditions, etc. Maximum power decreases about 3.5% for each 1,000 feet above sea level, and will also decrease about 1% for each 10^ (6^) above 60^ (16^) ambient temperature.

PRODUCT REGISTRATION

For trouble-free warranty coverage, it is important to register your Westinghouse generator.

You can register by:

• Completing and mailing the product registration card included in the carton.
• Registering your product online at: https://westinghouseoutdoorpower.com/pages/warranty-registration
• Scan the following QR code with your smartphone camera to be directed to the mobile registration link.

• Sending the following product information to:

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

For Your Records

Date of Purchase:

Model Number:

Serial Number:

Place of Purchase:

IMPORTANT: Keep your purchase receipt for trouble-free warranty coverage.

SAFETY

SAFETY DEFINITIONS

The words DANGER, WARNING, CAUTION, and NOTICE are used throughout this manual to highlight important information. Make sure that the meanings of this safety information is known to all who operate, perform maintenance on, or are near the generator.

This safety alert symbol appears with most safety statements. It means attention, be alert, your safety is involved! Please read and abide by the message that follows the safety alert symbol.

DANGER

Indicates a hazardous situation which, if not avoided will result in death or serious injury.

WARNING

Indicates a hazardous situation which, if not avoided could result in death or serious injury.

CAUTION

Indicates a hazardous situation which, if not avoided could result in minor or moderate injury.

NOTICE

Indicates a situation which can cause damage to the generator, personal property, and/or the environment, or cause the equipment to operate improperly.

Note: Indicates a procedure, practice or condition that should be followed for the generator to function in the manner intended.

SAFETY SYMBOLS

Follow all safety information contained in this manual and on the generator.

Symbol Description
!	Safety Alert Symbol
	Electrocution Hazard
	Asphyxiation Hazard
	Burn Hazard. Do not touch hot surfaces.
	Electrical Shock Hazard
	Fire Hazard
5	Maintain Safe Distance
	Lifting Hazard
	Read Manufacturer's Instructions
	Do Not Operate in Wet Conditions

DANGER

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

SAFETY INSTRUCTIONS

CORRECT USE

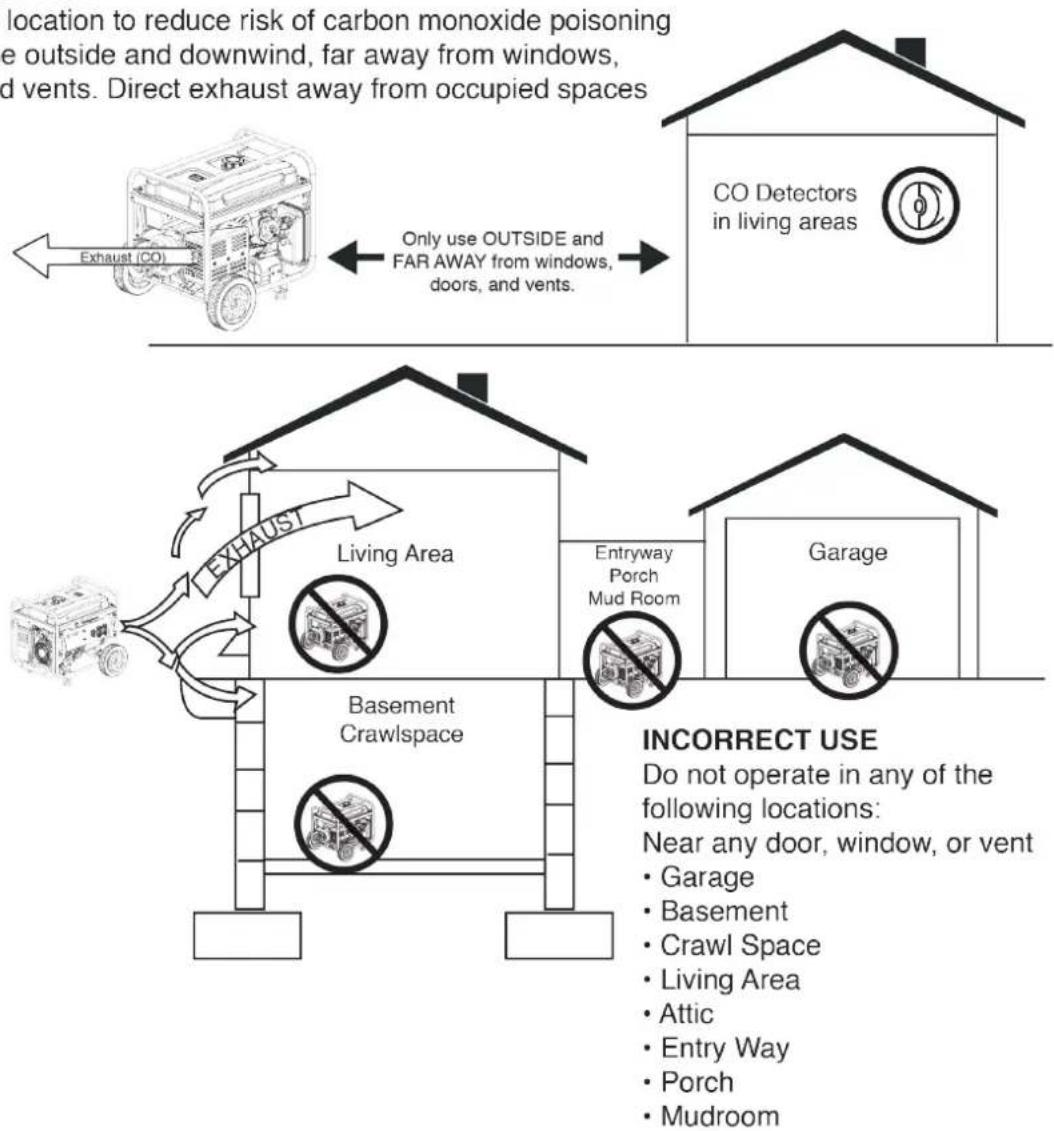

Example location to reduce risk of carbon monoxide poisoning. ONLY use outside and downwind, far away from windows, doors and vents. Direct exhaust away from occupied spaces

NOTICE

Install battery-powered carbon monoxide detectors or plug-in carbon monoxide detectors with battery back-up in living areas.

DANGER

Fire and electrocution hazard. DO NOT connect to a building's electrical system unless the generator and transfer switch have been properly installed and the electrical output has been verified by a qualified electrician. The connection must isolate the generator power from utility power and must comply with all applicable laws and electrical codes.

DANGER

Electrocution hazard. Never use the generator in a location that is wet or damp. Never expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit.

GENERAL SAFETY PRECAUTIONS

• Never use the generator to power medical support equipment.
  DO NOT operate the generator when you are tired or under the influence of drugs, alcohol, or medication.
• When this generator is used to supply a building wiring system the generator must be installed by a qualified electrician and connected to a transfer switch as a separately derived system in accordance with NFPA 70, National Electrical Code.
• Only use OUTSIDE and far away from windows, doors, and vents as recommended by the US Department of Health and Human Services Centers for Disease Control and Prevention. Your specific home and/or wind conditions may require additional distance.
• If you begin to feel sick, dizzy, or weak while using the generator, move to fresh air IMMEDIATELY. See a doctor, as you can have carbon monoxide poisoning.
• While operating and storing, keep at least five feet of clearance on all sides of the generator, including overhead. Allow the generator to cool a minimum of 30 minutes before storage. Heat created by the muffler and exhaust gases could be hot enough to cause serious burns and/or ignite combustible objects.
• DO NOT use generator with electrical cords which are worn, frayed, bare, or otherwise damaged.
• All electrical tools and appliances operated from this generator must be properly grounded by use of a third wire or be double-insulated.
• DO NOT touch the muffler or engine. They are very HOT and will cause severe burns. Do not put body parts or any flammable or combustible materials in the direct path of the exhaust.
• ALWAYS remove any tools or other service equipment used during maintenance from the generator before operating.
• Avoid skin contact with engine oil or gasoline. Wear protective clothing and equipment. Wash all exposed skin with soap and water.

FUEL SAFETY

• Store fuel in a container approved for gasoline.
• Do not smoke when filling the generator with gasoline.
• Wear eye protection while refueling.
• Never remove the fuel cap when the generator is running. Shut off the engine and allow the unit to cool at least five minutes. Remove the fuel cap slowly to release pressure, keep fuel from escaping around the cap, and to avoid the heat from the muffler igniting fuel vapors. Tighten the fuel cap securely after refueling.

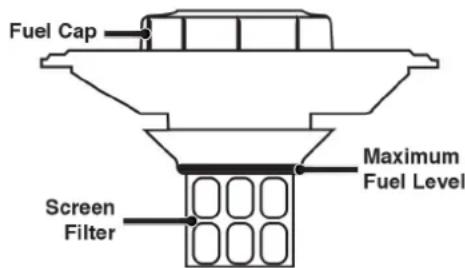

• Never overfill the fuel tank. Leave room for fuel to expand. Overfilling the fuel tank can result in a sudden overflow of gasoline and result in spilled gasoline coming in contact with HOT surfaces.
• Spilled fuel can ignite. If fuel is spilled on the generator, wipe up any spills immediately. Dispose of rag properly. Allow area of spilled fuel to dry before operating the generator.
• Store any containers containing gasoline in a wellventilated area, away from any combustibles or source of ignition.

Fire and explosion hazard. Gasoline is highly explosive and flammable and can cause severe burns or death.

Gasoline is highly flammable and explosive.
Gasoline can cause a fire or explosion if ignited.
Gasoline is a skin irritant and needs to be cleaned up immediately if it comes in contact with the skin.
Gasoline has a distinctive odor, this will help detect potential leaks quickly.
- In any petroleum gas fire, flames should not be extinguished unless by doing so the fuel supply valve can be turned OFF. This is because if a fire is extinguished and a supply of fuel is not turned OFF, then an explosion hazard could be created.
Gasoline expands or contracts with ambient temperatures. Never fill the gasoline tank to full capacity, as gasoline needs room to expand if temperatures rise.

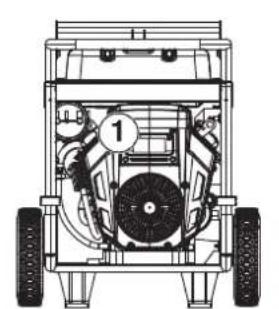

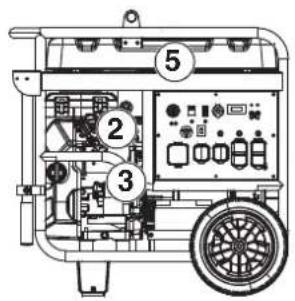

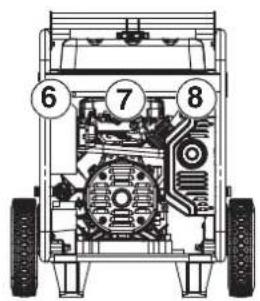

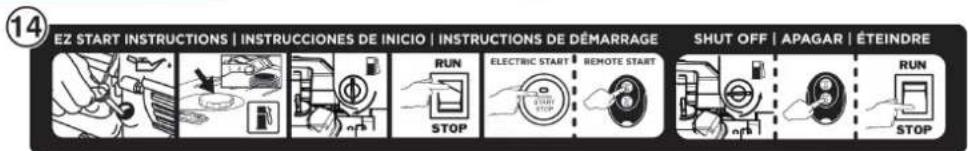

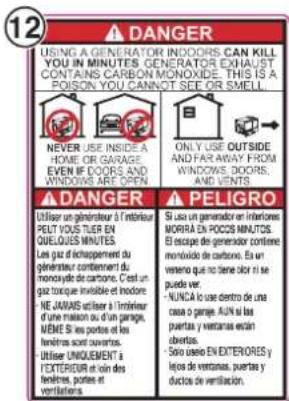

SAFETY LABELS AND DECALS

CO SENSOR

The carbon monoxide (CO) sensor monitors for the accumulation of poisonous carbon monoxide gas around the generator when the engine is running. If unsafe levels of CO gas are detected, the CO Sensor automatically shuts down the engine.

The CO Sensor will also detect the accumulation of carbon monoxide from other fuel burning sources used in the area of operation. For example, if the exhaust of fuel burning tools is pointed at a CO Sensor-equipped generator, a shut-off may be initiated due to unsafe CO levels. This is not an error. Hazardous carbon monoxide has been detected. Move and redirect any additional fuel burning sources to dissipate carbon monoxide away from personnel and occupied buildings.

Note: Remote start-equipped generators must be restarted with the START/STOP button on the control panel after an automatic shut-down occurs.

Generators are intended to be used outdoors, far from occupied buildings and the exhaust pointed away from personnel and buildings. If misused and operated in a location that results in the accumulation of CO, like in a partially enclosed area, the CO Sensor shuts off the engine. A RED indicator light will indicate the unit was shut down due to an unsafe level of CO being detected around the generator. Before approaching the generator allow the CO to dissipate from around the generator. The CO Sensor DOES NOT replace carbon monoxide alarms. Install battery-powered carbon monoxide alarm(s) in your home.

WARNING

Automatic shutoff accompanied with a flashing RED light in the CO Sensor portion of the control panel is an indication that the generator was improperly located. If you start to feel sick, dizzy, weak, or carbon monoxide detectors in your home indicate an alarm, get to fresh air immediately. Call emergency services. You may have carbon monoxide poisoning.

CONTROL PANEL CO AUTO-SHUTOFF

CARBON MONOXIDE AUTO-SHUTOFF

AUTOMATIC SHUTOFF SEE ACTION LABEL

CORTE AUTOMÁTICO CONSULTE LA ETIQUETA DE ACCION

SERVICE GENERATOR

REALICE UN SERVICIO DEL GENERATOR

CO SENSOR INDICATOR LIGHTS

Color Description

RED

Unsafe levels of carbon monoxide accumulated around the generator. After shut-off, the RED indicator light in the CO Sensor area of the control panel will flash to provide notification that the generator was shut-off due to an accumulating of unsafe CO levels. The RED light will flash for at least five minutes after a CO shut-off. Move the generator to an open, outdoor area far away from occupied spaces with exhaust pointed away. Once relocated to a safe area and the red light is off, the generator can be restarted. Introduce fresh air and ventilate the area where the generator had shut down.

YELLOW

A CO sensor system fault occurred. When a system fault occurs, the generator is automatically shut down and the YELLOW indicator light in the CO auto-shutoff area of the control panel will flash to provide notification that a fault has occurred. The YELLOW light will flash for at least five minutes after a fault. The generator can be re-started, but may continue to shutoff. A CO sensor fault can only be diagnosed and repaired by an authorized Westinghouse service center.

ACTION LABEL

COMPONENTS

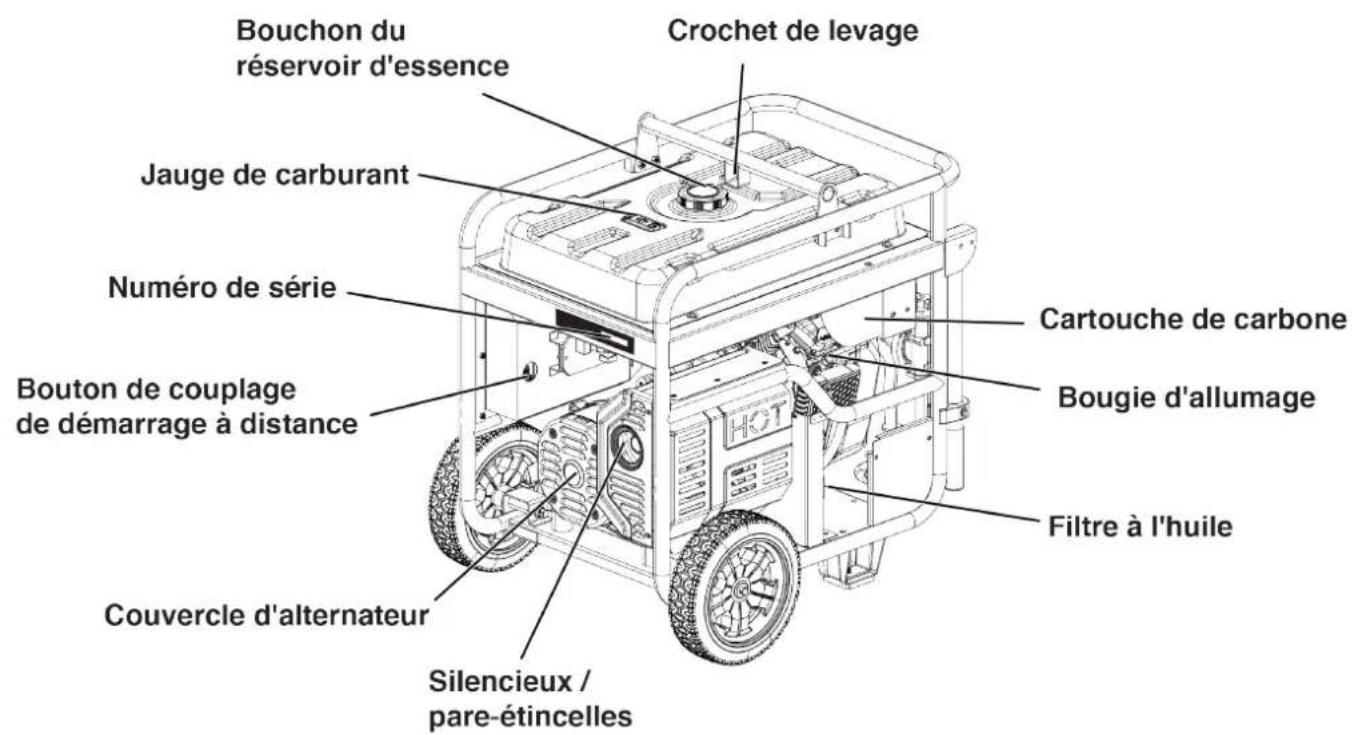

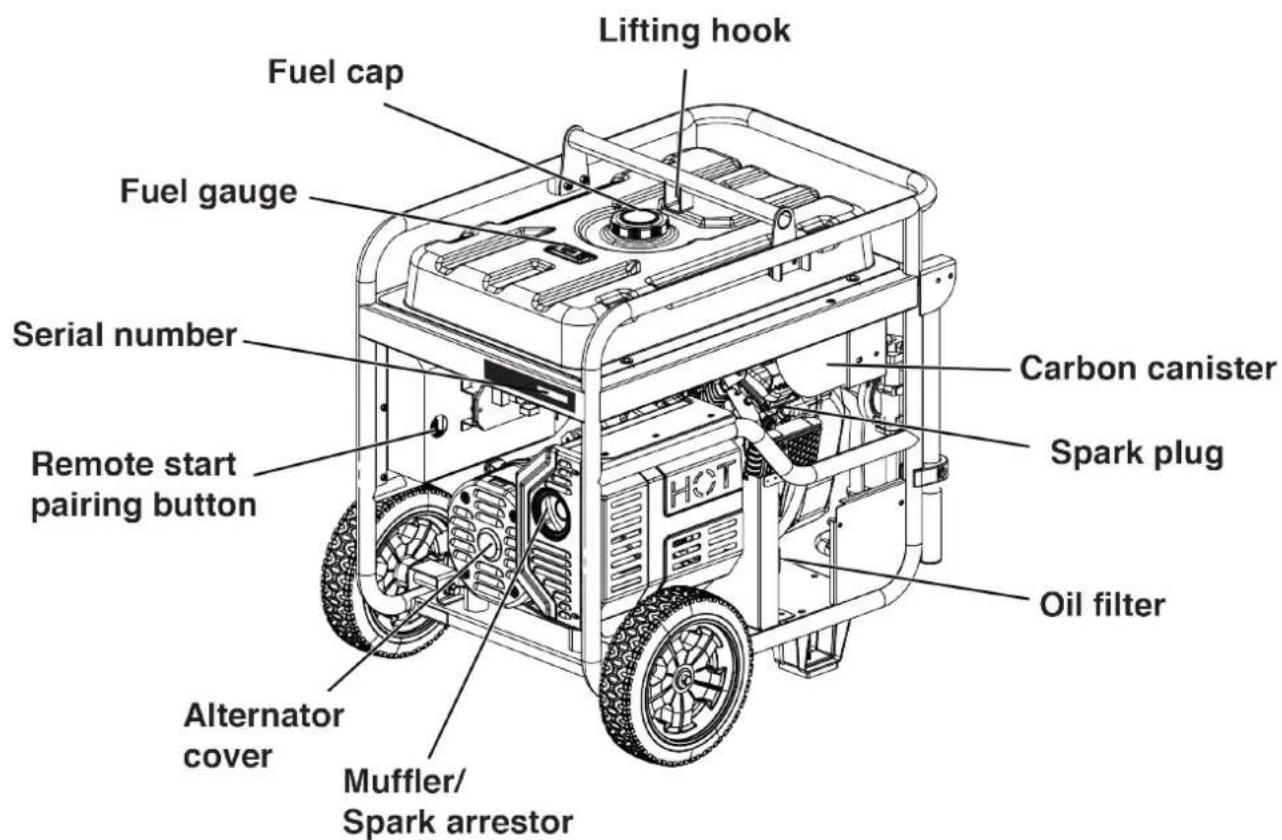

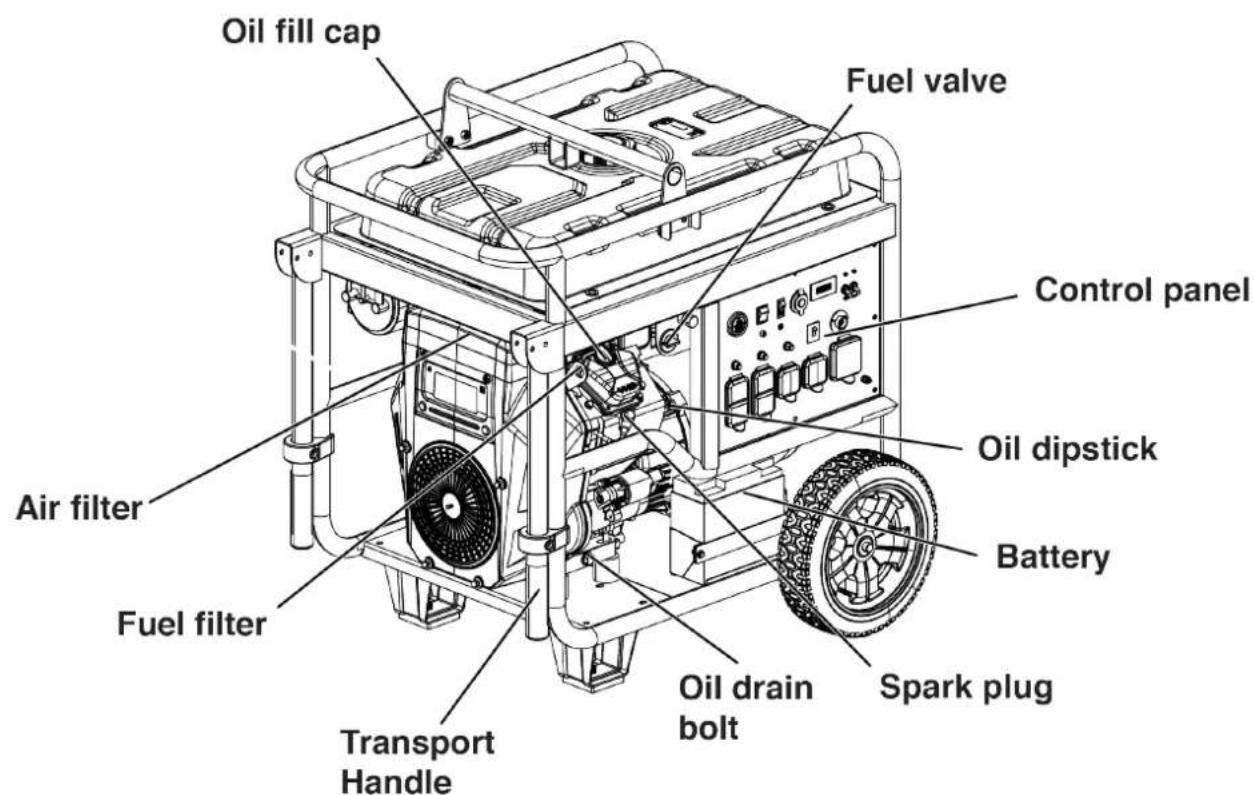

GENERATOR COMPONENTS

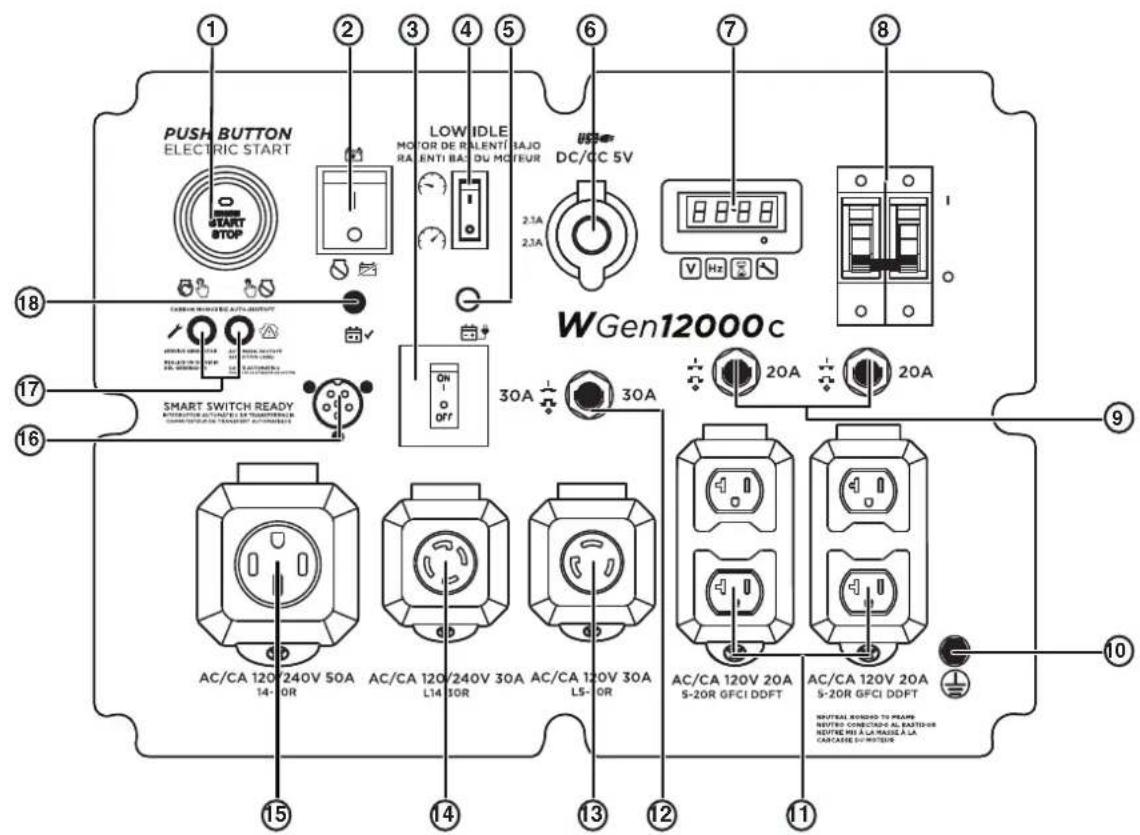

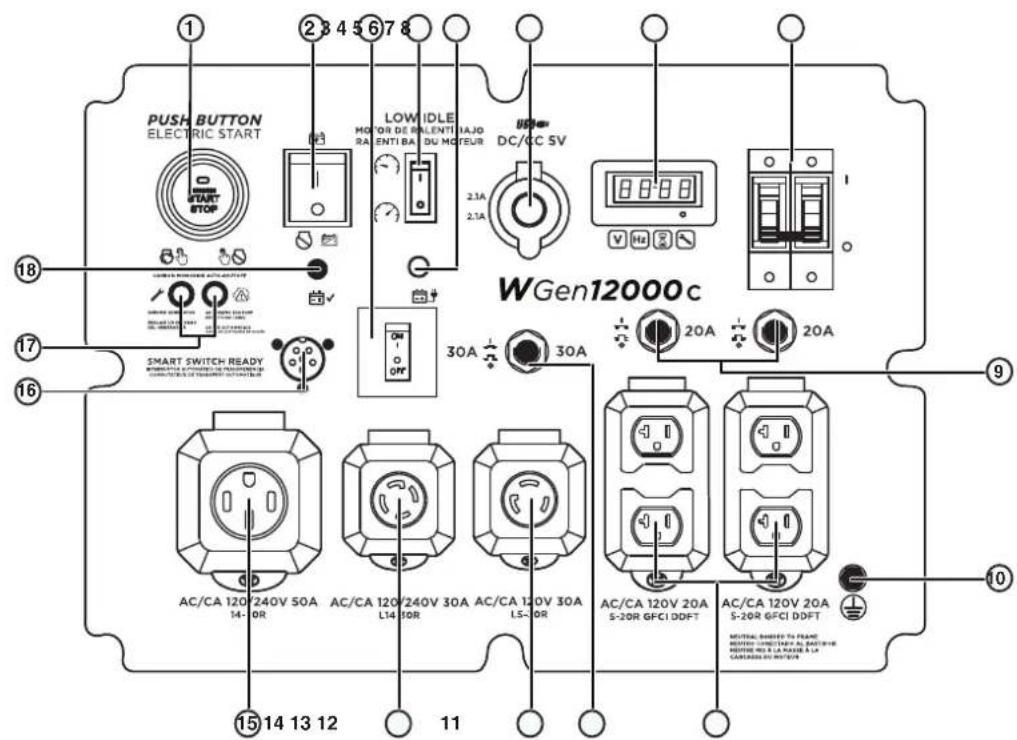

CONTROL PANEL COMPONENTS

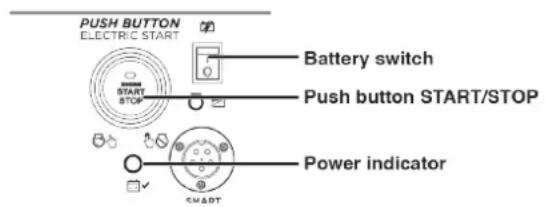

1. Push-Button START/STOP: Push once to automatically start the engine. Push again to stop the engine.
2. Battery Switch: Turns battery ON and OFF. Must be ON before electric or remote start.
3. 30 Amp AC Circuit Breaker: Circuit breaker limits the current that can be delivered through the NEMA L14-30R receptacle to 30 amps.
4. Low Idle Switch: Low Idle minimizes fuel consumption, noise, and engine wear by lowering the engine RPM during intermittent use. See LOW IDLE section for important use considerations.
5. Battery Charging Port: Used to charge the battery with the included battery charger.
6. USB Ports: Two-port 5V/2.1A USB outlet. Accepts Type A USB plugs.
7. VFT Data Center: Displays voltage, frequency, total hour meter, and run/maintenance timer.
8. Main Circuit Breaker: The main circuit breaker controls total output of all outlets to protect the generator from overload or short circuit.
9. 20 Amp AC Circuit Breakers: Circuit breakers limits the current that can be delivered through each NEMA 5-20R receptacle to 20 Amps.

10. Ground Terminal: The ground terminal is used to externally ground the generator.

11. 120-Volt AC, 20-Amp NEMA 5-20R GFCI Receptacles: Each receptacle is capable of carrying a maximum of 20 amps on a single receptacle or a combination of both receptacles.

12. 30 Amp AC Circuit Breaker: Circuit breaker limits the current that can be delivered through the NEMA L5-30R receptacle to 30 amps.
13. 120-Volt AC, 30-Amp NEMA L5-30R Receptacle: Receptacle can supply a maximum of 30 Amps.
14. 120/240-Volt AC, 30-Amp NEMA L14-30R Receptacle: Receptacle can supply either 120V or 240V up to 30 amps.
15. 120/240-Volt AC, 50-Amp NEMA 14-50R Receptacle: Receptacle can supply either 120V or 240V up to 50 amps.
16. Smart Switch Outlet: Connects the Westinghouse ST Switch (sold separately) to the control panel
17. CO Sensor indicator lights: The CO Sensor monitors for the accumulation of poisonous carbon monoxide gas. If increasing levels of CO gas are detected, the CO Sensor automatically shuts down the engine.
18. Battery Indicator: Indicates that power is ON. Light will remain illuminated while the unit is ON.

DATA CENTER

Use the Mode button on the Data Center to switch between displays.

DATA CENTER

Voltage:

Displays current voltage output.

Frequency (Hz):

Displays power output frequency in Hertz.

Lifetime Hours:

Displays the lifetime run hours.

Run Time/Maintenance:

Displays current run time. Resets to zero when shut down. Maintenance reminder displayed when required.

Push the Mode button to cycle through the data display modes.

Mode Button

Maintenance reminder codes will be shown on the Data Display based on unit lifetime hours. The maintenance codes will be displayed until the unit is turned off. Refer to the Maintenance section for specific procedures.

Maintenance Code Required Maintenance
P25 Change	engine oil/replace oil filter
P50 Change	engine oil/replace oil filter, clean air filter
P100 Change	engine oil/replace oil filter, clean air filter, replace fuel filter

ASSEMBLY

This unit ships fully assembled from our factory without oil in the engine. It must be properly serviced with fuel and oil before operation.

If you have any questions regarding preparing your generator for initial start, contact our service team at [e-mail] or call 1-855-944-3571.

UNPACKING

CAUTION

Weight hazard. Always have assistance when lifting the generator.

1. Place shipping carton on a solid, flat surface and carefully open the carton.
2. Remove and save the carton contents.
3. Remove and discard the packing tray.
4. Unfold the top of the plastic bag enclosing the generator.
5. Carefully cut the vertical corners of the carton to access the generator.
6. Recycle or dispose of the packaging materials properly.

CARTON CONTENTS

• Generator
• User manual
• Quick Start Guide/Maintenance Schedule
• Remote start key fob
  1.7 US Quart (1.6 Liter) bottle of SAE 10W-30 Oil
• Battery charger
• Spark plug socket wrench
  Oil Funnel
  Assembly wrench
• Wheel and lifting hook components

Item Quantity

• Lifting hook 1
  Flange bolt, M8 4
  Wheel 2
• Axle pin 2
• Washer 4
  Cotter pin 4

If any parts are missing, contact our service team at [e-mail] or call 1-855-944-3571.

INSTALL WHEELS AND LIFTING BRACKET

NOTICE

Assembling the generator will require lifting the unit on one side. Install the wheels before adding fuel or oil.

CAUTION

Lifting hazard. Use two people when installing the wheels. Refer to LIFTING HOOK in the OPERATION section.

1. Place generator on a flat surface.

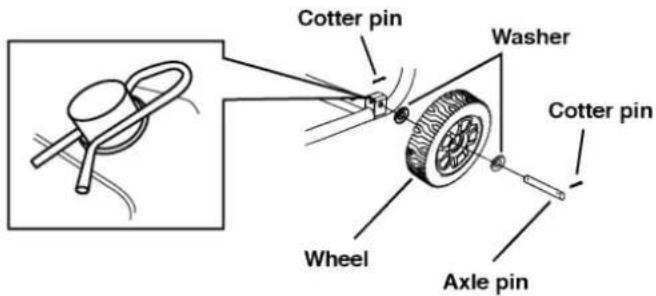

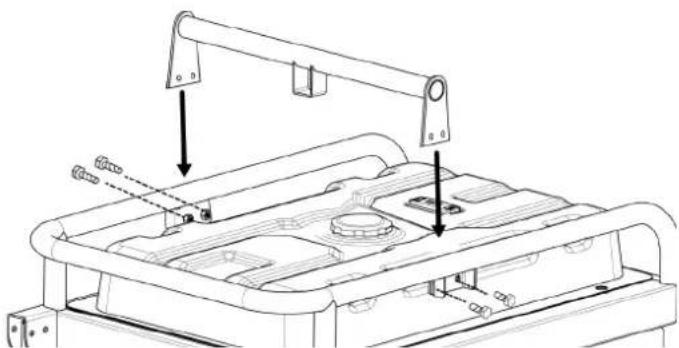

2. Align the lifting hook bracket with the mounting brackets on the top of the fuel tank. Secure with four M8 flange bolts.

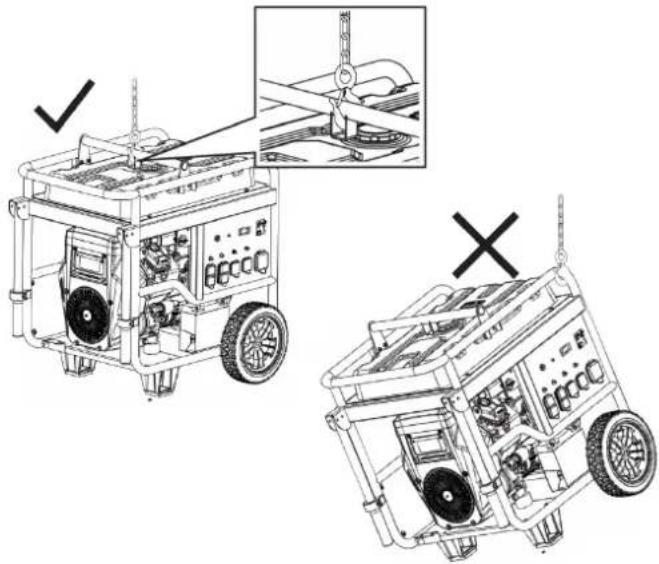

1. Use the Lifting Hook to raise the unit enough to install the wheels as shown.

NOTICE

The wheels are only intended for hand transport. The wheels are not suitable for towing the generator either on or off-road.

INITIAL OIL FILL

NOTICE

THIS GENERATOR HAS BEEN SHIPPED WITHOUT OIL. Do not attempt to crank or start engine before it has been properly serviced with recommended oil. Failure to add engine oil before starting will result in serious engine damage.

NOTICE

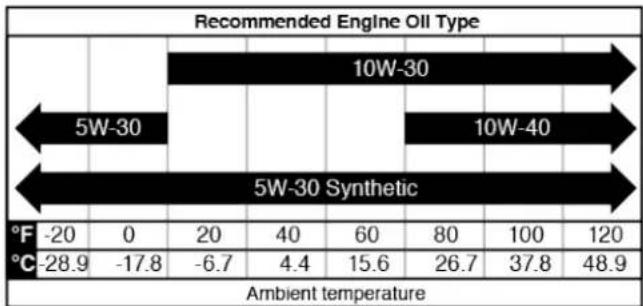

The recommended oil type for this unit is 10W-30 Automotive oil. Use of unapproved oil types can cause severe engine damage that is not covered under warranty.

The included, recommended oil type for typical use is 10W-30 engine oil. If running the generator in extreme temperatures, refer to the following chart.

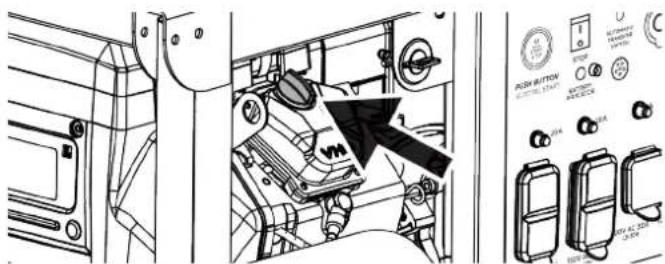

1. On a level surface, remove the oil fill cap.

1. Using the supplied funnel and oil, add the oil into the engine.

2. Replace the oil fill cap and tighten securely.

BATTERY INSTALLATION

CAUTION

Battery posts, terminals contain lead and lead compounds. Wash hands after handling.

WARNING

The battery gives off explosive hydrogen gas during normal operation. A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you. Wear protective clothing and a face shield, or have a skilled technician perform battery maintenance.

WARNING

Burn hazard. The battery contains sulfuric acid (electrolyte) which is highly corrosive and poisonous. Wear protective clothing and eye protection when working near the battery. Keep children away from the battery.

WARNING

NEVER smoke or work near sparks or other sources of ignition. NEVER touch both battery terminals at the same time with your hand or any non-insulated tools. If battery acid contacts skin or clothing, flush immediately with water and neutralize with baking soda.

The battery shipped with the generator has been fully charged. A battery may lose some charge when not in use. See the BATTERY MAINTENANCE section for battery charging procedure.

Note: Once started, the generator will charge the battery after 30-60 minutes of use.

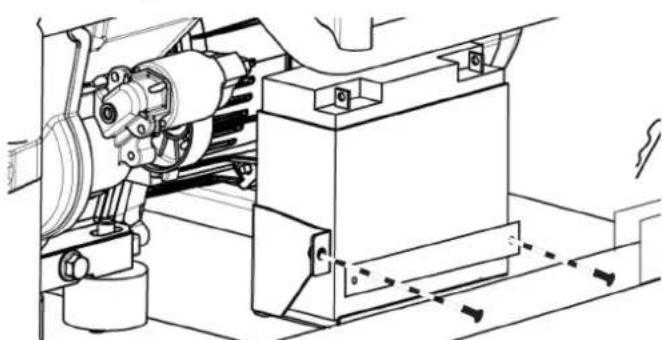

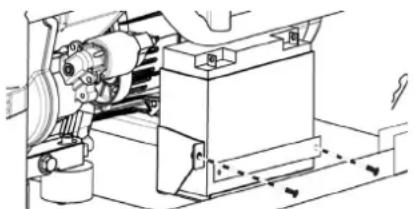

1. Remove the two battery plate bolts and battery plate. Tilt the battery forward and remove.

1. Connect the positive (+) battery cable (red boot) to the positive (+) battery post. Secure the boot over the battery post.

1. Connect the negative (-) cable (black boot) to the negative (-) battery post. Secure the boot over the battery post.

2. Install the battery in the battery tray. Install the battery plate and bolts. Tighten the bolts securely.

FUEL

WARNING

Fire and explosion hazard. Never use a gasoline container, gasoline tank, propane connector hose, propane tanks, or any other fuel item that is broken, cut, torn or damaged.

DANGER

Fire and explosion hazard. Do not overfill fuel tank. Fill only to the red fill ring located in the in-tank fuel screen filter. Overfilling may cause fuel to spill onto engine causing a fire or explosion hazard.

DANGER

Fire and explosion hazard. Never refuel the generator while the engine is running. Always turn the engine off and allow the generator to cool for two minutes before refueling.

NOTICE

Do not use E15 or E85 fuel in this product. Engine or equipment damage caused by stale fuel or the use of unapproved fuels (such as E15 or E85 ethanol blends) is not covered by warranty. Only use unleaded gasoline containing up to 10% ethanol.

FUEL REQUIREMENTS

• CLEAN, FRESH, unleaded gasoline, 87-93 octane.
• Up to 10% ethanol (gasohol) is acceptable (where available; non-ethanol fuel is recommended).
  DO NOT use E85 or E15.
  DO NOT use a gas oil mix.
  DO NOT modify the engine to run on alternate fuels.
  DO NOT fuel indoors.
  DO NOT create a spark or flame while fueling.

USING FUEL STABILIZER

Adding a fuel stabilizer (not included) extends the usable life of fuel and helps prevent deposits from forming that can clog the fuel system. Follow the manufacturer's instructions for use.

Always mix the correct amount of fuel stabilizer to gasoline in an approved gasoline container before fueling the generator. Run the generator for five minutes to allow the stabilizer to treat the entire fuel system.

FILLING THE FUEL TANK

1. Turn the generator OFF and allow to cool for a minimum of two minutes before fueling.
2. Place the generator on level ground in a well ventilated area.
3. Clean area around fuel cap and remove the cap slowly.

NOTICE

Only fill the tank from an approved gasoline container.
Make sure the gasoline container is internally clean and in good condition to prevent fuel system contamination.
4. Slowly add the recommended fuel. Do not overfill. Fill only to the red maximum fill ring on the fuel screen filter visible in the filler neck.

1. Install the fuel cap. Tighten securely.

NOTICE

Fuel can damage paint and plastic. Use caution when filling the fuel tank. Clean up spilled fuel immediately to avoid damage. Damage caused by spilled fuel is not covered under warranty.

NOTICE

Clean the fuel tank screen filter of debris before and after each fueling. Remove the fuel screen filter by slightly compressing it while removing it from the fuel tank.

GROUNDING

WARNING

Shock hazard. Failure to properly ground the generator can result in electric shock.

NOTICE

Only use grounded extension cords, tools, and appliances, or double-insulated tools and appliances.

The generator neutral is bonded to the frame. There is a permanent conductor between the generator (stator wire) and the frame. If this generator will be used only with cord and plug equipment connected to the receptacles mounted on the generator, National Electric Code does not require that the unit be grounded. However, other methods of

using the generator may require grounding to reduce the risk of shock or electrocution.

Before using the ground terminal, consult a qualified electrician, electrical inspector, or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator.

DISCONNECTING THE BONDED NEUTRAL

Removing the bonded neutral disables the GFCI protection from the 5-20R receptacles. The bonded neutral should only be removed under specific circumstances. Consult a qualified electrician to determine if your situation requires disconnecting the bonded neutral.

1. Remove the alternator cover.

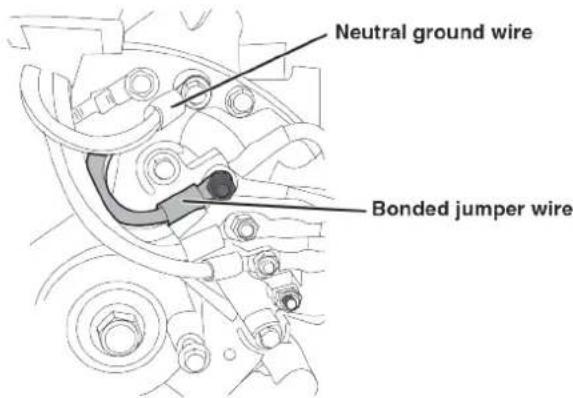

2. Remove the bonded jumper wire and reinstall the nut.

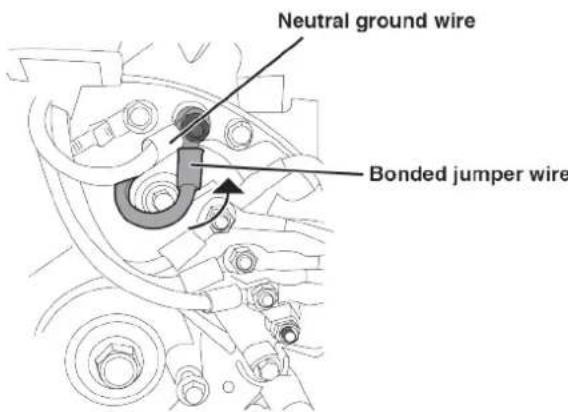

1. Remove the nut securing the neutral ground wire and attach the bonded jumper wire. Reinstall the nut.

1. Reinstall the alternator cover.

IMPORTANT: Apply a new "NEUTRAL UNBONDED" Label over the "NEUTRAL BONDED TO FRAME" label on the front of the control panel.

OPERATION

GENERATOR LOCATION

Read and understand all safety information before starting the generator.

DANGER

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

NEVER operate the generator inside any building, including garages, basements, crawlspaces, sheds, enclosure, or compartment, including the generator compartment of a recreational vehicle.

DANGER

Electrocution hazard. Never use the generator in a location that is wet or damp. Never expose the generator to rain, snow, water spray, or standing water while in use. Protect the generator from all hazardous weather conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit. Using a generator or electrical appliance in wet conditions, such as rain or snow, or near a pool or sprinkler system, or when your hands are wet, could result in electrocution

WARNING

Fire hazard. Only operate the generator on a solid, level surface. Operating the generator on a surface with loose material such as sand or grass clippings can cause debris to be ingested by the generator that could block cooling vents or the air intake system. Allow the generator to cool for 30 minutes before transport or storage.

The generator should be on a flat, level surface at all times (Even while not in operation). The generator must have at least 5 ft. (1.5m) of clearance from all combustible material.

Do not operate the generator in the back of a SUV, camper, trailer, truck bed (regular, flat, or otherwise), under stairs, next to walls or buildings, or in any other location that will not allow for adequate cooling of the generator and/or the muffler. DO NOT contain generators during operation.

DANGER

Asphyxiation hazard. Place the generator in a wellventilated area. DO NOT place the generator near vents or intakes where exhaust fumes could be drawn into occupied or confined spaces. Carefully consider wind and air currents when positioning the generator.

Engine power is reduced the higher you operate above sea level. Output will be reduced approximately 3.5% for every 1000 feet of increased altitude from sea level.

High altitude adjustment is required for operation at altitudes over 2000 ft. (762 m). Operation without this adjustment will cause decreased performance, increased fuel consumption, and increased emissions.

NOTICE

Do not operate the generator at altitudes below 2,000 ft. (610 m) with the high altitude kit installed. Engine damage may occur.

High Altitude Carburetor Kit Part# 518904

REMOTE START

WARNING

Verify that the area around the generator is clear before remote starting the generator.

The remote start key fob included with the generator should be attached to the recoil handle or control panel. If your unit was shipped without a key fob, contact Westinghouse customer service.

The generator can be started remotely from up to 99 feet (30 meter) using the remote start key fob.

Note: As the batteries in the remote start key fob drain, operational distance will decrease.

PAIRING THE REMOTE START

Remote replacement batteries: (2) CR2016

Remote replacement: Part# 100714A

If the remote start key fob is replaced or needs re-paired to the generator, follow this procedure:

1. Turn the generator battery switch to the ON position. The power indicator light will illuminate.

1. Push and hold the red Pairing button on the back of the control panel until the START/STOP button illuminates.

1. Push and hold the STOP button on the key fob until the START/STOP button illumination turns OFF. Release the button. The START/STOP button will illuminate after the button is released.

1. Push and hold the START button on the key fob until the START/STOP button illumination turns OFF. Release the button. The START/STOP button will illuminate after the button is released.

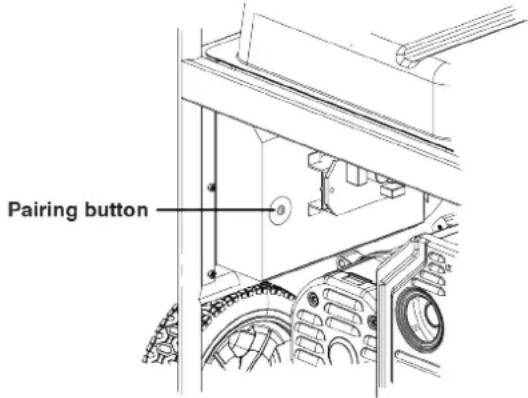

2. Push the Pairing button on the side of the control panel until the START/STOP button illumination turns OFF. Release the button.
3. Turn the generator battery switch to the OFF position. The remote is now paired.

BREAK-IN PERIOD

For proper break-in, do not exceed 50% of the rated running watts (6000 watts) during the first five hours of operation.

Vary the load occasionally to allow stator windings to heat and cool and help seat the piston rings.

LOW IDLE

NOTICE

Always start the generator with Low Idle switch OFF. Allow the engine speed to stabilize before switching Low Idle ON.

NOTICE

Frequency output of the generator is dependent on engine speed. DO NOT use Low Idle when powering sensitive electronics or large surge loads such as an air conditioner, electric pump, refrigerator, or when connected to a home transfer switch.

Low Idle minimizes fuel consumption, noise, and engine wear by lowering the engine RPM to idle (2400 RPM) when electrical loads have been turned off and automatically returns to rated speed when loads are turned back on.

Turn Low Idle ON when powering intermittent, non-electronic loads, such as power tools at a work site.

BEFORE STARTING THE GENERATOR

Verify that:

• The generator is placed in an safe, appropriate location.
• The generator is on a dry, flat, and level surface.
  The engine is filled with oil.
  Gasoline is in the fuel tank.
• All loads are disconnected.
• The LOW IDLE switch is in the OFF position

DANGER

Fire and explosion hazard. DO NOT move or tip the generator during operation.

STARTING THE ENGINE

DANGER

Fire and explosion hazard. DO NOT add gasoline to the fuel tank while the generator is in operation.

During Push-Button or Remote Start the engine will automatically set the choke and begin the start sequence. If the engine fails to start, the generator will attempt to start the engine two more times. The battery switch can be turned off at any time during the automatic start sequence to abort the engine start attempt.

If the cranking speed drops after each unsuccessful attempt, then the battery may not be adequately charged. See BATTERY MAINTENANCE section.

1. Verify that fuel is in the gas tank.
2. Turn the fuel valve to the ON position.

FUEL VALVE
VALVULA DE GASOLINA
SOUPAPE DE CARBURANT

1. Push the battery switch to the ON position.
2. Choose the starting method:

a. Remote Start: Push and hold the START button on the remote start key fob for one second.

NOTE: Remote start-equipped generators must be restarted with the START/STOP switch on the control panel after an automatic shut-down occurs.
b. Push-Button Start: Push and hold the engine START/STOP button for two seconds.

STOPPING THE ENGINE

1. Turn off and unplug all connected electrical loads.
   IMPORTANT: Never start or stop the generator with electrical devices connected.
2. Let the generator run with no load for several minutes to stabilize internal temperatures of the engine.
3. Push and hold the START/STOP button for one second or push STOP on the remote start key fob for one second.

Note: Alternately, if the generator is used infrequently, turn the fuel tank valve to the OFF position to limit the residual fuel remaining in the system. The engine will stop when fuel in the carburetor and fuel line is exhausted.
4. Push the battery switch to the OFF position.

FREQUENCY OF USE

If the generator will be used on an infrequent or intermittent basis (more than one month before next use), refer to the Battery Maintenance and Storage sections of this manual for information regarding battery charging and fuel deterioration.

AC CIRCUIT BREAKERS

The circuit breakers will automatically switch OFF if there is a short circuit or a significant overload of the generator at each receptacle.

If an AC circuit breaker switches OFF automatically, check that the appliance is working correctly and it does not exceed the rated load capacity of the circuit before resetting the AC circuit breaker ON.

The main circuit breaker controls total output of all outlets to protect the generator from overload or short circuit.

GENERATOR CAPACITY

NOTICE

Do not overload the generator's capacity. Exceeding the generator's wattage/amperage capacity can damage the generator and/or electrical devices connected to it.

Make sure the generator can supply enough continuous (running) and surge (starting) watts for the items you will power at the same time.

The total power requirements (Volts x Amps = Watts) of all appliances connected must be considered. Appliance and power tool manufacturers usually list rating information near the model or serial number.

To determine power requirements:

1. Select the items you will power at the same time.
2. Total the continuous (running) watts of these items. This is the amount of power the generator must produce to keep the items running. See the wattage reference chart on the next page.
3. Estimate how many surge (starting) watts you will need. Surge wattage is the short burst of power needed to start electric motor-driven tools or appliances such as a circular saw or refrigerator. Because not all motors start at the same time, total surge watts can be estimated by adding only the item(s) with the highest additional surge watts to the total rated watts from step 2.

Example:

Tool or Appliance	Running Watts*	Starting Watts*
RV Air Conditioner (11,000 BTU)	1010 1600
TV (Tube Type)	300 0
RV Refrigerator	180 600
Radio	200 0
Light (75 Watts)	300 0
Coffee Maker	600 0
	2590 Total Running Watts*	1600 Highest Starting Watts*
Total Running Watts	2590
Highest Starting Watts +	1600
Total Starting Watts Needed	4190

*Wattages listed are approximate. Verify actual wattage.

POWER MANAGEMENT

To prolong the life of the generator and attached devices, use care when adding electrical loads to the generator. There should be nothing connected to the generator outlets before starting the engine. The correct and safe way to manage generator power is to sequentially add loads as follows:

1. With nothing connected to the generator, start the engine as described in this manual.
2. Plug in and turn on the first load, preferably the largest load you have.
3. Permit the generator output to stabilize (engine runs smoothly and attached device operates properly).
4. Plug in and turn on the next load.
5. Again, permit the generator to stabilize.
6. Repeat steps 4 and 5 for each additional load.

Wattage Reference

Tool or Appliance	Estimated Running Watts*	Estimated Starting Watts*
Incandescent Lights (4 Quantity x 75 Watts)	300 0
TV (Tube Type) 300 0
Sump Pump (1/3 hp) 800 1300
Refrigerator or Freezer	700 2200
Well Pump (1/3 hp)	1000	2000
Furnace (1/2 hp)	800 2350
Radio	200 0
Drill (3/8", 4 amps)	440	600
Circular Saw (Heavy Duty, 7-1/4")	1400	2300
Miter Saw (10")	1800	1800
Table Saw (10")	2000	2000

*Wattages listed are approximate. Verify actual wattage.

EXTENSION CORDS

WARNING

Asphyxiation hazard. Extension cords running directly into the home increase the risk of carbon monoxide poisoning through any openings. If an extension cord running directly into your home is used to power indoor items, there is a risk of carbon monoxide poisoning to people inside the home. Always use battery-powered carbon monoxide detector (s) that meet current UL 2034 safety standards when running the generator. Regularly check the detector (s) battery.

WARNING

Asphyxiation hazard. When operating the generator with extension cords, make sure the generator is located in an open, outdoor area, far away from occupied spaces with exhaust pointed away.

WARNING

Fire and electrocution hazard. Never use worn or damaged extension cords. Damaged or overloaded extension cords could overheat, arc, and burn resulting in death or serious injury.

Before connecting an AC appliance or power cord to the generator:

• Use grounded 3-prong extension cords, tools, and appliances, or double-insulated tools and appliances.
• Make sure the tool or appliance is in good working order. Faulty appliances or power cords can create a potential for electric shock.
• Make sure the electrical rating of the tool or appliance

does not exceed the rated power of the generator or the receptacle being used.

EXTENSION CORD SIZING

Only use grounded 3-prong extension cords marked for outdoor use that are rated for the electrical load.

Total Amperage	Minimum Gauge, Outdoor Rated
	Up to 50 FT (15 M)	Up to 100 FT (30 M)
Up to 10A	12	8
Up to 15A	10	8
Up to 20A	10	6
Up to 30A	8	6
Up to 35A	6	6

ST SWITCH

The generator is compatible with the ST Switch, purchased separately. When utility power is on it will provide power (up to 120V @ 20A) to the appliances plugged into the 5-20R receptacle on the ST Switch. When utility power is lost the ST Switch automatically transfers input power from utility to generator power. When utility power is restored, the ST Switch transfers input power back to utility. Visit www.westinghouseoutdoorpower.com for more information.

TRANSPORTING

CAUTION

Weight hazard. Always have assistance when lifting the generator.

• Allow the generator to cool a minimum of 30 minutes before transporting.
• Replace all protective covers on the generator control panel.
• Keep the unit level during transport to minimize the possibility of fuel leakage or, if possible, drain the fuel or run the engine until the fuel tank is empty before transport.
• The generator wheels are only intended for hand transport. The wheels are not suitable for towing the generator either on or off-road.
• Use the extendable handle for hand transport. Only use the handle while the generator is OFF, stationary, and resting on a horizontal surface. Do not use the handle to lift the generator entirely off the ground, tow it, or up-end it.

CAUTION

Fire hazard. Do not up-end the generator or place it on its side. Fuel or oil can leak and damage to the generator may occur.

LIFTING HOOK

Only use the lifting hook to lift the unit or attach any load restraints such as ropes or tie-down straps. Do not attempt to lift or secure the generator by holding onto any of its other components.

Before lifting the generator, inspect the bracket and make sure it is securely fastened to the generator. Do not lift the generator unless the lifting bracket is securely fastened.

1. Hook a chain or strap through the eye on the lifting hook and make sure it is securely fastened.
2. Connect a suitable lifting device to the chain or strap. Inspect chain and hook for any damaged links or any defects that could cause failure. It is recommended to use hooks with safety latches installed.
3. Lift the generator slightly to ensure it is lifting straight and level.

WARNING

Accidental start-up. Disconnect the spark plug boot from the spark plugs when performing maintenance on the generator.

MAINTENANCE SCHEDULE

Regular maintenance will improve performance and extend the service life of the generator. Follow the hourly or calendar intervals, whichever occurs first. More frequent service is required when operating in adverse conditions as noted below.

Before Each Use

Check engine oil Check air filter

After First 20 Hours or First Month

Change engine oil1

After 50 Hours or Every 3 Months

Clean air filter2

After 100 Hours or Every 6 Months

Change engine oil1 Inspect/clean spark arrestor Inspect/clean spark plug Replace fuel filter Clean float bow3

After 300 Hours or Every Year

Replace spark plug Replace air filter Replace fine oil filter Inspect/adjust valve clearance3

Every 2 years

Replace fuel pipe

1 Change oil every month when operating under heavy load or in high temperatures.
2 Clean more often under dirty or dusty conditions. Replace air filter if it cannot be adequately cleaned.
3 Recommend service to be performed by authorized Westinghouse service dealer.

MAINTENANCE REPLACEMENT PARTS

Description Part Number
Air filter 5061
Oil drain bolt crush washer 942	42
Battery, 18 AH 511092
Fuel filter 516401
Spark plug 97108 (F7TC)
Spark arrester 6859

AIR FILTER MAINTENANCE

The air filter must be cleaned after every 50 hours of use or six months (frequency should be increased if the generator is operated in a dusty environment).

1. Place the generator on a level surface and allow the engine to cool for several minutes.
2. Release the four clips then remove the air filter cover.

1. Remove the air filter and clean using compressed air. DO NOT submerge the filter in liquids or add oil.
2. Install the air filter in the housing, making sure it is correctly oriented and seated in the housing.

1. Install the air cleaner cover and secure with the cover clips.

ENGINE OIL LEVEL CHECK

CAUTION

Avoid skin contact with engine oil. Wear protective clothing and equipment. Wash all exposed skin with soap and water.

NOTICE

Always use the specified engine oil. Failure to use the specified engine oil can cause accelerated wear and/or shorten the life of the engine.

When using the generator in dusty conditions or in extremely hot weather, change the oil more frequently.

Ambient air temperature will affect engine oil performance. Change the type of engine oil used based on weather conditions.

Check the engine oil level before each use or every 8 hours of operation.

1. Place the generator on a level surface and allow the engine to cool for several minutes.
2. Remove the oil dipstick and wipe the dipstick clean.
3. Insert, then remove the oil dipstick.

Acceptable Oil Level - On the flat side of the dipstick, oil is visible up to the first notch.

Low Oil - Oil is below the first notch on the dipstick

1. If low, remove the oil fill cap and add the recommended engine oil incrementally and recheck until the level is at the top notch on the dipstick. DO NOT overfill. If over the top notch on the dipstick, drain the oil to reduce the oil level to the full mark.
2. Replace the oil dipstick and oil fill cap.

ENGINE OIL CHANGE

When using the generator in dusty conditions or extremely hot weather, change the oil more frequently. Change the oil while the engine is still warm from operation.

1. Place the generator on a level surface and allow the engine to cool for several minutes.
2. With a damp rag, clean around the oil fill cap. Remove the oil fill cap.
3. Place an oil pan (or suitable container) under the oil drain.

1. Remove oil drain bolt and allow the oil the to drain.
2. Replace oil drain bolt.
3. Place the oil pan under the oil filter. Remove the oil filter by rotating it counterclockwise. Allow the oil to drain completely. Clean the area where the oil filter contacts the engine.

1. Apply clean oil to the rubber seal on the new oil filter. Install by hand, turning clockwise until the seal contacts the engine then turn another 3/4 turn. DO NOT over tighten.
2. Fill with the recommended oil. Stop frequently to check the oil level. Do not overfill. If the engine is overfilled, the excess oil may get transferred to the air cleaner housing and air filter. An indication of overfilling is white or blue smoke coming from the muffler when the engine is running.

Maximum oil capacity: 1.7 Quart (1.6 Liter)

1. Install the oil dipstick. Screw in the oil fill cap securely.

NOTICE

Do not pollute. Follow the guidelines of the EPA or other governmental agencies for proper disposal of hazardous materials. Consult local authorities or reclamation facility.

SPARK PLUG MAINTENANCE

NOTICE

Always use the Westinghouse OEM or compatible nonresistor-type spark plug. Use of resistor-type spark plug can result in rough idling, misfire, or may prevent the engine from starting.

Inspect and clean the spark plugs after every 100 hours of use or six months. Replace the spark plugs after 300 hours of use or every year.

1. Place the generator on a level surface and allow the engine to cool.
2. Remove the spark plug boots by firmly pulling the boot directly away from the engine.

1. Clean the area around the spark plugs.
2. Remove the spark plugs with the included spark plug socket wrench.

NOTICE

Never apply any side load or move the spark plug laterally when removing the spark plug.

1. Inspect the spark plugs. Replace if electrodes are pitted, burned, or the insulator is cracked. Only use a recommended replacement plug.
2. Measure the spark plug electrode gap with a wire-type feeler gauge. If necessary, correct the gap by carefully bending the side electrode.

Spark plug gap: 0.024 - 0.032 in. (0.60 - 0.80 mm)

1. Carefully install each spark plug finger tight, then tighten as additional 3/8 to 1/2 turn with the spark plug wrench.
2. Attach the spark plug boots.

SPARK ARRESTOR SERVICE

Allow the muffler to cool completely before servicing the spark arrester. Check and clean the spark arrester after every 100 hours of use or six months. Failure to clean the spark arrester will result in degraded engine performance.

1. Place the generator on a level surface.
2. Carefully remove the carbon deposits from the spark arrestor screen with a wire brush. The spark arrestor must be free of breaks and tears. Use compressed air to clear removed deposits.

FUEL FILTER

Replace the fuel filter after 100 hours of use.

Note: Have an appropriate gasoline container and rags ready to catch residual fuel in the filter and fuel line.

1. Allow the generator to cool completely.
2. Turn the fuel valve to the OFF position.

1. Note the orientation of the fuel filter. Using pliers, remove the fuel line clamps and remove the fuel filter.
2. Install the new fuel filter in the reverse order of removal.

BATTERY MAINTENANCE

WARNING

The battery gives off explosive hydrogen gas during normal operation. A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you. Wear protective clothing and a face shield, or have a skilled technician perform battery maintenance.

WARNING

Burn hazard. The battery contains sulfuric acid (electrolyte) which is highly corrosive and poisonous. Wear protective clothing and eye protection when working near the battery. Keep children away from the battery.

WARNING

NEVER smoke or work near sparks or other sources of ignition. NEVER touch both battery terminals at the same time with your hand or any non-insulated tools. If battery acid contacts skin or clothing, flush immediately with water and neutralize with baking soda.

The battery shipped with the generator has been fully charged. A battery may lose some charge when not in use for prolonged periods of time.

Note: Once started, the generator will charge the battery after 30-60 minutes of use.

When the generator is not running, the included trickle charger can remain connected and will maintain the battery for an indefinite period of time. A red light on the charger indicates charging in progress. A green light indicates charging complete. Charge in a dry location.

1. Plug the charger into the battery charging port on the control panel.
2. Plug the wall receptacle end of the battery charger into a 120 Volt AC wall outlet.

BATTERY REPLACEMENT

CAUTION

Battery posts, terminals contain lead and lead compounds. Wash hands after handling.

1. Remove the two battery plate bolts and battery plate. Tilt the battery forward and remove.

1. Disconnect the negative (-) cable (black boot) from the negative (-) battery post.
2. Disconnect the positive (+) battery cable (red boot) from the positive (+) battery post.

NOTICE

Always connect the cables in the following sequence to avoid possible shock.

1. On the replacement battery, connect the positive (+) battery cable (red boot) to the battery positive (+) terminal. Secure the boot over the battery post.
2. Connect the negative (-) battery cable (black boot) to the negative (-) positive terminal. Secure the boot over the battery post.
3. Install the battery in the battery tray. Install the battery plate and bolts. Tighten the bolts securely.

NOTICE

Dispose of the used battery properly according to the guidelines established by your local or state government.

STORAGE

Proper storage preparation is required for trouble-free operation and generator longevity.

NOTICE

Gasoline stored for as little as 30 days can deteriorate, causing gum, varnish, and corrosive buildup in fuel lines, fuel passages, and the engine. This corrosive buildup restricts the flow of fuel, which can prevent the engine from starting after a prolonged storage period. The use of fuel stabilizer significantly increases the storage life of gasoline. Full-time use of fuel stabilizer is recommended. Follow the manufacturer's instructions for use.

STORAGE TIME RECOMMENDED PROCEDURE

Less than 1 month No	service required.
2 to 6 months	Fill with fresh gasoline and add gasoline stabilizer. Drain the carburetor float bowl.
6 months or longer	Drain the fuel tank and carburetor float bowl.

SHORT TERM STORAGE

• Allow the generator to cool a minimum of 30 minutes before storage.
• Replace all protective covers on the generator control panel.
• Wipe the generator with a moist cloth. Clean any debris from the muffler cooling vents.
• Store the generator in a well-ventilated, dry location

away from sparks, open flames, pilot lights, heat, and other sources of ignition such as areas with a spark-producing electric motor or where power tools are operated.

• Do not store the generator, gasoline near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions.
• With the engine and exhaust system cool and all surfaces dry, cover the generator to keep out dust. Do not use a plastic sheet as a dust cover. Non-porous materials trap moisture and promote rust and corrosion.

LONG TERM STORAGE

Even properly stabilized fuel can leave residue and cause corrosion if left long term. If storing the generator for over six months, drain the fuel tank.

DRAINING THE FUEL TANK

If storing the generator for longer than six months, drain the fuel tank to prevent fuel separation, deterioration, and deposits in the fuel system.

1. Unscrew the fuel tank cap. Remove the fuel screen filter by slightly compressing it while removing it from the tank.
2. Using a commercially available gasoline hand pump (not included), siphon the gasoline from the fuel tank into an approved gasoline container. DO NOT use an electric pump.

OR

Disconnect the fuel line from the bottom of the fuel tank and allow the fuel to drain into an approved gasoline container. Reinstall the fuel line.

1. Reinstall the fuel screen filter and the fuel tank cap.
2. Start the generator and allow it to run until the generator engine stops.
3. Push the battery switch to the OFF position.
4. Disconnect the battery.

VALVE CLEARANCE

NOTICE

Checking and adjusting valve clearance must be done when the engine is cold.

Perform this procedure on both cylinders.

1. Remove the rocker arm cover and carefully remove the gasket. If the gasket is torn or damaged, it must be replaced.
2. Remove the spark plug so the engine can be rotated more easily.
3. Rotate the engine to Top Dead Center (TDC) by momentarily pushing the Start button. Looking through

26 | Westinghouse Outdoor Power Equipment

the spark plug hole, the piston should be at the top (both valves are closed).

1. Both the rocker arms should be loose at TDC on the compression stroke. If they are not, rotate the engine 360^ .

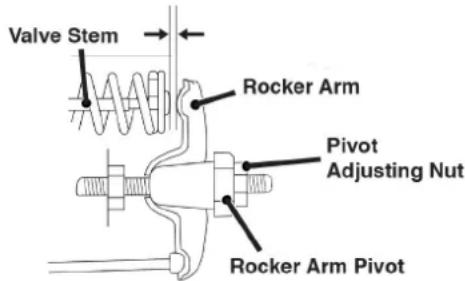

2. Insert a feeler gauge between the rocker arm and the valve stem to measure valve clearance.

Intake Valve Exhaust Valve

Valve Clearance	0.0031 – 0.0047 in (0.08 – 0.12 mm)	0.0051 – 0.0067 in (0.13 – 0.17 mm)
Torque 8-12 N·m 8-12 N·m

1. If an adjustment is necessary, hold the rocker arm pivot and loosen the pivot adjusting nut.
2. Turn the rocker arm pivot to obtain the specified clearance. Hold the rocker arm pivot and re-tighten the pivot adjusting nut to the specified torque.

Torque: 106 inch-pound (12 N·m)

1. Perform this procedure for the other valve.
2. Install the gasket, rocker arm cover, and spark plug.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE CORRECTION
Engine will not start	Battery switch in the OFF position. Turn battery switch to the ON position.
	Out of fuel. Refuel.
	Bad fuel, generator stored without treating or draining gasoline, or refueled with bad gasoline.	Drain the fuel tank. Refuel with fresh gasoline.
	Dirty air filter. Clean the air filter.
	Low engine oil level stopped generator.	If low oil LED illuminated, turn battery switch to the OFF position. Add engine oil.
	Spark plugs wet with fuel (flooded engine).	Remove spark plugs, pull recoil handle rapidly several times, wait five minutes. Let spark plug dry and reinstall.
	Spark plugs faulty, fouled, or improperly gapped.	Gap or replace the spark plugs. Reinstall.
	Fuel filter restricted, fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc.	Contact Westinghouse customer service toll-free at 1 [phone].
	Battery drained. Charge the battery.
	Choke partially open or closed due to weak or disconnected battery.	Manually set the choke. See Maintenance section.
	CO sensor activated Relocate generator to an open, outdoor area.
	CO system fault occurred.	Contact Westinghouse customer service toll-free at 1 [phone].
Engine starts, then shuts down	Out of fuel. Refuel.
	Incorrect engine oil level. Check engine oil level.
	Dirty air filter. Clean the air filter.
	Contaminated fuel. Drain the fuel tank. Refuel with fresh gasoline.
	Defective low oil level switch.	Contact Westinghouse customer service toll-free at 1 [phone].
Engine lacks power	Air filter restricted. Clean or replace air filter.
	Bad fuel, generator stored without treating or draining gasoline, or refueled with bad gasoline.	Drain the fuel tank. Refuel with fresh gasoline.
	Fuel filter restricted, fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc.	Contact Westinghouse customer service toll-free at 1 [phone].
Engine runs rough or bogs when load applied	Dirty air filter. Clean the air filter.
	Generator overloaded. Unplug some devices.
	Faulty power tool or appliance.	Replace or repair tool or appliance. Stop and restart the engine.
	Fuel filter restricted, fuel system malfunction, fuel pump failure, ignition malfunction, valves stuck, etc.	Contact Westinghouse customer service toll-free at 1 [phone].
No power at AC receptacles	AC circuit breaker/s tripped. Check AC loads and reset circuit breaker/s.
	Faulty power tool or appliance.	Replace or repair tool or appliance. Stop and restart the engine.
	Faulty generator.	Contact Westinghouse customer service toll-free at 1 [phone].

EXPLODED VIEWS AND PARTS LIST

ENGINE EXPLODED VIEW

ENGINE PARTS LIST

NO. PART # DESCRIPTION

1 50120 D38 CRANKCASE ASSEMBLY

1.1 91371 BOLT M6X35

1.2 91043 BOLT M6X113

1.3 93530 CRANKSHAFT OIL SEAL

1.4 91365 BOLT M6X12

1.5 320503 LEFT WINDSHIELD

1.6 320504 RIGHT WINDSHIELD

1.7 91374 BOLT M6X22

1.8 320602 BREATHER VALVE ASSEMBLY

1.9 320600 BREATHING VALVE COVER

1.10 96133 BREATHING VALVE GASKET

1.11 599601 METAL OLAMP

1.12 94419 FUEL HOSE CLIP 16.5x2

1.13 320206 CRANKCASE

1.14 240904 LOCATING PIN 8X12

1.15 329902 ROCKER ARM SUPPORT BASE ASSEMBLY

1.16 95618 BLAST PIPE

1.17 94033 SEALING RING

1.18 96296 CRANKCASE COVER GASKET

1.19 327001 PLUG

1.20 91370 BOLT M6X16

1.21 329900 CRIMPING BOARD

1.22 260901 LOCATING PIN

1.23 325101 OIL PROTECTOR

1.24 91832 BOLT M14X1.5X12

1.25 94242 FLAT WASHER

1.26 91887 OIL DRAIN SOLENOID

2 50690002 PETROL PUMP ASSEMBLY

2.1 95545 GASOLINE PUMP INLET PIPE

2.2 95462 GASOLINE PUMP OUTLET PIPE

2.3 94423 FUEL HOSE CLIP 9

2.4 516401 FILTER

2.5 95463 GASOLINE PUMP NEGATIVE PRESSURE PIPE

2.6 94418 PROTECTIVE SLEEVE

2.7 369904 GASOLINE PUMP BRACKET

2.8 329914 PETROL PUMP

2.9 91370 BOLT M6X16

3 50100029 RIGHT IGNITER ASSEMBLY

3.1 91383 BOLT M6X28

3.2 91043 BOLT M6X113

3.3 97540 RIGHT IGNITER

4 50100028 LEFT IGNITER ASSEMBLY

4.1 91383 BOLT M6X28

4.2 91043 BOLT M6X113

4.3 97539 LEFT IGNITOR

5 50680002 CHARGING COIL ASSEMBLY

NO. PART # DESCRIPTION

5.1 97212 CHARGING COIL

5.2 91371 BOLT M6X35

6 50180019 FLYWHEEL ASSEMBLY

6.1 91385 BOLT M8X16

6.2 90041 NUT M20

6.3 94030 FLAT WASHER

6.4 329913 IMPELLER PRESSURE PLATE

6.5 324600 IMPELLER

6.6 320400 FLYWHEEL ASSEMBLY

7 50090060 WIND-LEAD COVER ASSEMBLY

7.1 90043 NUT M6

7.2 324700 RECOIL COVER ASSEMBLY

7.3 94260 FLAT WASHER

7.4 91370 BOLT M6X16

7.5 599601 METAL CLAMP

8 50260011 STARTER MOTOR ASSEMBLY

8.1 91378 BOLT M8X110

8.2 97414 STARTER ALTERNATOR

8.3 240904 LOCATING PIN 8X12

9 50040084 CARBURETOR ASSEMBLY

9.1 319901 CARBURETOR SOLENOID VALVE LINE

9.2 95464 CARBURETOR OVERFLOW PIPE

9.3 94403 FUEL HOSE CLIP 8.5

9.4 91383 BOLT M6X28

9.5 322803 DOUBLE CHAMBER CARBURETOR

9.6 92239 BOLT M3*8

9.7 95906 CARBURETOR CONNECTION ELBOW

9.8 329929 STEPPER MOTOR

9.9 329924 STEPPER MOTOR

9.10 91425 BOLT M6X65

9.11 96141 CARBURETOR HEAT SHIELD

9.12 96137 CARBURETOR GASKET

10 50020053 CYLINDER HEAD ASSEMBLY

10.1 91365 BOLT M6X12

10.2 320507 WIND-LEAD-COVER

10.3 261702 INTAKE VALVE

10.4 260802 VALVE LOCK CLAMP

10.5 96135 INTAKE WASHER

10.6 321900 PUSH ROD

10.7 322201 LIMIT PLATE ASSEMBLY

10.8 261307 INTAKE VALVE SPRING LOWER SEAT

10.9 93513 VALVE SEAL

10.10 326000 VALVE SPRING

10.11 261805 VALVE SPRING SEAT

10.12 322100 ROC KER ARM ASSEMBLY

10.13 91380 BOLT M10X80

10.14 265903 INTAKE VALVE

ENGINE PARTS LIST CONTINUED

NO. PART # DESCRIPTION

10.15 321003 RIGHT CYLINDER HEAD ASSEMBLY

10.16 261806 TOP CAP

11 97112 SPARK PLUG

12 50130015 WIND LEAD COVER ASSEMBLY

12.1 91385 BOLT M8X16

12.2 91365 BOLT M6X12

12.3 325801 TEMPERATURE SENSOR

12.4 329901 LIFTING EAR

12.5 320501 RIGHT CYLINDER HEAD AIR DEFLECTOR

13 50010033 CYLINDER HEAD COVER ASSEMBLY

13.1 91365 BOLT M6X12

13.2 321101 RIGHT CYLINDER HEAD COVER

13.3 96136 CYLINDER HEAD COVER GASKET

14 50030058 AIR CLEANER ASSEMBLY

14.1 91371 BOLT M6X35

14.2 91383 BOLT M6X28

14.3 94403 FUEL HOSE CLIP 8.5

14.4 95117 CARBON CANISTER AND AIR FILTER CONNECTING PIPE

14.5 323000 AIR FILTER PRESSURE PLATE

14.6 322902 AIR CLEANER ASSEMBLY

14.6.1 5061 AIR CLEANER ELEMENT

15 50700001 AIR FILTER CONNECTING PIPEASSEMBLY

15.1 91377 BOLT M6X95

15.2 95907 DUAL CHAMBER INTAKE PIPE

15.3 96139 INTAKE PIPE GASKET

15.4 95905 AIR FILTER CONNECTING PIPE

15.5 92048 SCREW M8X50

15.6 96138 AIR FILTER CONNECTING PIPE GASKET

16 50010034 CYLINDER HEAD COVER ASSEMBLY

16.1 91365 BOLT M6X12

16.2 321400 OIL PLUG

16.3 321100 LEFT CYLINDER HEAD COVER

16.4 96136 CYLINDER HEAD COVER GASKET

17 50130017 WIND LEAD COVER ASSEMBLY

17.1 91385 BOLT M8X16

17.2 91365 BOLT M6X12

17.3 320500 LEFT CYLINDER HEAD AIR DEFLECTOR

17.4 329901 LIFTING EAR

17.5 329922 TUBING BRACKET

17.6 94418 PROTECTIVE SLEEVE

18 50020054 CYLINDER HEAD ASSEMBLY

18.1 91365 BOLT M6X12

18.2 261702 INTAKE VALVE

18.3 260802 VALVE LOCK CLAMP

18.4 96135 INTAKE WASHER

NO. PART # DESCRIPTION

18.5 320 502 WIND-LEAD-COVER

18.6 321 002 LEFT CYLINDER HEAD ASSEMBLY

18.7 321 900 PUSH ROD

18.8 322 201 LIMIT PLATE ASSEMBLY

18.9 261 807 INTAKE VALVE SPRING LOWER SEAT

18.10 93513 VALVE SEAL

18.11 326000 VALVE SPRING

18.12 261 805 VALVE SPRING SEAT

18.13 261 806 TOP CAP

18.14 322 2100 ROCKER ARM ASSEMBLY

18.15 91 380 BOLT M10X80

18.16 265903 INTAKE VALVE

19 50600003 SEAL WASHER ASSEMBLY

19.1 942 06 SPRING WASHER

19.2 910 07 BOLT M8X38

19.3 961 40 EXHAUST GASKET

19.4 900 11 NUT M8

20 50050023 PISTON & PISTON RING ASSEMBLY

20.1 241 301 PISTON PIN RING

20.2 325 500 PISTON PIN

20.3 321 500 CONNECTING ROD ASSEMBLY

20.4 321 200 PISTON

20.5 321 602 PISTON RING COMBINATION

21 50190004 CRANKS SHAFT ASSEMBLY

21.1 320 300 CRANKSHAFT

21.2 940 31 FLAT WASHER

22 50710001 HEAT SINK ASSEMBLY

22.1 913 83 BOLT M6X28

22.2 954 65 RADIATOR CONNECTING OIL PIPE

22.3 944 21 FUEL HOSE CLIP 16x12x1

22.4 329 911 RADIATOR MOUNTING BRACKET

22.5 329 912 RADIATOR ASSEMBLY

23 50200040 CRANKCASE COVER ASSEMBLY

23.1 913 71 BOLT M6X35

23.2 329 909 OIL FILTER SEAT

23.3 918 33 OIL FILTER CONNECTING SOLENOID

23.4 913 83 BOLT M6X28

23.5 935 30 CRANKSHAFT OIL SEAL

23.6 913 31 BOLT M6X25

23.7 913 42 BOLT M8*2

23.8 930 23 BEARING

23.9 325 100 OIL SENSOR

23.10 329 907 OIL FILTER COVER

23.11 92047 SCREW M6X16

23.12 329 903 OIL PUMP ASSEMBLY

23.13 324 301 CENTRIF FUGAL GOVERNOR GEAR ASSEMBLY

ENGINE PARTS LIST CONTINUED

NO. PART # DESCRIPTION

23.14 325600 DIPSTICK ASSEMBLY

23.15 329904 PRESSURE RELIEF VALVE SPRING

23.16 329905 STEEL BALL

23.17 320900 LOCATING PIN

23.18 320101 CRANKCASE COVER

23.19 94085 O-SHAPE SEAL RING

23.20 329908 OIL FILTER

23.21 91834 OIL FILTER SEAT CONNECTION PIPE

23.22 91379 BOLT M8X50

23.23 329906 OIL FILTER

23.24 94241 FLAT WASHER 10.2X17X1

23.25 94257 FLAT WASHER 8x16x1.5

24 50150012 ALTERNATOR ASSEMBLY

24.1 322000 CAMSHAFT ASSEMBLY

24.2 94032 FLAT WASHER

GENERATOR EXPLODED VIEW

GENERATOR PARTS LIST

NO. PART # DESCRIPTION
1 1148720	120039 ENGINE DHT720E
2 6007006	FRAME ASSEMBLY
2.1 90026	SELF-LOCKING NUTS
2.2 50104	DAMPING SUPPORT B
2.3 90075	NUT M10*1.5
2.4 91343	BOLT M8*16
2.5 77005	5-116 FRAME
2.6 91345	BOLT M8*20
2.7 51840	OIL SWITCH SEAT
2.8 50113	AIR DUCT WELDING PARTS
2.9 91339	BOLT M6*50
2.10 5286	6 GLUE CARD
2.11 9001	6 NUT M6
2.12 5266	14-116 HANDLE
2.13 5285	01 HANDLE GUM COVER
2.14 9136	BOLT M8*50
2.15 5274	06 HANDLE PIN
2.16 5274	01 HANDLE DAMP	NG RUBBER PAD
2.17 5336	04-116 LIFTING B FACKET
2.18 5356	02-116 INSULATION BOARD
2.19 9422	4 CRANKSHAFT FLAT WASHER 10*30*2
2.20 9132	7 BOLT M6*12
3 6015003	1 FOOT BRACKET	ASSEMBLY
3.1 53190	5 FOOT BRACKET	SHOCK ABSORBER
3.2 90026	SELF-LOCKING NUTS
3.3 52590	5-116 FOOT BRACKET ASSEMBLY
3.4 91343	BOLT M8*16
4 6004008	9 CONTROL PANEL ASSEMBLY
4.1 71555	8 PANEL ASSEMBLY
4.1.1	6387	SOCKET
4.1.2	536002 ONE-KEY	START SWITCH
4.1.3	6393	BATTERY INDICATOR LIGHT
4.1.4	6502	POWER SWITCH
4.1.5	1042	CO INDICATOR YELLOW
4.1.6	6685	ECO SWITCH
4.1.7	1041	CO INDICATOR RED
4.1.8	6796	USB SOCKET 10-35V
4.1.9	6439-30	22A THERMAL PROTECTOR
4.1.10	6041	DIGITAL DISPLAY
4.1.11	6513-50	BREAKER 2P50A
4.1.12	9001	PANEL REAR COVER
4.1.13	6488	AVIATION SOCKET GXP20-7P

NO. PART # DESCRIPTION
4.1.14	6254	SOCKET 14-50R
4.1.15	6850	WATERPROOF CAP
4.1.16	6386	GROUND BOLT ASSEMBLY
4.1.17	6385	L14-30R SOCKET
4.1.18	6848	WATERPROOF CAP
4.1.19	6383	L5-30R RECEPTACLE
4.1.20	6847	WATERPROOF CAP
4.1.21	6441-30	30A THERMAL PROTECTOR
4.1.22	6441-20	20A THERMAL PROTECTOR
4.1.23	6275	GFCI SOCKET 5-20RA
4.1.24	6845	WATERPROOF CAP
4.2 96120	PAPER WASHER
4.3 91327	BOLT M6*12
4.4 53490	AVR VOLTAGE REGULATOR
4.5 91306	BOLT M6X25
4.6 59907	B CO FLAME OUT ACTUATOR
5 6006003	2 WHEEL ASSEMBLY
5.1 50113	CASTER SHAFT ASSEMBLY
5.2 94213	FLAT WASHER
5.3 52362	WHEEL
5.4 54830	COTTER PIN
6 5020002	6 BATTERY KIT
6.1 91327	BOLT M6*12
6.2 51204	2 BATTERY POSITIVE WIRE
6.3 51201	5 BATTERY NEGATIVE WIRE
6.4 59970	2 GLUE STRIP
6.5 50113	5-116 BATTERY LAYER
6.6 51109	2 BATTERY
7 6014004	5 ALTERNATOR ASSEMBLY
7.1 53360	2 MOTOR FRONT COVER
7.2 91354	BOLT M10x1.25
7.3 75000	9 ROTOR STATOR ASSEMBLY THE MOTOR ASSEMBLY
7.3.1	6186	CARBON BRUSH
7.3.2	6188	TERMINAL
7.4 91325	BOLT M6X12
7.5 54461	2 GROUNDING WIRE
7.6 96813	FLAT WASHER
7.7 91725	BOLT M10*1.25*295
7.8 53360	3 BACK SUPPORT
7.9 91623	BOLT M8*1.25*215
7.10 9132	3 BOLT M5X16
7.11 9132	2 BOLT M5*12
7.12 5333	04-221 ALTERNATOR OR TAIL COVER

GENERATOR PARTS LIST CONTINUED

NO. PART # DESCRIPTION
8 6001006	9 FUEL TANK ASSEMBLY
8.1 91461	BOLT M6*25
8.2 70090	5L-116 FUEL TANK ASSEMBLY
8.3 95488	FUEL HOSE
8.4 518401	FUEL SWITCH
8.5 95729	FUEL HOSE
8.6 94412	FUEL HOSE CLIP
8.7 51942	3 FUEL CAP
8.8 94411	FUEL HOSE CLIP	11*0.8
8.9 518801	FUEL TANK FILTER
9 605700	5 CARBON CANISTER ASSEMBLY
9.1 90016	NUT M6
9.2 54360	3 L CARBON CANISTER
9.3 95121	CARBON CANISTER AND FUEL TANK CONNECTING PIPE
9.4 50303	4 FUEL HOSE CLIP	9.5*0.8
10 600300	34 MUFFLER ASSEMBLY
10.1 90075	NUT M10*1.5
10.2 96140	EXHAUST GASKET
10.3 94206	SPRING WASHER 8
10.4 90011	NUT M8
10.5 95253	MUFFLER CONNECTING PIPE
10.6 96149	MUFFLER CONNECTING PIPE GASKET
10.7 94201	SPRING WASHER 10
10.8 5159	12 EXHAUST MUFFER GRARD COVER A
10.9 5159	13 EXHAUST MUFFER GRARD COVER B
10.10 5159	911 EXHAUST MUFFER GRARD COVER C
10.11	705010 MUFFLER
10.11.1	6859	SPARK ARRESTER
10.12 913	45 BOLT M8*20
10.13 913	27 BOLT M6*12
10.14 501	139 HIGH TEMPERATURE INSULATION COTTON
10.15 942	14 FLAT WASHER	10.3×20.6×1.65
11 604500	10 CO MODULE KIT ASSEMBLY
11.1	599079 CO MODULE	JULE
11.2	92345 BOLT M4*28
12 94432	NYLON BRAIDED TUBE
13 99509	FUNNEL
15 511043	CHARGER
15 99012	SPARK PLUG SLEEVE
16 99025	WRENCH

NO. PART # DESCRIPTION
17 99576	OIL BOTTLE
18 6629	REMOTE KEY

SCHEMATICS

SCHEMATICS

WGen12000c

Generador Portátil

Gasolina: 12,000 Varios en Funcionamento | 15,000 Varios de arranque

MANUAL DE USUARIO

NO DEVUELVA Este PRODUCTO A LA TIENDA

Tos h s. t e d Westinghouse Outdoor Power Equipment.

ADVERTENCIA

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

https://westinghouseoutdoorpower.com/pages/manuals

nos as use (verif inaive)

TO ADD OIL, UNSCREW CAP.

FILL TO BOTTOM LIP WITH 10W-30

HIGH DETERGENT MOTOR OIL

CAPACIDAD DE ACETE: 1.5G CONSULTE EL MANUAL CAPACITE D'HYBRE: 1.5G CONSULTE L'MANUEL

UIGIE D'ALLUMAGE

BUJIA

CONSULTE EL MANUAL

ANTES DE RETIRAR

SPARK PLUG

CONSULT MANUAL

BEFORE REMOVIDING

12000/15000

RUNNING WATTS PEAK WATTS

IR TECHNICAL ASSISTANCE OR SERVICE CALL TOLL FREE

Fees in crude oil, v. 1056-1057

1-855-944-3571

Westinghouse

Vale Online Power Equipment LLC

Columbus OH/42225 USA

Morter

Modie 10

Hepatitis C

3603rpm Power Power Power 1.0

Send to: Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Dr. Regular your product

A. CAUTION

HOT SURFACES

SUPEREICIES CALIENT

AUX SURFACES CH

AUX SCHRACE OF

0.540

USE FUEL STABILIZER

FOR STORAGE

FOMILSTOCKS

1.2017年1月2日

12.2023年1月14日

17CTTACN

m - 1 0 ;

WARNING: Cancer and reproductive harm

www.P65Warnings.ca.gov/product

reproduction - www.P65Warnings.ca.gov/product

ADWENTNA: Cane x daosal sstema

reproducr - www.P65Wamings.ca.gov/product

Fueurtonnne ererere eonrnnnre ene

muaa aiee

y

0000000000000000000000000000000000000000000000

A

m - 1 0 ;

---

1 + u1 - 1 = ( 1 + u) u1 < 1 = u

1

15 5 m 2000-03-04

FV

A

rernnrrnrnnnne rannnnnne

▲PELIGRO

A

( xt^2 + x) a + bt^2 = 7| 8y|

A

a po0

（二）

（2）

1. 实验原理

华

特此公告。

1.2019年

1.2

（图一）

1.经

图1

三

常温

一

【答案】

：航司

1

一

图

1

1

A

1

1.1.1

一

一

1

一

2

1

16

+

1

D

告

三、备查文件

答

A

华

答

-

一

华

图

一

(1)

DANGER

A

中

中

中

A

图7

1

（2）

图

华

中

图7

图

A

1

05

12 =

2

知

1.2.20

1. 2018年3月

T

1

1. 甲、乙

2. 选择

1

1

（1）

1. 1. 3.

1

1

1

2014年

13/14

1

2

1. 1

中

特此公告。

一

图：《增持计划》

[Tab]

m = 311

一

m = 311

m = 311 ;

m = 311 ;

12

( x - 2x) t - xy^2 = ( x - 2x) f^ t

( x - 2x) t - xy^2 = ( x - 2x) f^ t

( x - 2x) t - xy^2 = ( x - 2x) f^ t

B

1 + u7 = 70%

EZ START INSTRUCTIONS | INSTRUCCIONES DE INICIO | INSTRUCTIONS DE DEMARRAGE

COMPONENTES

60 | Westinghouse Outdoor Power Equipment

NE PAS RETOURNER CE PRODUIT AU MAGASIN

CENTRE DE DONNÉES 75

RAPPELS D'ENTRETIEN 75

ASSEMBLE

INSTALLER LES ROUES ET LE SUPPORT DE LEVAGE....76

REMLISSAGE D'HUILE INITIAL 77

INSTALLATION DE LA BATTERIE 77

CARBURANT 77

OPERATION

EMPLACEMENT DU GÉNÉRATEUR 79

MISE A LA TERREMISE A LA TERRE 79

FONCTIONNEMENT A HAUTE ALTITUDE 80

DÉMARRAGE À DISTANCE 80

RALENTI BAS. 81

PERIODDE RODAGE 81
AVANT DE DEMARRER LE GÉNÉRATEUR 81
DÉMARRAGE DU MOTEUR 81
ARRÉT DU MOTEUR 82
FREQUENCY D'UTILISATION 82
DISJONCTEURS AC 82
CAPACITE DU GENÉRATEUR 82
GESTION DE L'ALIMENTATION 83
RALLONGES 83
DIMENSIONS DU CORDON D'EXTENSION 84
INTERRUPTEUR ST. 84
TRANSPORT 84

ENTRETIEN

CALENDRIER DE MAINTENANCE 86
RAPPELS D'ENTRETIEN 86
PIECES DE RECHANGE D'ENTRETIEN 86
ENTRETIEN DU FILTRE A AIR 86
CONTROLE DU NIVEAU D'HUILE MOTEUR 87
CHANGEMENT D'HUILE MOTEUR 87
MAINTENANCE DE LA BOUGIE 88
SERVICE DE PARE-ETINCELLES 88
FILTRE A CARBURANT 89
ENTRETIEN DE LA BATTERIE 89
REEMPLACEMENT DE LA BATTERIE 89
ESPACE DE RANGEMENT 90
LE JEU DES SOUPAPES 91

DéPANNAGE

DEPANNAGE 92

INTRODUCTION

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

Pour vos dossiers

Date d'achat:

Numero de modulo:

Numéro de série:

Lieud'achat:

annual for instructions

FILTRO DE AIRE

HIGH DETERGENT MOTOR OIL

m = 311

40V 2

三

A

10

WARNING.Cancer and reproductive harm

www.P65Warnings.a.gov/product

AVERTSSMENT: Cancer et problemes de

reproduction - www.P65Warnings.com.gov/product

ADVENTENCA: Caney daos al sidos

reproducr www.P65Wamings.ca.gov/product

1

8

CAUTION

HOT SURFACES

SUPERFICIES CALIENTES

AUX SURFACES CHA

DO NOT OVERALL 10.5 Ga 40

EUEL STABILIZER

FORSTORAGE

1. UN TAI L R A T I O N 2023

序号 产品名称 类型

17 FISH/PICTURE 17 OCTENO RUBBER

87 OCTADONING

A DANGER

11

m = 311

DANGER

A. PE LIGRO

FALLOTOBOWWARTING

muaa

Generator could cause electrical mis

DO NOT operate in run or wait state
A: Allow the change to be seen as

A

1

A

（20

102

1

(2)

O

(1)

1

y

图

A

A

图 2

%

m = 311 ;

and 104

图5.1.7（a）（b）（c）

（一）股东登记表

1. 1. 3.

1

ATM

续表

一、担保情况概述

1

1 + u7 = 7019

A

1 + u1 - 1 = ( 1 + u) u1 < 1 = u

A

0620

1

1

1

-

附件一：

图

1

华

1 + u1 - 1 = ( 1 + u) u1 < 1 = u

1

三、备查文件

（2）

海通证券股份有限公司二0一三年六月三日

一、重要提示

一

2

1

A

特此公告。

（二）股东登记方法

三、备查文件

特此公告。

附件1：

1

表决情况：

1

1. 1. 3.

特此公告。

m = 311 ;

（二）

A

表

A

1

2

1. 实验原理

一

（20

。

1

1. 甲、乙双色

特

m = 311

A

6

A

A

图

L

时

特此公告。

1.2017年1月1日

1. 实验原理

12

1

（1）

（一）

1. 甲基绿

1

（2）

华

的

1. 实验原理

…

图1-2

7
1
1
。

m = 311 ;

(14)

EZ START INSTRUCTIONS | INSTRUCCIONES DE INICIO | INSTRUCTIONS DE DEMARRAGE

1 + u1 - 1 = ( 1 + u) u1 < 1 = u

m = 311 ;

· ( - ) = 0

m = 311 ;

m = 311

m = 311 ;

-

-

-

-

-

-

-

-

-

-

12 =

-

-

1 + u7 = 70%

-

1 + u7 = 70%

-

-

-

1 + u7 = 70%

-

-

-

-

12 =

-

m = 311 ;

-

-

-

-

1 + u7 = 70%

12 =

12 =

m = 311

m = 311

图1

12/12

COMPOSANTS

COMPOSANTS DU GÉNÉRATEUR

COMPOSANTS DU PANNEAU DE COMMANDE

DIMENSIONS DU CORDON D'EXTENSION

Do not pollute. Follow the guidelines of the EPA or other governmental agencies for proper disposal of hazardous materials. Consult local authorities or reclamation facility.

MAINTENANCE DE LA BOUGIE

Remarque: Once started, the generator will charge the battery after 30-60 minutes of use.

Couple: 106 inch-pound (12 N·m)

WestinghouseOutdoorPower.com

Service Hotline: [phone]

777 Manor Park Drive

Columbus, OH 43228

W and Westinghouse are trademarks of Westinghouse Electric CorpoTaion.

Used under license by Westinghouse Outdoor Power Equipment. All Rights Reserved

WGen12000c Rev01

122336 Rev01 04/22
