Product typePortable electric generator
BrandEcoFlow
ModelRiver Max (EFR610)
Dimensions270 x 260 x 196 mm (10.6 x 10.2 x 7.7 inches)
WeightApproximately 6.1 kg (13.4 lbs)
Battery capacity512 Wh (20 Ah, 25.6 V)
Battery typeLithium Iron Phosphate (LFP)
Cycle lifeMore than 3000 cycles to 80% remaining capacity
AC output power500 W (peak 1000 W), pure sine wave
X-Boost functionPowers appliances up to 1000 W
Emergency power supply (EPS)Switching < 30 ms in case of power outage
AC input (fast charging)660 W max, full charge in 1 hour

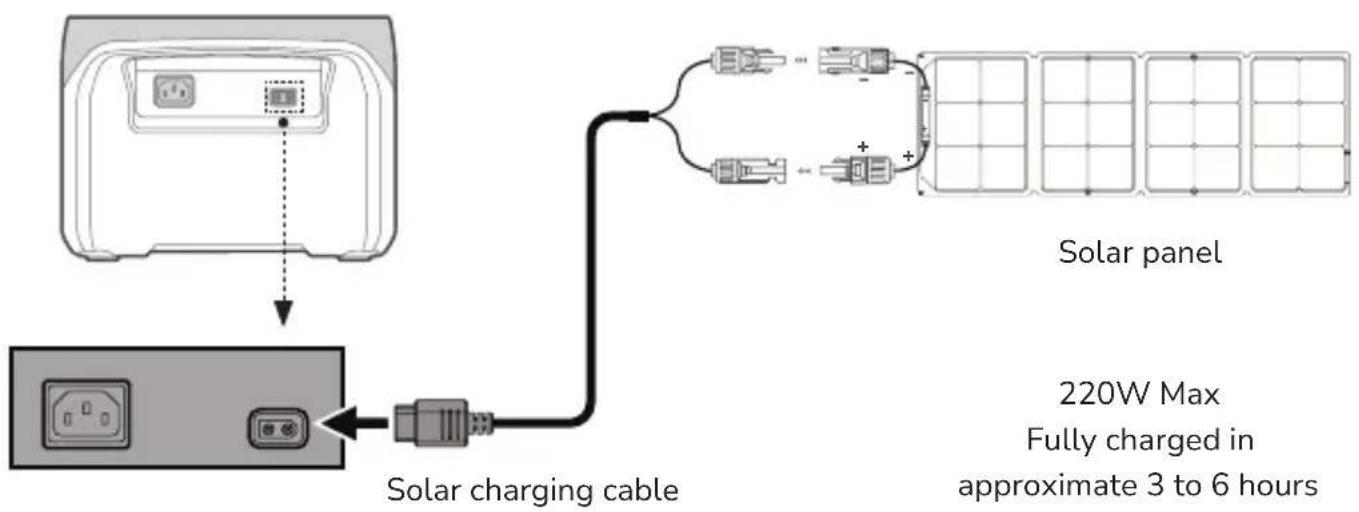

Solar input220 W max, 11-50 V, 13 A

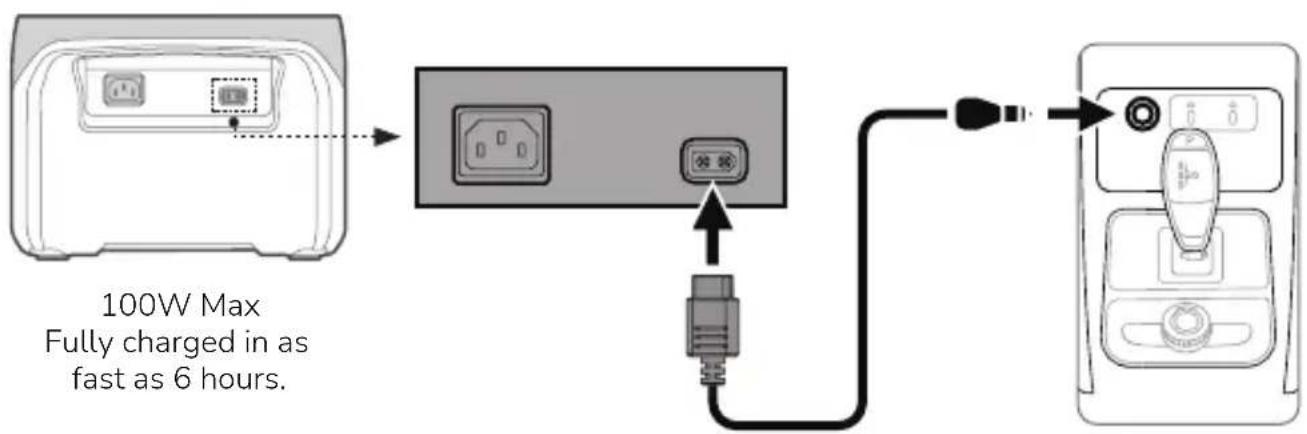

Car input12/24 V, 8 A, 100 W max
USB-C input100 W max (5-20 V, 5 A)
USB outputsUSB-C 100 W, USB-A 5 V 2.4 A (12 W per port)
Car output12.6 V, 10 A / 3 A / 3 A, 126 W max
ConnectivityWi-Fi 2.4 GHz, Bluetooth
Operating temperature-10°C to 45°C (charge: 0°C to 45°C)
Recommended storage20°C to 30°C, recharge every 3 months

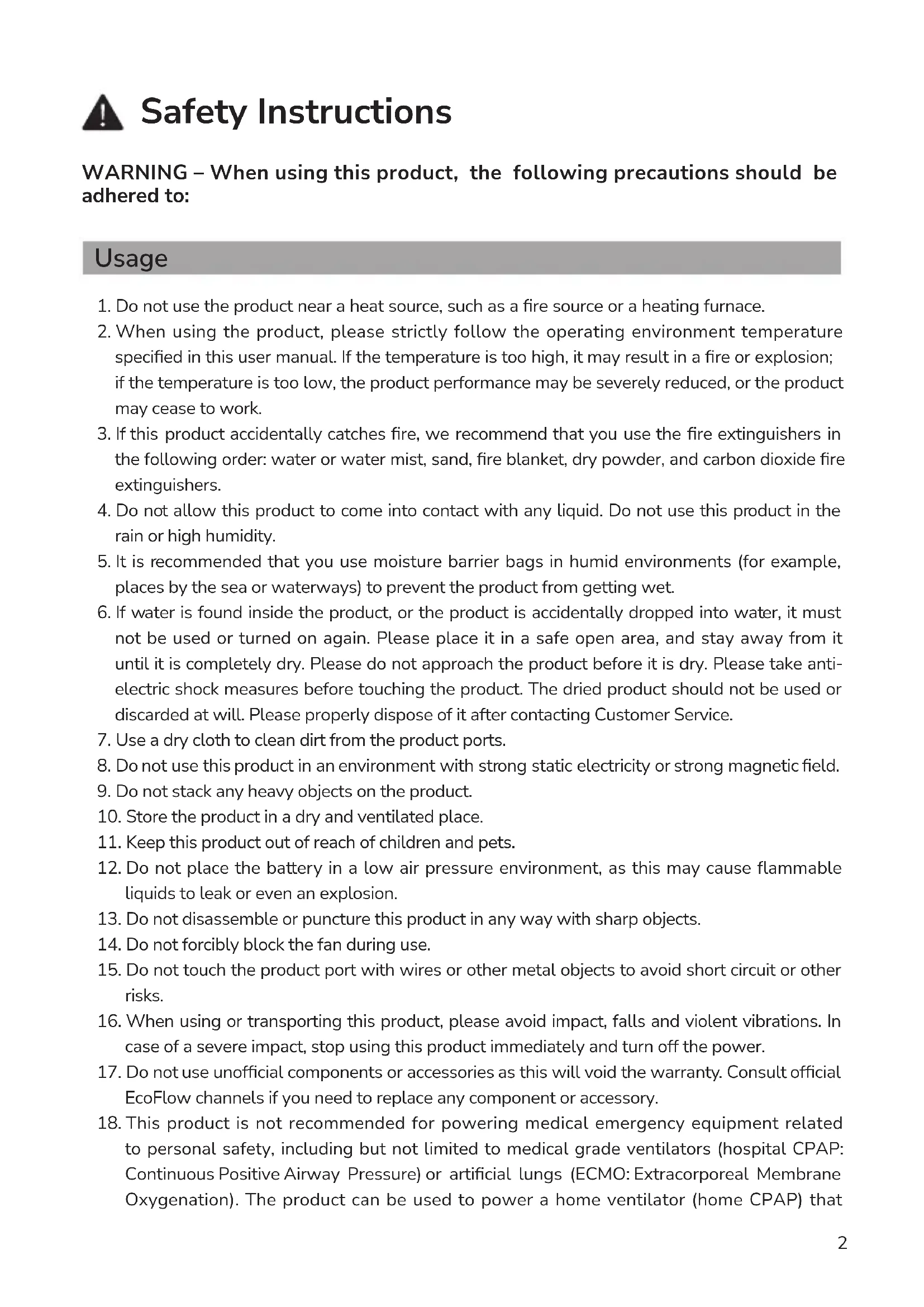

SafetyOverload, overheat, short circuit protection; do not expose to water
MaintenanceClean with a dry cloth; store in a dry, ventilated place
RepairabilityContact EcoFlow customer service; spare parts not provided
Box contentsRIVER 2 Max station, AC cable, car cable, DC5521 cable, manual, warranty card

Frequently Asked Questions - River Max ECOFLOW

What type of battery does the River Max use?
It uses a high-quality Lithium Iron Phosphate (LFP) battery, offering more than 3000 charge cycles.
How long does it take to fully charge the River Max?
With X-Stream fast charging (660 W), it is fully charged in about 1 hour. With a 220 W solar panel, allow 3 to 6 hours.
What appliances can I power with the AC outlet?
The rated power is 500 W (peak 1000 W). With X-Boost function, you can power appliances up to 1000 W, such as a refrigerator or drill.
How does the X-Boost function work?
X-Boost allows powering appliances whose power exceeds the rated power (up to 1000 W) by adjusting the voltage. It is not suitable for voltage-sensitive appliances like precision instruments.
Can I take the River Max on a plane?
No. The battery capacity (512 Wh) exceeds the limit allowed for air travel (usually 100 Wh).
How do I change the AC output frequency?

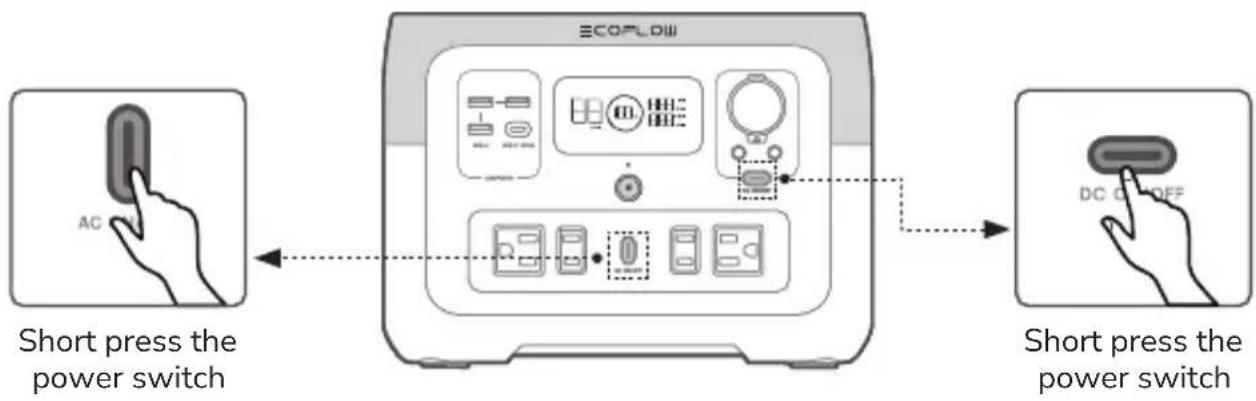

Turn on the AC output, then press and hold the AC output switch for 10 seconds or use the EcoFlow app to switch between 50 Hz and 60 Hz.
What to do in case of overload?

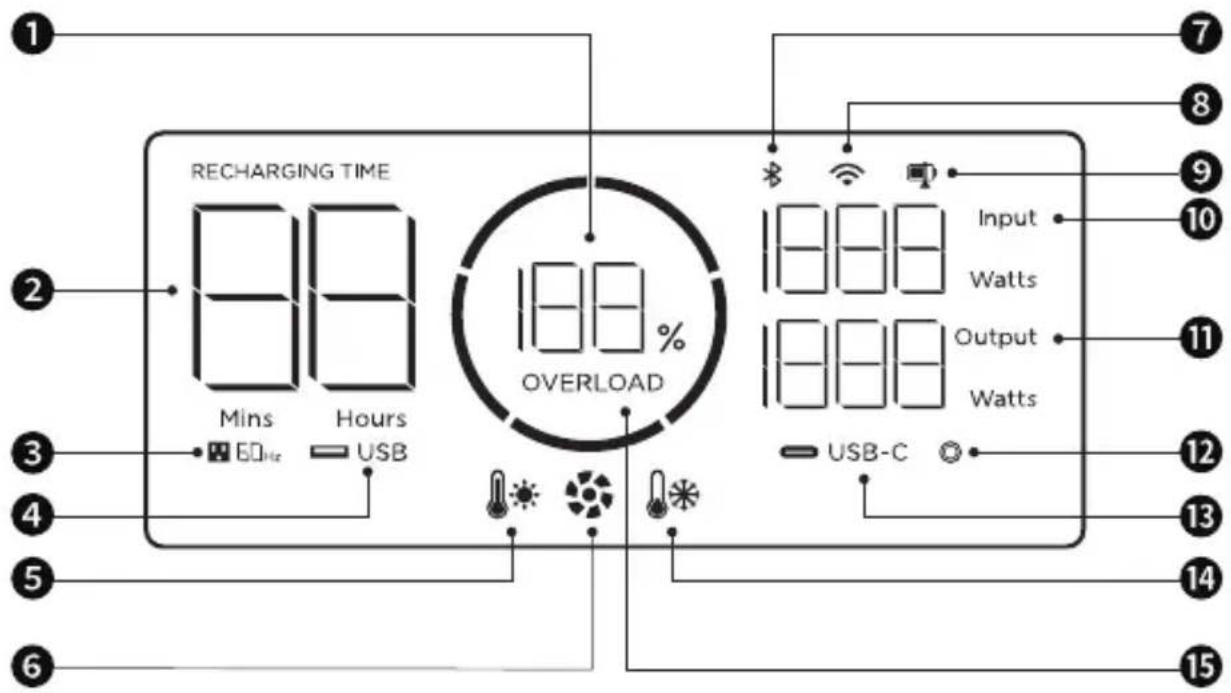

The screen displays a warning. Disconnect overloaded appliances and restart the station. If the problem persists, contact customer service.
Can I use the River Max in the rain?
No. Avoid any contact with water. Use it in a dry environment and protect it from moisture.
How to maintain the battery for long-term storage?
Discharge the battery to 0%, then recharge it to 60% every 3 months. If the product remains inactive for more than 6 months, the warranty may no longer apply.
Can the River Max serve as a UPS for a computer?
Yes, with the EPS (emergency power supply) function. In case of outage, switching occurs in less than 30 ms. However, for critical equipment (servers), test compatibility first.
