DO8147 - Fan DOMO - Free user manual and instructions

Product type	Rechargeable pedestal fan
Brand	DOMO
Model	DO8147
Number of speeds	4
Power supply	Integrated rechargeable battery via USB cable and charging station
Battery type	Lithium-ion (estimated)
Estimated battery life	4 to 6 hours
Estimated charging time	2 to 3 hours
Estimated power	5 to 10 W
Material	Plastic and metal
Estimated dimensions (H x W x D)	35 cm x 20 cm x 20 cm
Estimated weight	1.2 kg
Functions	Head tilt, 4 speeds, battery or mains operation, immediate stop by long press
Safety	Protective grille, do not use outdoors, automatic shut-off if tipped over (not specified)
Cleaning	Damp cloth, do not immerse, do not use abrasive products
Warranty	2 years (excluding accessories and wear: 6 months)
Included accessories	Charging cable, charging station
Repairability	Do not repair yourself, contact after-sales service

Frequently Asked Questions - DO8147 DOMO

How to charge the DO8147 fan?

Plug the provided charging cable directly into the fan or place it on the charging station. The first indicator flashes during charging and stays on once the battery is full.

How to adjust the fan speed?

Press the on/off button to increase speed from 1 to 4. Hold the button down to stop the fan immediately.

Can I use the fan while it is charging?

Yes, you can continue using the fan while charging. The first indicator will flash to indicate charging in progress.

What to do if the fan does not turn on?

Check that the battery is charged. If the first indicator flashes, the battery is low. Plug in the charger and wait a few minutes. If the problem persists, contact after-sales service.

How to clean the fan?

Unplug the device and clean the exterior with a damp cloth. Do not use abrasive products and avoid water ingress into the motor.

What is the battery life?

The battery life is not specified in the manual, but it is estimated between 4 and 6 hours depending on the speed used.

The fan is making noise, what to do?

Make sure no objects obstruct the blades and that the device is on a flat surface. If the noise persists, contact after-sales service.

How to tilt the fan head?

Simply push the fan head up or down to change the direction of airflow.

Can I use the fan outdoors?

No, the fan is designed for indoor household use only. Do not use it in damp or wet areas.

What to do in case of malfunction during the warranty period?

Contact customer service at [phone] or by email at [e-mail]. Have your receipt ready. The warranty covers material and manufacturing defects for 2 years.

USER MANUAL DO8147 DOMO

White DC motor fan with visible blades and a base, no text or symbols on the fan body

DO8147

Two black-and-white icons: a warning triangle with an exclamation mark and an open book (no text or symbols)

Close-up of a white electronic device with a cable inserted, showing a small port and a circular base (no text or symbols visible)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a white electronic device with a white cable inserted, showing a small port and a curved top (no text or symbols visible)

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a white electronic device with a white cable inserted, showing a small port and a circular top (no visible text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

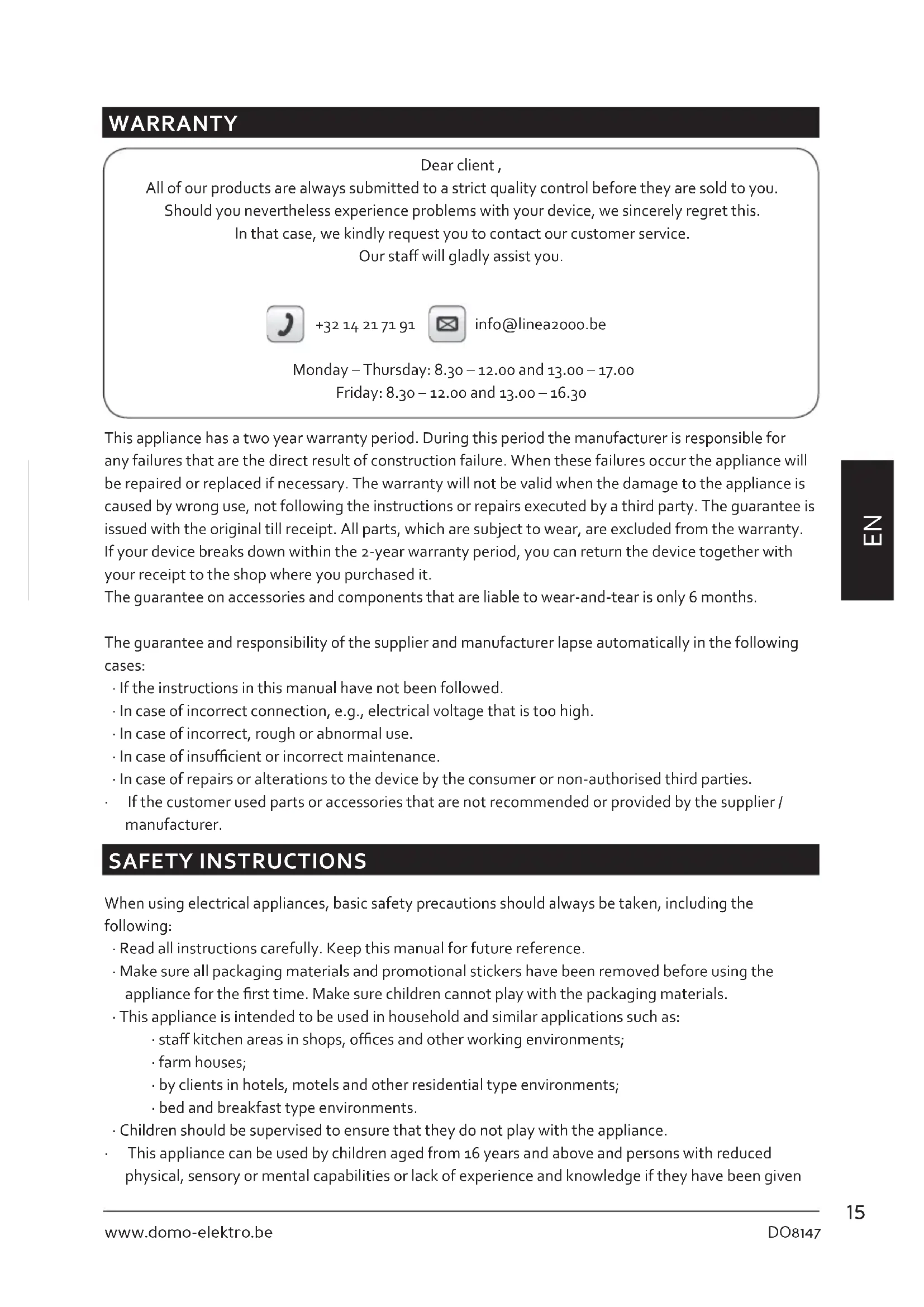

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  · farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
  · Attention: This appliance cannot be used with an external timer or a separate remote control.

- Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.

- Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.

- Close supervision is necessary when the appliance is used near or by children.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.

- Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

· Do not leave a working appliance unattended.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

- Do not use the appliance outdoors.

- Only use the appliance for its intended use.

· Always use the appliance on a steady, dry and level surface.

- Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

· All repairs should be carried out by the manufacturer or its aftersales service.

· Never immerse the appliance, the cord or the plug in water or any other liquid.

- Make sure that children do not touch the cord or appliance.

- Keep the cord away from sharp edges and hot parts or other heat sources.

· Before use, remove all packaging materials and any promotional stickers.

- Do not insert any objects into the fan, as this may cause electric shock, injuries or damage to the appliance. Do not block or tamper with the fan when it is operating.

- Do not use this fan in any wet or humid areas. Do not place the fan too close to a bath tub or any other water container.

SAVE THESE INSTRUCTIONS.

PARTS

1. Grill with fan blades
2. Metal tube
3. Base
4. On/off button with indicator lights
5. Charging station
6. Charging cable

1 2 3 4 5 6

BEFORE THE FIRST USE

• Carefully remove the device from the packaging. Remove any promotional stickers.
• Clean the outside of the device with a soft damp cloth.

USE

Make sure the device is fully charged. Charge the device by connecting the fan itself or via the charging station. This is possible with the charging cable included.

Press the power button to turn on the device. The fan will start at its lowest speed (1). Each press of the button will increase the speed to a maximum of 4. The selected speed setting can be seen by the number (1-4) of lit indicator lights. Press the button again to switch off the device.

Note: Hold the on/off button to switch the device off without having to go through all the speed settings.

Fan direction

To adjust the direction of ventilation up or down, push the fan head up or down.

Close-up of a white electronic device with a white cable inserted, showing a small port and a curved edge (no text or symbols visible)

DOMO

Charging

1. The first indicator light will flash if the battery is low. The fan will then stop. This is to let you know that the device must be charged.
2. Plug the charging cable into the device or the charging station. Note: if you want to charge the device via the charging station, you must place the fan on the charging station.
3. The red indicator light will illuminate to indicate that the device is charging.
4. If the first indicator light stays on, the fan is charged and ready for use.
   Note: you can still use the fan while it is charging. If the fan is at speed one, the first indicator light will still flash on and off. If you choose a higher speed, the corresponding indicator light will light up. The first indicator light will continue to flash.

CLEANING AND MAINTENANCE

• This fan requires very little maintenance. Never try to repair the fan yourself. If it is defective, have it checked and/or repaired by a qualified person.
• Prior to assembling the fan or cleaning it, remove the plug from the outlet.
• Keep the rear grill free of dust and other substances in order to allow free circulation of the air around the motor. Do not disassemble the fan to remove dust from the motor.
• You may clean the exterior of the machine with a soft moist cloth.
  · Never use corrosive or abrasive products to clean the machine.
• Make sure that no water gets into the motor of the machine.

ENVIRONMENTAL GUIDELINES

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Close-up of a white electronic device with a white cable inserted, showing a small port and a circular base (no text or symbols visible)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a white electronic device with a cable inserted, showing a small port and a small plug (no visible text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a white electronic device with a cable inserted, showing a small port and a small plug (no text or symbols visible)

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a white electronic device with a white cable inserted, showing a small port and a circular base (no text or symbols visible)

DOMO

Smer ventilácia

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

QR code image containing encoded data, no visible human-readable text
