Product type	Freestanding or built-in dishwasher
Brand	AYA
Model	1247DB4SNE
Capacity	12 place settings
Dimensions (H x W x D)	845 x 600 x 600 mm (adjustable under countertop to 815 mm)
Weight	Approximately 50 kg
Rated voltage	220-240 V ~
Frequency	50 Hz
Rated power	1760-2100 W
Water pressure	0.04 - 1 MPa
Wash programs	Intensive, Universal, ECO, 90 min, Quick
Functions	Delayed start (3h/6h/9h), Half load, Child safety
Water consumption (ECO program)	11 L
Energy consumption (ECO program)	0.923 kWh
Duration of ECO program	230 min
Noise level	Not specified
Installation type	Freestanding or built-in (worktop removal possible)
Water softener	Yes, adjustable from H1 to H6
Water distribution	Upper and lower spray arms
Safety	Grounding, child safety, door opening with caution
Maintenance and cleaning	Removable and cleanable filters and spray arms
Spare parts and repairability	Availability of replacement parts for 5 years
Warranty	2 years (statutory warranty of conformity)
General information	Cold water connection, double-walled safety inlet hose

Frequently Asked Questions - 1247DB4SNE AYA

Why does my AYA 1247DB4SNE dishwasher not start?

Check that the appliance is powered on and the door is properly closed. Make sure the power cord is plugged in and the fuse or circuit breaker is not tripped. If the problem persists, check the water supply (tap open) and water pressure.

How to solve a drainage problem with my dishwasher?

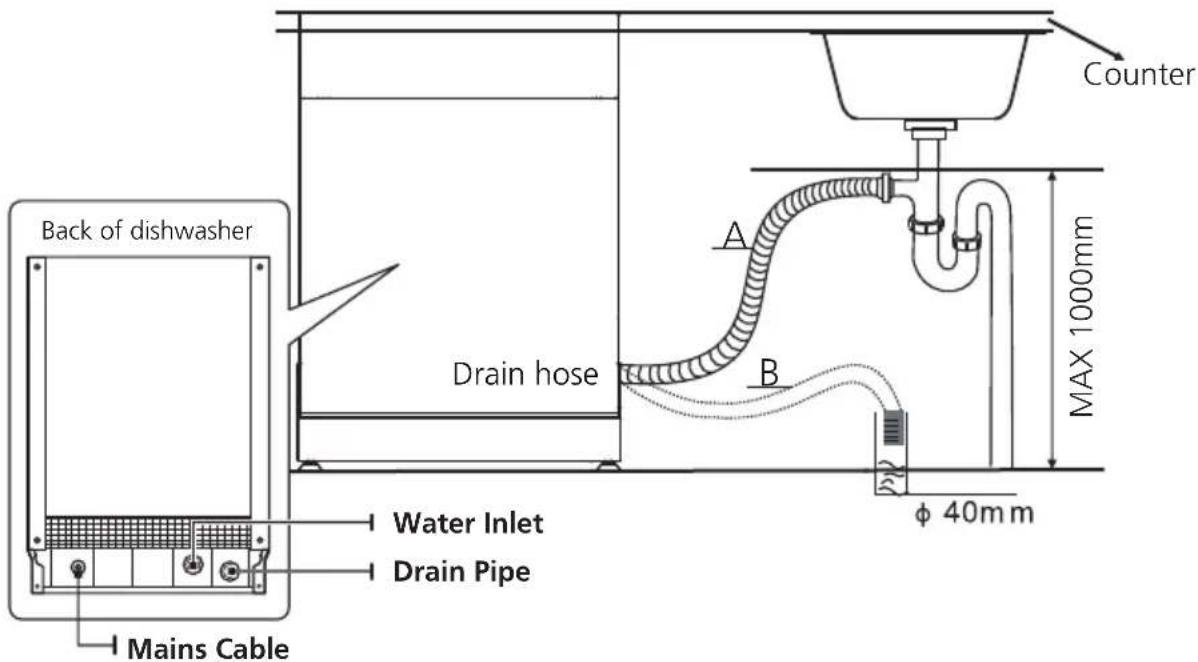

Check that the drain hose is not kinked or blocked. Clean the coarse filter at the bottom of the tub. Ensure the kitchen sink is not clogged, as this can prevent water from draining properly.

What to do if the dishes are not clean after a cycle?

Ensure the dishes are loaded correctly (no obstruction of spray arms) and the selected program is suitable for the soil level. Check the detergent level and cleanliness of filters. Use a more intensive program if necessary.

How to remove white spots on dishes and glasses?

White spots are often due to hard water. Increase the amount of detergent or set the water softener to a higher level (H3 to H6 depending on hardness). You can also add regeneration salt in the designated reservoir.

Why is there foam in the tub of my dishwasher?

Use only a dishwasher-specific detergent. Foam may come from spilled rinse aid or inappropriate detergent. Let the foam dissipate, add about 3.5 L of cold water to the tub, then run a drain cycle. Repeat if necessary.

How to adjust the water softener on my AYA dishwasher?

Press the Program button for more than 5 seconds until the salt indicator light flashes. Use the same button to select the setting (H1 to H6) corresponding to your water hardness (consult your water supplier). The appliance exits setting mode after 5 seconds of inactivity.

What do the flashing indicators on the control panel mean?

The indicators show error codes: fast flashing of Quick indicator = water supply problem; flashing of 90 min and Quick indicators = temperature not reached; flashing of ECO indicator = overflow. Refer to the troubleshooting guide in the manual for more details.

How to use the Child Safety function?

To lock the buttons (except Power), press and hold the Program and Half Load buttons for 3 seconds. Repeat the same action to unlock.

What is the most economical program?

The ECO program is the most economical in energy and water. It lasts 230 minutes, consumes 0.923 kWh and 11 liters of water. It is suitable for normally soiled dishes and allows savings.

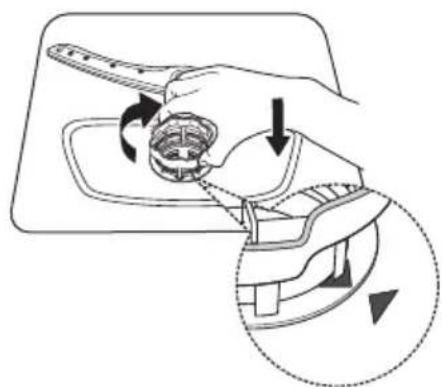

How to maintain the filters and spray arms?

Clean the filters (coarse, main, and microfilter) regularly under running water. Dismantle the spray arms by turning the upper nut clockwise and pulling the lower arm upward. Clean the nozzles with a soft brush, then reassemble everything.

USER MANUAL 1247DB4SNE AYA

MANUEL D'UTILISATION ALV1247DB5NE AYA1247DB4-BNE

FR

Front view of a modern white kitchen appliance with control buttons and a digital display (no visible text or symbols)

Lave-vaisslle

GUIDE D'OPERATION RAPIDE

Symbolic icon of a person walking with arrows indicating cycle (no text or numbers present)

FAITES UN GESTE ECOCITOYEN EN TRIANT VOS EMBALLAGES CARTON

À LA FIN DE VIE DE VOTRE PRODUIT,PENSEZ À LE RAPPORTER DANS UN POINT DE COLLECTE OU DÉPOSER LE À LA DÉCHETERIE PROCHE DE VOTRE DOMICILE

CET APPAREIL EST DESTINE A UN USAGE DOMESTIQUE UNIQUEMENT!

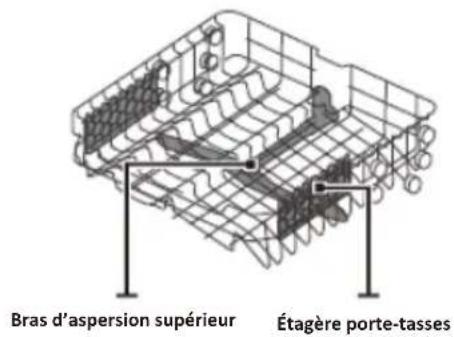

Line drawing of a woven basket with grid pattern (no text or symbols)

Isometric line drawing of a multi-tiered mechanical or electrical housing structure (no text or symbols)

Diagram showing a container being rotated to form a mesh structure, with arrows indicating rotation direction (no text or symbols)

CONSIGNES D'INSTALLATION

AVERTISSEMENT

Symbolic illustration of a hand with a lightning bolt and smoke, representing electrical hazard (no text or labels)

Line drawing of a hand holding a faucet with a pipe fitting (no text or symbols)

Diagram showing a hand holding a tool interacting with a device, with an inset close-up highlighting the mechanism (no text or symbols present)

REMARQUE :

Line drawing of a simple kitchen sink with a grid-patterned wall and side table (no text or symbols)

Pure technical line drawing of a structural beam or support bracket (no text or symbols)

Haut

Simple line drawing of a rectangular beam with two circular holes at both ends (no text or symbols)

Gauche

Simple line drawing of a rectangular beam with two side supports (no text or symbols)

Droite

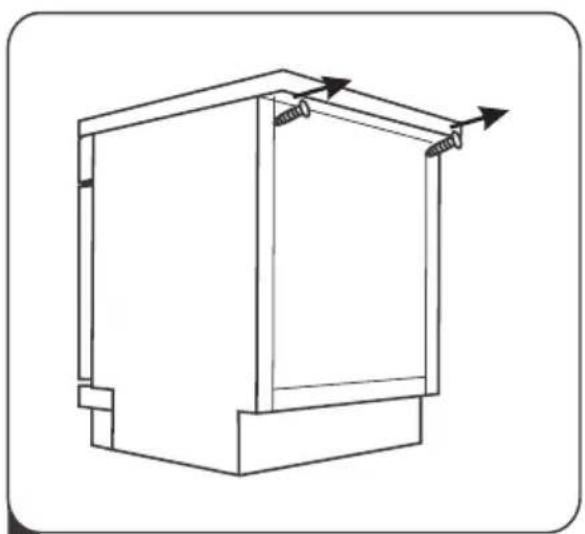

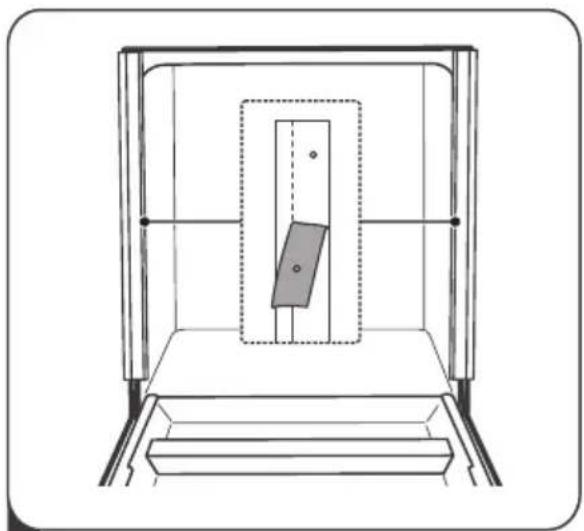

REMARQUE:

Simple line drawing of a 3D rectangular box with arrows indicating upward motion (no text or symbols)

Simple line drawing of a 3D box-like structure with an arrow indicating direction (no text or symbols)

Diagram showing two steps of a mechanical or electrical component assembly, labeled 1 and 2, with arrows indicating direction.

Technical line drawing of a mechanical assembly or enclosure with no visible text, numbers, or symbols.

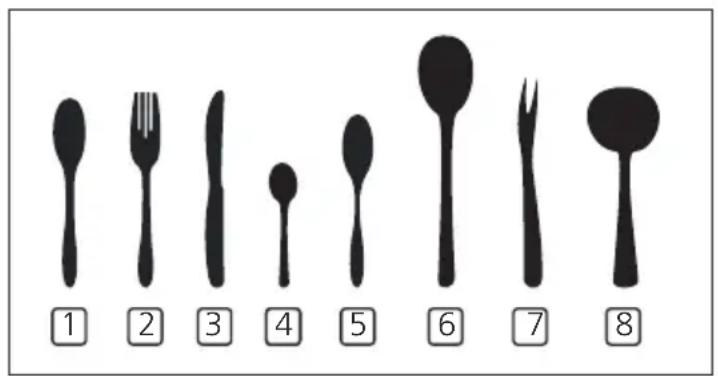

1 2 3 4 5 6 7 8

Technical line drawing of a mechanical component with rollers and housing (no text or symbols)

Pure geometric diagram of vertical planes or panels arranged in a grid pattern (no text or symbols)

Circular diagram with grid lines and a cross symbol (no text or labels)

Pure electrical circuit lines without any symbols

Rôle du détergent

Hand pressing a button on a device panel with icons and arrows (no text or symbols)

Illustration of a hand inserting a circular component into a device (no text or symbols visible)

Illustration of a hand pressing down on a control panel with icons and arrows (no text or symbols)

Hand interacting with a touchscreen device (no text or symbols visible)

Diagram of a refrigerator control panel with icons for lighting, ventilation, and indicator lights

Illustration of a hand pressing down on a kitchen fan with a scroll wheel and control knob (no text or symbols)

Pure technical line drawing of a mechanical or electrical component assembly without any text, numbers, or symbols

Simple line drawing of a screw and a droplet on a surface (no text or symbols)

Illustration of a hand pouring liquid into a digital kitchen appliance with a tool (no text or symbols)

Simple line drawing of a kitchen appliance with sound waves (no text or symbols)

AVERTISSEMENT

Simple line drawing of a bucket with a lid and handle (no text or symbols)

Illustration of a hand holding a tool inside a container with arrows indicating rotation (no text or symbols)

Illustration of a hand using a spray gun to spray liquid onto a surface, with no visible text or symbols.

Diagram of a mechanical device with internal components and an inset showing a close-up view of a component (no text or symbols present)

Diagram of a mechanical lever mechanism with an inset showing a close-up of the component (no text or symbols present)

Illustration of a hand using a tool to adjust or install a mechanical component on a tray (no text or symbols visible)

Illustration of a hand spraying water onto a surface with a spray gun (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

USER MANUAL ALV1247DB5NE AYA1247DB4-BNE

EN

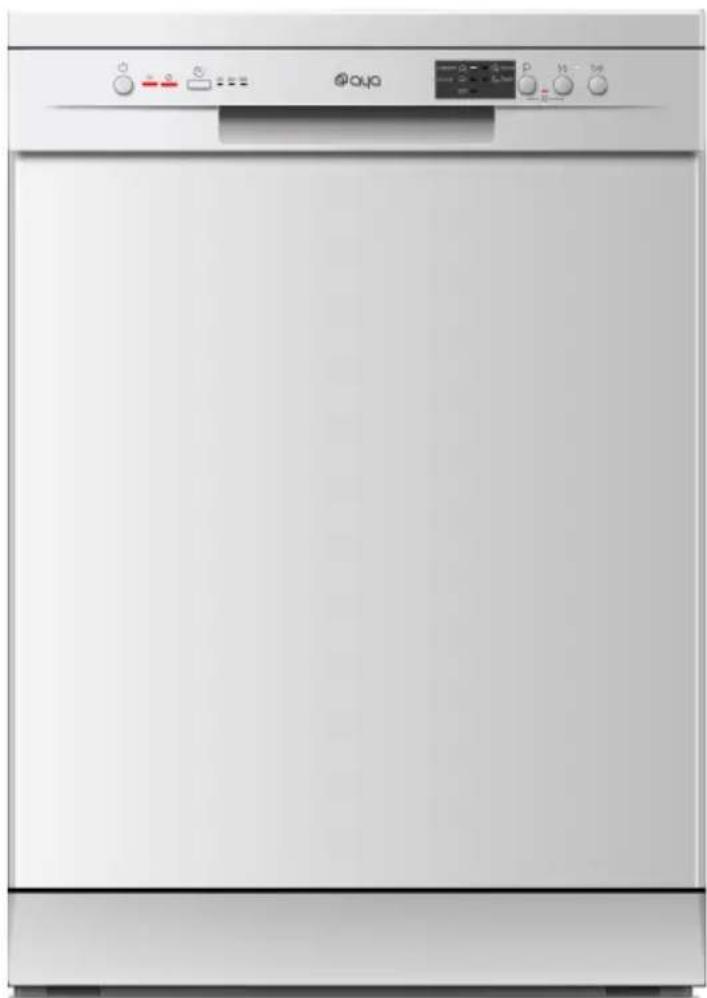

Front view of a modern stainless steel kitchen appliance with control buttons and a digital display (no visible text or symbols)

Dishwasher

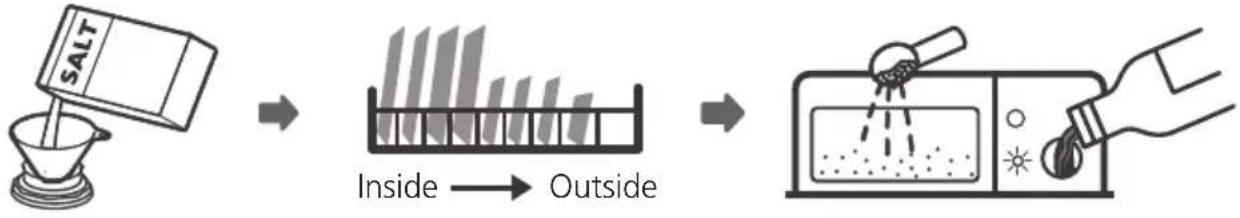

Quick operation guide

For detailed operating method read the corresponding content on the instruction manual.

Switch on the appliance	Press the Power switch button to switch on the appliance, Open the door.
(AW65)

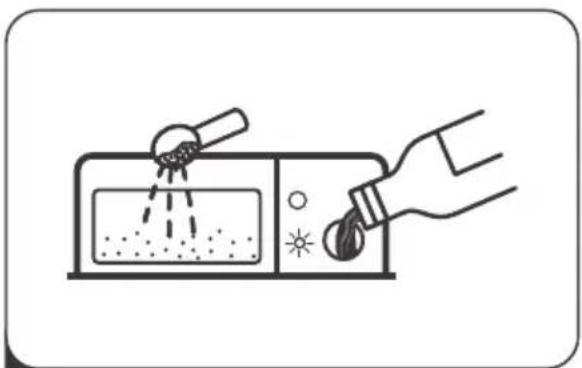

Fill the de-nt dispenser	Compartment A:With each wash cycle.Compartment B:For programmes with pre-wash only.(Follow the user instructions!)
(23HX)

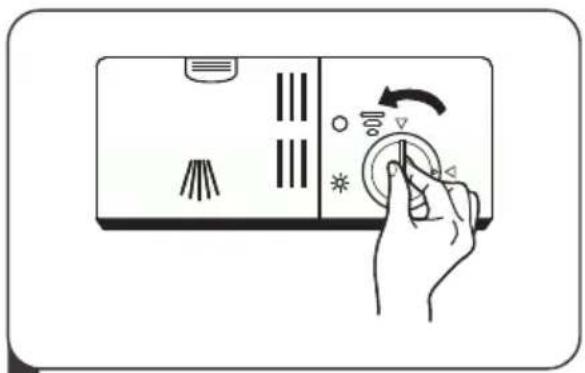

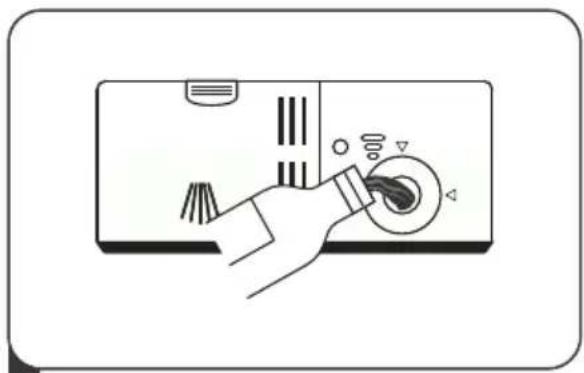

Check the aid level	Mechanical indicator C.Electric indicator on control panel (if provided).
(7260) regeneration level	(On models with water softener system only.)Electric indicator on control panel (if provided).If there is no salt warning light in the control panel(for some models), you can estimate when to fill the salt intothe softener by the number of cycles the dishwasher has run.

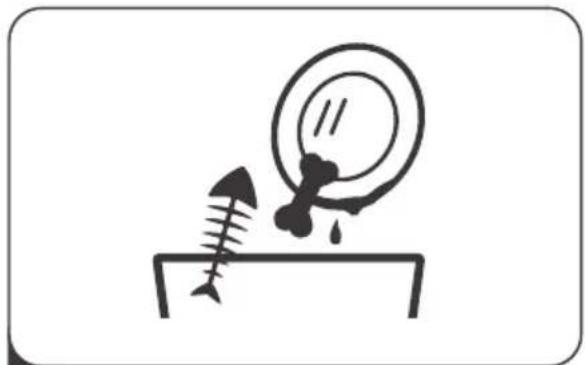

Load baskets	Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,then load the baskets. Refer to the dishwasher loading instructions.
(H8TG)
Select programme	Close the door, press the program button to select the programs.(See the section entitled “Operationg instruction”)
(DH85)
(R7ASC) dishwasher	Turn on the water tap and press the Start/Pause Button. The machinewill start working.
•Changing programme(SDWC)	1. A running cycle can only be modified if it has been running for a short time.Otherwise the detergent may have already been released drained.If this is the case, the detergent dispenser must be refilled.2. Press the Start/Pause button, Then press the program button more than 3 seconds tocancel the running program.3. Select a new programme.4. Restart the dishwasher.	Open the doorcarefully.Hot steam mayescape when thedoor is opened!
•Add forg dishes in the dishw er.	1. Press the Start/Pause Button to stop the machine.2. Open the door.3. Add forgotten dishes.4. Close the door, Then Press the Start/Pause Button, the dishwasher willrun after 10 seconds.
•If the appl ge is switched off during ash cycle.	• If the appliance is switched off during a wash cycle, when switchedon again, please re-select the washing cycle and operate the dishwasheraccording to the original Power-on state).
(DOKH)
Switch e appliance	When the working cycle has finished, the buzzer of the dishwasher will sound 8 times,then stop.Turn off the appliance using the ON/OFF button.Since the appliance is standing by, it will power off automatically after 30 minutes withoutany operation.
(A55H)
Turn of water tap,unload baskets	Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher toavoid handling the dishes and utensils while they are still hot and more susceptible tobreak.They will also dry better. Unload the appliance, starting from the lower basket.

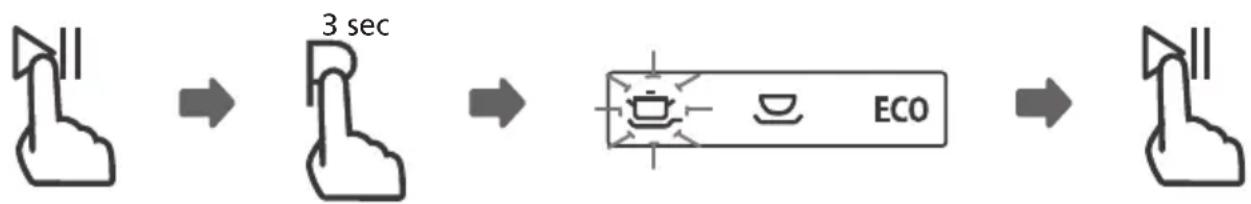

1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released drained. If this is the case, the detergent dispenser must be refilled.
2. Press the Start/Pause button, Then press the program button more than 3 seconds to cancel the running program.
3. Select a new programme.
4. Restart the dishwasher
   -1. Press the Start/Pause Button to stop the machine.
   2.Open the door
   3.Add forgotten dishes.
5. Close the door, Then Press the Start/Pause Button, the dishwasher will run after 10 seconds.

- If the appliance is switched off during a wash cycle, when switched on again, please re-select the washing cycle and operate the dishwasher according to the original Power-on state).

When the working cycle has finished, the buzzer of the dishwasher will sound 8 times, then stop.

Turn off the appliance using the ON/OFF button.

Since the appliance is standing by, it will power off automatically after 30 minutes without any operation.

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to break.

They will also dry better. Unload the appliance, starting from the lower basket.

TABLE OF CONTENTS

1. IMPORTANT SAFETY INFORMATION....44
2. PRODUCT OVERVIEW....49
3. INSTALLATION INSTRUCTION....50

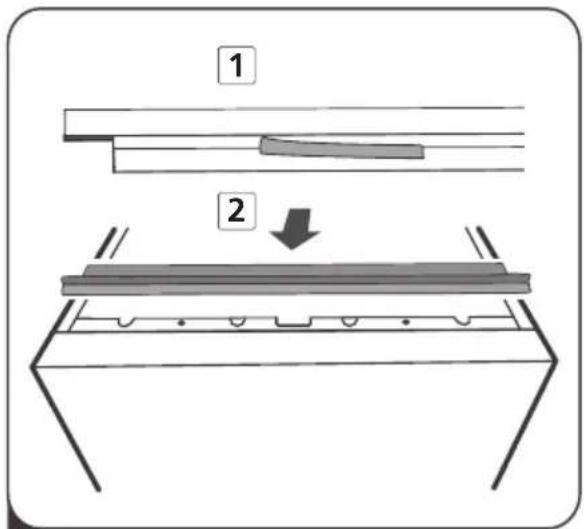

4. SOUND-ABSORBING STRIP INSTALLATION....55

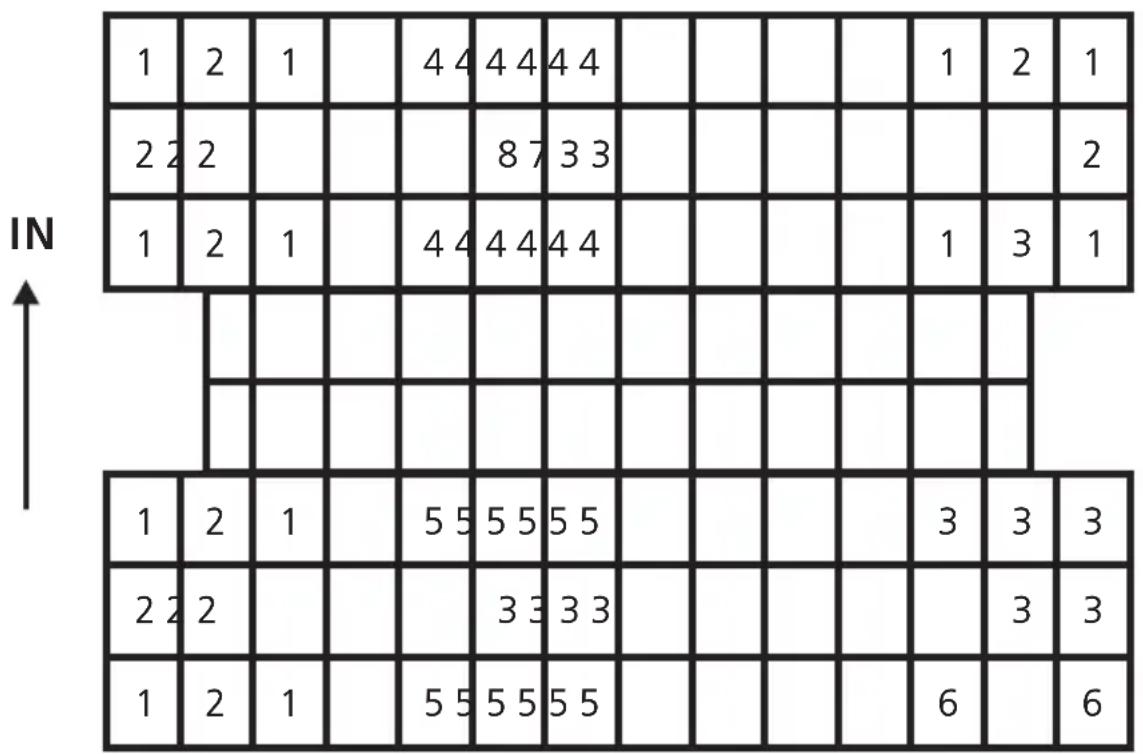

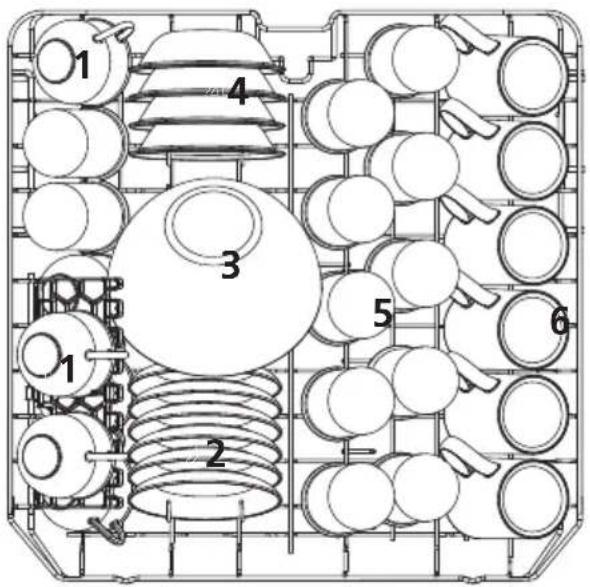

5. LOADING THE BASKETS ACCORDING TO EN60436....57
6. USING YOUR DISHWASHER....59
7. QUICK USER GUIDE....70
8. PROGRAMMING THE DISHWASHER....71
9. MAINTENANCE AND CLEANING....74
10. ERROR CODES....78
11. TROUBLESHOOTING TIPS....79
12. TECHNICAL INFORMATION....83
13. CORRECT DISPOSAL OF THIS PRODUCT....84

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

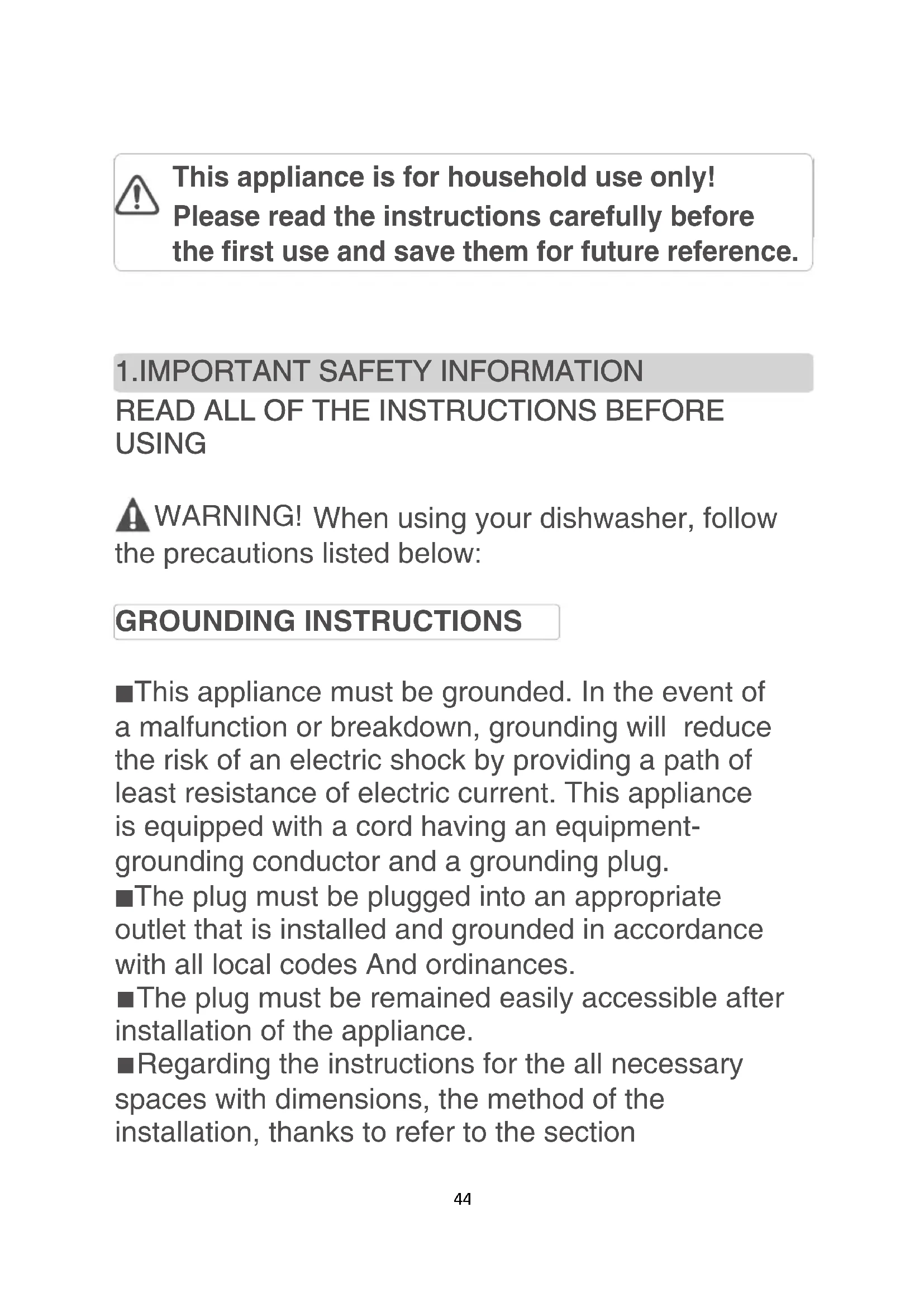

This appliance is for household use only! Please read the instructions carefully before the first use and save them for future reference.

1. IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING

WARNING! When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

■This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.
■The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes And ordinances.
■The plug must be remained easily accessible after installation of the appliance.
■Regarding the instructions for the all necessary spaces with dimensions, the method of the installation, thanks to refer to the section

"INSTALLATION INSTRUCTION AND TECHNICAL INFORMATION" in pages 50-56 and 83 of the manual.

WARNING!

■Improper connection of the equipment-grounding conductor can result in the risk of an electric shock.
■Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician.

WARNING! PROPER USE

■This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.
  ■Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.

■Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
■Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.
■When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal;
2) WARNING: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
■Check that the detergent compartment is empty after completion of the wash cycle.
■Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
■Use siglyedetergent and rinse additives for an automatic dishwasher.

■Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of The reach of children.

- Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside.

■This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

■Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.

■The door should not be left in the open position since this could present a tripping hazard.

■If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

■Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

■Please dispose of packing materials properly.
■Use the dishwasher only for its intended function.
■During installation, the power supply must not be excessively or dangerously bent or flattened.
■Do not tamper with controls.

■The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.

■The maximum number of place settings to be washed by this dishwasher is 12 place settings.

■The maximum permissible inlet water pressure is 1MPa.

■The minimum permissible inlet water pressure is 0.04MPa.

■The appliance is not intended to be operated by means of an external timer or a separate remote control system.

■This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

■It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.

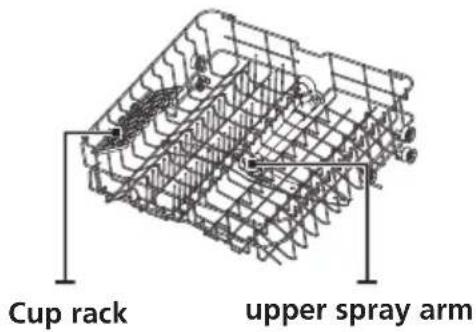

PRODUCT OVERVIEW

IMPORTANT:

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

Inner pipe Lower spray arm Salt container Filter assembly Dispenser

Line drawing of a woven basket with a handle and grid pattern (no text or symbols)

Cutlery basket

Cup rack upper spray arm

Upper basket

Isometric line drawing of a multi-tiered grid structure with no text or symbols

Lower basket

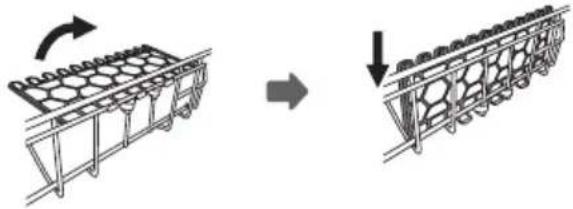

NOTE:

To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use.

Diagram showing a mechanical assembly with rotating components and a final view of a grid-like structure (no text or symbols)

INSTALLATION INSTRUCTION

WARNING

Symbolic illustration of a hand with a lightning bolt and smoke trail (no text or numbers)

Electrical Shock Hazard

Disconnect electrical power before installing dishwasher.

Failure to do so could result in death or electrical shock.

Attention

The installation of the pipes and electrical equipments should be done by professionals.

• About Power Connection

WARNING

For personal safety:

• Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the earthing connection from the power cord.

Electrical requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Electrical connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

⚠ Ensure that proper earthing exists before use

Cold water connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

Line drawing of hands holding a pipe fitting with a handle (no text or symbols)

ordinary supply hose

About the safety supply hose

The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.

WARNING

A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

How to connect the safety supply hose

1. Pull The safety supply hoses completely out from storage compartment located at rear of dishwasher.
2. Tighter the screws of the safety supply hose to the faucet with thread 3/4inch.
3. Turn water fully on before starting the dishwasher.

How to disconnect the safety supply hose

1. Turn off the water.
2. Unscrew the safety supply hose from the faucet.

Connection Of Drain Hoses

Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000mm. The free end of the hose must not be immersed in water to avoid the back flow of it.

Please securely fix the drain hose in either position A or position B

Back of dishwasher Mains Cable Water Inlet Drain Pipe A B Counter MAX 1000mm φ 40mm

How to drain excess water from hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension hose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 meters; otherwise the cleaning effect of the dishwasher could be reduced.

Syphon connection

The waste connection must be at a height less than 100 cm (maximum) from the bottom of the dish. The water drain hose should be fixed .

Position The Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

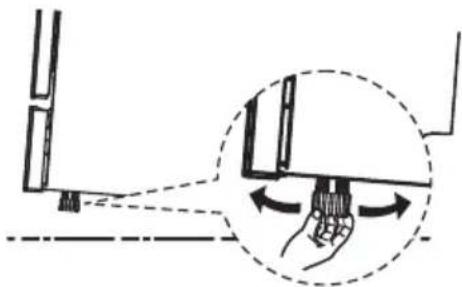

Levelling the appliance

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2^ .

Diagram showing a hand holding a tool interacting with a device, with an inset close-up highlighting the mechanism (no text or symbols present)

NOTE:

Only apply to the free standing dishwasher.

Free Standing Installation

Fitting between existing carbinets

The height of the dishwasher, 845 mm, has been designed in order to allow the machine to be fitted between existing cabinets of the same height in modern fitted kitchens. The feet can be adjusted so that correct height is reached.

The laminated top of the machine does not require any particular care since it is heatproof, scratchproof and stainproof.

Line drawing of a minimalist kitchen sink with a grid-patterned wall and side table (no text or symbols)

Underneath existing work top

(When fitting beneath a work top) In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (a).

a b a b

Attention

After removing the work top, the screws must be screwed again under the rear edge of the top (b).

The height will then be reduced to 815 mm, as scheduled by the International Regulations (ISO) and the dishwasher will fit perfectly under the kitchen working top

SOUND-ABSORBING STRIP INSTALLATION

Sound-absorbing strip

Pure technical line drawing of a structural beam or support (no text or symbols)

Top

Simple line drawing of a rectangular beam with two side holes (no text or symbols)

Left

Simple line drawing of a rectangular beam with two side flanges (no text or symbols)

Right

NOTE:

• When fitting beneath a work top you need to remove the work top of the, dishwasher first.
• If the machine is not embedded, then you can skip the first three steps, just install the sound insulation bar on the left and right sides.

Simple line drawing of a 3D rectangular box with arrows indicating direction (no text or symbols)

1 Unscrew the screws under the rear edge of the top.

Simple line drawing of a 3D box-like structure with an arrow indicating direction (no text or symbols)

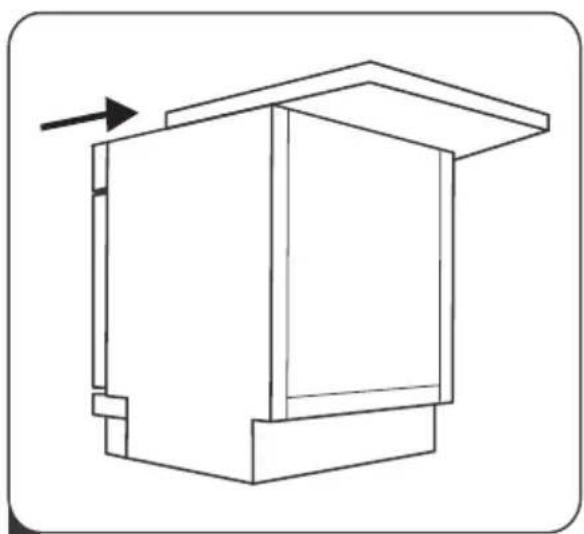

2 Push the work top of the dishwasher backwards and you can unload it.

Diagram showing two steps of a mechanical or structural assembly with labeled components and directional arrows

3 Remove the protection from the sound-absorbing strip, then fix the strip on the frame.

Take away

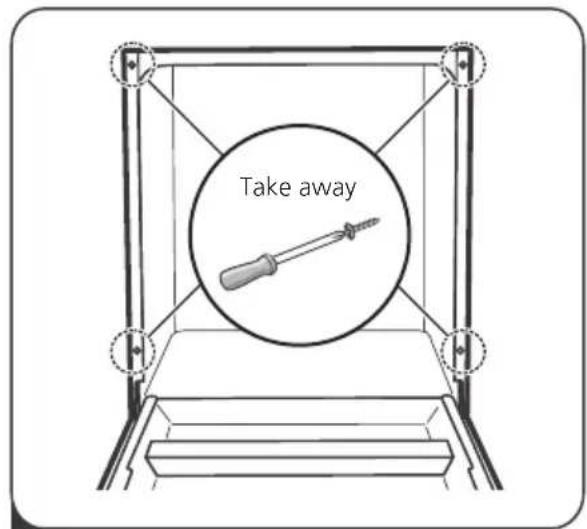

4 Take away the four screws from the right and left side plates.

Technical line drawing of a mechanical assembly or enclosure with no visible text, numbers, or symbols.

5 Remove the protection from the sound-absorbing strips, then stick the strips to the side plates, please align to the hole position.

Screw into

6 Screw on the screws after all.

LOADING THE BASKETS ACCORDING TO EN60436:

1. Upper basket:


1 4 3 5 6 1 2

Number	Item
1	Cups
2	Saucers
3	Glass bowl
4	Dessert bowls
5	Glasses
6	Mugs

1. Lower basket:


10 7 9 8 4 12 13 14 15

Number	Item
7	Oval platter
8	Small pot
9	Dessert plates
10	Soup plates
11	Cutlery basket
12	Melamine bowls
13	Oven pot
14	Melamine dessert plates
15	Dinner plates

3.Cutlery basket:

1326 4578 □ □ □ □

Information for comparability

tests in accordance with EN60436

Capacity: 12 place settings

Position of the upper basket: lower position

Program: ECO

Rinse aid setting: Max

Softener setting: H3

Number	Item
1	Soup spoons
2	Forks
3	Knives
4	Teaspoons
5	Dessert spoons
6	Serving spoons
7	Serving forks
8	Gravy ladles

According to this manual loading the household dishwasher will contribute to energy and water savings.

USING YOUR DISHWASHER

Control Panel

Operation (Button)

1 Power	Press this button to turn on your dishwasher, the screen lights up.
2 Delay	Press the button to set the delay time, corresponding indicator will be lit.
3 Program	Select the appropriate washing program, the selected program indicator will be lit.
4 Half load	When you have about or less than 6 place setting dishwash to wash, you can choose this function to save energy and water. (It can only be used with Intensive, Normal, ECO, 90 min.)
5 Child lock	This option allows you to lock the buttons on the control panel, except the Power button, so children cannot accidentally start the dishwasher by pressing the buttons on the panel. To lock or unlock the buttons on the control panel, press and hold the Program button + the Half load button for 3 seconds.
■ Start/Pause6	To start the selected washing program or pause it when the dishwasher is working.

Display

7 Warning indicator	※ Rinse AidIf the “※” indicator is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill.↔ SaltIf the “⇨” indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled.
8 Delay time	To show the delay time (3h/6h/9h).
9 Program indicator	intensiveFor heaviest soiled crockery, and normally soiled pots, pans, dishes etc. With dried-on food.↔ UniversalFor normally soiled loads, such as pots, plates, glasses and lightly soiled pans.ECO ECOThis is standard program, it is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.↔ 90 minFor normally soiled loads that need quick wash.↔ RapidA shorter wash for lightly soiled loads that do not need drying.

Water Softener

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.

The more minerals there are, the harder your water is.

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting salt consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Please follow the steps below for adjustment in salt consumption.

1. Close the door and switch on the appliance

2. Press the Program button for more than 5 seconds, when the salt indicator flashes means entering the water softener settings. set model within 60 seconds after the appliance was switched on.

3. Press the Program button to select the proper set according to your local environment, the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;

4. Without operation in 5 seconds or press the Power button to complete the setup and exit the setup mode.

WATER HARDNESS				Water softener level Water mol/l	Salt consumption softener level (gram/cycle)
German *dH	French *fH	British *Clarke	Mmol/Mmol/l
0 - 5	0 - 9	0 - 6	0 - 0.94	H1-> Rapid Light bright	0
6 - 11	10 - 20	7 - 14	1.0 - 2.0	H2-> 90 min Light bright	9
12 - 17	21 - 30	15 - 21	2.1 - 3.0	H3-> 90 min, Rapid Light bright	12
18 - 22	31 - 40	22 - 28	3.1 - 4.0	H4-> ECO Light bright	20
23 - 34	41 - 60	29 - 42	4.1 - 6.0	H5-> ECO, Rapid Light bright	30
35 - 55	61 - 98	43 - 69	6.1 - 9.8	H6-> ECO, 90 min Light bright	60

1^ = 1.25 Clarke=1.78 fH=0.178mmol/l

The manufactory setting: H3

Contact your local water board for information on the hardness of your water supply.

Please check the section 3 "Loading The Salt Into The Softener".

NOTE:

If your model does not have any water softener, you may skip this section. Water Softener

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.

The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

Preparing And Loading Dishes

• Consider buying utensils which are identified as dishwasher-proof.
• For particular items, select a program with the lowest possible temperature.
• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.

For washing the following cutlery/dishes

Are not suitable

• Cutlery with wooden, horn china or mother-of-pearl handles
• Plastic items that are not heat resistant
- Older cutlery with glued parts that are not temperature resistant
• Bonded cutlery items or dishes
- Pewter or cooper items
- Crystal glass
• Steel items subject to rusting
- Wooden platters
• Items made from synthetic fibres

Are of limited suitability

• Some types of glasses can become dull after a large number of washes
• Silver and aluminum parts have a tendency to discolour during washing
- Glazed patterns may fade if machine washed frequently

Recommendations for loading the dishwasher

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water.

For best performance of the dishwasher, follow these loading guidelines.

(Features and appearance of baskets and cutlery baskets may vary from your model.)

Place objects in the dishwasher in following way:

• Items such as cups, glasses, pots/pans, etc. are faced downwards.
• Curved items, or ones with recesses, should be loaded aslant so that water can run off.
• All utensils are stacked securely and can not tip over.
• All utensils are placed in the way that the spray arms can rotate freely during washing.
• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
• Dishes and items of cutlery must not lie inside one another, or cover each other.
  • To avoid damage, glasses should not touch one another.
• The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups.
• Long bladed knives stored in an upright position are a potential hazard!
• Long and / or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
• Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

NOTE:

Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

Removing the dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket upper basket. first, followed by the

WARNING

Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the program has ended.

Loading the upper basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

Technical line drawing of a mechanical component with rollers and brackets (no text or symbols)

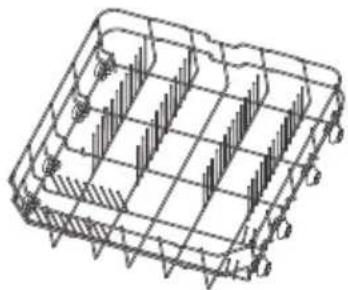

Loading the lower basket

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

The maximum diameter advised for plates in front of the detergent dispenser is of 19 cm, this not to hamper the opening of it.

Pure geometric diagram of vertical planes or panels arranged in a grid pattern (no text or symbols)

Loading the cutlery basket

Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance.

WARNING

Circular diagram with grid lines and intersecting black and white symbols (no text or labels)

Do not let any item extend through the bottom.

Always load sharp utensils with the sharp point down!

For the best washing effect, please load the baskets refer to LOADING THE BASKETS.

Function Of The Rinse Aid And Detergent

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.

WARNING

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to refill the rinse aid dispenser

Unless the rinse-aid warning light ( ※ ) on the control panel is on, you can always estimate the amount from the color of the optical level indicator located next to the cap. When the rinse-aid container is full, the indicator will be fully dark. The size of the dark dot decreases as the rinse-aid diminishes. You should never let the rinse aid level be less than 1/4 full.

Rinse aid level indicator

Diagram of a kitchen appliance with kitchen utensils, a stand, and a dial (no text or labels)

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full

3/4 full 1/2 full 1/4 full

○ Empty

Function of detergent

The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

WARNING

• Proper Use of Detergent
Use only detergent specifically made for dishwashers use. Keep your detergent fresh and dry.
Don't put powdered detergent into the dispenser until you are ready to wash dishes.

Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children.

Filling The Rinse Aid Reservoir

Illustration of a hand pressing down on a device with control buttons and icons (no text or symbols)

1 Remove the rinse aid reservoir cap by rotating it counterclockwise.

Illustration of a hand operating a device with a circular button and indicator lights (no text or symbols)

2 Carefully pour in the rinse-aid into its dispenser, whilst avoiding it to overflow.

Illustration of a hand pressing down on a device panel with icons for buttons and indicators (no text or symbols)

3 Close the rinse aid reservoir cap by rotating it clockwise.

NOTE:

Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the next wash.

Adjusting the rinse aid reservoir

Hand pressing a button on a device screen with icons for lighting, battery, and signal (no text or symbols)

Turn the rinse aid indicator dial to a number. The higher the number, the more rinse aid the dishwasher uses. If the dishes are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

Filling The Detergent Dispenser

Push latch to open

1 Press the release catch on the detergent dispenser to open the cover.

A B

2 Add detergent into the larger cavity (A) for the main wash cycle. For more heavily soiled wash loads, also add some detergent into the smaller cavity (B) for the pre-wash cycle.

Illustration of a hand pressing down on a kitchen control panel with directional arrows (no text or symbols)

3 Close the cover and press on it until it locks into place.

NOTE:

• Be aware that depending on the soiling of water, setting may be different.
• Please observe the manufacturer's recommendations on the detergent packaging.

Before using your dishwasher :

1. Set the water softener
2. Loading the salt Into the softener
3. Loading the basket
4. Fill the dispenser

Please check the section 1 "Water Softener" of PART II: Special Version, If you need to set the water softener.

Loading The Salt Into The Softener

NOTE:

If your model does not have any water softener, you may skip this section. Always use salt intended for dishwasher use.

The salt container is located beneath the lower basket and should be filled as explained in the following:

WARNING

• Only use salt specifically designed for dishwashers use!
Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.
• Only fill with salt before running a cycle.

This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

Please follow the steps below for adding dishwasher salt:

1. Remove the lower basket and unscrew the reservoir cap.

2. Place the end of the funnel (supplied) into the hole and pour in about 1.5kg of dishwasher salt.

3. Fill the salt container to its maximum limit with water, It is normal for a small amount of water to come out of the salt container.

4. After filling the container, screw back the cap tightly.

5. The salt warning light will stop being after the salt container has been filled with salt.

6. Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

NOTE:

- The salt container must only be refilled when the salt warning light ( ⭕ ) in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled.

If there is no salt warning light in the control panel (for some Models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.

• If salt has spilled, run a soak or quick program to remove it.

QUICK USER GUIDE

Please read the corresponding content on the instruction manual for detailed operating method.

Pure technical diagram of a mechanical or electrical component with no text, numbers, or symbols

1 Install the dishwasher

(Please check the section "INSTALLATION INSTRUCTION")

Simple line drawing of a hammer and sickle on a surface with a magnified circular object above (no text or symbols)

2 Removing the larger residue on the cutlery

Inside → Outside

3 Loading the baskets

Illustration of a hand pouring liquid into a digital kitchen appliance with a tool (no text or symbols)

4 Filling the dispenser Selecting a program a

Simple line drawing of a refrigerator with sound waves (no text or symbols)

5 running the dishwasher

PROGRAMMING THE DISHWASHER

Wash Cycle Table

The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs.

( ● )Means: need to fill rinse into the Rinse-Aid Dispenser.

Program	Description Of Cycle	Detergent Pre/Main	Running Time(min)	Energy (Kwh)	Water (L)	Rinse Aid
Intensive	Pre-wash(50°C)Wash(65°C)RinseRinseRinse(65°C)Drying	4/16g(1 or 2 pieces)	205	1.621	17.8	●
Universal	Pre-wash(45°C)Wash(55°C)RinseRinse(65°C)Drying	4/16g(1 or 2 pieces)	175 1.302		14.2	●
ECO (*EN60436)	Pre-washWash(45°C)Rinse(60°C)Drying	4/16g(1 or 2 pieces)	230	0.923 11		●
90 min	Wash(60°C)RinseRinse(65°C)Drying	20g(1 piece)	90 1.350 11.5			●
Rapid	Wash(50°C)RinseRinse(45°C)	20g(1 or 2 pieces)	30 0.751		11.2	○

NOTE:

ECO : This program is the test cycle. The information for comparability test in (*EN60436) accordance with EN60436.

Pre-wash of tableware items leads to increased water and energy consumption and is not recommended.

Washing tableware in a dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the dishwasher is used according to the use manual.

Starting A Cycle Wash

1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one.
2. Pour in the detergent.
3. Insert the plug into the socket. The power supply refer to last page "Product fiche". Make sure that the water supply is turned on to full pressure.
4. Close the door, press the Power button, to switch on the machine.
5. Choose a program, the response light will turn on. Then press the Start/Pause button, the dishwasher will start its cycle.

Changing The Program Mid-cycle

A wash cycle can only be changed if it has been running for a short time otherwise, the detergent may have already been released and the dishwasher may have already drained the wash water. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below:

1. Press the Start/Pause button to pause the washing.
2. Press Program button for more than 3 seconds - the program will cancel.
3. Press the Program button to select the desired program.
4. Press the Start/Pause button, after 10 seconds, the dishwasher will start.

Forget To Add A Dish?

A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below:

1. Press the Start/Pause button to pause the washing.
2. Wait 5 seconds then open the door.
3. Add the forgotten dishes.
4. Close the door.
5. Press the Start/Pause button after 10 seconds, the dishwasher will start.

WARNING

Simple line drawing of a box with a lid and handle (no text or symbols)

It is dangerous to open the door mid-cycle, as hot steam may scald you.

MAINTENANCE AND CLEANING

External Care

The door and the door seal

Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed.

The control panel

If cleaning is required, the control panel should be wiped with a soft damp cloth only.

WARNING

• To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.
• Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface.

Internal Care

Filtering system

The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly and clean them if necessary under running water. Follow the steps below to clean the filters in the wash cabinet.

NOTE:

Pictures are only for reference, different models of the filtering system and spray arms may be different.

Illustration of a hand holding a tool with an arrow indicating rotation or movement (no text or symbols)

1 Hold the coarse filter and rotate it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher.

Main filter Coarse filter Fine filter

2 The fine filter can be pulled off the bottom of the filter assembly. The coarse filter can be detached from the main filter by gently squeezing the tabs at the top and pulling it away.

Illustration of hands using a tool to clean or wash a surface, no text or symbols present

3 Larger food remnants can be cleaned by rinsing the filter under running water.

For a more thorough clean, use a soft cleaning brush.

Illustration of a hand turning a car interior with arrows indicating rotation (no text or symbols)

4 Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow.

WARNING

• Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage.
• Never use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Spray arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

To clean the spray arms, follow the instructions below:

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

1 To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.

Illustration of a hand using a tool to lift a small cylindrical component into a basin (no text or symbols)

2 To remove the lower spray arm, pull out the spray arm upward.

Line drawing of a kitchen sink with a hand cleaning the surface and a spray bottle pouring liquid (no text or symbols)

3 Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

Frost precaution

Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher at the supply source.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

After every wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside.

Remove the plug

Before cleaning or performing maintenance, always remove the plug from the socket.

No solvents or abrasive cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

When not in use for a longtime

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance.

Moving the appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

ERROR CODES

If there is a malfunction, the dishwasher will display error codes to identify these:

	Meanings	Possible CausesCodes
The Rapid light flicker fleetly	Longer inlet time.	Faucets is not opened, or water intake is restricted, or water pressure is too low.
The Rapid and 90 min light flicker fleetly	Not reaching required temperature.	Malfunction of heating element.
The ECO light flicker fleetly	Overflow.	Some element of dishwasher leaks.
The ECO, Rapid and Universal indicator flicker fleetly	Failure of communication between main PCB with display PCB.	Open circuit or break wiring for the communication.

WARNING

• If overflow occurs, turn off the main water supply before calling a service.
• If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

TROUBLESHOOTING TIPS

Before Calling For Service

Reviewing the charts on the following pages may save you from calling for service.

Problem Possible Causes What To Do
Dishwasher doesn't start	Fuse blown, or the circuit break tripped.	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher.
	Power supply is not turned on.	Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket.
	Water pressure is low	Check that the water supply is connected properly and the water is turned on.
	Door of dishwasher not properly closed.	Make sure to close the door properly and latch it.
Water not pumped form dishwasher	Twisted or trapped drain hose.	Check the drain hose.
	Filter clogged.	Check coarse the filter.
	Kitchen sink clogged.	Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink that is not draining, you may need a plumber rather than a serviceman for dishwashers.
Suds in the tub Wrong detergent.Spilled rinse-aid. Always wipe up rinse-aid spills immediately.		Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the bottom of the dishwasher. Close the dishwasher door, then select any cycle. Initially, the dishwasher will drain out the water. Open the door after draining stage is complete and check if the suds have disappeared. Repeat if necessary.
Stained tub interior Detergent with colourant may have been used.		Make sure that the detergent has no colourant.
White film on inside surface	Hard water minerals. To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent otherwise, it may cause foaming or suds.
There are rust stains on cutlery	The affected items are not corrosion resistant.	Avoid washing items that are not corrosion resistant in the dishwasher.
	A program was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle.	Always run a wash program without any crockery after adding salt. Do not select the Turbo function (if present), after adding dishwasher salt.
	The lid of the softer is loose.	Check the softener lid is secure.
Knocking noise in the dishwasher	A spray arm is knocking against an item in a basket	Interrupt the program and rearrange the items which are obstructing the spray arm.
Rattling noise in the dishwasher	Items of crockery are loose in the dishwasher.	Interrupt the program and rearrange the items of crockery.
Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on the dishwasher function. If in doubt, contact a qualified plumber.
The dishes are not clean	The dishes were not loaded correctly.	See PART II “Preparing And Loading Dishes”.
	The program was not powerful enough.	Select a more intensive program.
The dishes are not clean.	Not enough detergent was dispensed.	Use more detergent, or change your detergent.
	Items are blocking the movement of the spray arms.	Rearrange the items so that the spray can rotate freely.
	The filter combination is not clean or is not correctly fitted in the base of wash cabinet. This may cause the spray arm jets to get blocked.	Clean and/or fit the filter correctly. Clean the spray arm jets.
Cloudiness on glassware.	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean.
White spots appear on dishes and glasses.	Hard water area can cause limescale deposits.	Add more detergent.
Black or grey marks on dishes	Aluminium utensils have rubbed against dishes	Use a mild abrasive cleaner to eliminate those marks.
Detergent left in dispenser	Dishes block detergent dispenser	Re-loading the dishes properly.
The dishes aren't drying	Improper loading Load the dishwasher as suggested in the directions.
	Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can come out. Take out the dishes until the inside temperature is safe to touch. Unload the lower basket first to prevent the dropping water from the upper basket.
Problem	Possible Causes What To Do
The dishes aren't drying	Wrong program has been selected.	With a short program, the washing temperature is lower, decreasing cleaning performance.Choose a program with a long washing time.
	Use of cutlery with a low-quality coating.	Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher.

TECHNICAL INFORMATION

Reference	ALV1247DB5NEAYA1247DB4-BNE
Rated voltage	220-240V ~
Rated power	1760-2100W
Rated frequency	50Hz

Note: More data information, please scan the QR code on the energy label.

Note : loading the household dishwasher up to the 212 sets will contribute to energy and water savings on correct loading of tableware;

The ECO program is suitable to clean normally soiled tableware, for this use, it is the most efficient program in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.

Washing tableware in a dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the dishwasher is used according to this instructions.

Pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.

CORRECT DISPOSAL OF THIS PRODUCT

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collecon systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Please bring the baeries in the baeries disposal center (contact your retailer in order to protect the environment).

Note:

•In accordance with Arcle L. 217 of the Consumer Code, your product has 2 year legal guarantee of conformity.

- Period of availability of repair spare parts: 5 years.

•To contact our Aer-Sales Service, before going to BUT store, call 09 78 97 97 97, from Monday to Saturday from 8:00 a.m. to 8:00 p.m. (Price of a local call).
