USER MANUAL ALVI1247FIX AYA

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to

avoid handling the dishes and utensils while they are still hot and more susceptible to break. They will also dry better.Unload the appliance, starting from the lower basket. Changing the programme Add forgotten dishes in the dishwasher. Scrape off any large amount of leftover food. Soften remnants of burnt food in pans, then load the baskets. Refer to the dishwasher loading instructions. When the working cycle has finished, the buzzer of the dishwasher will sound 8 times, then stop. Turn off the appliance using the ON/OFF button. If the appliance is switched off during a wash cycle. If the appliance is switched off during a wash cycle, when switched on again, please re-select the washing cycle and operate the dishwasher according to the original Power-on state ). Switch on the appliance Press the Power switch button to switch on the appliance, Open the door. For detailed operating method read the corresponding content on the instruction manual. Quick operation guide WARNING! Close the door,press the program button to select the programs. ( See the section entitled“Operationg instruction”) T urn on the water tap and press the Start/Pause Button. The machine will start working.

1. A running cycle can only be modified if it has been running for a short time.

Otherwise the detergent may have already been released drained. If this is the case, the detergent dispenser must be refilled.

2. Press the Start/Pause button, Then press the program button more than 3 seconds to

cancel the running program. 3.Select a new programme.

4. Restart the dishwasher.

1.Press the Start/Pause Button to stop the machine. 2.Open the door . 3.Add forgotten dishes. 4.Close the door,Then Press the Start/Pause Button, the dishwasher will run after 10 seconds. Open the door carefully. Hot steam may escape when the door is opened! Since the appliance is standing by, it will power off automaticly after 30 minutes without any operation. Open the flap(marked with A), fill in the main wash detergent , and then close the flap; Pre wash detergent drop into the tank directly; (Follow the user instructions!) Check the rinse aid level Refill the rinse aid through the hole below the cap(marked with B) If you need . Fill the detergent dispenser

BBThe manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice. NOTE:

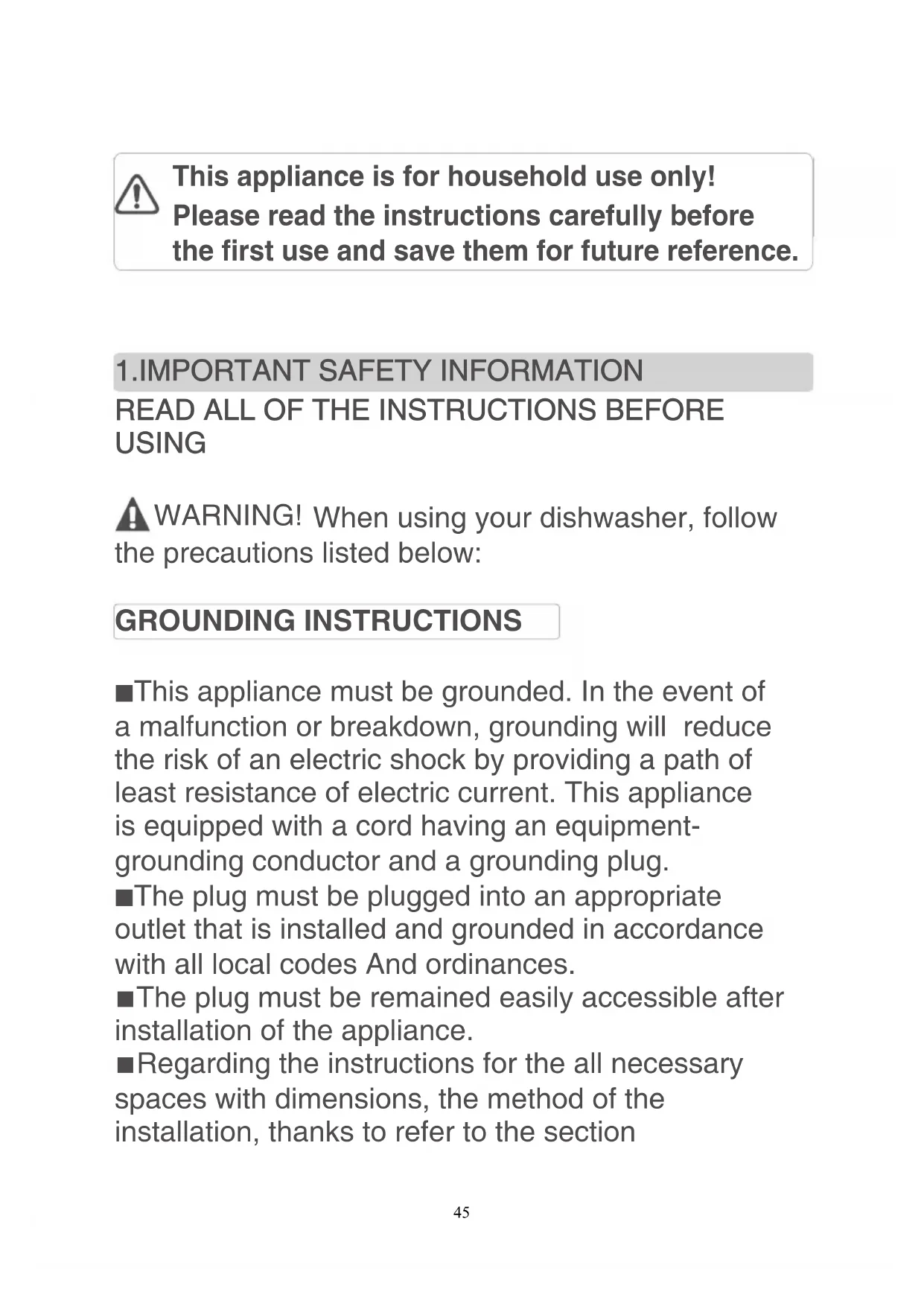

USING GROUNDING INSTRUCTIONS WARNING! ■The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes And ordinances. ■The plug must be remained easily accessible after installation of the appliance. ■Regarding the instructions for the all necessary spaces with dimensions, the method of the installation, thanks to refer to the section 45■Improper connection of the equipment-grounding conductor can result in the risk of an electric shock. WARNING! “INSTALLATION INSTRUCTION ■Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; If it does notfit the outlet. Have a proper outlet installed by a qualified electrician.

■Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. ■This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments. of the ” in pages 51-58 manual. 46■Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out. ■Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.

damage the door seal; When loading items to be washed:

1) Locate sharp items so that they are not likely to

2) WARNING: Knives and other utensils with sharp

points must be loaded in the basket with their points down or placed in a horizontal position. ■Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked,check the manufacturer's recommendations. ■ designed for an automatic dishwasher. Use only detergent and rinse additives

after completion of the wash cycle. Check that the detergent comparment is empty 47■ products out of The reach of children. Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these ■Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside.

by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. If the supply cord is damaged, it must be replaced ■Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open. Dishwasher detergents are strongly alkaline, they ■The door should not be left in the open position since this could present a tripping hazard.

8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. This appliance can be used by children aged from 48■ excessively or dangerously bent or flattened. During installation, the power supply must not be ■Do not tamper with controls. ■Please dispose of packing materials properly. ■Use the dishwasher only for its intended function.

mains using new hose sets and that old hose-sets should not be reused. The appliance is to be connected to the water ■The maximum number of place settings to be washed by this dishwasher is 12 place settings.

means of an external timer or a separate remote control system. The appliance is not intended to be operated by

grounded plug. Please ensure the wall outlet in your house is well earthed. This appliance has been incorporated with a

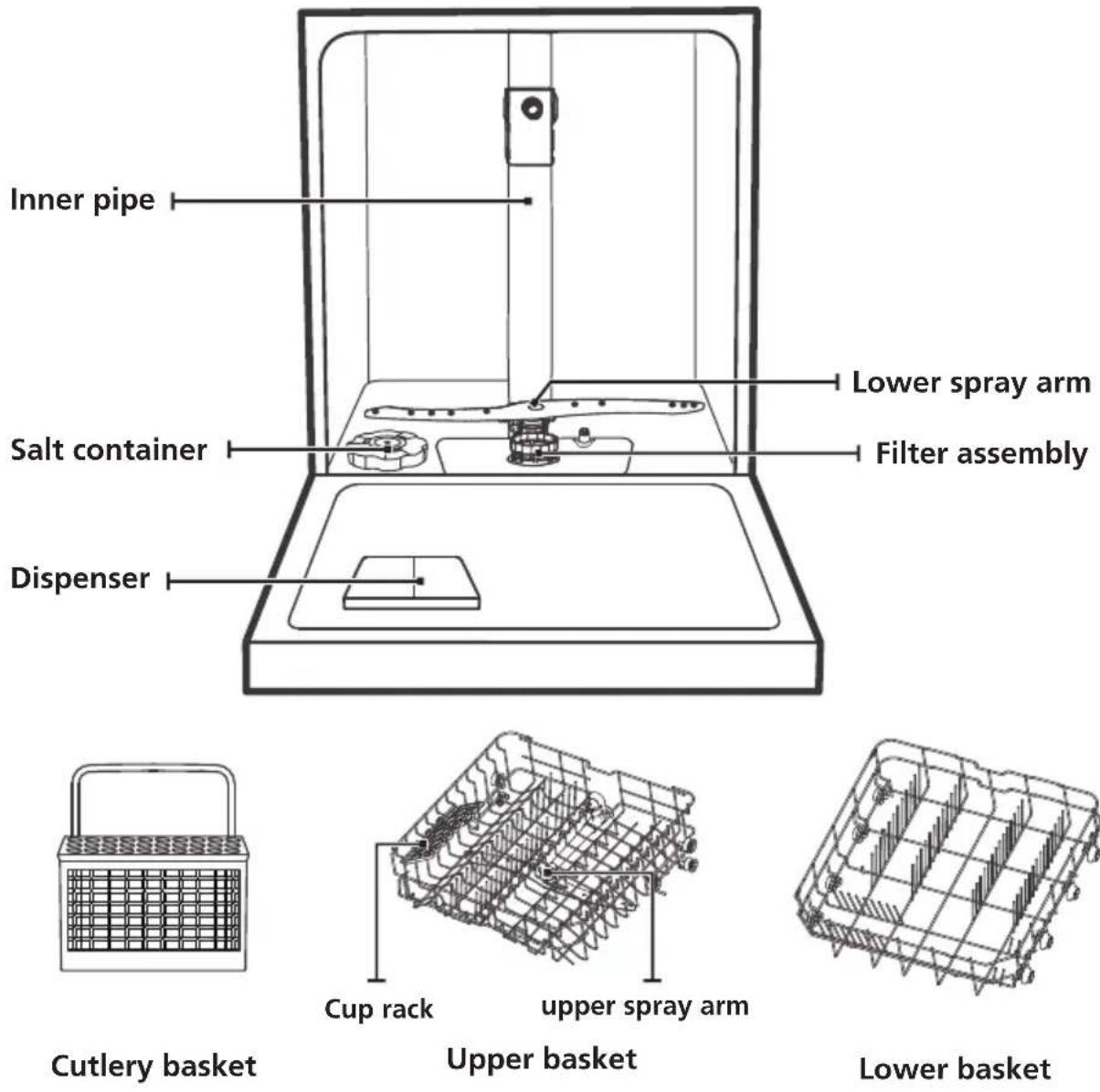

cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged. It is recommended to check regularly the supply 49PRODUCT OVERVIEW To get the best performance from your dishwasher, read all operating instructions before using it for the first time. IMPORTANT: Cutlery basket Lower basket upper spray arm Upper basket Cup rack Dispenser Salt container Filter assembly Lower spray arm To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use. NOTE: Inner pipe 50INSTALLATION INSTRUCTION Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns. Electrical requirements Electrical connection Ensure that proper earthing exists before use About Power Connection WARNING For personal safety: Do not use an extension cord or an adapter plug with this appliance. Do not, under any circumstances, cut or remove the earthing connection from the power cord. The installation of the pipes and electrical equipments should be done by professionals. Attention WARNING Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance. 51Water Supply And Drain Cold water connection Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance. safety supply hose ordinary supply hose About the safety supply hose The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water. How to connect the safety supply hose

1. Pull The safety supply hoses completely out from storage compartment located at

2. Tighter the screws of the safety supply hose to the faucet with thread 3/4inch.

3. Turn water fully on before starting the dishwasher.

WARNING A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged. How to disconnect the safety supply hose

1. Turn off the water.

2. Unscrew the safety supply hose from the faucet.

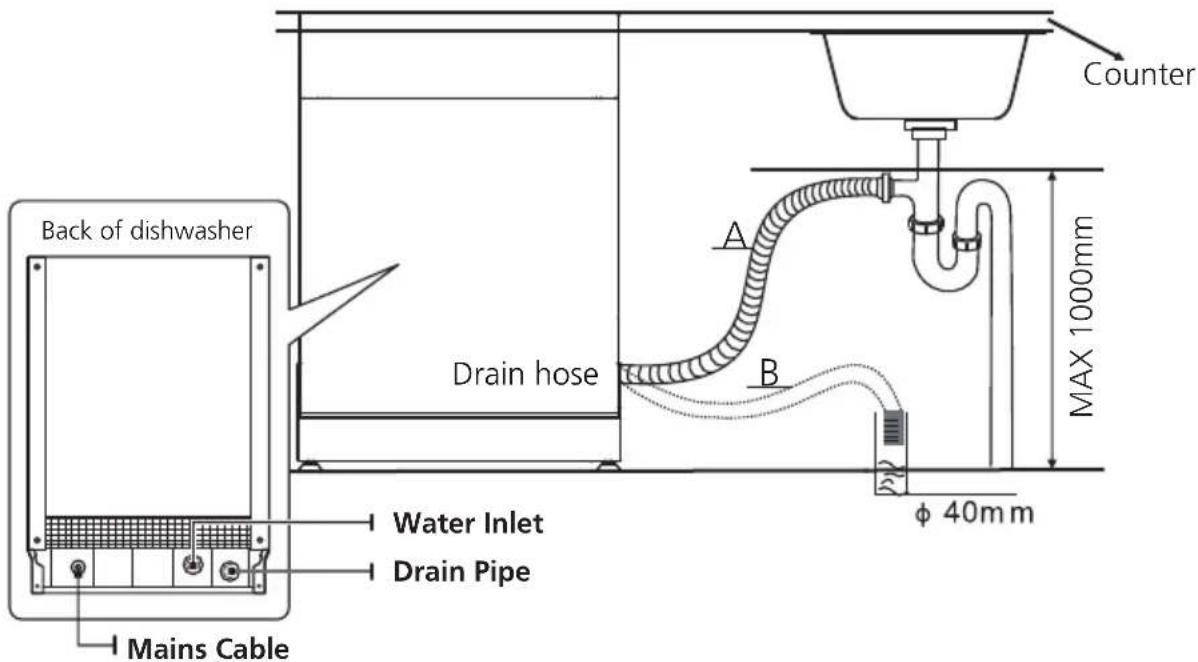

52Connection Of Drain Hoses Please securely fix the drain hose in either position A or position B

MAX 1000mm Counter Drain hose Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000mm. The free end of the hose must not be immersed in water to avoid the back flow of it. Extension hose Water outlet How to drain excess water from hoses Syphon connection If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink. Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed. The waste connection must be at a height less than 100 cm (maximum) from the bottom of the dish. The water drain hose should be fixed . If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 meters; otherwise the cleaning effect of the dishwasher could be reduced. Back of dishwasherWater InletDrain PipeMains Cable 53Built-In Installation(for the integrated model) Step 1. Selecting the best location for the dishwasher The installation position of dishwasher should be near the existing inlet and drain hoses and power cord. Illustrations of cabinet dimensions and installation position of the dishwasher.

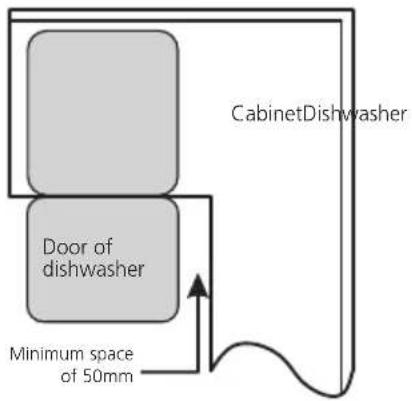

1. Less than 5 mm between the top of dishwasher and cabinet and the outer door

aligned to cabinet. 90 ° 90 ° 580mm580mm820mm820mm100100Electrical, drain and water supply line entrancesElectrical, drain and water supply line entrancesSpace between cabinet bottom and floorSpace between cabinet bottom and floor600 mm(for 60cm model)8080 Position The Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. Levelling the appliance Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2°. NOTE: Only apply to the free standing dishwasher. 54Step 2. Aesthetic panel's dimensions and installation The aesthetic wooden panel could be processed according to the installation drawings.The aesthetic wooden panel could be processed according to the installation drawings. Magical pasterMagical pasterMagical paster A and magical paster B be disjoinedon ,magical paster A on the aesthetic wooden panel and felted magical paster B of the outer door of dishwasher (see figure A). After positioning of the panel , fix the panel onto the outer door by screws and bolts (See figure B) . Semi-integrated model

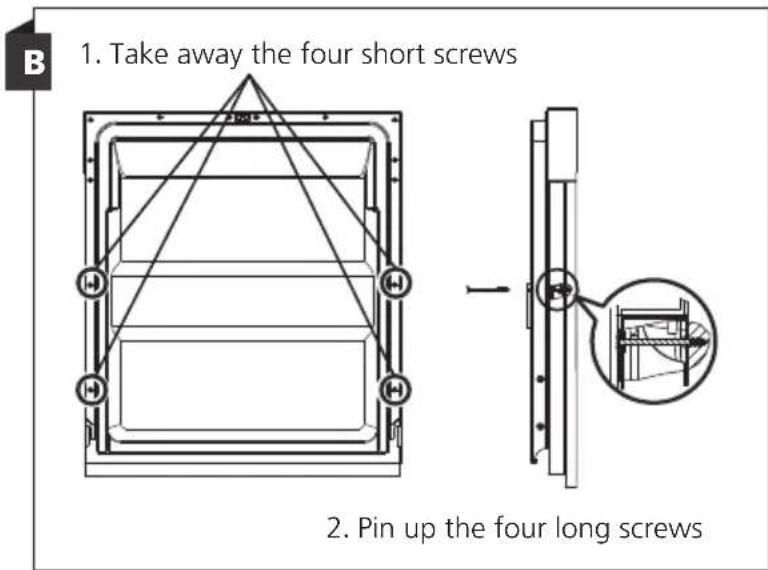

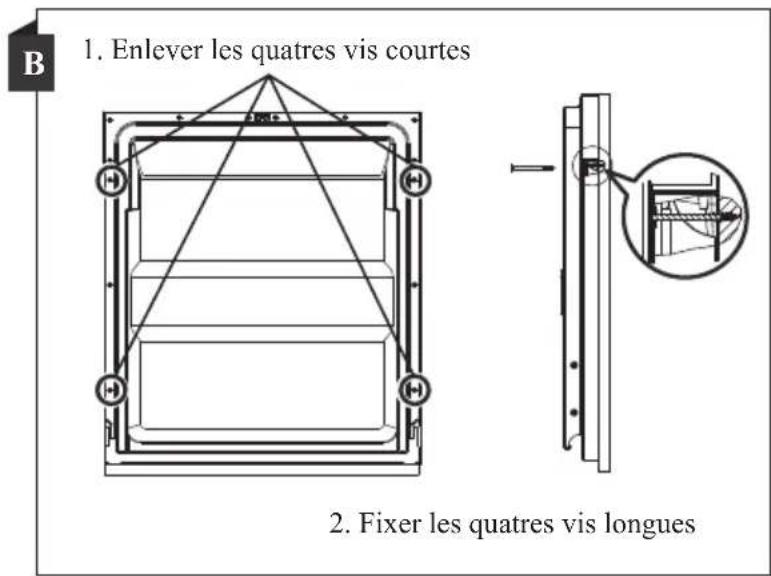

2.Pin up the four long screws 1.Take away the four short screws 2. If dishwasher is in stalled at the corner of the cabinet, there should be some space when the door is opened.CabinetDishwasherDoor of dishwasherMinimum space of 50mm NOTE: Depending on where your electrical outlet is, you may need to cut a hole in the opposite cabinet side. 55Step 3. Tension adjustment of the door spring

1. The door springs are set at the factory to

the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable.

2. Door spring tension is correct when the

door remains horizontal in the fully opened position, yet rises to a close with the slight lift of a finger. Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher (see figure A). After positioning of the panel , fix the panel onto the outer door by screws and bolts (See figure B).

2.Pin up the four long screws 1.Take away the four short screws Full-integrated model 56Step 4. Dishwasher installation steps

1. Affix the condensation strip under the work surface of cabinet. Please ensure the

condensation strip is flush with edge of work surface. (Step 2)

2. Connect the inlet hose to the cold water supply.

3. Connect the drain hose.

4. Connect the power cord.

5. Place the dishwasher into position. (Step 4)

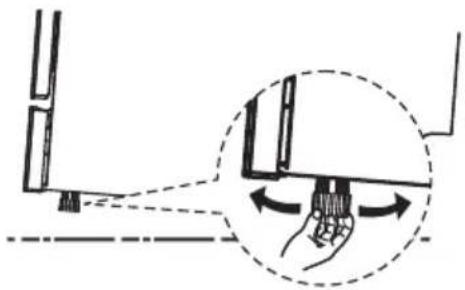

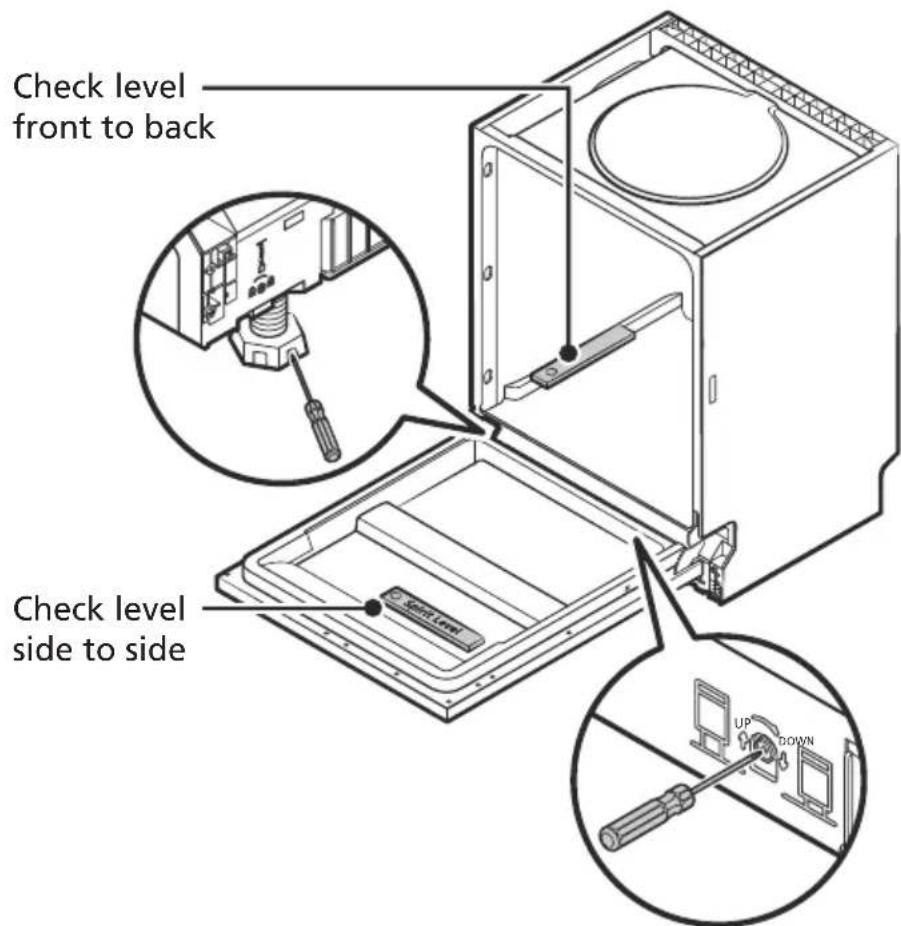

6. Level the dishwasher. The rear foot can be adjusted from the front of the

dishwasher by turning the Philips screw in the middle of the base of dishwasher use an Philips screw. To adjust the front feet, use a flat screw driver and turn the front feet until the dishwasher is level. (Step 5 to Step 6)

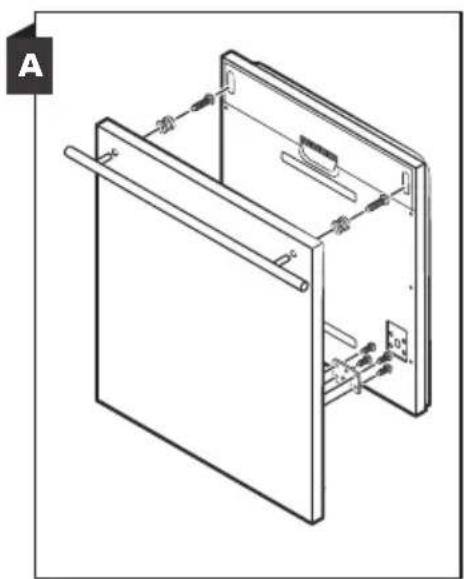

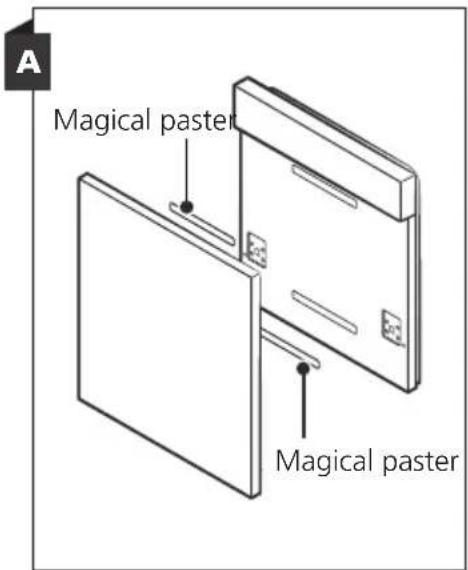

7. Install the furniture door to the outer door of the dishwasher. (Step 7 to Step 10)

8. Adjust the tension of the door springs by using an Allen key turning in a clockwise

motion to tighten the left and right door springs. Failure to do this could cause damage to your dishwasher. (Step 11)

9. The dishwasher must be secured in place. Fix the side with screws.

Please refer to the specified installation steps in the installation drawings. Please refer to the specified installation steps in the installation drawings. 57UP DOWN Check level front to back Check level side to side Step 5. Levelling the dishwasher Dishwasher must be level for proper dish rack operation and wash performance. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. Level the dishwasher by adjusting the three levelling legs individually. When level the dishwasher, please pay attention not to let the dishwasher tip over.

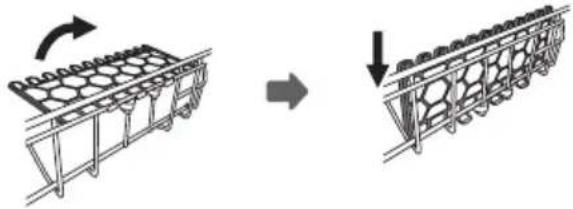

The maximum adjustment height of the feet is 50 mm. NOTE: 581.Upper basket: 2.Lower basket:

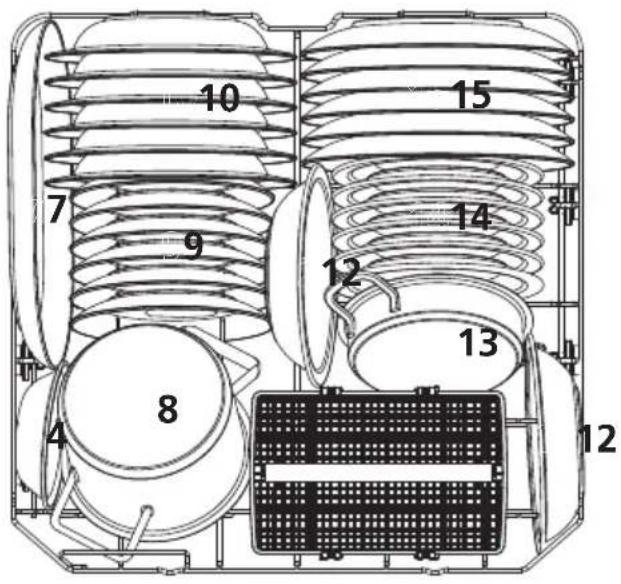

Cups Dessert bowlsGlasses Mugs SaucersGlass bowl Item Number

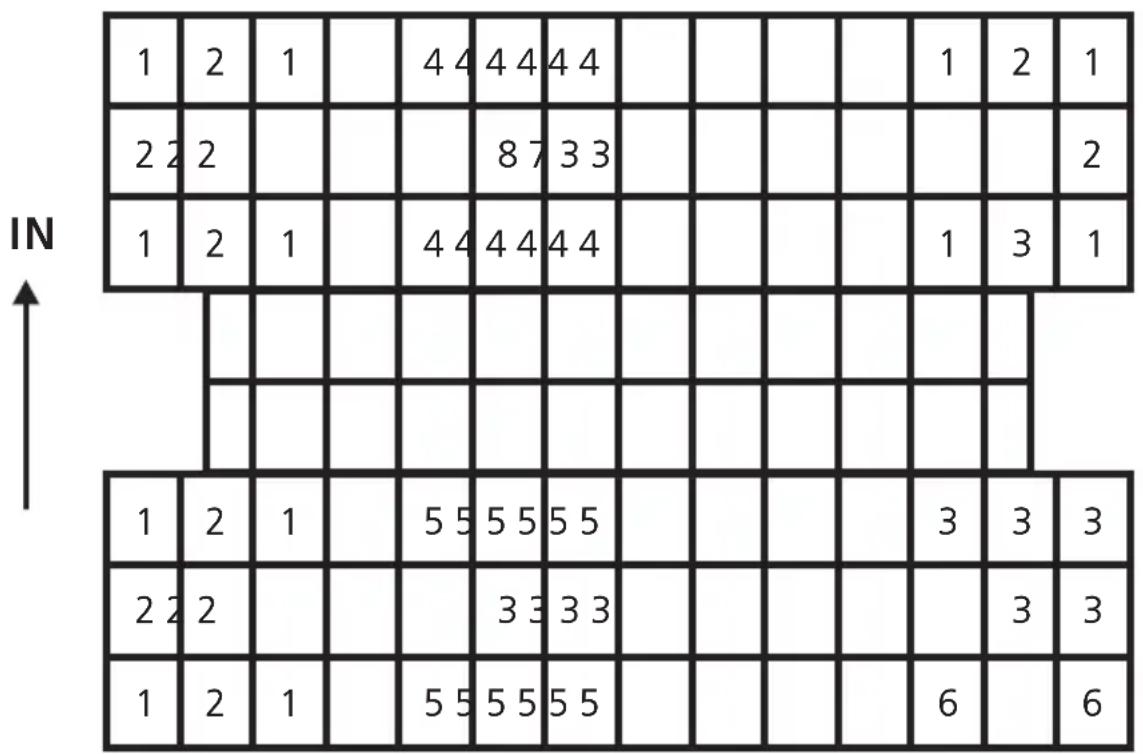

Soup spoons Forks Knives Teaspoons Dessert spoons Serving spoons Serving forks Gravy ladles Item Number Information for comparability tests in accordance with EN60436 Capacity: 12 place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: Max Softener setting: H3

According this manual loading the household dishwasher will contribute to energy and water savings .

60USING YOUR DISHWASHER

Control Panel Operation (Button) Power Program Press this button to turn on your dishwasher. Intensive Heavily soiled items include pots and pans. With dried on food. Universal For normally soiled loads, such as pots, plates, glasses and lightly soiled pans. ECO This is the standard program suitable for normally soiled loads, such as pots, plates, glasses and lightly soiled pans.

It is the most efficient programme of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation

in termsRapid A shorter wash for lightly soiled loads that do not need drying. 90 min For normally soiled loads that need quick wash. Display Warning indicator Salt If the indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled. Rinse Aid If the indicator is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill. Program

Delay Half-load Press the button to set the delay time (3h/6h/9h). When you have about or less than six sets of dishware to be washed, you can choose this function to save energy and water. (It can only be used with Intensive, Universal, ECO and 90 min.)

Press this button to improve the drying efficiency. (It can only be used with Intensive, Universal, ECO and 90 min.) 62H1-> Rapid Light brightH2-> 90 min Light brightH3-> Rapid, 90 min Light brightH4-> Eco Light brightH5-> Rapid, Eco Light brightH6-> 90 min, Eco Light bright Water Softener The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The more minerals there are, the harder your water is. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area. Adjusting salt consumption The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level o f salt consumption.

1. Switch on the appliance;

2. Press the Rapid button for more than 5 seconds to start the water softener set

model within 60seconds after the appliance was switched on;

3. Press the Rapid button to select the proper set according to your local

environment, the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;

4. Press the On/Off button to end the set up model.

Please follow the steps below for adjustment in salt consumption. dH=1.25 Clarke=1.78 fH=0.178mmol/l

The manufactory setting: H3 Contact your local water board for information on the hardness of your water supply.

French French fH fHFrench Mmol/lMmol/lMmol/lWater softener levelWater softener levelWater softener levelBritish British ClarkeClarkeBritish Clarke WATER HARDNESS 63NOTE: If your model does not have any water softener, you may skip this section. Water Softener The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water. Preparing And Loading Dishes Consider buying utensils which are identified as dishwasher-proof. For particular items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. Cutlery with wooden, horn china or mother-of-pearl handles Plastic items that are not heat resistant Older cutlery with glued parts that are not temperature resistant Bonded cutlery items or dishes Pewter or cooper items Crystal glass Steel items subject to rusting Wooden platters Items made from synthetic fibres Some types of glasses can become dull after a large number of washes Silver and aluminum parts have a tendency to discolor during washing Glazed patterns may fade if machine washed frequently For washing the following cutlery/dishes Are not suitable Are of limited suitability Please check the section Loading The Salt Into The Softener Please check the section 3 Loading The Salt Into The Softener

your dishwasher lacks salt. Generic Version, If your dishwasher lacks salt. Please check the section Loading The Salt Into The Softener If your dishwasher lacks salt.

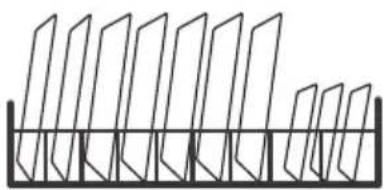

,Items such as cups, glasses, pots/pans, etc. are faced downwards. Curved items, or ones with recesses, should be loaded aslant so that water can run off. All utensils are stacked securely and can not tip over. All utensils are placed in the way that the spray arms can rotate freely during washing. Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base. Dishes and items of cutlery must not lie inside one another, or cover each other. To avoid damage, glasses should not touch one another. The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups. Long bladed knives stored in an upright position are a potential hazard! Long and / or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy. NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket. To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first, followed by the upper basket. Removing the dishes WARNING Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the program has ended. Recommendations for loading the dishwasher Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. For best performance of the dishwasher, follow these loading guidelines. (Features and appearance of baskets and cutlery baskets may vary from your model.) Place objects in the dishwasher in following way: 65Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water. WARNING Do not let any item extend through the bottom. Always load sharp utensils with the sharp point down! Loading the cutlery basket Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance. For the best washing effect, please load the baskets refer to standard For the best washing effect, please load the baskets refer to standard loading options on the section: LOADING THE BASKETS.loading options on Generic Version For the best washing effect, please load the baskets refer to standard loading options on the section: LOADING THE BASKETS. Loading the lower basket We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm. The maximum diameter advised for plates in front of the detergent dispenser is of 19 cm, this not to hamper the opening of it. 66The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. WARNING Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance. Function Of The Rinse Aid And Detergent Function of detergent The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose. WARNING Proper Use of Detergent Use only detergent specifically made for dishwashers use. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you are ready to wash dishes. Dishwasher detergent is corrosive!Keep dishwasher detergent out of the reach of children. When to refill the rinse aid The regularity of the dispenser needing to be refilled depends on how often dishes are washed and the rinse aid setting used. The Low Rinse Aid indicator ( ) will be lit when more rinse aid is needed. Do not overfill the rinse aid dispenser. 67Filling The Rinse Aid Reservoir

Close the cap after all.

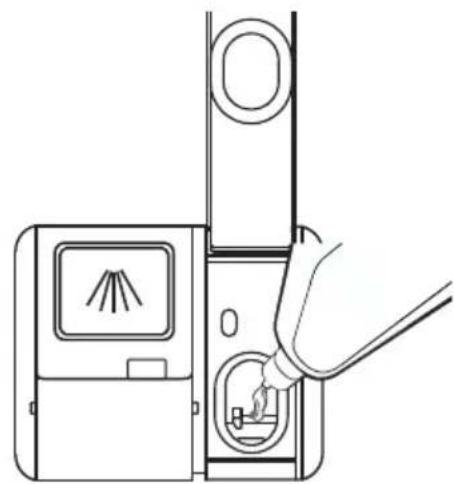

Remove the rinse reservoir cap by lifting up the handle . Pour the rinse aid into the dispenser, being careful not to overfill. Adjusting the rinse aid reservoir To achieve a better drying performance with limited rinse aid, the dishwasher is designed to adjust the consumption by user. Follow the below steps.

1. witch on the appliance.Open the door and s

2. Within 60 seconds after step 1, press the button more than 5 seconds, Rapid

and then press the Delay button to enter the set model, the rinse aid indication blinks as 1Hz frequency.

3. Press the button to select the proper set according to your using habits, Rapid

the sets will change in the following sequence: D1->D2->D3->D4->D5->D1. The higher the number, the more rinse aid the dishwasher uses.

4. Without operation in 5 seconds or press the Power button to complete the setup

and exit the setup mode.

Please choose an open way according to the actual situation.

1. Open the cap by sliding the release

2. Open the cap by pressing down the

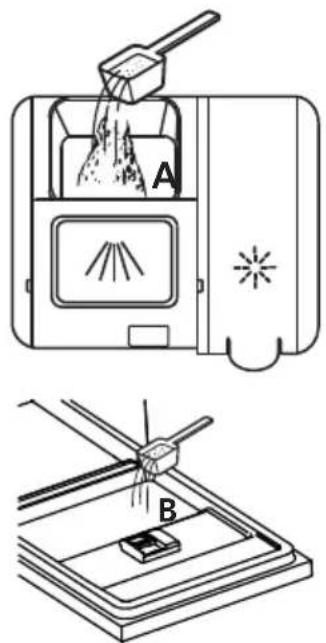

release catch. Add detergent into the larger cavity (A) for the main wash cycle . For better cleaning result, especially if you have very dirt items, pour a small amount of detergent onto the door. The additional detergent will activate during the pre-wash phase.

Close the flap by sliding it to the front and then pressing it down. AAA Sliding it to the rightPress down

BBB Filling The Detergent Dispenser NOTE: Be aware that depending on the soiling of water, setting may be different. Please observe the manufacturer's recommendations on the detergent packaging. 69Loading The Salt Into The Softener Only use salt specifically designed for dishwashers use! Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused. Only fill with salt before running a cycle. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion. WARNING Always use salt intended for dishwasher use. The salt container is located beneath the lower basket and should be filled as explained in the following: Please check the section “Water Softener” If you need to set the water softener . Please check the section “Water Softener” If you need to set the water softener . If your model does not have any water softener, you may skip this section. NOTE: Before using your dishwasher : Inside Outside

1. Set the water softener

2. Loading the salt Into the softener

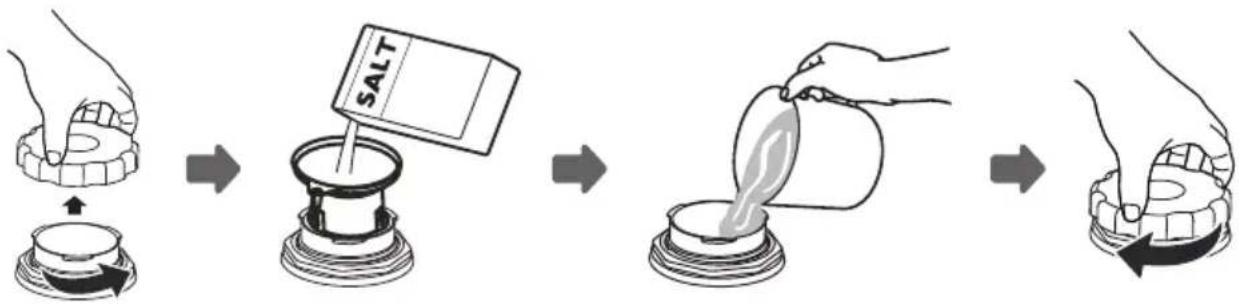

701. Remove the lower basket and unscrew the reservoir cap.

2. Place the end of the funnel (supplied) into the hole and pour in about 1.5kg of

3. Fill the salt container to its maximum limit with water, It is normal for a small

amount of water to come out of the salt container.

4. After filling the container, screw back the cap tightly.

5. The salt warning light will stop being after the salt container has been filled with salt.

6. Immediately after filling the salt into the salt container, a washing program should

be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty. NOTE: The salt container must only be refilled when the salt warning light ( ) in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled. If there is no salt warning light in the control panel (for some Models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run. If salt has spilled, run a soak or quick program to remove it. Please follow the steps below for adding dishwasher salt:

Please read the corresponding content on the instruction manual for detailed operating method.

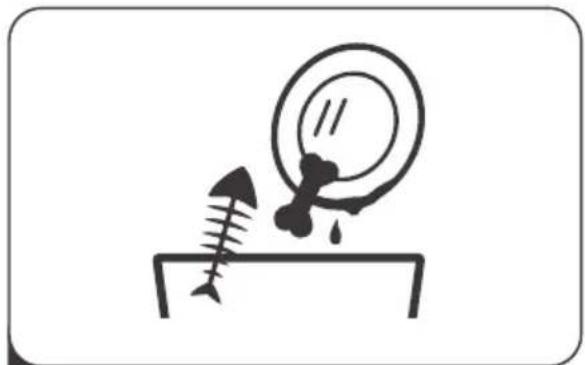

Removing the larger residue on the cutlery

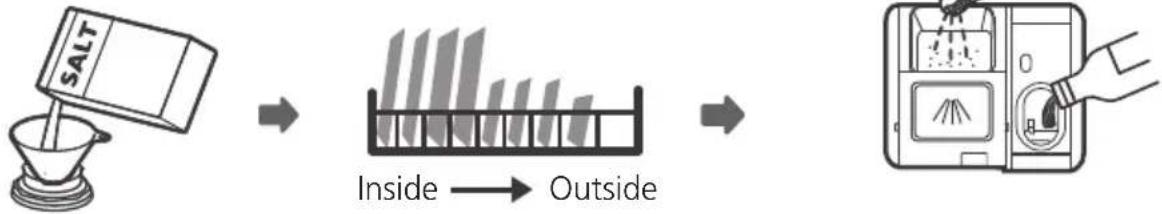

Filling the dispenser Selecting a program and running the dishwasher Inside Outside

72PROGRAMMING THE DISHWASHER

Wash Cycle Table EN 50242 The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. ( )Means: need to fill rinse into the Rinse-Aid Dispenser. EN60436: This program is the test cycle. The information for comparability test in accordance with EN60436. NOTE: ProgramRunningTime(min)Energy(Kwh)Water (L) DescriptionOf CycleRinse Aid DetergentPre/Main

Pre-wash of tableware items leads to increased water and energy consumption and is not recommended. Washing tableware in a dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the dishwasher is used according to the use manual . 733 sec Starting A Cycle Wash

1. Draw out the lower and upper basket, load the dishes and push them back.

It is commended to load the lower basket first, then the upper one.

2. Pour in the detergent.

3. Insert the plug into the socket. The power supply refer to last page Product fiche.

Make sure that the water supply is turned on to full pressure.

4. Open the door, Press the power button.

5. Choose a program, the response light will turn on. Then close the door, the

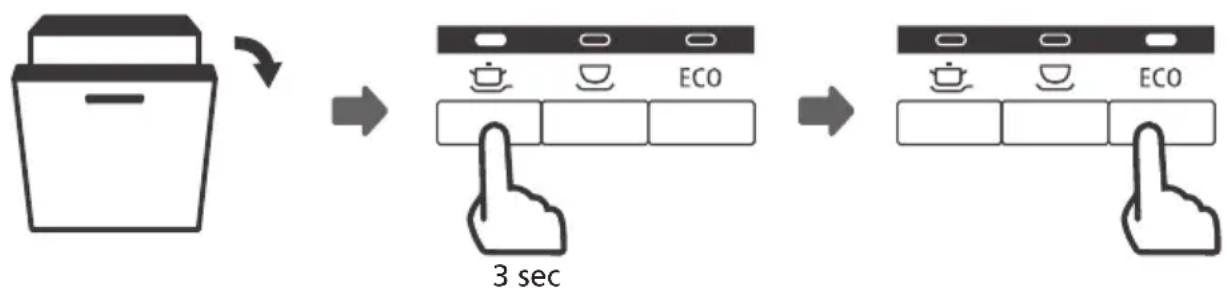

dishwasher will start its cycle. Changing The Program Mid-cycle A wash cycle can only be changed if it has been running for a short time otherwise, the detergent may have already been released and the dishwasher may have already drained the wash water. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below:

1. Open the door a little to stop the dishwasher, after the spray arm stop working,

you can open the door completely.

2. Press any Program button more than three seconds the machine will be in

3. You can change the program to the desired cycle setting.

74Forget To Add A Dish? A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below:

1. Open the door a little to stop the washing.

2. After the spray arms stop working, you can open the door completely.

3. Add the forgotten dishes.

5. The dishwasher will start running again.

WARNING It is dangerous to open the door mid-cycle, as hot steam may scald you.

75MAINTENANCE AND CLEANING

External Care The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed. The control panel If cleaning is required, the control panel should be wiped with a soft damp cloth only. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface. WARNING Internal Care Filtering system The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly and clean them if necessary under running water. Follow the steps below to clean the filters in the wash cabinet. NOTE: Pictures are only for reference, different models of the filtering system and spray arms may be different.

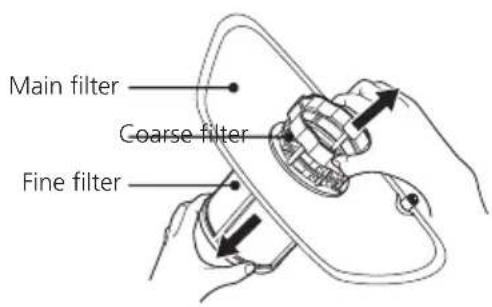

Hold the coarse filter and rotate it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher. The fine filter can be pulled off the bottom of the filter assembly. The coarse filter can be detached from the main filter by gently squeezing the tabs at the top and pulling it away.

Larger food remnants can be cleaned by rinsing the filter under running water. For a more thorough clean, use a soft cleaning brush. Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow. Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage. Never use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils. WARNING Main filter Main filter Coarse filterCoarse filter Fine filter 77Spray arms Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly. It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below:

To remove the lower spray arm, pull out the spray arm upward.

To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it. 78Caring For The Dishwasher Frost precaution Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher at the supply source.

2. Turn off the water supply and disconnect the water inlet pipe from the water valve.

3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)

4. Reconnect the water inlet pipe to the water valve.

5. Remove the filter at the bottom of the tub and use a sponge to soak up water in

the sump. After every wash After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside. Remove the plug Before cleaning or performing maintenance, always remove the plug from the socket. No solvents or abrasive cleaning To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers. When not in use for a longtime It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance. Moving the appliance If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back. Seals One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring. 79ERROR CODES If there is a malfunction, the dishwasher will display error codes to identify these: Codes Meanings Possible Causes Longer inlet time. Not reaching required temperature. Overflow. Malfunction of heating element . Some element of dishwasher leaks . Faucets is not opened, or water intake is restricted,or water pressure is too low. WARNING If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher. The Rapid light flicker fleetly The ECO light flicker fleetly The Rapid and 90 min light flicker fleetly 80TROUBLESHOOTING TIPS Before Calling For Service Reviewing the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Dishwasher doesn't start Fuse blown, or the circuit break tripped. Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher. Power supply is not turned on. Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket. Check that the water supply is connected properly and the water is turned on. Door of dishwasher not properly closed. Make sure to close the door properly and latch it. Water not pumped form dishwasher Twisted or trapped drain hose. Filter clogged. Kitchen sink clogged. Check the drain hose. Check coarse the filter. Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink that is not draining , you may need a plumber rather than a serviceman for dishwashers. Suds in the tub Wrong detergent. Water pressure is low Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the bottom of the dishwasher. Close the dishwasher door, then select any cycle. Initially, the dishwasher will drain out the water. Open the door after draining stage is complete and check if the suds have disappeared. Repeat if necessary. 81Spilled rinse-aid. Always wipe up rinse-aid spills immediately. Stained tub interior Detergent with colourant may have been used. Make sure that the detergent has no colourant. White film on inside surface Hard water minerals. To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent otherwise, it may cause foaming or suds. There are rust stains on cutlery The affected items are not corrosion resistant. A program was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle. Always run a wash program without any crockery after adding salt. Do not select the Turbo function (if present), after adding dishwasher salt. The lid of the softer is loose. Check the softener lid is secure. Problem Possible Causes What To Do Avoid washing items that are not corrosion resistant in the dishwasher. Knocking noise in the dishwasher A spray arm is knocking against an item in a basket Interrupt the program and rearrange the items which are obstructing the spray arm. Rattling noise in the dishwasher Items of crockery are loose in the dishwasher. Interrupt the program and rearrange the items of crockery. Knocking noise in the water pipes This may be caused by on-site installation or the cross-section of the piping. This has no influence on the dishwasher function. If in doubt, contact a qualified plumber. The dishes are not clean The dishes were not loaded correctly. See PART Ⅱ “Preparing And Loading Dishes”. The program was not powerful enough. Select a more intensive program. 82Not enough detergent was dispensed. Use more detergent, or change your detergent. Items are blocking the movement of the spray arms. Rearrange the items so that the spray can rotate freely. The filter combination is not clean or is not correctly fitted in the base of wash cabinet. This may cause the spray arm jets to get blocked. Clean and/or fit the filter correctly. Clean the spray arm jets. Cloudiness on glassware. Combination of soft water and too much detergent. Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean. Problem Possible Causes What To Do The dishes are not clean. White spots appear on dishes and glasses. Add more detergent. Black or grey marks on dishes Aluminium utensils have rubbed against dishes Use a mild abrasive cleaner to eliminate those marks. Hard water area can cause limescale deposits. Improper loading Load the dishwasher as suggested in the directions. Dishes are removed too soon Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can come out. Take out the dishes until the inside temperature is safe to touch. Unload the lower basket first to prevent the dropping water from the upper basket. Detergent left in dispenser Dishes block detergent dispenser Re-loading the dishes properly. The dishes aren't drying 83Problem Wrong program has been selected. With a short program, the washing temperature is lower, decreasing cleaning performance. Choose a program with a long washing time. Use of cutlery with a low-quality coating. Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher. Possible Causes What To Do The dishes aren't drying 84ReferenceRated voltageRated powerRated frequency 50Hz

1760-2100WALVI1247FIX

TECHNICAL INFORMATION 220-240V~ Note: More data information, please scan the QR code on the energy label. Note : loading the household dishwasher up to the 12 sets will contribute to energy and water savings on correct loading of tableware； The ECO program is suitable to clean normally soiled tableware, for this use, it is the most efficient program in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation . Washing tableware in a dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the dishwasher is used according to this instructions. Pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.

12CORRECT DISPOSAL OF THIS PRODUCT

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Please bring the batteries in the batteries disposal center (contact your retailer in order to protect the environment). Note:

• In accordance with Article L. 217 of the Consumer Code, your product has 2 year legal guarantee of conformity.

• Period of availability of repair spare parts: 5 years.

• To contact our After-Sales Service, before going to BUT store, call 09 78 97 97 97, from Monday to Saturday from 8:00 a.m. to 8:00 p.m. (Price of a local call). 86Tous les papiers se trient et se recyclent. BUT INTERNATIONAL 1 Avenue Spinoza 77184 Emerainville, France
